Table Lamp From Scrap

Hello friends welcome to my another project. In this project i'm gonna show you how to make a table lamp using a scrap things like a dead headphone.

It's a rechargeable by the way.

So let's get started.

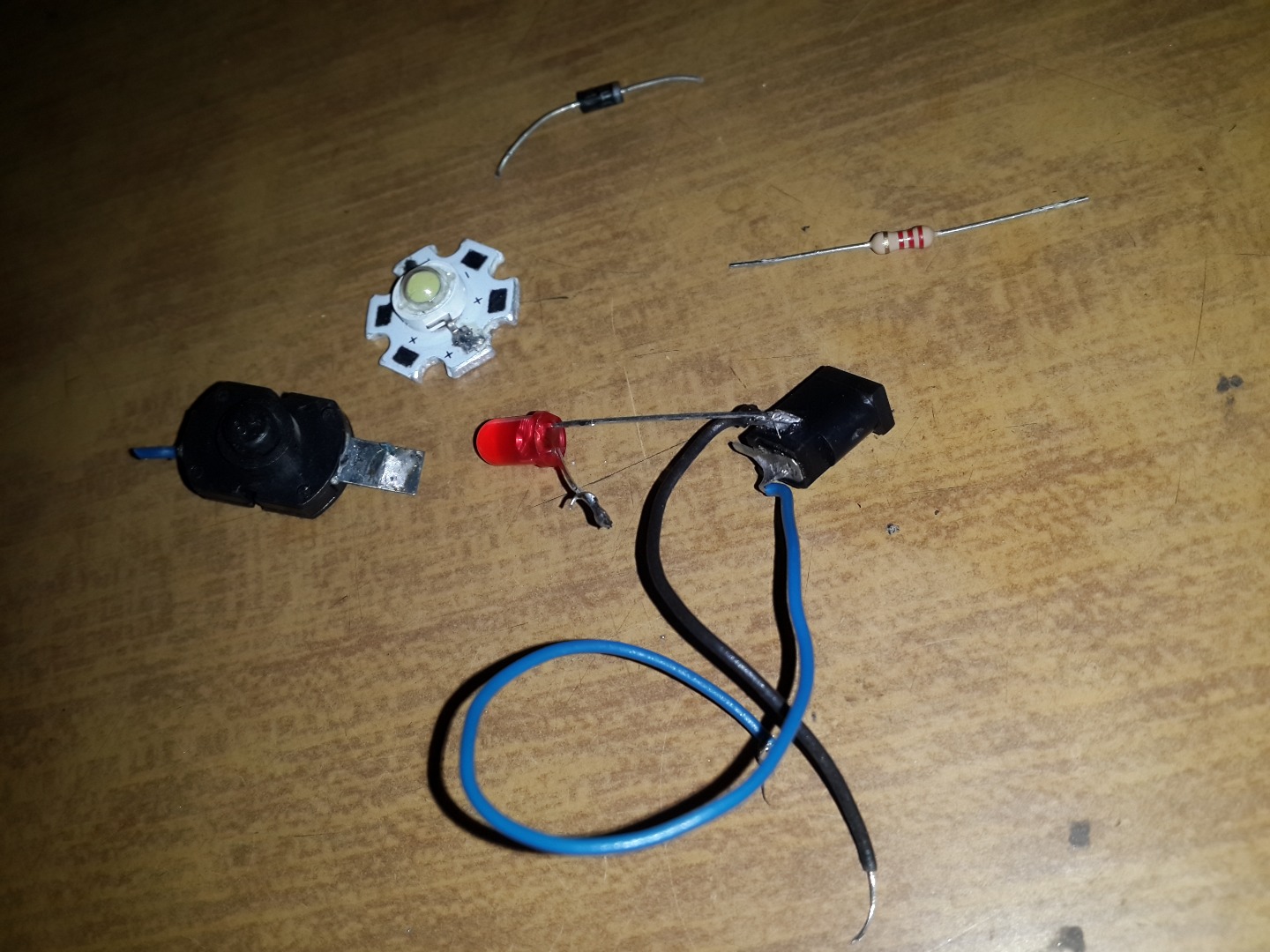

You'll need

2.2k resistor with red led

3.7 volt Li-ion battery

1 watt led bulb

1n4007 diode

female connector

on/off spst switch

dead headphone

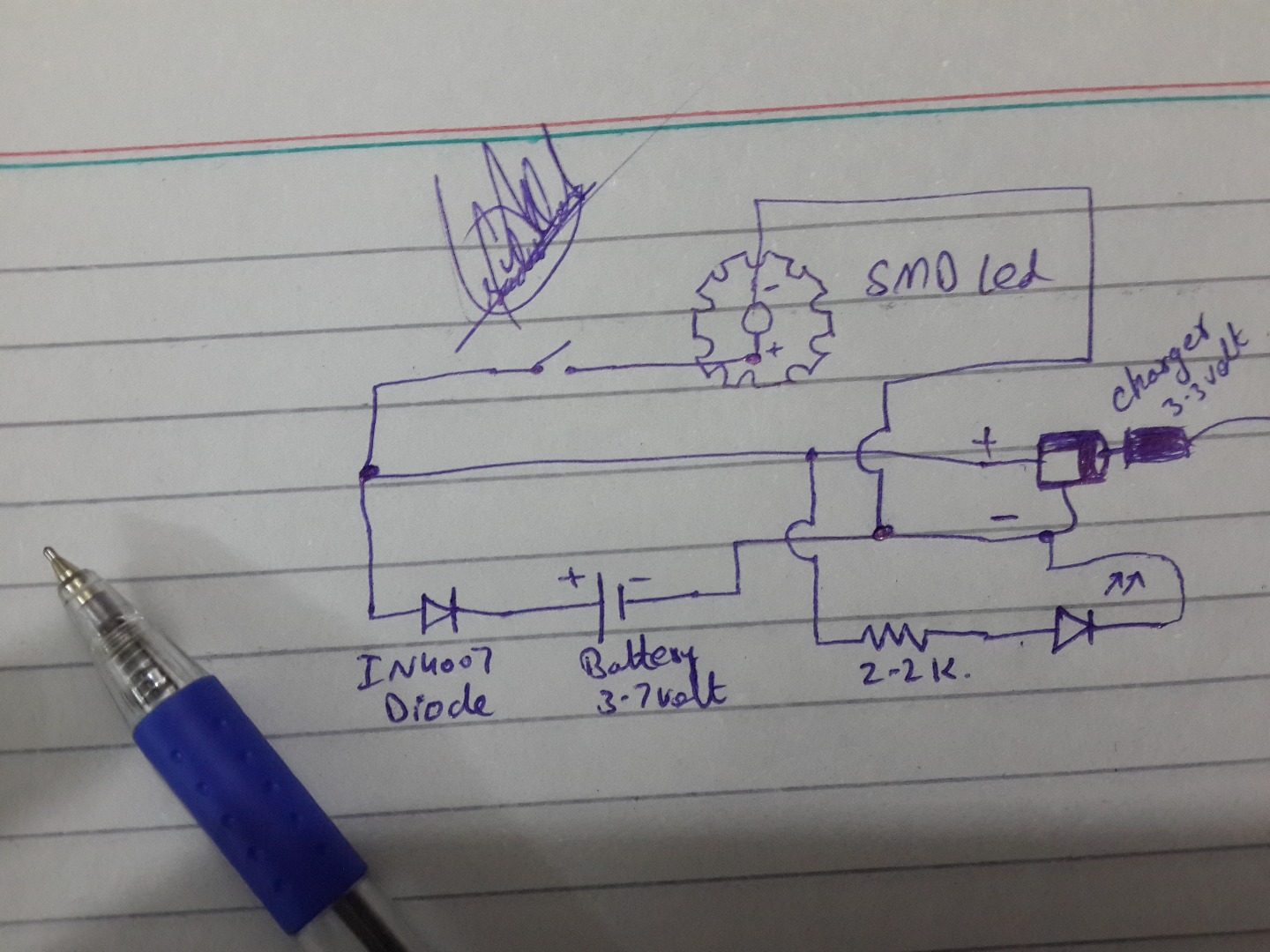

Open your headphone you'll need only left side of the headphone. Make a circuit according to circuit diagram and fit into the left side of the headphone. You don't need to pass a wire through microphone its already present in it simply remove the microphone and just replace with the 1 watt led. Fix the female connector on the right side of headphone's hole and fix the red led as a indicator on the other side of the headphone.

After fixing the all parts now finally your table lamp is ready to use.

I hope you guys like it.
