Recuse a 20W Portable Rechargeable Cordless LED Work Light by Attiny13a 3S Li Ion Battery

Hi friend today I will Recuse a 20W Portable Rechargeable Cordless LED Work Light by Attiny13a 3S Li Ion Battery

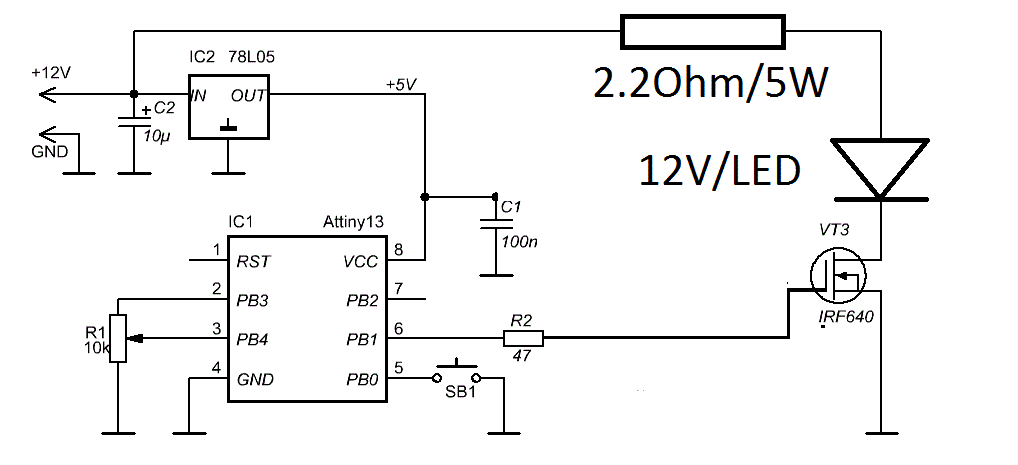

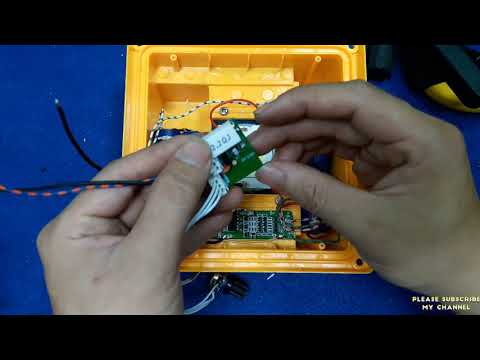

In this video i wills how you Recuse a 20W Portable Rechargeable Cordless LED Work Light by Attiny13a 3S li ion battery. You can download all file incude gerber and schematic file in description of video or here

I use Eagle software for make layout. You can download all of thing need to make PCB here. You can make at home by yourself but you can use my gerber file and upload to JLCPCB.COM for make PCB online. I order PCB from JLCPCB.COM alot of time and i alway get PCB with high quality only 2$ for 10PCB and Big Discount on First order Shipping.

List part:

Attiny 13A SMD

IRF3205

78L05

RESISTOR 47 OHM

RESISTOR 2.2 OHM 5W

CAPACITOR 10Uf/16V

BUTTON

PORTENTIOMETTER 10KILO OHM

Attiny13A must be program and fuse bit at picture before solder to PCB.

Thanks a lot
