Rechargeable Mouse

Hello! friends

Welcome to my another rechargeable mouse project. In this project i'm gonna show you simply how to convert your wireless mouse into rechargeable mouse. It's mean saving money now you don't need to buy more AA cells for your wireless mouse. Just follow the steps.

So let's get started.

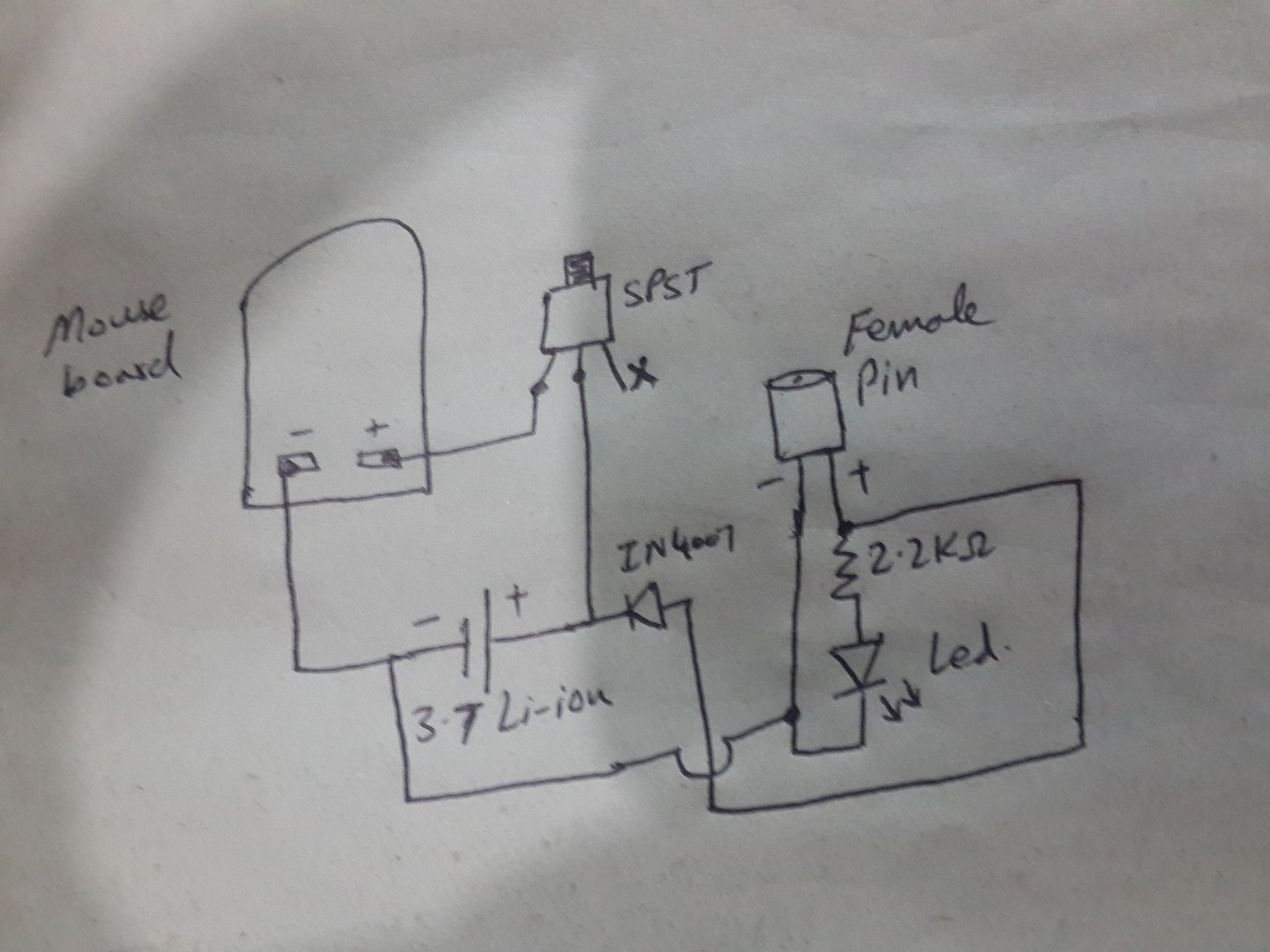

Here it is the simple circuit diagram with the help of this we can build our rechargeable mouse project.

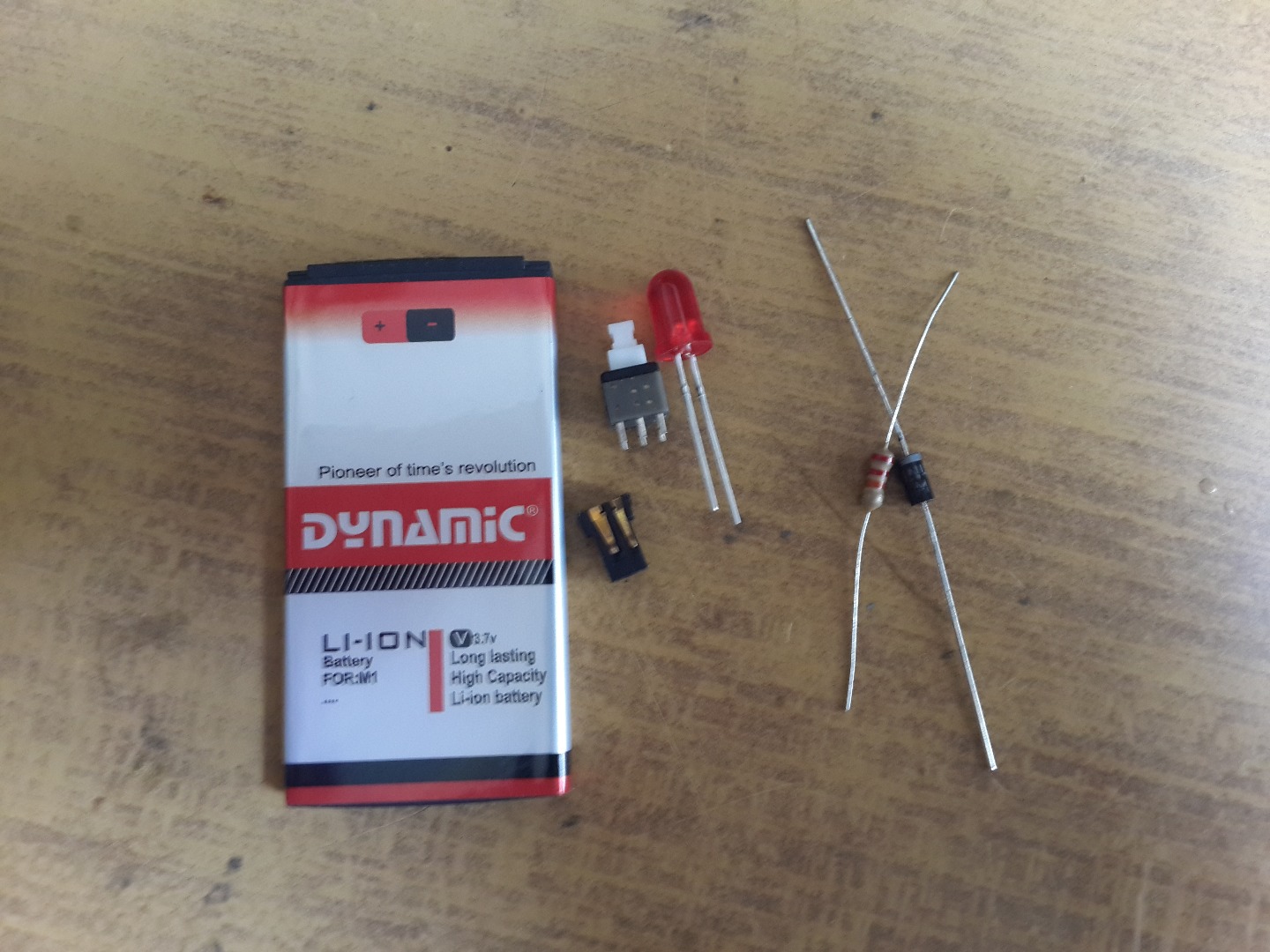

You'll need

1 spst switch

1 red led

1 diode 1n4007

female pin

2.2 kohms resistor

3.7 volt Li-ion battery

Some wires

Solder with soldering iron

mini drill with drill bits

First of all you'll need to disassemble your mouse and remove the all parts.

Join the all parts of electronics and make a small circuit according to the given diagram.

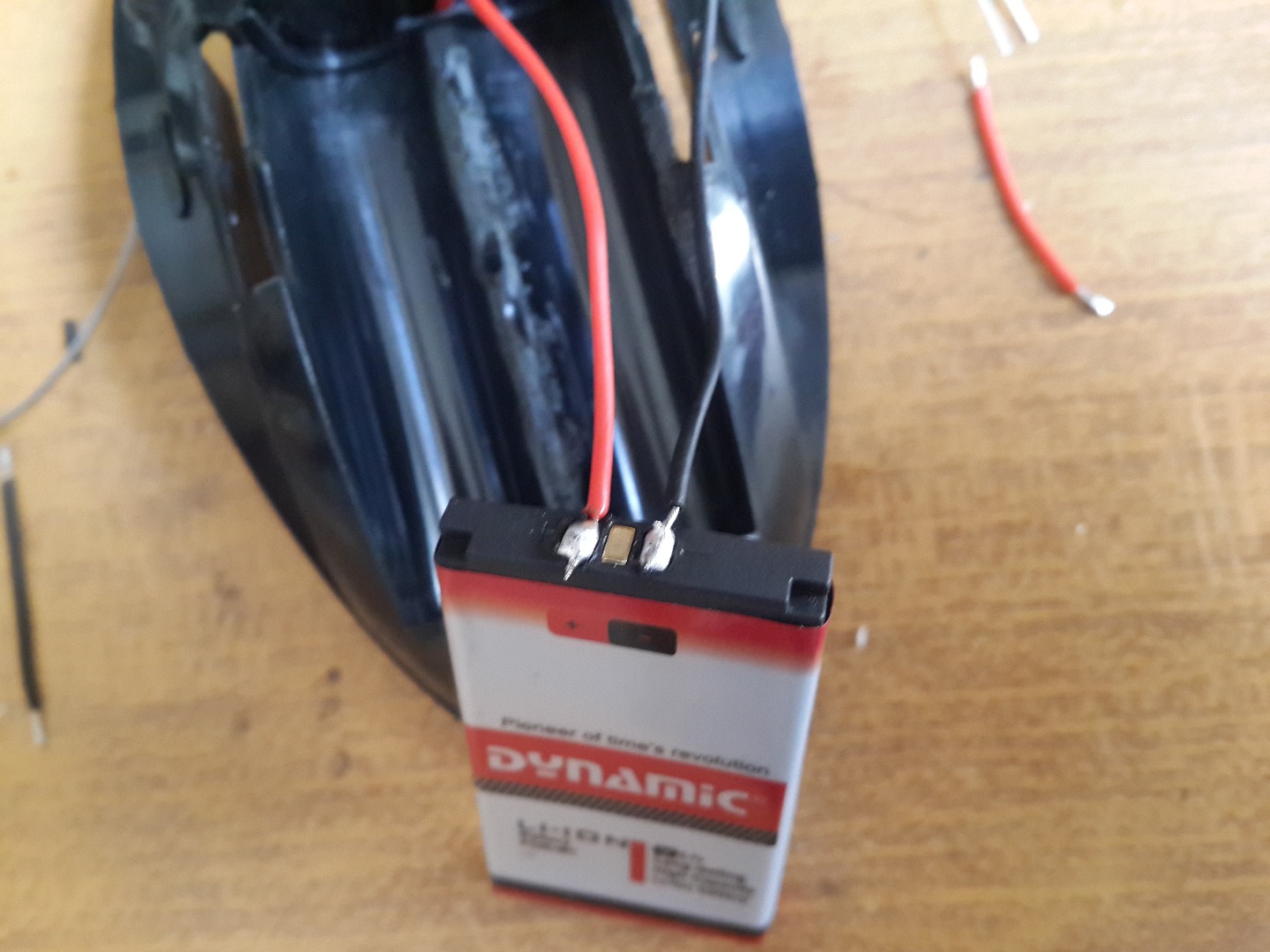

Make two holes according to the size of connector and switch. Install your circuit on a mouse board according to diagram.

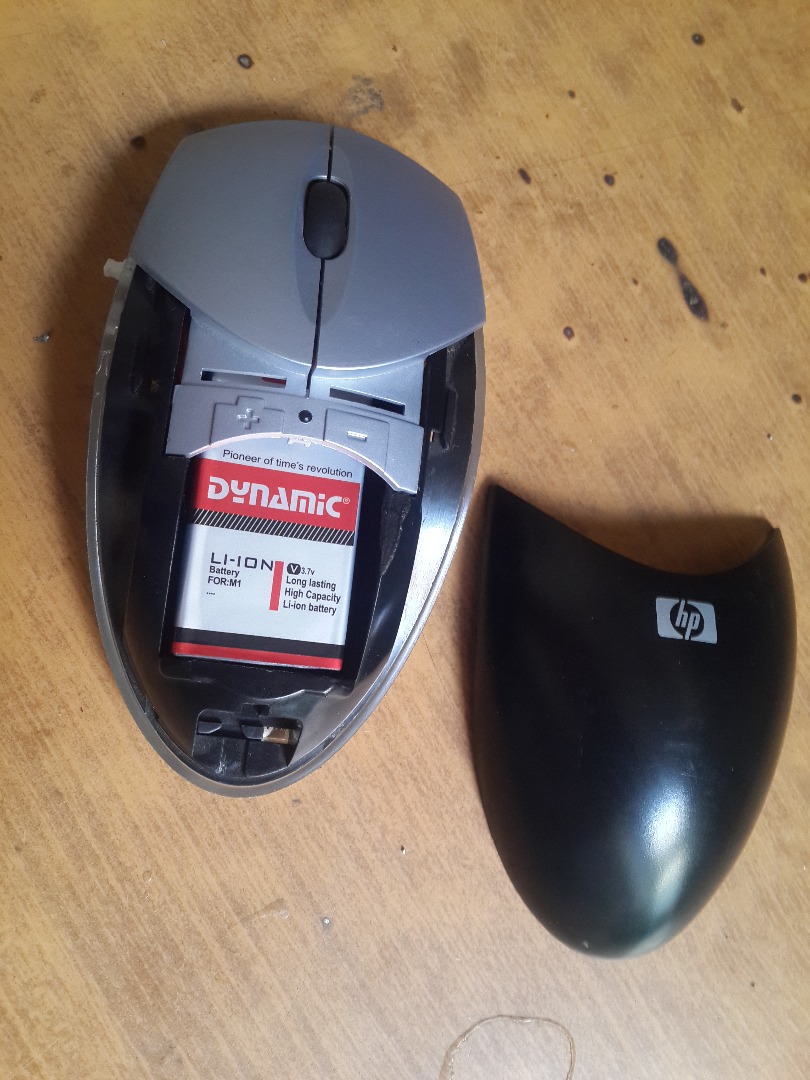

Remove the piece of plastic inside the AA size battery holder of mouse and fix your Li-ion battery in it and now reassemble your mouse it's almost ready to use.

Now connect your charger pin into female connector for charging you can see the led status is 1 which means it's working correctly.

Press the button "on" of your rechargeable mouse and enjoy.

Thanks for watching.

I hope you guys like it. I'll be back with my new project.
