Rechargeable LED Softbox
![DSC_4447.JPG](/proxy/?url=https://content.instructables.com/FG2/HWUP/KBB41VF3/FG2HWUPKBB41VF3.jpg&filename=DSC_4447.JPG)
![DSC00086.JPG](/proxy/?url=https://content.instructables.com/FVJ/GK6D/KBB41VHP/FVJGK6DKBB41VHP.jpg&filename=DSC00086.JPG)
In this small project i want to do a low cost softbox as lighter as i can and i like to power it just with a portable battery charger (that you can use and re-use) in order to move it freely around it.
Supplies
The things that i need in order to make it:
- 1 plastic container
- 16 LED lights
- 16 220 Ohms resistors
- Some wire to connect and soldering wire too
- 1 can of white paint in spray 1-PVC pipe (the most lighter you can get)
- 8 screws with their respective bolts
- 4 clips
- 1 small piece of thin wood

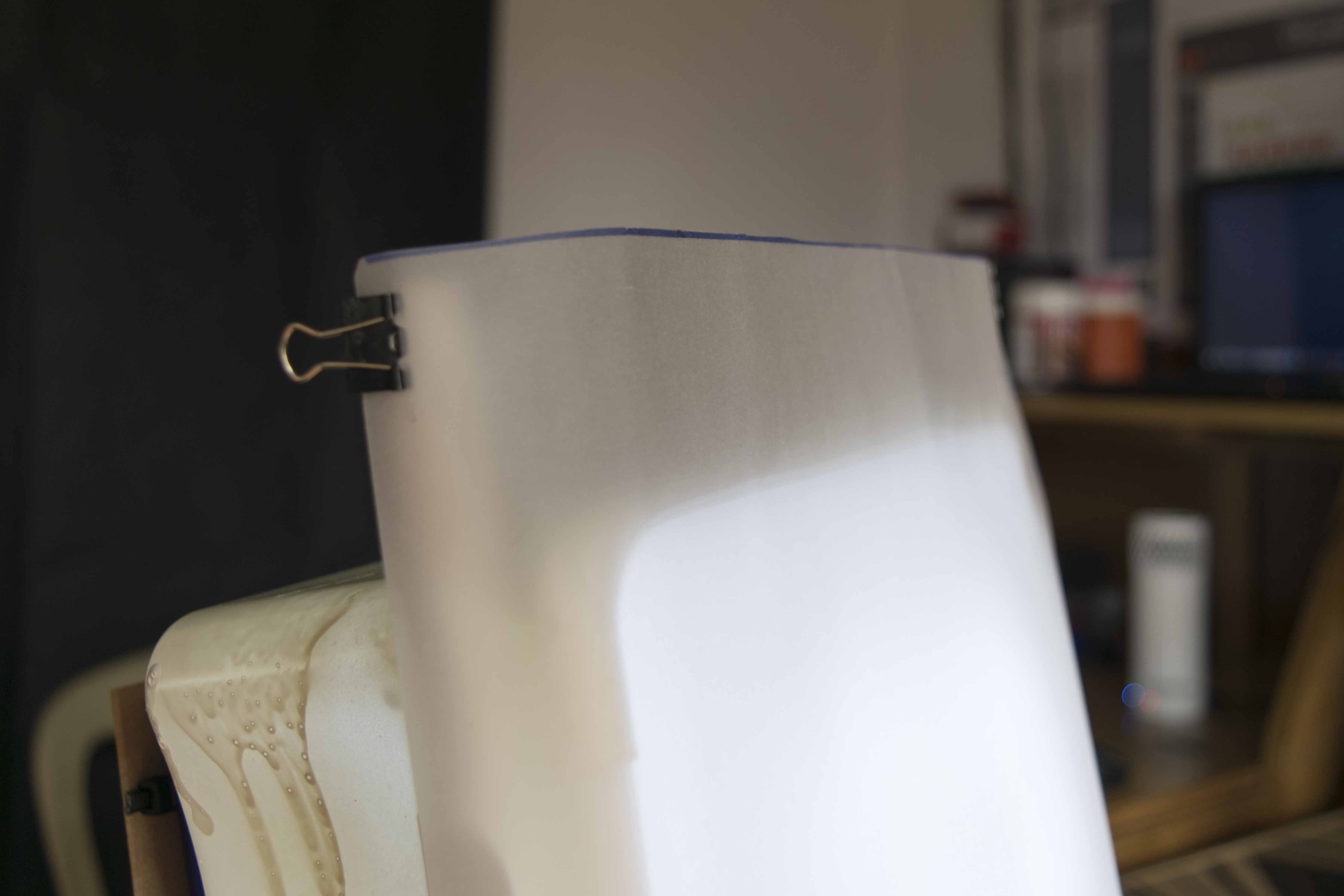

- Paper (to diffuse the light)
- 1 battery charger
The Base
![DSC00095.JPG](/proxy/?url=https://content.instructables.com/FWK/C535/KBB41W19/FWKC535KBB41W19.jpg&filename=DSC00095.JPG)
![DSC00091.JPG](/proxy/?url=https://content.instructables.com/FZW/49TL/KBB41VZM/FZW49TLKBB41VZM.jpg&filename=DSC00091.JPG)
![DSC00089.JPG](/proxy/?url=https://content.instructables.com/FIR/YYPZ/KBB41WL9/FIRYYPZKBB41WL9.jpg&filename=DSC00089.JPG)
![DSC00088.JPG](/proxy/?url=https://content.instructables.com/FZF/T4A3/KBB41WJY/FZFT4A3KBB41WJY.jpg&filename=DSC00088.JPG)
![DSC_4368.JPG](/proxy/?url=https://content.instructables.com/FGX/JH21/KBB41VYP/FGXJH21KBB41VYP.jpg&filename=DSC_4368.JPG)
In the first part i will make a square hole at the bottom of the plastic container and cut a small piece of wood that can cover the entire hole and a little bit more.

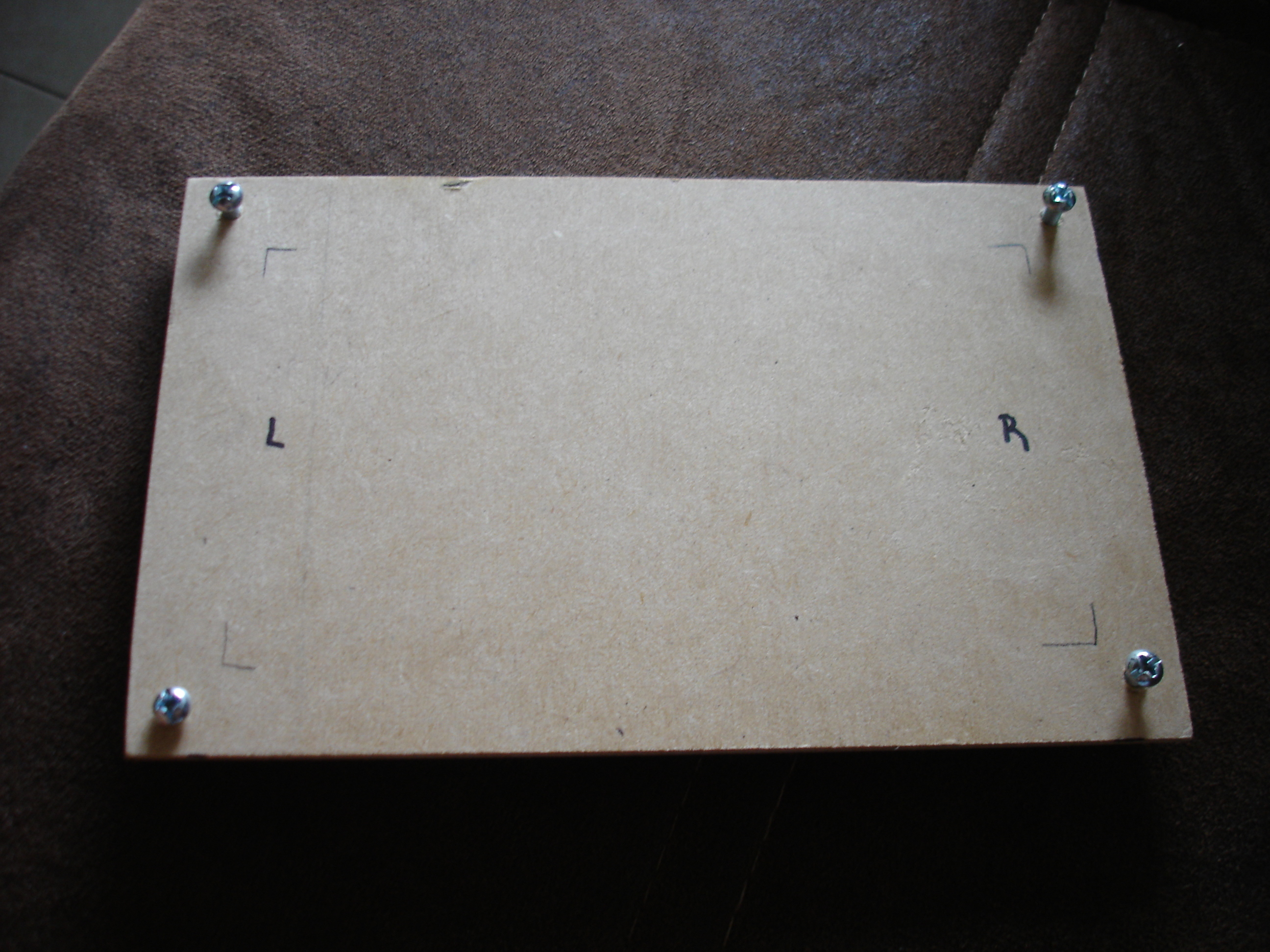

I will put the wood into the final position and attach it with four screws and bolts.

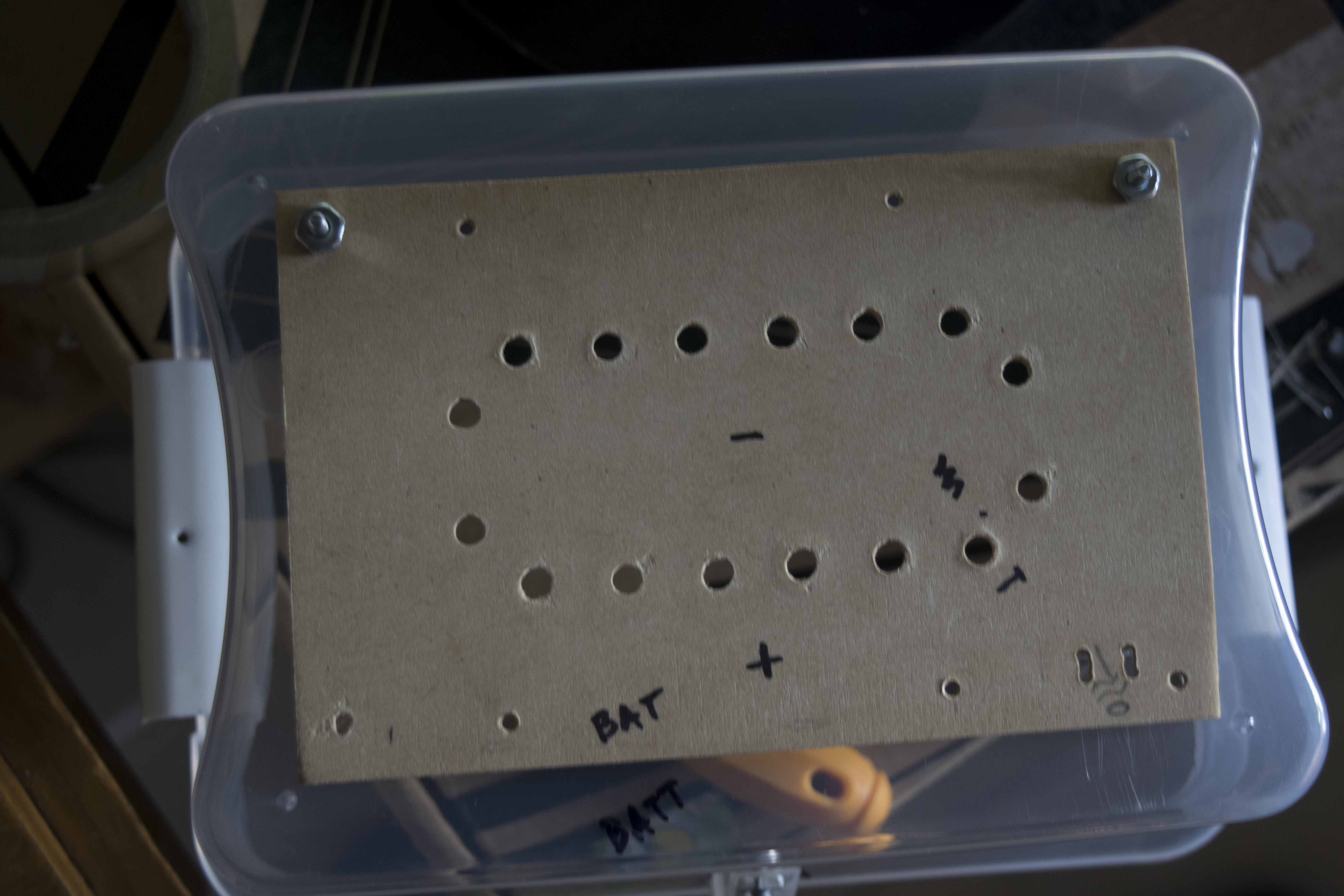

After that i will drill trough the holes to install the LEDs.
The Diffuser Holders
![DSC00099.JPG](/proxy/?url=https://content.instructables.com/FU1/HF77/KBB41XC6/FU1HF77KBB41XC6.jpg&filename=DSC00099.JPG)
![DSC00088b.jpg](/proxy/?url=https://content.instructables.com/FYC/2QRV/KBB420EO/FYC2QRVKBB420EO.jpg&filename=DSC00088b.jpg)
![DSC_4448.JPG](/proxy/?url=https://content.instructables.com/F4B/FW15/KBB41X9O/F4BFW15KBB41X9O.jpg&filename=DSC_4448.JPG)
![DSC_4449.JPG](/proxy/?url=https://content.instructables.com/FJD/K9ZC/KBB41XB1/FJDK9ZCKBB41XB1.jpg&filename=DSC_4449.JPG)

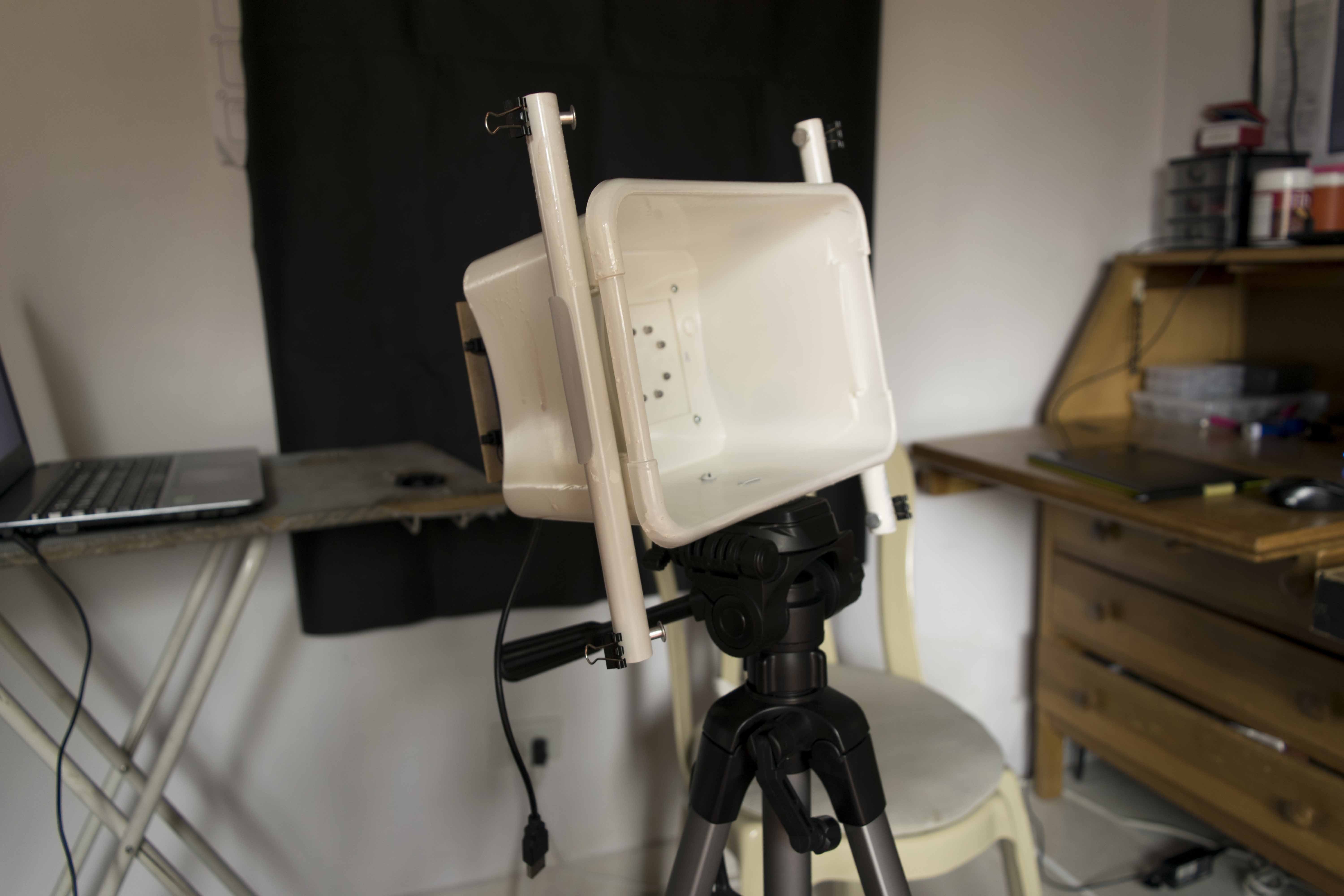

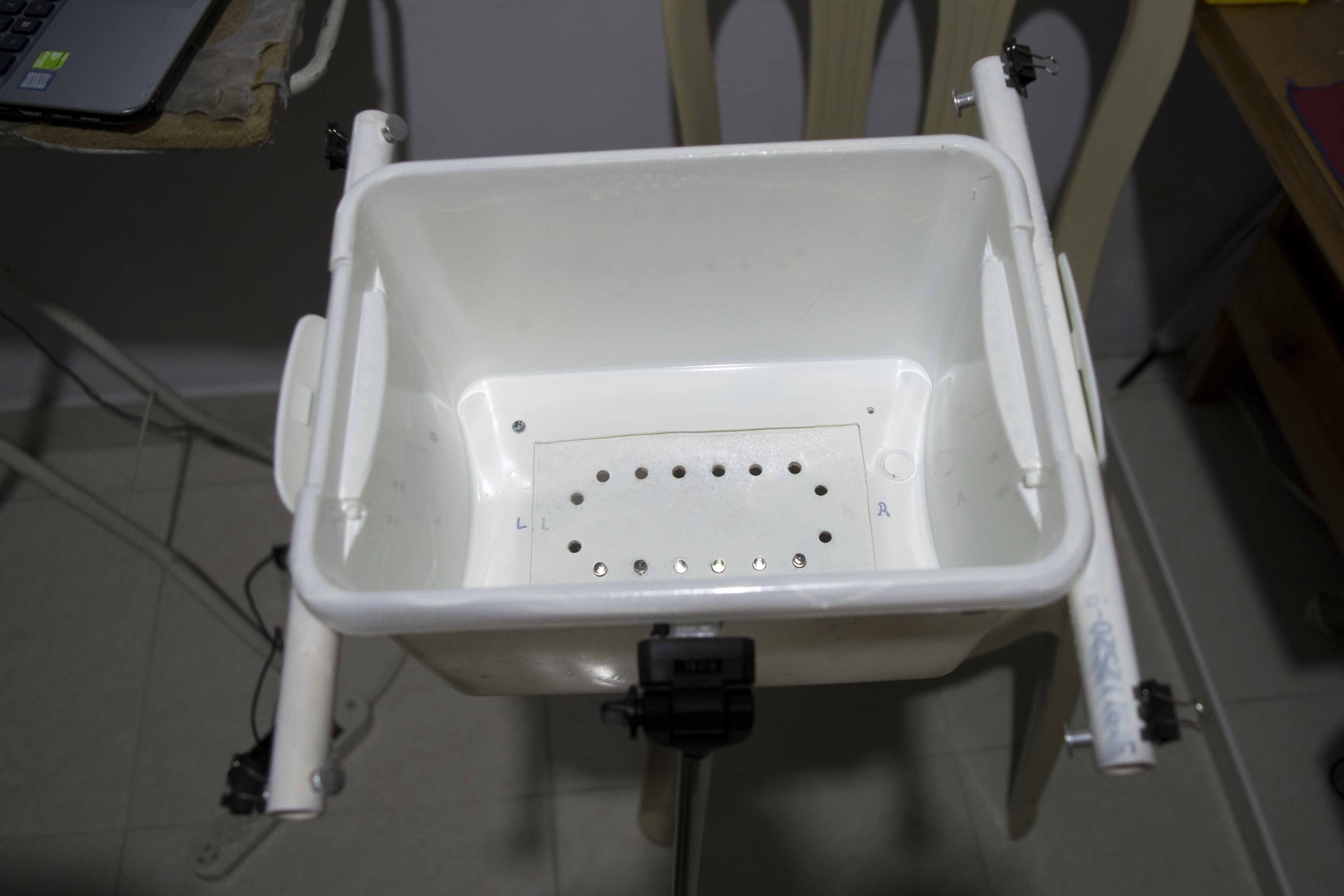

With two sections of the PVC pipe i will make the part that will serve as a sustain of the square of paper (...that will work as a diffuser for the lights). I will attach this at the middle of each pipe with a screw (holes are made with a drill) and that will go into the "ears" of the plastic container just to make it a little more flexible.
At the tip of each pipe i will install the metallic paper clips.
Paint and Soldering
![DSC_4371.JPG](/proxy/?url=https://content.instructables.com/F9H/932Y/KBB41YN5/F9H932YKBB41YN5.jpg&filename=DSC_4371.JPG)
![DSC_4365.JPG](/proxy/?url=https://content.instructables.com/FOM/AJUA/KBB41YN6/FOMAJUAKBB41YN6.jpg&filename=DSC_4365.JPG)
![DSC_4372.JPG](/proxy/?url=https://content.instructables.com/FDS/SGNJ/KBB41Z78/FDSSGNJKBB41Z78.jpg&filename=DSC_4372.JPG)
![DSC_4373.JPG](/proxy/?url=https://content.instructables.com/FHL/IJ7E/KBB41ZEK/FHLIJ7EKBB41ZEK.jpg&filename=DSC_4373.JPG)
![DSC_4442.JPG](/proxy/?url=https://content.instructables.com/FBG/DAXU/KBB41ZO9/FBGDAXUKBB41ZO9.jpg&filename=DSC_4442.JPG)
![DSC_4443.JPG](/proxy/?url=https://content.instructables.com/FP2/GVCO/KBB41ZQQ/FP2GVCOKBB41ZQQ.jpg&filename=DSC_4443.JPG)
A paint job will ensure that the light doesn't escape trough the transparent plastic, i choose white but it could be silver, or even so you can cover with aluminium foil.

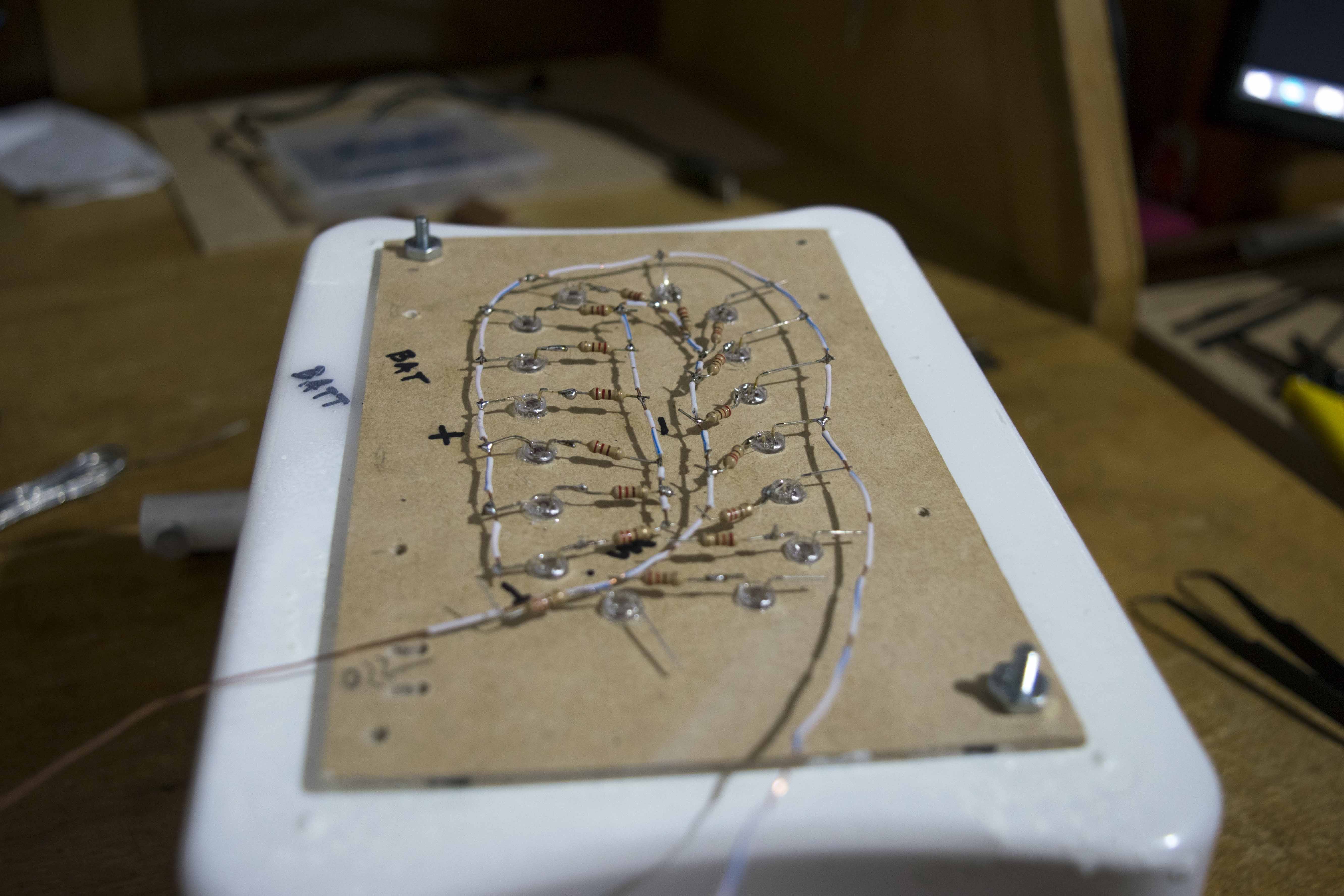

I start to solder the resistors to the negative leg of each LED.
The other leg (+) will complete the circuit.
I found a small plastic piece that i install at the bottom to make the connection with the tripod.
Power Supply and Connection
![DSC_4444.JPG](/proxy/?url=https://content.instructables.com/F1A/CRSA/KBB41ZVS/F1ACRSAKBB41ZVS.jpg&filename=DSC_4444.JPG)
![DSC_4446.JPG](/proxy/?url=https://content.instructables.com/FD2/W17K/KBB41ZVQ/FD2W17KKBB41ZVQ.jpg&filename=DSC_4446.JPG)
![usb.jpg](/proxy/?url=https://content.instructables.com/FJU/TK0H/KBB421CA/FJUTK0HKBB421CA.jpg&filename=usb.jpg)

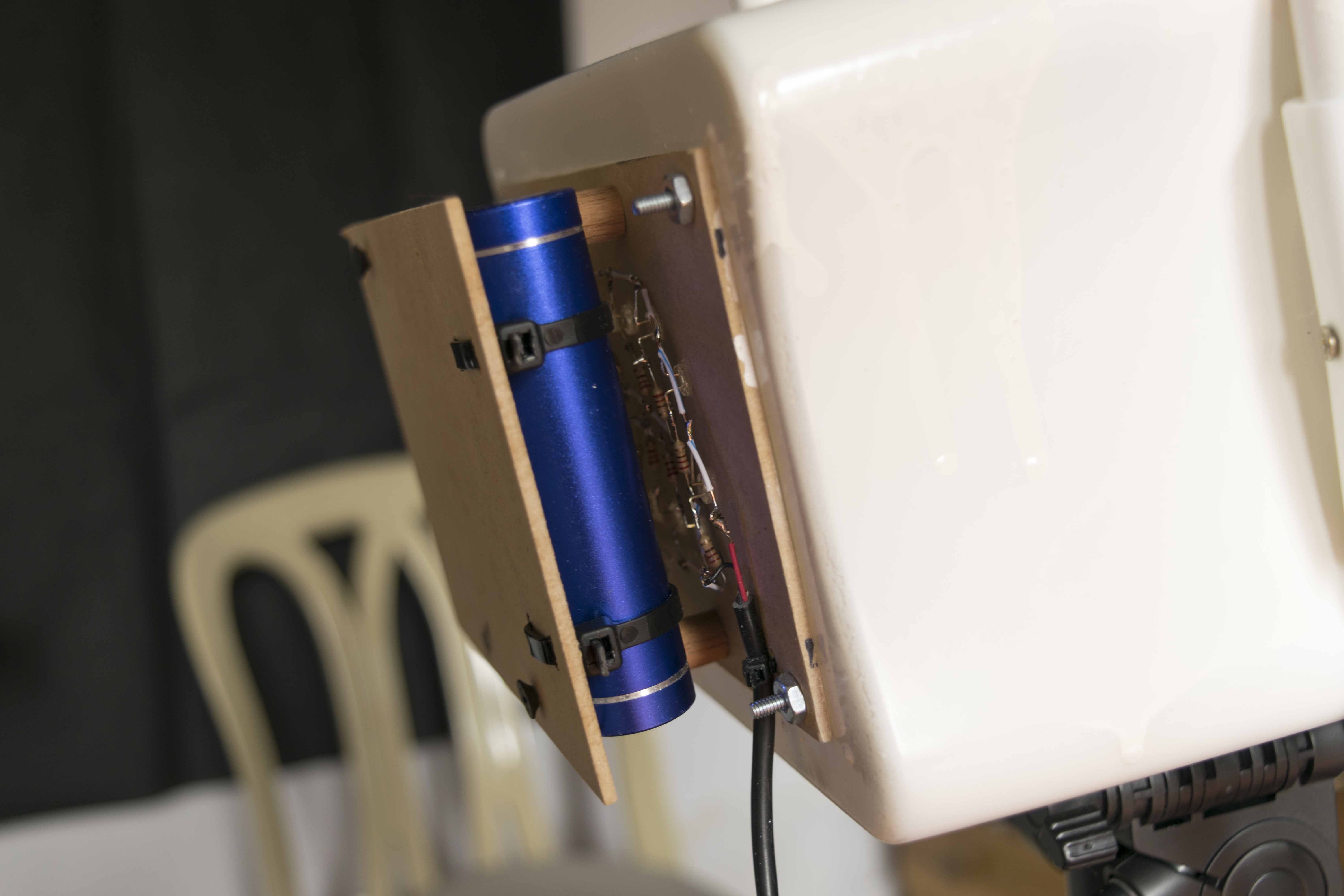

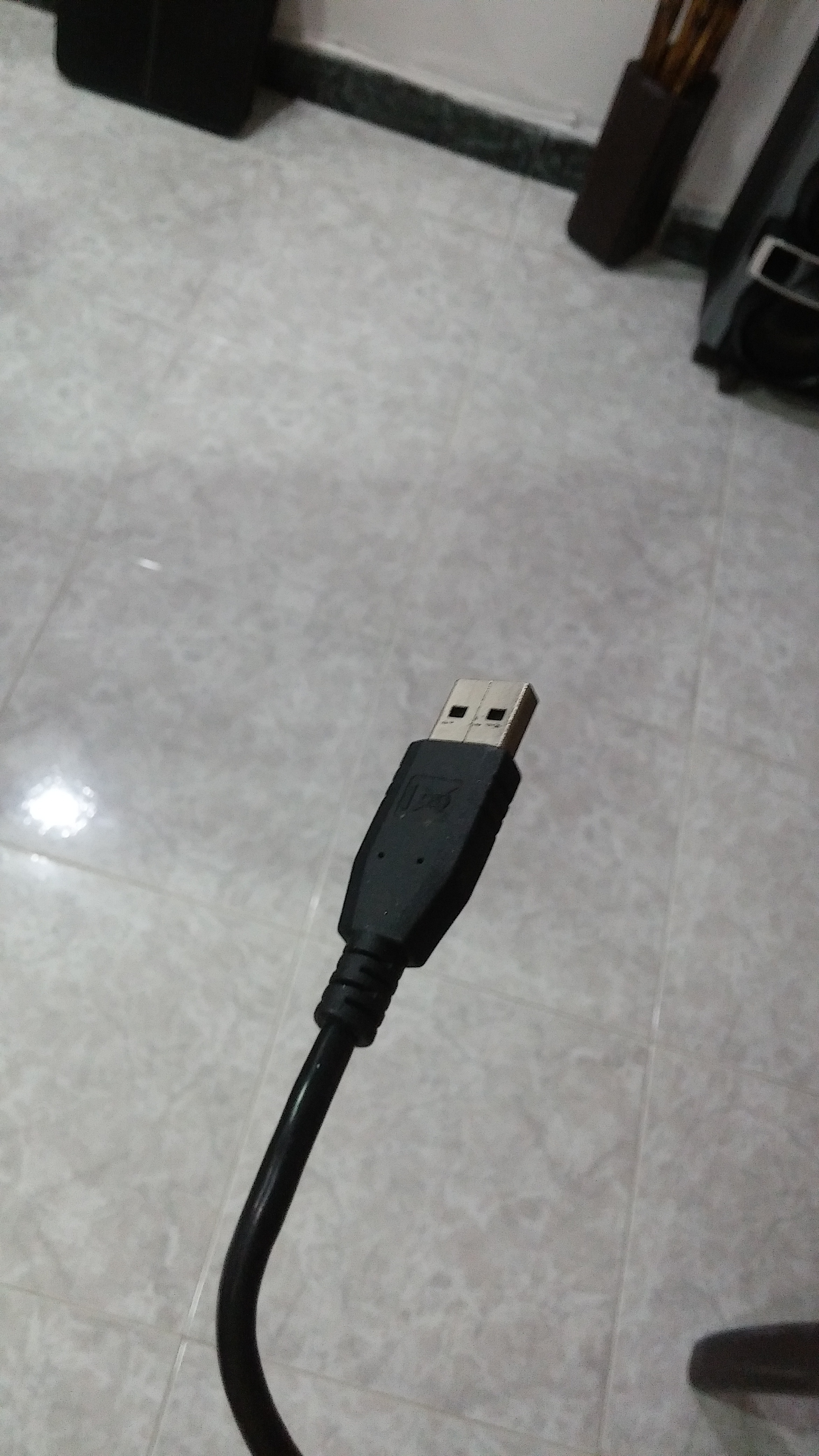

The battery charger will go behind the circuit attached with two nylon stripes and the connection will be an USB cable that i cut.
At the end will look more or less like in the third photo.
Conclussion and Self Criticism
![DSC_4452.JPG](/proxy/?url=https://content.instructables.com/FXS/KXXB/KBB4206Q/FXSKXXBKBB4206Q.jpg&filename=DSC_4452.JPG)
And that's it, there you have my version of a low cost rechargeable softbox.
After use it a little bit i can tell that i could use a lighter plastic container, i could use some more LEDs and make the connection a more stable with some piece of wood or something.
