Rechargeable LED Emergency Light

by Technoreview85 in Circuits > LEDs

3335 Views, 8 Favorites, 0 Comments

Rechargeable LED Emergency Light


It is simple rechargeable LED emergency light Let's make it

You can watch making video here

You Need to Make

Snapshot - 156.png
Snapshot - 153.png
Snapshot - 154.png
Snapshot - 155.png

4v rechargeable battery

4v SMD LED 6 X2 = 12 piece

nokia charger socket

led & 220 ohm resistor for charging indicator

1N4007 diode

wire

switch

plastic box

glue stick

& any thin pin charger for charging

Connections & Making

Snapshot - 158.png
Snapshot - 157.png
Snapshot - 159.png
Snapshot - 160.png

here I use a normal led for charging indicator so I use a diode & 220 ohm resistor for it

connect all components as per the circuit diagram

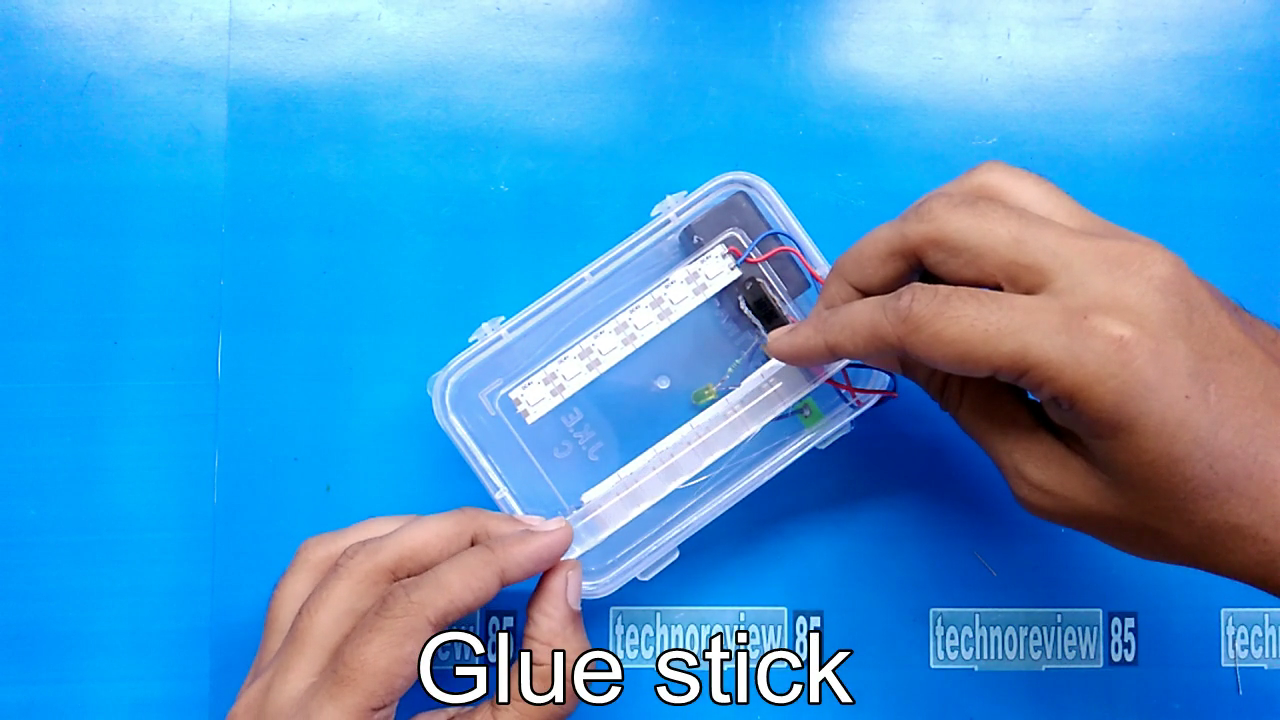

fit all in a plastic box.I use 12 4V SMD LED

you can watch making video & please subscribe my youtube channel also
