Reading LED Thumb
As you may know, there are page holder / reading ring for people to read with one hand. I have never used it, so I want to have one which 1) functions similarly but allows me to 2) read in the dark before sleeping; it also needs to be 3) turned off when I fell asleep.
Draft
I have done numbers of drafts and fails with 3d-printed prototype, and this is one of the drafts that works better.
Modeling in Fusion 360
I used 3D printing to do the prototyping and got failed designs that didn't work well. So I only show the one which I have done in Fusion 360.
3D Printing

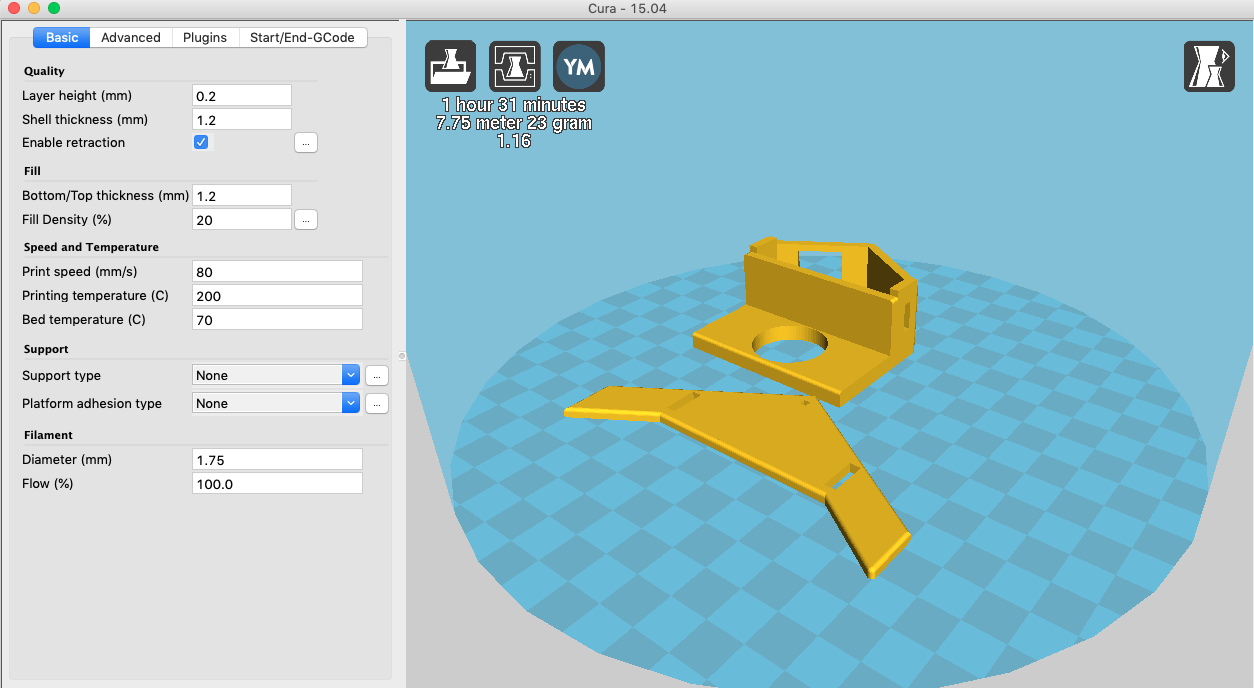

3D printed parts are consisted of the body for storing the button, battery and charger board. I use Micromake Delta Printer and Cura for printing and slicing.
Downloads
Components
Actually, there are just a few components; I used leftovers and reused old battery from a Samsung bluetooth hand-free.

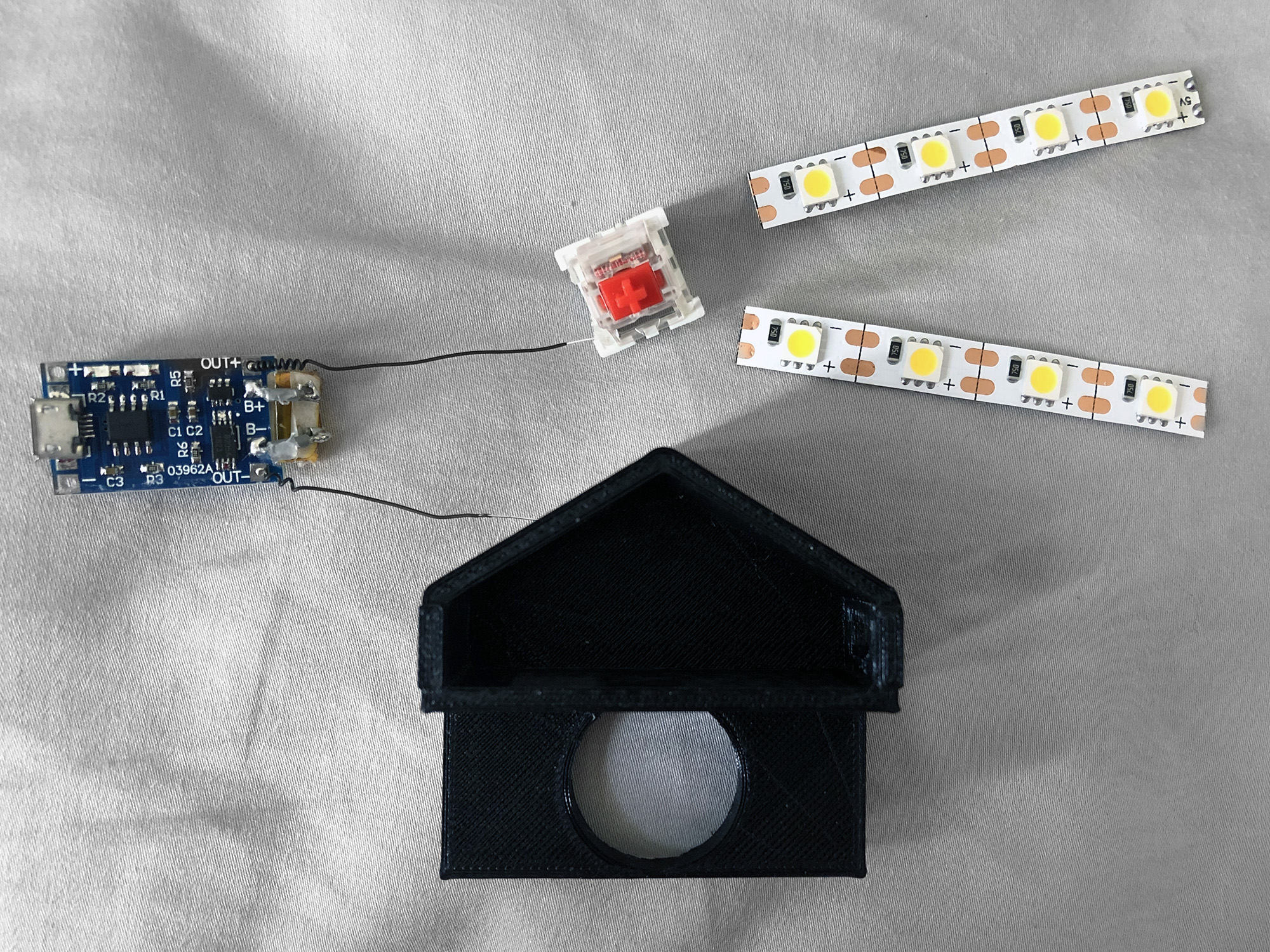

List of Components
1) 03962A charger
- for charging battery and change 3.7v to 5v
- I bought this from Taobao
- TP4056 should be ok
2) 3.7v Battery (reuse)
3) LED Strips x 2 (3-4 LEDs each)
4) Wires
5) Button - I used Keyboard Key here
6) 3D Printed Body and Cover
Connection

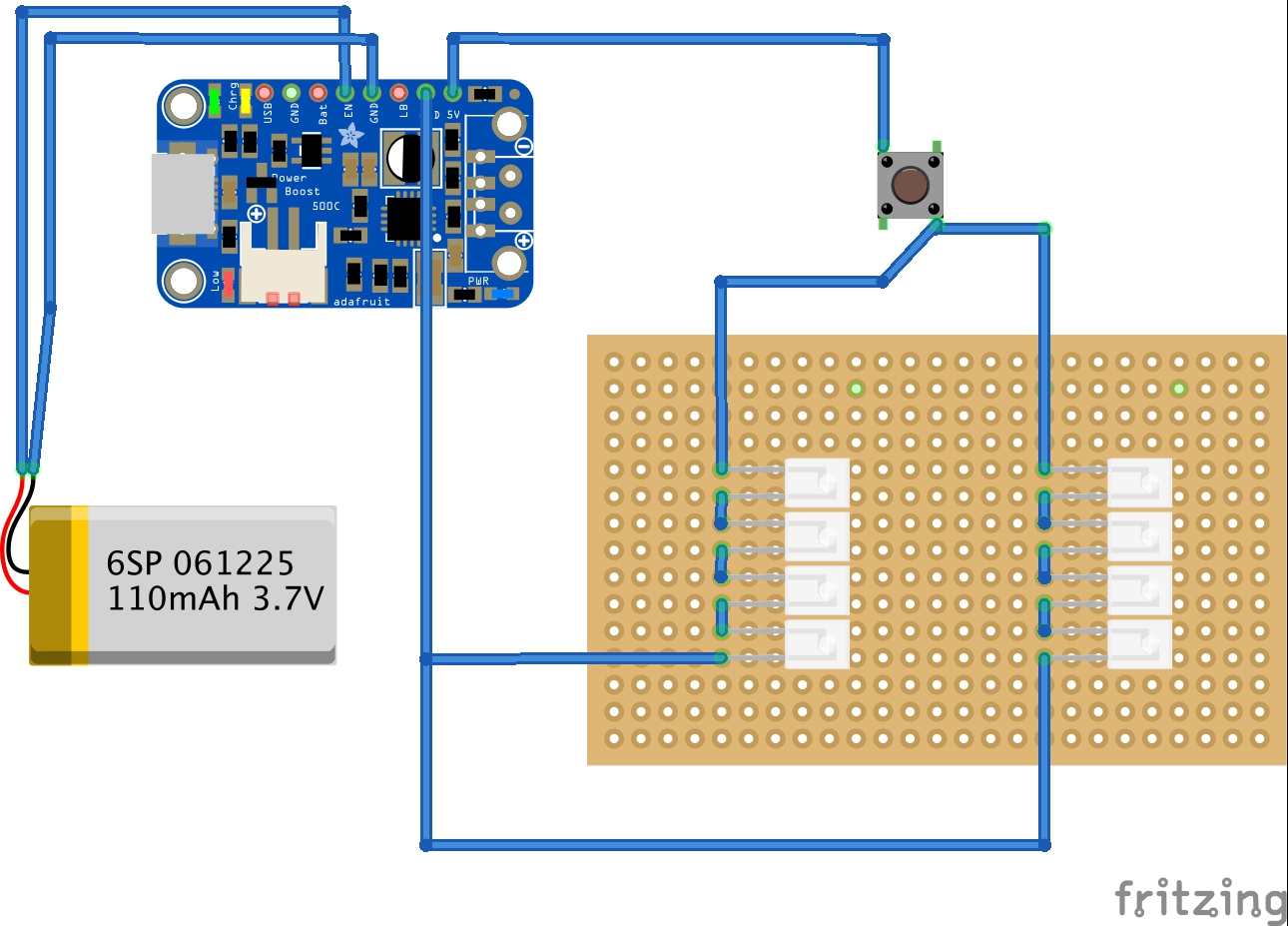

Sorry that I am not very familiar with Fritzing so I show the connection roughly.
Connection
Battery + - >>> 03962A charger + -
Charger OUT + >>> Button
Button >>> LED +
LED - >>> Charger OUT -

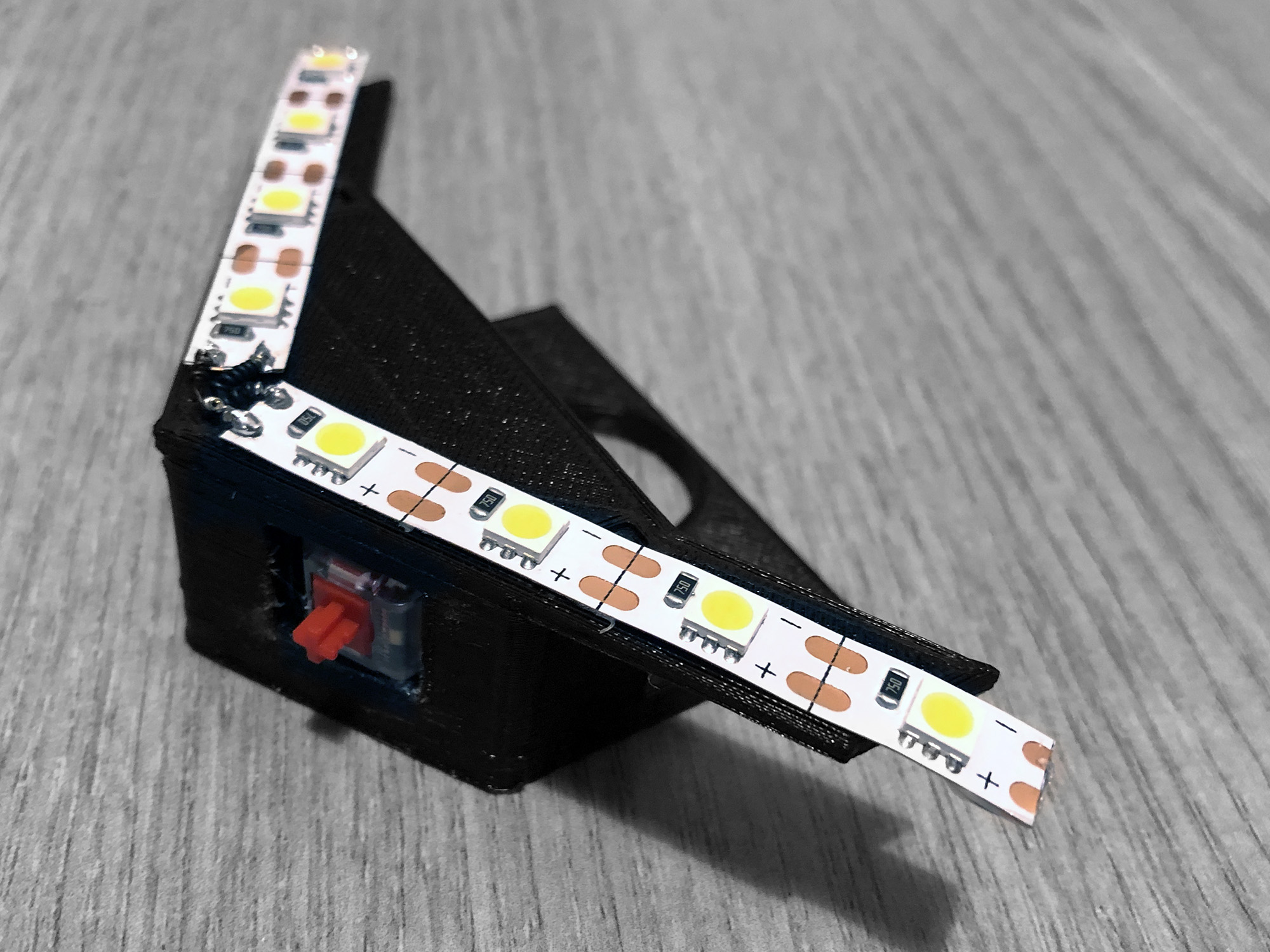

Final Product

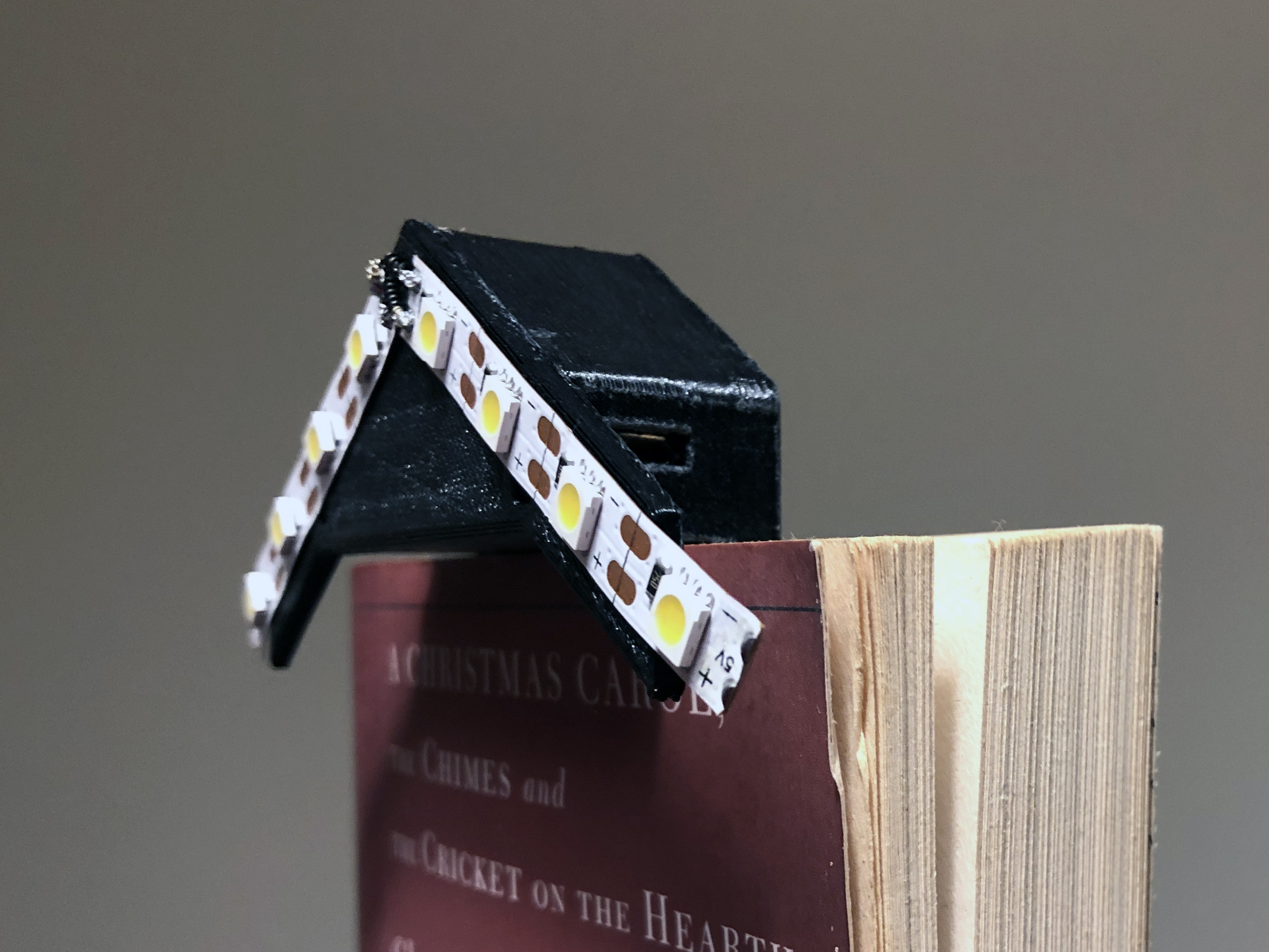

It can also work as a bookmark; as a further development, I will add a cover for the LEDs so as to diffuse the light for comfort.
