Ray_Gun_Zoombierush_gear
by shsieh11 in Craft > Costumes & Cosplay
219 Views, 0 Favorites, 0 Comments
Ray_Gun_Zoombierush_gear
This project was follow Ruiz Brother's Ray Gun Blaster tutorial
I just want to have fun and learn how to use adafruit soundboard through this project
Supplies
Parts
You'll need the following parts to build this project.
- Audio FX SoundBoard
- Pro Trinket 5V/3V
- PAM8302 Mono 2.5W Class D Audio Amplifier
- Pro Trinket LiIon/LiPoly Backpack Add-On
- NeoPixel Ring 12 x
- Laser Diode
- 500mAh Lithium Ion Polymer Battery
- Mini Metal Speaker
- 6mm Slim Tactile Switch Buttons
- Slide Switch
Tools & Supplies
The following tools and supplies were used in the development of this project.
- 3D Printer
- Filament
- Soldering Iron
- Solder
- Panavise Jr / Helping Third Hand
- Wire Strippers
- Flush Diagonal Cutters
- Flat Pliers
- #4-40 3/8in Phillips machine screws and nuts
- Adhesives (E6000, superglue, etc.)

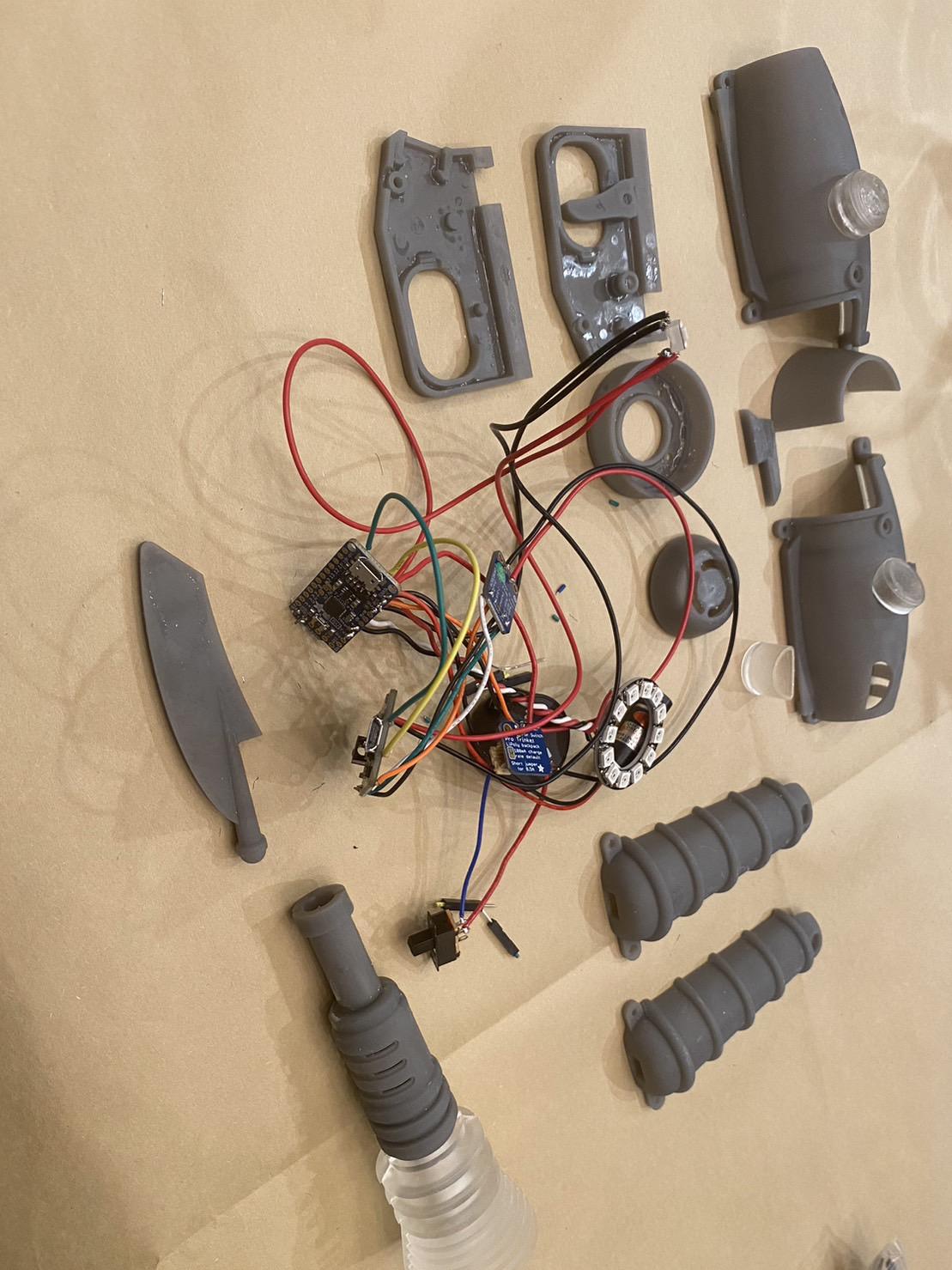

3D Print File and Soldering
By following the tutorial you can easily do soldering and get all your 3D prints down
Connect Your Board
.png)
.png)
By checking my circuit, soldering seems ok. However, I'm having problems connecting to my board
Highly suggested Ruiz Brother's Ray Gun Blaster tutorial
It cover pretty much every details you should be aware of
