Raspberry Pi Tutorial: How to Use Push Button

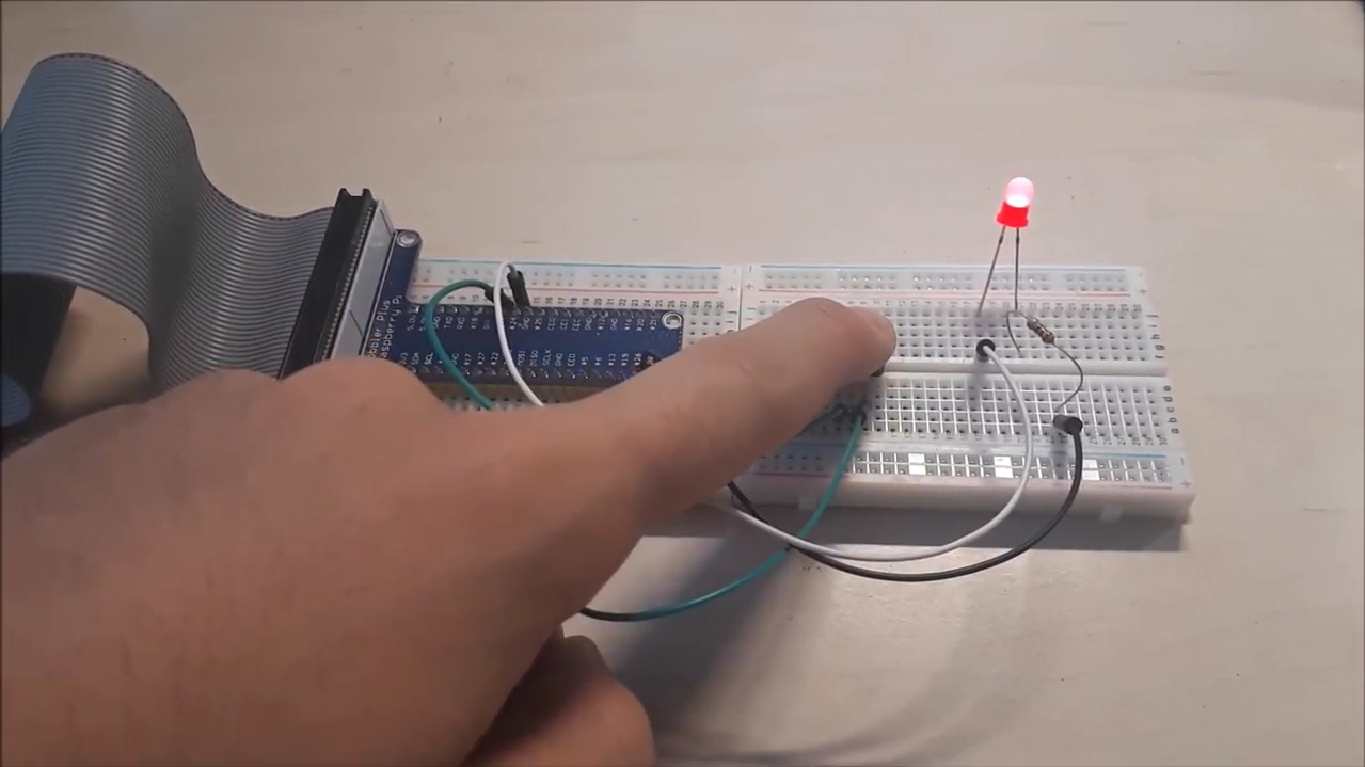

In this tutorial you will learn how to switch on your LED using a button with your Raspberry Pi. Push buttons or switches connect two points in a circuit when you press them. This tutorial turns on one LED when the button pressed once, and off when pressed twice. Υou will also learn how to use 'flag' variable to control an event.

Tutorial updates and more Raspberry Pi tutorials can be found here:

http://www.ardumotive.com/how-to-use-push-buttonen...

Video in Greek language

Let's get started!

For this tutorial you will need:

• GPIO Breakout
• Breadboard
• LED
• 220 Ohm resistor
• Button

The connections are pretty easy, see the image above with breadboard circuit schematic.

In the program below, the first thing you do is to import the library
for GPIO and sleep. The next step is to set the pins of LED and Button. After that setup button as an input and LED as an output. The While True loop runs over and over again, forever. Also you can turn on your LED with two ways. The first way is the LED lights up as long as the button is pressed and the second way if you press only one time the button then you see your LED on and if you press the button again then the LED is off. The second way is on comments (''') and we use a variable named flag.

 1<br> 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

<span style="color: rgb(0,128,0);">#Libraries</span>
import RPi.GPIO as GPIO
from time import sleep
#Set warnings off (optional)
GPIO.setwarnings(False)
GPIO.setmode(GPIO.BCM)
#Set Button and LED pins
Button = 23
LED = 24
#Setup Button and LED
GPIO.setup(Button,GPIO.IN,pull_up_down=GPIO.PUD_UP)
GPIO.setup(LED,GPIO.OUT)
#flag = 0

while True:
    button_state = GPIO.input(Button)
    print(button_state)
    if button_state == 0:
        GPIO.output(LED,GPIO.HIGH)
    else:
        GPIO.output(LED,GPIO.LOW)
    sleep(1)
    '''
    if button_state==0:
        sleep(0.5)
        if flag==0:
            flag=1
        else:
            flag=0
    if flag==1:
        GPIO.output(LED,GPIO.HIGH)
    else:
        GPIO.output(LED,GPIO.LOW)
    '''

Download the code from here and open it with Thonny Python IDE or run it from terminal.

You have successfully completed our first Raspberry Pi "How to" tutorial and you learned how to switch on an LED with a button.
