Raspberry Pi Car Mount
![IMG_0999.jpg](/proxy/?url=https://content.instructables.com/F0U/BACZ/K6Z7O7WC/F0UBACZK6Z7O7WC.jpg&filename=IMG_0999.jpg)
I was looking for a way to mount a monitor and Raspberry PI into my car. Nothing online seem to fit my situation so I came up with this 3D printed mount. It uses a 3D printed base, various hardware (screws, standoffs, etc.) and a purchased tablet mount that works in a cup holder. I'm very happy with how it turned out.
Tools/Materials
![1.bmp](/proxy/?url=https://content.instructables.com/FYA/7O5E/K6Z7O60F/FYA7O5EK6Z7O60F.bmp&filename=1.bmp)
Tools
- Allen wrench
- Adjustable wrench
Materials
- 3D Print (x1)
- Tablet Mount
- Monitor
- Raspberry Pi
- Power Supply
- Cables (HDMI, Power, OBD)
- Raspberry Pi Mount Hardware
- Hex Standoff, Female - M2.5x19 (x4)
- Washer, Flat - M2.5 (x8)
- Washer, Lock - M2.5 (x8)
- Screw - M2.5x10 (x8)
- Monitor Mount Hardware
- Screw - M2.5x20 (x2)
- Washer, Flat - M2.5 (x8)
- Lock nut - M2.5 (x4)
CAD
![Top_Level1.JPG](/proxy/?url=https://content.instructables.com/F1N/DDBP/K6Z7RB5G/F1NDDBPK6Z7RB5G.jpg&filename=Top_Level1.JPG)
![Top_Level2.JPG](/proxy/?url=https://content.instructables.com/F4L/Z7QL/K6Z7RB5F/F4LZ7QLK6Z7RB5F.jpg&filename=Top_Level2.JPG)
![s-l1600.png](/proxy/?url=https://content.instructables.com/FAL/R58A/K6Z7O7YL/FALR58AK6Z7O7YL.png&filename=s-l1600.png)
I already had the monitor and Raspberry PI. From there, I tossed around different mounting options. Using a purchased tablet mount (cup holder version), I worked out the concept and dimensions in CAD. Once it looked good, I sent the main piece (shown in copper color) to the 3D printer.
STL File and Drawing
![1.JPG](/proxy/?url=https://content.instructables.com/FTC/JA5C/K76EFQRQ/FTCJA5CK76EFQRQ.jpg&filename=1.JPG)
This step includes the drawing and the STL file for 3D printing. I suggest making it from ABS or another high temperature material since the interior of a car will exceed the PLA temperature limit. All holes are oversized to guarantee fit with the M2.5 hardware.
Downloads
Assembly - Step 1
![2.bmp](/proxy/?url=https://content.instructables.com/FOY/JKIF/K6Z7O60P/FOYJKIFK6Z7O60P.bmp&filename=2.bmp)
![3.bmp](/proxy/?url=https://content.instructables.com/F2L/6CYF/K6Z7O61H/F2L6CYFK6Z7O61H.bmp&filename=3.bmp)
With the 3D print in hand, I started the assembly. I installed the standoffs for the Raspberry Pi first since these are only accessible prior to monitor installation.
Stackup:
- M2.5 Screw
- M2.5 Lock washer
- M2.5 Flat washer
- 3D Plate
- M2.5 Standoff
Assembly - Step 2
![6.bmp](/proxy/?url=https://content.instructables.com/FVW/4RQF/K6Z7O663/FVW4RQFK6Z7O663.bmp&filename=6.bmp)
![4.bmp](/proxy/?url=https://content.instructables.com/FTS/K0R2/K6Z7O62Z/FTSK0R2K6Z7O62Z.bmp&filename=4.bmp)

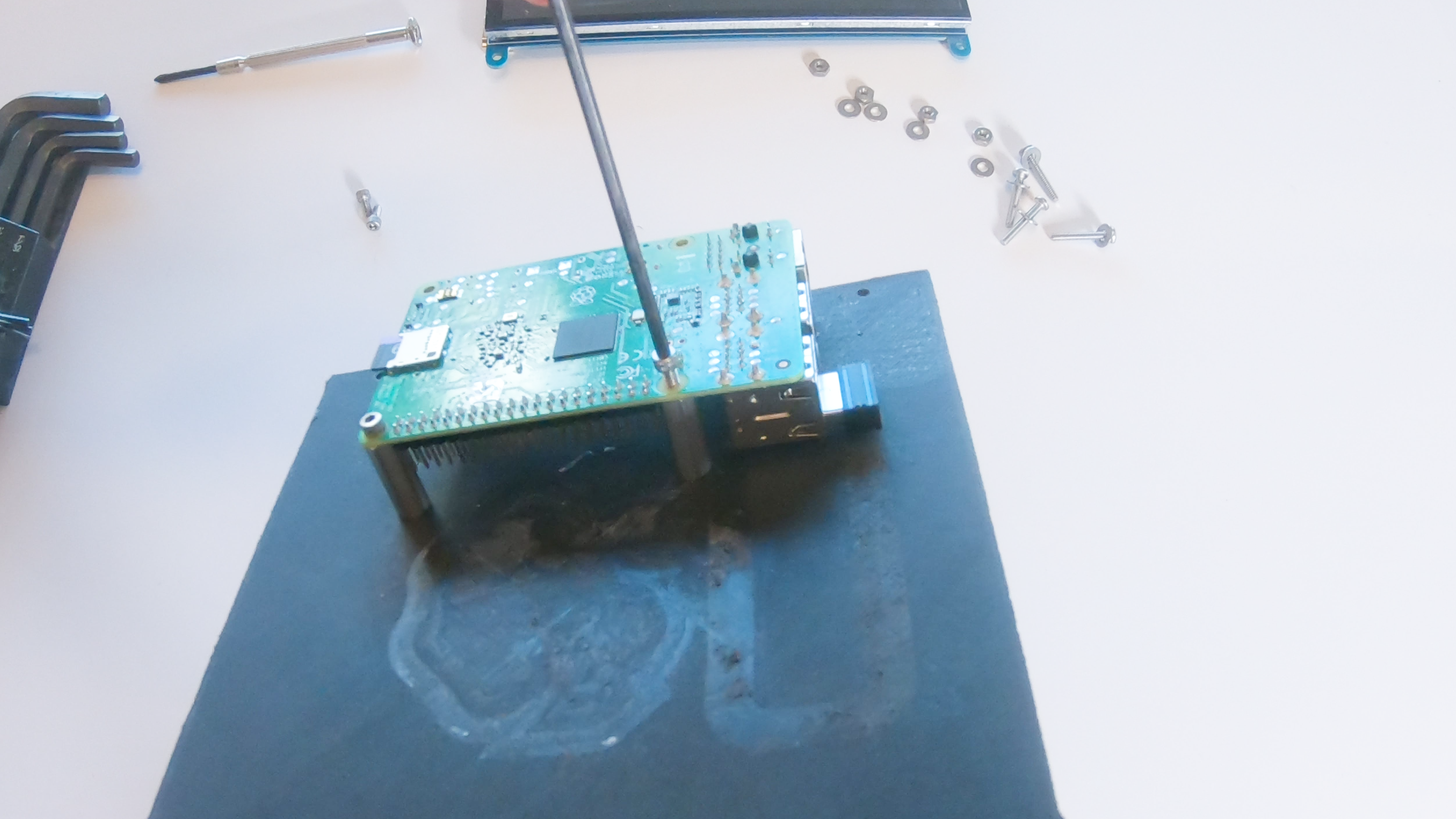

Next, I screwed the Raspberry Pi to the standoffs.
Stackup:
- Raspberry Pi
- M2.5 Flat Washer
- M2.5 Lock Washer
- M2.5 Screw
Assembly - Step 3
![11.bmp](/proxy/?url=https://content.instructables.com/FEM/RGIS/K6Z7OCQB/FEMRGISK6Z7OCQB.bmp&filename=11.bmp)
![7.bmp](/proxy/?url=https://content.instructables.com/FOE/RC61/K6Z7O679/FOERC61K6Z7O679.bmp&filename=7.bmp)
The monitor was then attached to the other side with bolts and nuts.
Stackup:
- M2.5 Screw
- M2.5 Flat Washer
- Monitor
- 3D plate
- M2.5 Flat
- M2.5 Lock Nut
Cable Hookup
![5.bmp](/proxy/?url=https://content.instructables.com/FP7/O6FS/K6Z7O654/FP7O6FSK6Z7O654.bmp&filename=5.bmp)
![8.bmp](/proxy/?url=https://content.instructables.com/FCW/46WF/K6Z7O68C/FCW46WFK6Z7O68C.bmp&filename=8.bmp)
![10.bmp](/proxy/?url=https://content.instructables.com/FOQ/GFOV/K6Z7O600/FOQGFOVK6Z7O600.bmp&filename=10.bmp)
![9.bmp](/proxy/?url=https://content.instructables.com/F4J/RJQ7/K6Z7O69C/F4JRJQ7K6Z7O69C.bmp&filename=9.bmp)
These connections were pretty straightforward. The cables shown were longer than needed. I did include a hole (not shown) for cable clamp on the side away from the Raspberry Pi.
Mounting
![GOPR0160.jpg](/proxy/?url=https://content.instructables.com/FES/TTLN/K6Z7OCOX/FESTTLNK6Z7OCOX.jpg&filename=GOPR0160.jpg)
![GOPR0161.jpg](/proxy/?url=https://content.instructables.com/F7M/E8JG/K6Z7OCP4/F7ME8JGK6Z7OCP4.jpg&filename=GOPR0161.jpg)
These pictures show the mount installed in a extra cup holder. Note the tight spiral in the line. This was required for the tight space in my car.
Installation
![IMG_0912.jpg](/proxy/?url=https://content.instructables.com/FOQ/MLSK/K6Z7OCPD/FOQMLSKK6Z7OCPD.jpg&filename=IMG_0912.jpg)
![IMG_0929.jpg](/proxy/?url=https://content.instructables.com/F2W/KX6I/K6Z7OCPE/F2WKX6IK6Z7OCPE.jpg&filename=IMG_0929.jpg)
![IMG_0939.jpg](/proxy/?url=https://content.instructables.com/FRL/3LA2/K6Z7OCPF/FRL3LA2K6Z7OCPF.jpg&filename=IMG_0939.jpg)
![IMG_0969.jpg](/proxy/?url=https://content.instructables.com/FON/JDKQ/K6Z7OCPH/FONJDKQK6Z7OCPH.jpg&filename=IMG_0969.jpg)
![IMG_0997.jpg](/proxy/?url=https://content.instructables.com/FD1/NTYH/K6Z7OCPQ/FD1NTYHK6Z7OCPQ.jpg&filename=IMG_0997.jpg)

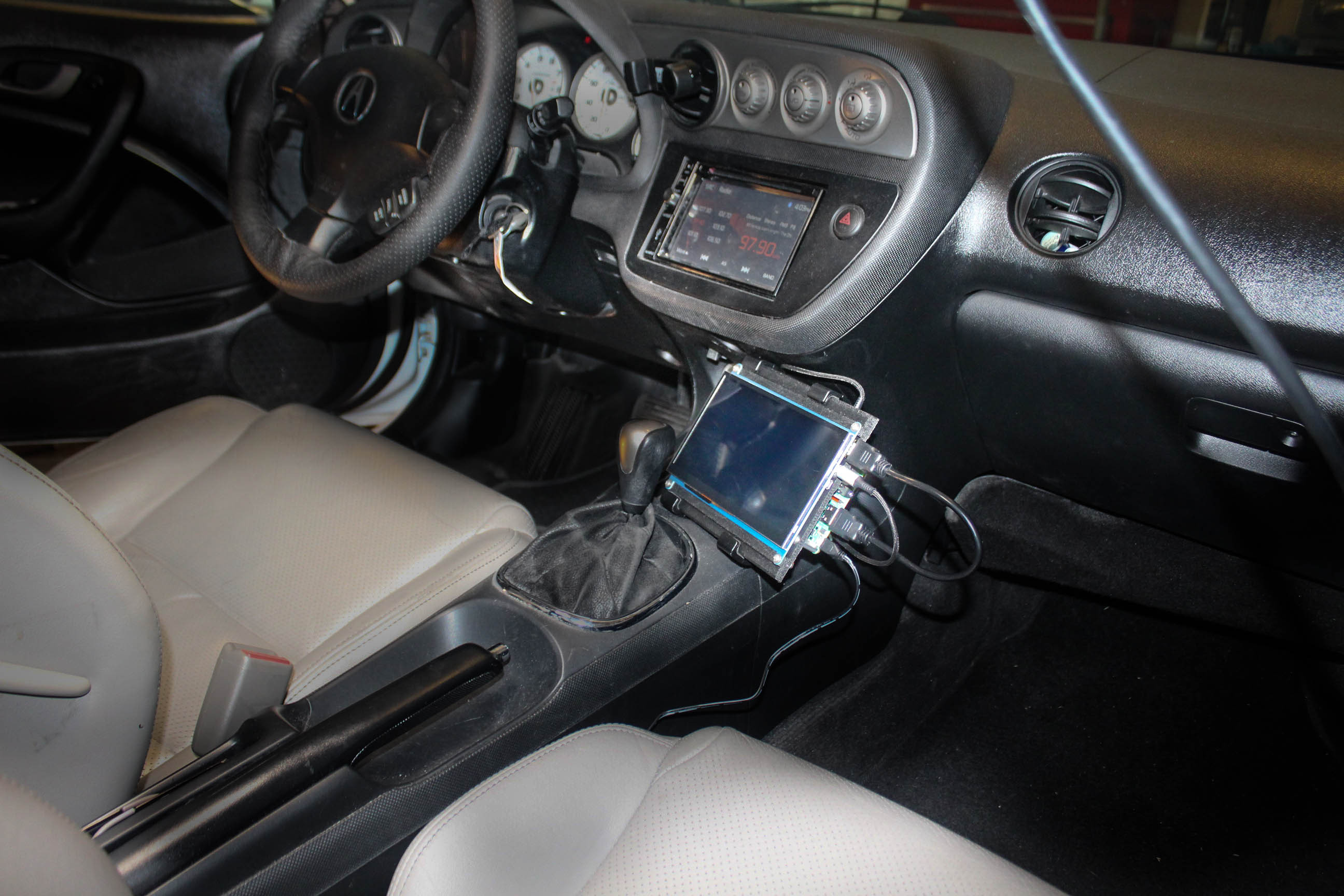

These pictures show the mount installed in my car - Acura RSX.
Not shown in these pictures is the OBD-2 to USB cable. This was run from the Pi to the OBD-2 connector behind the center console. The power was taken from the 12V power socket and run through a converter to the power supply.
As you can see, I don't have much room in my car but I'm happy with how it fit. The same mounting concept should work better in a full size car or truck.
Few More Pictures
![IMG_1019.jpg](/proxy/?url=https://content.instructables.com/F32/JIBY/K6Z7OCQ2/F32JIBYK6Z7OCQ2.jpg&filename=IMG_1019.jpg)
![IMG_0999.jpg](/proxy/?url=https://content.instructables.com/FD1/RHLX/K6Z7OCYE/FD1RHLXK6Z7OCYE.jpg&filename=IMG_0999.jpg)
![IMG_0979.jpg](/proxy/?url=https://content.instructables.com/FUF/PNWV/K6Z7OCPN/FUFPNWVK6Z7OCPN.jpg&filename=IMG_0979.jpg)
![IMG_0912.jpg](/proxy/?url=https://content.instructables.com/FCU/2KE2/K6Z7OCY7/FCU2KE2K6Z7OCY7.jpg&filename=IMG_0912.jpg)
Here are few additional pictures of how it turned out. Please let me know if you have any questions.
Thanks for viewing!
