Raspberry Pi Camera Mount for Prusa MK3 S by Fotone Arm Remix

Printables post link (files): https://www.printables.com/model/597986-raspberry-pi-camera-mount-arm

Supplies:

Printed parts (see link above for files, Onshape Doc Link, and printing instructions)

1 M3x20mm Socket Head Cap Screw and 1 M3 Nut per arm joint

Tools:

Small Needlenose Pliers

M3 Allen Wrench

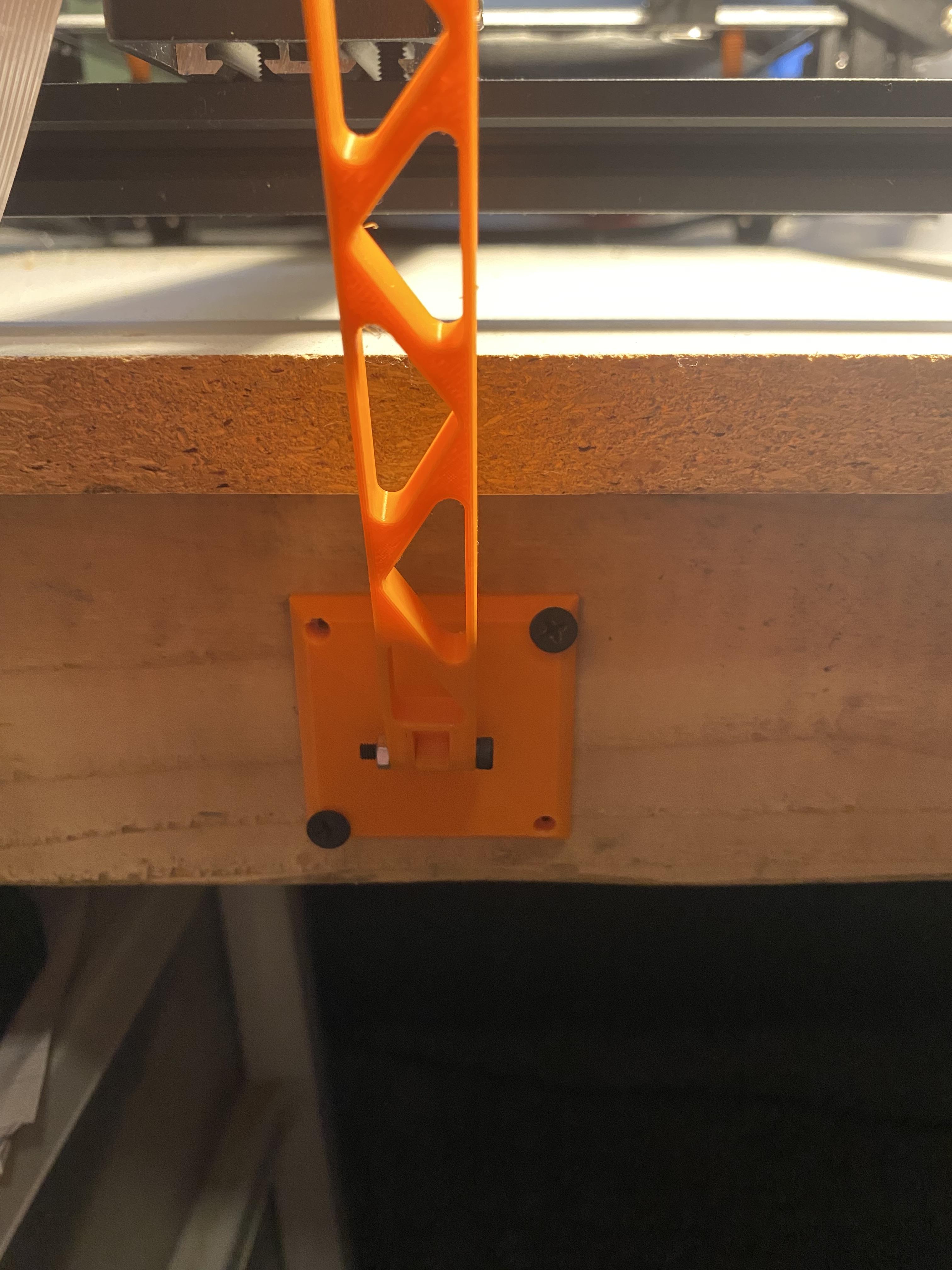

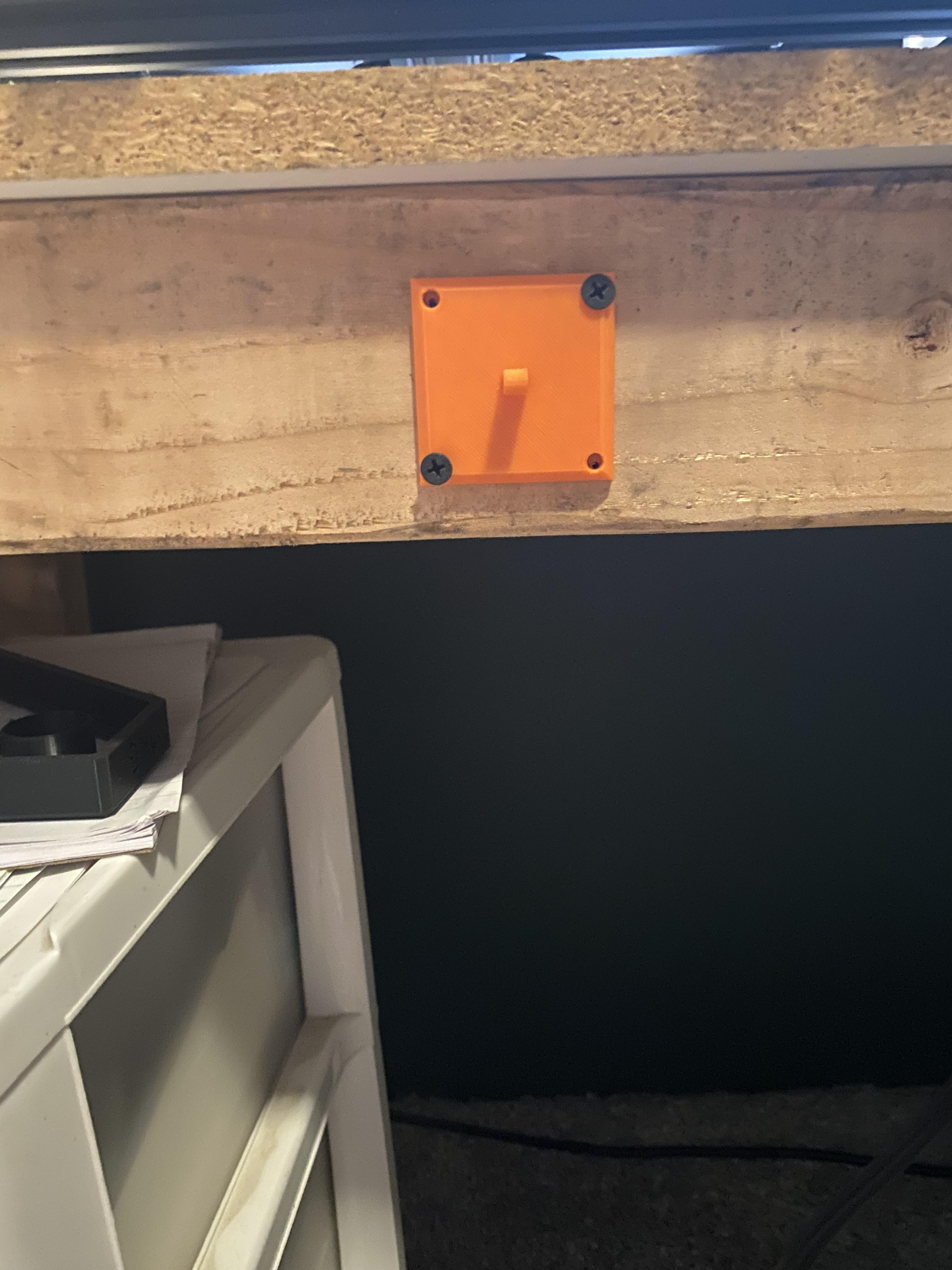

To assemble, first line up the holes of the male end of a joint with the hole of a female end joint, then insert an M3 Screw into the hole and fasten it with an M3 Nut. Mount the Table mount (above Picture) to the desired surface with 3/4" Screws (recommended length). This Camera Arm Mount is not recommended for use in high vibration environments as it is not very sturdy. If you are going to edit the arms, the camera mount and table mount ends must be female joints. The lengths of the arms are:

Long Arm: 256mm

Medium Arm: 113mm

Short Arm: 88mm

Thank you for viewing this design and please let me know if one of the links are dead or if you have any questions, comments or concerns.
