Raspberry Pi 2 Reset Button

This is a quick Instructable, showing how I added a reset button to my Raspberry Pi 2.

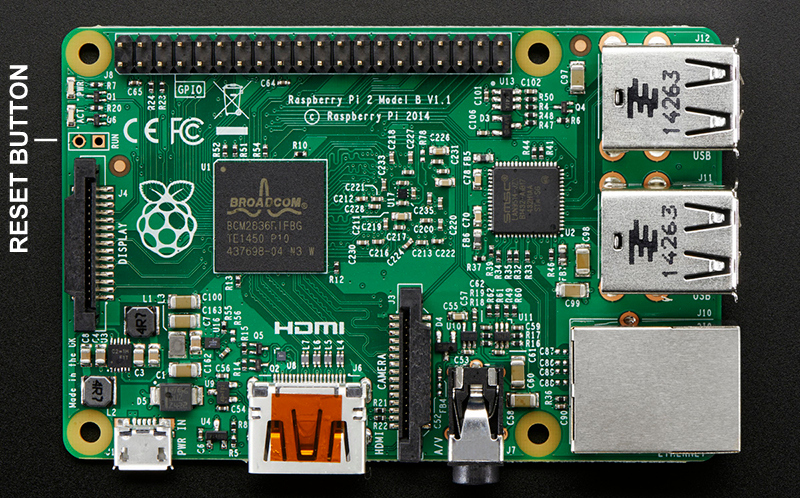

The Pi 2 has two hearder pin holes next to the display socket, which is marked "RUN". When this pins are shorted together, the Raspberry Pi 2 will reboot.

I had a couple of these tactile switches, and decided to modify it slightly to fit the Raspberry Pi 2.

1 - Using long nose pliers, I first straightened each leg.

2 - Then, bend each leg as shown.

3 - Solder the tactile switch onto the Raspberry Pi 2.

Solder the switch onto the Raspberry Pi 2.

Hope this was usefull.

Regards
