How to Make a Raised Bed Garden

 I  first got this idea from a older couple i know. I just wanted it bigger. My ground has a lot of clay in it so i built up my first garden about 10 inches off the ground.My parents are getting older so i thought i would make them a smaller one so they wouldn't have to bend over a lot . It sure is nice for weeding not having to bend over.Also you don't have to worry about getting a lot of rain at once because it will drain out the bottom rather than flooding your plants.

Cad Drawing

 This is a cad drawing of  the garden i am making.

Legs and Outside Frame

I used (2) 2x8x12
(2) 2x8x8
(4) 3 inch lags screws for each leg and made  the 8x12 frame.

Installing the Joists

I screwed and nailed (8) 2x8x8   16inch on center joists.

Finished 4x4 Legs

I cut 10  4x4 legs 36 inches long. Here i finished installing the rest of the support legs.

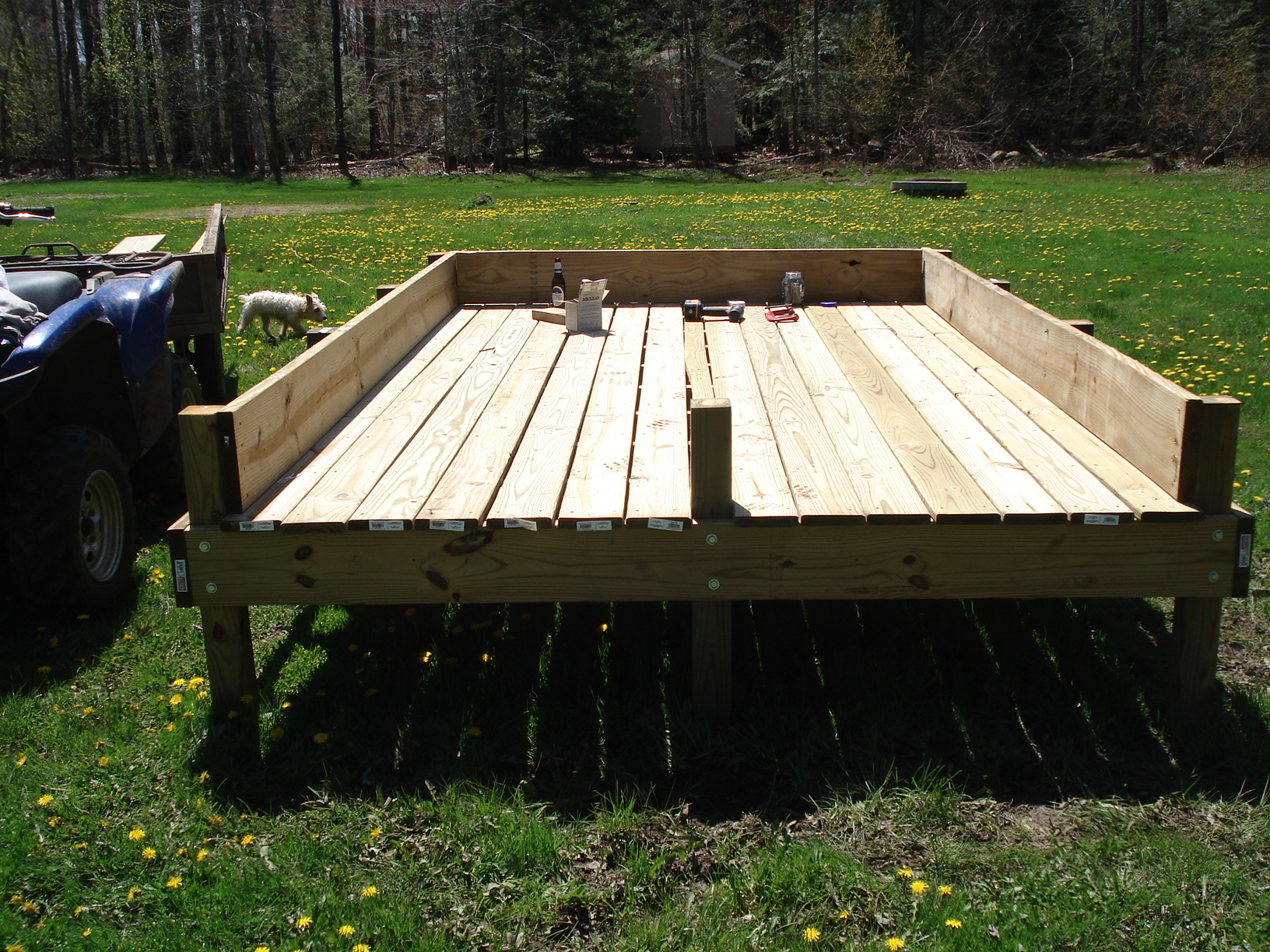

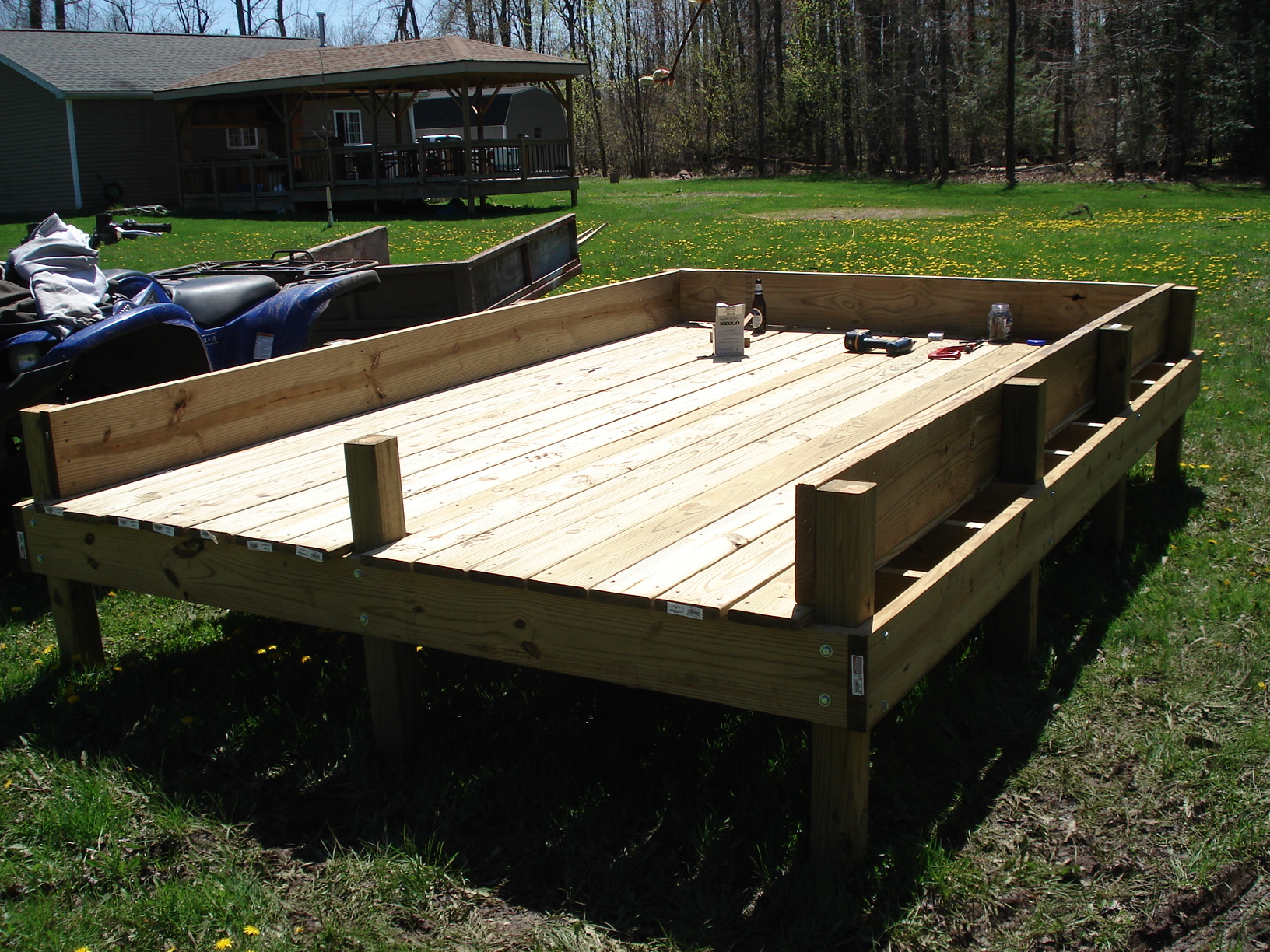

Bed Frame

 I screwed 14  1x6 deck boards  to make the floor of the garden.

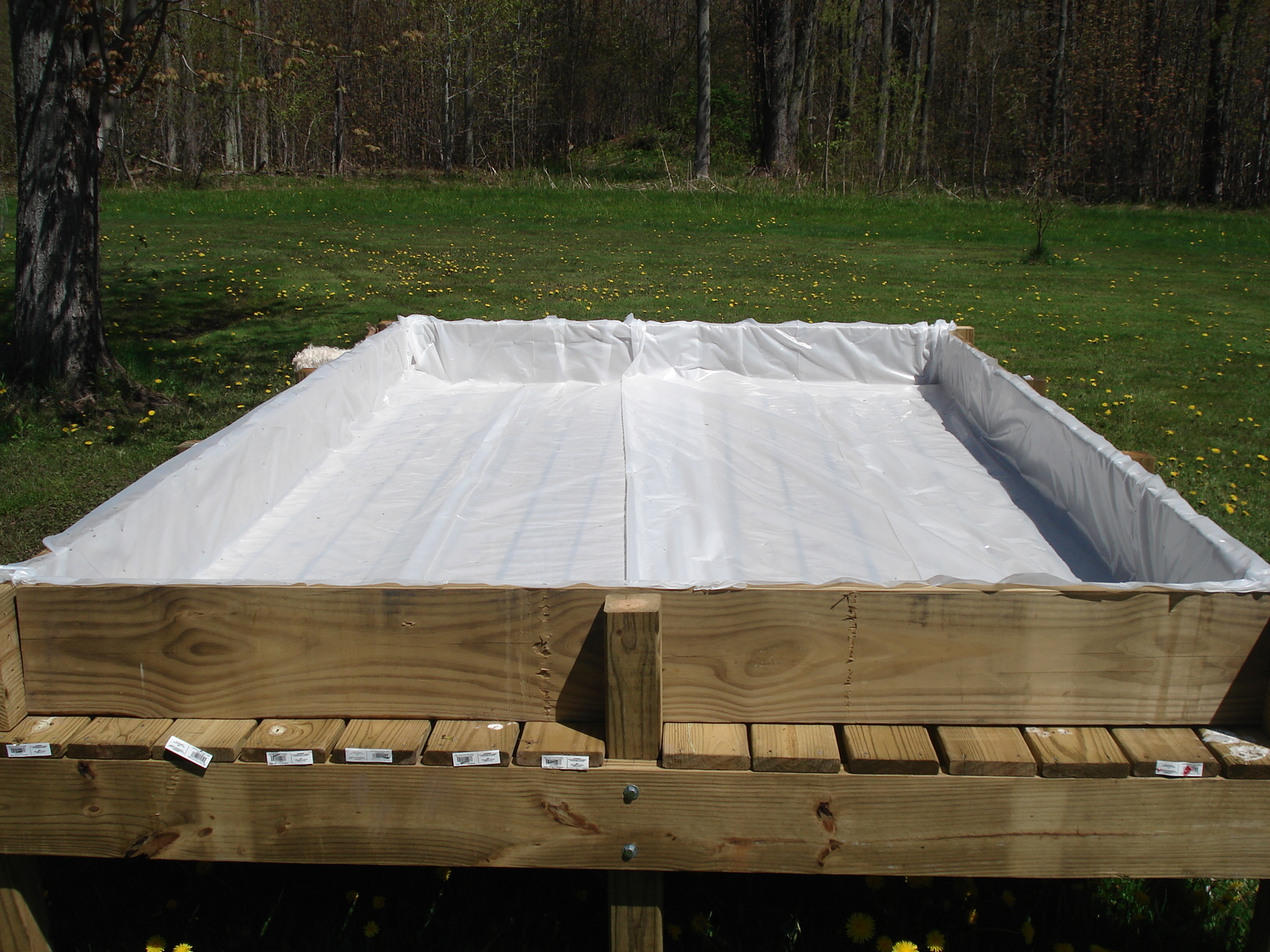

Bed Preparation.

I then installed (2) 2x6x8 and (2) 2x8x12 to the inside of the 4x4 s for the above ground outside frame. Since i used pressure treated for the floor and sides i needed a barrier to separate the soil with the treated wood . So i double up 2 layers of 8mm plastic sheeting as my barrier between the soil and wood.

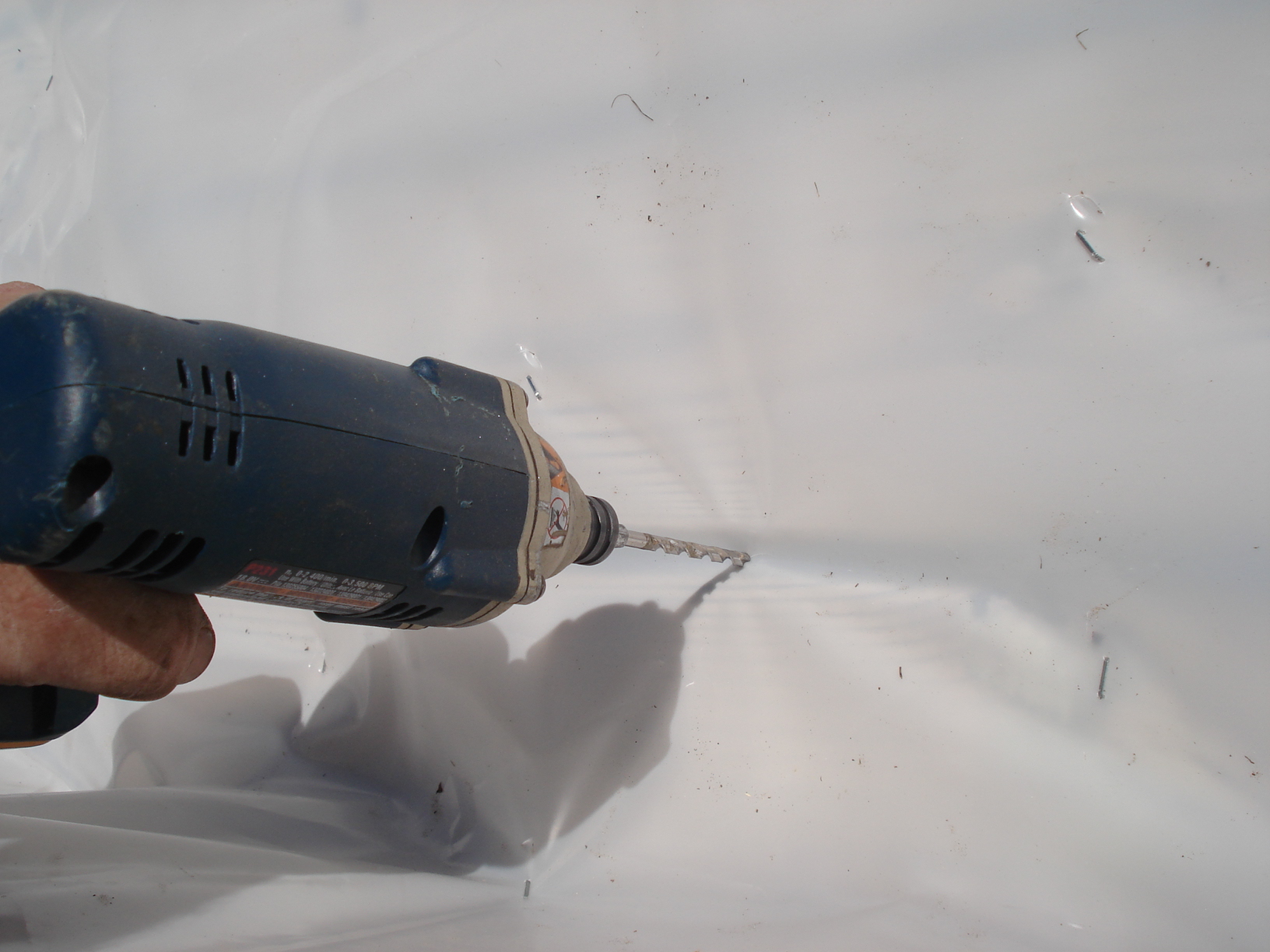

Drainage Holes

I purposely left a 3/4 of a inch gap between each deck board for drainage. I drilled 1/4 holes through the plastic every 4 inches.

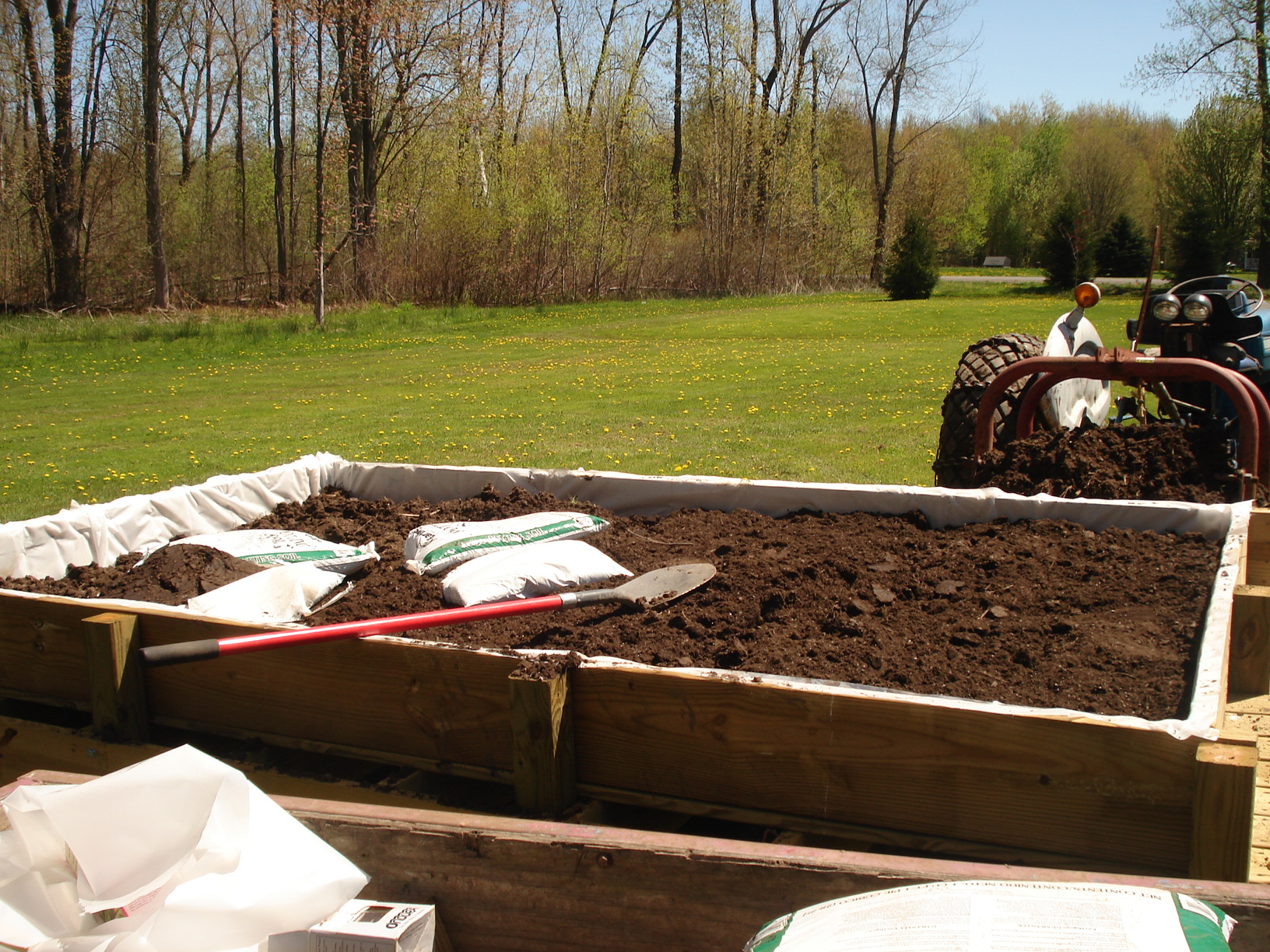

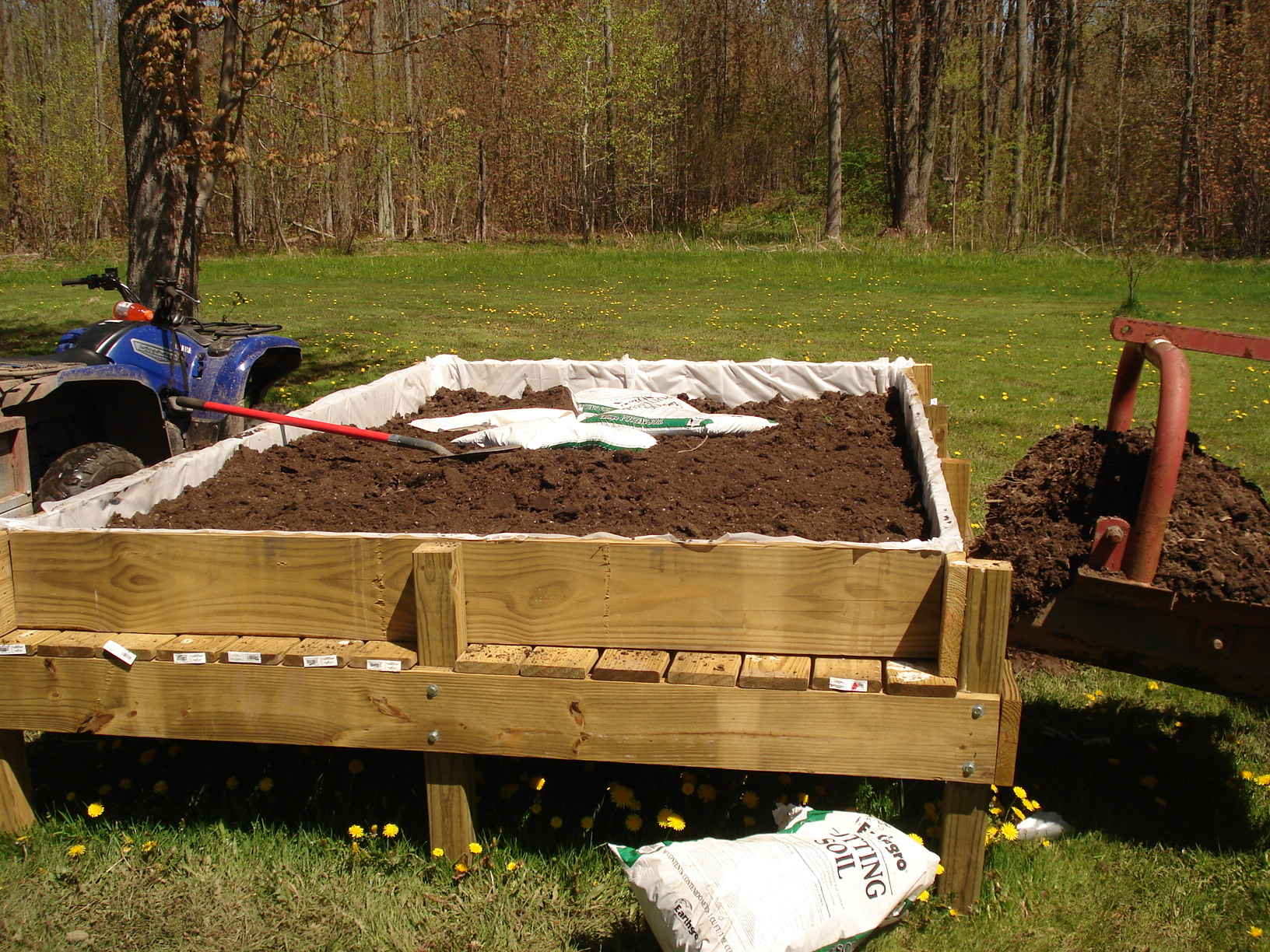

Filler Up!

I bought (50) 1 cubic foot bags of topsoil to fill the box.

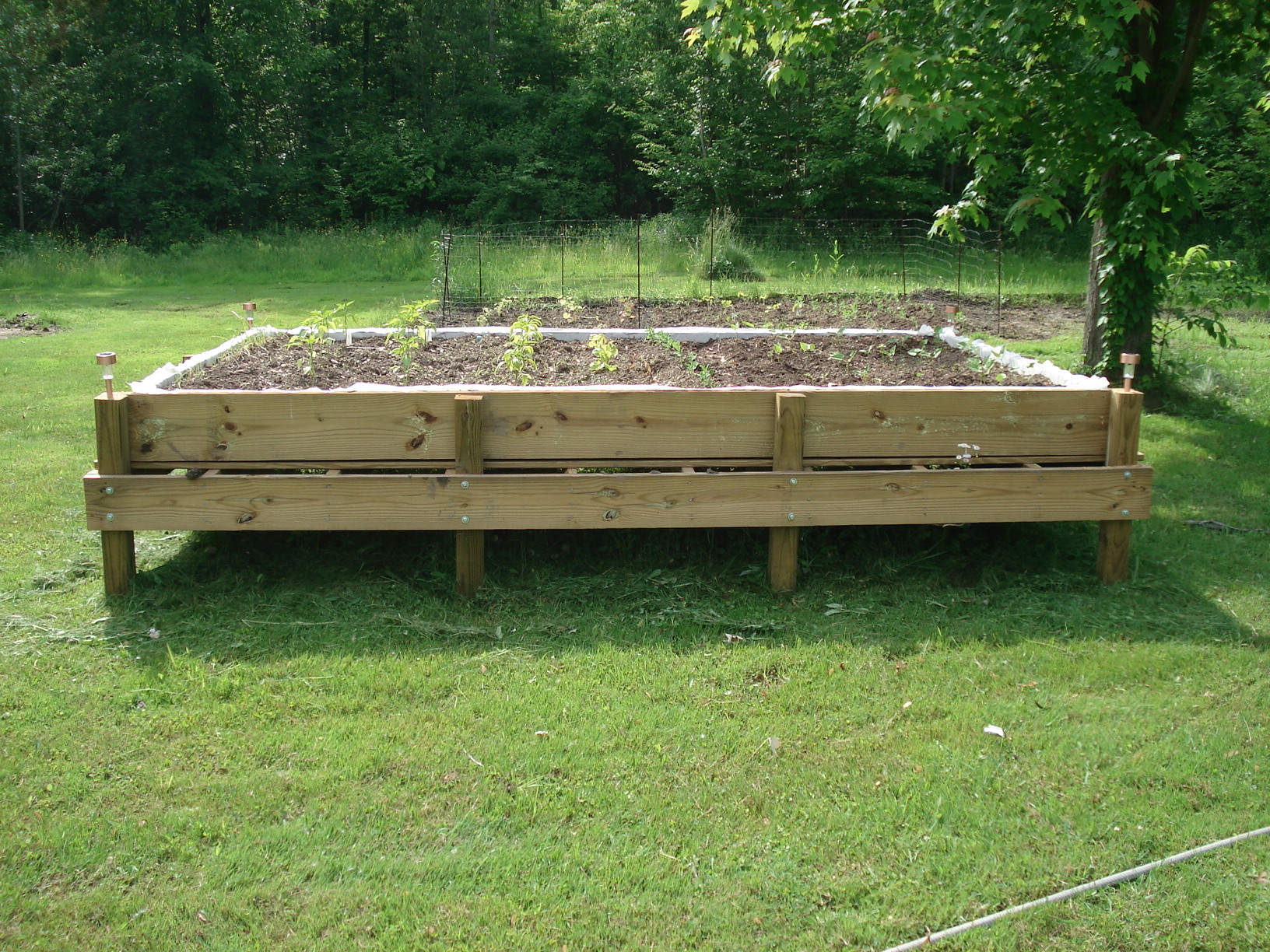

All Finished
