Rainbow LED Pegboard Wall
by NSekinger in Workshop > Home Improvement
959 Views, 1 Favorites, 0 Comments
Rainbow LED Pegboard Wall
![IMG_1203.jpeg](/proxy/?url=https://content.instructables.com/FWR/J43V/KP41TOQM/FWRJ43VKP41TOQM.jpg&filename=IMG_1203.jpeg)
![IMG_1202.jpeg](/proxy/?url=https://content.instructables.com/FI1/6IDG/KP41TOQO/FI16IDGKP41TOQO.jpg&filename=IMG_1202.jpeg)
![IMG_0818.jpeg](/proxy/?url=https://content.instructables.com/FFC/BBEH/KP41TOSK/FFCBBEHKP41TOSK.jpg&filename=IMG_0818.jpeg)
![IMG_1212.jpeg](/proxy/?url=https://content.instructables.com/FGI/S28V/KP41TOQJ/FGIS28VKP41TOQJ.jpg&filename=IMG_1212.jpeg)

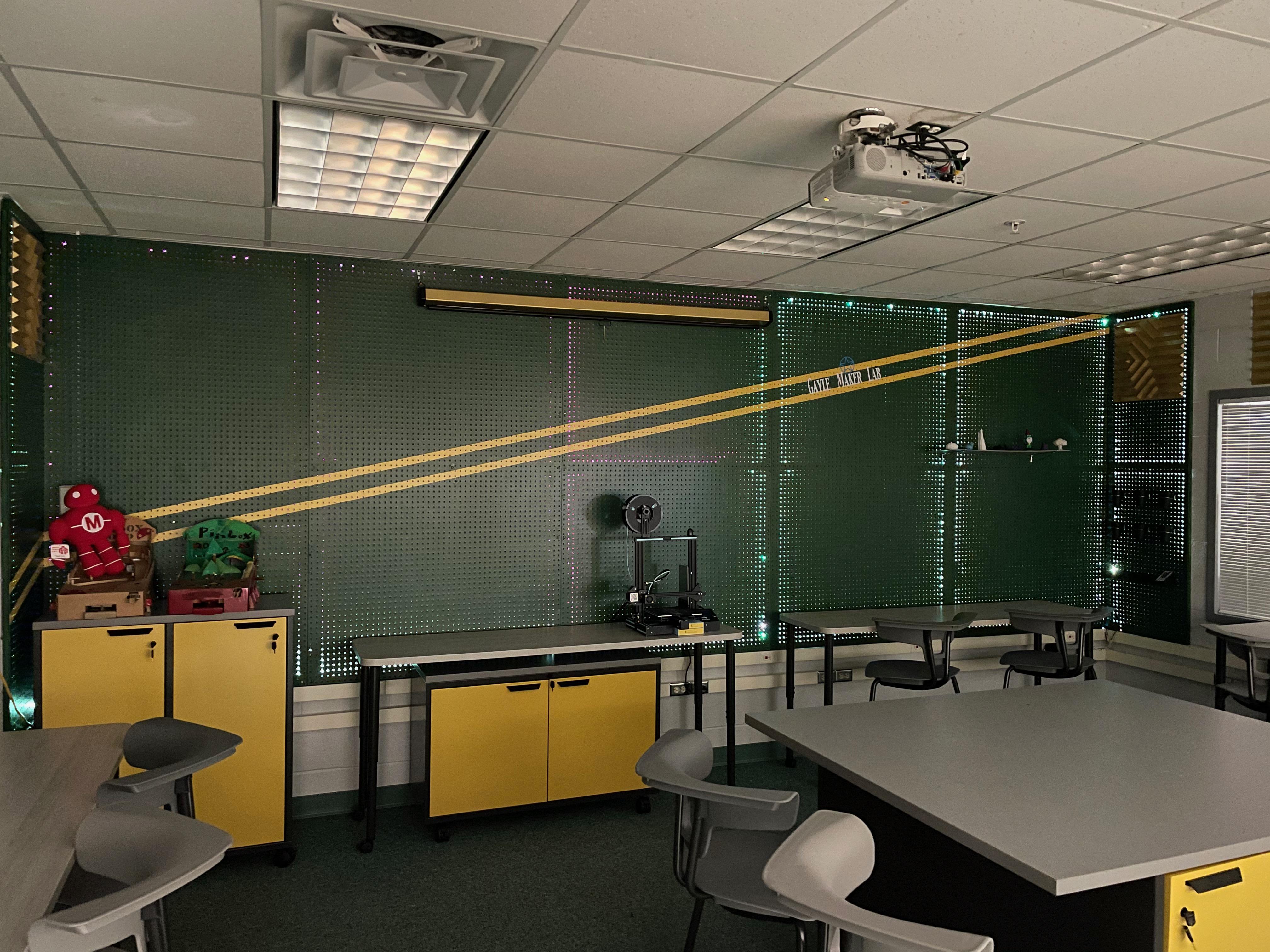

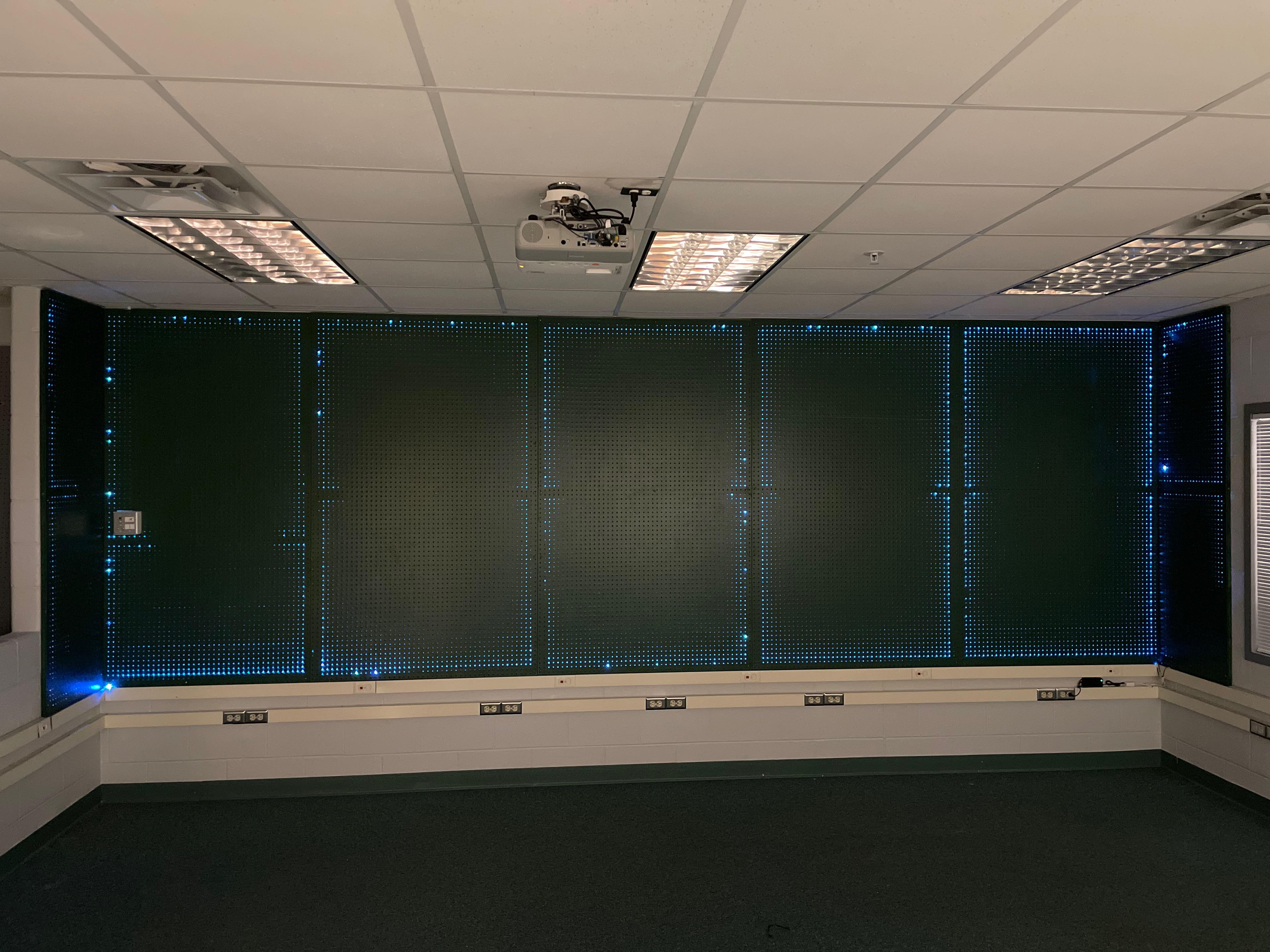

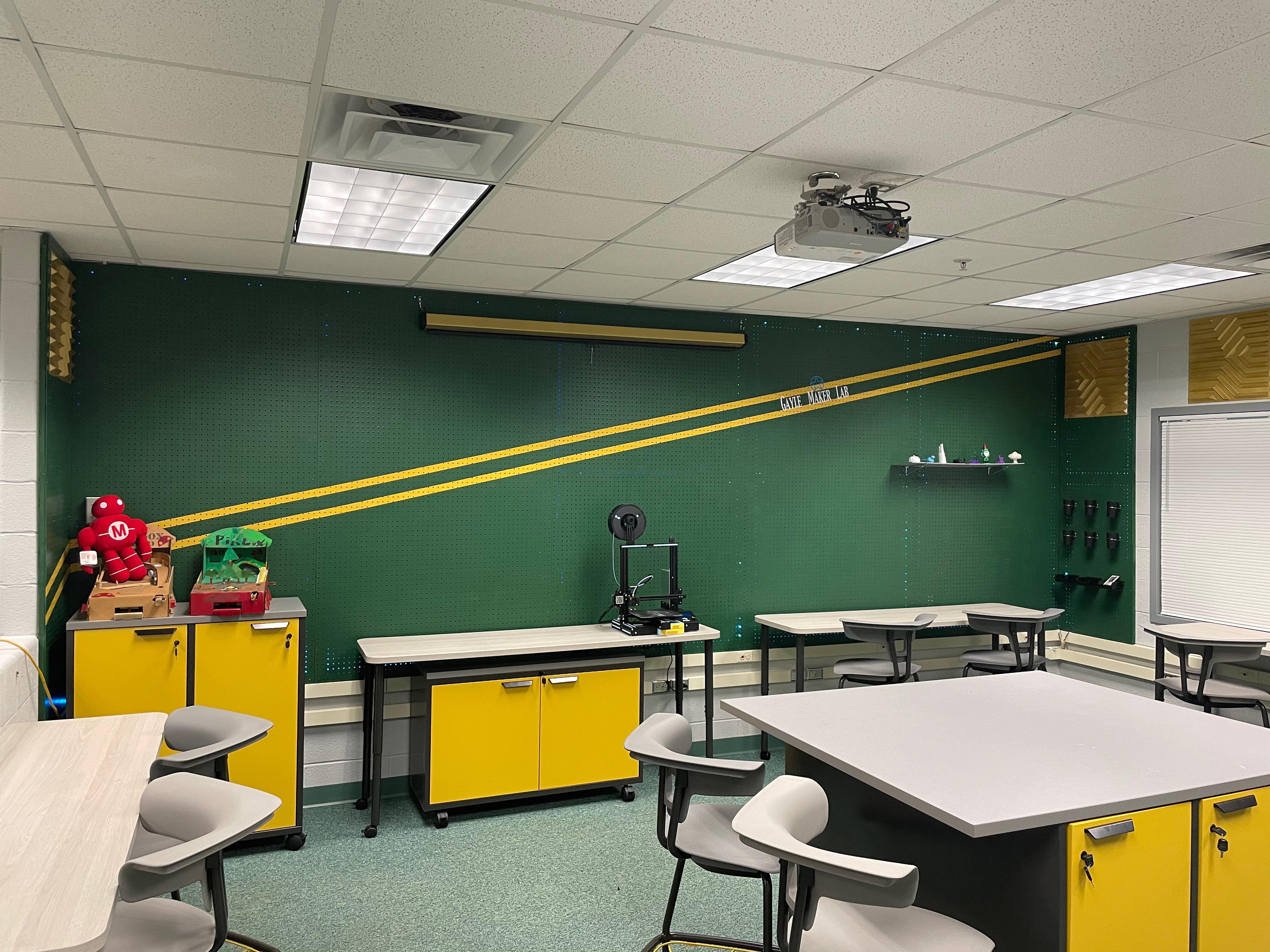

For our newly renovated Maker Lab in our middle school library, we wanted to create a feature wall. Rather than just painting a bold color, we decided to install a pegboard wall and backlight it with programmable rainbow leds.
Supplies

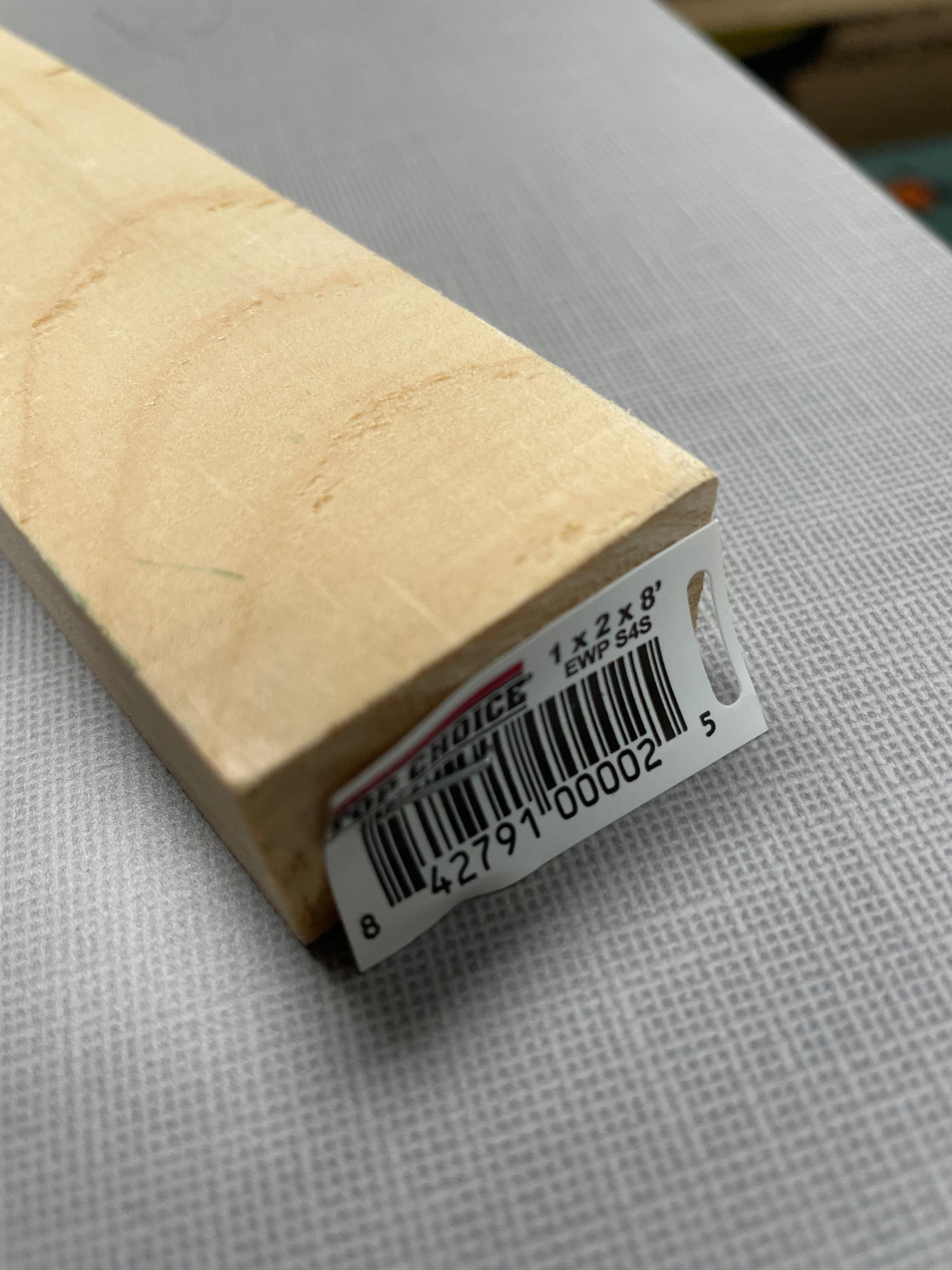

1x2x8 boards to trim each section of the pegboard; for each section of pegboard we needed 4 pieces ($3.50 each)

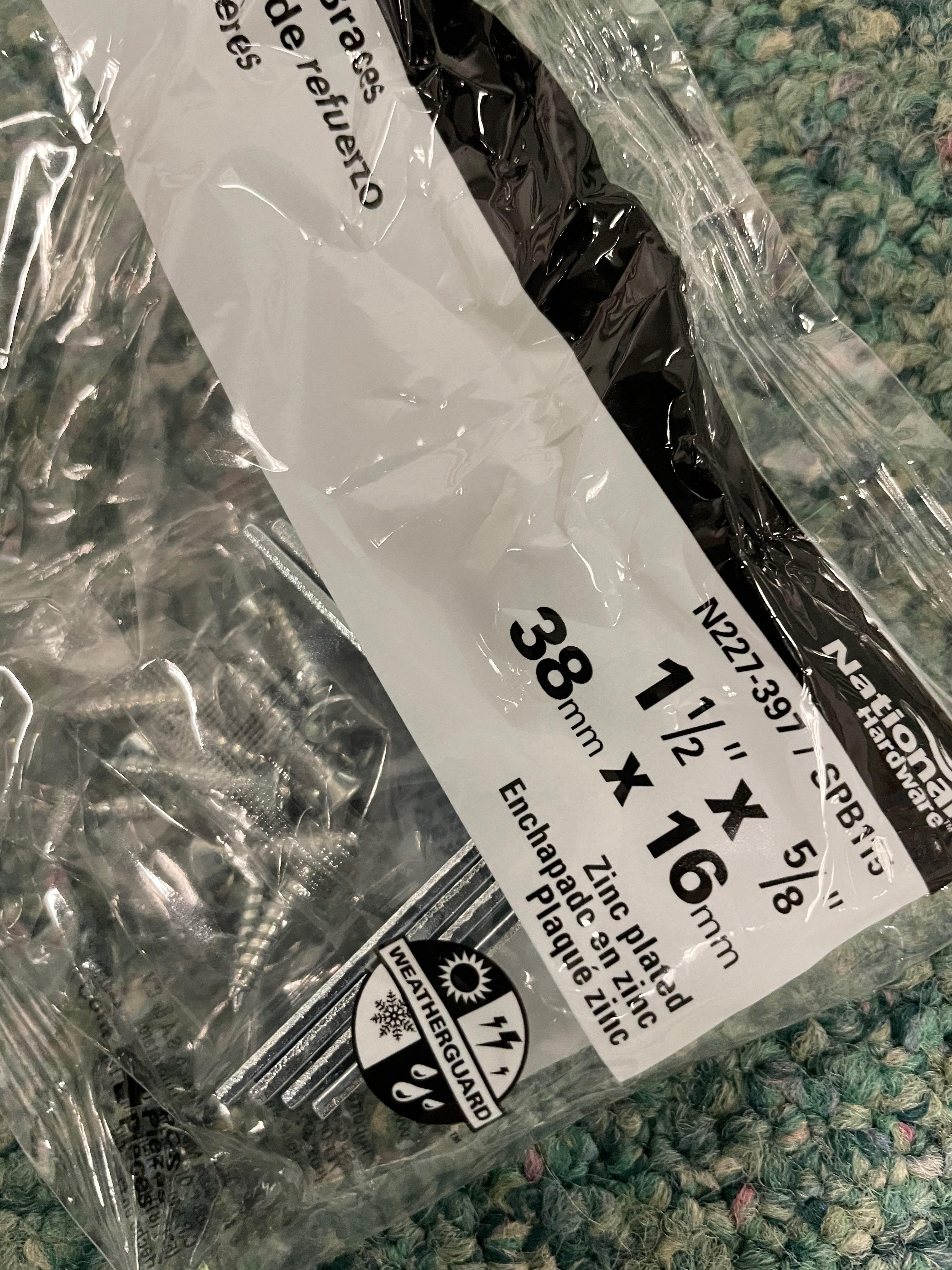

L bracket hardware to connect the trim boards (1 and 1/2 x 5/8) small brackets (two packs for each section)
Pegboard in 4x8 sections ($20 a sheet)

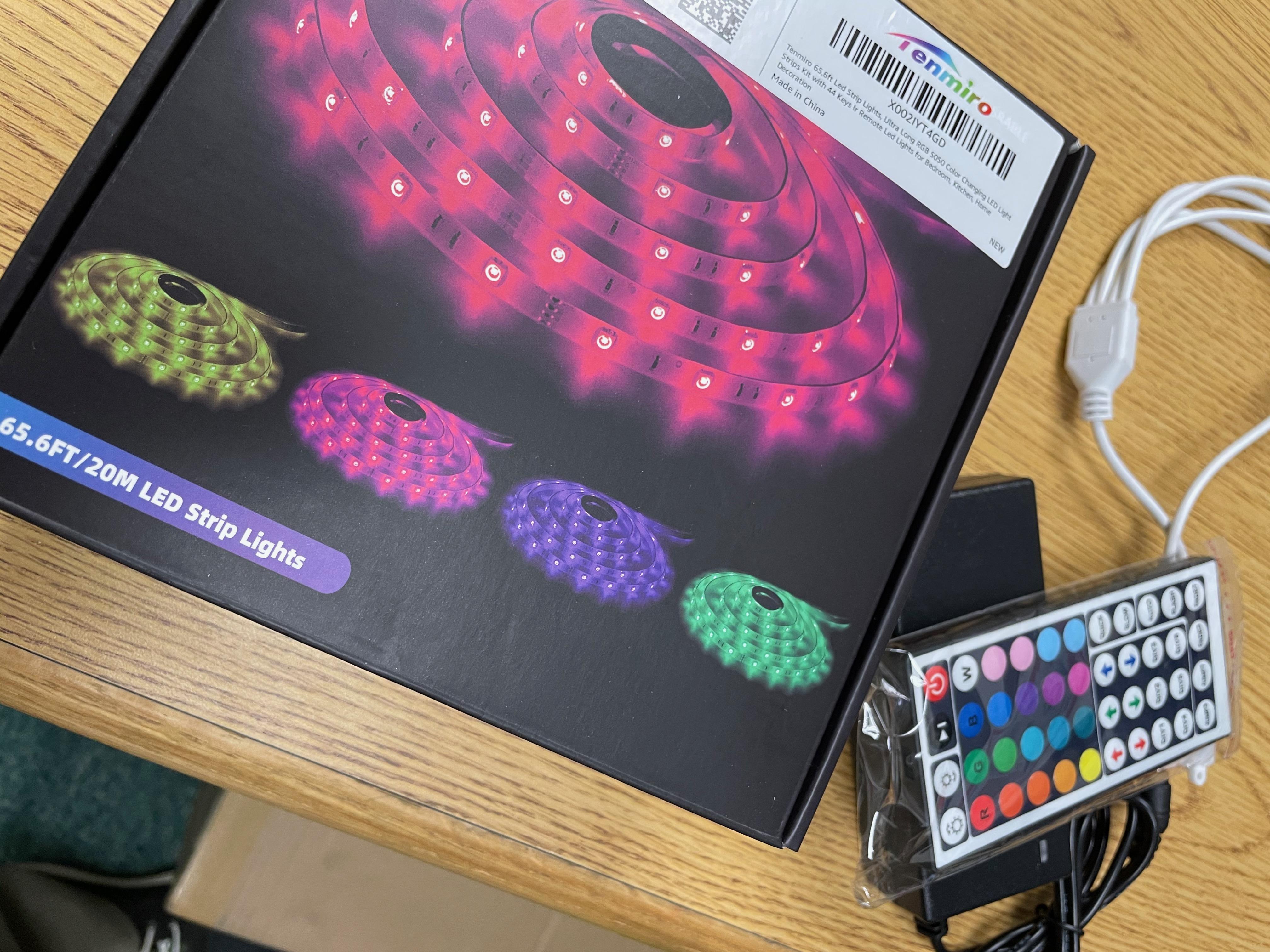

LED Programmable lights (lots of different brands) https://www.amazon.com/Programmable-LED-Lights/s?...
Total cost for our wall, 7 sections, 24 x 6 feet of pegboard was under $200
Building the Frames and Mounting
![IMG_0825.jpeg](/proxy/?url=https://content.instructables.com/F8F/6ICI/KP41TOSI/F8F6ICIKP41TOSI.jpg&filename=IMG_0825.jpeg)
![IMG_0869.jpeg](/proxy/?url=https://content.instructables.com/FOM/BRDG/KP41TOSD/FOMBRDGKP41TOSD.jpg&filename=IMG_0869.jpeg)
![IMG_0818.jpeg](/proxy/?url=https://content.instructables.com/FFC/BBEH/KP41TOSK/FFCBBEHKP41TOSK.jpg&filename=IMG_0818.jpeg)

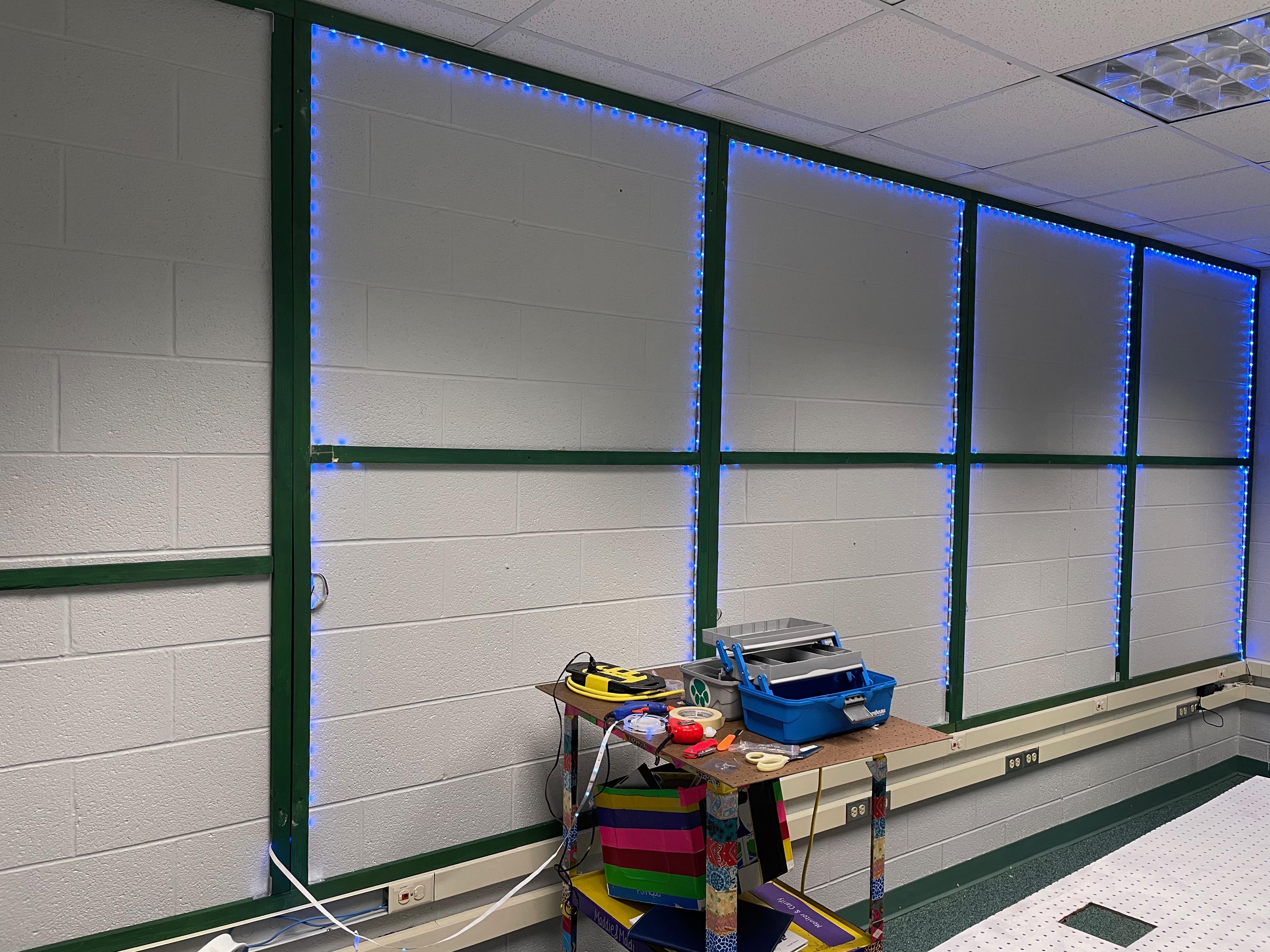

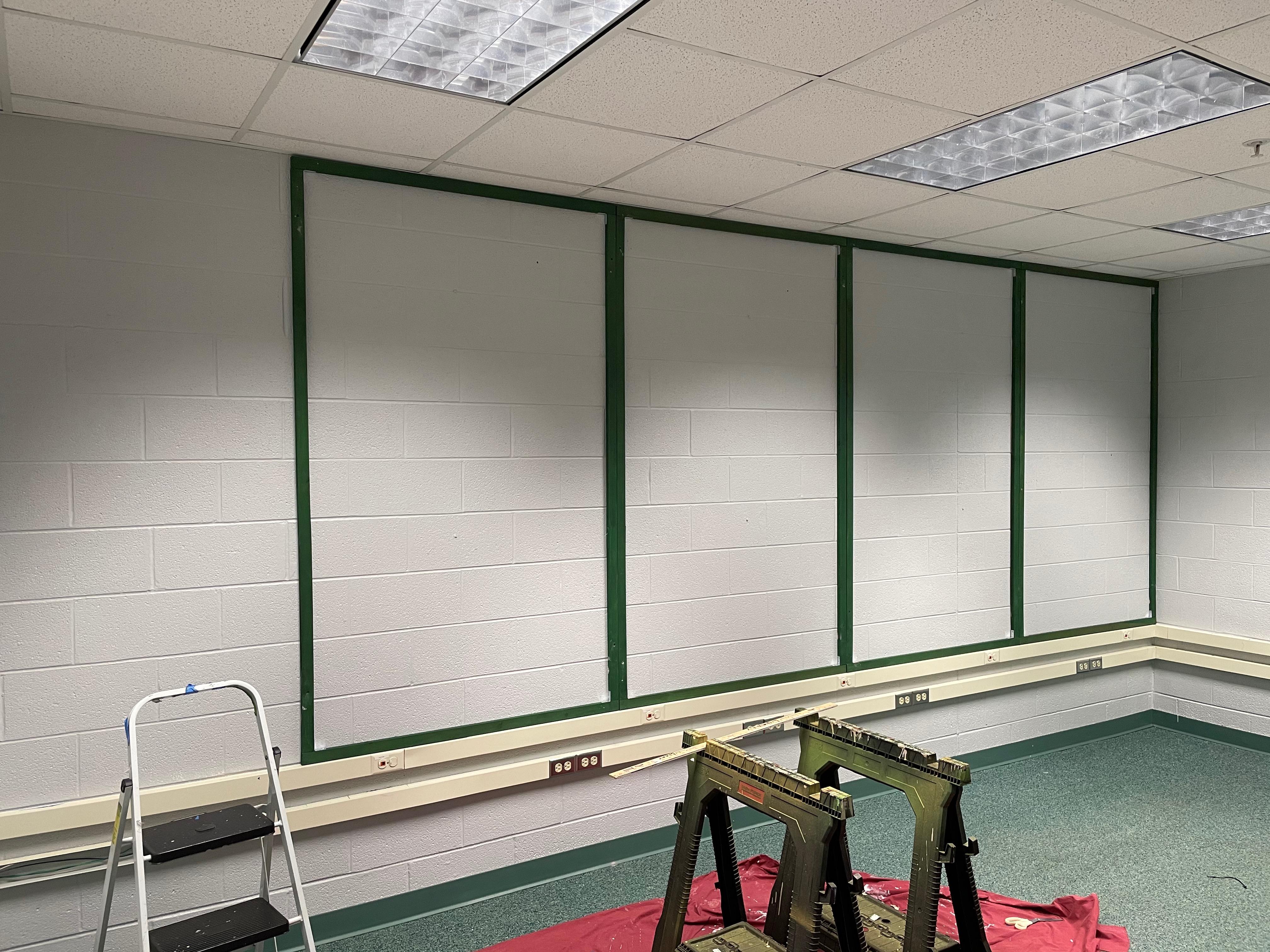

The first step was to cut and build a frame for each pegboard panel. Because of the raised power supplies and ethernet hubs in our room, I couldn't have the pegboard be the full eight feet tall. Instead, my panels were about 6 x 4. I cut and painted the pieces, then used the L brackets to attach the pieces together. Each completed rectangle was then attached to the cinder block walls using concrete screws. I decided to add a middle horizontal support board to each rectangle to avoid too much flex from the pegboard.
Painting the Pegboard
![IMG_0870.jpeg](/proxy/?url=https://content.instructables.com/FGW/IMY2/KP41TOSA/FGWIMY2KP41TOSA.jpg&filename=IMG_0870.jpeg)

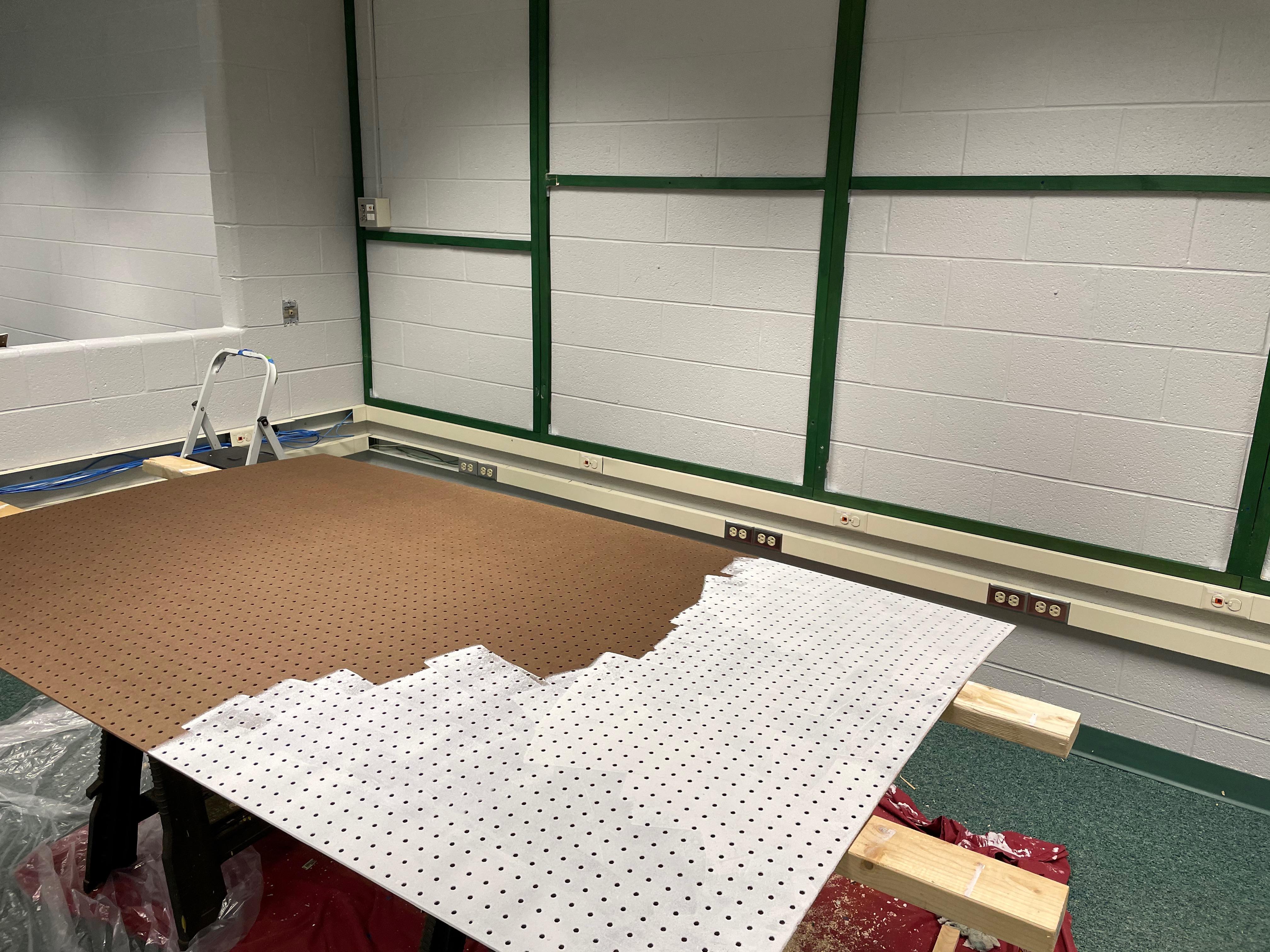

I bought masonite pegboard and know from experience that it takes lots of paint to make it look good. I started with a primer, then added at least two coats of acrylic interior paint using a small cabinet roller.
Prepping the Lights
![IMG_0886.jpeg](/proxy/?url=https://content.instructables.com/FHL/SK7P/KP41TORX/FHLSK7PKP41TORX.jpg&filename=IMG_0886.jpeg)
![IMG_0887.jpeg](/proxy/?url=https://content.instructables.com/FGI/9QUU/KP41TORW/FGI9QUUKP41TORW.jpg&filename=IMG_0887.jpeg)
![IMG_0888.jpeg](/proxy/?url=https://content.instructables.com/FXI/LL15/KP41TORV/FXILL15KP41TORV.jpg&filename=IMG_0888.jpeg)

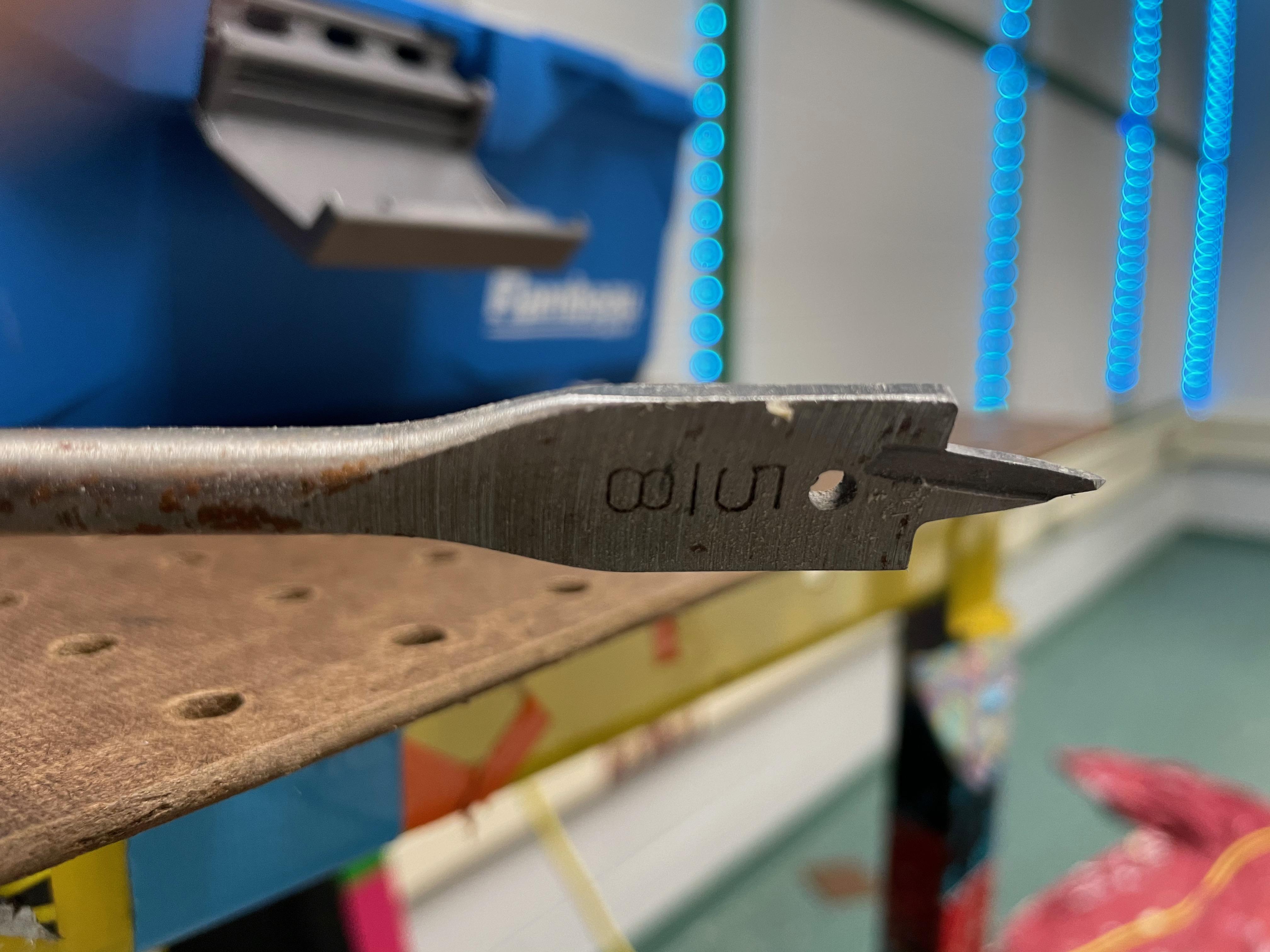

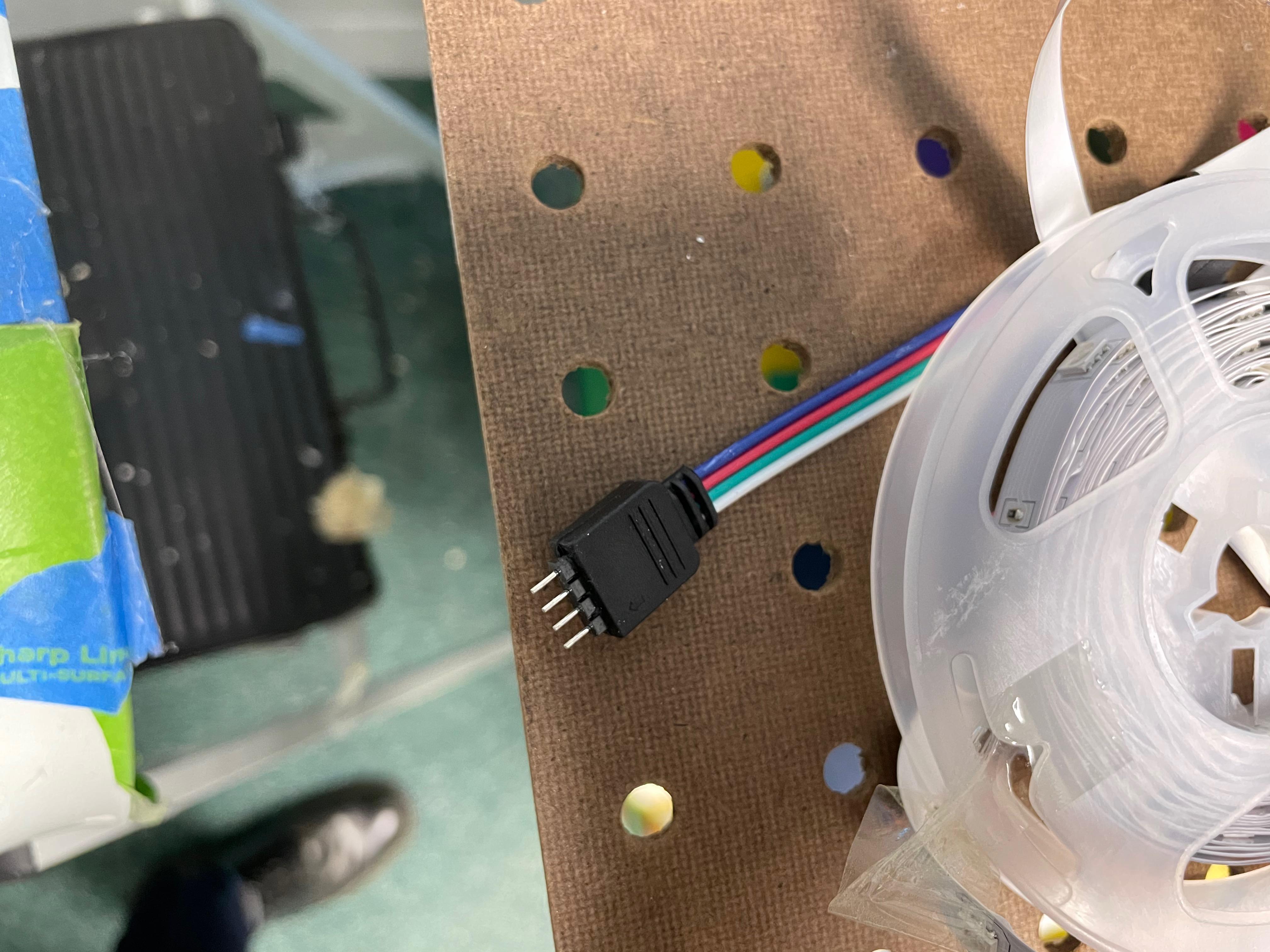

The lights are going to run along the inside edge of the wooden frames. I measured the length of lights that I needed based on the perimeter of the frames. Each 6 x 4 frame needed 20 feet of lighting. (Be sure to think about the path of your lights from one side to the other!) I then measured the width of the connectors for each LED strand, which is the widest part of the strand and used a 5/8 drill bit to cut holes in the frame where the lights would come in and out.
Running the Lights!
![IMG_0889.jpeg](/proxy/?url=https://content.instructables.com/F52/4K8O/KP41TORU/F524K8OKP41TORU.jpg&filename=IMG_0889.jpeg)
![IMG_0872.jpeg](/proxy/?url=https://content.instructables.com/FNS/1VZI/KP41TOS7/FNS1VZIKP41TOS7.jpg&filename=IMG_0872.jpeg)
![IMG_0877.jpeg](/proxy/?url=https://content.instructables.com/FUE/REXR/KP41TOS2/FUEREXRKP41TOS2.jpg&filename=IMG_0877.jpeg)
![IMG_0879.jpeg](/proxy/?url=https://content.instructables.com/F2T/D6W3/KP41TORY/F2TD6W3KP41TORY.jpg&filename=IMG_0879.jpeg)
![IMG_0892.jpeg](/proxy/?url=https://content.instructables.com/FED/F748/KP41TORR/FEDF748KP41TORR.jpg&filename=IMG_0892.jpeg)
![IMG_0891.jpeg](/proxy/?url=https://content.instructables.com/F54/6O8R/KP41TORS/F546O8RKP41TORS.jpg&filename=IMG_0891.jpeg)

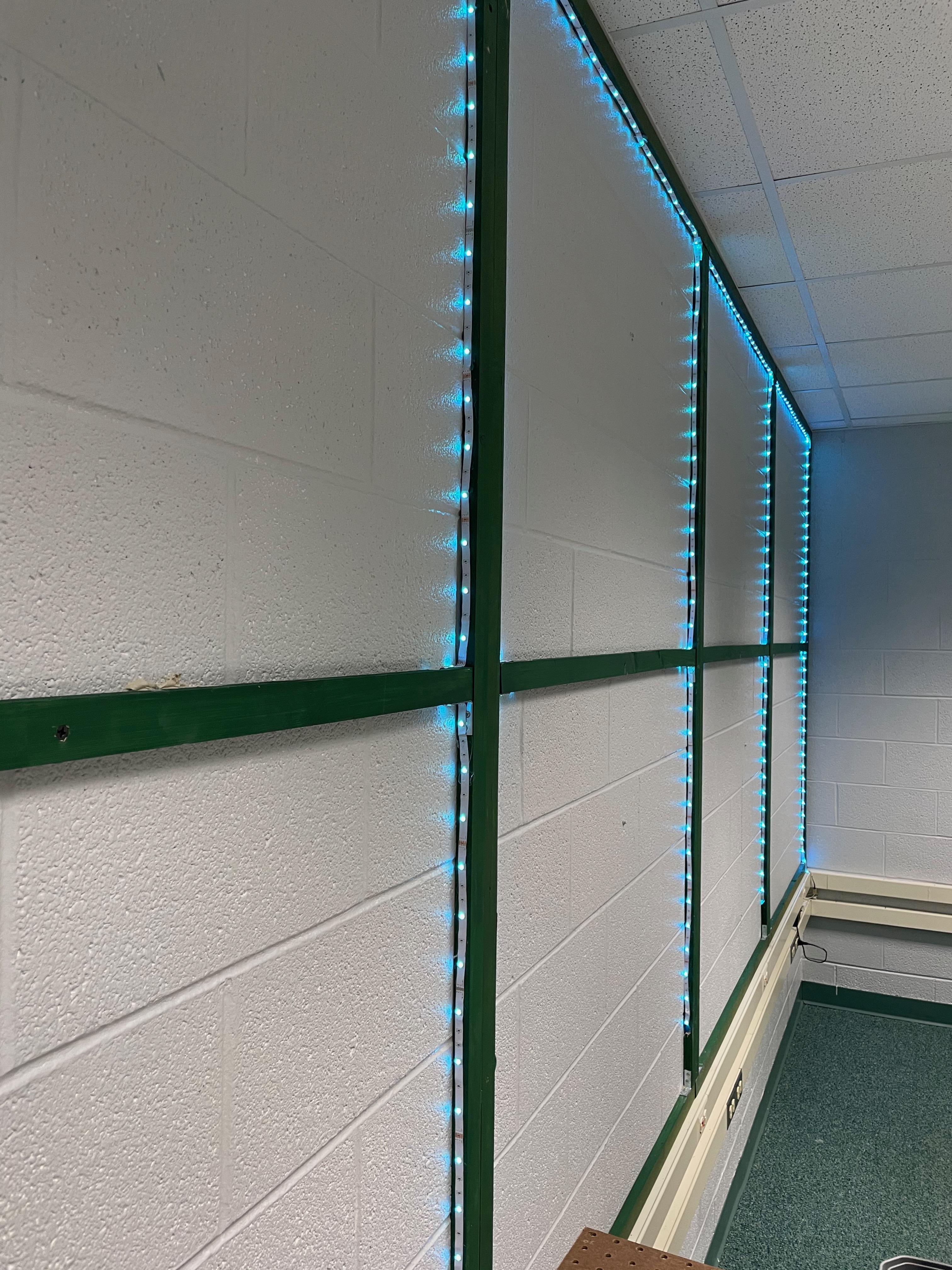

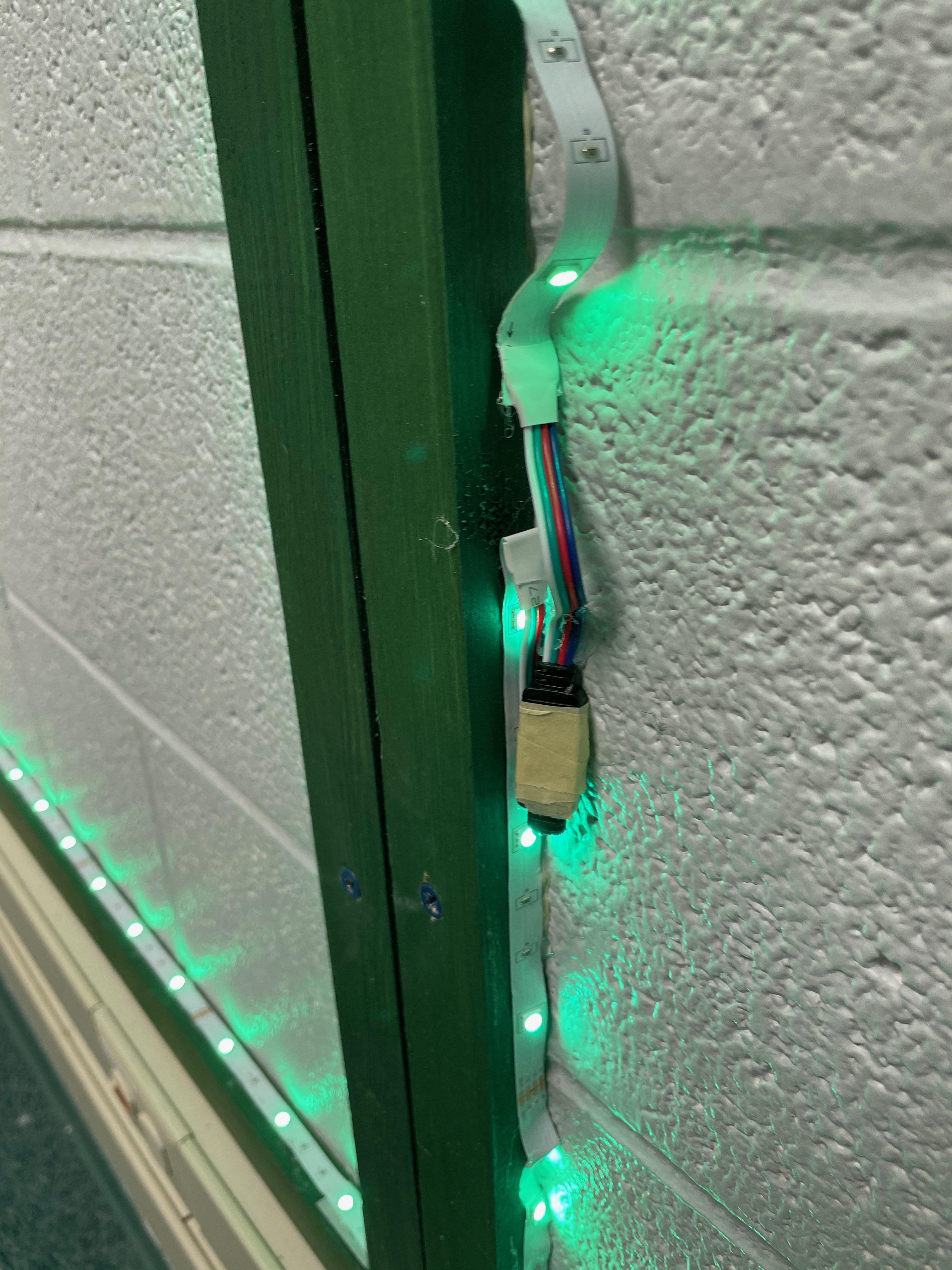

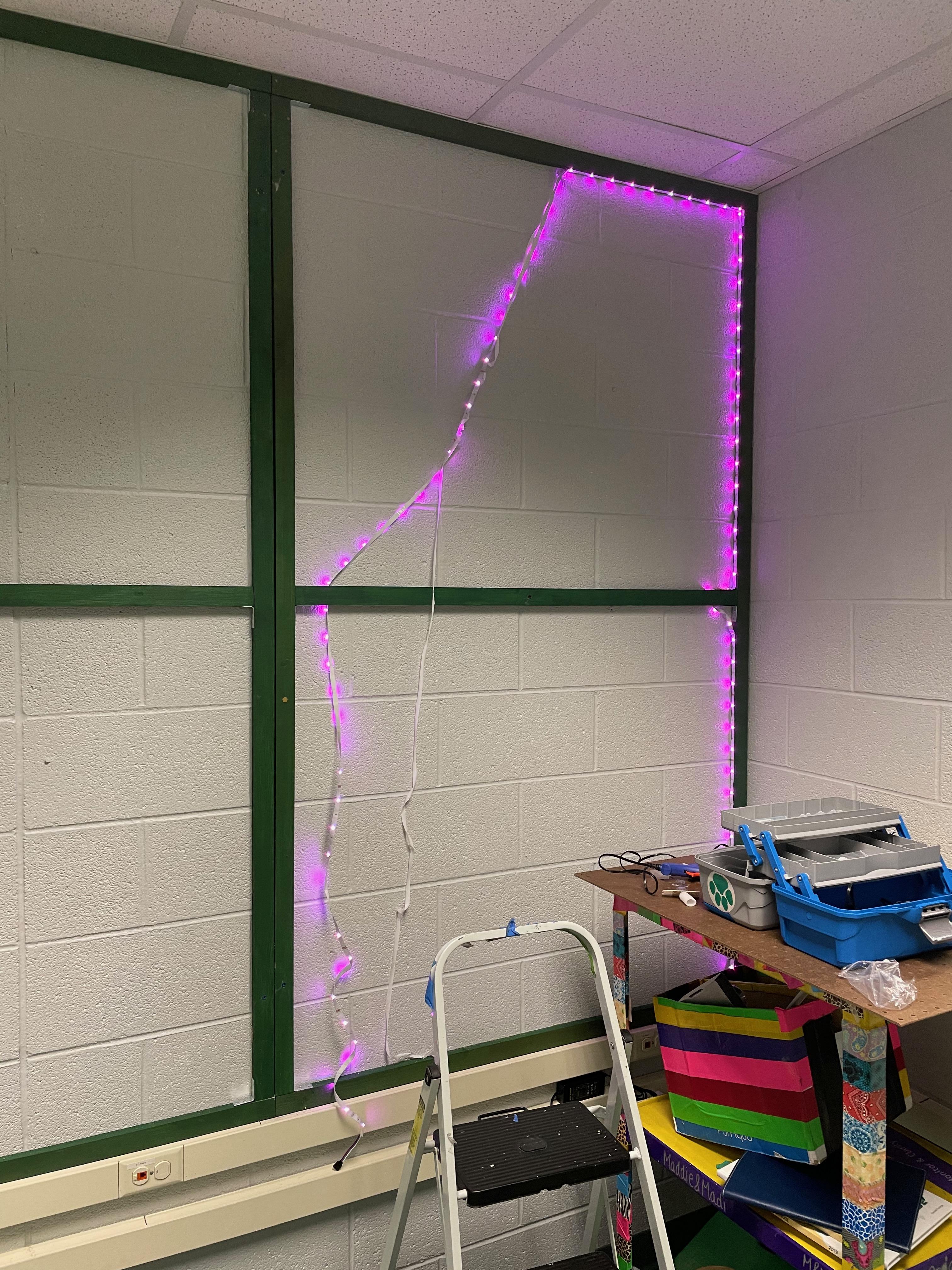

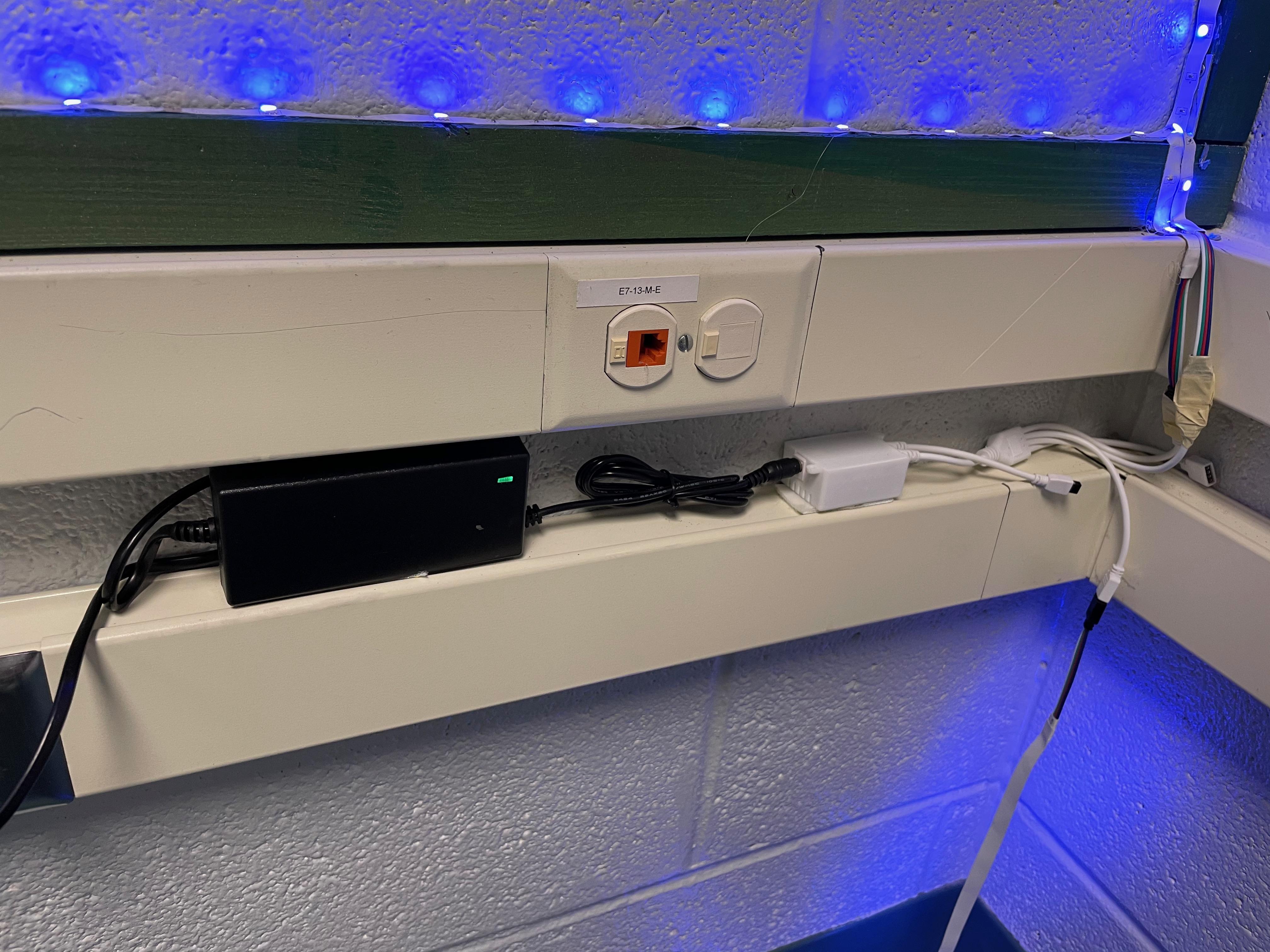

After finding a good place to hide the power supply and the infrared sensor that is needed for the remote control, I started to run the light strands. My lights came with a 3M adhesive backing that peeled away, but I wanted to be sure these light would stay in place forever, so I plugged in the hot glue gun. I peeled off the adhesive backing and added lots of hot glue as I attached the lights around the wooden panels. At each connection to the next strand, I tested the strands and then secured the metal pins with tape and glued in place. The unexpected best tool for this step was a silicone fingertip that came with my glue gun. I was able to really push each part of the strand into place as the glue dried.
Add the Pegboard!
![IMG_0917.jpeg](/proxy/?url=https://content.instructables.com/FUX/4SZF/KP41TOR6/FUX4SZFKP41TOR6.jpg&filename=IMG_0917.jpeg)
![IMG_0926.jpeg](/proxy/?url=https://content.instructables.com/F2V/FG3K/KP41TOQU/F2VFG3KKP41TOQU.jpg&filename=IMG_0926.jpeg)
![IMG_0896.jpeg](/proxy/?url=https://content.instructables.com/FUC/CJ59/KP41TORL/FUCCJ59KP41TORL.jpg&filename=IMG_0896.jpeg)
![IMG_0925.jpeg](/proxy/?url=https://content.instructables.com/FXA/VJOB/KP41TOQV/FXAVJOBKP41TOQV.jpg&filename=IMG_0925.jpeg)

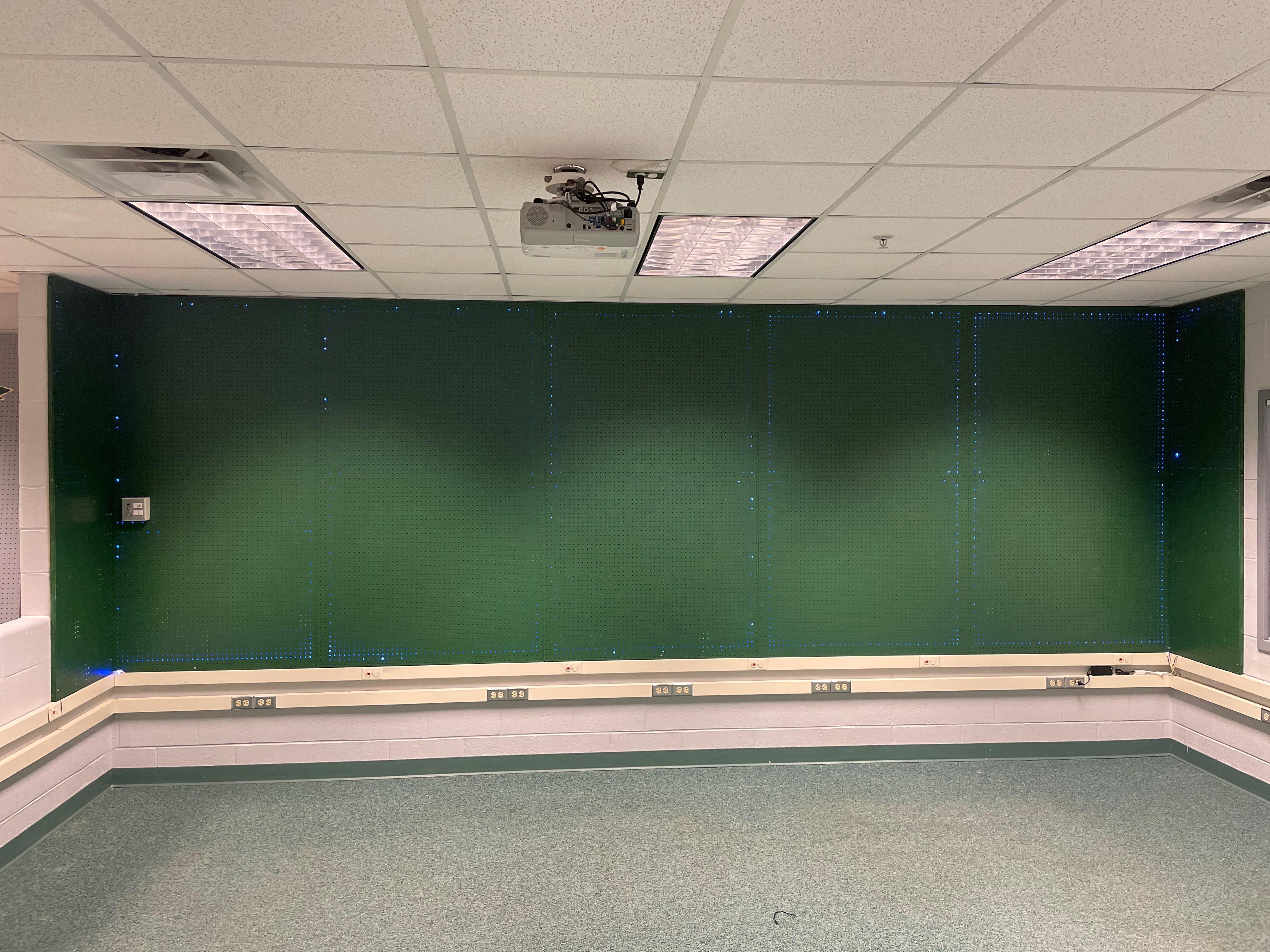

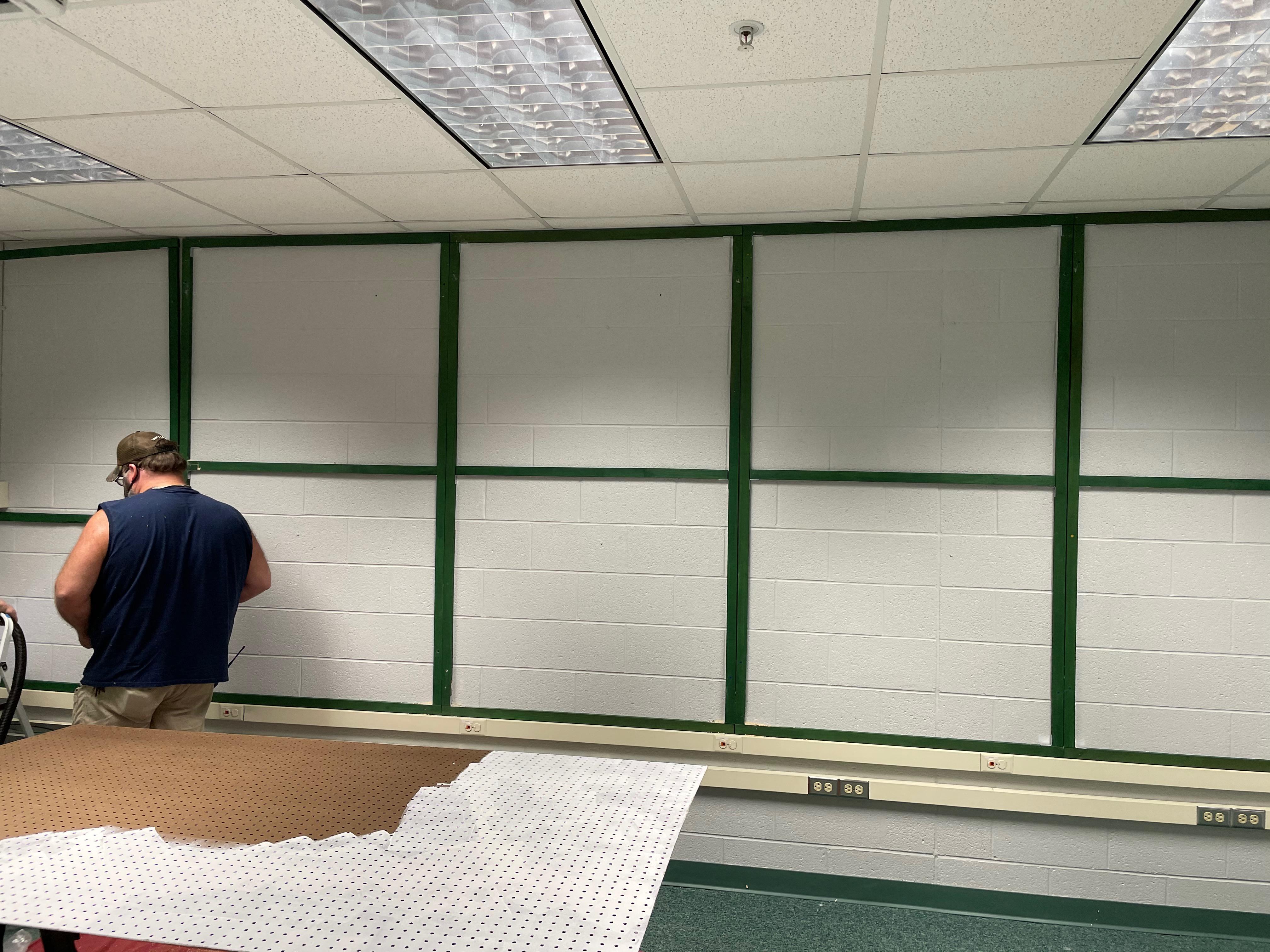

The next step is to add the pegboard panels. (Sorry, I don't have any action shots of this because it took both hands to hold the panels!) If you measured right, the panels each meet the edges of the frame. I used a short, wide screw to attach the panels to the frames. Then I turned out the lights to see how the rainbow colors looked!
Enjoy!
![LED Rainbow Pegboard wall](/proxy/?url=https://content.instructables.com/F4E/YESD/KP41TOYK/F4EYESDKP41TOYK.jpg&filename=LED Rainbow Pegboard wall)
![IMG_1215.jpeg](/proxy/?url=https://content.instructables.com/FE0/HSHO/KP41TOQG/FE0HSHOKP41TOQG.jpg&filename=IMG_1215.jpeg)
![IMG_1212.jpeg](/proxy/?url=https://content.instructables.com/FGI/S28V/KP41TOQJ/FGIS28VKP41TOQJ.jpg&filename=IMG_1212.jpeg)
Now we are ready to 3D print our pegboard accessories and enjoy our maker lab. Happy making!
