Rainbow Inspired Red Blue Green Led BackLight
by ron0821 in Workshop > Lighting
429 Views, 6 Favorites, 0 Comments
Rainbow Inspired Red Blue Green Led BackLight
Have an old spare of RBG led strip that been in your tool shed ? Or just want to add some mood on your room ?
Hi , my name is Ron Ellis , I'm from Philippines ð, Im a hobbiest and an electronics engineer.
Ive been playing with an old rgb led strip, and came with an idea to make a mood lamp to be placed on the back of my room light with the use of little component or materials.
Im joining on a contest called rainbow, so please do vote for this project... Thankyou and Godbless always ððð
Hi , my name is Ron Ellis , I'm from Philippines ð, Im a hobbiest and an electronics engineer.
Ive been playing with an old rgb led strip, and came with an idea to make a mood lamp to be placed on the back of my room light with the use of little component or materials.
Im joining on a contest called rainbow, so please do vote for this project... Thankyou and Godbless always ððð
Supplies
RGB Led Strip
12volts 2A power supply
3 Switch
Wires
Soldering Iron and Leads
Any sort of enclosure box
12volts 2A power supply
3 Switch
Wires
Soldering Iron and Leads
Any sort of enclosure box
Materials
.jpeg)
.jpeg)
.jpeg)
.jpeg)
12v RGB Led Strip
12volts 2A power supply
Female Jack

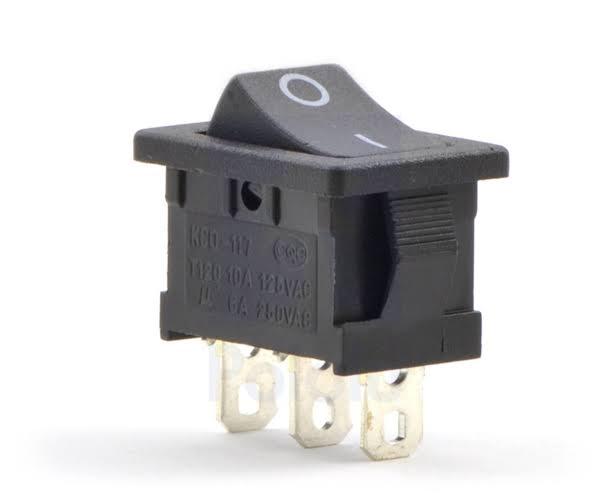

3x Switch
Wires
Soldering Iron and Leads
Any sort of enclosure box
12volts 2A power supply
Female Jack
3x Switch
Wires
Soldering Iron and Leads
Any sort of enclosure box
Wiring Diagram
If you dont know how to read circuit diagram just follow the wiring connection on the image ððð
We need to have a 12v power supply because it so just happen that my rgb led strip is rated for 12v ,
1. Connect the positive (+) terminal of your female jack to the (+12v) of the RGB Led Strip, you may required to solder it using soldering iron .
2. Connect the negative (-) terminal of your female jack to the middle pin of ALL the switch.
(All the middle pin of the switch must be connected to each other and the connected to negative of female jack)
Use the desire lenght of wire to connect the switches so that you can put it and tidy things on an enclosure case.
3. Connect the "R" of the led strip to the left most OR right most pin of the switch1.
Connect the "G" of the led strip to the left most OR right most pin of the switch2.
Connect the "B" of the led strip to the left
most OR right most pin of the switch3.

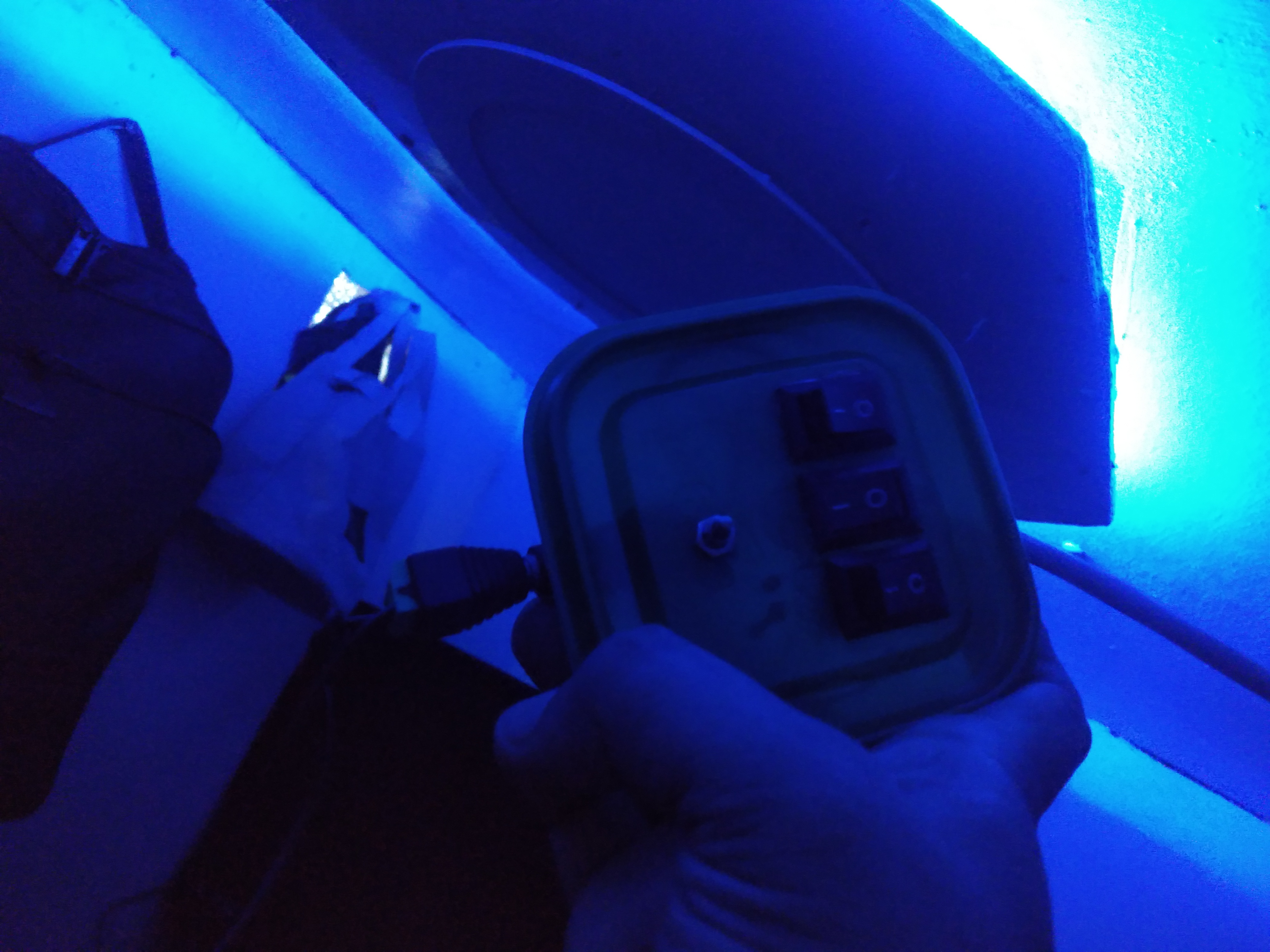

4. Put and secure all components to your enclosure case, and were almost done ððð
5.now all you have to do is to stick or placed your RGB led strip to the place you want to lit up, and there you have it a simple mood night lamp /backlight
We need to have a 12v power supply because it so just happen that my rgb led strip is rated for 12v ,
1. Connect the positive (+) terminal of your female jack to the (+12v) of the RGB Led Strip, you may required to solder it using soldering iron .
2. Connect the negative (-) terminal of your female jack to the middle pin of ALL the switch.
(All the middle pin of the switch must be connected to each other and the connected to negative of female jack)
Use the desire lenght of wire to connect the switches so that you can put it and tidy things on an enclosure case.
3. Connect the "R" of the led strip to the left most OR right most pin of the switch1.
Connect the "G" of the led strip to the left most OR right most pin of the switch2.
Connect the "B" of the led strip to the left
most OR right most pin of the switch3.
4. Put and secure all components to your enclosure case, and were almost done ððð
5.now all you have to do is to stick or placed your RGB led strip to the place you want to lit up, and there you have it a simple mood night lamp /backlight
Test and Enjoy Mixing the Primary Color Red , Green and Blue ðĪŠ
Enjoy mixing up color to the likings of or mood ððð
You should have 7 different color for your mood back light

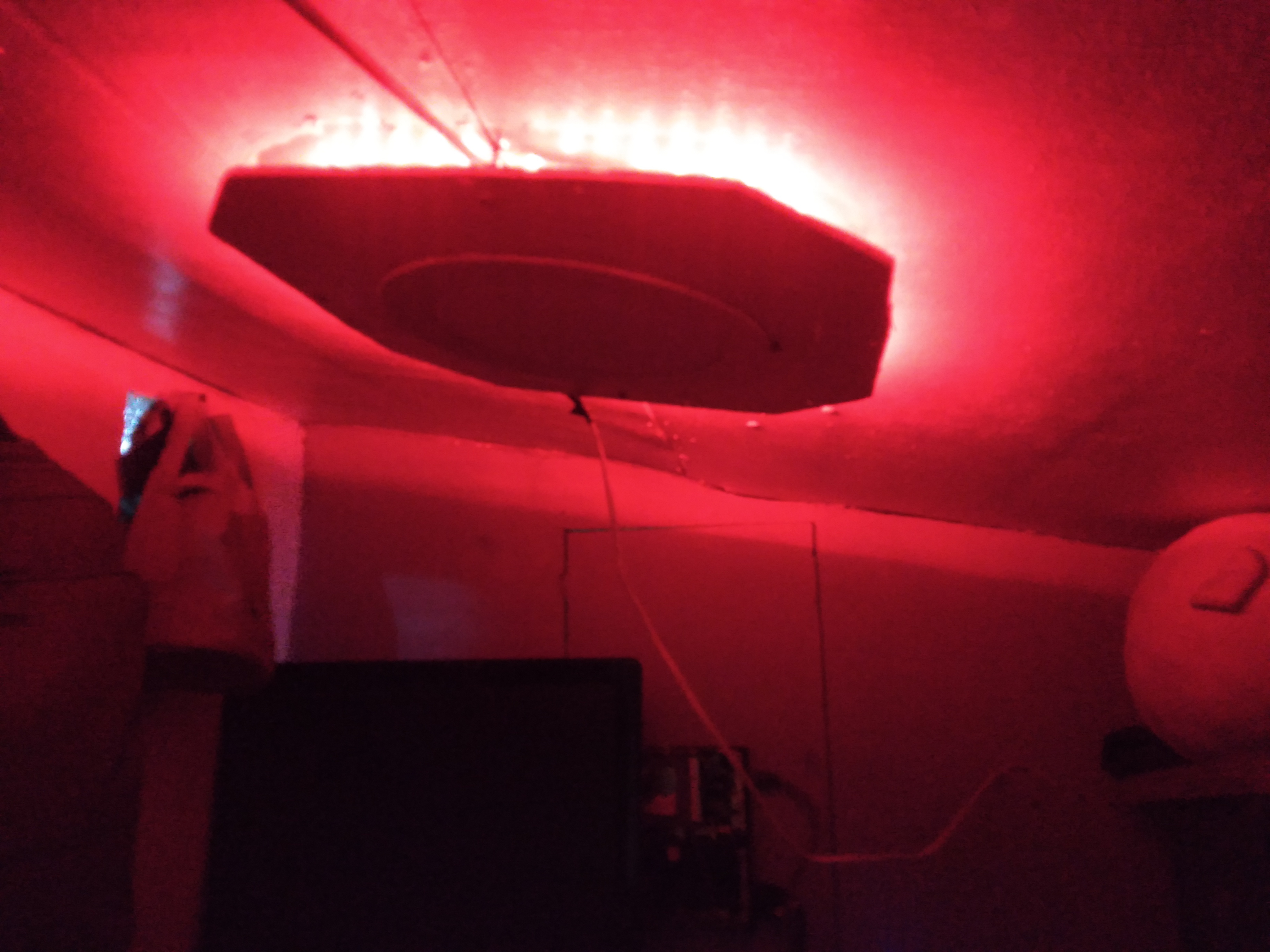

Red

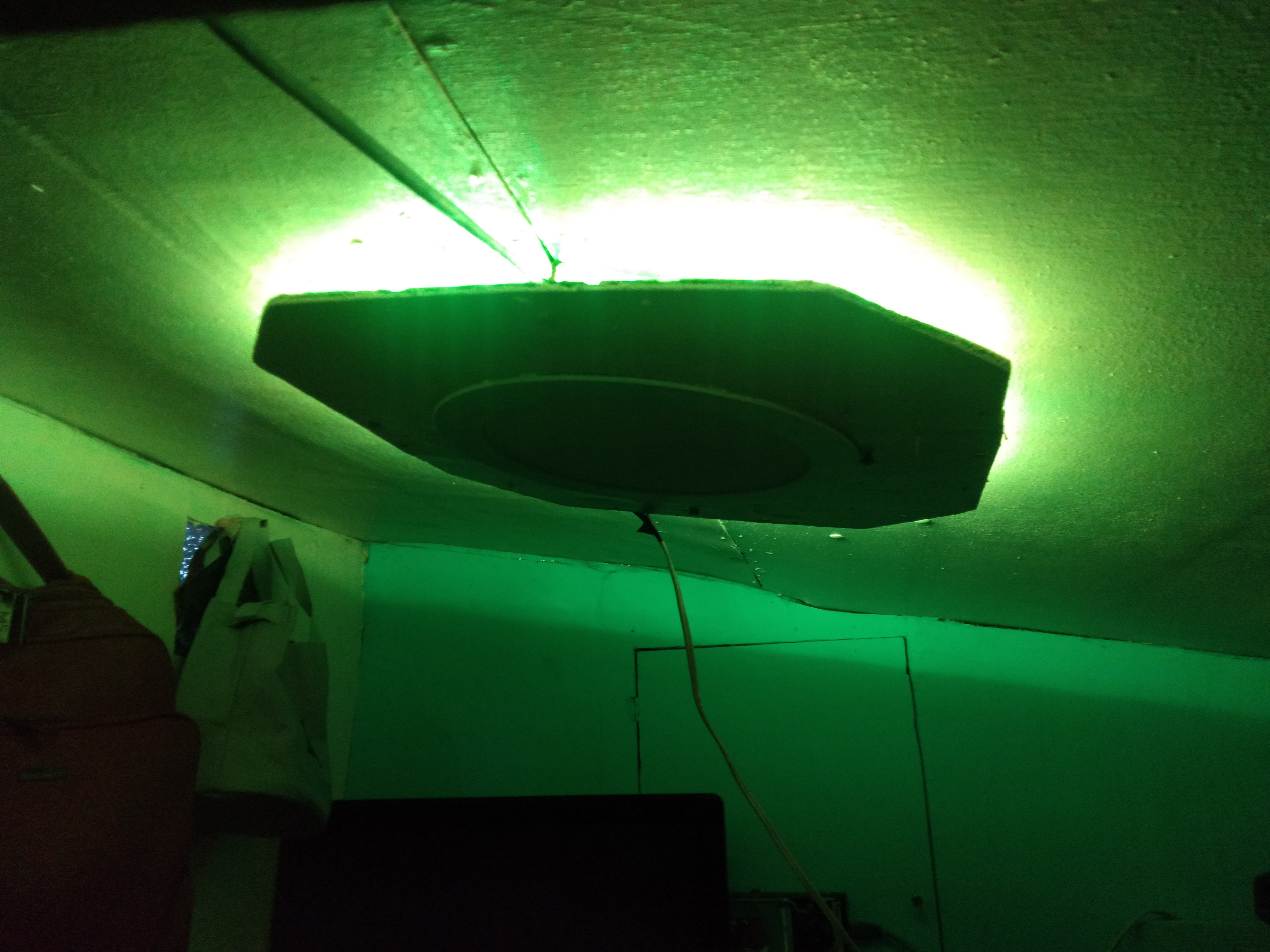

Green

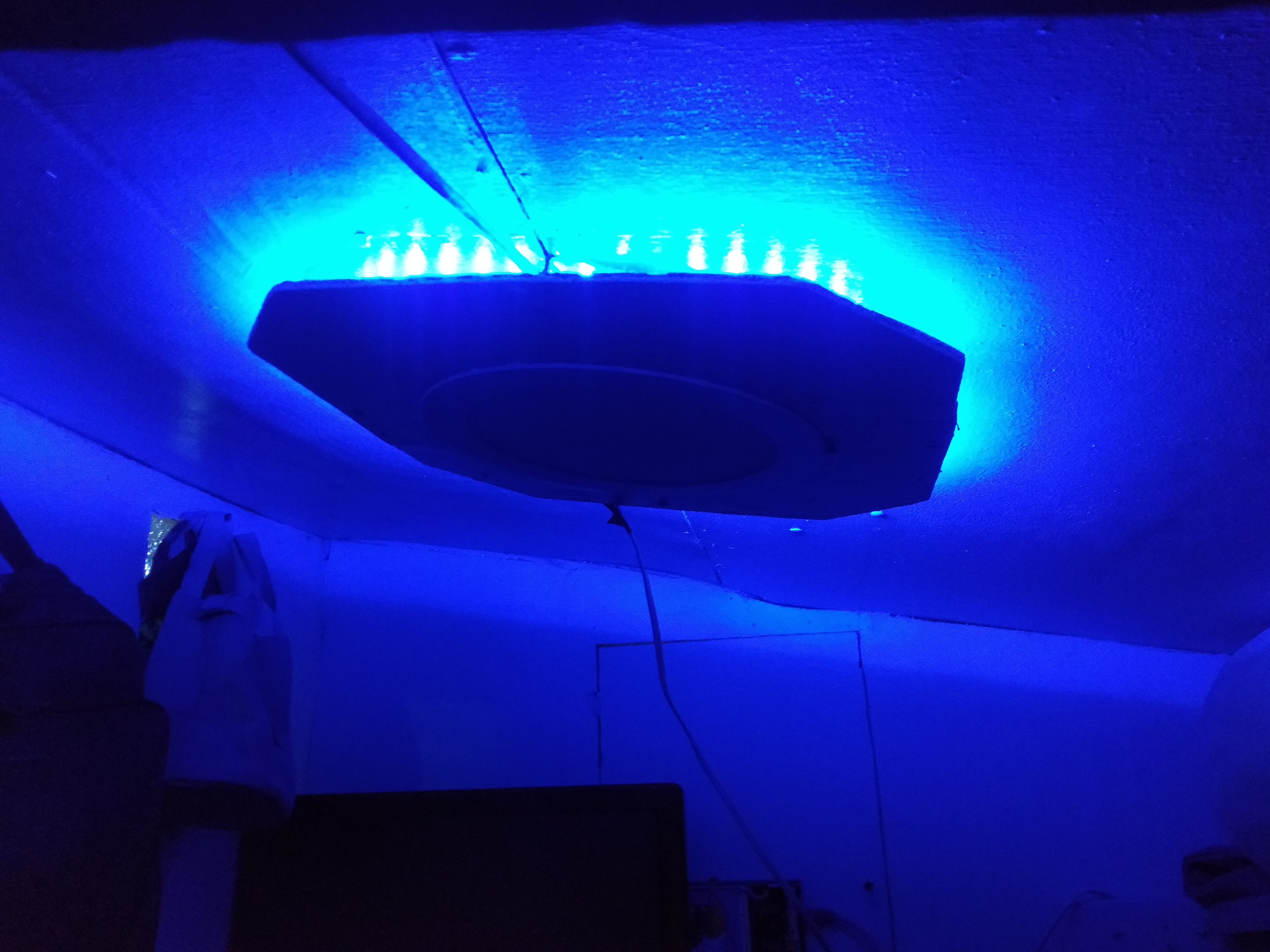

Blue
Yellow
Magenta
Cyan
White
Hope youll enjoy your new mood light
And dont forget to vote please ððð
