Rainbow Colored Spinning Toy Using Tinkercad

We have used Tinkercad to design a colorful spinning top.

This top will fit on the junk unused CD (Compact Disk). CD's outer diameter is 12cm & inner hole is 1.4cm. So we designed a web using Tinkercad. This web is having 14 concentric circles with 1mm thickness & having 3mm gap in between adjacent circles. These circles are connected to each other with 20 lines. Due to this small compartments are created.

Tinkercad Login Access

3D Printer

White Paper

Colored Sketch Pen

Old Compact Disc (CD)

Marble

Rubber Adhesive (In our case Fevi bond)

Designed a web in Tinkercad having 14 concentric circles with 1mm thickness & having 3mm gap in between adjacent circles. These circles are connected to each other with 20 lines. Due to these lines compartments are getting form.

3D Print web using different filament colors.

1. Take a Mark on piece of white paper using above 3D Printed web.
2. Cut the paper on the mark.
3. Stick this paper on old CD (compact Disk). In our case size of CD : outer diameter is 12cm & inner hole is 1.4cm

Stick the web on white paper side of the CD

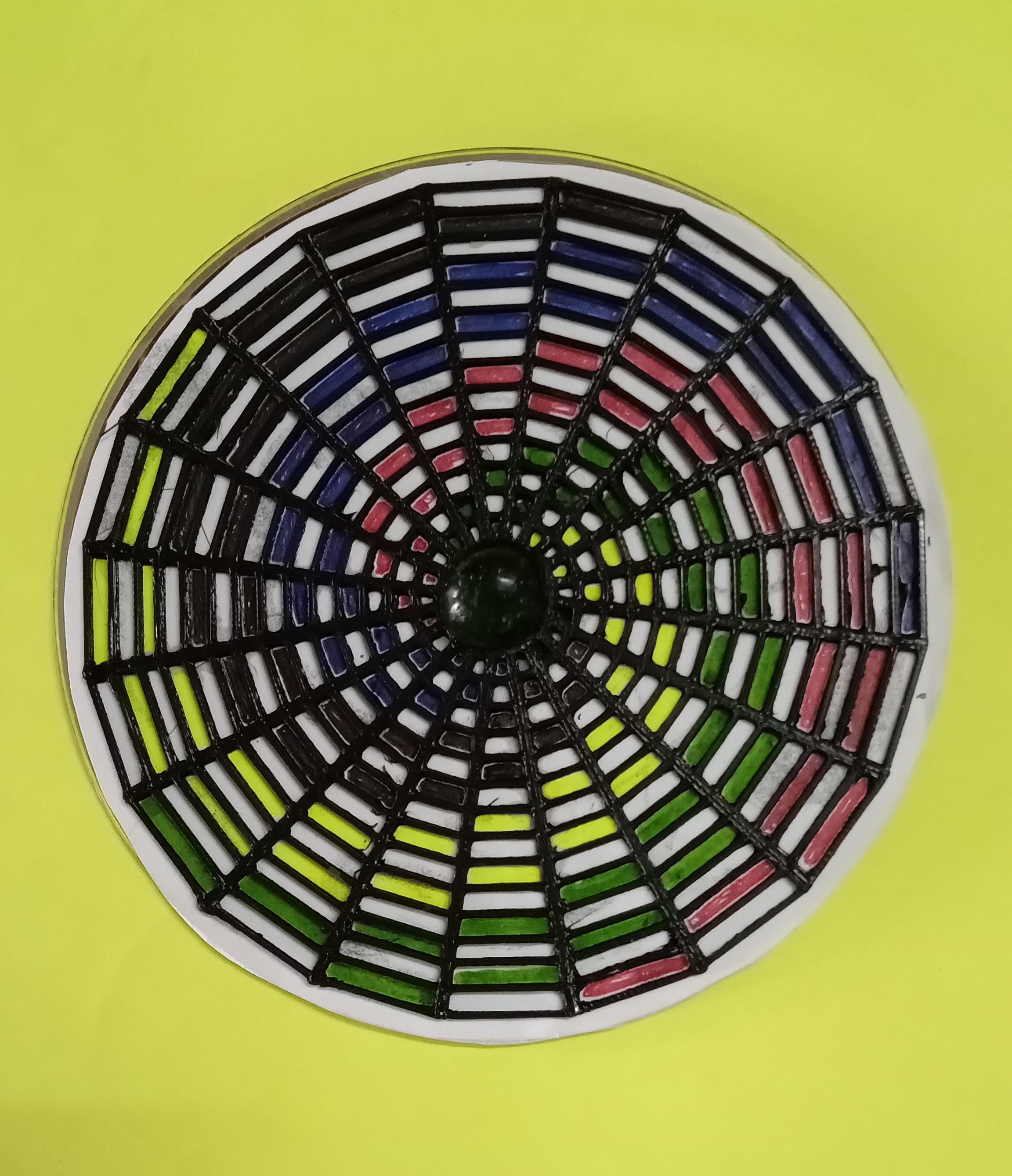

Color the compartments as shown above in 7 colors of rainbow.

Add one more line of the same color as shown in above phototgraph.

Paste marble at the central hole using rubber adhesive as shown in above photograph. Colorful top toy is ready.

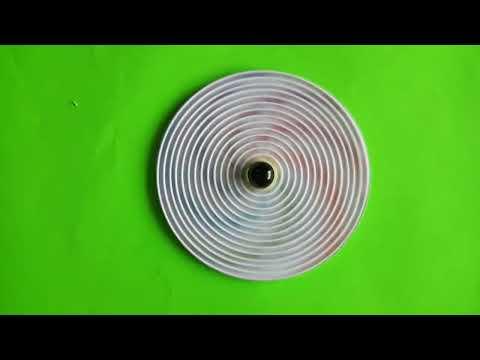

Above video is of rainbow colored top toy.

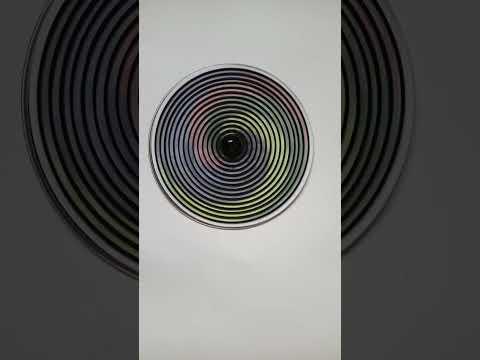

A different pattern of colorful spinning toy top
