Rain Alarm 555 Timer Project
by devinglover18 in Circuits > Electronics
444 Views, 0 Favorites, 0 Comments
Rain Alarm 555 Timer Project
![rainyday.jpeg](/proxy/?url=https://content.instructables.com/FM7/YBCD/L3DA5RA8/FM7YBCDL3DA5RA8.jpg&filename=rainyday.jpeg)
![1BDE8DAD-7CD5-4C59-8F6E-B5855D327849.jpeg](/proxy/?url=https://content.instructables.com/FC7/AQL7/L3DA5OX1/FC7AQL7L3DA5OX1.jpg&filename=1BDE8DAD-7CD5-4C59-8F6E-B5855D327849.jpeg)
![Untitled_Artwork.png](/proxy/?url=https://content.instructables.com/FZD/UUHE/L3DA5QJA/FZDUUHEL3DA5QJA.png&filename=Untitled_Artwork.png)
This project, was an introduction to building an electronics system. The goal was to make a rain alarm in which a rain detection sensor would sound an alarm if the sensor detected moisture.
There are many real life examples where this circuit could be useful. Some examples include:
- Outside near a garden to know if the garden is being watered or not by moisture.
- In a basement where water may leak. There are probably other sensors that could be more efficient but this one would certainly work.
- Outside in general to know whether it is raining or not.
While constructing this project, I originally intended to install a few rain sensors in parallel, which I eventually decided not to due to simplicity and it being my circuit board build.
Supplies
![Raindrops-Detection-Sensor-Module-.jpeg](/proxy/?url=https://content.instructables.com/FCM/PG4V/L3DA5OMK/FCMPG4VL3DA5OMK.jpg&filename=Raindrops-Detection-Sensor-Module-.jpeg)

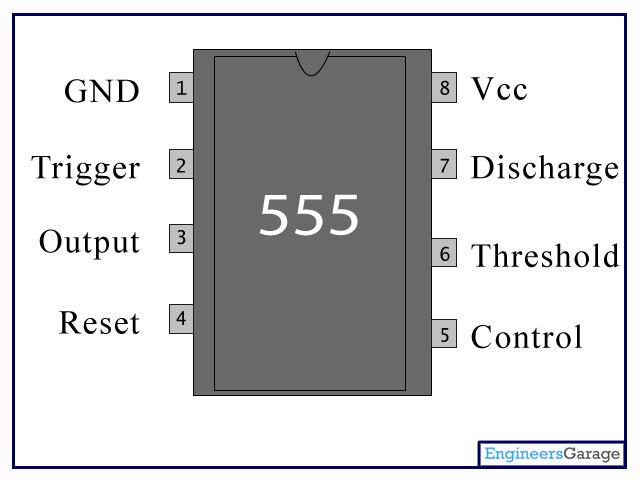

![Pin-Diagram-555-IC.jpeg](/proxy/?url=https://content.instructables.com/FRR/UHDY/L3DA5OML/FRRUHDYL3DA5OML.jpg&filename=Pin-Diagram-555-IC.jpeg)

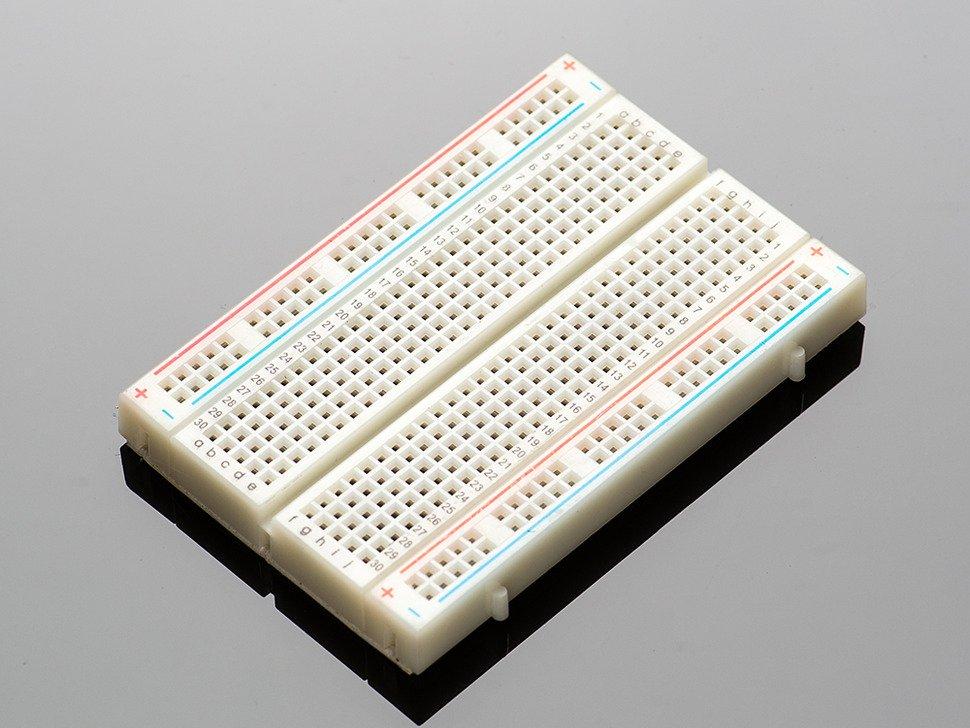

![breadboard.jpeg](/proxy/?url=https://content.instructables.com/F7P/C0DQ/L3DA5OMM/F7PC0DQL3DA5OMM.jpg&filename=breadboard.jpeg)
![transistor.jpeg](/proxy/?url=https://content.instructables.com/FU0/M2BW/L3DA5OMN/FU0M2BWL3DA5OMN.jpg&filename=transistor.jpeg)

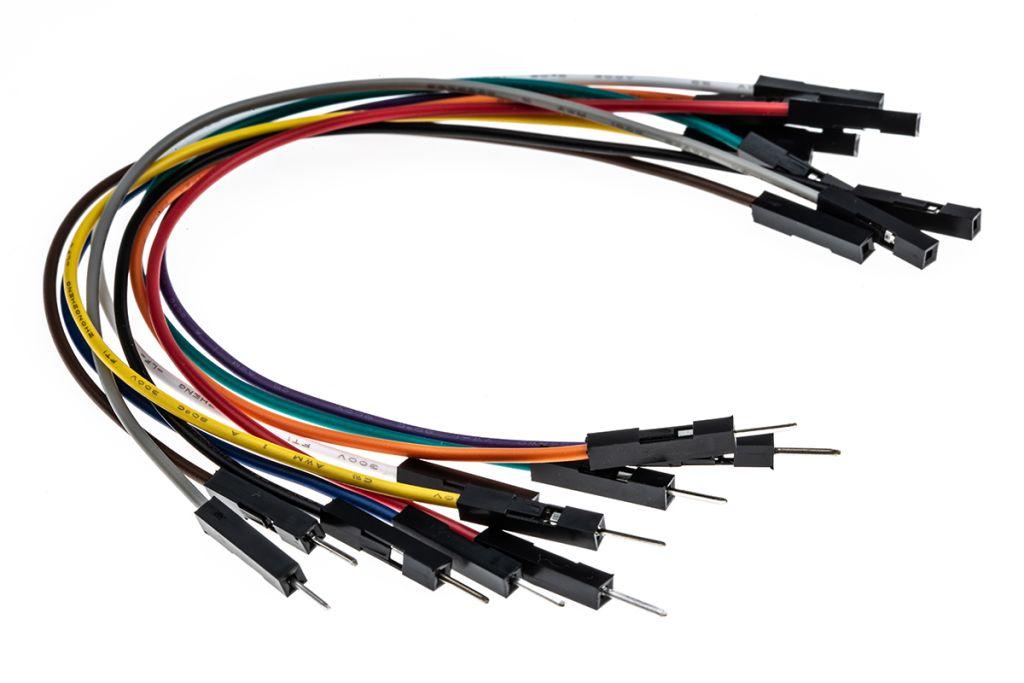

![jumper wire.jpeg](/proxy/?url=https://content.instructables.com/F40/0RFP/L3DA5OMO/F400RFPL3DA5OMO.jpg&filename=jumper wire.jpeg)

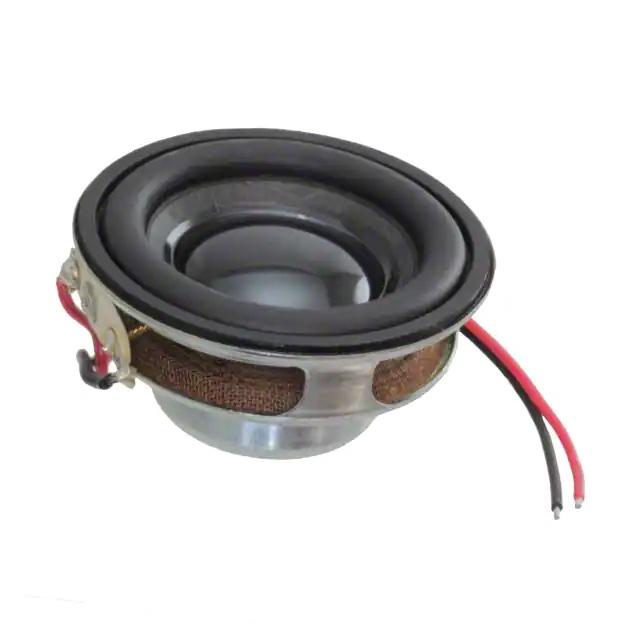

![speaker.jpeg](/proxy/?url=https://content.instructables.com/FMS/MOKI/L3DA5OMP/FMSMOKIL3DA5OMP.jpg&filename=speaker.jpeg)
The components used included:
- A Bread Board to assemble all of the components.

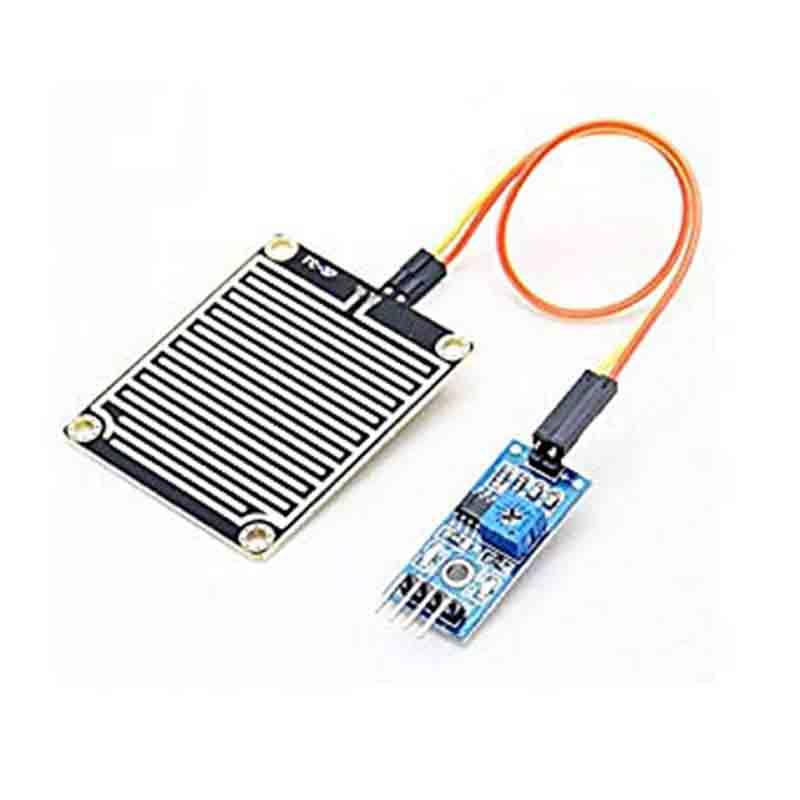

- A 12 Volt Rain detection sensor, with a relay control module potentiometer.
- A 555 Timer

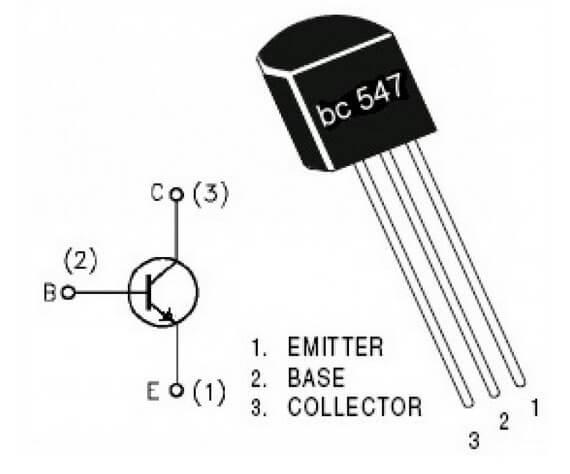

- Three transistors: Two BC547 and One BC557
- Jumper wires
- Any audio speaker
- 6 Resistors including: (1k, 10k, 33k, 39R, 47k, 100k,)
- 2 Capacitors each (10n)
The Entire Build
![IMG_4993.jpg](/proxy/?url=https://content.instructables.com/F4Z/E7E9/L3DA5PUC/F4ZE7E9L3DA5PUC.jpg&filename=IMG_4993.jpg)
![IMG_4995.jpg](/proxy/?url=https://content.instructables.com/FKZ/L9QT/L3DA5PUE/FKZL9QTL3DA5PUE.jpg&filename=IMG_4995.jpg)

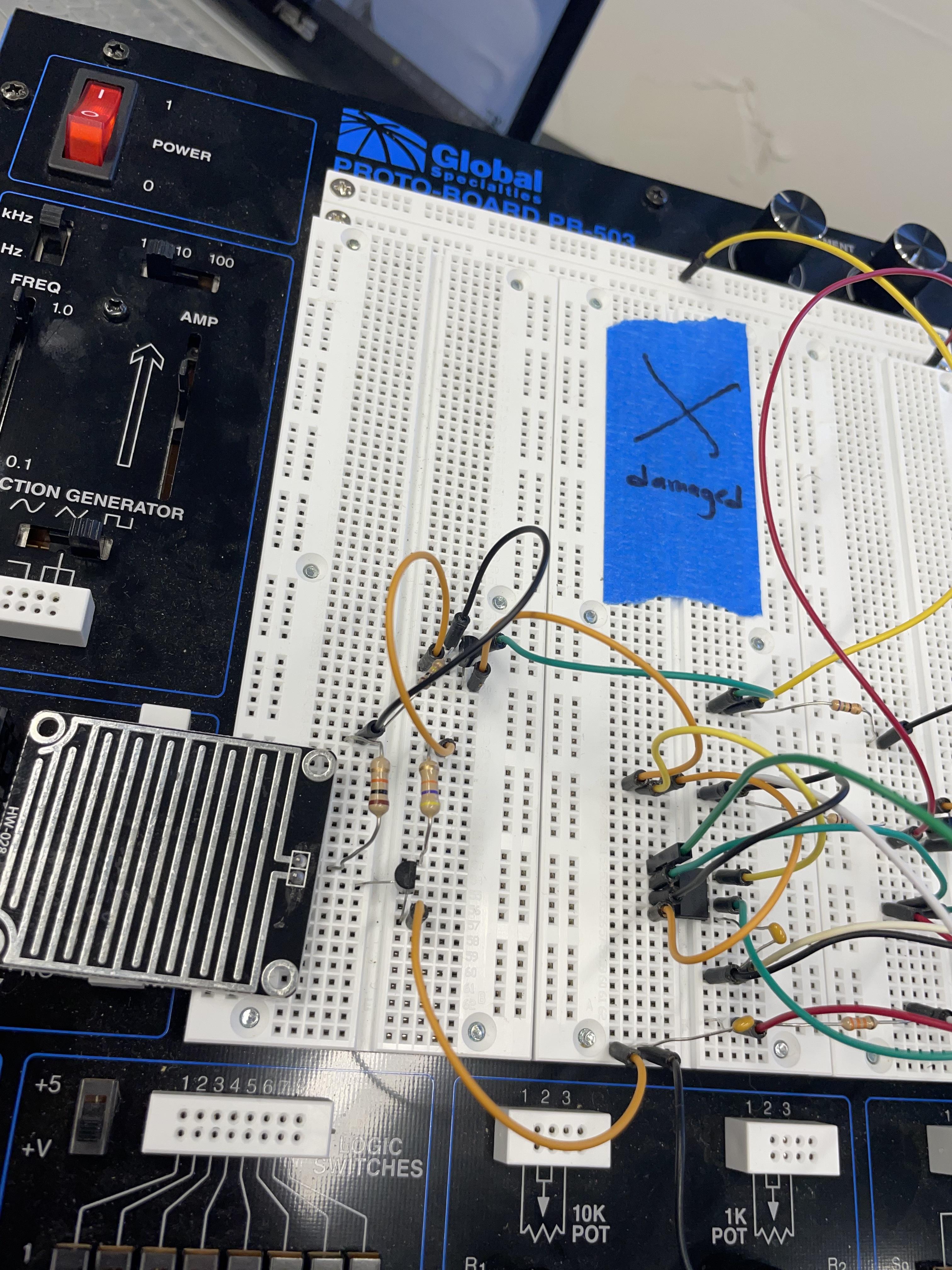

Unfortunately, as my first time I didn't think much of taking pictures of each step in the processes. In addition, I was too excited that it worked in the end that I did not capture a video of the speaker making noise as the sensor went off. This build took more time than I expected because the circuit would not properly work for a large amount of time. After much time problem shooting everything, it turns out that the issue was a transistor that was working improperly.
Step 1: Gather all the materials
Step 2: To verify the resistance of each resistor, use a multimeter to double check.

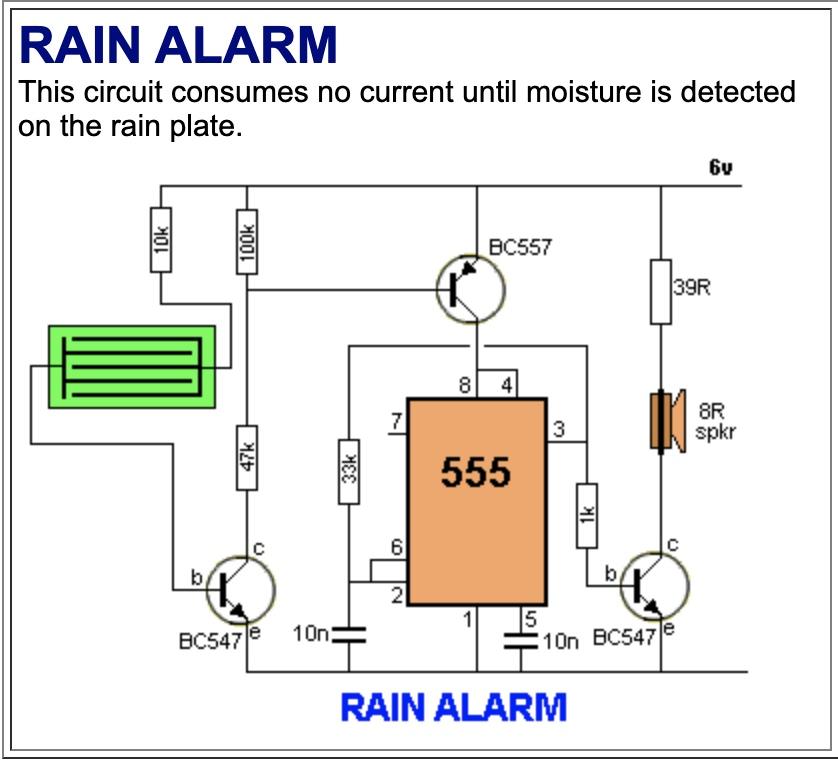

Step 3: Follow the diagram and connect each component accordingly. Some advice it to make sure the transistors are correctly aligned with base and emitter. The circuit board that I used had voltage and ground built into it.
Step 4: Add moisture to the sensor and hear the wonderful noise of the circuit working correctly.
