RadioGlobe - Spin to Search Over 15000 Web Radio Stations!

Ever wanted to explore thousands of the world's radio stations, in seconds, simply by spinning a globe?

Then this is the project for you!

UPDATE: This project has won awards and acolades from Elektra and Core77, to FastCo and Shorty's. We've also upgraded the stations from 2000 to 15000! And done some debugging from V1.0. So enjoy RG2.0!

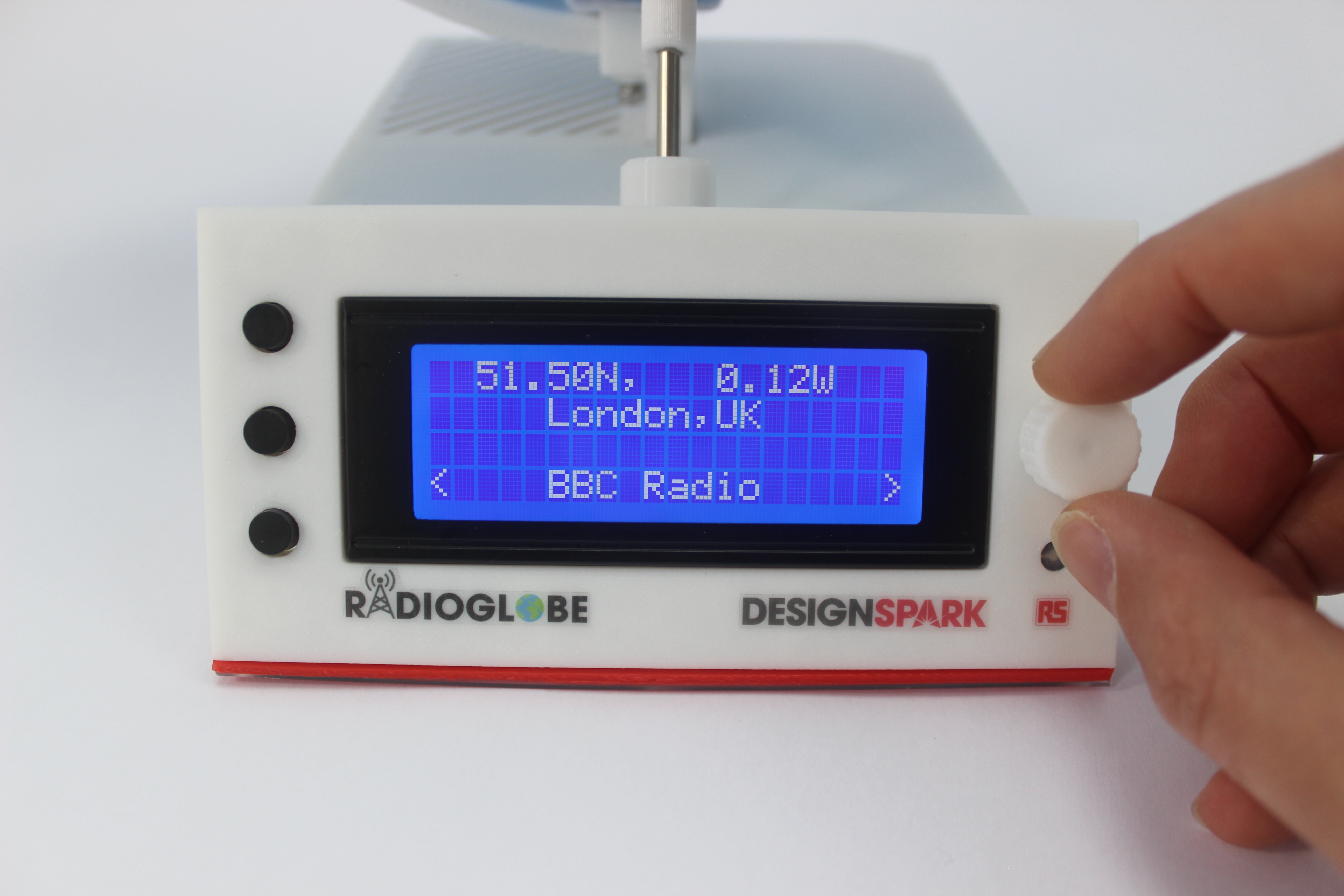

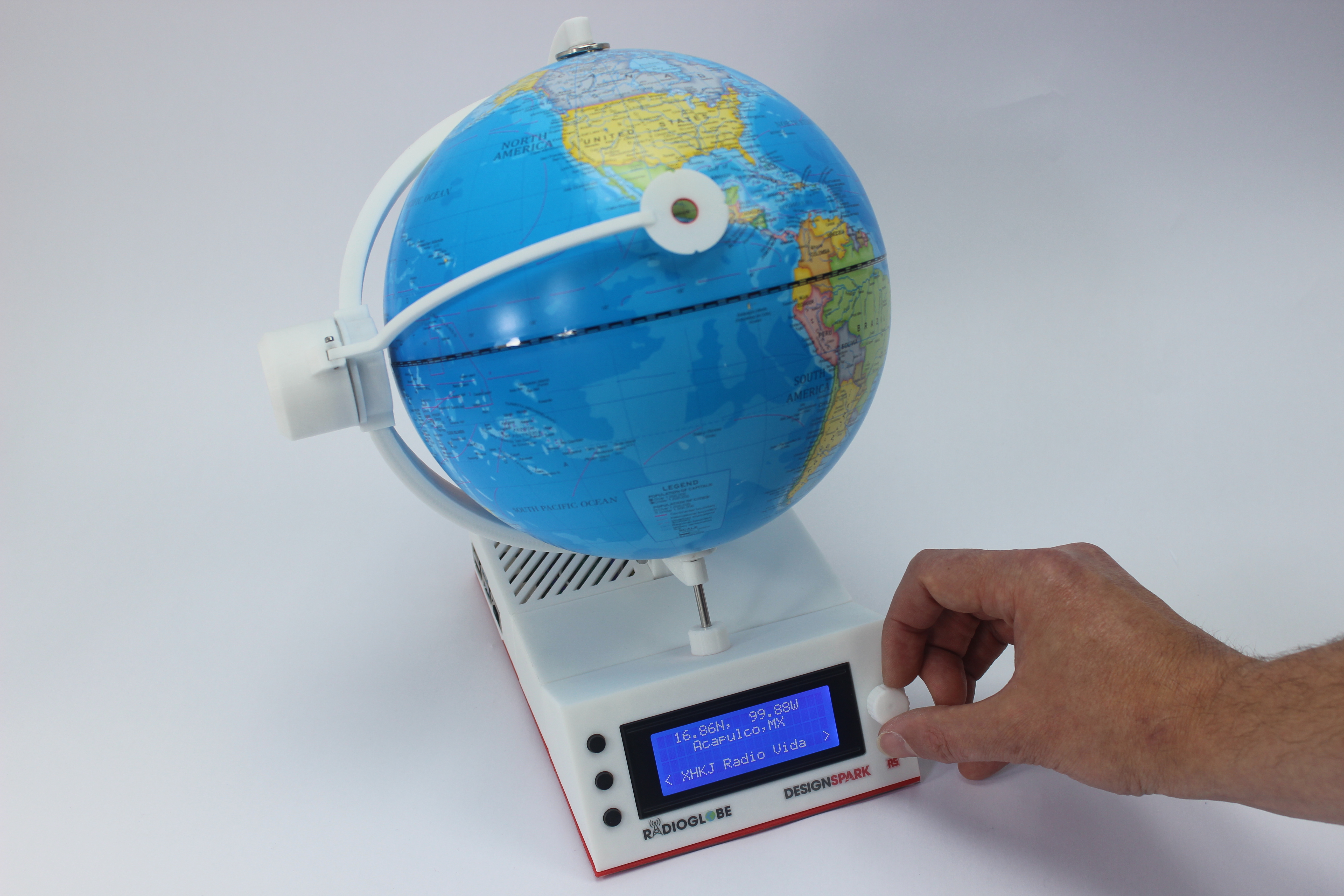

This Instructables will show you how to build a 'RadioGlobe', which has over 15000 stations (and counting), from all over the world. Part of the magic is the the tension between familiarity and the unfamiliarity: It's both shocking how many radio stations play Western pop music, but then with a turn of the jog wheel, you find an alternatives (in the same location) - and you navigate from Boosh FM's Drum & Bass, to listening to a native dialect of New Zealand. It's frankly, mind-blowing, even though the technology has been around for years.

News is another revelation - it's all too easy to lapse into thinking my 'international' news is 'the benchmark'. I found myself listening to the same global updates on COVID-19, but rather than my usual BBC News, I heard a local DJ discussing it in a chat radio station in South Africa - framing things in, frankly, a more gritty take... It's certainly different to what I'm used to, and that's the point. Even the globe is shifted 6.5degrees extra to make the viewing 'equal' between the northern and southern hemispheres - and yes, it's a nice metaphor for many things right now ;o)

For the Music fans, it does not disappoint. So much so, that it's almost giddying to find so much new music, and frustrating that I have to keep getting Shazam out! (We are working on this!). Of course, it must be said that there are desktop/mobile/apps that essentially do this already, but I like the physicality of the interface, and the way it hones my spatial appreciation for things. (And yep, it's nice to put the phone down for a second!!). I was impressed that after a quick demo, my 4 year old seemed very at home with the concept, so it passed the UI/UX test it seems ;o)

Which leads me nicely to the last part of this project: It's all Open Source. The GitHub repository is open to anyone who would like to evolve the code to make the RadioGlobe even better. I feel this is a perfect project for the Instructables community to build, but also hopefully to give suggestions in comments for future ideas (or help create them!). All credit is given on GitHub, and we know a few designers in some very prestigious companies are watching, so you never know ;o)

For more on the project, please check out the Vlog (LINK) and Q&A (LINK) I made for the project with DesignSpark, as part of their 10th Anniversary. Many thanks to them for commissioning me to simply 'do something awesome' - so I hope this delivers on that design brief! I think it's also really cool that they have supported the Open Source nature, with the Vlog and the GitHub work. As someone who has been making tutorials for years throughout my time at Dyson, Sugru and LEGO, I value the 'warts and all' transparency, rather than the 'here's one I made earlier' approach. The Vlog is a day-by-day reality of the ups and downs of the project, the mistakes and the wins. I hope it's useful for those interested in designing for prototyping, 3d printing, protoboard/PCB design, and of course a load of code!

Thanks for your comments, ideas and please vote in the Maps Contest if you like it.

Happy making!

Tools & Materials

GENERIC TOOLS:

I've suggested basic tools, such as Drills, Soldering Irons, Files, Drill Bits, etc.

To be candid, the project is certainly 'intermediate' to 'high' level in complexity, so I'm although I'm not expecting you to have a New Yankee Workshop, I am assuming you have at least a fair toolbox. But I can reassure you that this does not require anything especially exotic to make, other than 3D Printing.

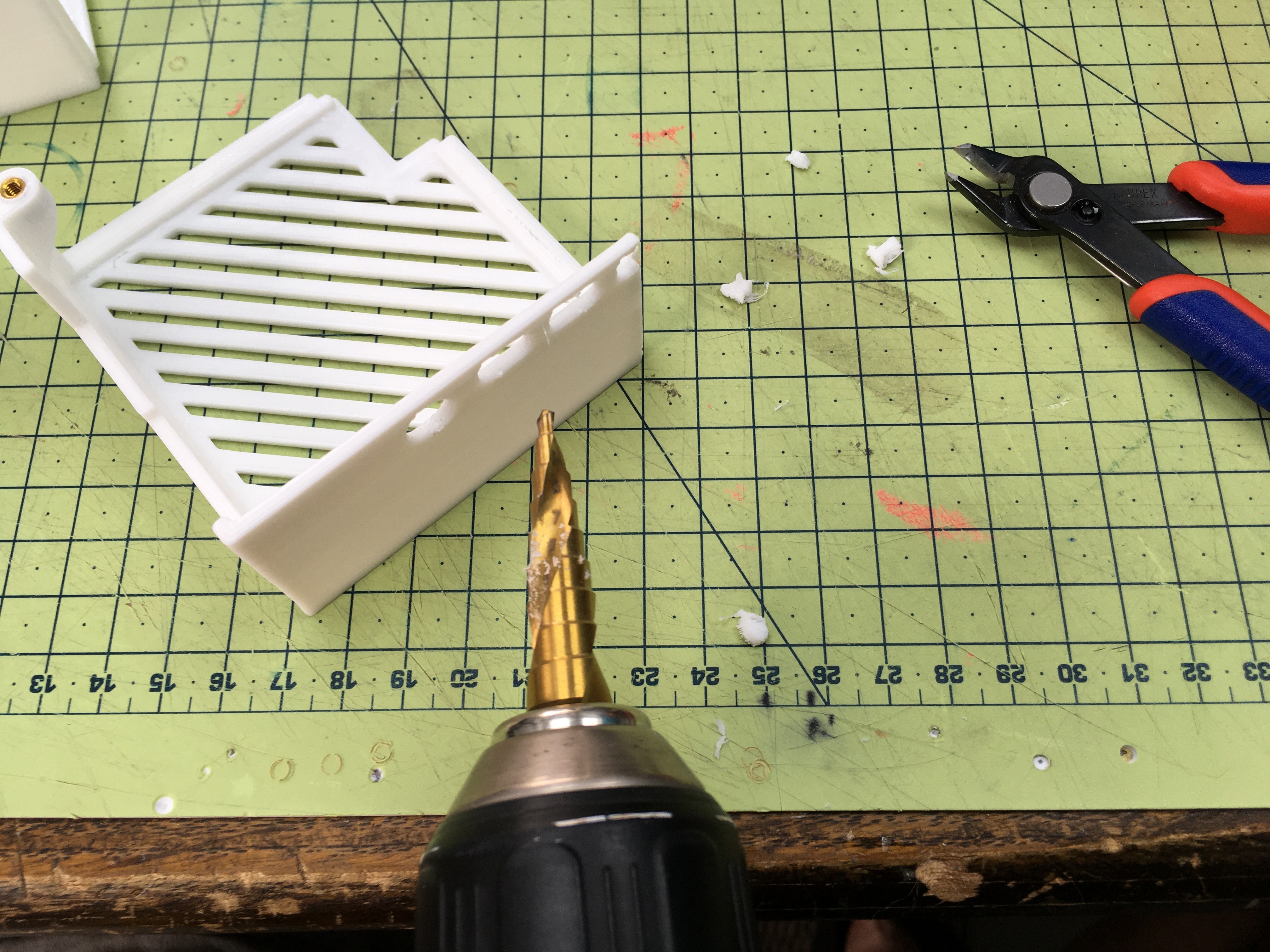

Perhaps the best 'non standard' purchase is a set of Step Drill Bits, as these make everything so much easier.

Step Drill Bits: https://amzn.to/3gR8aqe

Needle Files: https://uk.rs-online.com/web/p/files/1467311/

CSK Bits: https://amzn.to/2CyeZhA

In case interested, these are the tools I use, but you're welcome to use any that do a fair job:

Soldering Iron (mid-range, and well reviewed!): Hakko FX888-D: https://amzn.to/2CCNZNR

Lightweight Drill: https://amzn.to/3etGdmI (5 years and going strong!)

Rotary Tool: https://amzn.to/3j0lLxf (Psst! - it's better than Dremel, and only a little bit more expensive!)

SPECIAL PURCHASES:

In case you hadn't guessed, 'slicing' the world into tiny segments requires some fancy hardware! For this a used a Bourns Rotary 1024 Pulse Absolute Encoder. It's a mouthful, but basically it slices the world into 0.3degree slithers - which is pretty tiny. So this is probably the only component you really have to go out of your way to source...

Rotary Encoder: https://uk.rs-online.com/web/p/mechanical-rotary-e... (order 2x).

You can of course use others, like DigiKey in the US, but you may need to do some extra work in the Code and the CAD if you don't find this exact one.

A word on Brass inserts... Ever since my days working for Dyson, I've come to realise that being able to disassemble is as important as assembling a prototype. If one uses a lot of glue, it can be a nightmare trying to 'undo' this step. Also, the project was designed to be improved upon, so you may well make adjustments and this means you're changing a minimum of parts.

If you'd prefer to simply use screws and assume a 'assemble once' approach, my suggestion would be to reduce the holes, either in the CAD, or by plugging the holes with 4mm rod, and making a pilot hole.

M3 Brass Inserts: https://uk.rs-online.com/web/p/threaded-inserts/02... (essential)

M4 Brass Inserts: https://uk.rs-online.com/web/p/threaded-inserts/02... (optional)

The Globe is of course a pretty important component to get right: I've used a 20cm diameter Globe from here: https://amzn.to/3epxNN9 I'm sure others will be close enough, so long as the size is the same.

(I suspect others of the same dimension can be fitted just as easily at the axes, especially fi you have a 3D printer.)

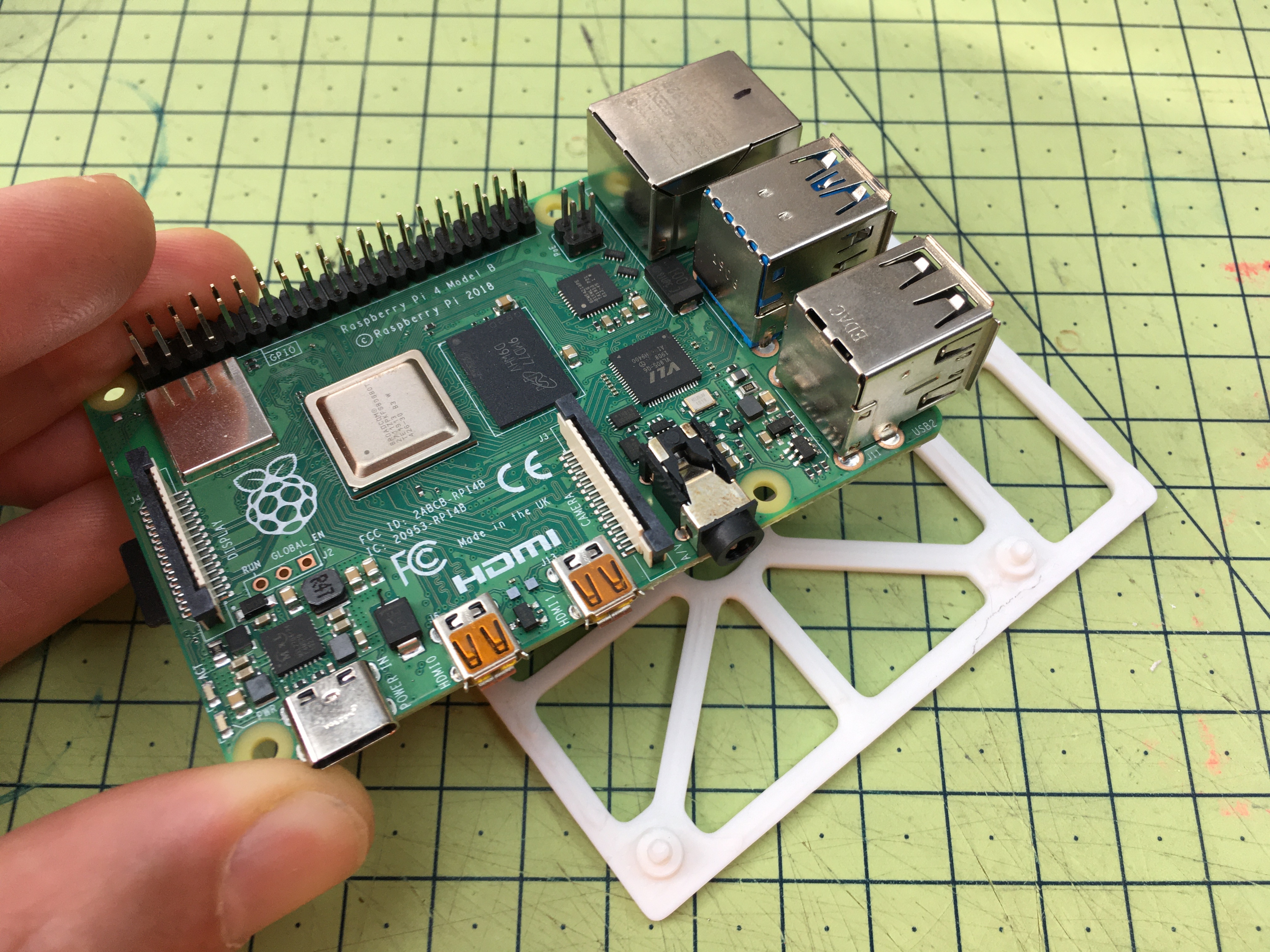

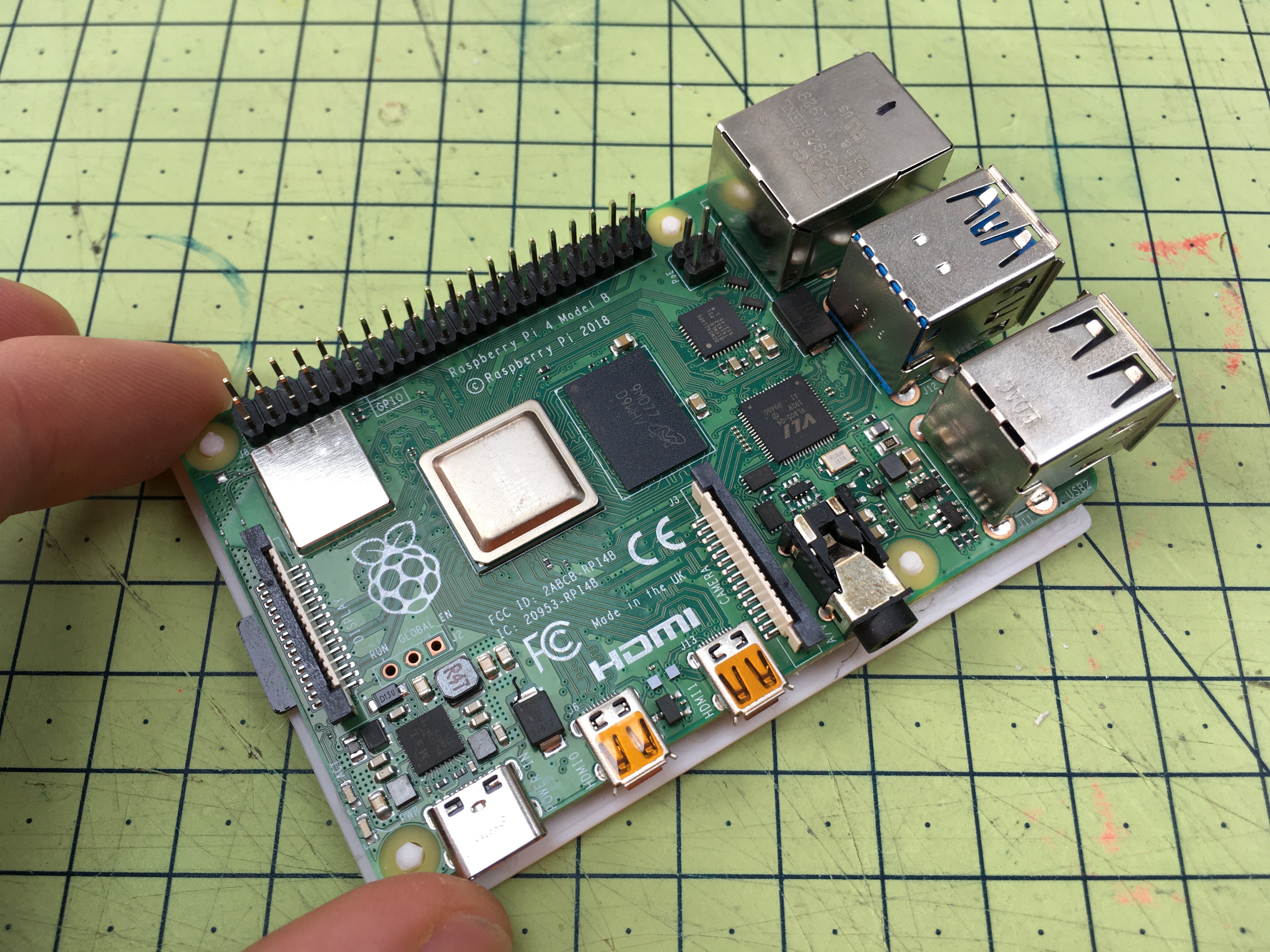

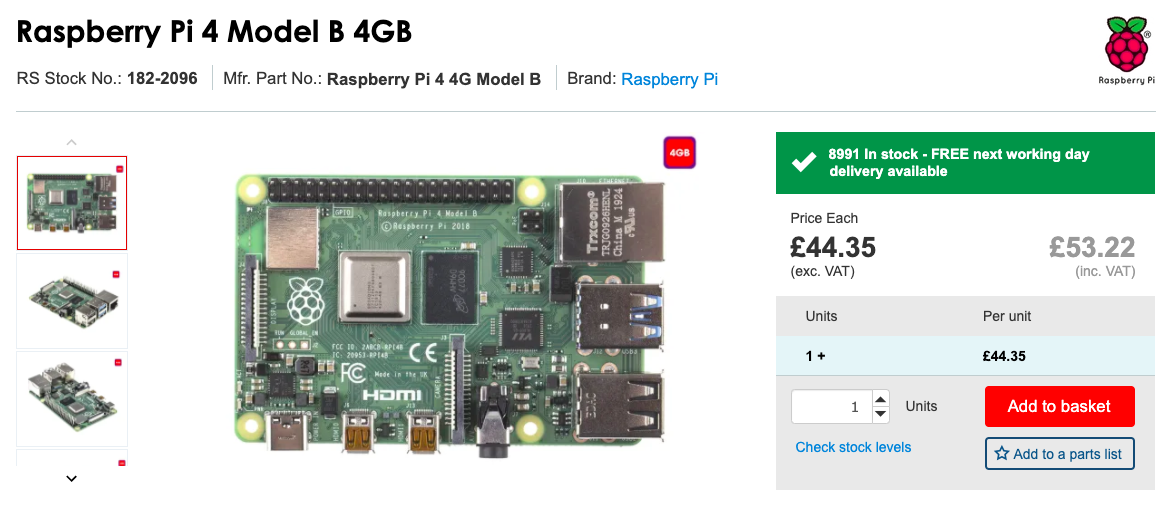

Raspberry Pi 4B

I worked with the latest model Pi, but I've had it on good authority that RadiGlobe runs on older RasPis.*

https://uk.rs-online.com/web/p/processor-microcont...

The only thing to note if that the CAD parts are designed for the Model 4, so you'd need to do some minor tweaks to fit the power supply (Model 3 is Micro USB and Model 4 is now USB-C). No biggie, but FYI.

*Update: Just tested it on RasPi3B+ = works fine!

GENERIC PARTS:

Much of these can be purchased in electronics stores, or are readily available online. Links are provided for reference.

M3 x 6mm (Hex Head) Bolts: (Link) and M3 x 4mm (CSK Pozi Head) bolt: (Link) Suggest 50x pack of each.

LCD Screen: https://amzn.to/3gWFP1L (see image)

Buttons: https://amzn.to/3fvHueC (3x).Generic momentary 12x12x9mm type. (see image)

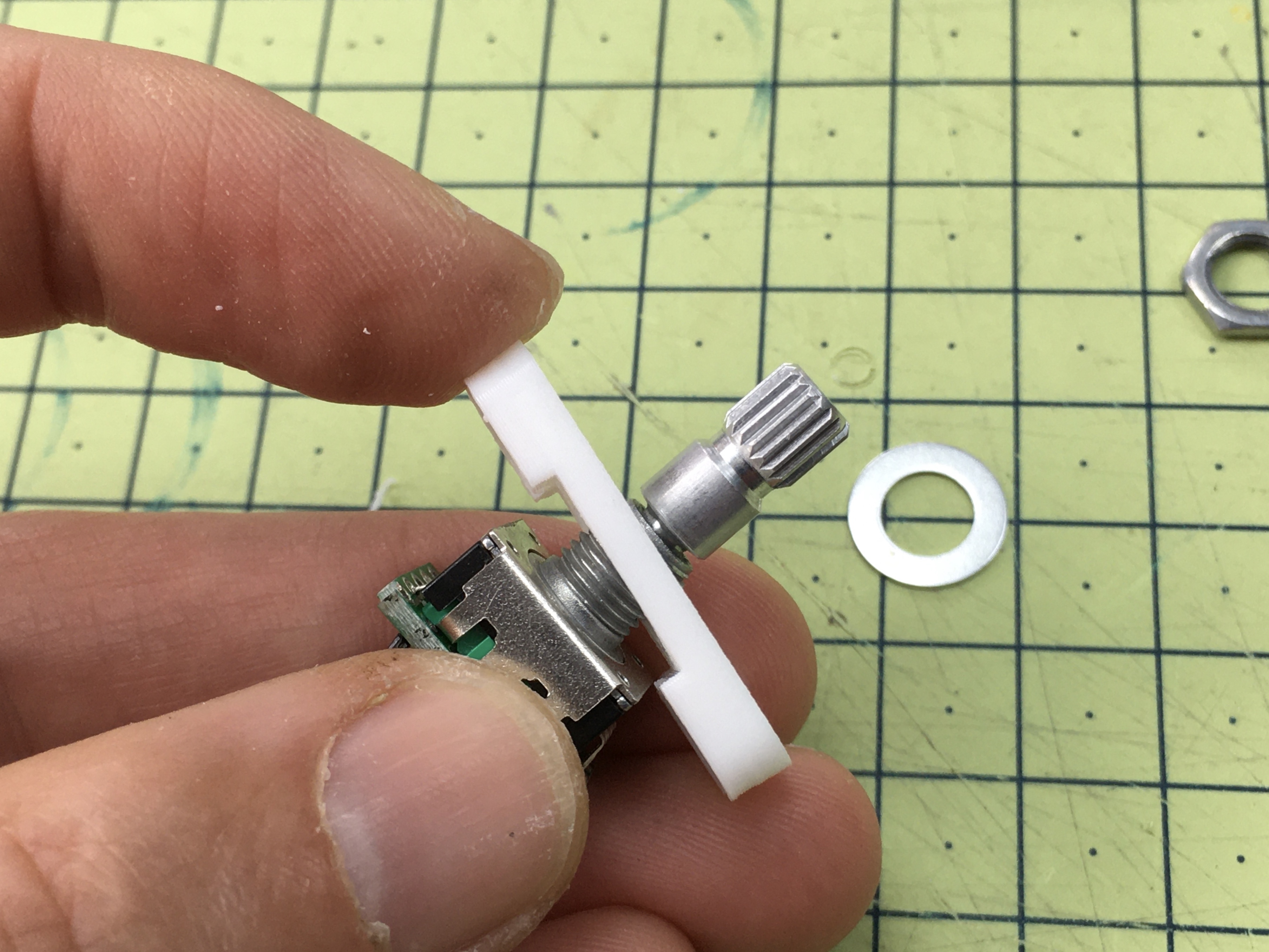

Jog Wheel: https://uk.rs-online.com/web/p/mechanical-rotary-e...

Protoboards for Raspberry Pi: https://amzn.to/2ZsVvE9

(If you'd like to save a bit of money you can simply solder the PCBs up yourself as I have done initially, or you can download the gerber files and send away to be made). LINK to gerber files.

RGB LED (Common Cathode): https://amzn.to/2ZstBIh (I'd suggest a box set is more cost effective).

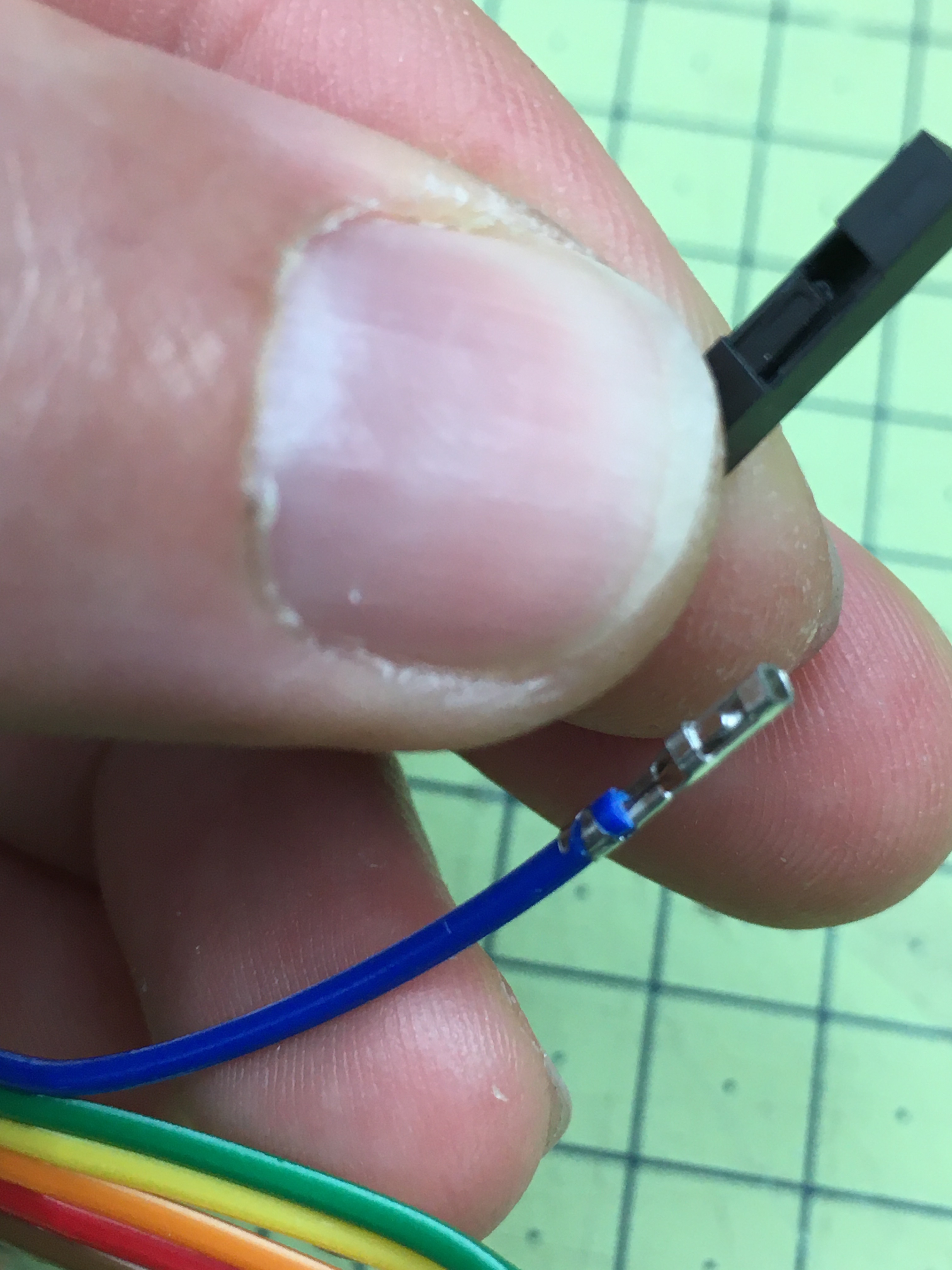

20cm Jumper Cables: https://amzn.to/2B19MP4 Also purchase 30cm Jumper Cables (or be ok with splicing 2 together to make 30cm long). (see image)

Header Pins - 90 degree: https://amzn.to/2CBxstS

4mm Steel Rod: https://uk.rs-online.com/web/p/stainless-steel-rod...

3.17mm to 4mm Coupling: https://amzn.to/2CBwaiw (This is to connect the steel rod, above, to the Rotary Encoder).*

4mm Coupling Flange: https://amzn.to/3ezAxrH (This connect the 4mm rod to the globe).*

*If you wanted to be very economical, one could 3D print these (and use grub screws), but I think it would be a false economy as it will likely wear loose over time. You call.

TIP: Couplings are often available in 'RC Stores', as they are used to make planes, and RC cars, etc.

3D PRINTER:

Other models are available, but for a quick google, you'll find that at the time of writing this, the Ender 3 is just a terrific all rounder, and very cheap at $200 / £200. It really is hard to argue with this price as a way to get into 3D printing, and as a heads up, you'd need a bed size of at least 230x230mm to do this project (or you have to build some parts in pieces if you prefer). Ultimakers, Lulzbots and MakerBots, etc. will also work.

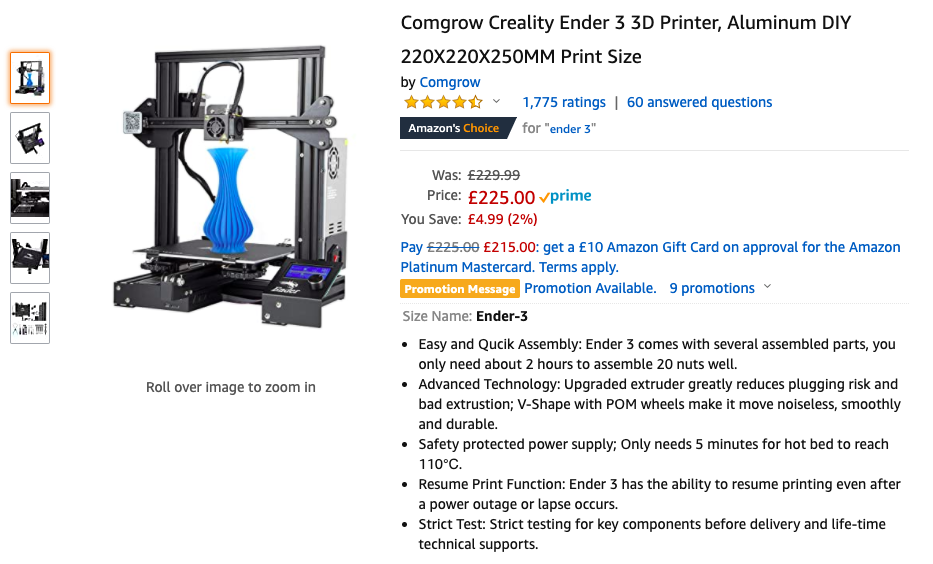

Recommended: Ender 3: https://amzn.to/38tHmcwIn addition, some useful 'modifications' you may want to consider:

Nozzles: https://amzn.to/3iut6F9 (having a larger nozzle means you can print faster. I actually did much of the 'big' parts at 1mm, as I was iterating fast, but one day, I'll make it super accurate at a 0.4mm nozzle...perhaps!)

I used Eryone 1.75mm(dia) PLA: https://amzn.to/2CcG8GW but of course others are available.

You can easily build this with 1kg spool, probably 0.5 or 0.75kg will also be fine.

Disclosure:

This project has been done for the DesignSpark community, which is owned by RS Components, so some items listed are sourced from their website. However, where possible (or when 'Generic' is more globally available), Amazon or eBay has been listed to illustrate alternatives are available, to be in the spirit of helping makers keep costs low. Although RS has been the 'go to' for specialist components like the Rotary Encoders, please do use your own judgement if deviating from these, as code/interfaces/power/etc. may differ. This is a by definition a V1.0 prototype, and is also continually evolving. Thanks for being a part of this Open Source adventure and sharing ideas and improvements!

Disclaimer:

Please be aware that these stations have not been vetted. They have been compiled by an algorithm, not hand-picked by a human. The project has been done in good faith, but we cannot accept any liability resulting from using this or listening to any stations. Depending on your country, you may wish to check what stations you are allowed to stream at home or play in public, etc. If in doubt, you can add/remove any from the JSON files as you wish. It's unlikely, but not impossible that some might not be suitable for kids, or even as an adult they might not to be your taste. Also worth bearing in mind that the timezones do of course allow one to access a 'late night' talk show where there may be some cuss words, etc. I suspect most people smart enough to make this will be smart enough to figure this out and supervise their kids accordingly. But just a heads up for schools, etc. If you think something is totally off, do let us know.

Whilst you wait for your components to arrive, you'd do well to crack-on and get printing!
If you are in a hurry (and cool with printing overnight), you can print the entire RadioGlobe in 24hrs, in around 3 prints, with a medium nozzle like 0.6mm. However, I would suggest printing in daytime and supervising the build for less experienced printers.

I used free software called CURA, but others are available. This works well with Ender 3, and the Eryone Filament, so far so good!

https://ultimaker.com/software/ultimaker-cura

As shown in the picture, I would recommend printing the fine detailed parts like the dials and display panel, etc. at 0.6mm nozzle or smaller.

After that, you can either keep it similar quality, or print the case and 'cradle' assembly at a coarser print resolution like 1.0mm nozzle, as shown.

Make a note of the printing orientations I've shown here, as it can make a huge difference how the piece turns out.

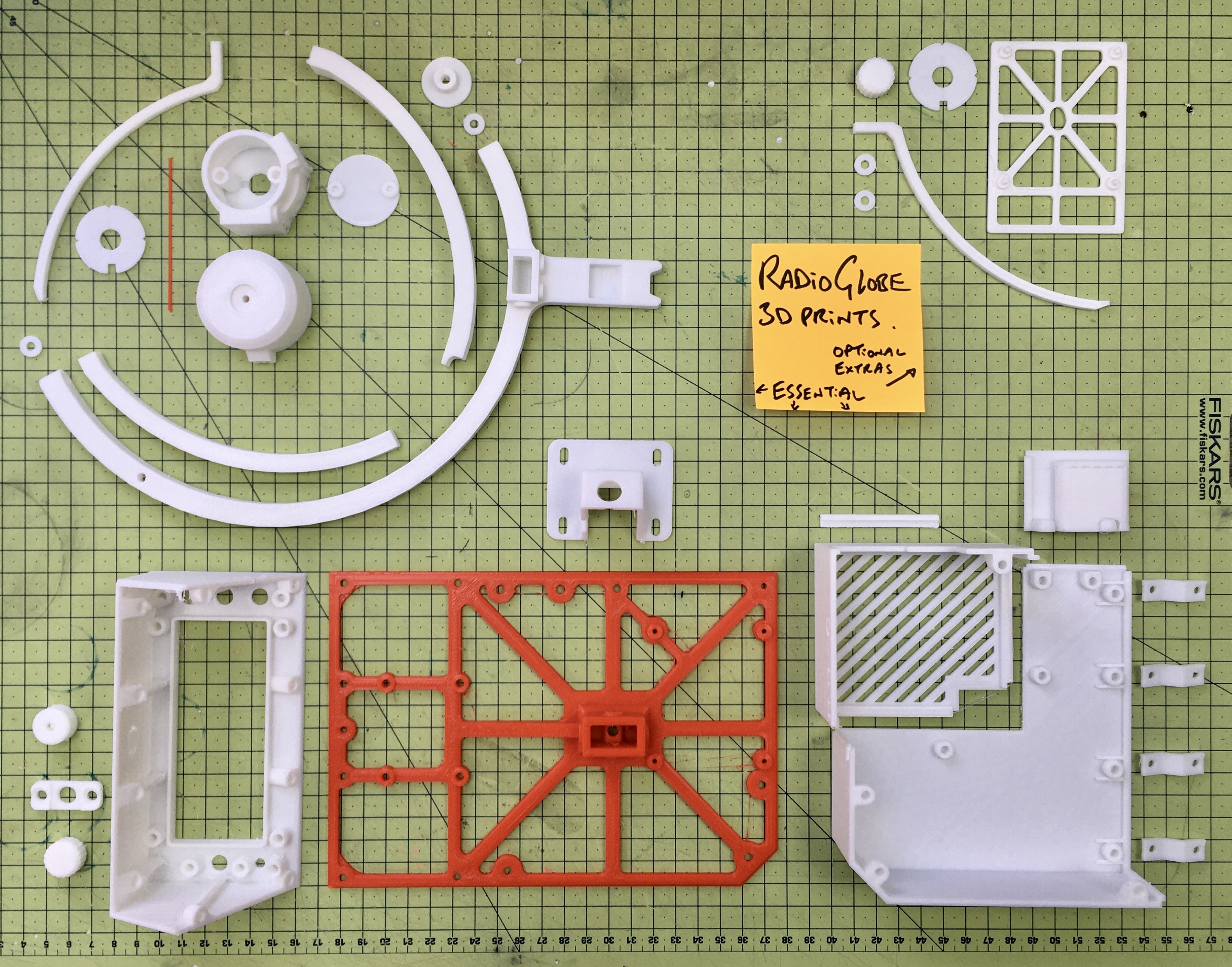

You should have 22 files for 3D Printing. Please make note of the orientation, if printing FDM, but SLS or SLA is pretty indifferent to the orientation.

If you DO NOT HAVE A 3D PRINTER(?) - fear not, you can order them using a service like Shapeways.

You may find that it's almost worth justifying a 3D Printer, but for a one off, it might be simpler with a Print Shop. Your call.

Usually 'support' is a good idea in 3D Printing, but in some cases, it's unnecessary, and in this build there are actually 2-3 components were I'd advise against it!

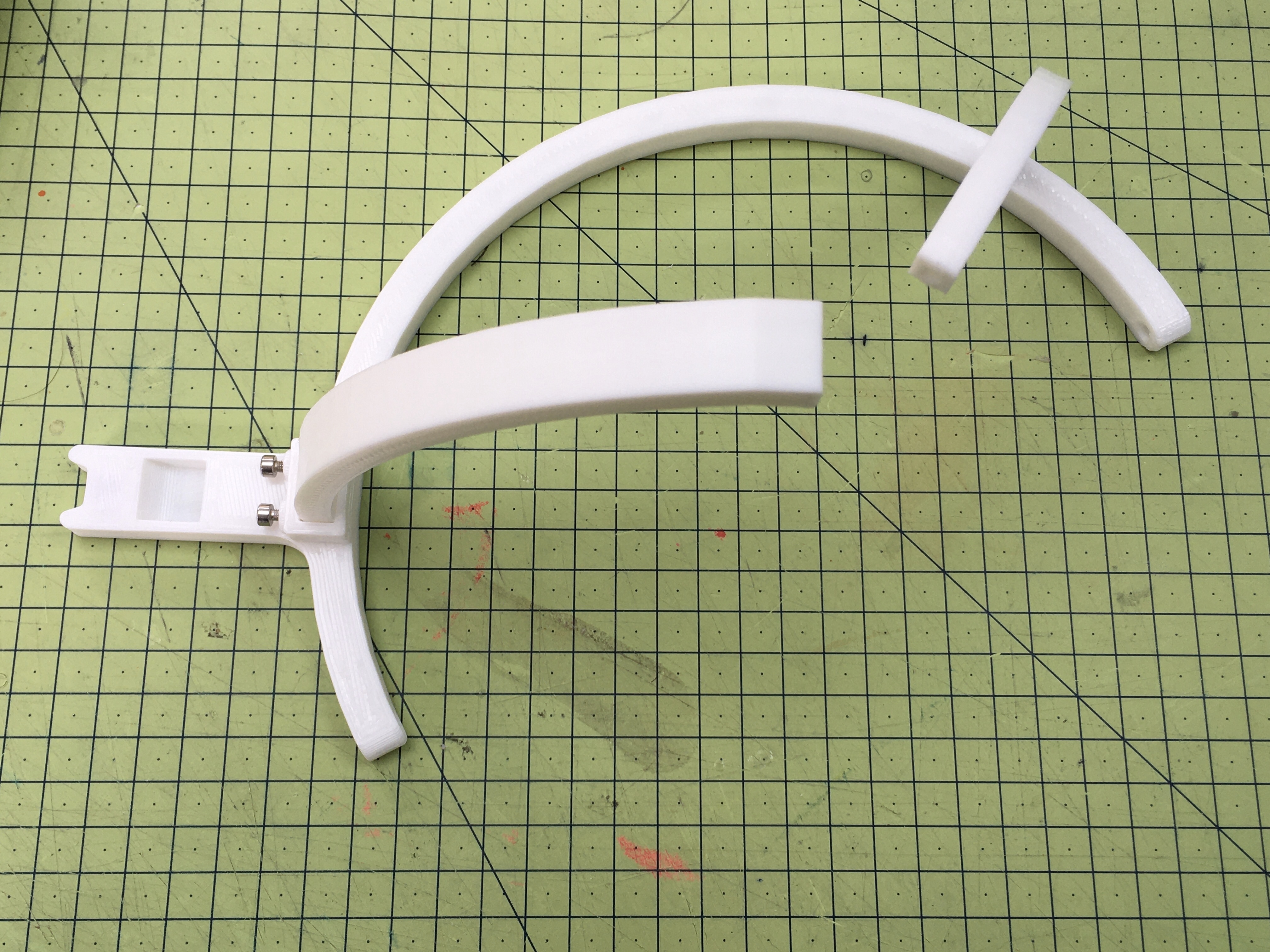

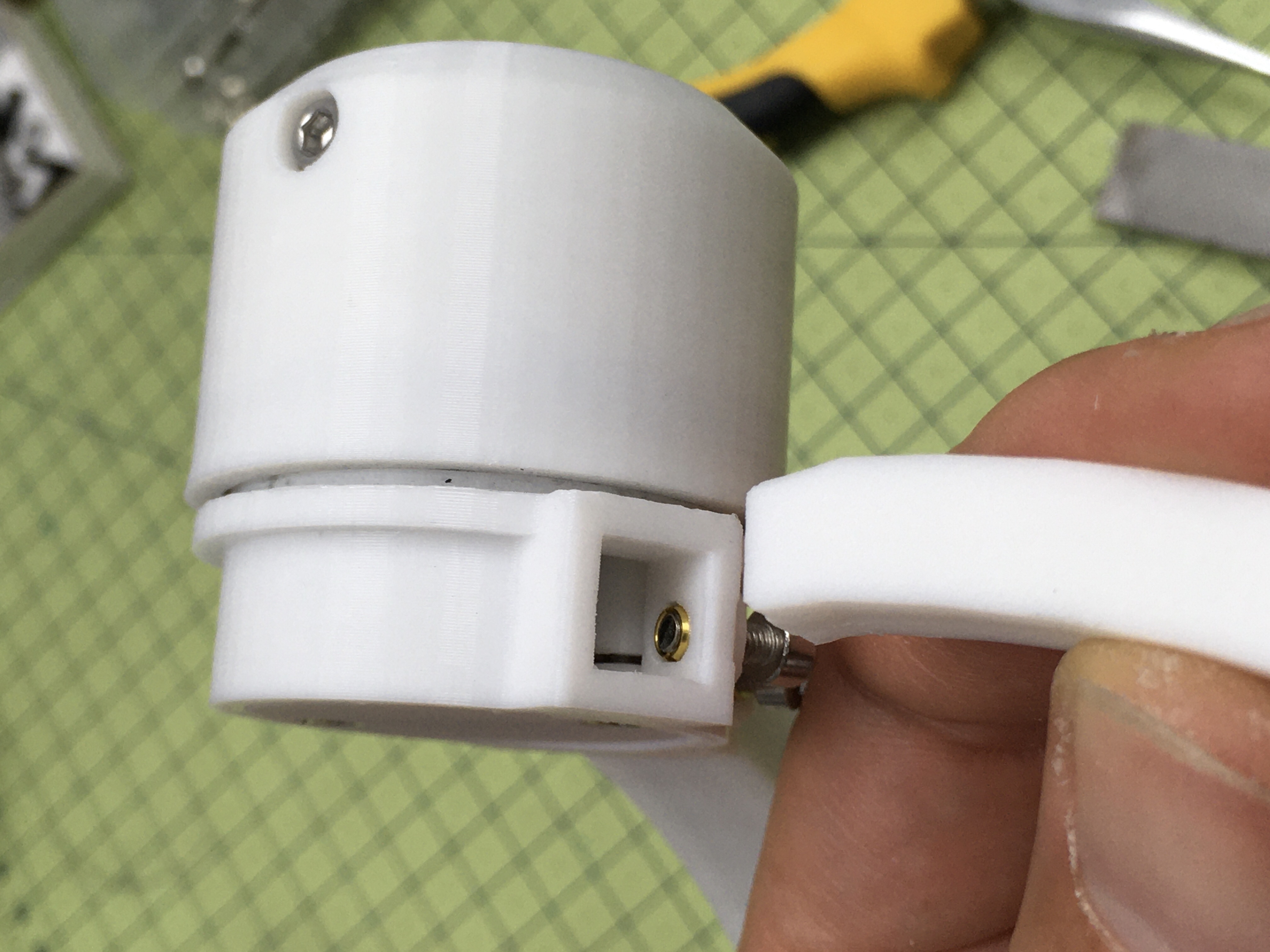

The 2 pieces are *The Cradle* and *The Lower Yoke*.

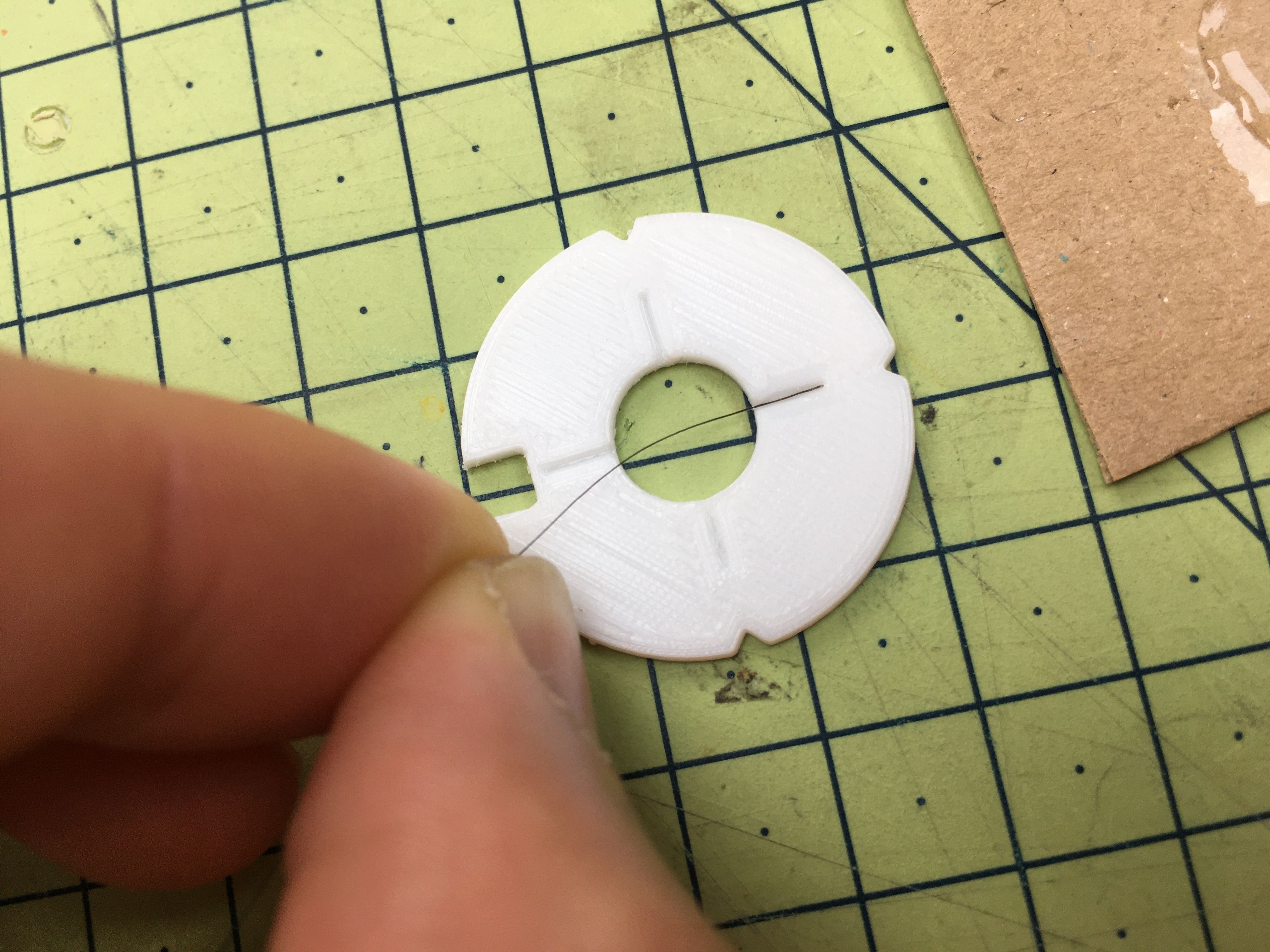

These have wires threaded through them, and I've designed the pieces in such a away that they print perfectly fine (at 1.0mm or 0.6mm) with NO SUPPORT. This keeps the channels open to thread the wires through. (If you leave support on, it will be almost impossible to remove, and add no benefit, and probably make it hard to cleanly wire up).

Take a note of the orientation of the printing I've shown in previous pictures. Example being the case. This does work better with Support, but is also ok without.

I would suggest using the above tools, but frankly a good pair of pliers and side snips will do. Do take care with scalpels, and always cut away from yourself, with only light force!

Files are a good addition, and if you're wanting to get 'fancy', I use a small blowtorch to remove the 'strands' of plastic, and 'remelt' any scratches or rough bits. Safe to say this has a 'knack' to it, and I'd suggest doing it on a scrap piece until confident. Obviously - be careful with fire.

Lastly, a 'pro' tool, which I've found invaluable is a hand-countersink, as it removes burrs from metal work, and makes 3D printed countersunk holes smooth.

Deburring Tool (optional): https://amzn.to/32ho0X2

Mini Blow Torch: https://amzn.to/2Ct5P61

Add inserts to all 4mm holes as shown in the video.

It does not matter if you forget one or two, you can add them later on at any stage.

If you prefer not to use the soldering iron, you can use a blow torch and screw as shown.

Please take care with both methods, as either can cause burns. Wear goggles and gloves if unsure.

As you might see in the comments, one user has a Prusa 3, which is a very common printer. However, the bed size is slightly too small. So I've split the parts in two for those who need to glue them together.

Hope this helps!

Order a 20cm dia globe as suggested.

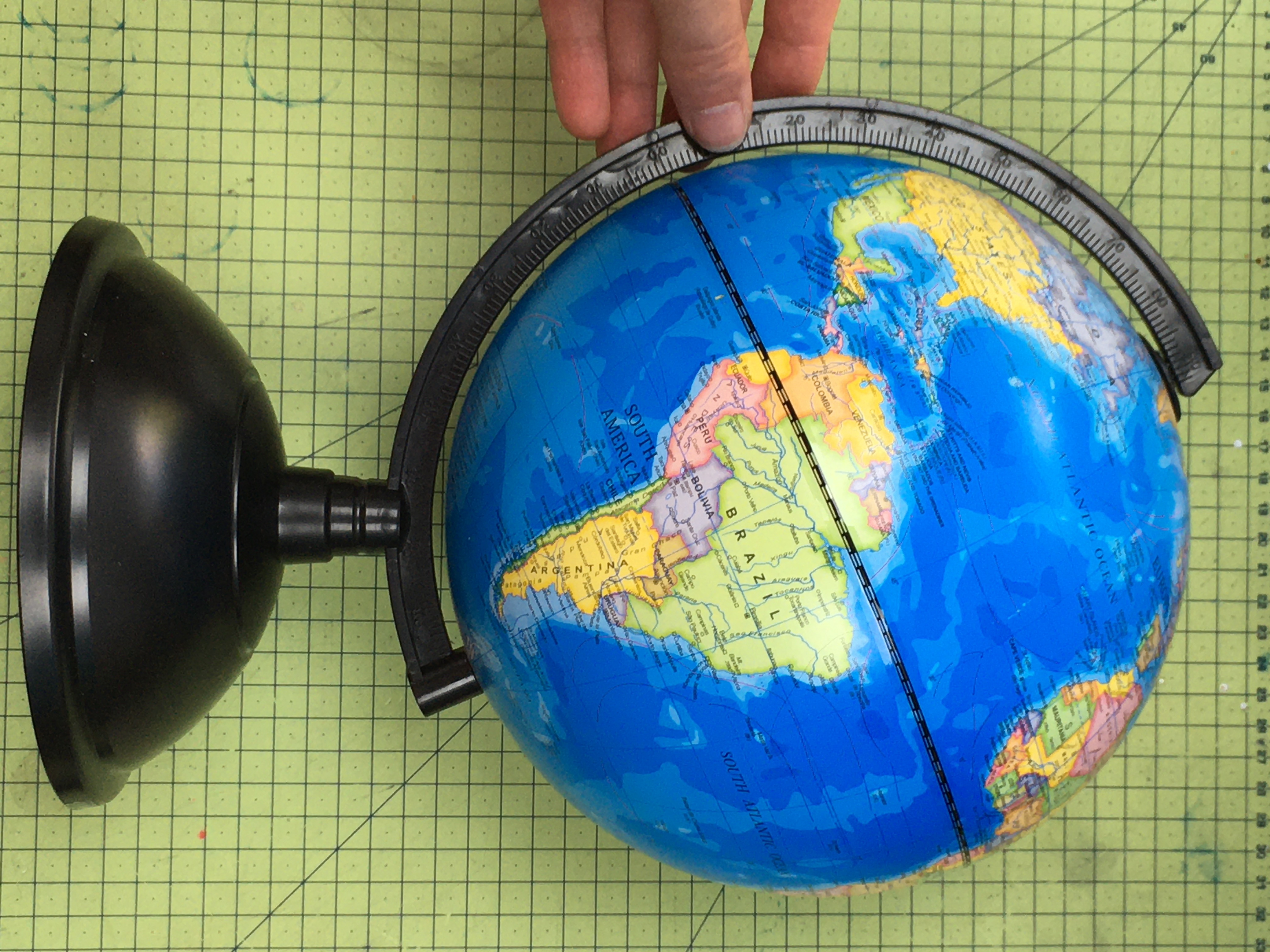

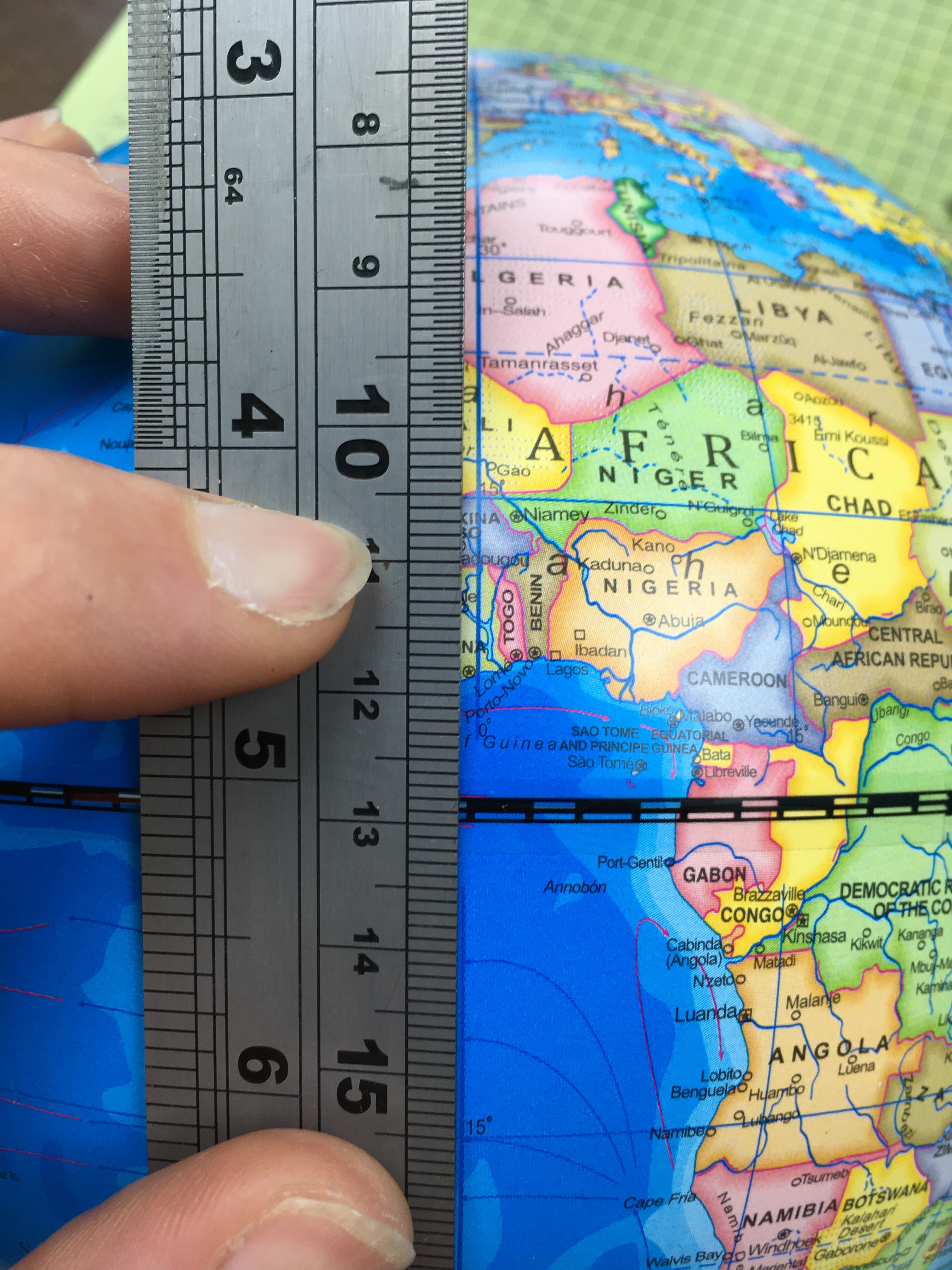

Once it arrived, give it a spin, and watch to see if the equator line in black is roughly even all the way around (I've had one that was crazy wobbly! - so check before you start drilling).

The other, perhaps more critical check - is to see that the two 'halves' match up. Let's be fair, this is a $10 globe for kids, so don't expect it to be super accurate. That said, if it's way off, the RadioGlobe will not navigate that accurately to locations. I found that it being out by about 1-1.5mm (see ruler picture) is tolerable, as the code cleverly 'snaps' into 'nearest' location. Worse than this, send back and try again.

Also check to see there are no scuffs of bumps.

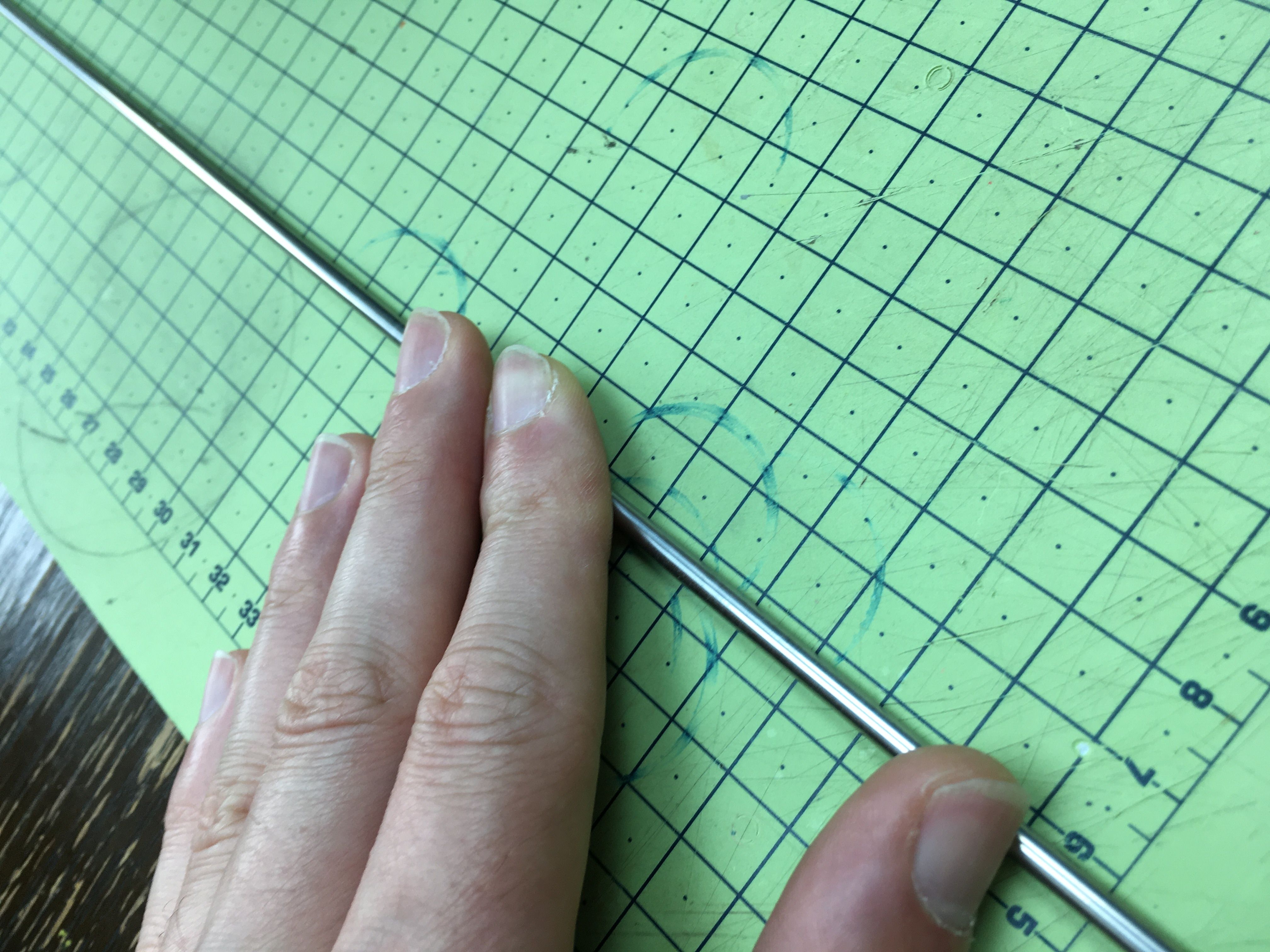

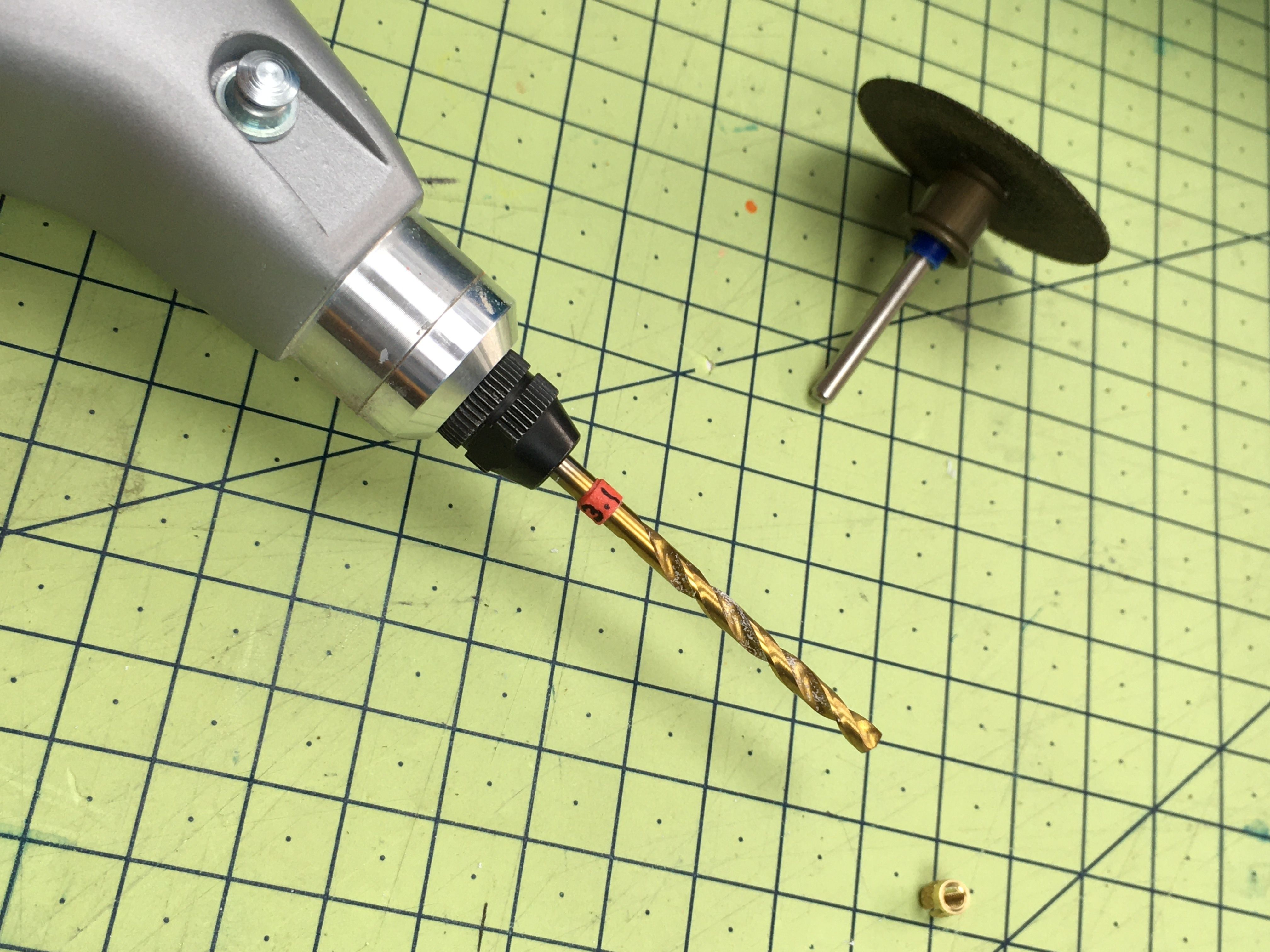

Using a hacksaw, or ideally rotary tool (Proxxon/Dremel) cut the 4mm steel rod into a 26cm length.

Depending if the rod was shipped in a tube, or in basic packaging, check that it's not bent. Now is a good time to look for the most accurate section and cut that out. Roll on a flat surface as shown to observe any bends.

File and sand smooth, with a slight taper if you can.

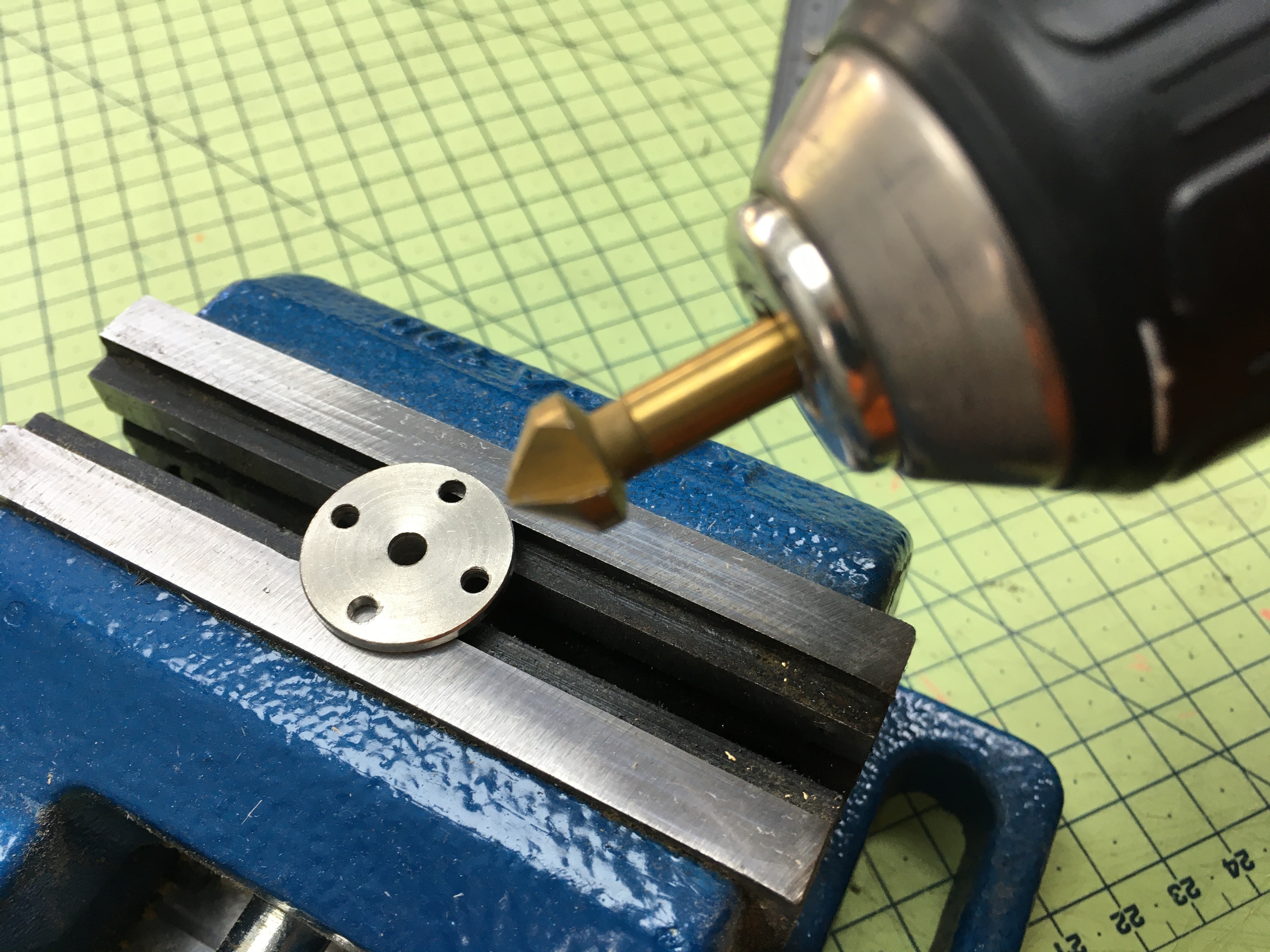

Countersink Drill Bit often come included in multi packs of drills for 'free'. If not, try here: https://amzn.to/3gWavQF

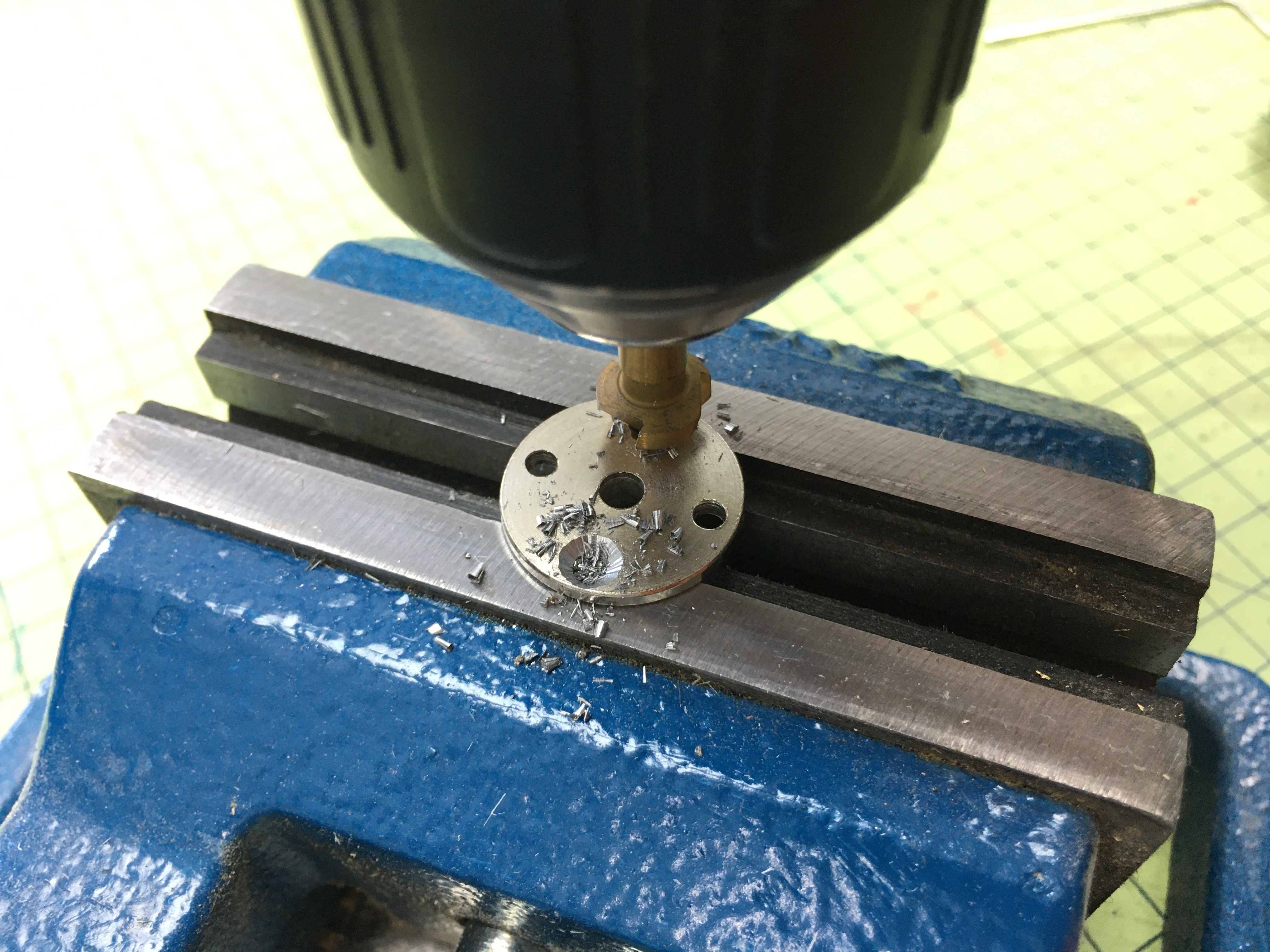

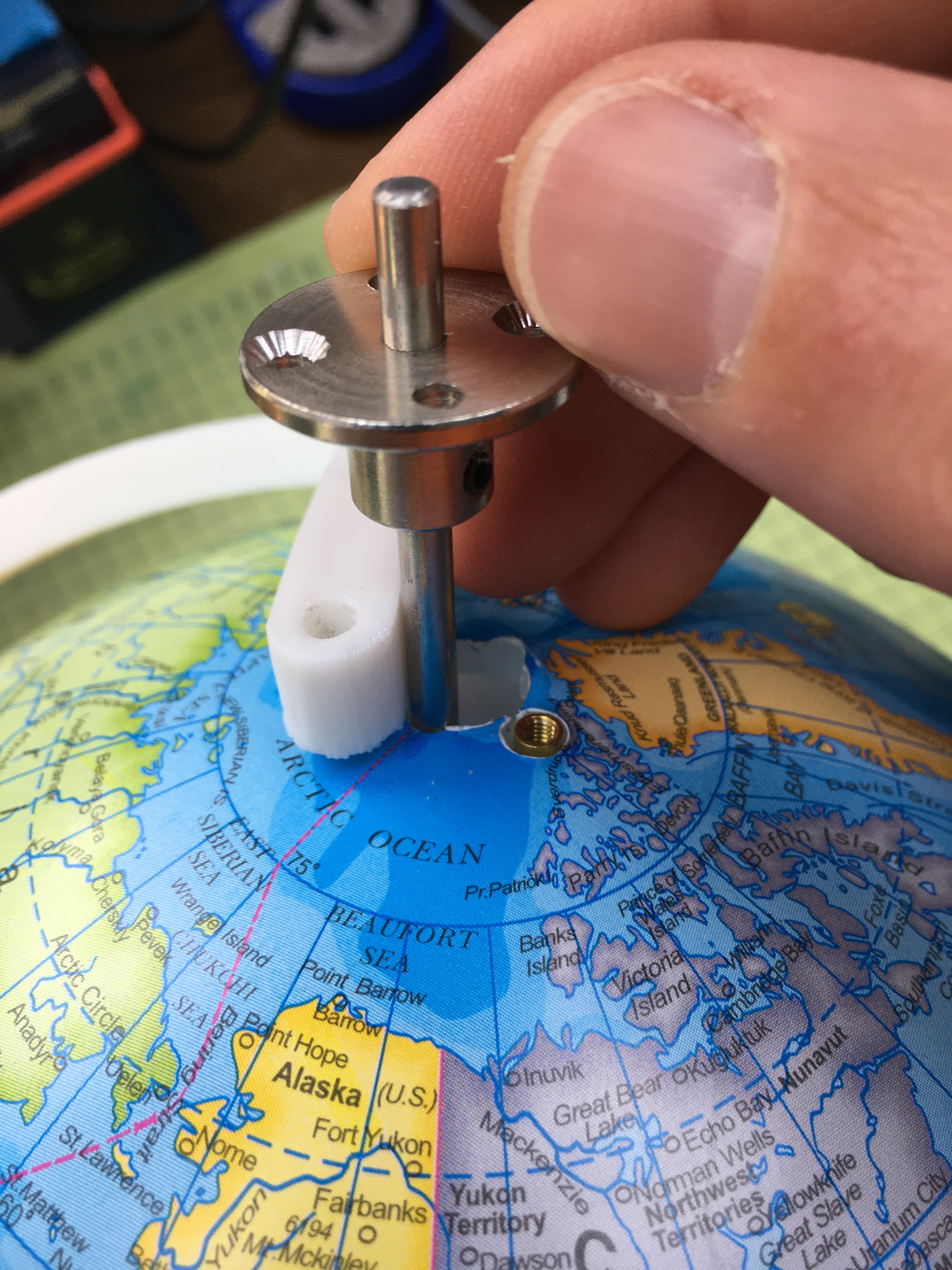

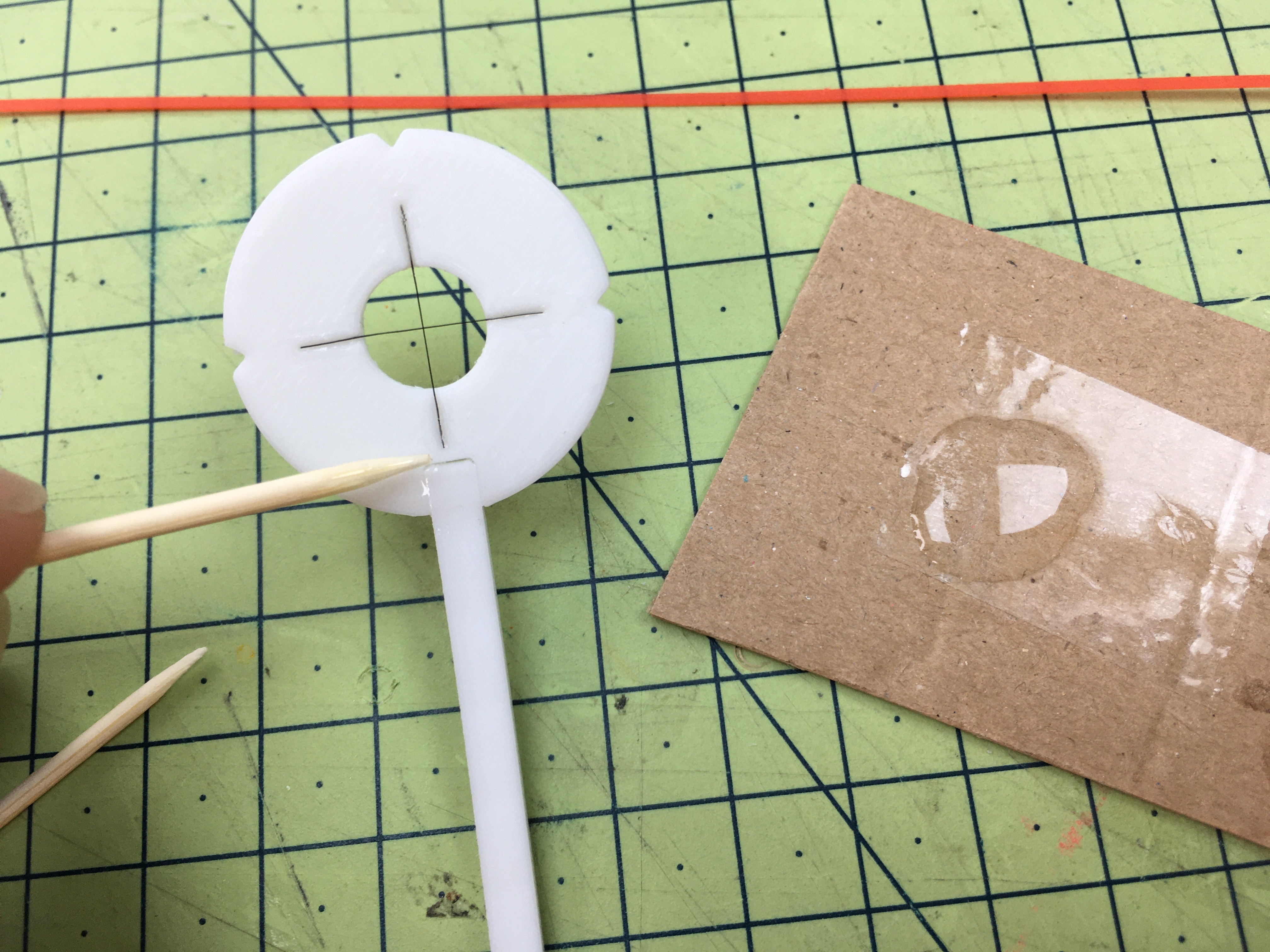

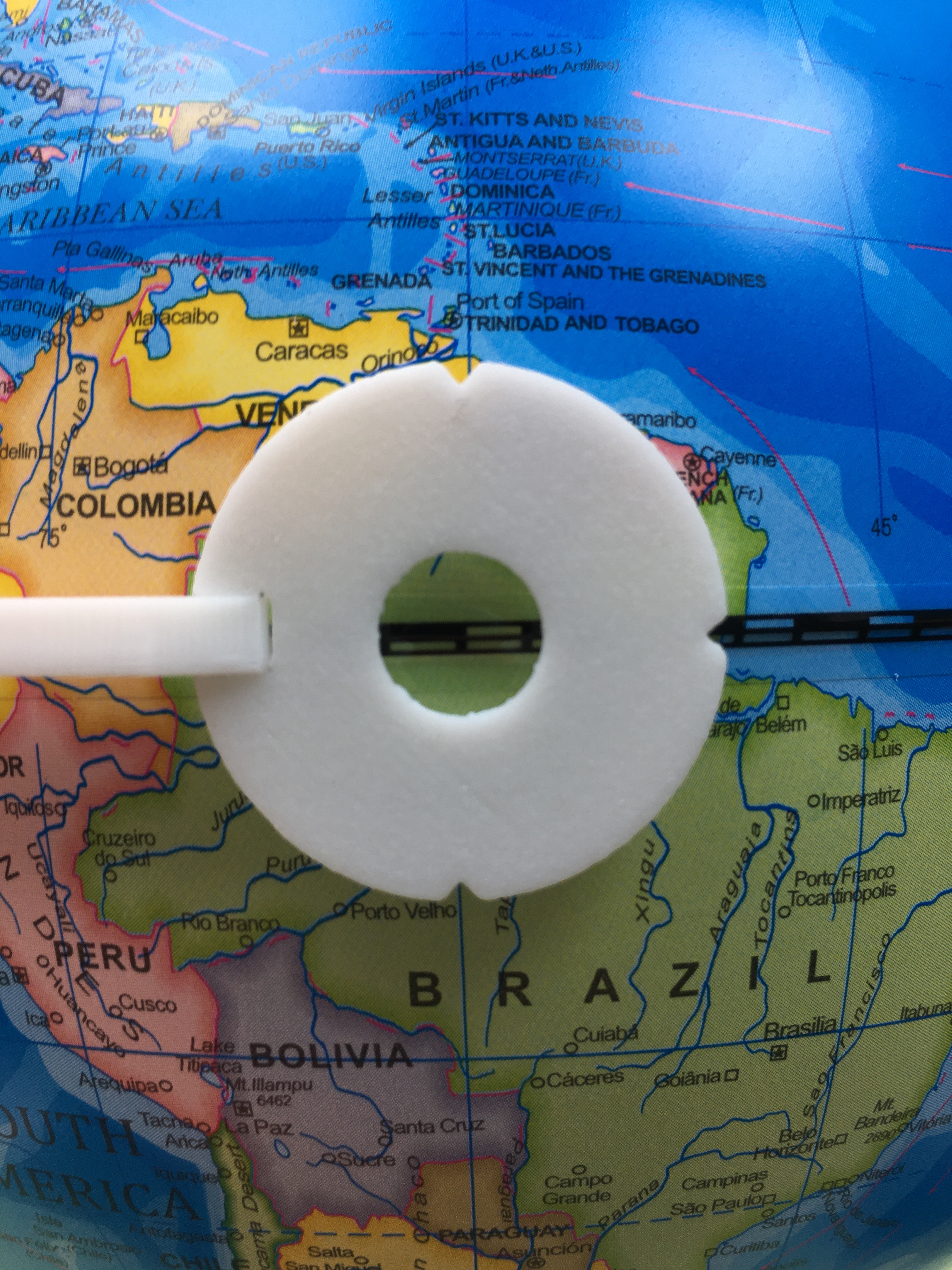

Create 2x countersink depressions in the 'base' of the flange as shown. Enough to insert two M3 CSK bolts into. (I've used longer 8mm, but the 4mm will do).

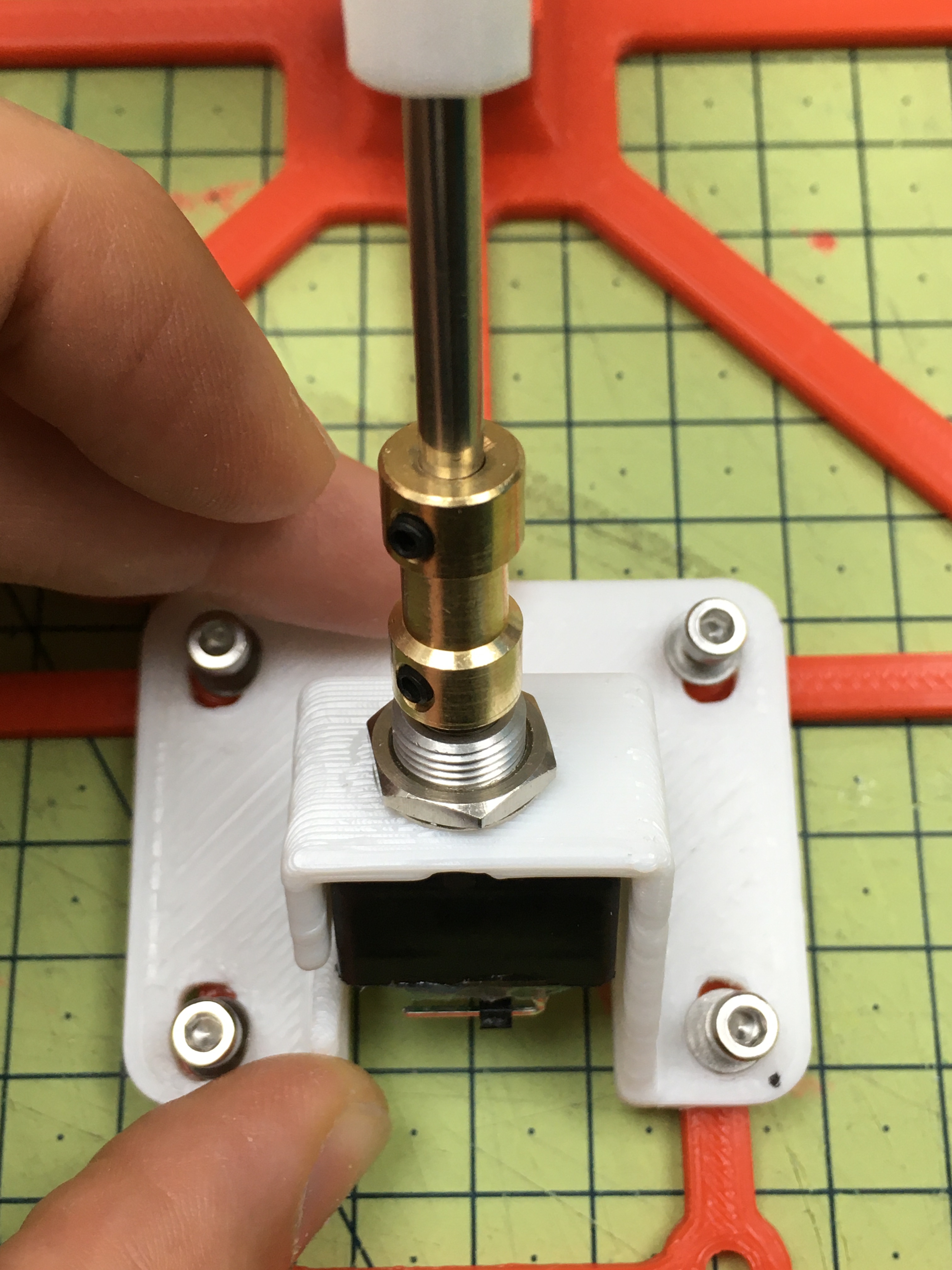

Place the flange as show on one end of the rod (about 10mm from the end of the rod), and lighten up the grub screws with a hex key.

As this globe has been modified, the base will not necessarily fit a 4mm rod (it will be too big), so a spacer socket has been added to make up for that, and act as a bearing to spin on.

You may wish to add some tape (black shown for clarity, but any tape will do), to ensure a snug fit.

This is perhaps one of the trickiest parts of the project. So the good news is - with this one, the rest is downhill!

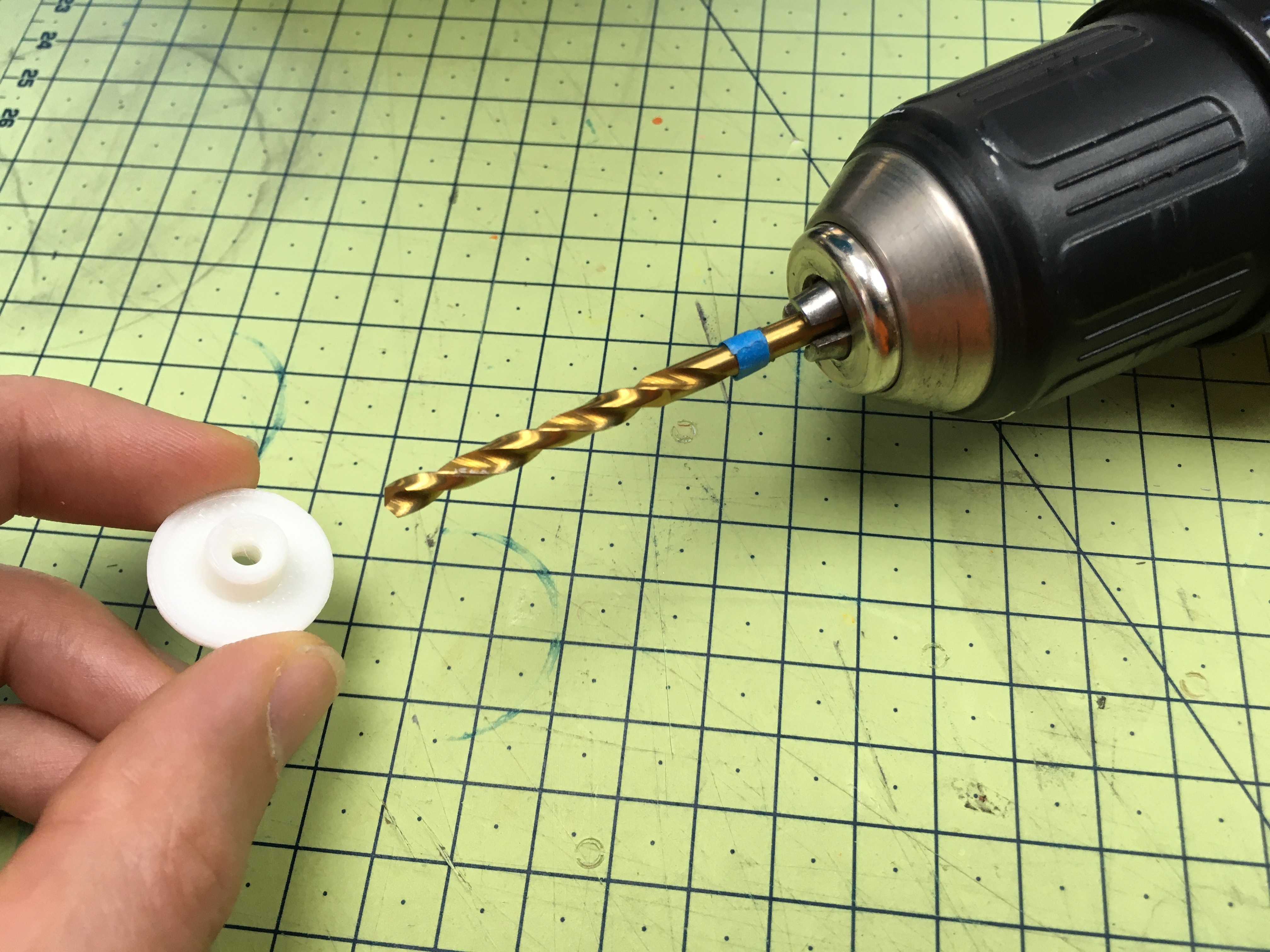

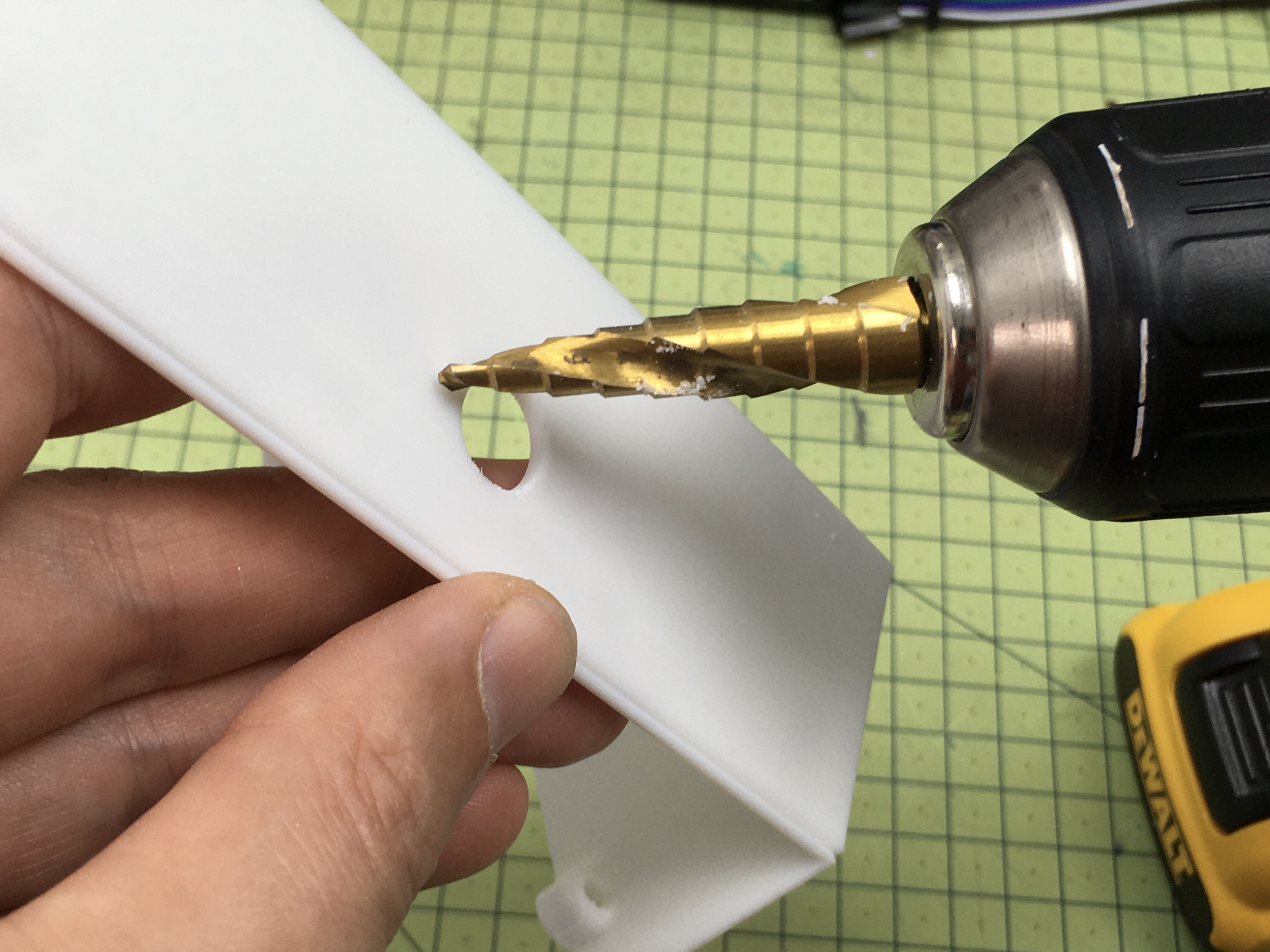

Using a 10.5 or 11mm drill bit, (or if you have 'upgraded' to the Step Drills suggested in the BOM), enlarge the hole at the North pole, to accommodate the Flange Coupling. You may need to file out some 'grooves' to fit the protruding grub screws also.

Press in, and check alignment with the 90 degree marks as shown. It should be fairly centred. If not, enlarge the hole to say 12mm, so you can move it to where it is central.

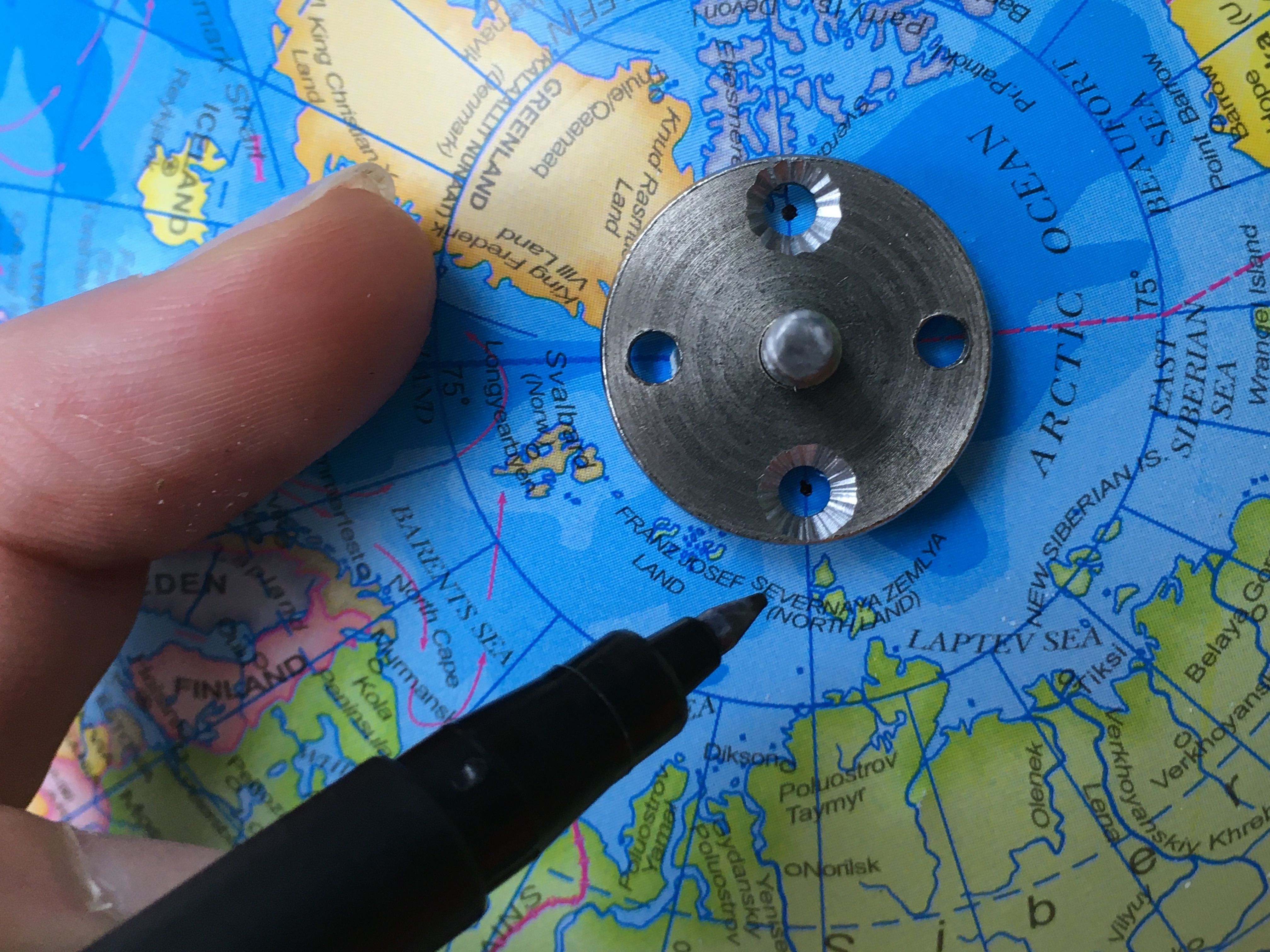

Position the Flange, as shown. Mark with a pen two places where we will drill the holes.

I've used the 3.17mm (1/8") drill bit, as it fits the brass inserts nicely, but 3 or 3.5mm will do fine.

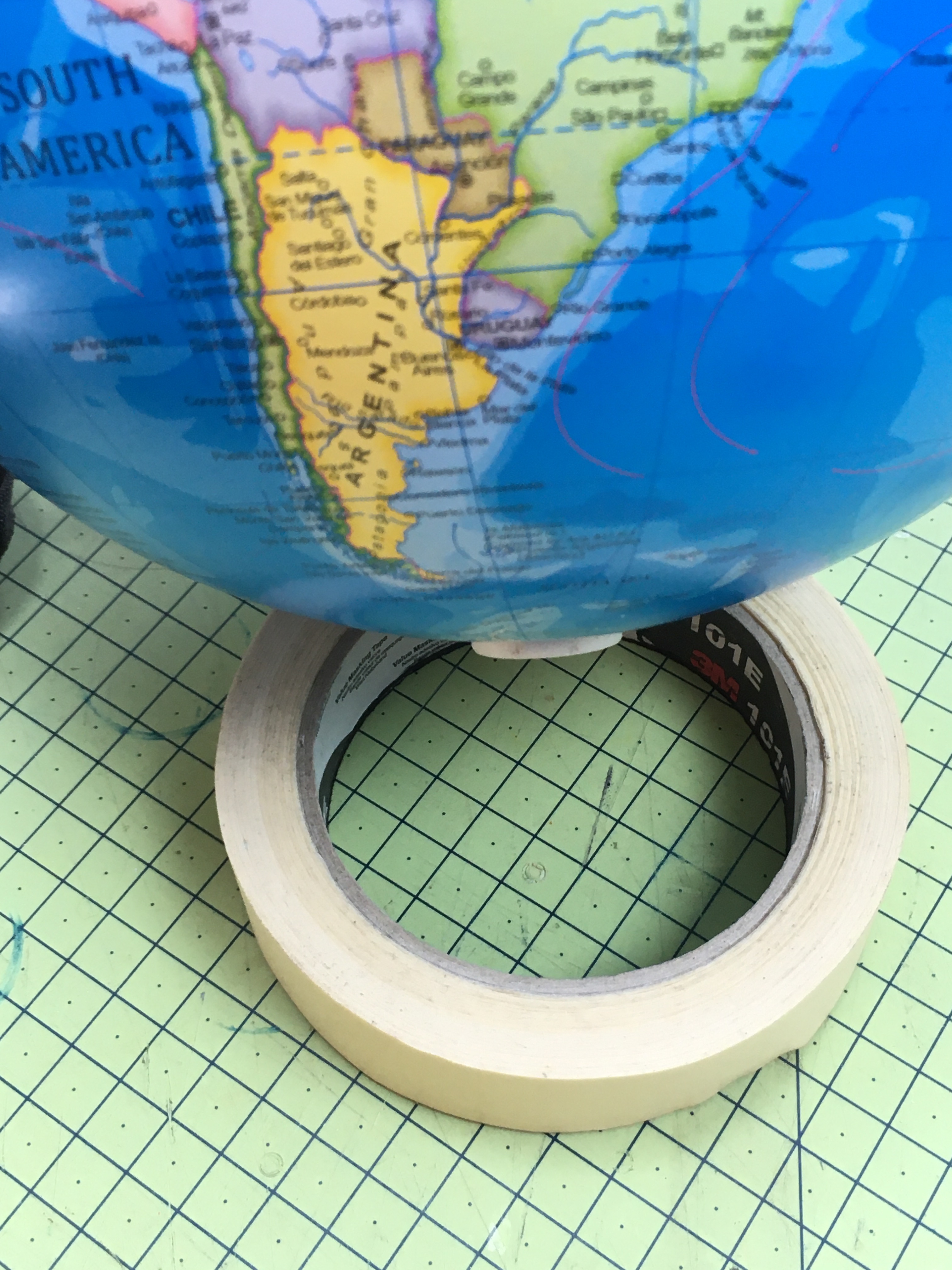

Place the globe on a roll of tape for stability and carefully (on a low speed) drill the two holes at the marks.

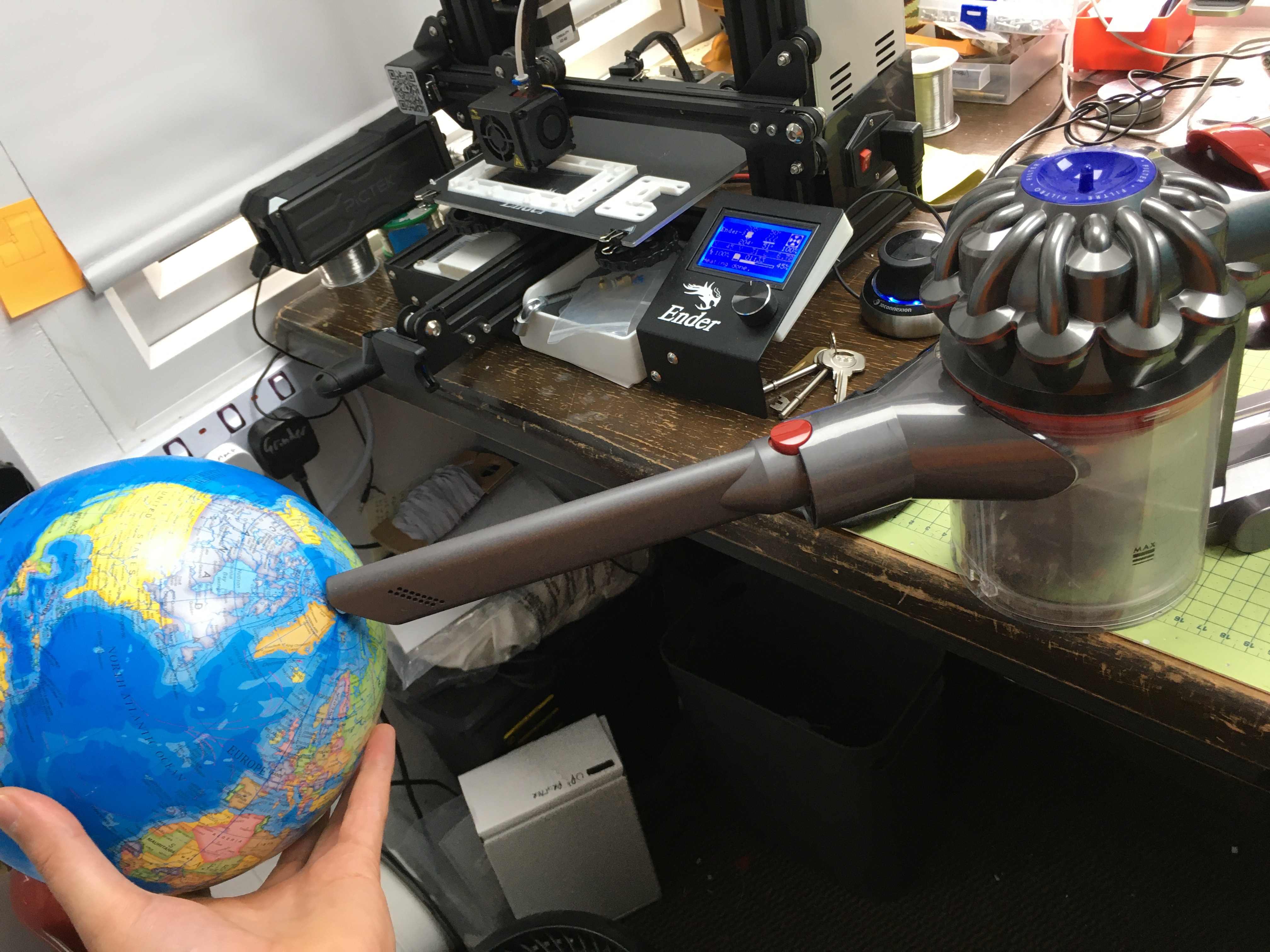

Vacuum out any dust and such, that has fallen in the globe.

Disclaimer: I used to work at Dyson, so have 'freebies' like this Dyson V8. But this content is not paid for by them. Just use it a lot =)

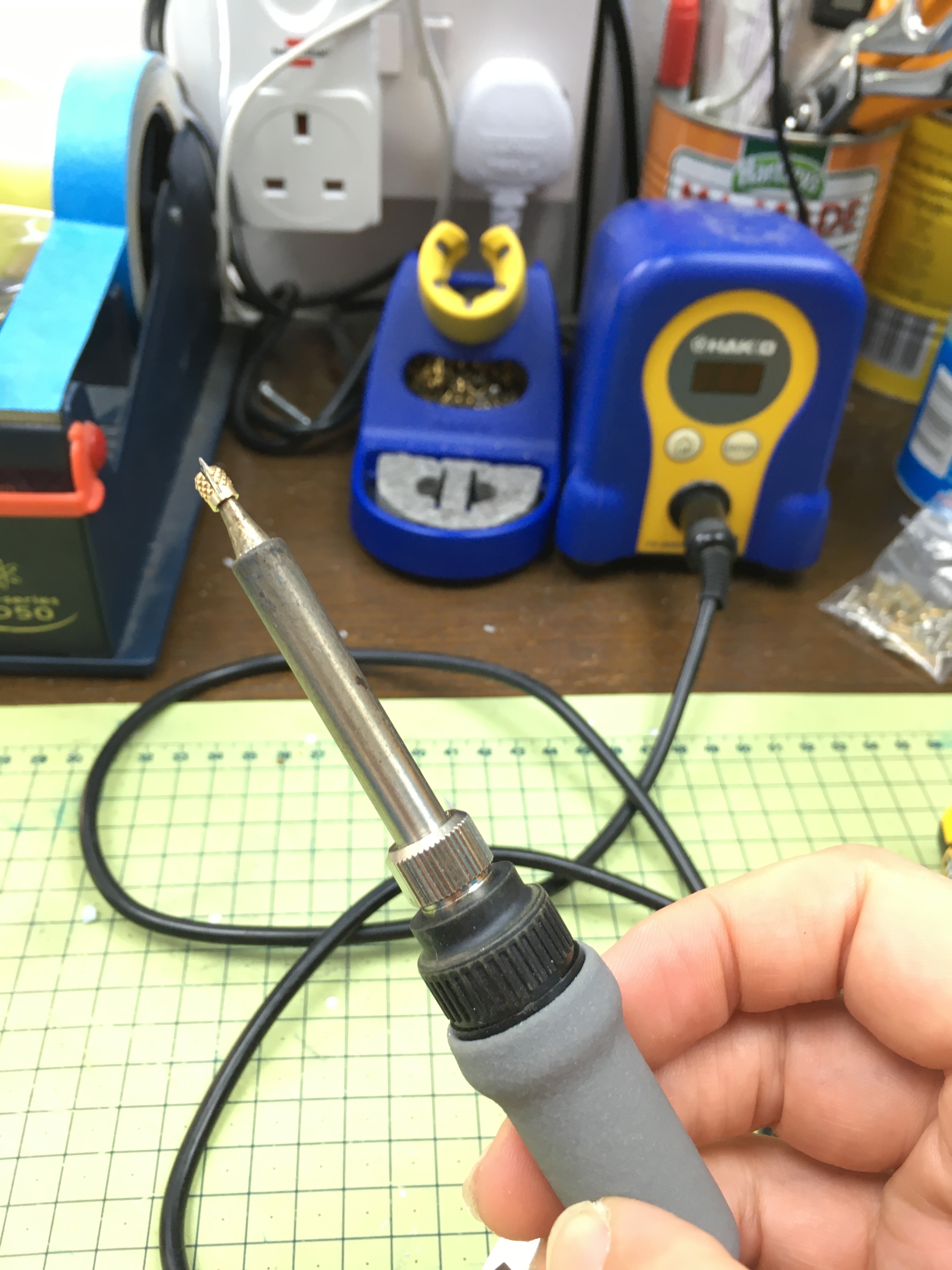

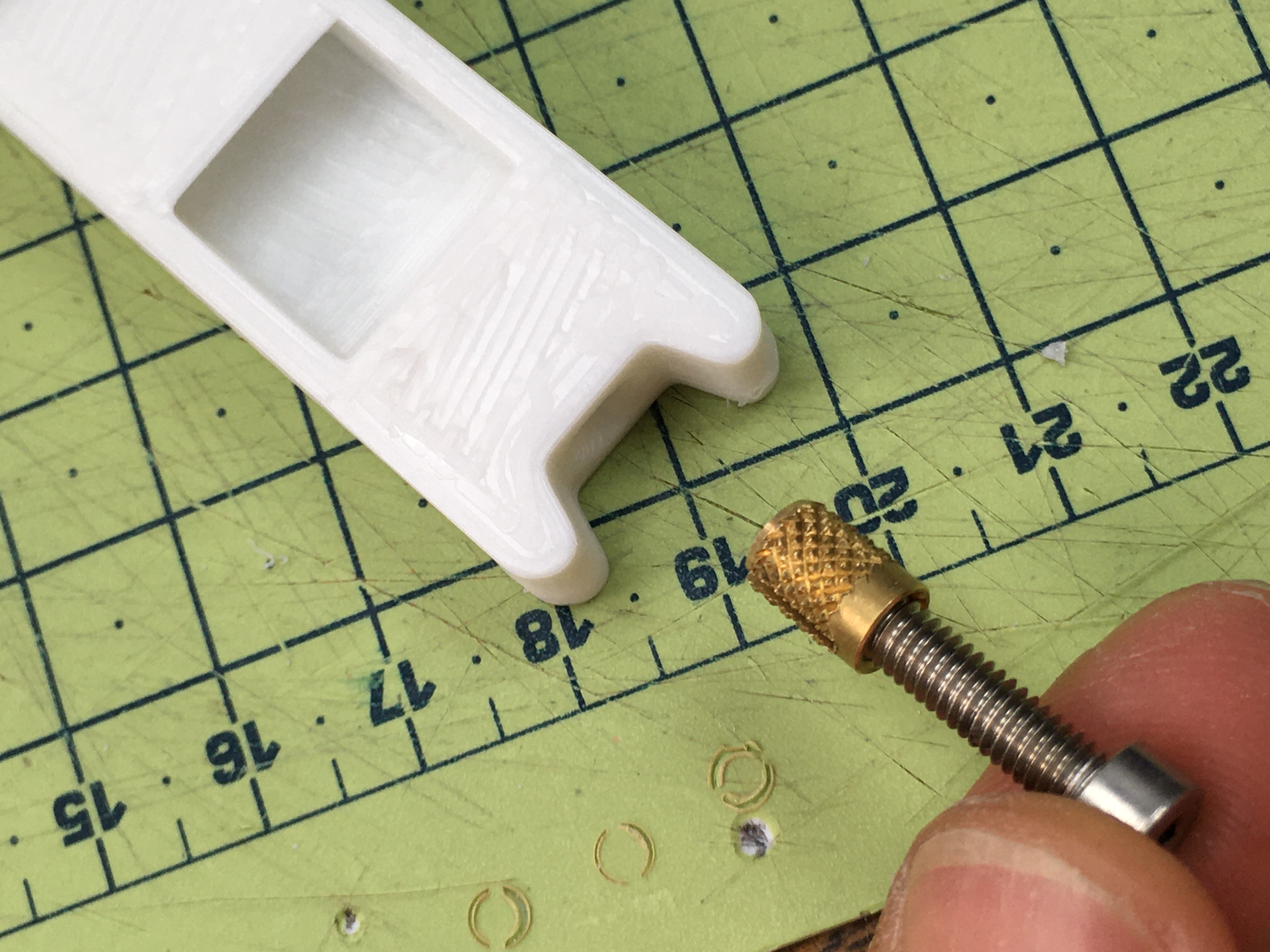

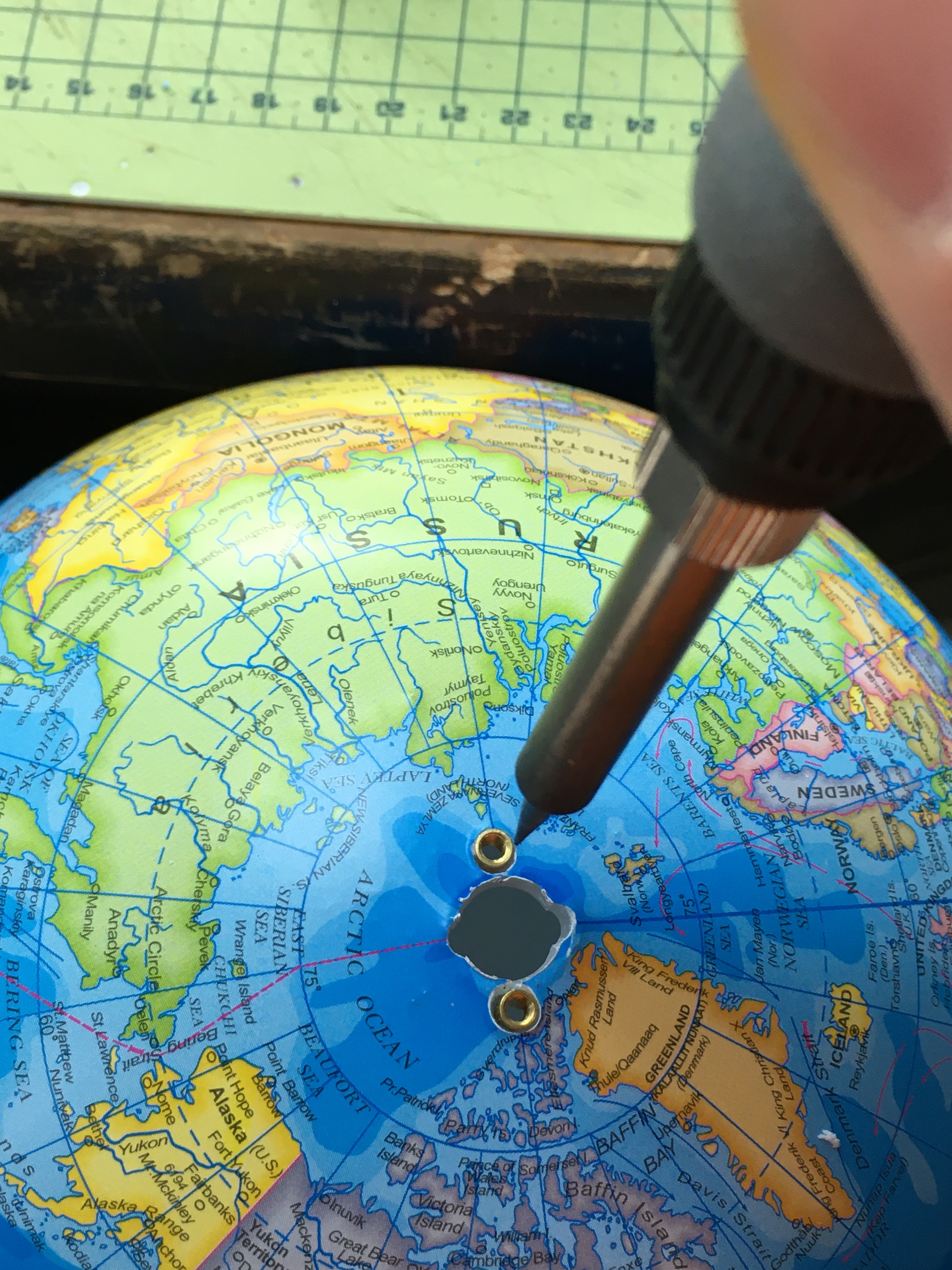

If you have never put a Brass Insert into plastic with a soldering iron, now would be an excellent time to put DOWN the Globe, and practice on something cheaper!

I created a video on how to do this, which is worth a watch before you have at it, with the Globe!

Once you're happy with that, insert as shown, and screw in the bolts. You now have a globe which is locked to the 4mm shaft, and the fixings are hidden inside!

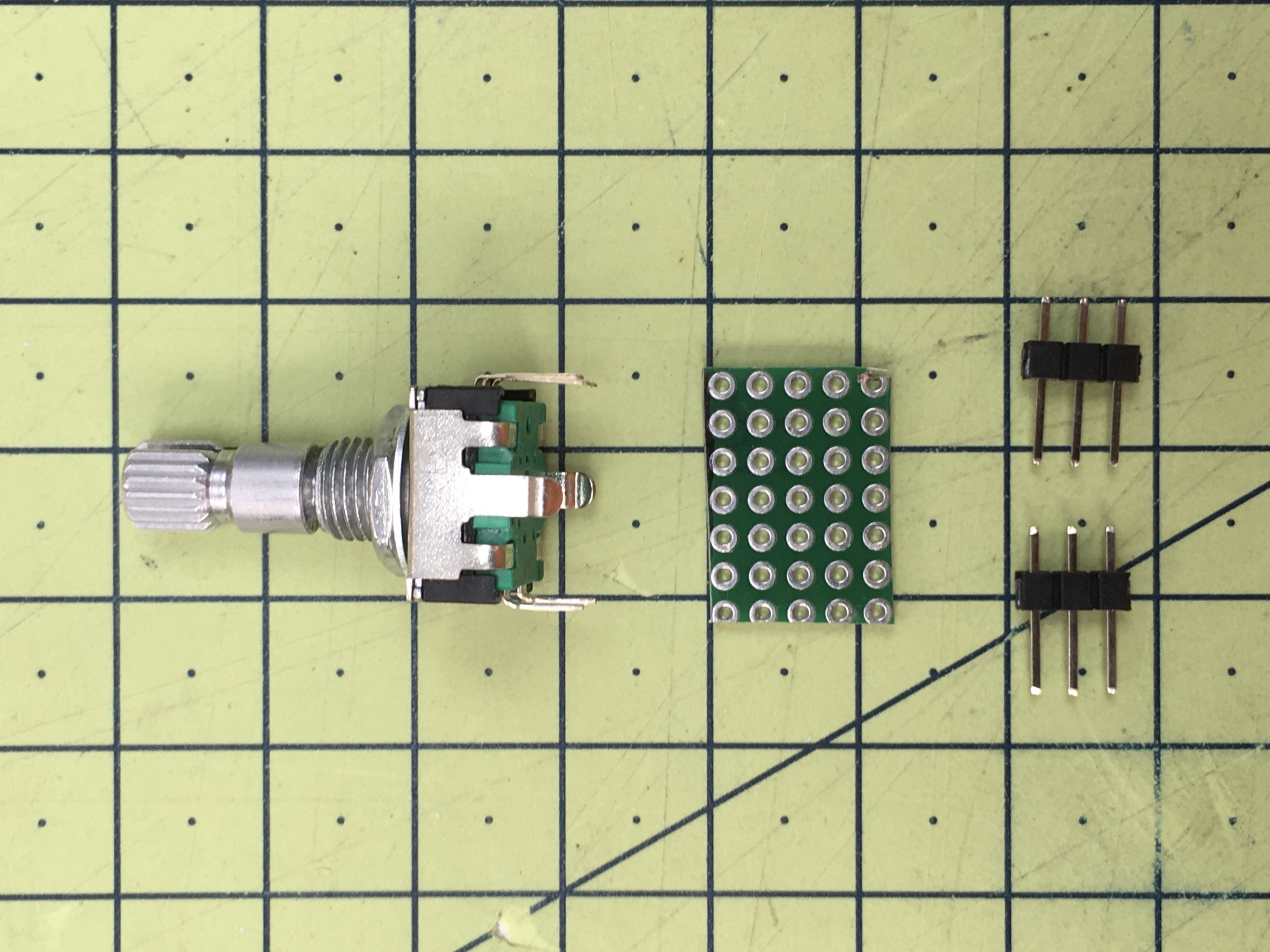

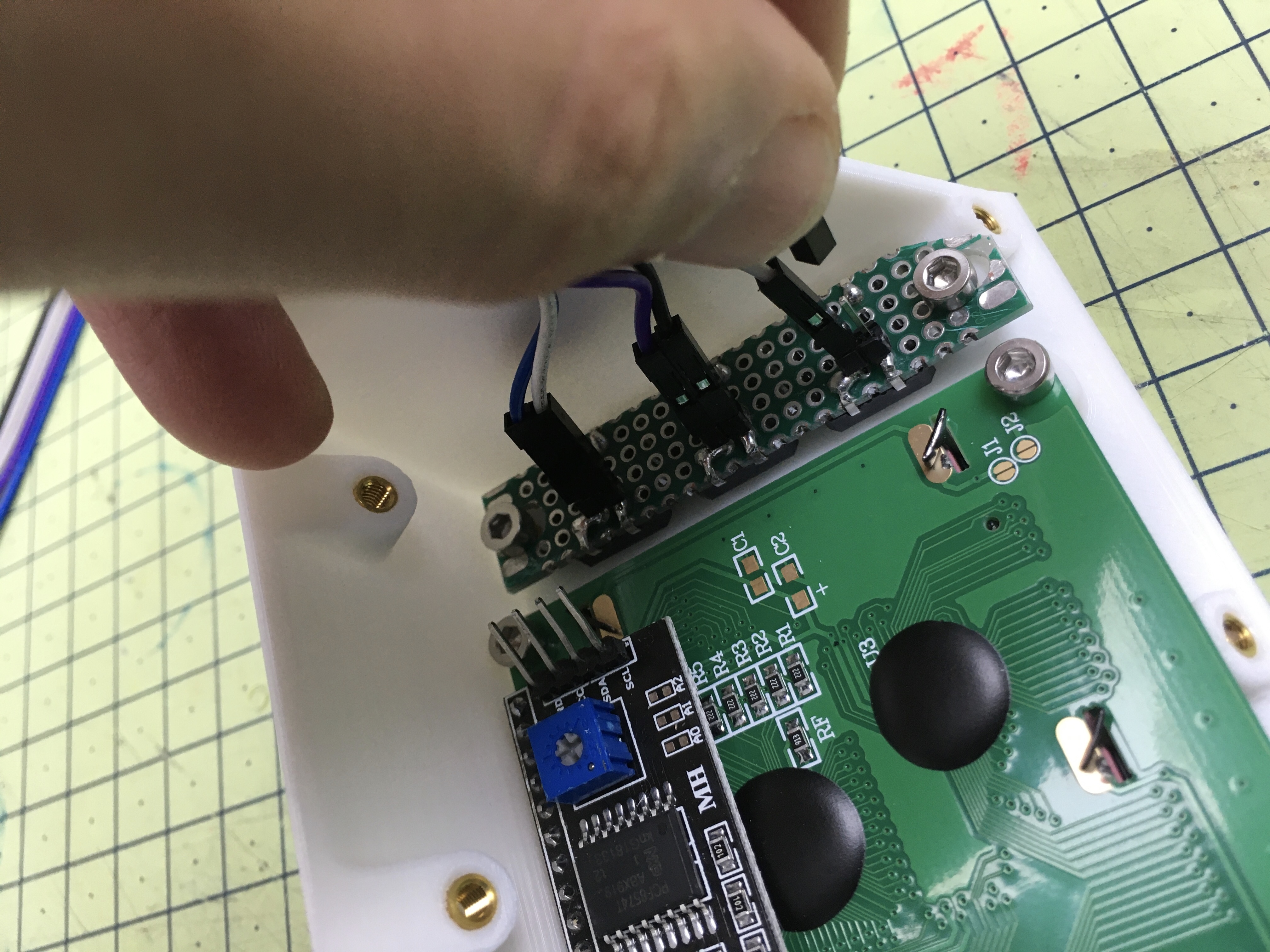

You are welcome to solder directly to components, but it's easier if you use Protoboards.

The two I've used are here:

Standard 2.54mm Perf: https://amzn.to/2ZpIdrS

Mixed 2.00 and 2.54mm Perf: https://amzn.to/2CcJhXt

The only 'fiddly' part is that I created some small sections of PCB that help solder the 2.54mm header pins to the 2.00mm pins of the Rotary Encoder. So the 'Mixed' Perf Board is useful if you imagine you'll disassemble it a lot.

Cut up as show, and have a quick look at the 'end result', so you have an idea of where you're going with it. The next steps show you from the start how to make them...

You can of course send off to have PCBs made for you, but in the spirit of cost, and sharing, I've shared how I did this 'DIY-style', so I hope some tips are useful. You can of course just solder the wires directly, but this makes for a more 'editable' prototype. Skip this step if you prefer. Your call.

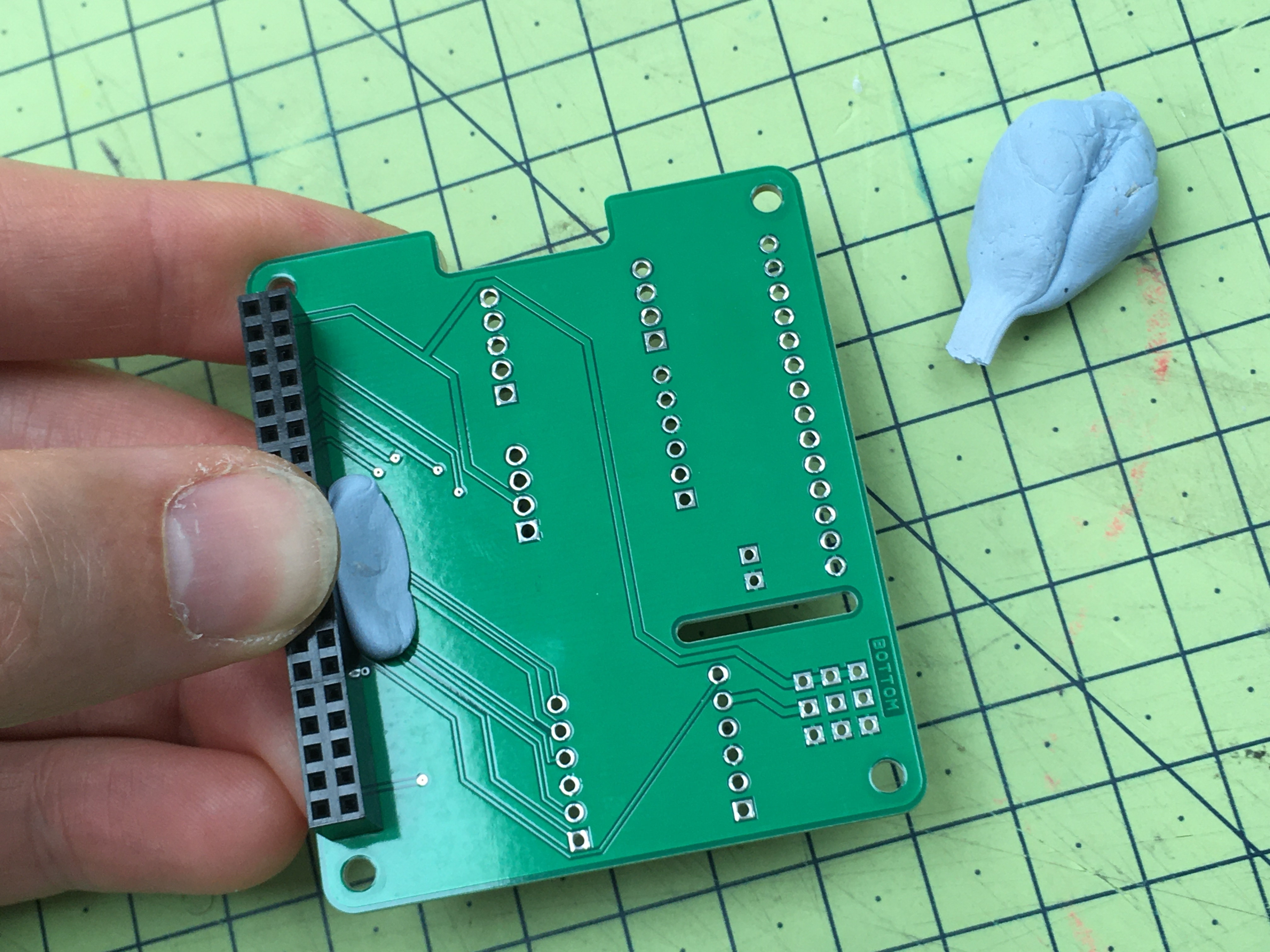

BluTak is a great 'third hand' to stabilise soldering work.

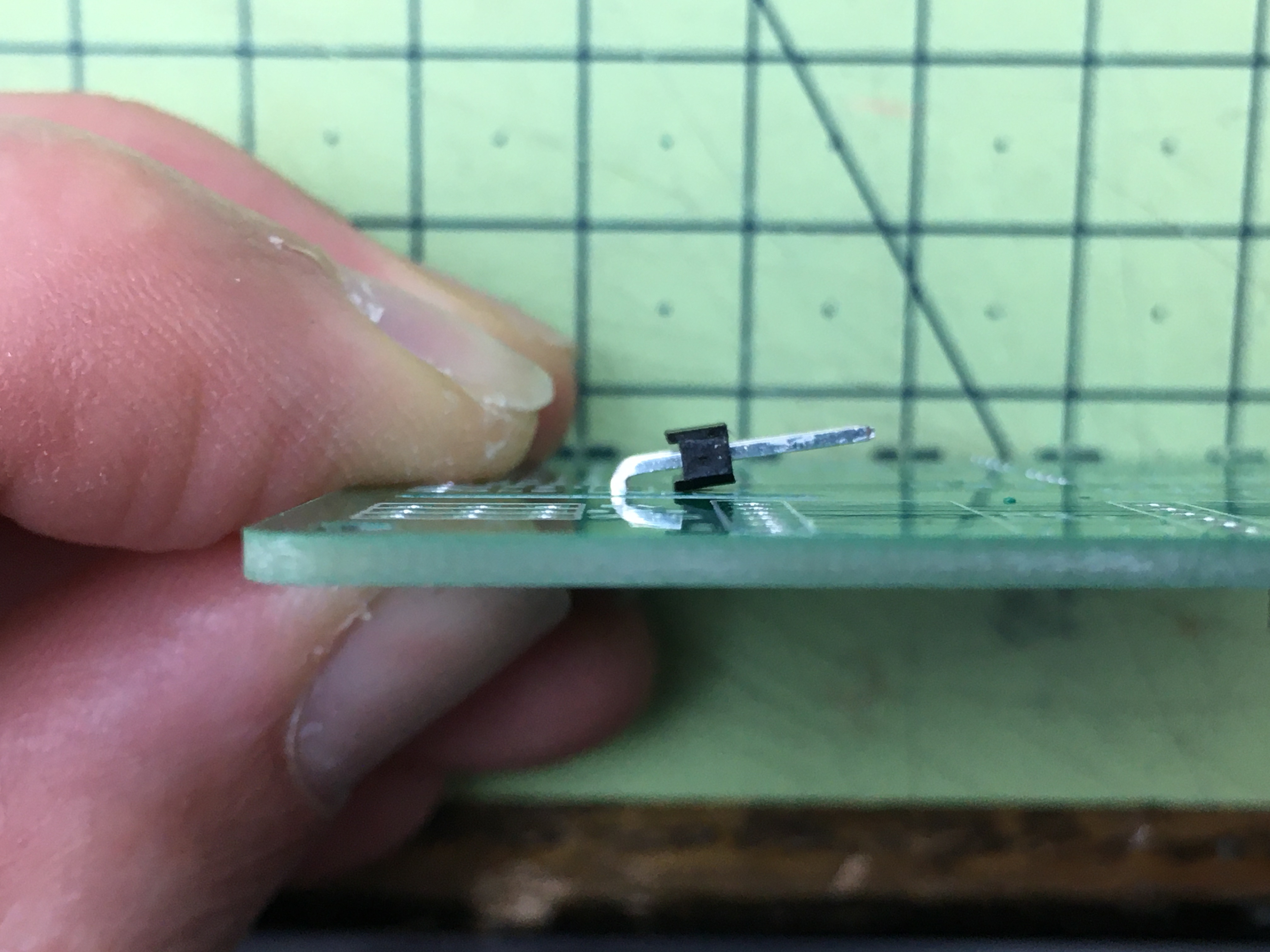

I used some thin wire (from a resistor) to solder in some connecting legs, in the 2.54mm proto holes. I then added he header pins as shown.

I then bent these legs over, so they both touched the header pin legs, but also 'pointed' towards the corresponding 2.0mm holes. I then soldered some solder contacts at the 2.0mm side, and then trimmed them with side cutters.

I added some hot melt glue to the board, and stuck it in position on the Rotary Encoder - such the the connections touched the legs...

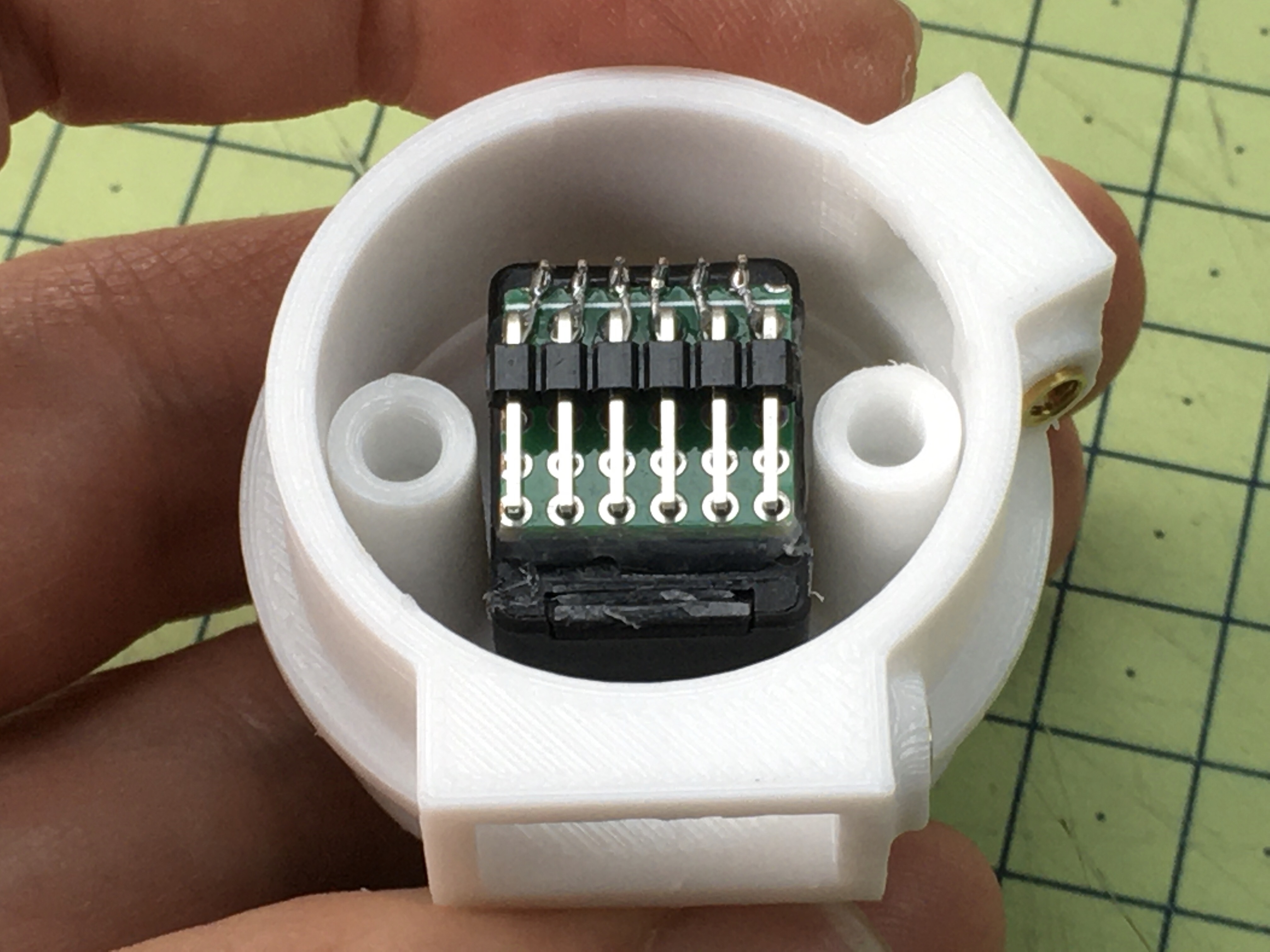

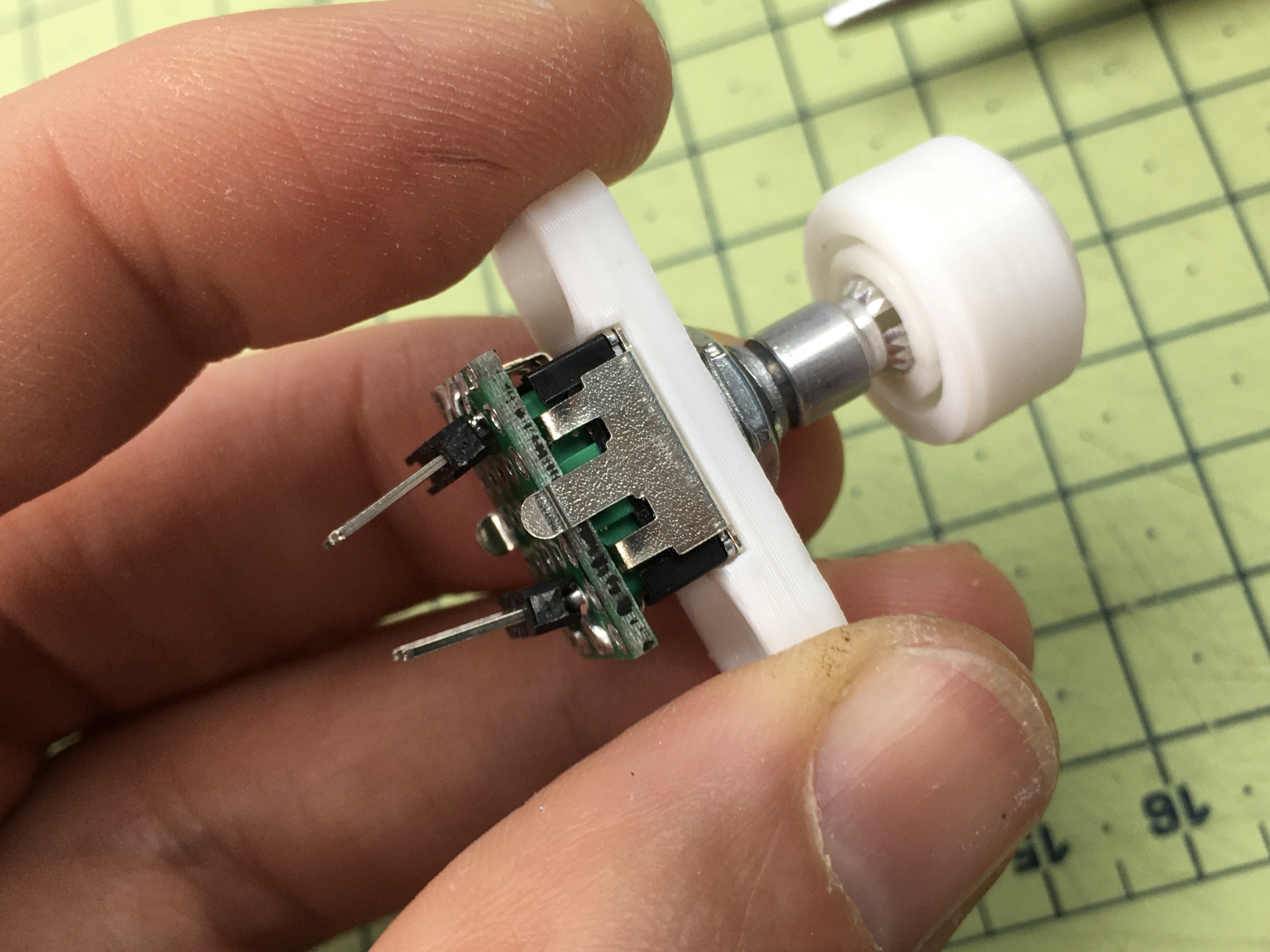

...I soldered the Rotary Encoder legs to the PCB.

The final result is show.

I checked with a multimeter to ensure no short circuiting was happening. As these encoders are £35 a go, it's worth being 100% sure about this!

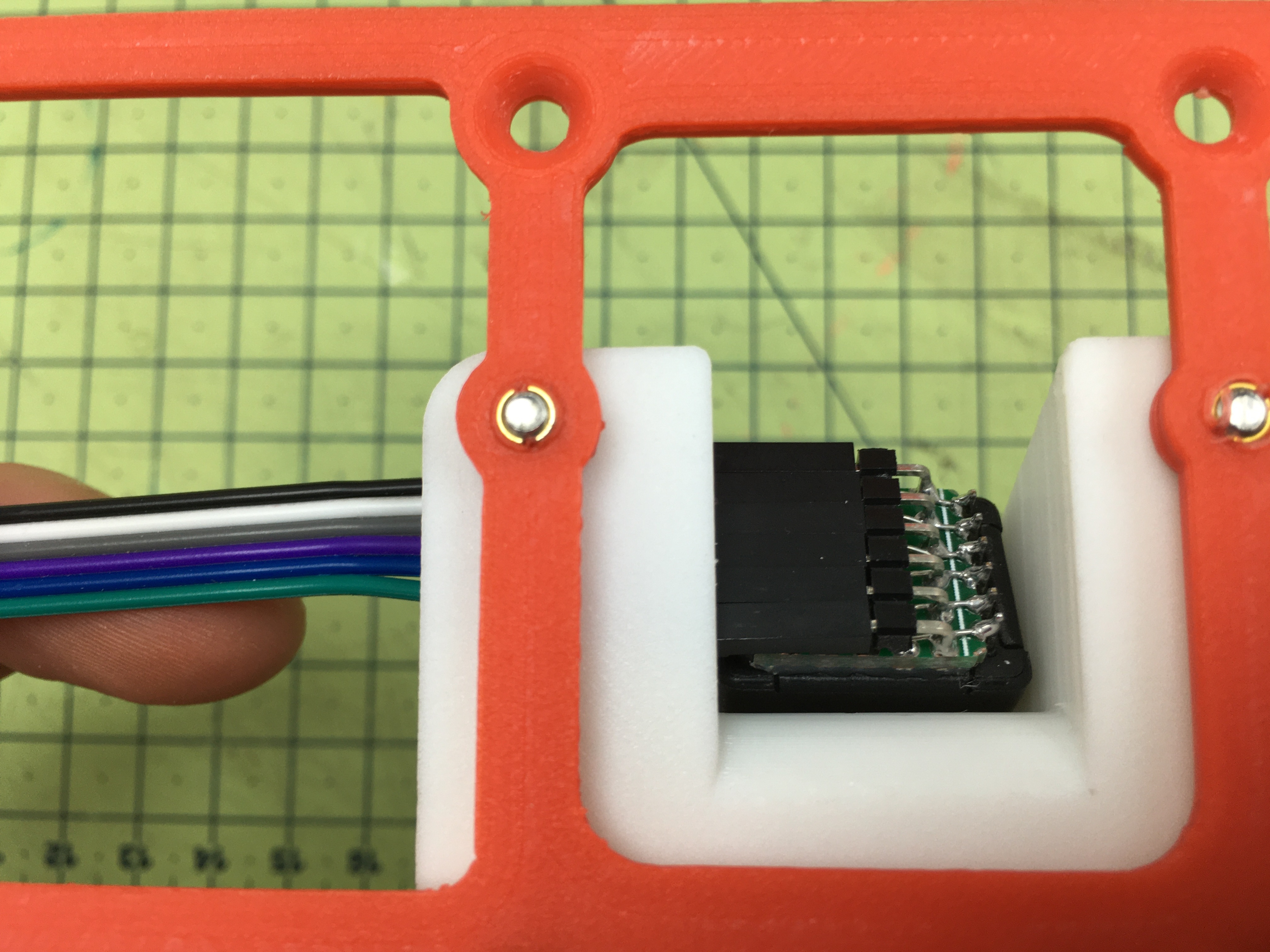

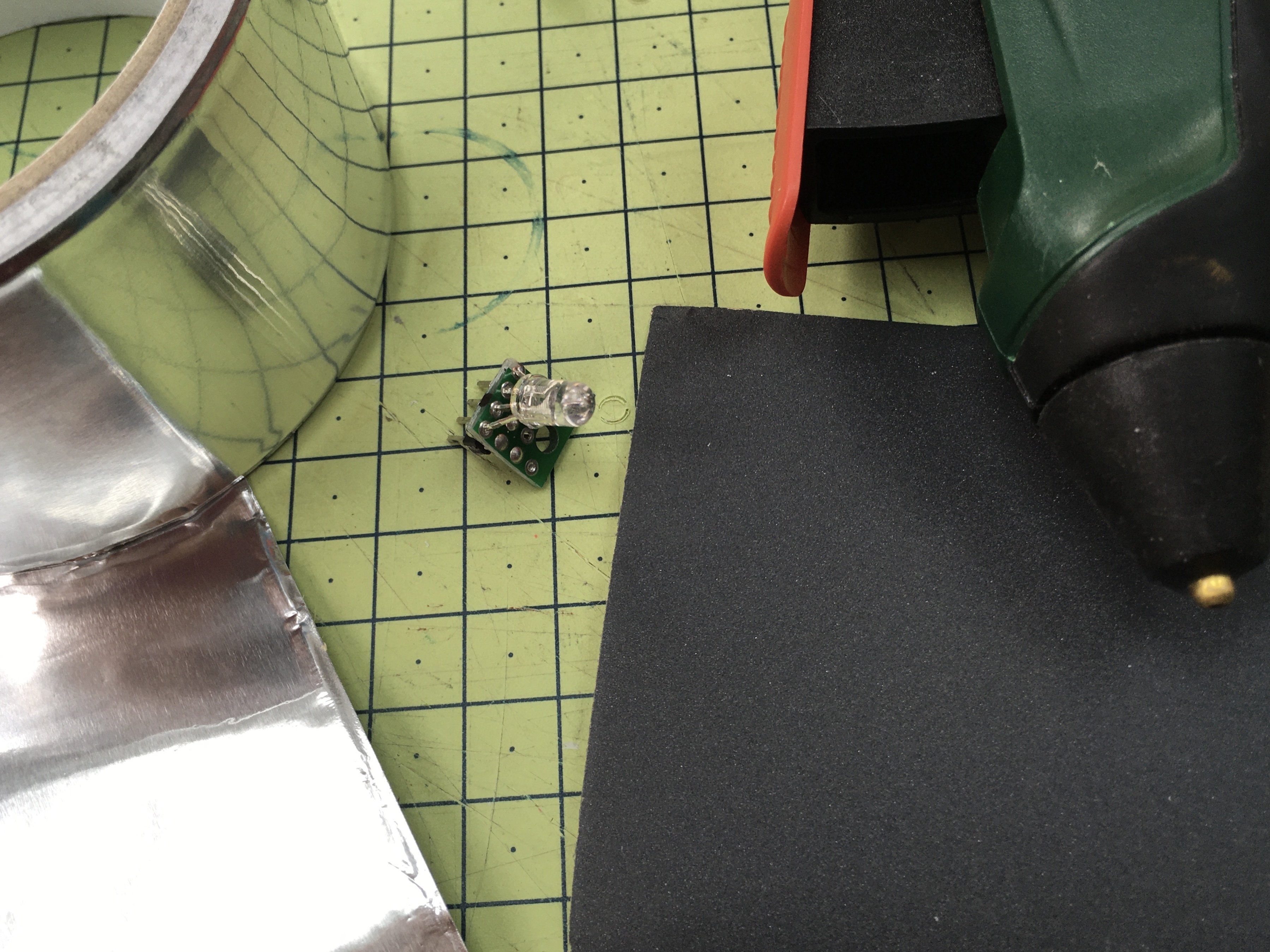

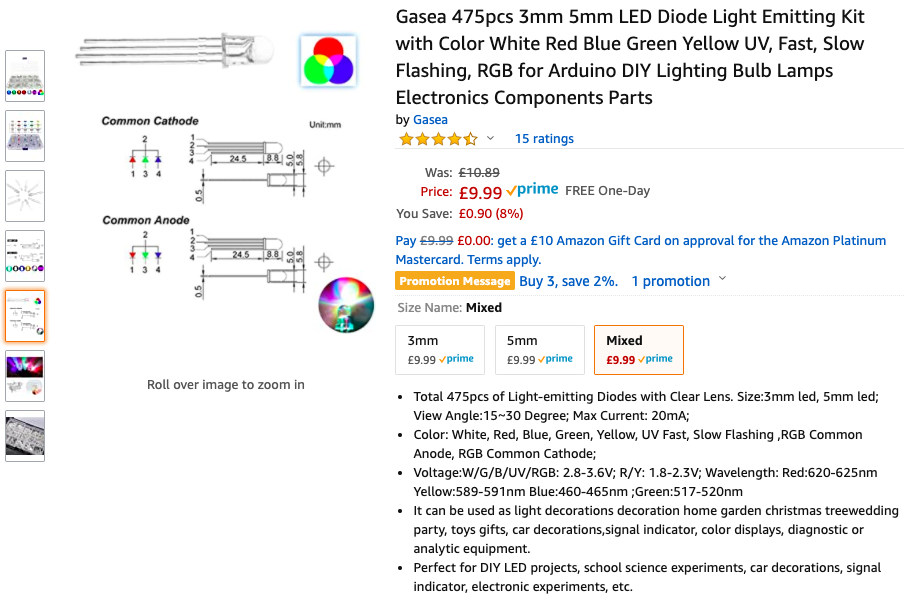

From the BOM, you'll note I suggested Common Cathode RGB LEDs: https://amzn.to/3ezS2bn

When the box arrives, do not trust the label, but rather - get a 3v coin cell battery and test as shown to identify the GND (longest) should be -ve, and the nearest short legs should light up on +ve (Red of the RGB shown).

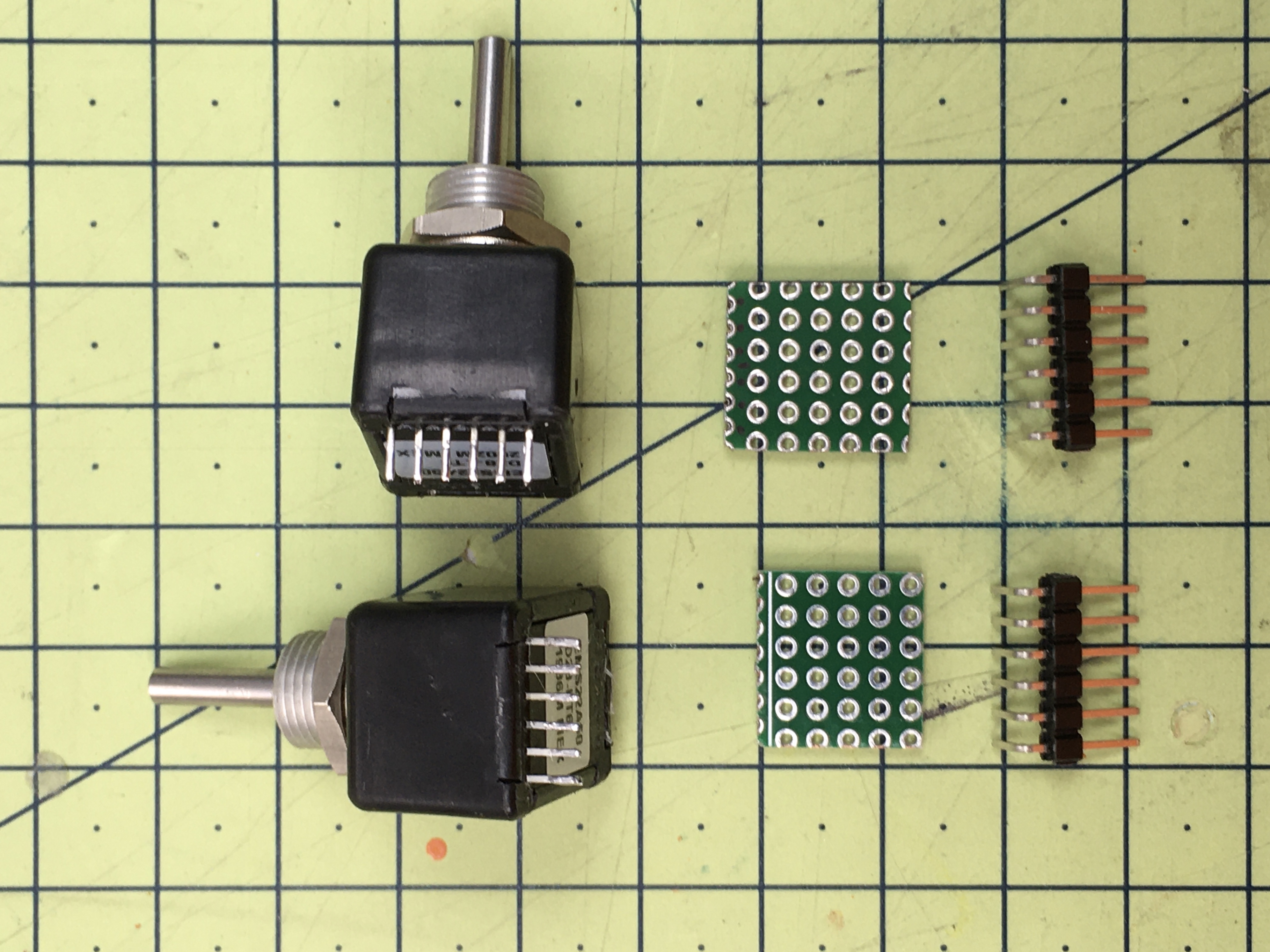

Thread the legs through a small section of 4x4 holes from the 2.54mm (standard) perf board.

Make a note of the GND leg before you solder and cut the legs off.

You may notice, I added the straight header pins 'upsidedown', this was to make it easier to solder....and then once cool, I slid the black spacer plastic down. (90 degree header pins will also work).

Do a final check on your R,(GND)G&B layout, and you're done!

TIP - I got lucky and utilised a hole that was already in the PCB, but you can simply drill one in the approximate position as shown if not.

The Jog Wheel is simple, and not much different to the LED board.

I did however, clip out one of the pins as shown to avoid any accidental mis-wiring between the 2pin 'button' and the 3pin 'encoder' sides of the unit.

I designed the button layout around the practical spacing of the buttons on standard 2.54mm perf/proto board. Before you do the 'big soldering', perhaps just check your fit with the 3D Printed Display to save any issues in fitting later on...

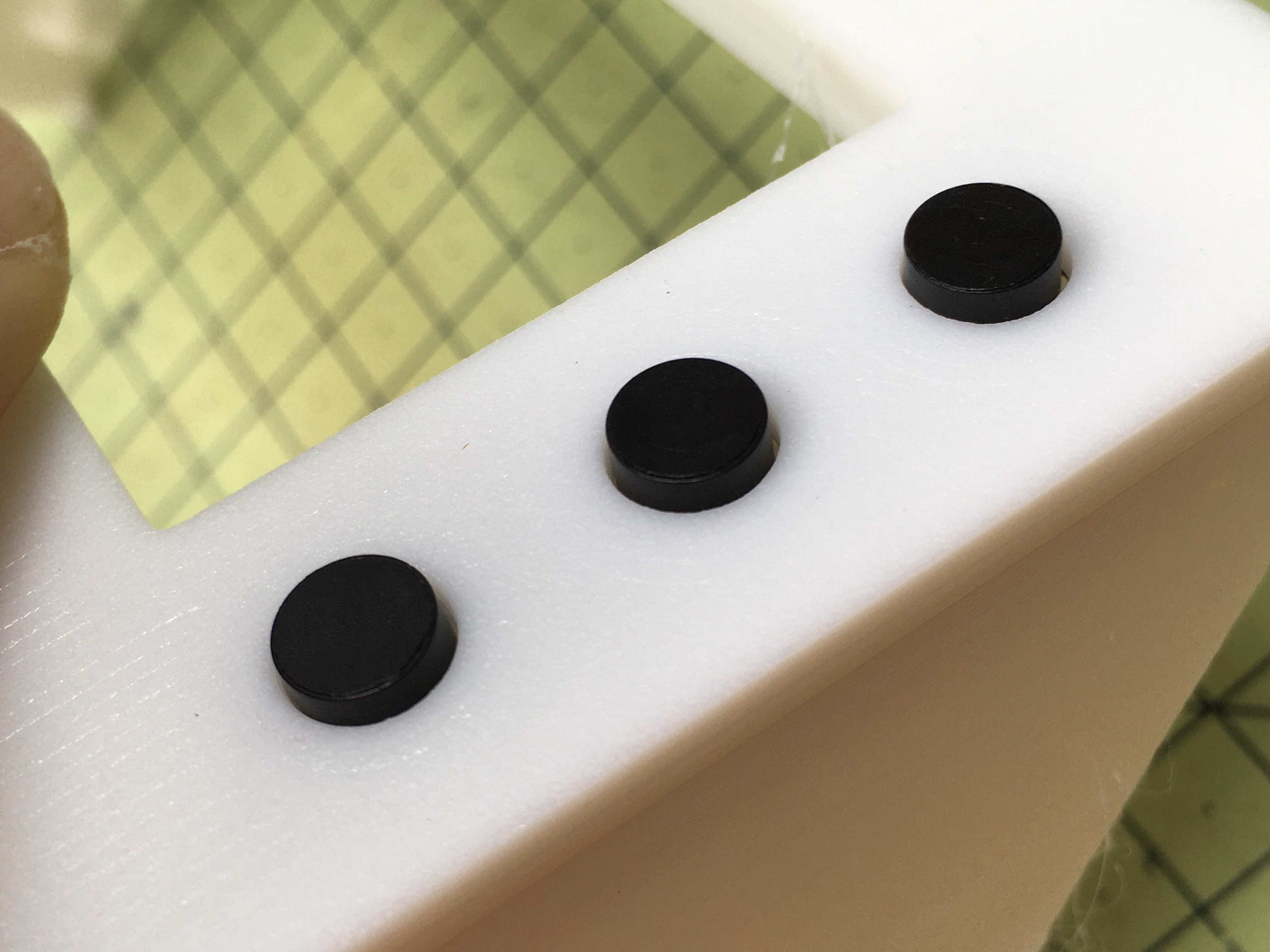

You will need to drill two holes about 4-5mm diameter (i.e. larger than the M3 bolt, but smaller than the head 5.5mm), so the PCB can be wiggled into place easily. File off any burrs and such.

Perhaps an oversight in my CAD, but you'll notice that it helps to trim off the bottom right corner of PCB, such that it fits better in the housing. I did this with clippers, but saw will work too.

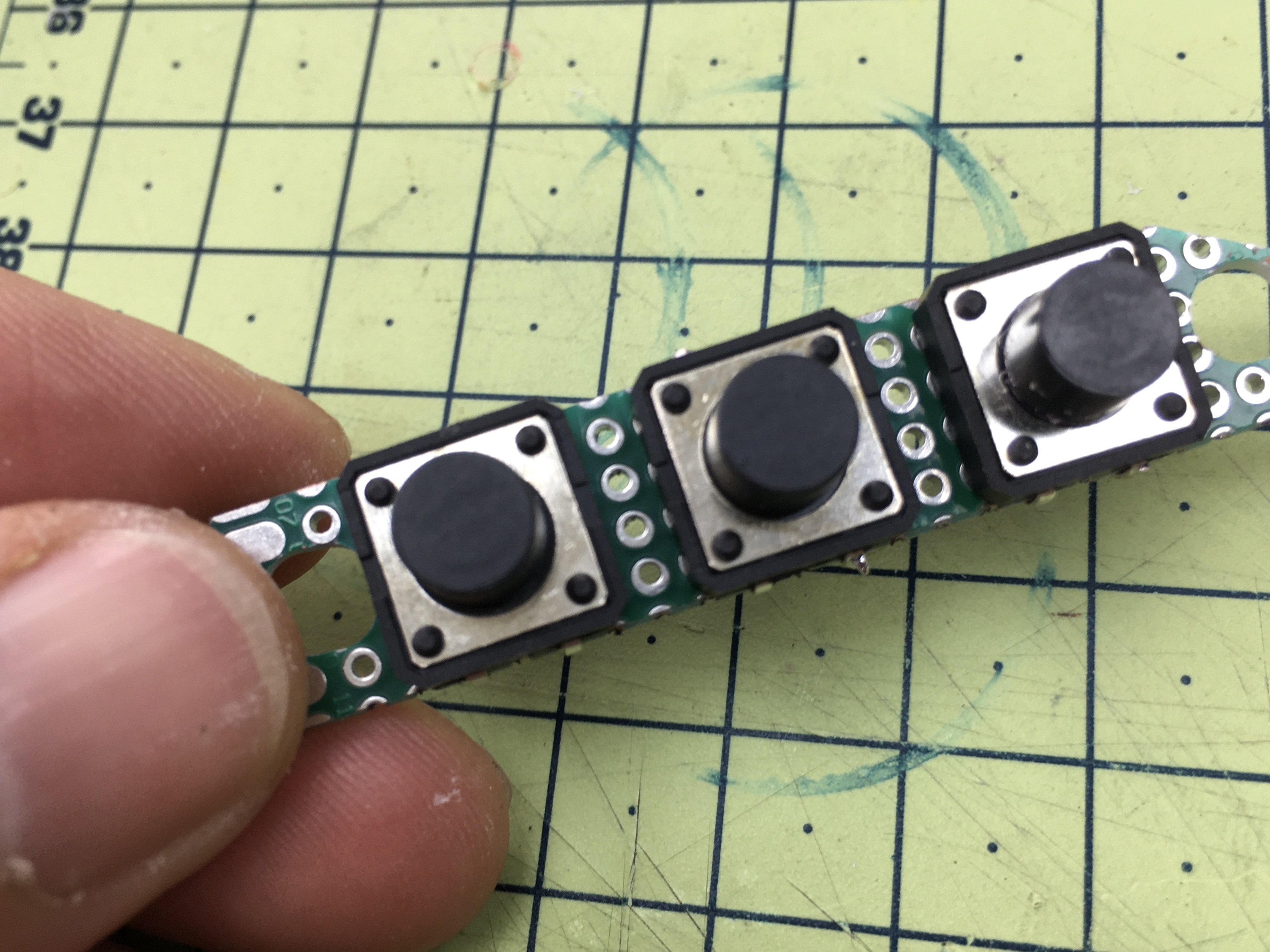

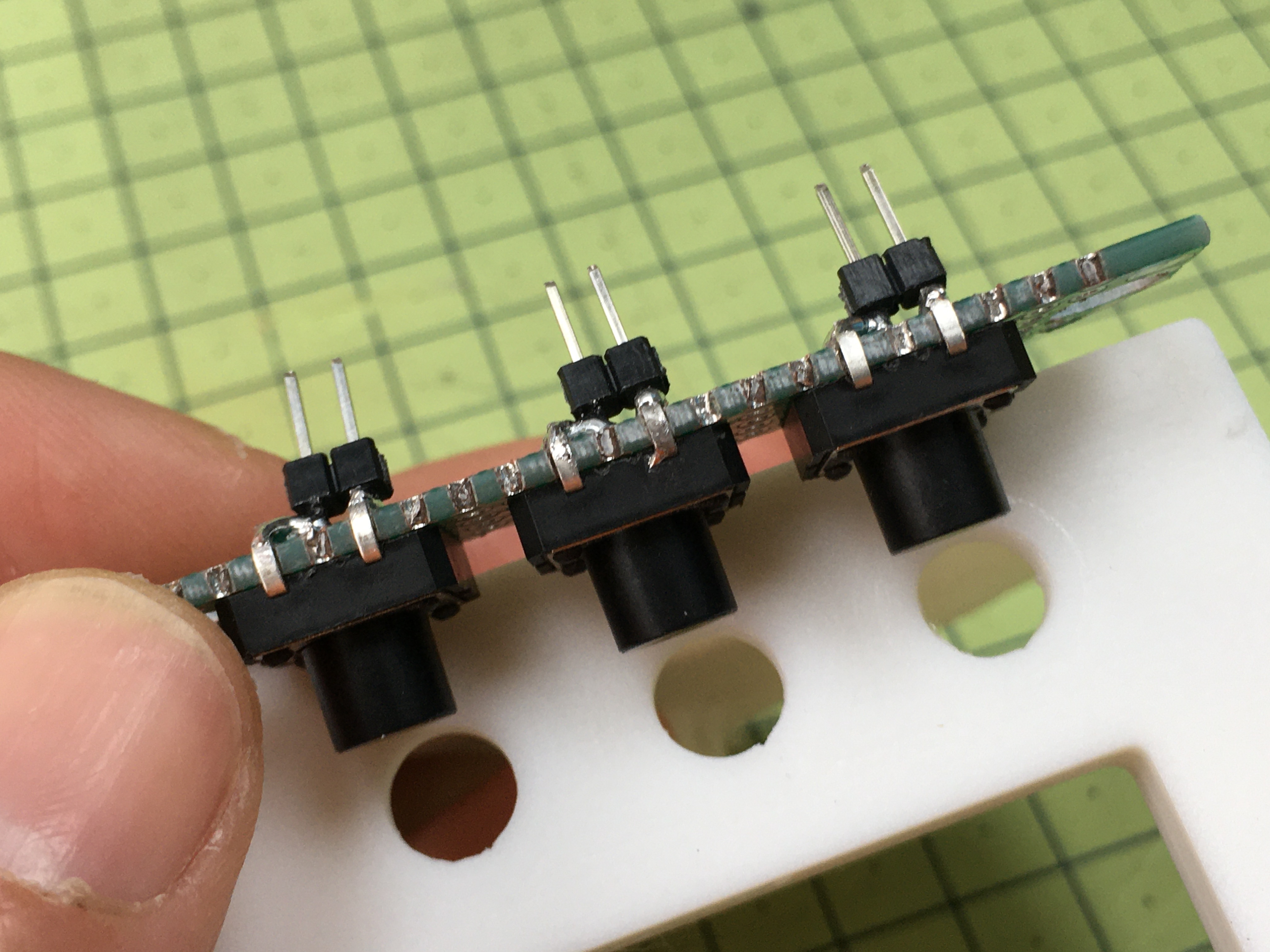

Place the Buttons as shown, and solder 1 or 2 of the legs, check fit, then do the rest as shown.

Next add the header pins (straight if you have them, or straighten out the 90 degree ones with pliers if you only have these), solder in place.

Next, 'bridge' the solder joints with an excess of solder, such that the connection is made between the header pins and the pins of the Buttons. Check with multimeter to be sure of right connection.

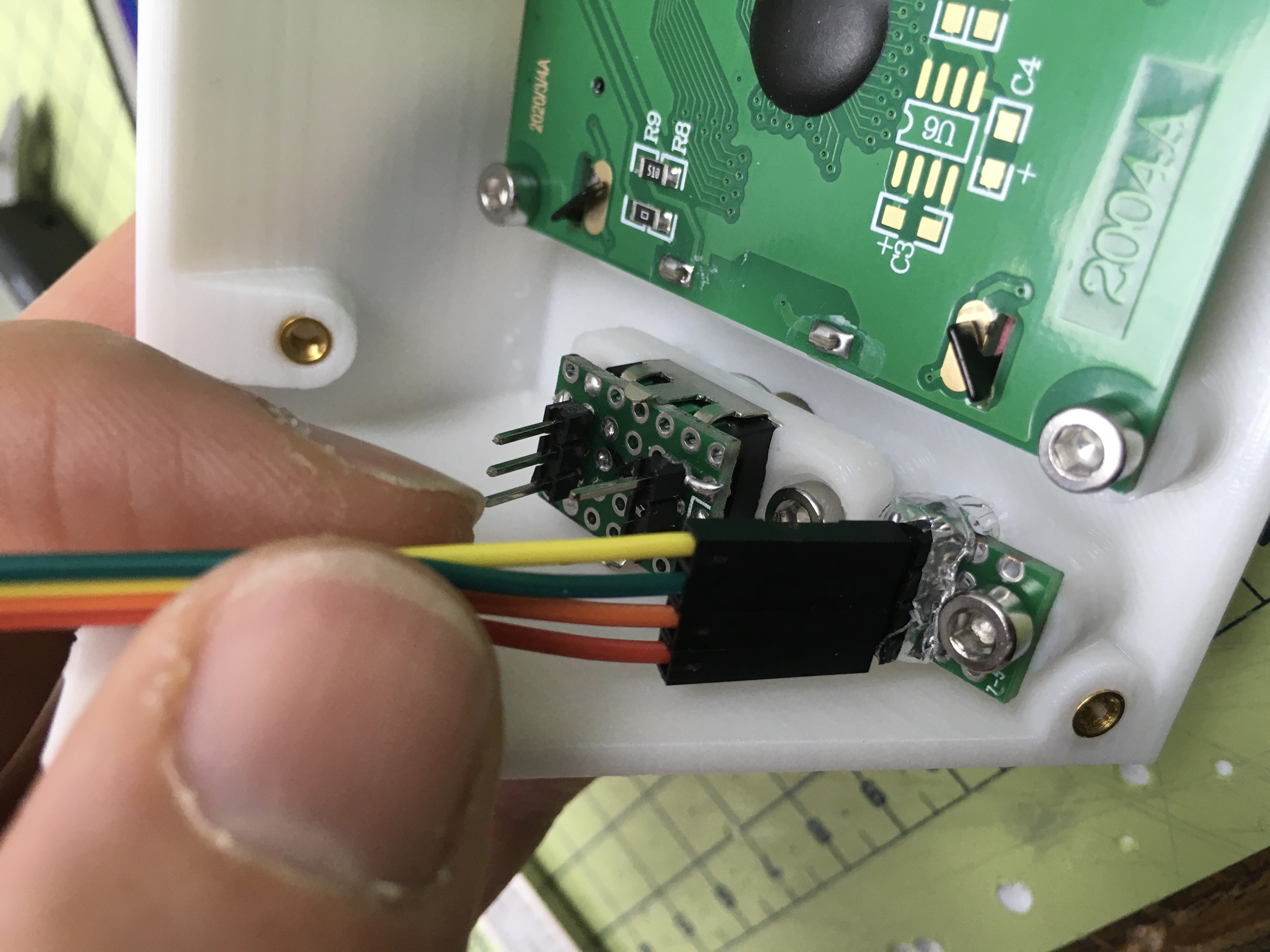

Check fit and screw into place.

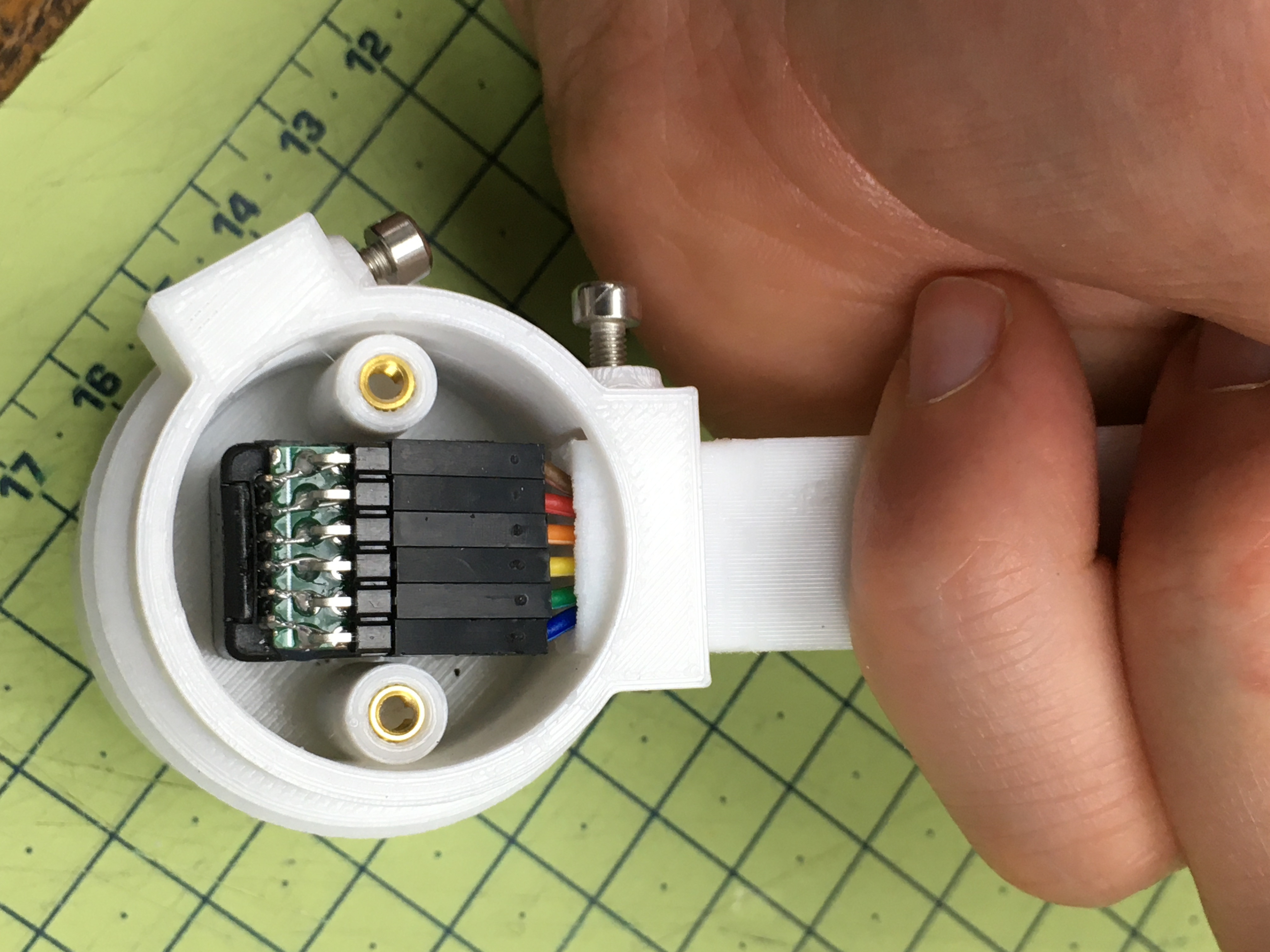

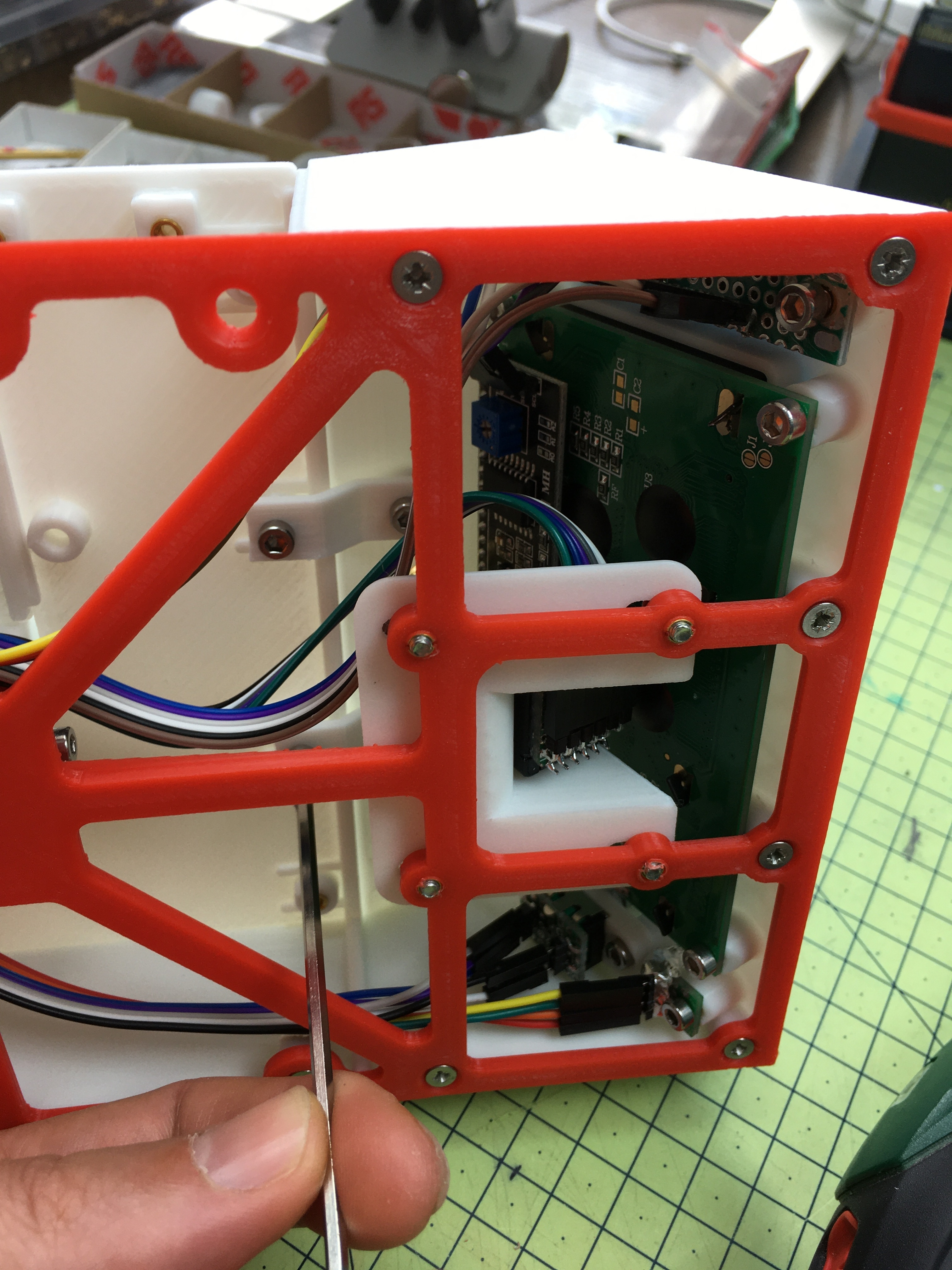

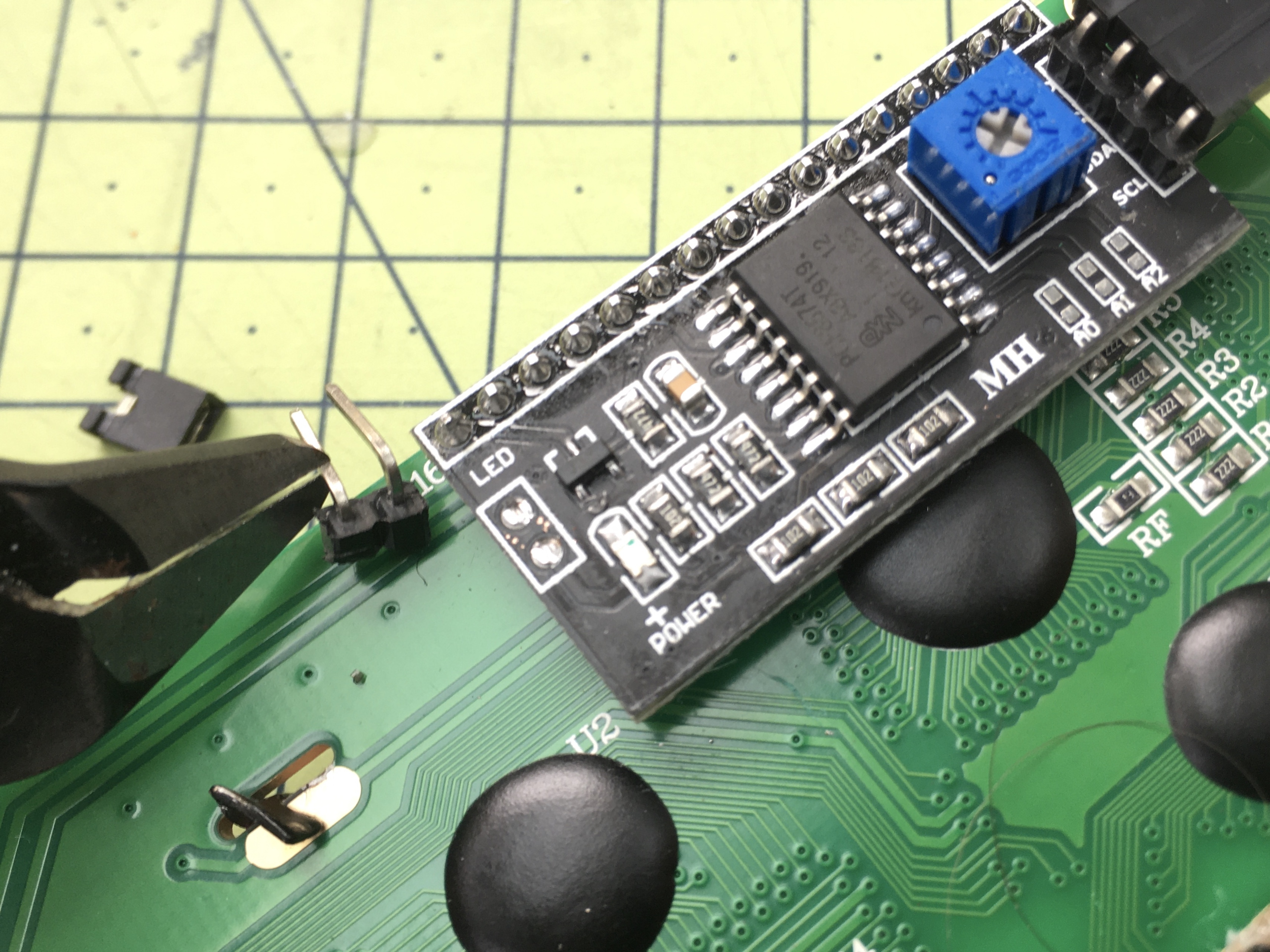

When I first made the prototype, this clip was in the way. So I removed it and soldered it across.

Later, I improved the CAD, and actually there is now space, so it's not an issue - but it's a happy provocation to learn that when you disconnect this circuit connection it switches off the backlight....

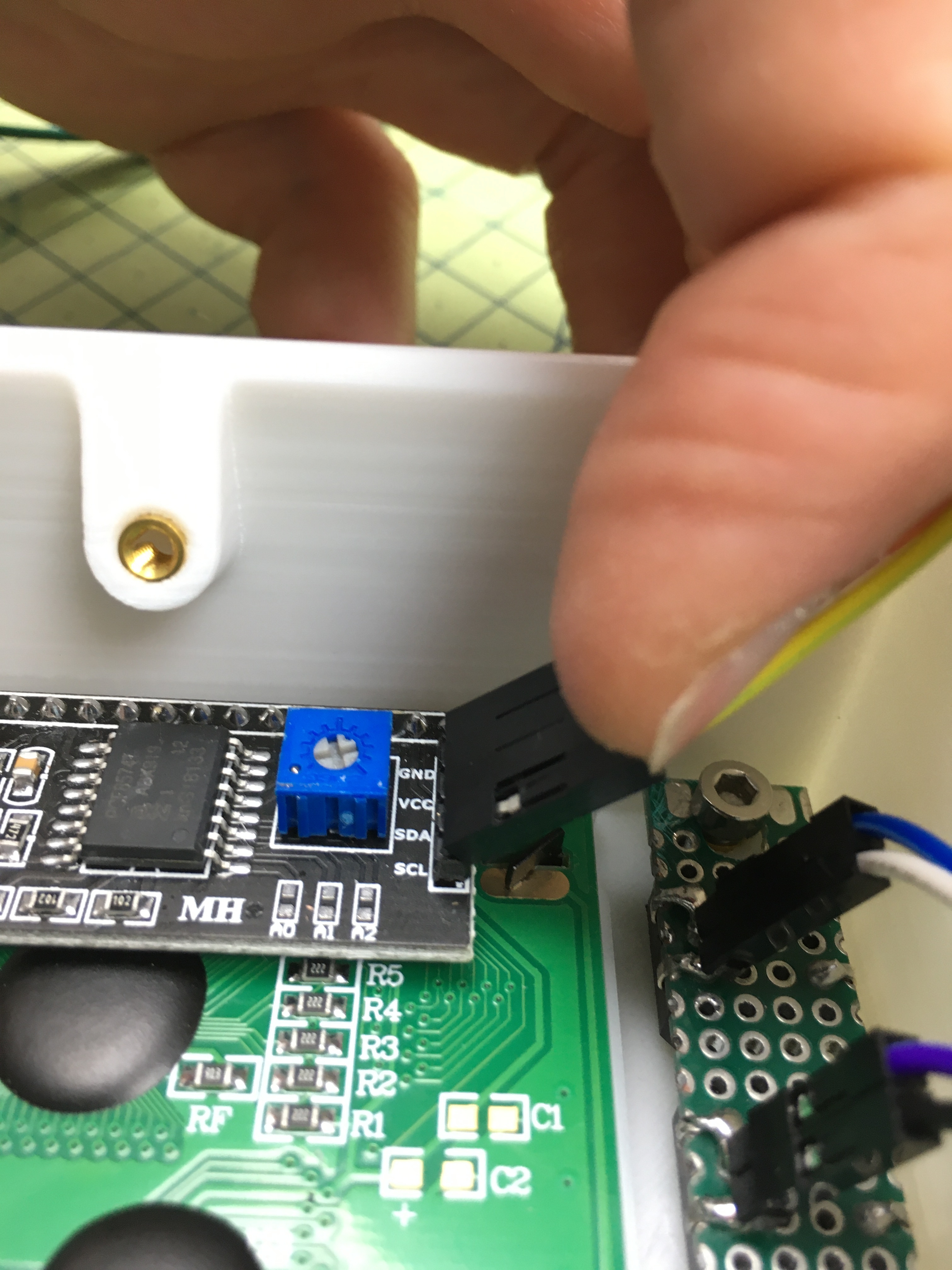

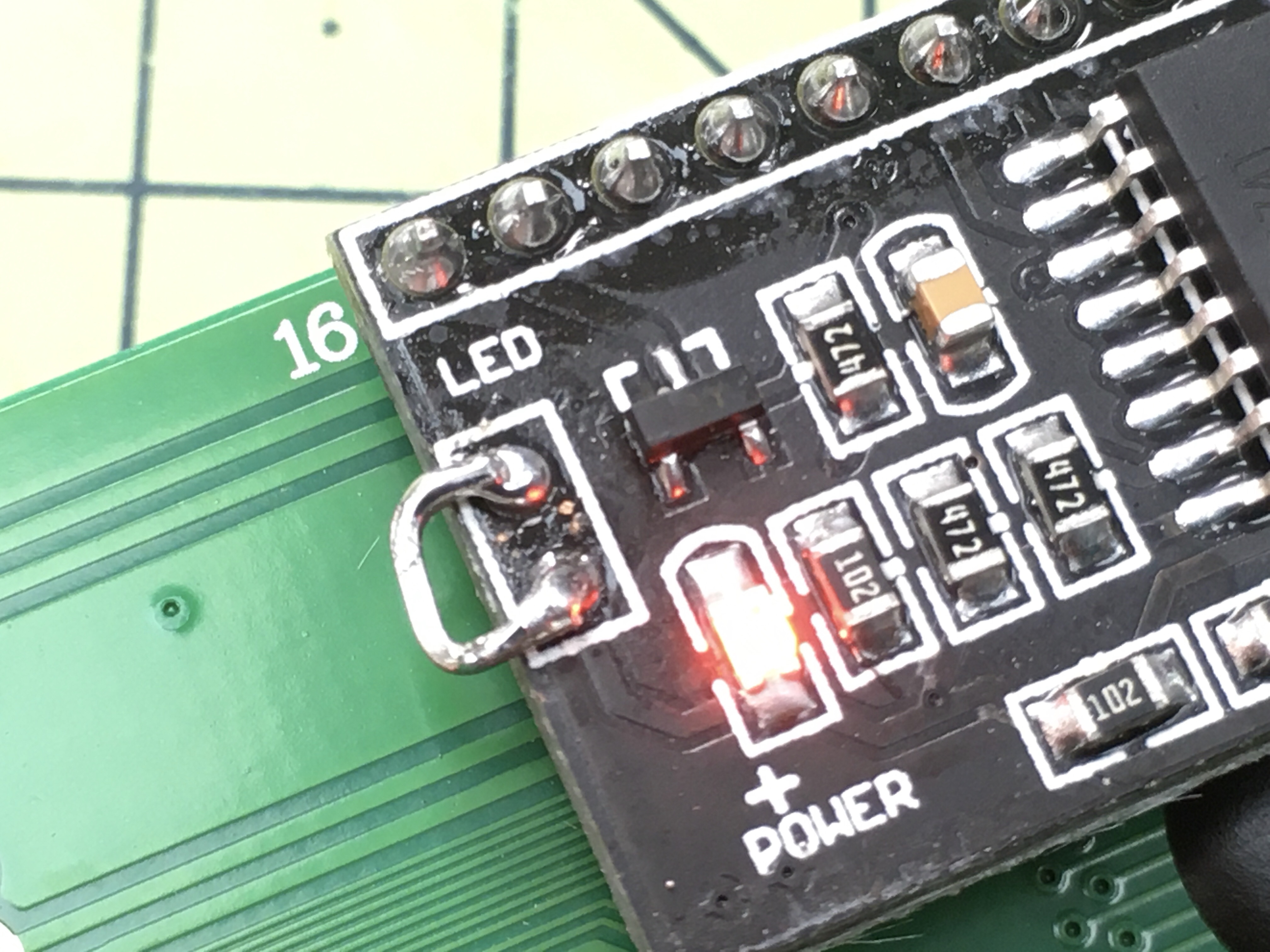

....So, if you find the screen too bright, you can in fact just add a switch here, and toggle it on and off (say for evening living room ambience!).

Nice hack, huh!

If you're new to PCBs and Circuits, this may all look very intimidating. But the basic principle is that you work out the pins in one place from the GPIO pins from the Raspberry Pi, and then wire them to the output on the ProtoBoard/Shield.

I've done many of these over the years, and my best advice is to isolate yourself from any distractions for at least 2 hours, and only wire one wire at a time. Once you're done that wire, use a multimeter to check good continuity.

You can also install the software (on the later steps) and check each section one at a time, I'd suggest do LCD Screen, then Buttons, then LED, then Jog Wheel, then Rotary Encoders in that sequence.

I've uploaded the professional wiring schematic, but for the beginners, I think the hand-drawn sketch might be easier to understand. Do post any questions if unsure.

And of course, if you have the cash/not bothered, there are the Gerber Files here (LINK) and you can get them ordered at places like this (LINK). Good luck!

NOTE: Instructables.com does not (at the time of writing) host Gerber Files, so please click here to download : (LINK)

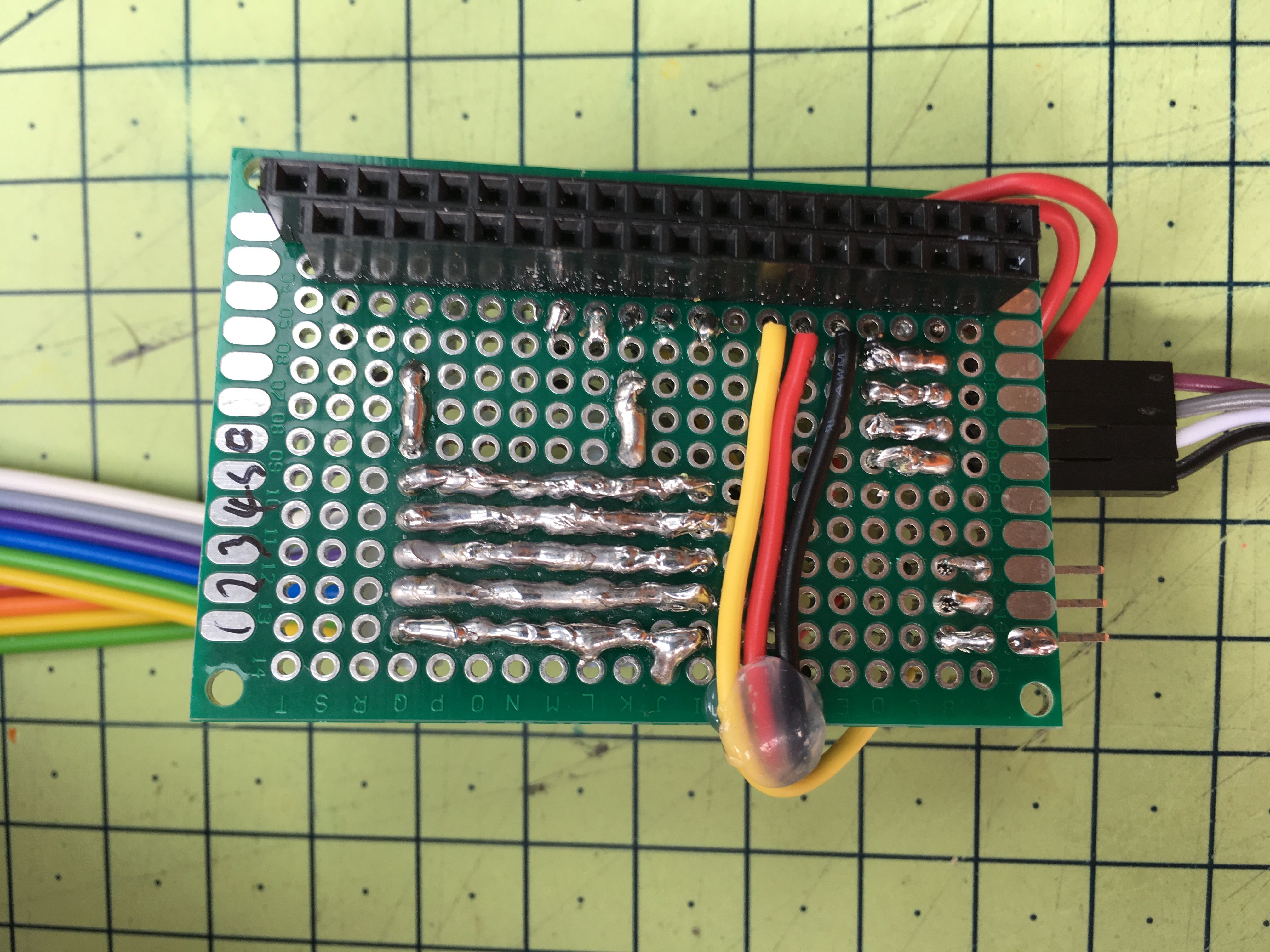

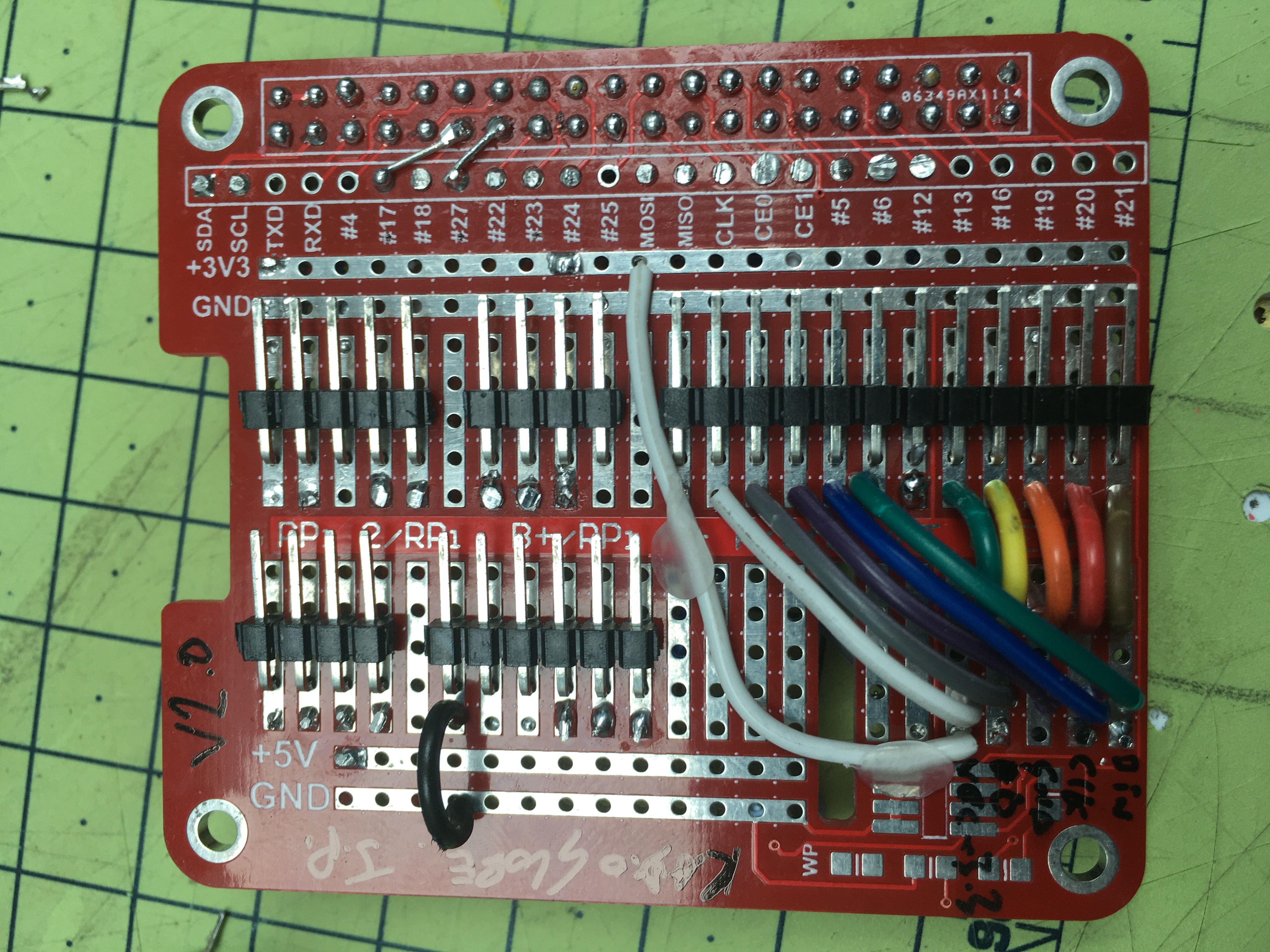

Although you could use protoboards (see last photos with a green board), these (red) 'Hats' (as they sit on a Pi like a Hat) save a huge amount of effort as they configure the pin outs for you, so the wiring is much less.

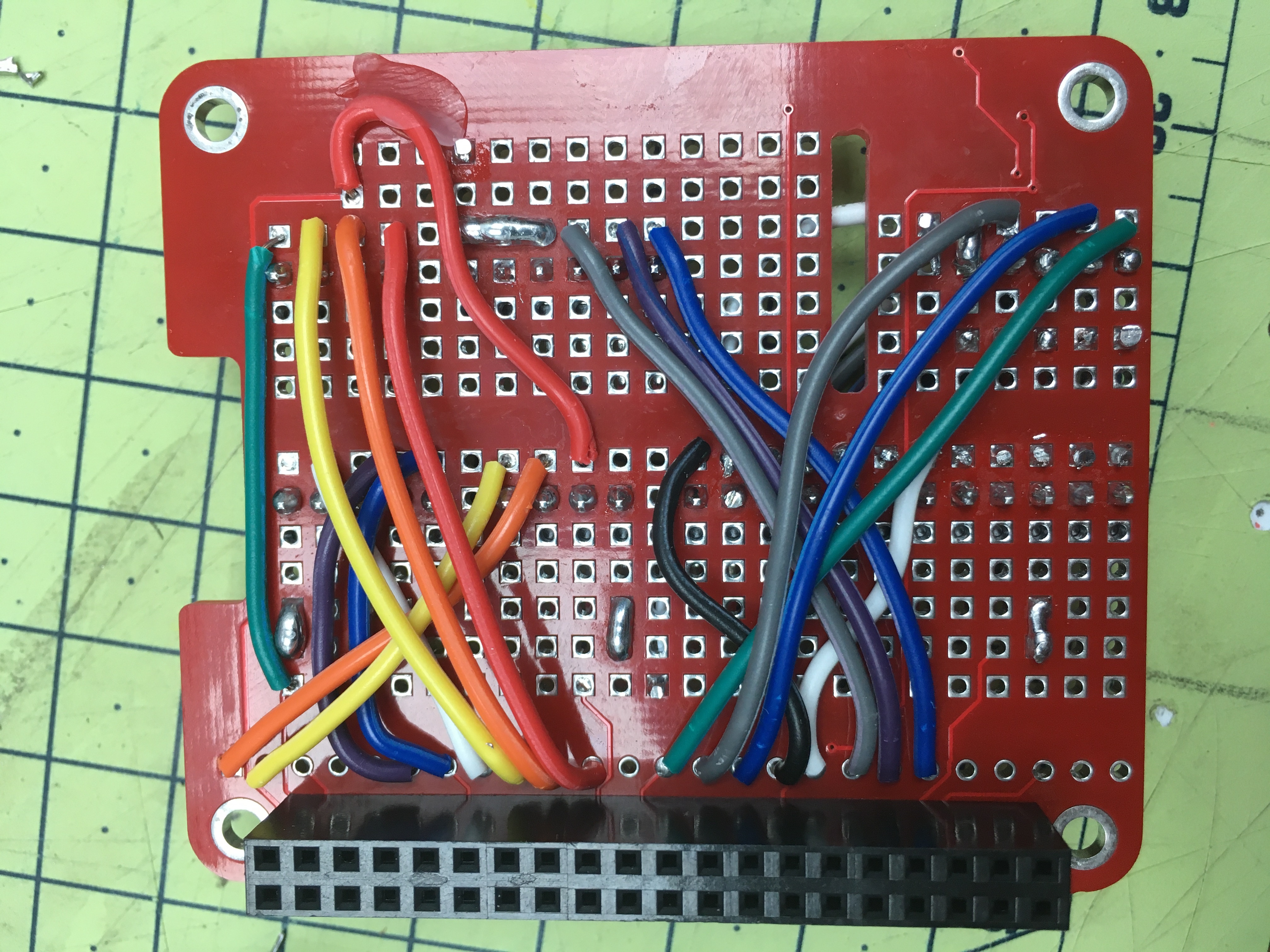

There is not a 'right' way to wire up, but I would suggest using solid core wire (over multi strand) if you are new to it, as this avoids any short circuits from frayed wires.

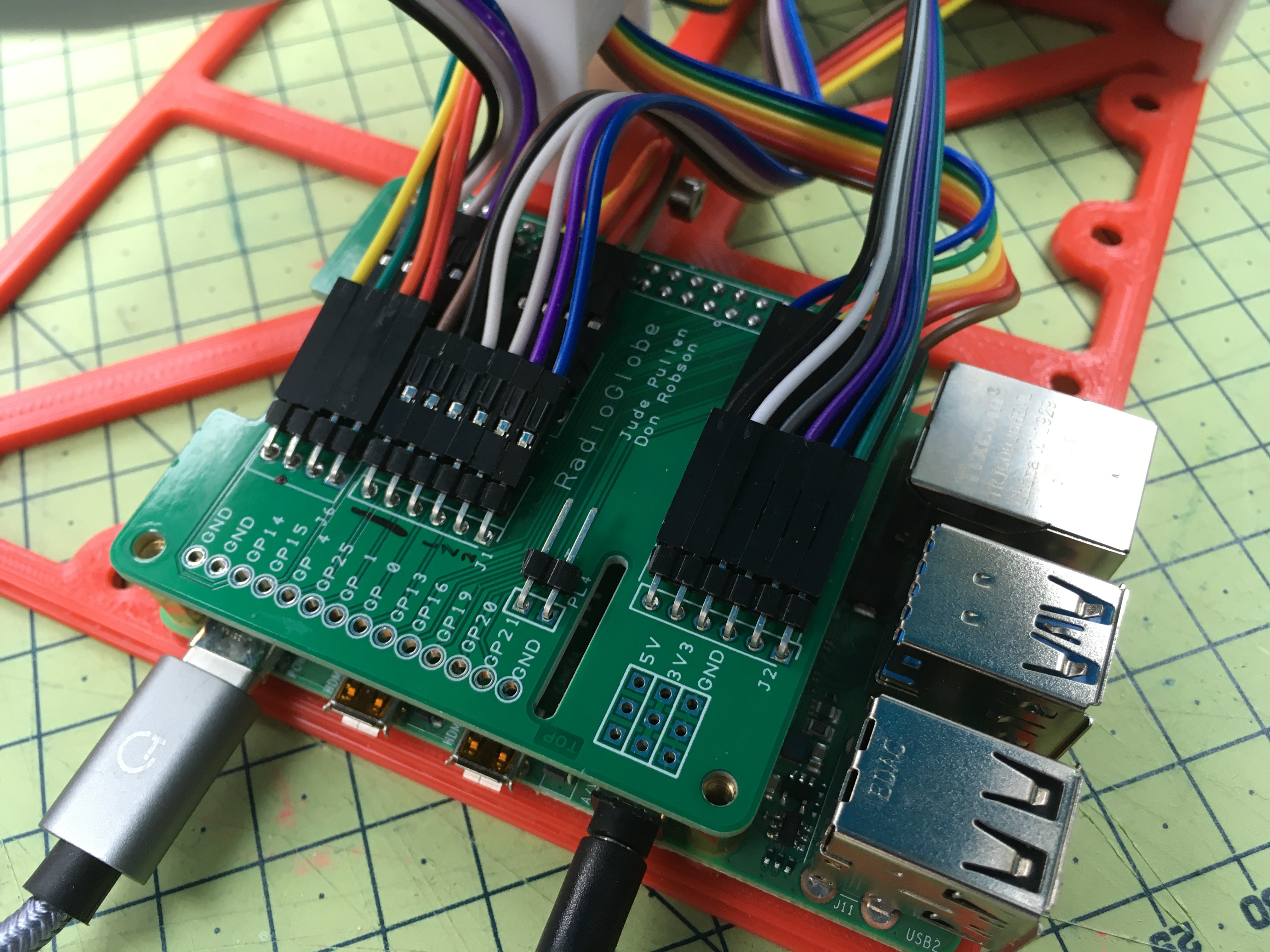

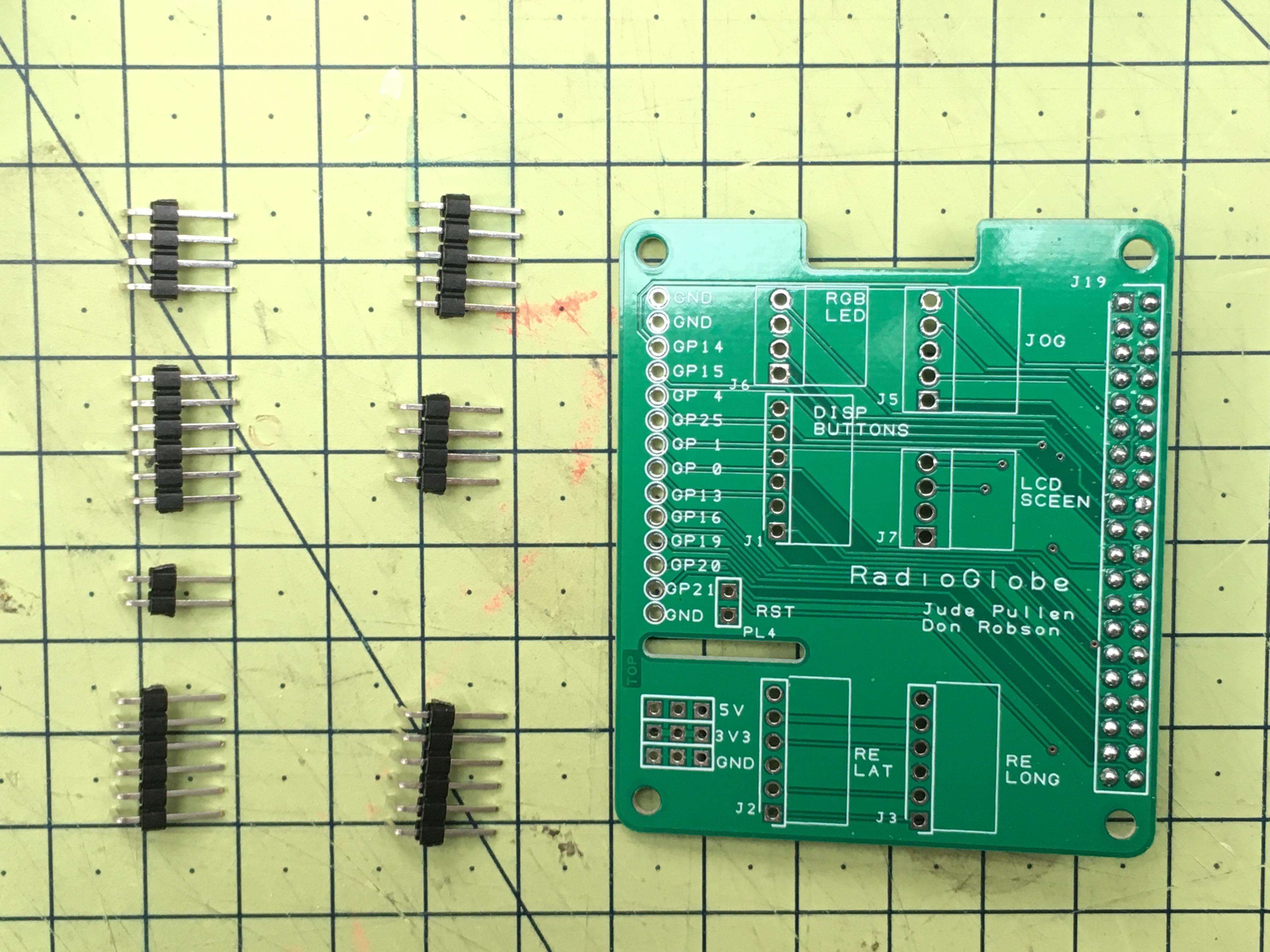

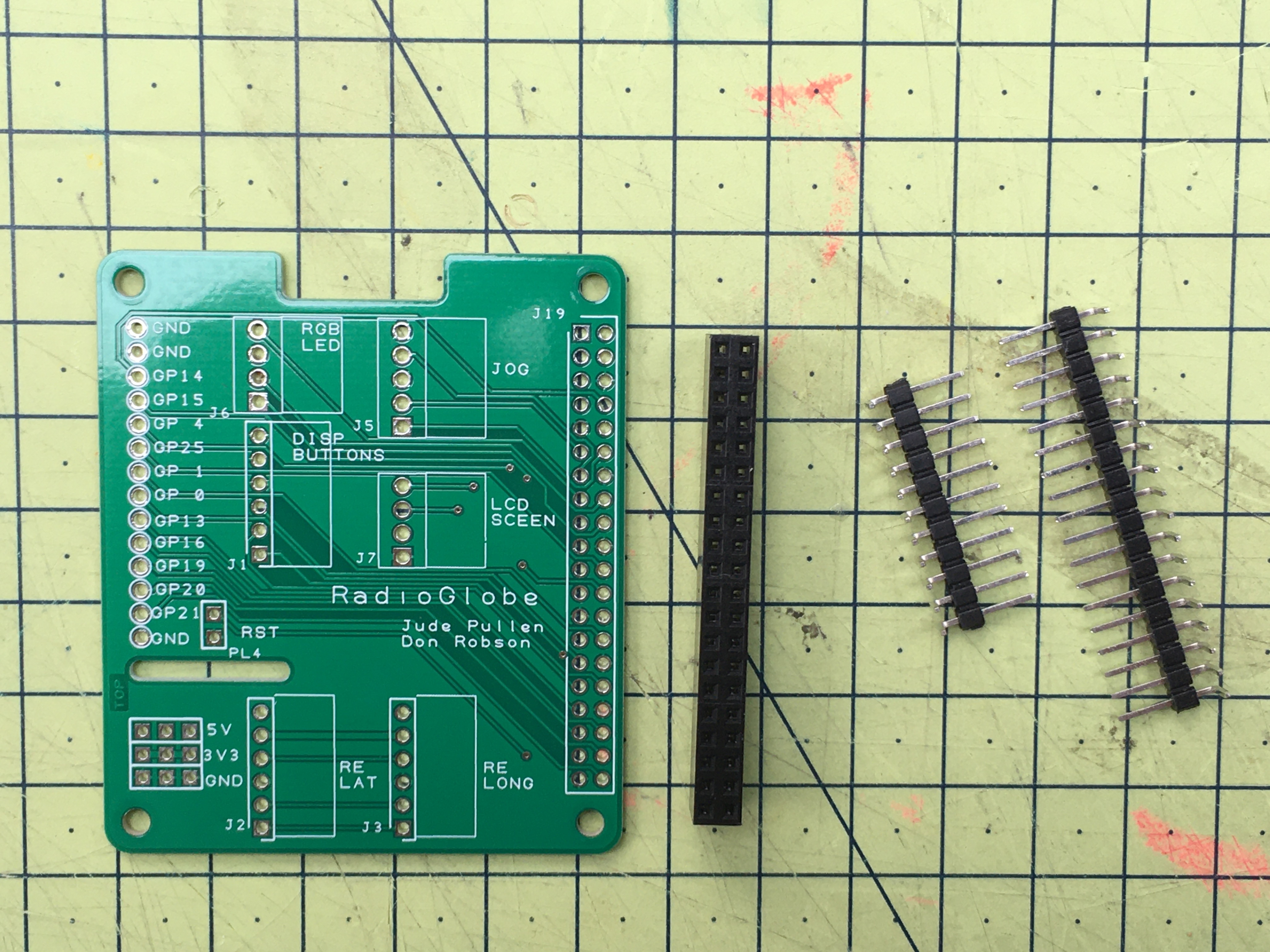

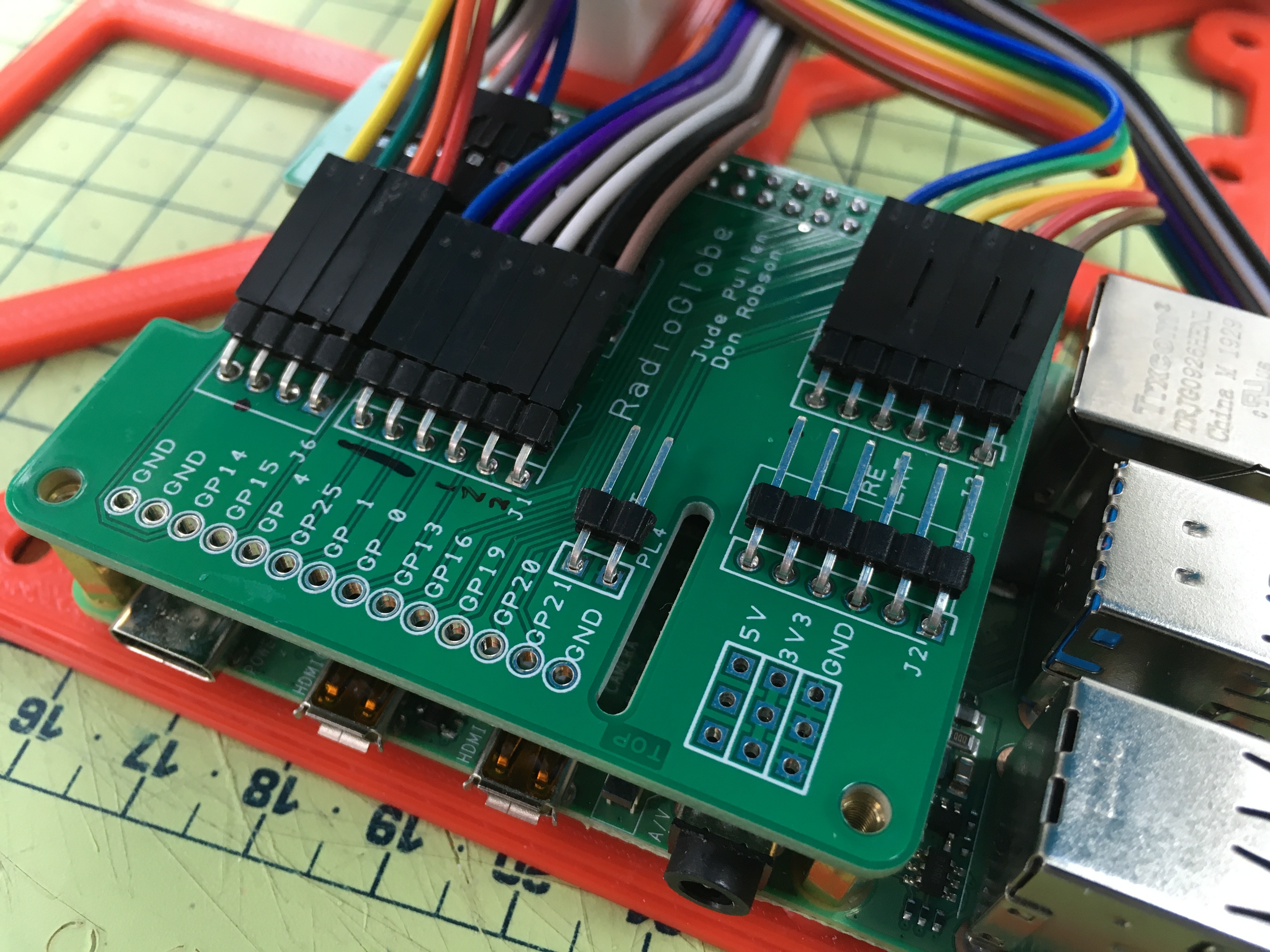

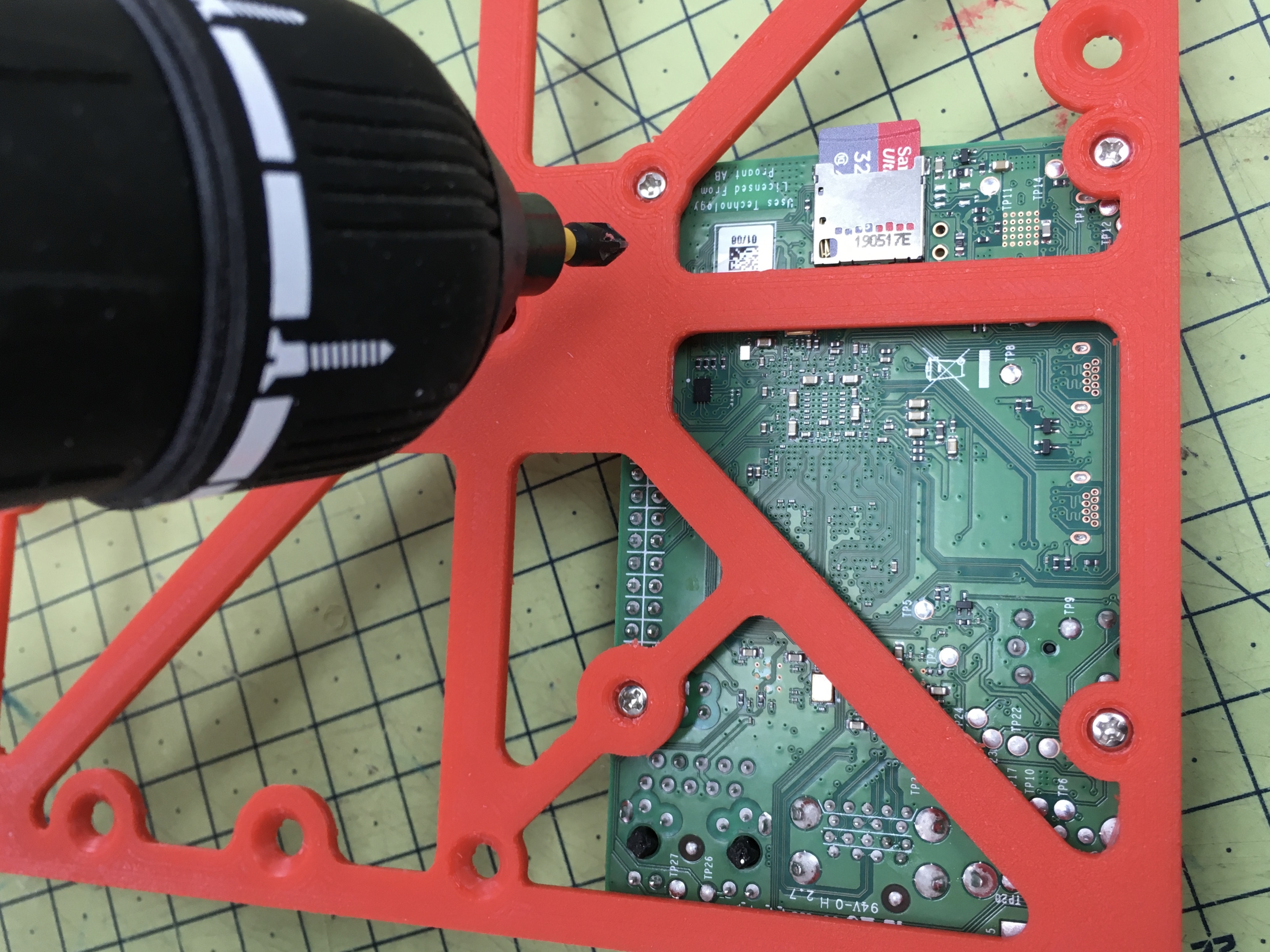

So you have ordered you Pi Hat, and if you feel like it, some extra boards for the Rotary Encoders.

Prices for these services vary, but a key observation is that the unit price for 1x is huge, and to order 10x is usually only a few dollars more. So if you want to run an Etsy or Ebay shop, and post a link in comments below, I have no objections (I don't vouch for any vendors, of course).

You may also need some Female Header Pin connectors (e.g. https://amzn.to/3gZgRyK )

Solder these items together as shown. Some tips include:
- Use BluTak to hold things in place.
- Solder the 'end points' first, check alignment and then solder the entire 40 pin row.
- Heat the pin and PCB, and add solder (don't 'spread' solder on cold terminals).

Low Profile Tip:
You may note that there is very little of the legs protruding through the PCB, this is because I trimmed the legs beforehand. It saves any sharp legs poking into the wires on top of the Hat later on. Your call, but it's a safer bet.

You may notice that in the first prototype, I actually experimented with 'proper' wiring terminals using what are called 'JST' terminals and crimps. These worked fine, but I found them bulky, and arguably unnecessary for a project which can utilise standard jumper cables quite easily. It is also far less cost and skill involved.

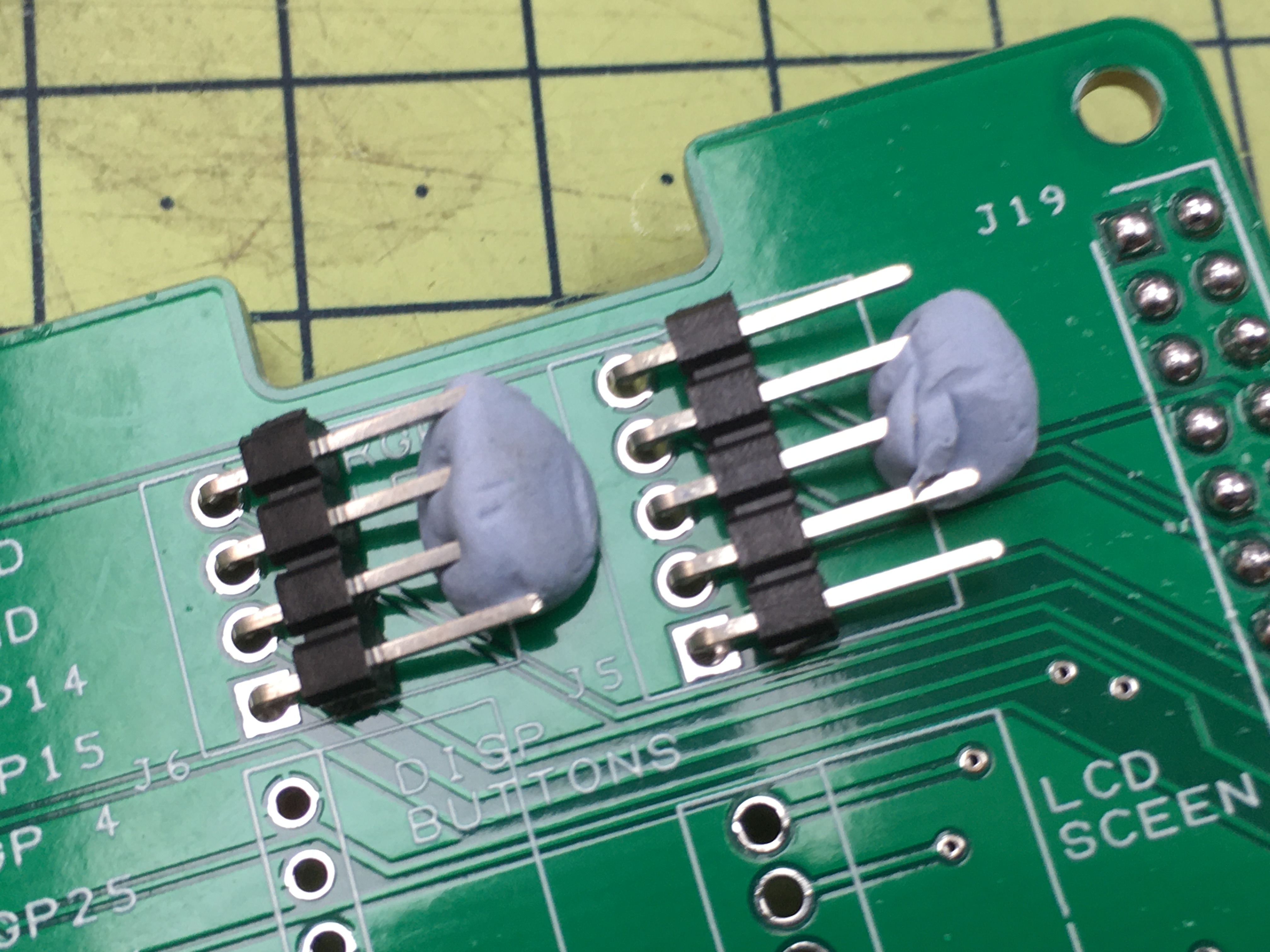

So here I have used BluTak again to position the 90 degree header pins, but also gave them a slight 'tilt' to ensure they fit easily.

As with the previous step, I solder one or two pins, and check positioning before soldering it all in.

Tip: If you are new to thing, I suggest you buy a 'Solder Sucker' and some 'Copper Braid', as they help correct any mistakes.

So, although we are not at this step just yet, I thought I'd show the end point so one can see what it will look like, and why the 'tilted' angles matter, as the jumper leads 'stack' up.

You may also note that there is a set of 2 pins, which can be used for another function (perhaps the Shazam Button?). And also - the remaining GPIO pins are accessible, as are some 3.3v, 5v and GND rails for extra ideas. I did this to 'future proof' the PCB as much as possible, so any GitHub updates to the software and UI/UX can work with older versions. Cool, huh!?

Insert the Brass Insert as show (it has been header by a blow torch, but you can use a soldering iron also).

The benefit of the 'screw method' (over soldering iron) is that you can adjust the angle of the insert by looking at the screw's relation to it. So it's a bit more accurate. That said you could use the soldering iron, and then pop a screw into it and adjust.

Trim any excess plastic that squishes out, with a knife.

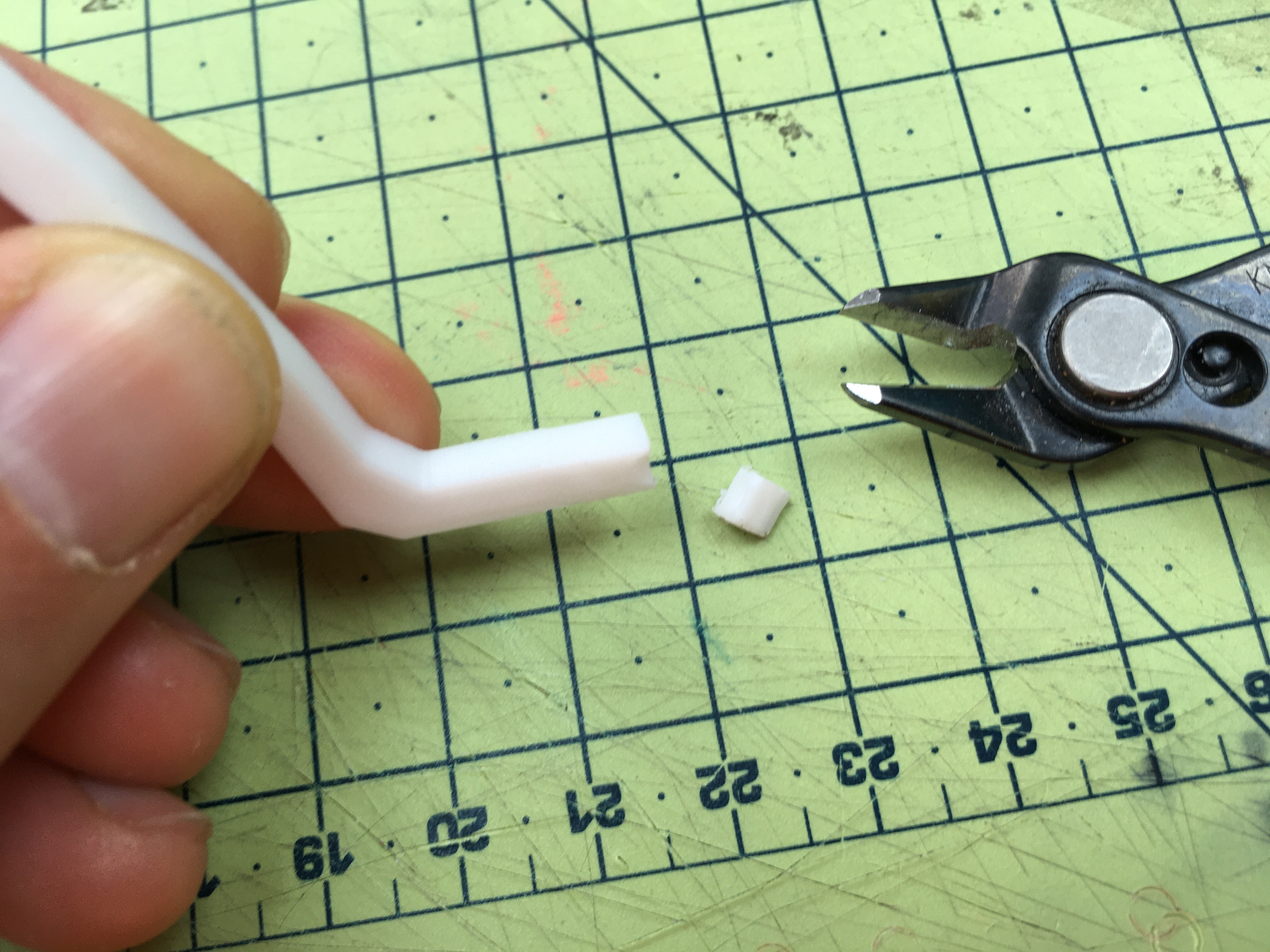

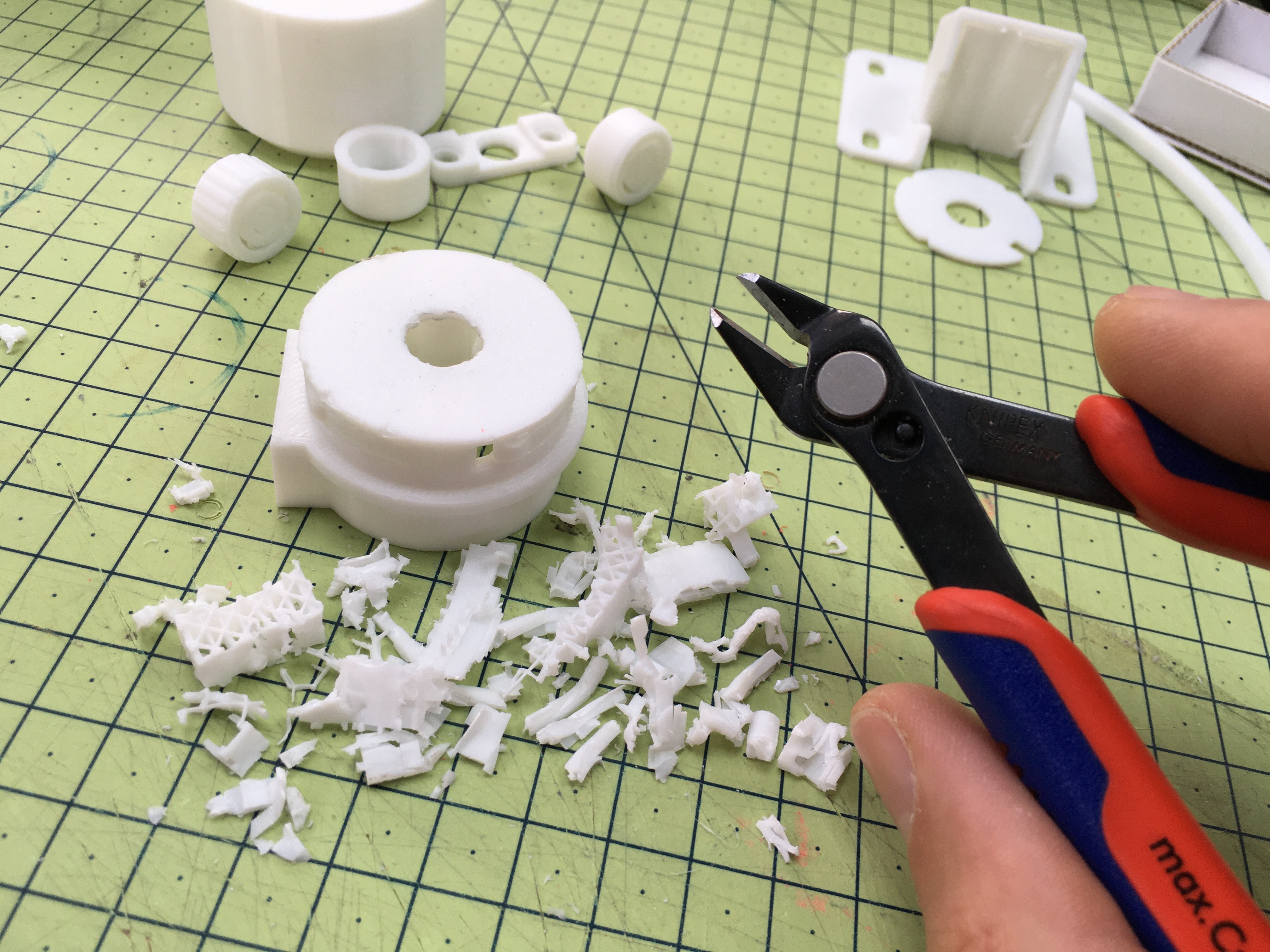

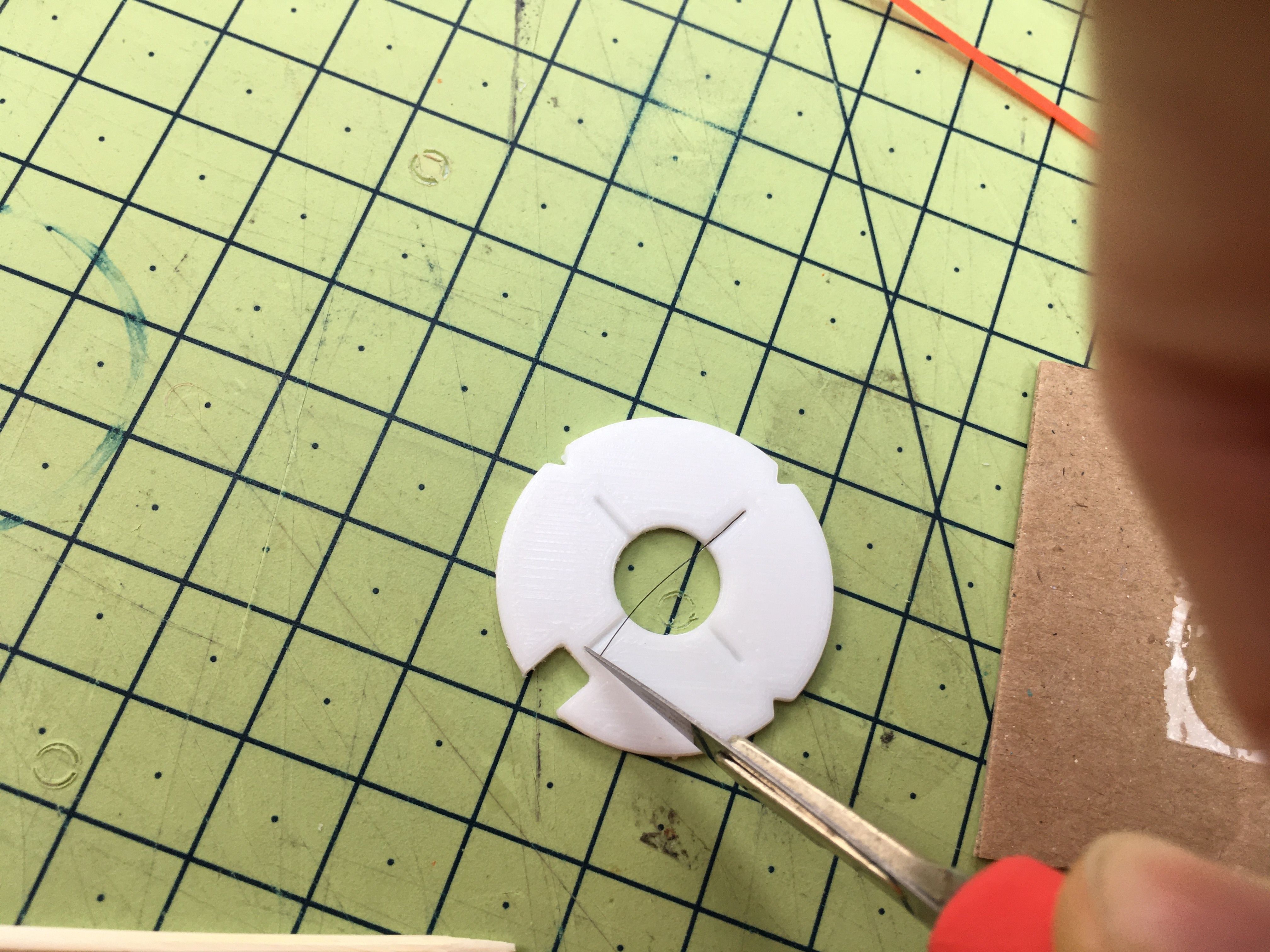

Trim any excess plastic from 3D Printing (sometimes the base layer is larger), so the section is 'square' as shown. You may even wish to taper it slightly for easier fit.

Add and M4 Insert to the base as shown. If you are only using M3, this is fine, and just add a small plug of plastic in there to space it out.

Add the 3 inserts to the Yoke dock. Add bolts as shown.

Use a file or sand paper to adjust any profiles for a tight, but clean fit.

TIP: I close to print the base in Red, as a nice highlight/contrast colour, but it's worth saying that if you only have white (or are ordering an SLS print - which is only in white), then you can simply spray paint the edge for a bit of colour or 'accent'.

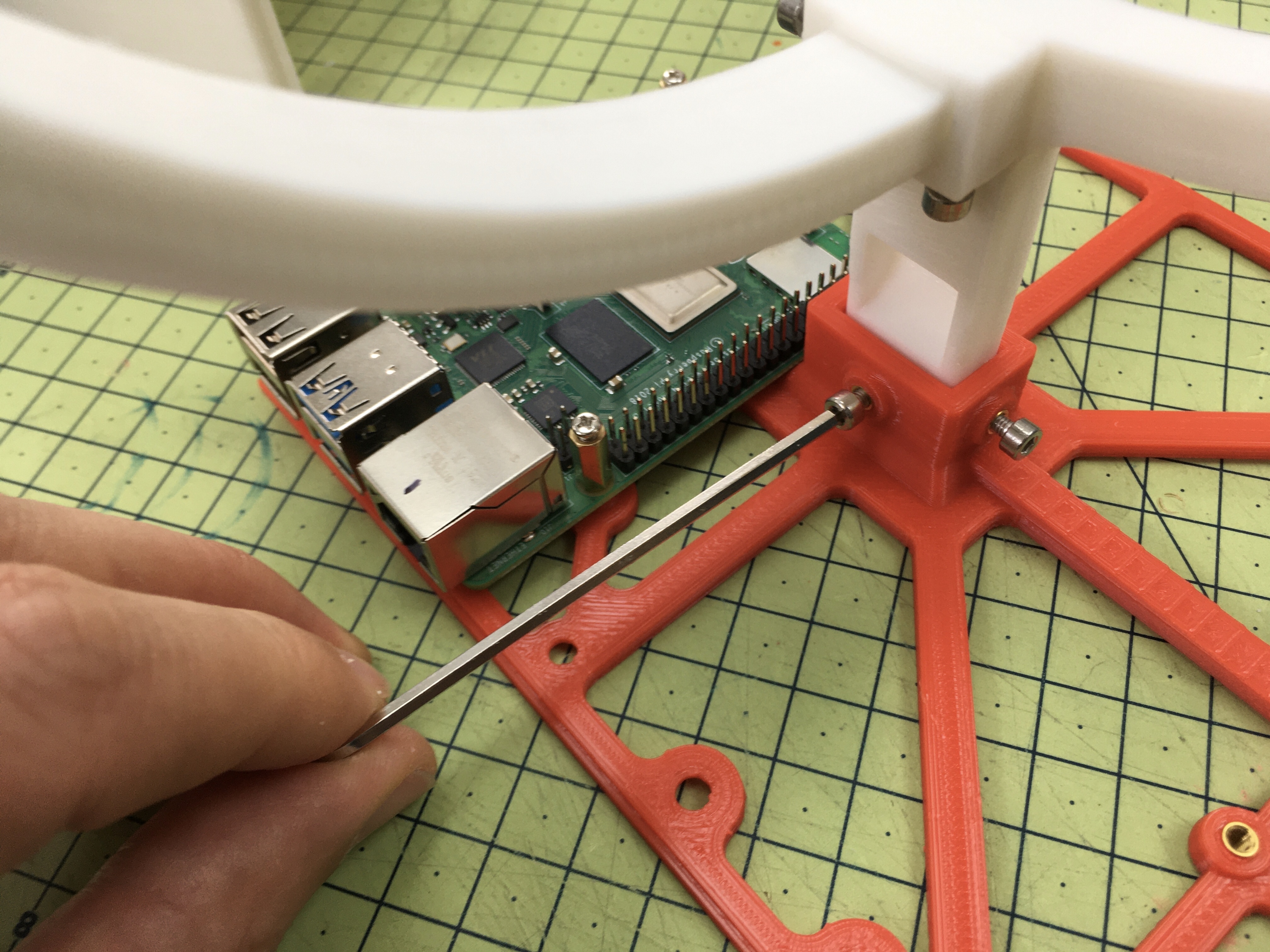

Take your Cradle Assembly, to fit into the base socket. File if tight fitting, until just right.

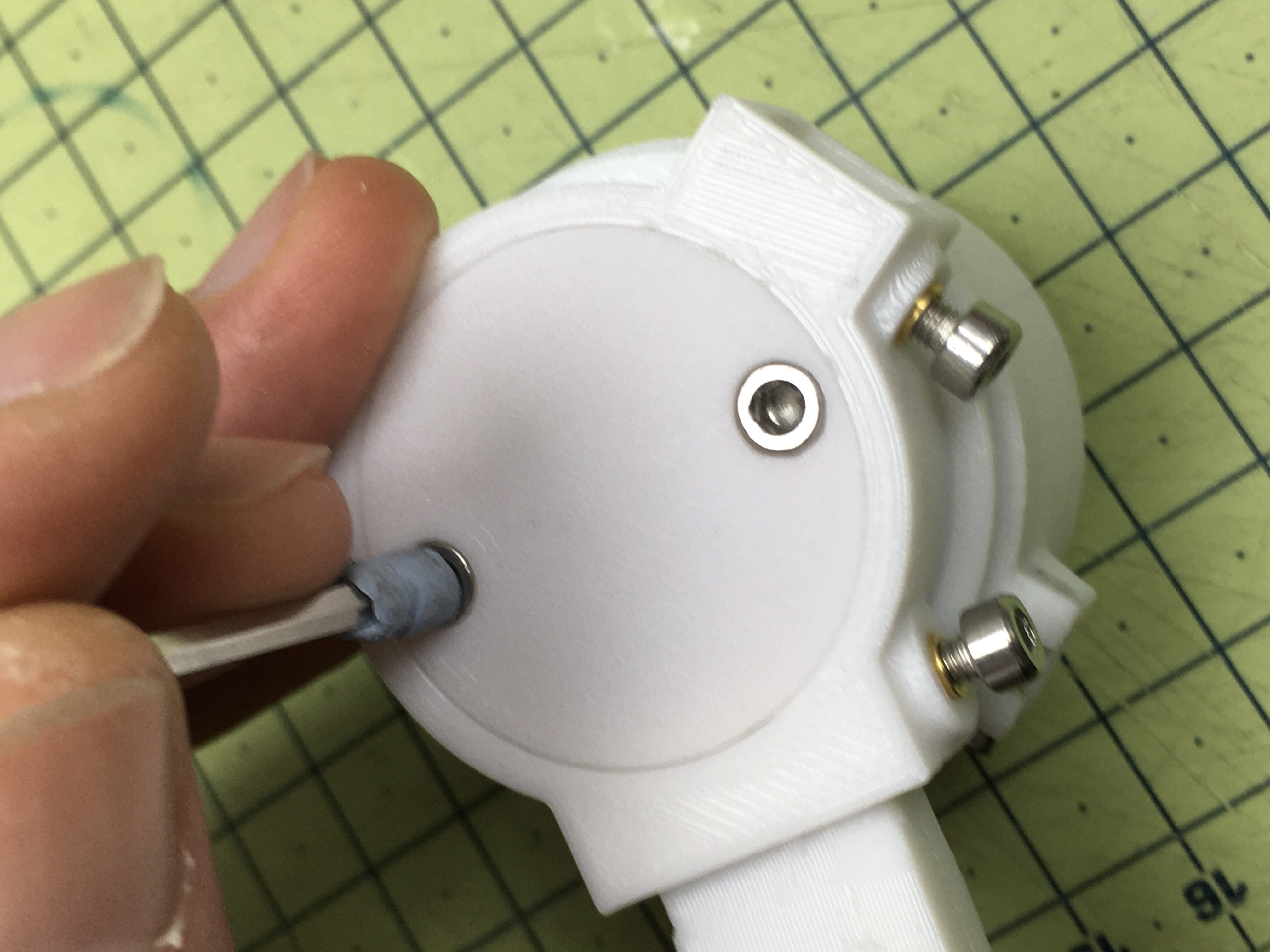

Add M4 CSK screw to tighten together (or M3 if you have done M3 Insert).

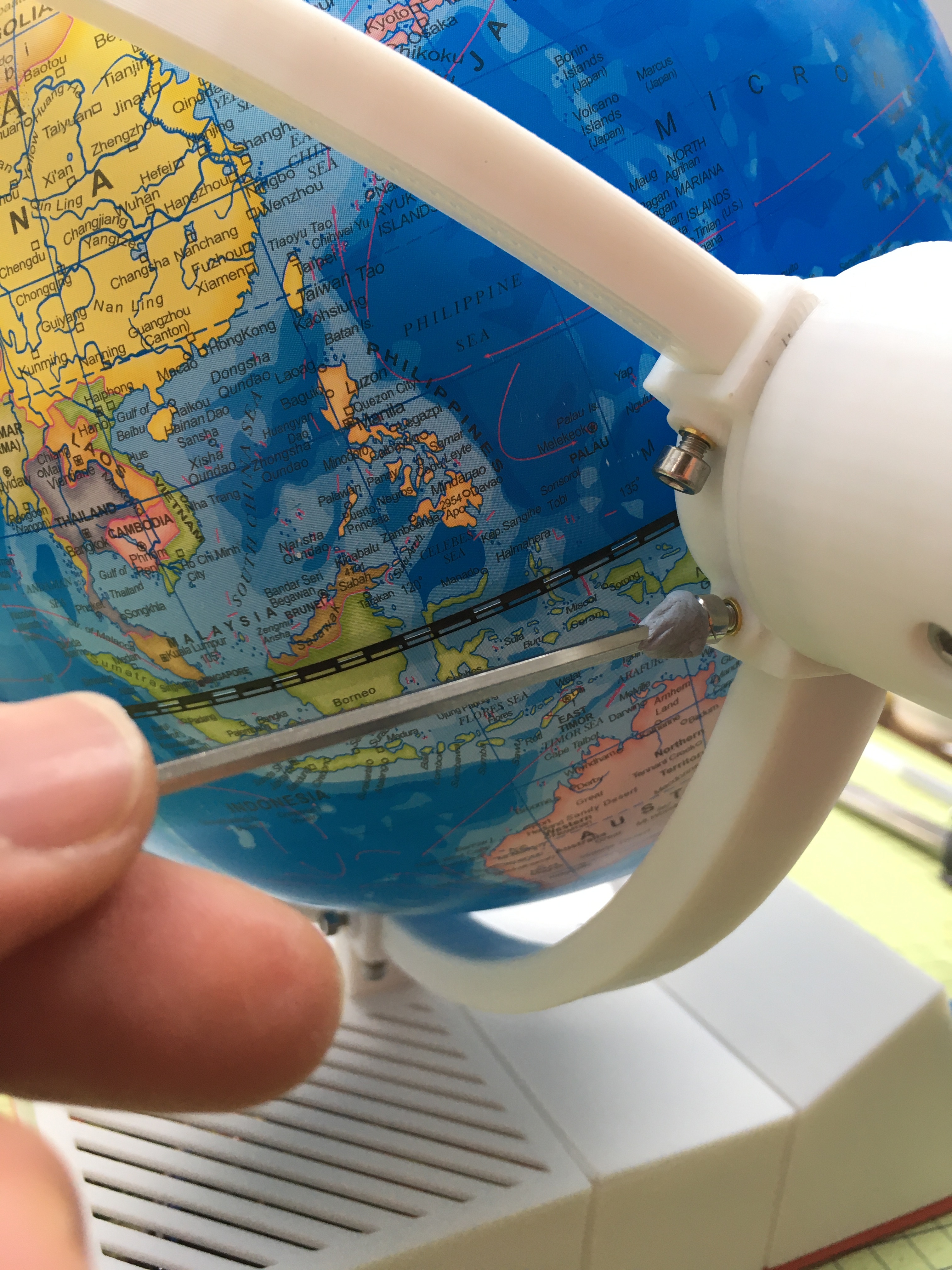

Then adjust the side screws such that the assembly is precisely perpendicular to the base. If anything, I added a slight leaning to the right, so it settled straight when fully assembled.

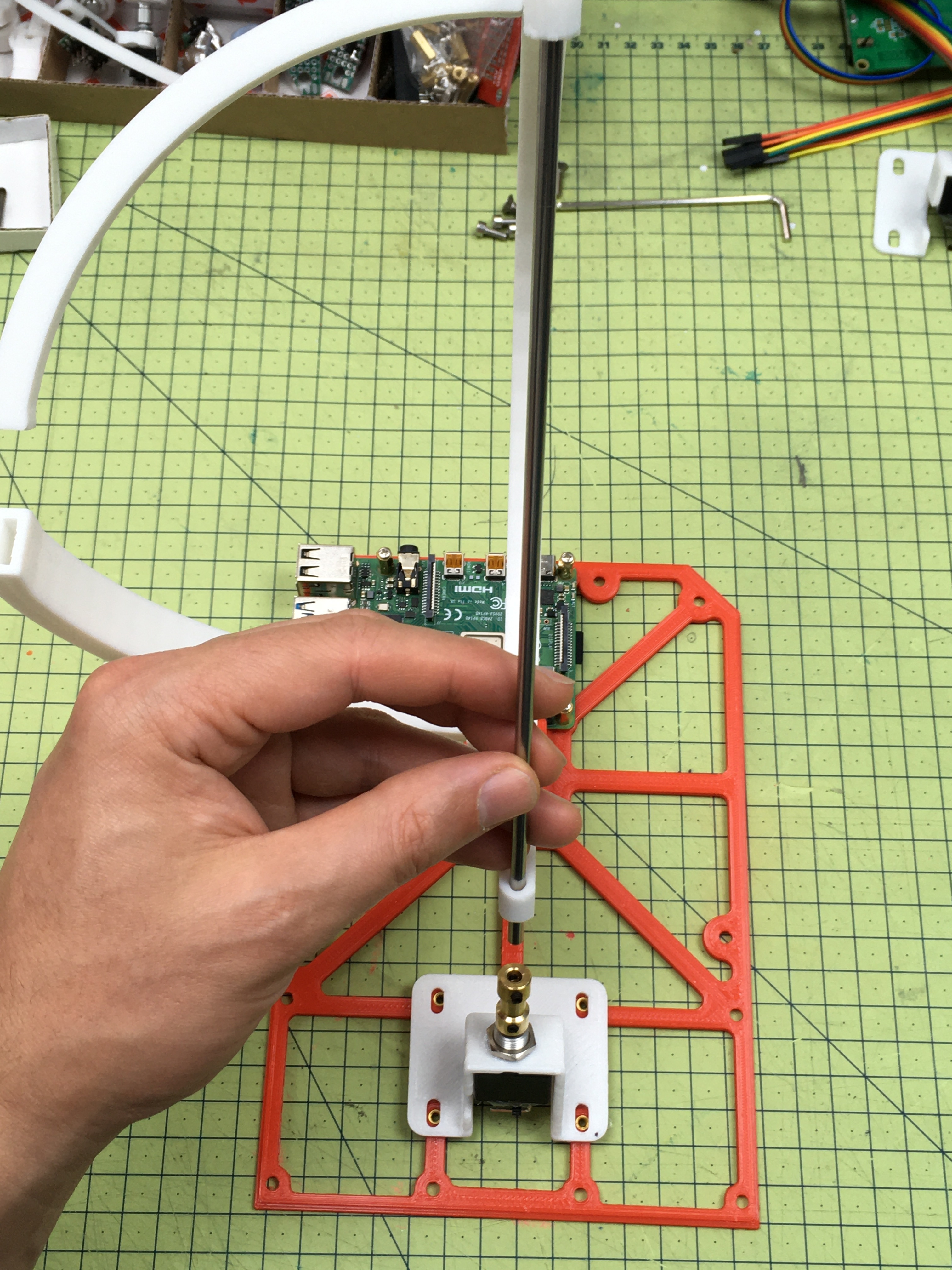

The first photos shows the 'destination'. But we will go through each component step by step... here's the first 3.

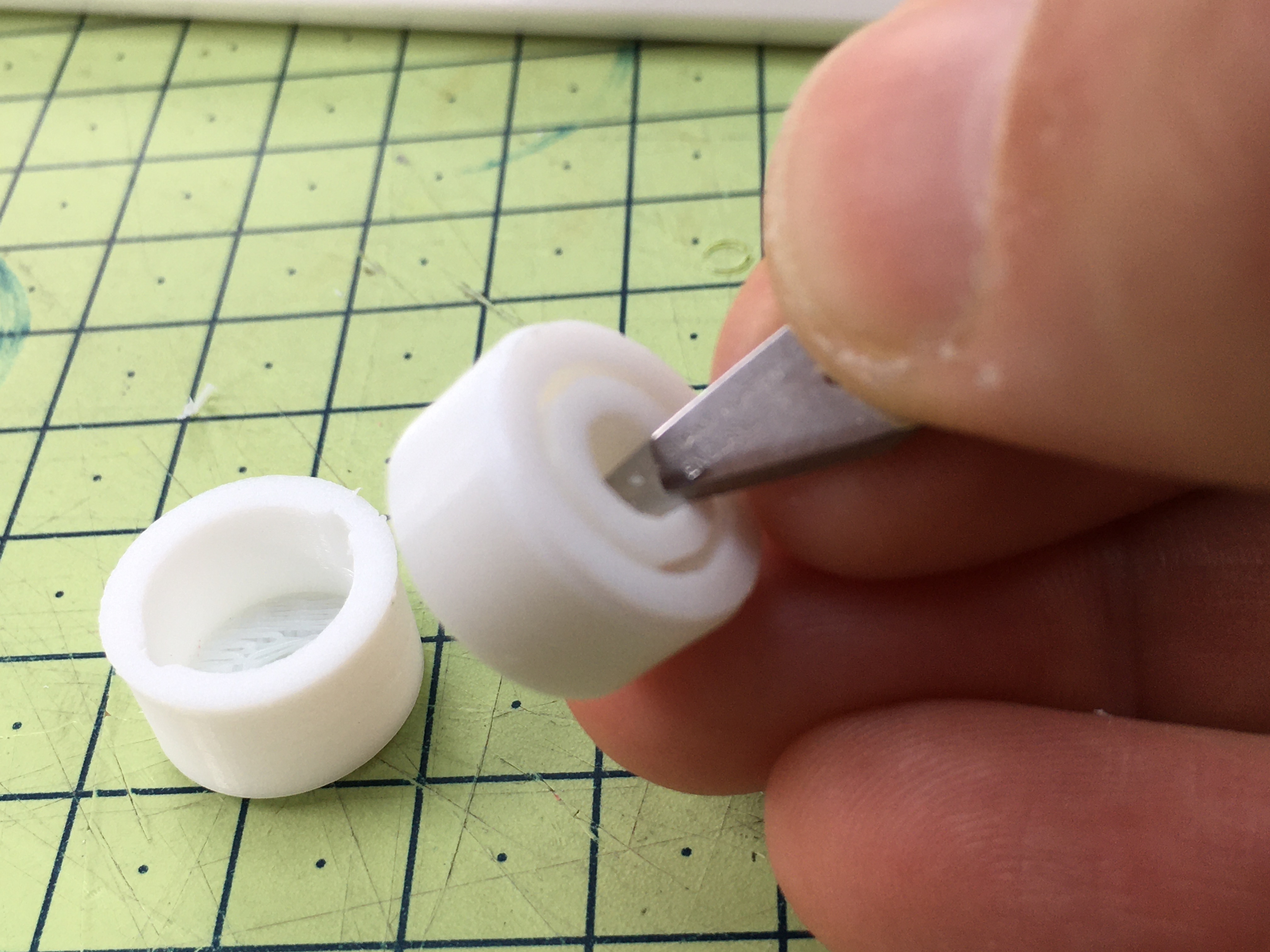

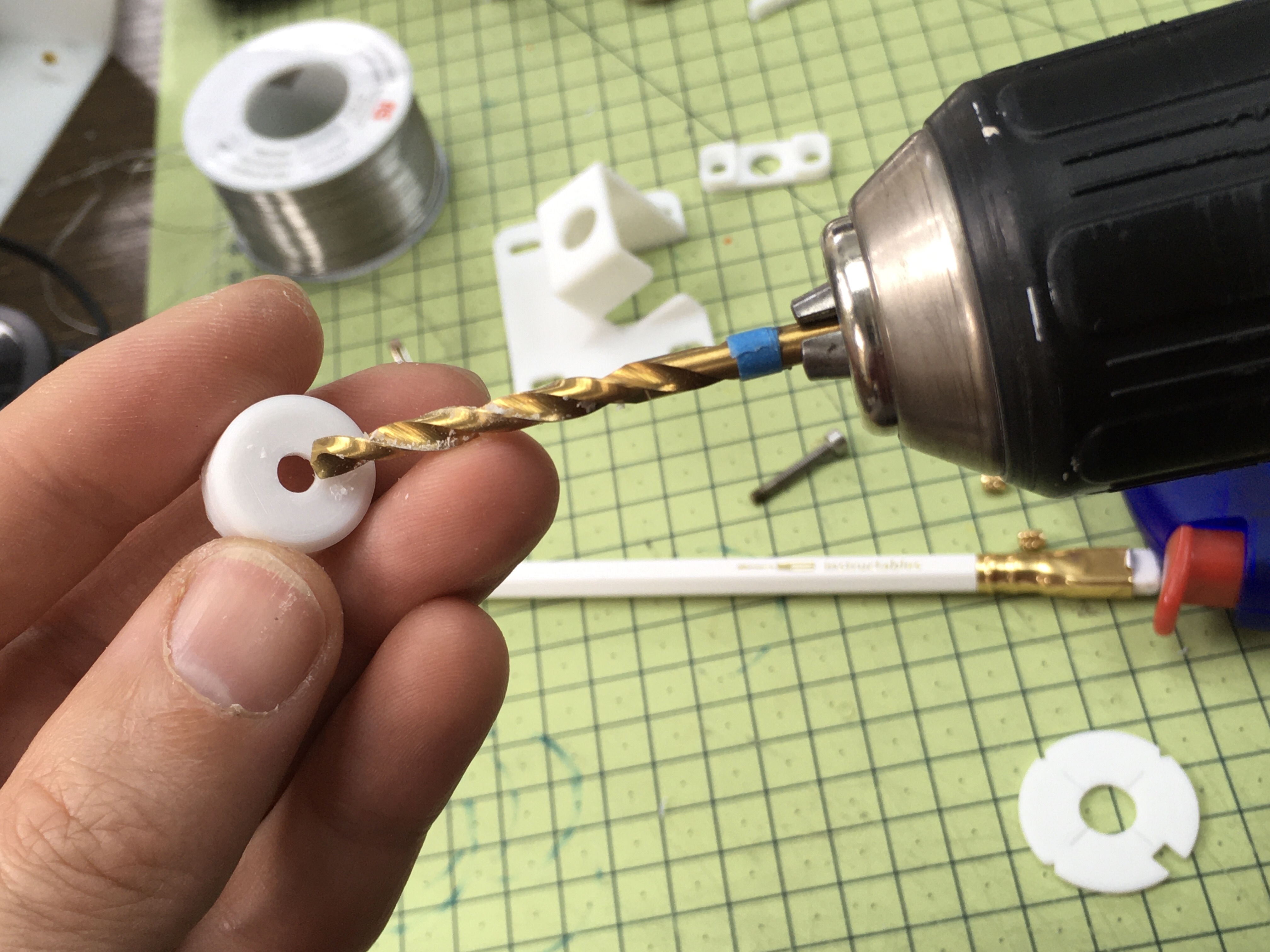

Drill out the hole in the 'Vanity Cap' such that it rotates freely on the 4mm rod.

Remove any excess from the Knobs, as well as any build support material.

For the Jog Wheel, assemble as shown, ensuring the 'locating detail' fits the component such that it prevents it rotating. Add the Knob to check fit.

You will note I created CAD for smooth and knurled Knobs. Pick whichever suits.

Have your Button Assembly to hand.

The LED will 'leak' or 'bleed' light if installed as it is. This is not a major issue, but if you'd prefer this not to happen, I suggest carefully wrapping it in insulation tape, or if you are feeling dextrous, Aluminium Duck Tape. The latter requires more skill, as the tape conducts, so one needs to ensure that the tape is placed after a thorough coating of hot melt on any exposed parts of the LED and PCB metal.

Should you also want to restrict light further, you can sand down the top of the LED, taking care to stop 1-1.5mm before the metal parts of the LED internals, as shown.

Test with and coin cell battery before installing.

Have your LCD Screen to hand.

......and you're set!

Arrange as show. Note all Brass Inserts have been added at this point.

The second picture shows the 'final result'.

Bend the connection legs of the LCD Screen as shown, this is not essential, but makes assembly easier.

Fit the cable as shown.

File the Button holes to ensure a free 'press' action. Drill any tight fitting holes.

Tip: Use BluTak to manoeuvre any screws into place.

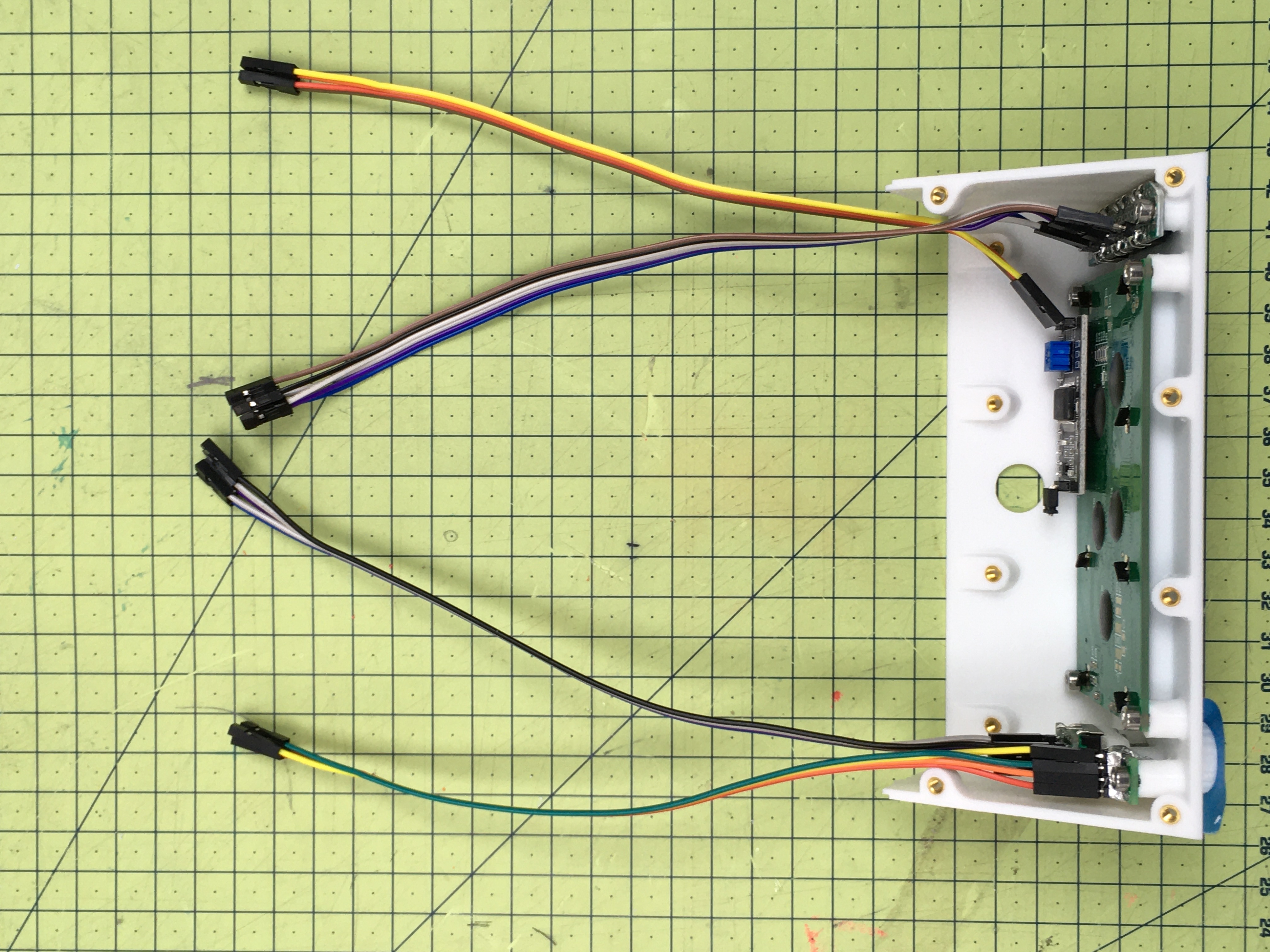

Assemble wires of Buttons as shown.

Add wires as shown.

Add Jog Wheel as shown. If loose - add hot melt / if tight - sand or lightly blow torch with care inside.

Remove any build support, sand and examine for any defects.

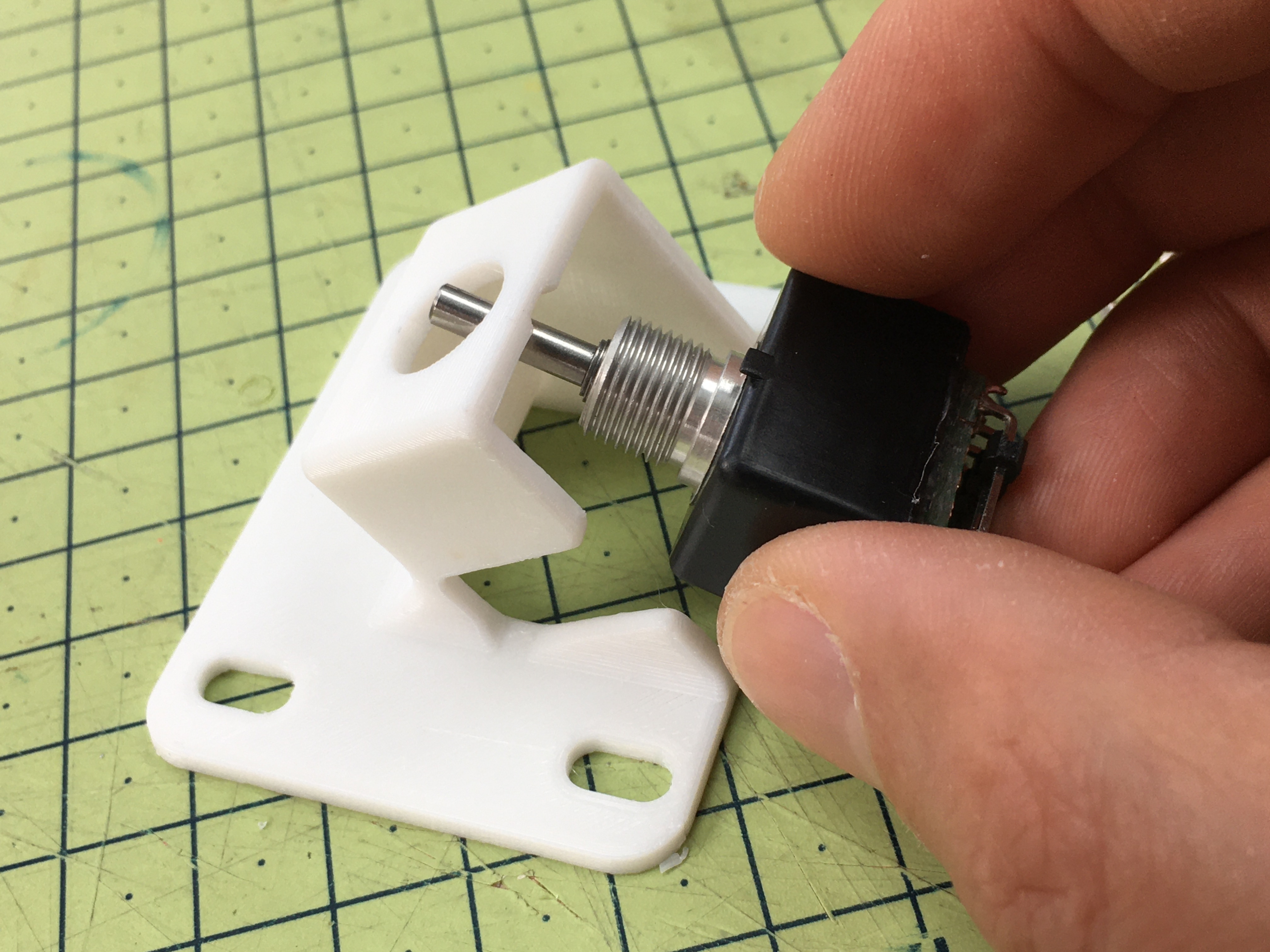

Insert the Rotary Encoder Assembly as shown.

Use pliers (or ideally a spanner) to lightly tighten. Do not over-tighten!

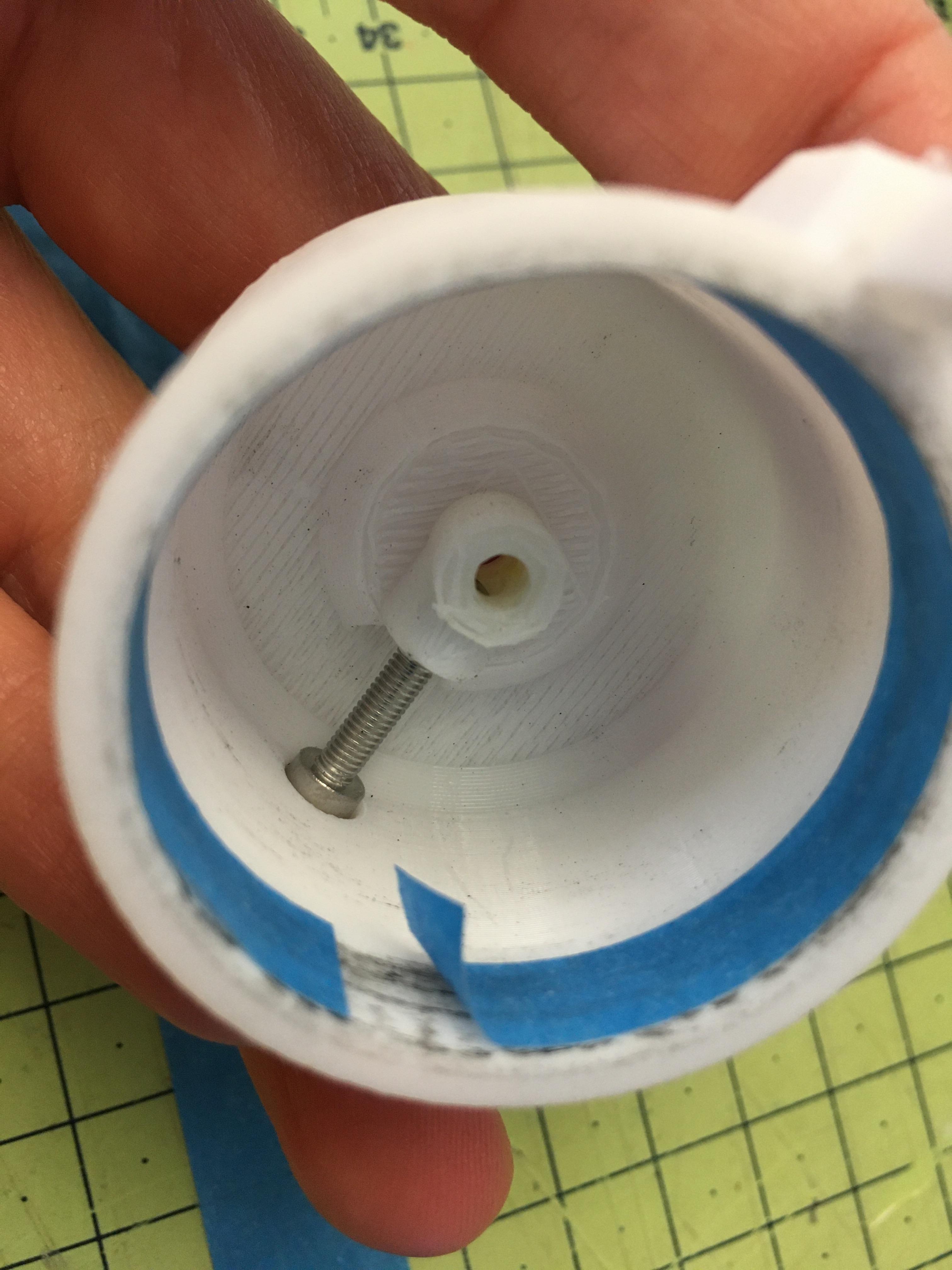

Add the 3.17mm - 4.0mm Coupling, leaving about 1.5mm gap (as shown with the plastic in-between).

This is probably the trickiest part to free from it's support material, and take your time and care when doing so. It is easy to slip with knives or clippers and do yourself an injury - and all that blood never washes out easily on white 3D printed parts, I can say from (thankfully rare) experience!

Chilled music on. Take your time....

Ender 3 Printers print a line before they get started on a print. I always found these rather curious, so I had kept a few aside hoping for inspiration to strike. As it happens it did, and they become an small 'flourish' on the design, as shown here (and later in the Reticule also).

This is totally optional, but a nice consideration of how to use an unlikely 'waste' part for something that adds interest to the design, and hints to which bits are functional and related.

In this occasion, the soldering iron will be tricky to do at 90 degrees, but not impossible. However, the blow torch method works nicely with a long reach of a bolt.

Add the M3 15mm or 16mm long bolt here. (You can use the smaller ones, but if you happen to have an assorted box (LINK) then it's a nicer aesthetic to use the right length).

Add the other inserts to the rest of the assembly as you go.

With all the build support removed, and the parts lightly sanded inside (where the contact), the next thing is to check the fit. Keep sanding until the fit is smooth and free.

Next add a small layer of thin viscosity super glue to the 'springs' as shown.

Then add a small layer of glue to the internal rim of the Housing.

Lastly, add a little to the Hub at the bottom of the Housing, to strengthen any 3D Printing layers.

LEAVE TO DRY THOROUGHLY!

Next use sand paper (say 400 grit) to sand all the superglued surfaces between the 'Springs' and the 'Rim'.

They should feel smooth to the touch.

You may have spotted in the earlier step some pencil markings inside the Housing...this is a generous application of an HB Pencil 'lead', which is of course actually, Graphite - and is an excellent *dry* lubricant, which means it will not go sticky or run, and will not mess with PLA's chemistry, etc.

Apply to the inner rim and the springs as shown.

Keep 'rubbing'/turning the two parts against each other, until it feels smooth.

The Rotary Encoder Shaft is 3.17mm or 1/8" diameter.

Use said drill bit to drill out the central hole such that it's a clean fit.

(The CAD has a 3mm hole, which is too tight, but it is always better to drill such holes than 'trust' the 3D printer).

Check the alighment of the small 'tab' on the encoder, and that it orientates correctly.

Next check that the central hole of the Housing also has space as shown. This may need sanding or drilling out.

Check that the pins are clearly accessible, as shown.

Check the encoder is straight/central in the unit, as show.

If all happy - tighten up the side screw/bolt to the shaft.

Ideally you'd have added your Brass Inserts already, but if you forgot (like me!) just add them now. No problem.

Then add the cover plate, and screw into place. Sand down if tight fitting.

Check over, and put aside.

There is a common engineering saying in engineering of 'material off is easier than material on'. Whilst there may be exceptions, this is certainly true in this case. The 3 Base Sections shown (as well as the Panel) have been designed in CAD to be 'tight' fitting. This assumed some 'sanding to fit', and this can be done with a file and sand paper. Even with a good 3D Printer, some inaccuracies will occur, so it's best to sand back to a clean line that will look presentable and fit together just so.

Add Brass Inserts if you have not done so already.

Remove any build support.

Drill out any holes (Audio 3.5mm Jack being one and the 11mm one on the top of the Panel being another to do).

Use a Bastard File first, and a Second File after to get a smooth finish, or start at say 250 grit and work down to 400 grit sand paper (using a block for support/profile). The only benefit of using a File is that files generally have a 'non abrasive' edge, which can be especially handy when working on fine details like this, where you want to sand one side, but not another.

Use a Rotary Tool, as shown if you need to wider any holes for fit. Again, CAD is designed 'tight' / 'material off'.

In case you were not familiar, the 'step' in these parts is called a 'Shadow Gap'. These are used in Product Design and Architecture alike where two things will butt-up against each other and may have some inaccuracy. If you put them right up to each other, the imperfections are obvious. However, leaving a small *deliberate* gap, means that it is less noticeable.

If you consider two parts are out by 0.5mm - this is screamingly obvious if next to one another, but with a 1mm gap, the line may vary from 1-1.5mm, and the human eye is much less capable of noticing this, as he shadow makes this literally and metaphorically a 'grey area' - so it's harder to notice.

You'll spot this in all manner of products if you look carefully. Granted with modern statistical tolerancing (e.g. Apple), each piece is actually matched to the perfect fit, so this is not always needed. But then this is not quite as premium a product as the iPhone....

Keep sanding and filing until you get a fit that you're happy with.

The end result is shown, and check fit/alignment with all the screw holes in the base.

Surely an easy win, rather than doing your own wire crimps and terminals!

Using the 20cm and 30cm Female-to-Female leads as shown.

If you pay close attention you'll notice the colour schemes for each bundle have been carefully selected to be different (e.g. any 4 wire group is not the same, and any 6 wire group is not the same, etc.). This is pretty important, as it helps avoid a short circuit or other similar damage.

Be extra fastidious in your wire labelling, however you go about it!

If your ordered a Hat, it'll usually come with Stand-offs, but if not you can 3D print your own, or use small pieces of tube and longer bolts. It's not an exact science, but you just need to secure your Pi to the board.

If the fit is tight / screws don't reach, try removing a tiny amount of material from the holes, and it should go in.

Similarly, drill-out any holes to fit the bolts.

Screw in with a low-torque screwdriver or by hand if not sure.

You can buy them here if you prefer: https://amzn.to/2Zu68qh

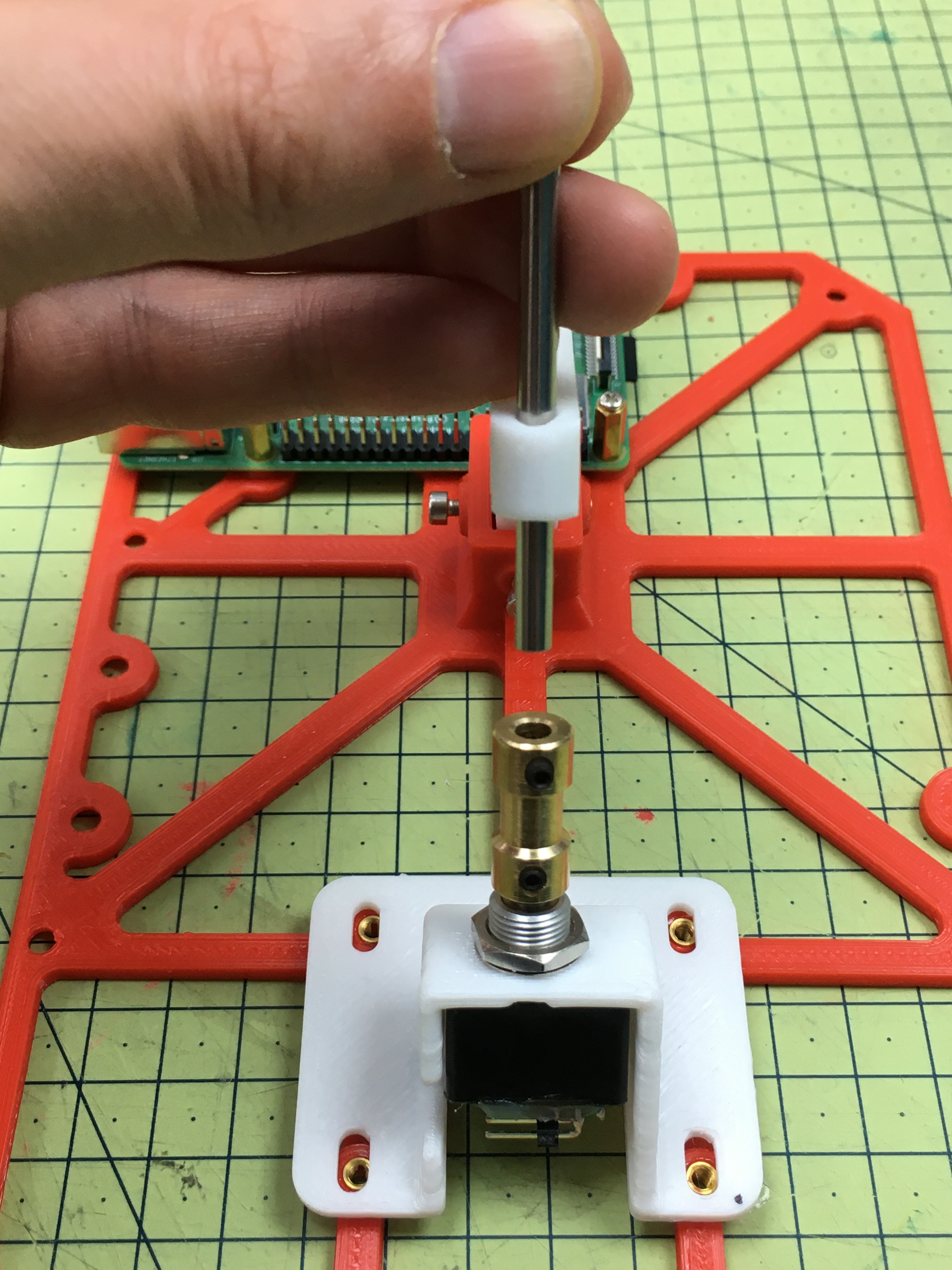

For this step, I would suggest using the steel without the globe on it (it's likely you have some left over from the piece you cut out).

Thread the steel through the cradle (drill out to 4mm or 5/32" with a 'wiggle').

Unscrew the Grub Screws (black) as shown, in the Coupling.

With the Encoder Assembly (Lateral) roughly aligned - thread through until it fits the Coupling.

Screw in the Rotary Encoder Assembly, to the base, as shown.

Then remove the Steel and check that when you add the Panel, it fits ok also. If the Grub Screws rub, drill out slightly, so it rotates freely. Remove the Panel again.

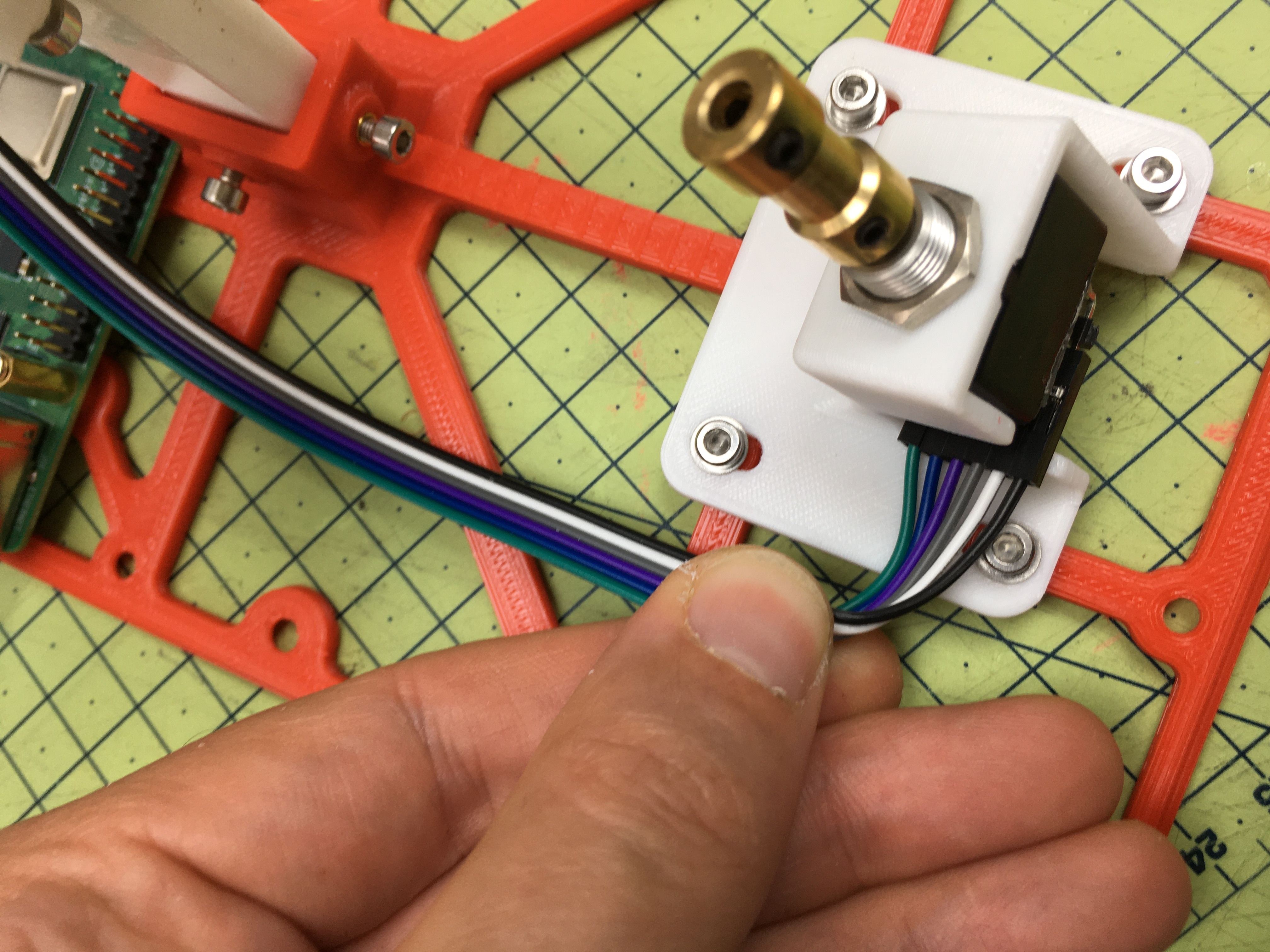

Wire up the Encoder as shown. Pay close attend to whatever colour scheme you use. The encoders are expensive and although they *might* have some overload protection circuit, it's unlikely - and I never tried to find out! Double check the right wiring!

Add a kink to the wires as shown to keep them not straining each other. As a general rule, wires prefer a clean bend (but not tight) and a 45degree twist if needed. Don't just scrunch and hope ;o)

You will note that the cables don't just easily fit into the hole. This requires a little bit of a 'knack', but one that is useful to know, and widely used by anyone in Plumbing, Joinery or other building work....

NOTE: This is the longer 30cm 6-strand Cable.

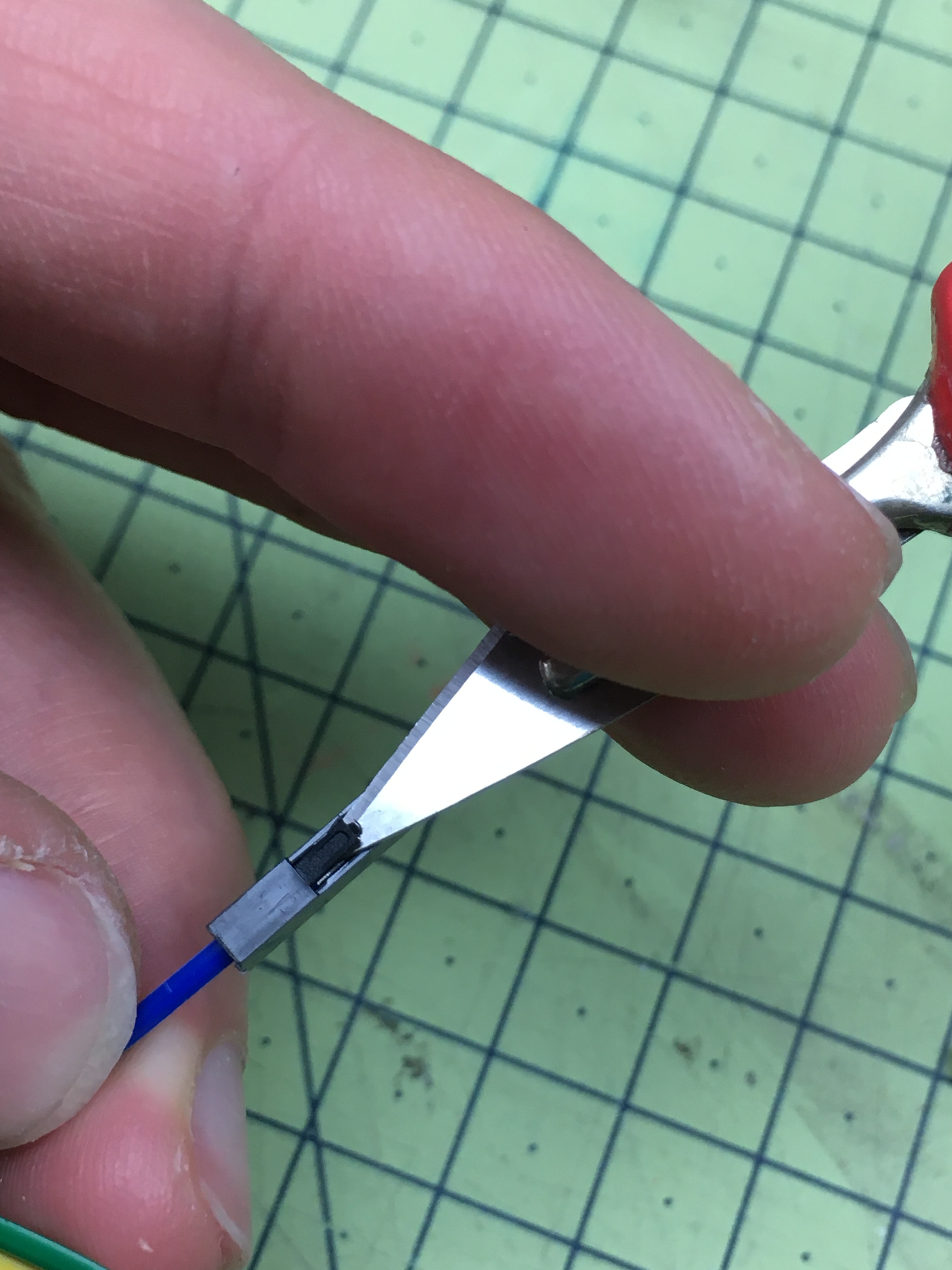

Remove the Black Plastic Terminal Covers, as shown (use a small screwdriver if you feel a Scalpel looks a bit risky to you), and gently pry the tab up as shown. The unit should then gently slide apart. (Practice on a old one first if unsure). It's quite easy once you get the hang of it!

You now have all 6 wires ready. Now wrap them in some Masking Tape as show. This not only stops strain, (compared to tying string for example) but also makes it easy to remove.

Thread the tape through the Lower Yoke and Cradle hole, as shown. Pull out the bottom.

Note: it's easier to thread the two pieces individually, and assemble afterwards!

Tighten up the screws on the Cradle/Yoke - and replace the plastic terminal covers.

With the other end of the 30cm cable, plug these into the Encoder's 90 degree header pins on the PCB.

I suggest doing 1 or 2 at a time, as not all 6 will be easy to fit. You may want to use a blunt poking object to press the wire terminals fully onto the pins, as shown.

You can add a thin layer of hot melt over this now, if you really doubt you'll modify any time soon. But don't superglue.

Replace the cover, and screw together again.

Insert the Upper Support to the Rotary Encoder Drum, and then screw into the Cradle Hole with a M3 6mm bolt.

(You may need to drill out the hole slightly with a 5.5mm drill bit, or a rotary tool).

Tighten up the retaining screws in the Cradle as shown.

Add some Masking Tape (blue for easy viewing, not essential tho!) to keep the assembly from getting scuffed and dirty, as later you'd be flipping it back and forth quite a bit in the final assembly.

Screw together the Base Plate.

I used a low torque screwdriver, but take care when using anything more powerful as PLA can split. If in doubt, use a hand screwdriver.

You may note that the Design has all the screws and bolts hidden from the outside. This was a fun exercise for me to see if it could be done, but I mention it, that some screws do need a long reach (as shown to access the bolts), but it's all possible. Hope the style is worth the sweat!!?

Unscrew the Coupling Flange.

Remove the Axel unit, partially, but not all the way.

Unscrew the Grub Screws of the Coupling (in the base unit).

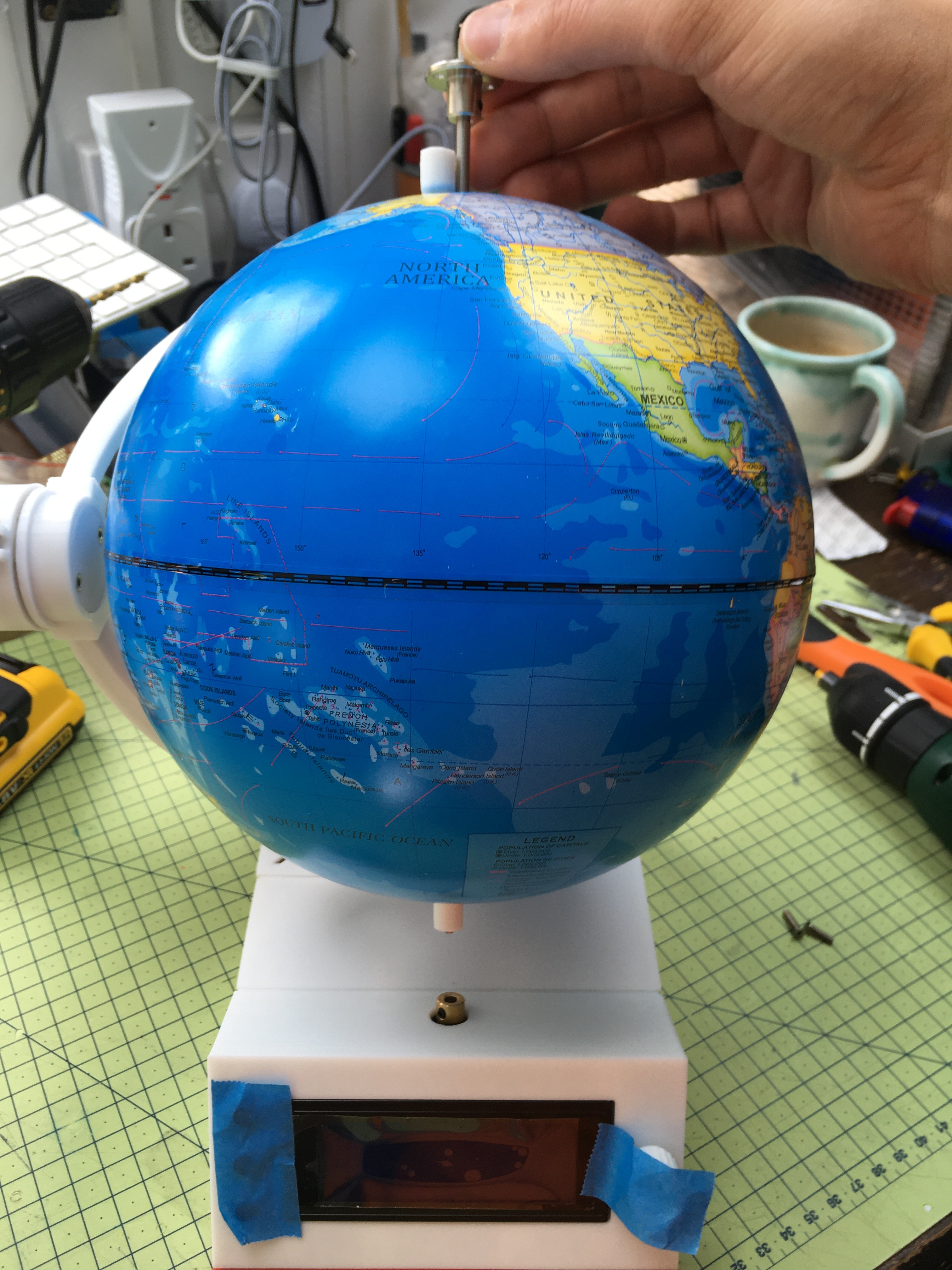

You should now be able to slide the Globe into place, and then push the axel assembly down and through the Globe *and* Cradle (lower part) at the same time.

NOTE: The steel rod should be in the coupling but not screwed in place yet.

Tighten up the Coupling Flange at the top as shown.

Pull the rod upwards slightly, to allow just enough room to slide the Vanity Cap in.

Now press the steel rod into the coupling again - and this time tighten the Grub Screws with a Hex Key.

Allow the Vanity Cap to fall down over the Coupling.

Now with everything in place at the Base Unit, you can gently stretch the top of the Cradle arm up, and over the Steel Rod, and allow it to snap down. If you find that it has some gap, or that the heads of the screws rub slightly, then add a spacer ring as shown.

Not many project call for 'A Strand of Human Hair'...but this does. Black straight hair is best.

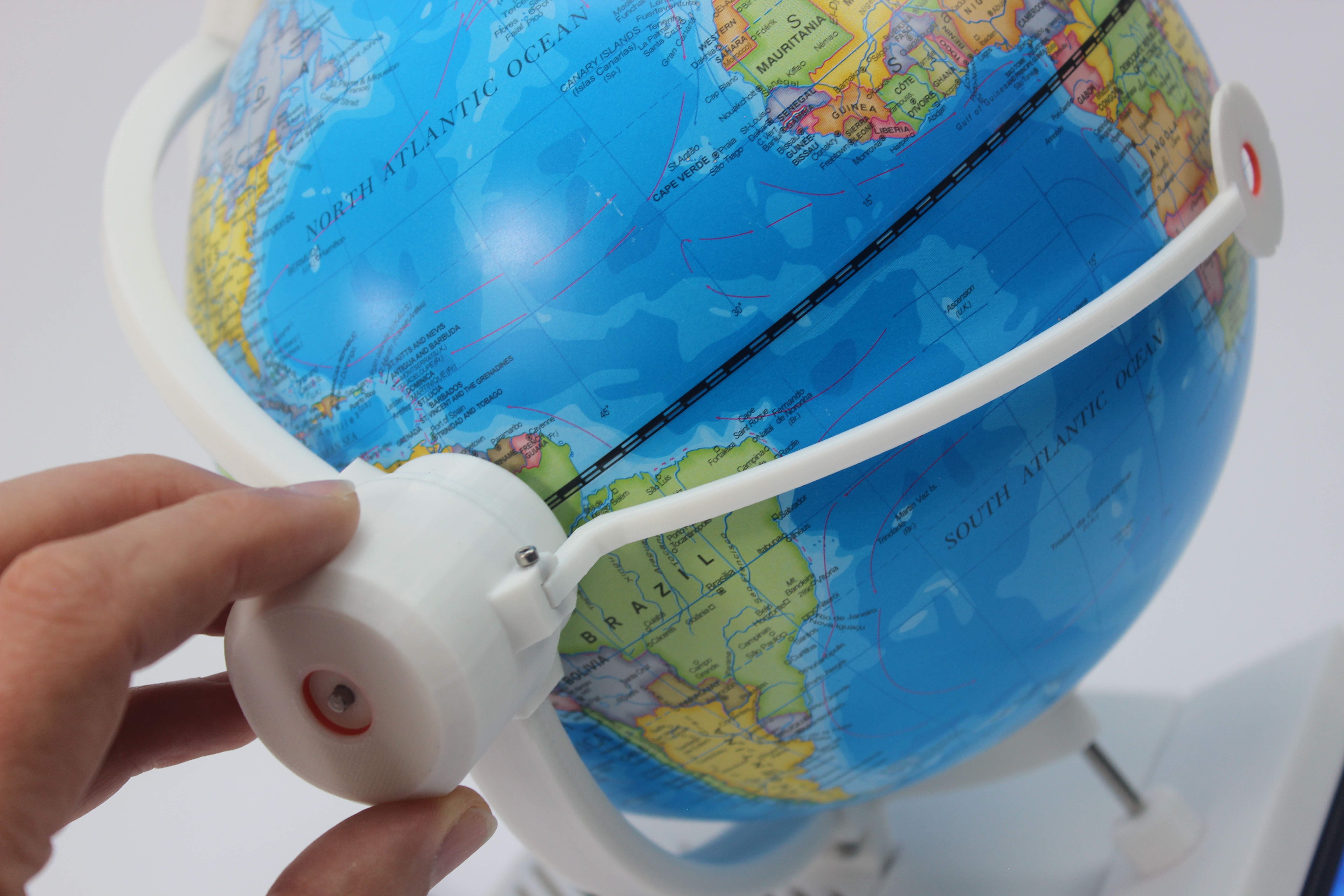

Assemble the pieces as shown, and first attach the Wiper Arm to the Rotary Encoder Drum.

(The image shows the 'set screw', but this is only optional).

The Arm should follow 'in parallel' to the Equator line. (This will be an approximation, as this line usually has a bit of drift +/- 1-2mm I've noticed!). So split the different to the average mid-point.

If it is off, try adjusting the Yoke, and Upper Support until it is positioned equidistant. It's a bit fiddly as every globe is different, but this is why I've made it adjustable, rather than assume all $10 globe are made by Japanese Craftspeople, when evidently they're not! ;o)

Good luck...it's worth the faff.

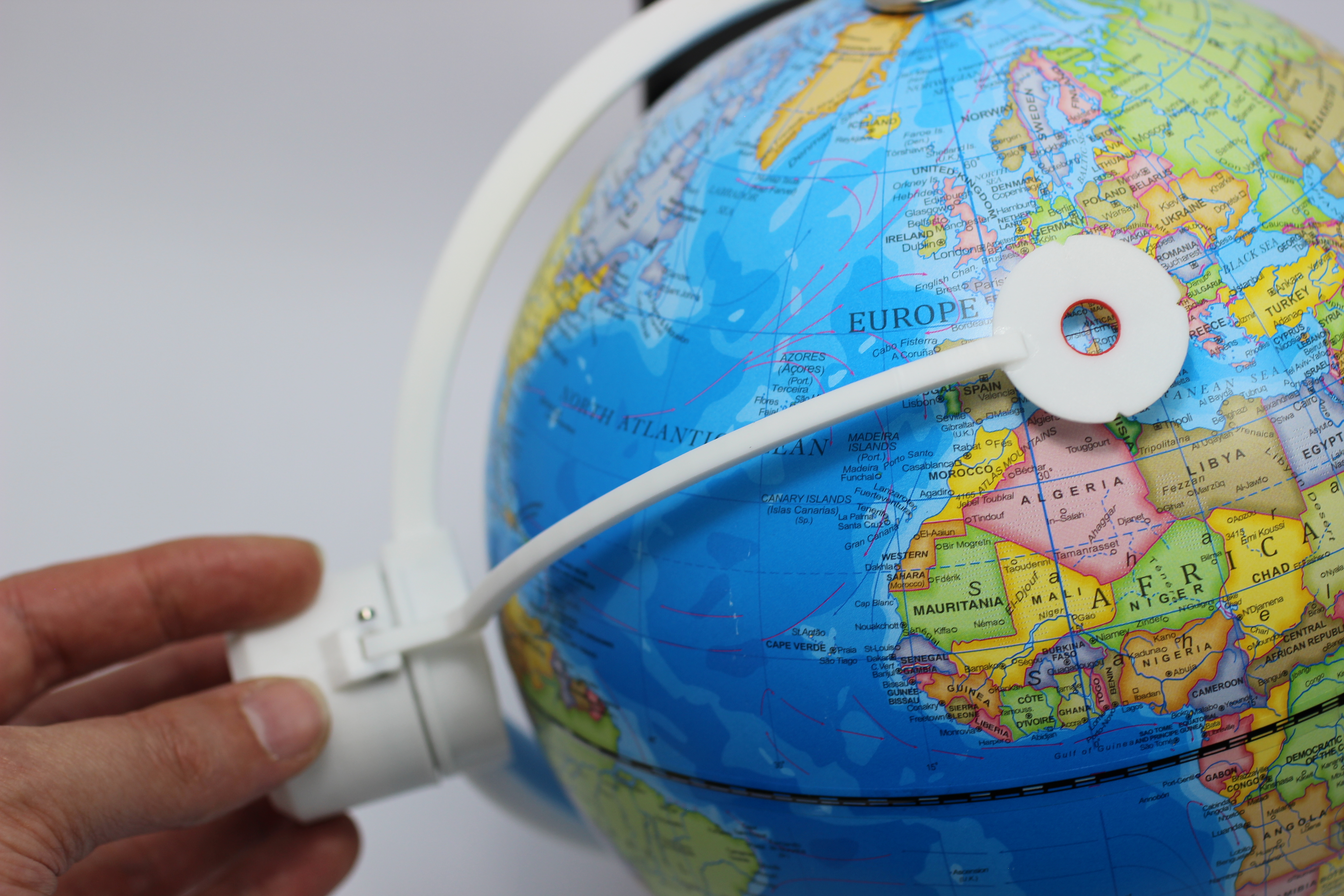

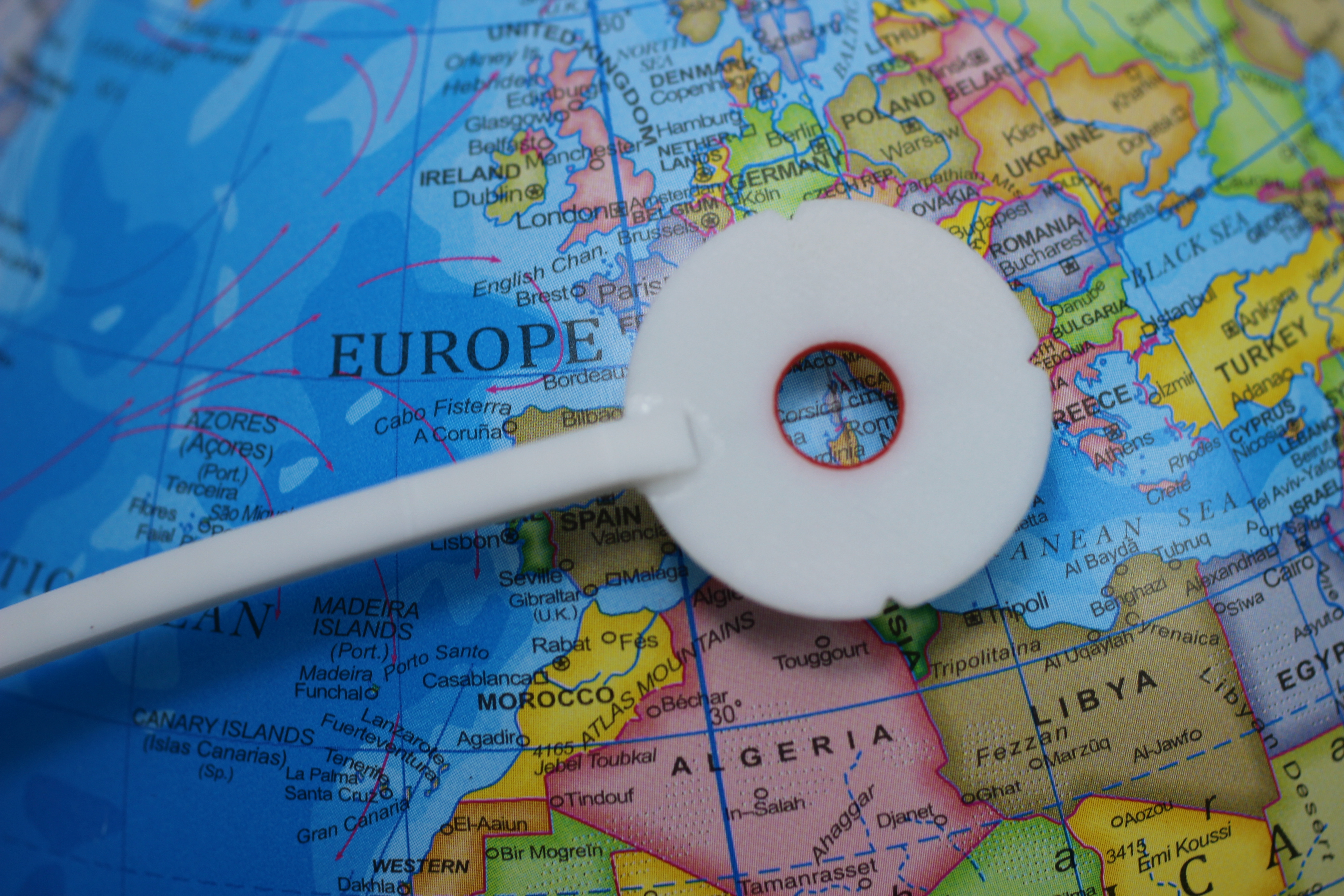

Once happy, add the Reticule (just friction fit for now), to check the alignment. Again, the Wiper Arm is 'long' so trim off any excess to suit. When you turn the Reticule to the North and South Poles, it should 'hover' roughly the same 'height' from the surface of the Globe, and be pretty close to the axis central point. (Though this latter point is less of an issue, as the computer software compensates for this. So don't worry too much).

Dispense a small drop of super glue onto some sticky tape stuck to cardboard.

Gently dip the end of the hair into it.

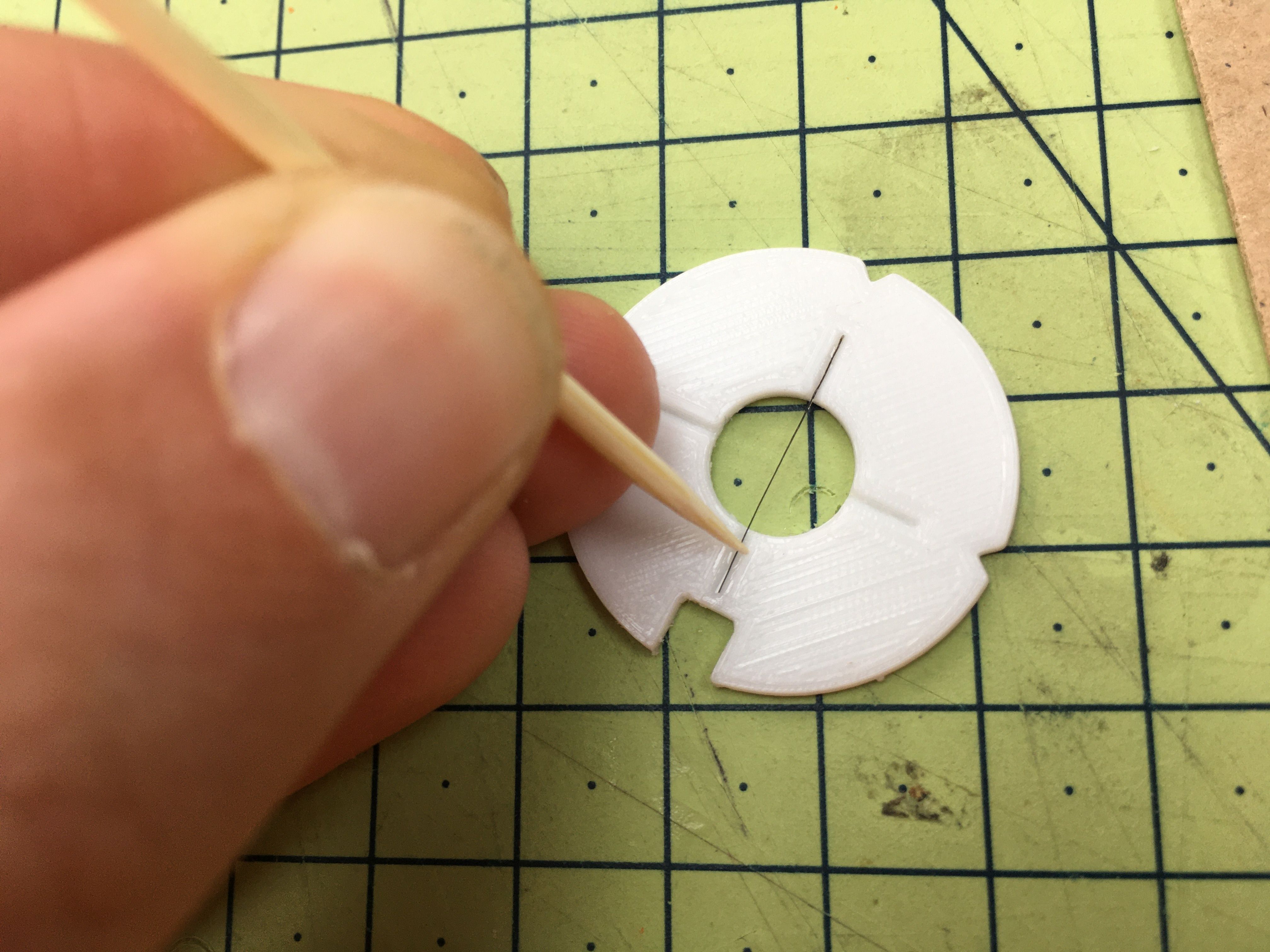

Then lay this into one of the grooves on the back of the reticule. It should stick pretty quickly.

Next take some super glue with a cocktail stick, and add some extra to the side you just stuck down.

Then cut to size, and stick the opposite side down as so.

Add some extra glue if needed, but don't go crazy.

KEY STEP: DON'T GLUE THE RETICULE YET.

Next take this assembly back to the Globe, and check for fit. Position the Reticule as shown and tilt until it is tangential to the surface of the globe. Add a tiny dab of glue to the Wiper/Reticule joint, allow to set. Now remove that assembly carefully and apply more glue to more thoroughly fix it in place. Again, don't plaster it in glue.

Allow to completely dry. You don't want to stick it to your globe!

As with the Rotary Encoder - if you want to add a Red flourish, you can by doing the following steps.

The trick is to cut the length large, and then remove little by little, until it's a snug fit. Then glue lightly in place.

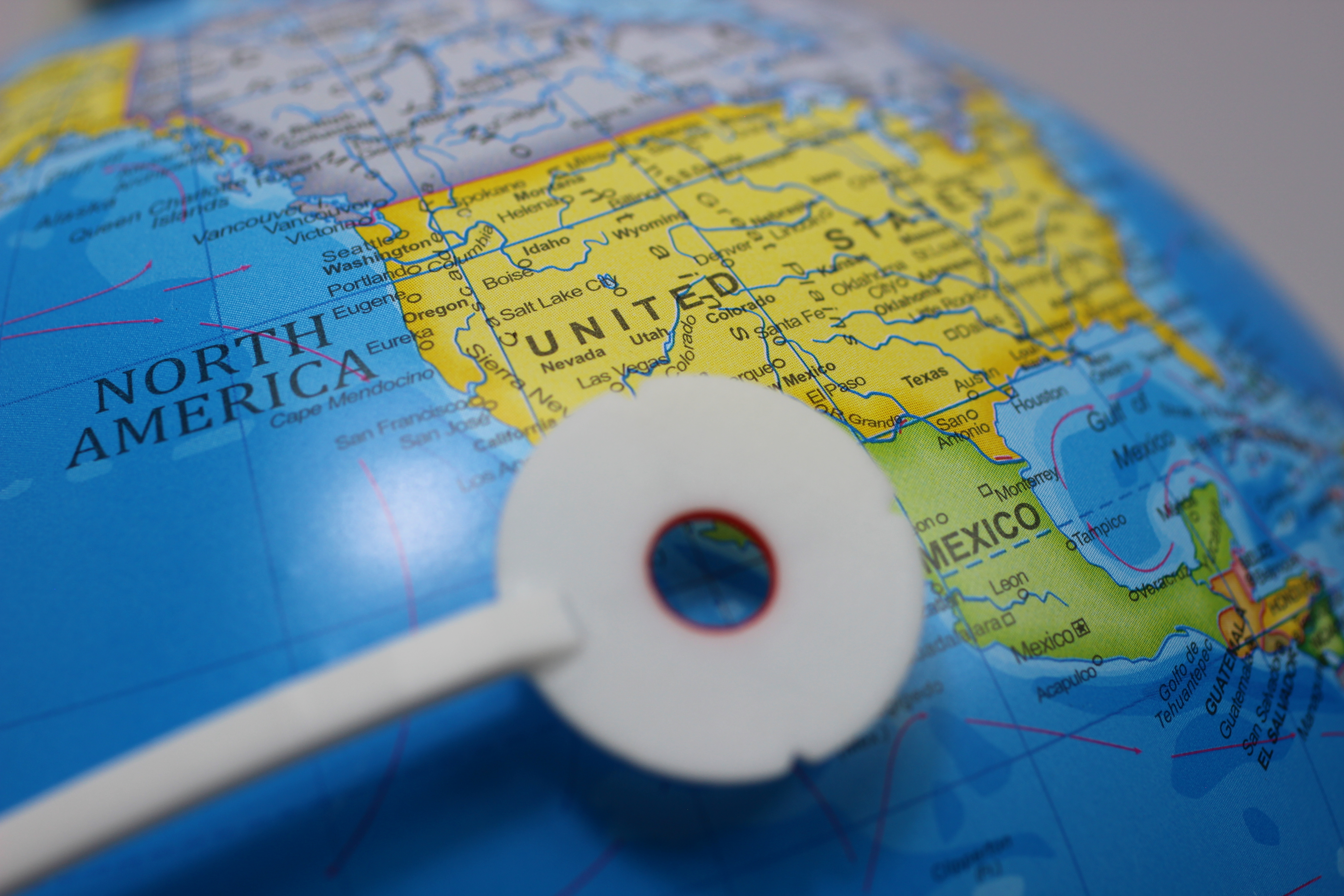

The end result should look like this now. Almost there!

First get a micro SD Card, larger than 8GB, and at least 'class 10' speed. More on specs here if unsure: https://www.raspberrypi.org/documentation/installa...
I got this 32GB one for under $10: https://amzn.to/38Ycv8y

Next Install the 'Imager', link here: https://www.raspberrypi.org/documentation/installa...
This will write a 'bootable' Operating System to your micro SD Card. It sounds all very complicated if you're new to this, but the software makes it easy to click and install.

If you don't immediately install your RasPi on the Red 'base plate', then I would also suggest putting your Raspberry Pi on something, as it's all too easy to leave it on a screw, ruler or something else that will short the board. As they are not that cheap these days, this would be an expensive mistake!

Self Explanatory, but this is how you access the Code.

From here we will tell the Raspberry Pi to install the Radio Globe files.

Navigate to this website for information on the Code, should you wish to contribute:

https://github.com/orgs/DesignSparkrs/teams/radiog...

If you just want to install, follow the next steps...

First, install Raspberry Pi OS (Buster lite) onto a microSD card.

You will need to perform setup using SSH, or with a mouse, keyboard and monitor.
To use SSH without needing to enable it in the settings menu, just place an empty file named 'ssh' in the 'BOOT' volume:

1. Insert the microSD card containing the Raspberry Pi OS installation into a Mac or PC.
2. Open the 'BOOT' volume in My Computer (Windows), Files (Ubuntu) or Finder (macOS).
3. Create a new text file and name it 'ssh'. On Windows, don't forget to remove the file extension (.txt).
4. Alternatively in Linux or macOS cd to the 'BOOT' volume and run touch ssh
5. Unmount the microSD card and insert it into the Raspberry Pi.
6. Plug the Raspberry Pi into your router using an Ethernet cable and power it on.
7. Once it has booted, open your SSH compatible terminal program (PuTTy on Windows, or pretty much anything in macOS or Linux) and run ssh raspberrypi.local (assuming that is the hostname of the Raspberry Pi of course).

If you're very new to this, as I was when I stared this project, a more basic guide is here for beginners:
https://desertbot.io/blog/headless-raspberry-pi-4-...

From an SSH terminal:

1. Run sudo raspi-config
2. In 'Network Options', enter the details (SSID and password) for your wi-fi network if you want to.
3. In 'Interfacing Options' enable SPI and I2C.
4. Run mkdir ~/work && cd ~/work
   (You can actually put it in a different folder, but you'll need to perform an additional step if you do).
5. Download this software by running git clone https://github.com/designsparkrs/RadioGlobe.git
6. Run cd RadioGlobe (Note this is case sensitive!)
7. (If you cloned to a folder other than ~/work, then run nano services/radioglobe.service and change the paths on lines 5 and 17 accordingly. Repeat this in nano services/streaming.service)
8. Run sudo ./install.sh This will install all dependencies and install the service so that the radio automatically starts when the Raspberry Pi is powered on in the future.

REMEMBER TO CALIBRATE!
1. With the Reticule pointed to GMT line, and the Equator (i.e. 0,0
2. Press and hold the middle button for 5-6 seconds.
3. When you see a green light and 'Calibrated', you'll see the coordinates go 0, 0 also.
NB: The Encoder is Absolute, so this means it does not 'forget' when you turn power off. Yay!

Happens to the best of us, right?!
So I'm going to keep a running log of any bugs and hopefully their fixes.

AUDIO NOT PLAYING:
- Try removing the HDMI Cable, and rebooting.
- If not, try also going into sudo config / settings and selecting Analogue Audio output.
https://www.raspberrypi.org/documentation/configur...

AUDIO DEBUG:
- See attached 'radioglobe - debug.txt' file on how to resolve.

SECURITY:
For most people, I suspect they will not be running the RadioGlobe as also their go-to computer for private things like Banking, or Email, etc. However, if you are wanting to bolster your security, or at the very least change the default password on a RasPi (say you're in a communal / busy WiFi, etc.), then take a look at this excellent guide: https://www.raspberrypi.org/documentation/configur...

WIPER LOOSENS OVER TIME.
Perhaps this is a weirdly proud moment, but the wiper arm on one of the RadioGlobes got so used, that it became too frictionless, and a bit 'sloppy' to use. This is a simple fix, as shown in the images here - take some masking tape (blue or yellow is fine!), and simply add a strip inside. To avoid a 'bump' allow it to overlap and then cut through both strips and then remove excess - and it will join seamlessly. Nice. Re-assemble with the same screw. Take care to not over-tighten!

Thanks so much for reading this far!

Hope you liked the project, and hope you have a go at making it in V1.0 or contributing ideas to make it even better!

Thanks again for considering Voting in the MAPS Contest.

Best wishes,

Jude Pullen

More stuff like this: http://www.judepullen.com/
