Radar System Using Ultrasonic Sensor & Arduino Uno

by Technoesolution2020 in Circuits > Arduino

2427 Views, 2 Favorites, 0 Comments

Radar System Using Ultrasonic Sensor & Arduino Uno


Hello friends welcome back to "Techno-E-Solution" , In this tutorial we are going to make cool project "Arduino Radar System Using Ultrasonic Sensor & Arduino Uno" using Processing Application. Radar is a object detecting system, It uses microwaves to determine the range, direction, speed, altitude of object. In Arduino Radar system we use Arduino Uno & Ultrasonic Sensor to detect objects and small servo motor to rotate ultrasonic sensor. You know the radar is long range object detecting system, Usually Radar system is used in Marine, Aircrafts, Missiles, etc.

If you like my project follow me for my latest project :-

Facebook :- https://www.facebook.com/TechnoShubham

Instagram :- https://www.instagram.com/technoesolution2020/?hl...

Instructables :- https://www.instructables.com/member/Technoesolut...

Dailymotion :- https://www.dailymotion.com/technoesolution

Youtube :- https://www.instagram.com/technoesolution2020/?hl...

So without wasting time, Let's get started.............

MATERIAL REQUIRED

To make this project we need some Components :-

  1. Arduino Uno
  2. Ultrasonic Sensor
  3. Servo motor
  4. Breadboard
  5. Frame/ Structure (Mechanix Toy Set)

SOFTWARE REQUIRED

  1. Arduino IDE :- Download
  2. Processing :- Download

CIRCUIT DIAGRAM

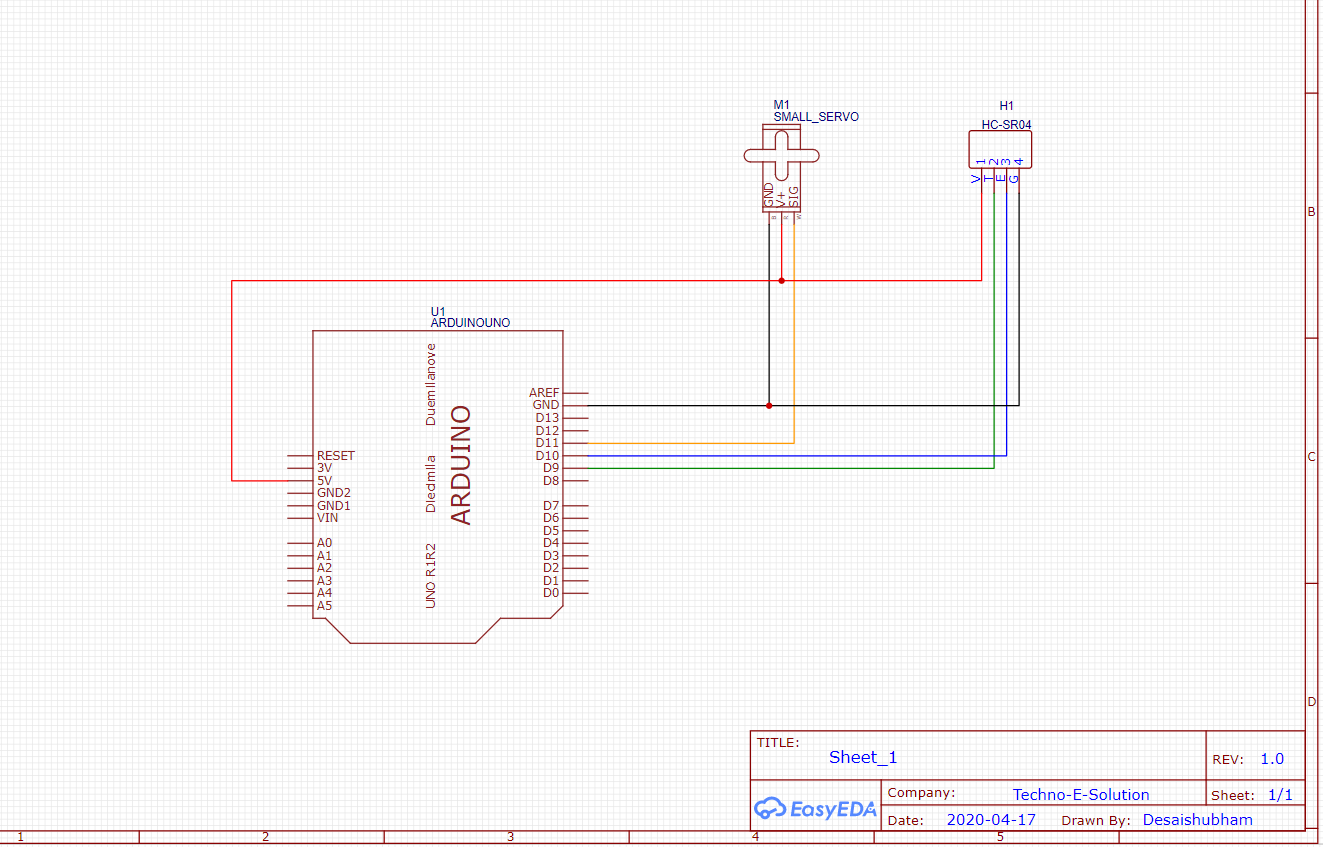

Radar Circuit Diagram.png

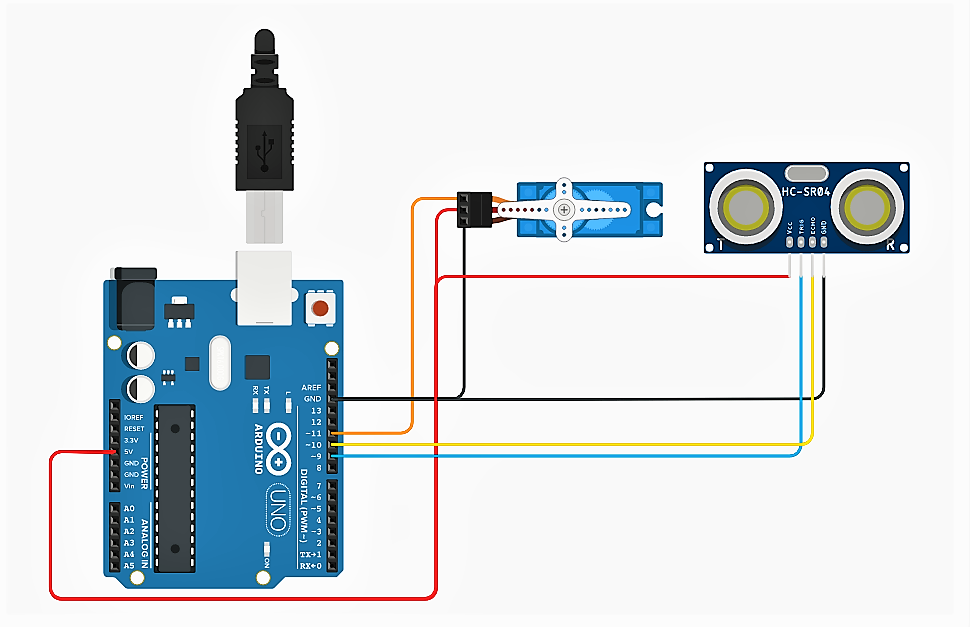

Circuit Diagram.PNG

Follow the circuit for making a connection.

Next PCB


NextPCB is a high-quality PCB Manufacturer. With professional PCB manufacturing capabilities, our PCB engineers with more than 10 years of experience will double-check your engineering files.

NextPCB is certified by IATF16949, ISO9001, ISO14001, UL, CQC, RoHS and REACH; more importantly, we handle the whole process including the PCB prototype, PCB manufacturing, PCB assembly, testing, and final shipment. We are capable of assembling BGA, Micro-BGA, QFN, and other leadless package parts. We also have an online parts shop, you can choose any parts you need.

If you want a Printed circuit board go through the NEXT PCB

ARDUINO CODE

Just Copy the following code & upload to the arduino Uno.

/*  Hello friend Welcome To "Techno-E-Solution"
    Here is a code of "Arduino Radar Using Ultrasonic Sensor"
*/
#include <Servo.h>

const int trigPin = 9;
const int echoPin = 10;

long duration;
int distinCM;

Servo radarServo;

void setup()
{
  pinMode(trigPin, OUTPUT);
  pinMode(echoPin, INPUT);
  Serial.begin(9600);
  radarServo.attach(11);
}
void loop()
{
  for(int i=0;i<=180;i++)
  {
    radarServo.write(i);
    delay(50);

    digitalWrite(trigPin, LOW);
    delayMicroseconds(2);
    digitalWrite(trigPin, HIGH);
    delayMicroseconds(10);
    digitalWrite(trigPin, LOW);
    duration = pulseIn(echoPin, HIGH);
    distinCM = duration*0.034/2;

    Serial.print(i);
    Serial.print("*");
    Serial.print(distinCM);
    Serial.print("#");
  }

  for(int i=180;i>=0;i--)
  {
    radarServo.write(i);
    delay(50);
    digitalWrite(trigPin, LOW);
    delayMicroseconds(2);
    digitalWrite(trigPin, HIGH);
    delayMicroseconds(10);
    digitalWrite(trigPin, LOW);
    duration = pulseIn(echoPin, HIGH);
    distinCM = duration*0.034/2;

    Serial.print(i);
    Serial.print("*");
    Serial.print(distinCM);
    Serial.print("#");
  }
}

PROCESSING CODE

  1. Now open Processing Application.
  2. Copy the following code & paste into Processing.
  3. Hit the Run Button.
import processing.serial.*;
import processing.opengl.*;
import toxi.geom.*;
import toxi.processing.*;

ToxiclibsSupport gfx;


Serial port;
String serialAngle;
String serialDistance;
String serialData;
float objectDistance;
int radarAngle, radarDistance;
int index=0;

void setup()
{
  size (1280, 720);
  gfx = new ToxiclibsSupport(this);
  smooth();

  //println(Serial.list());

  //String portName = Serial.list()[0];
  String portName = "COM4";
  port = new Serial(this, portName, 9600);

  //port = new Serial(this,"COM4", 9600);
  port.bufferUntil('#');
}

void draw()
{
  //fill(10,255,10);
  noStroke();

  fill(0,4);
  rect(0, 0, 1280, 720);
  fill(10,255,10);

  //Radar Arcs and Lines
  pushMatrix();

  translate(640,666);
  noFill();
  strokeWeight(2);
  stroke(10,255,10);
  arc(0,0,1200,1200,PI,TWO_PI);
  arc(0,0,934,934,PI,TWO_PI);
  arc(0,0,666,666,PI,TWO_PI);
  arc(0,0,400,400,PI,TWO_PI);
  strokeWeight(4);
  line(-640,0,640,0);
  line(0,0,-554,-320);
  line(0,0,-320,-554);
  line(0,0,0,-640);
  line(0,0,320,-554);
  line(0,0,554,-320);

  popMatrix();

  //Ultrasonic Lines
  pushMatrix();

  strokeWeight(5);
  stroke(10,255,10);
  translate(640,666);
  line(0,0,640*cos(radians(radarAngle)),-640*sin(radians(radarAngle)));

  popMatrix();

  //Object Detection Lines
  pushMatrix();

  translate(640,666);
  strokeWeight(5);
  stroke(255,10,10); // red color
  objectDistance = radarDistance*15;

  if(radarDistance<40)
  {
    line(objectDistance*cos(radians(radarAngle)),-objectDistance*sin(radians(radarAngle)),633*cos(radians(radarAngle)),-633*sin(radians(radarAngle)));
  }

  popMatrix();
}

void serialEvent (Serial port)
{
  serialData = port.readStringUntil('#');
  serialData = serialData.substring(0,serialData.length()-1);

  index = serialData.indexOf("*");

  serialAngle= serialData.substring(0, index);
  serialDistance= serialData.substring(index+1, serialData.length());

  radarAngle = int(serialAngle);
  radarDistance = int(serialDistance);
}

DEMONSTRATION
