Radar-Based Home Security System Using RD-03D and ESP32-C6

by tech_nickk in Circuits > Sensors

354 Views, 5 Favorites, 0 Comments

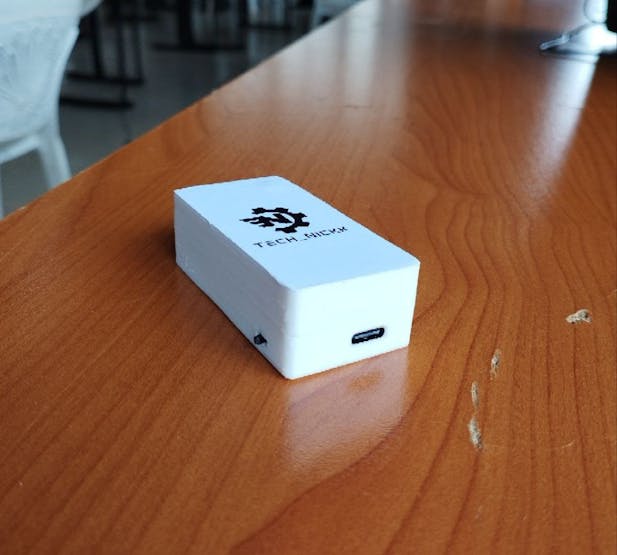

Radar-Based Home Security System Using RD-03D and ESP32-C6


Introduction

Traditional home security systems have a fatal flaw. PIR (Passive Infrared) sensors, the backbone of most security setups, are notorious for false alarms triggered by pets, moving curtains, temperature changes, or even sunlight shifting through windows. They also struggle with range limitations and can be easily fooled by slow-moving intruders or those wearing heavy clothing that masks body heat.

Enter radar technology, the same principle used in military applications and autonomous vehicles. Unlike PIR sensors that detect heat signatures, radar actively measures motion, distance, and even speed with millimeter precision.

That’s where my system comes in. By combining the precision of the RD-03D mmWave radar sensor with the advanced connectivity and processing power of the Beetle ESP32-C6, I’ve built a compact, battery-powered security solution that delivers real-time intruder detection, smart alerts, and radar visualization through a web dashboard. Unlike off-the-shelf systems, this DIY setup tracks multiple moving targets, analyzes their behavior, and minimizes false alarms with intelligent filtering. It’s designed to be deployed anywhere, indoors or outdoors, with long battery life, weatherproofing, and full integration with Home Assistant for smart automation.

This project demonstrates how to build a sophisticated radar-based security system that rivals commercial solutions at a fraction of the cost.





1 / 2




The PIR Problem

  1. False Positives: Pets, curtains, temperature fluctuations, and sunlight cause constant false alarms
  2. Limited Range: Most PIR sensors work effectively only within 3-5 meters
  3. Narrow Detection: Typical 90° field of view leaves blind spots
  4. Weather Sensitivity: Temperature changes dramatically affect performance
  5. Easy to Defeat: Can be bypassed with slow movement or thermal shielding




Key Features

  1. Radar-based Detection (8m range, 120° field)
  2. Real-time Alerts (LEDs + Buzzer)

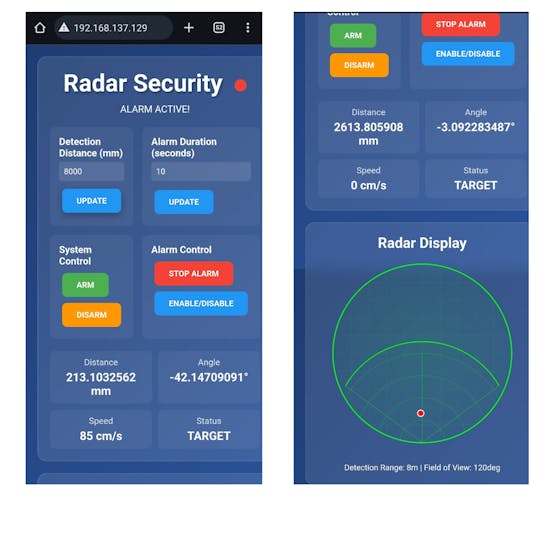

  3. Web UI (hosted on ESP32)

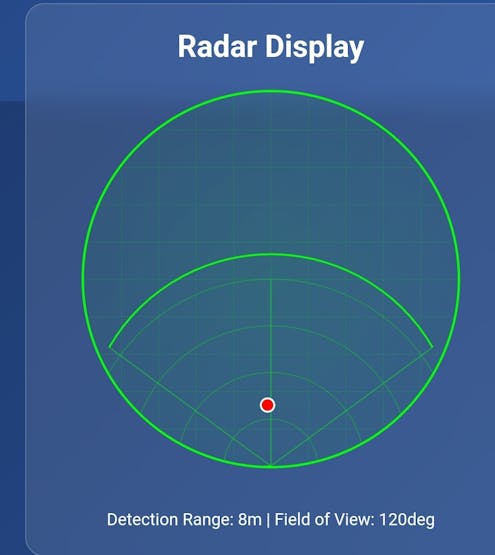

  4. Live Radar Visualization
  5. Battery Powered & Rechargeable(Type-C)
  6. Threshold Configuration via Web Interface
  7. Matter, Thread and Zigbee Support
  8. Home Assistant Compatible (optional MQTT/REST integration)





1 / 2

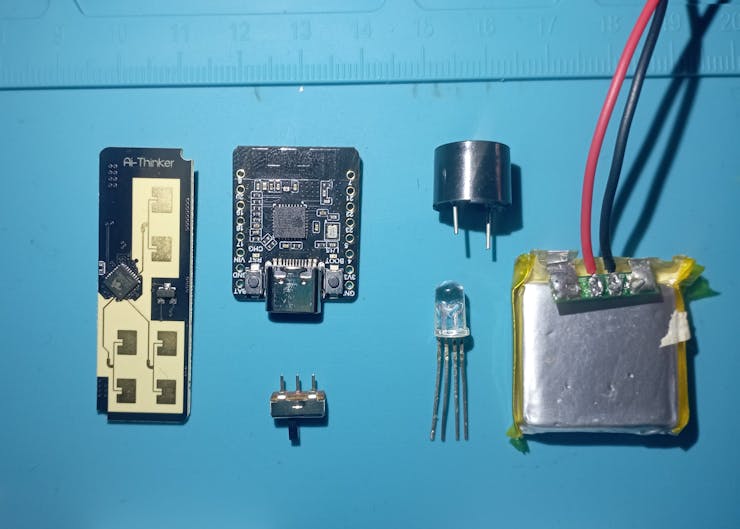

What inside the Device

  1. ESP32-C6 Beetle microcontroller
  2. RD-03D 24GHz mmWave radar sensor
  3. 3.7V 1500mAh rechargeable lithium battery
  4. RGB LED indicator
  5. Slide Switch
  6. Wires
  7. 3D printed weatherproof enclosure




RD-03D mmWave Radar: The Smart Sensor Behind the System

The RD-03D is a 24GHz radar module from AI-Thinker designed for motion and presence detection. Unlike PIR sensors, it works in total darkness, through plastic or glass, and can sense very small movements like breathing or subtle shifts in position.

  1. Detection Range: 0.1m to 8m
  2. Detection Angle: 120°
  3. Interface: UART

Features:

  1. Detects both motion and presence
  2. Can operate through glass and non-metallic materials
  3. Works in various lighting and weather conditions



The RD-03D communicates using UART. You can send commands to configure detection distance, presence mode, and sensitivity. Data packets from the radar contain detection information, including the type of motion and distance. The ESP32 parses this data to visualize and trigger alarms accordingly.




How It Works

The RD-03D emits continuous microwave signals and monitors reflected waves to detect changes in distance, phase, and amplitude. It uses Doppler and phase-shift analysis to determine whether something is present, whether it is moving closer or farther, how fast it is moving or how far it is

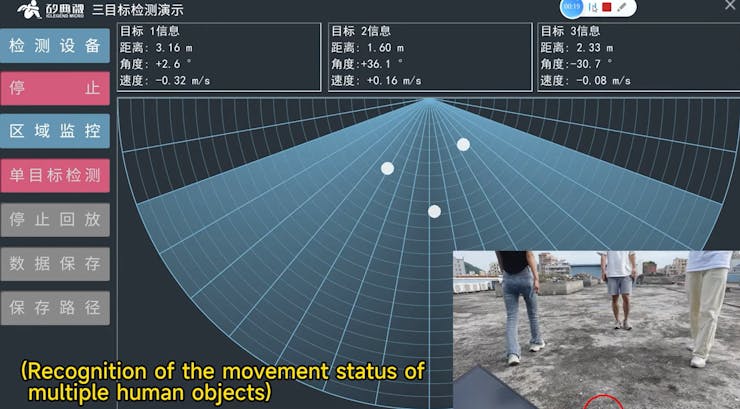

Multi-Person Tracking ability of the sensor




Microcontroller: Beetle ESP32-C6

This tiny powerhouse runs the whole system while sipping power. I chose the Beetle ESP32-C6 mini because:

  1. It's compact and breadboard-friendly
  2. It supports Wi-Fi & BLE 5 (and Thread/Matter if needed)
  3. It can easily host a web server and handle GPIO interrupts
  4. Runs great on battery power




Building the Project

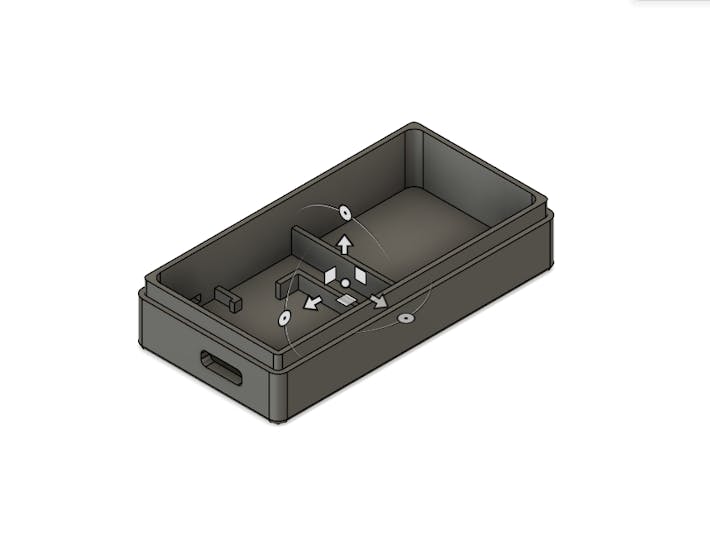

Designing the Case in Autodesk Fusion 360

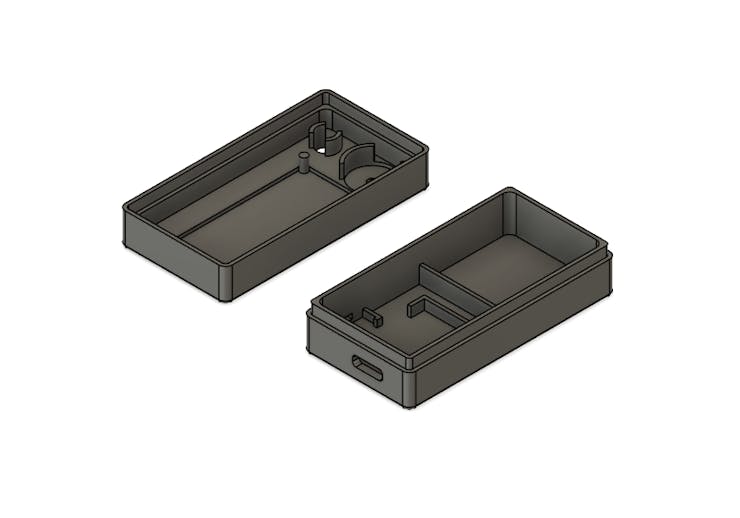

To ensure portability and durability, I designed a compact enclosure in Autodesk Fusion 360. The enclosure includes:

1. The main Body : Download the STL file here

2. The Top Cover: Download the STL file here

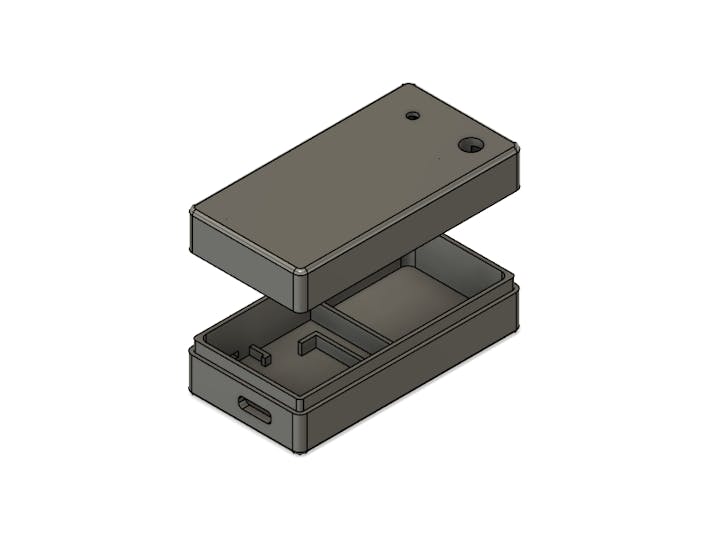

The Design has:

  1. Mounting slots for the RD-03D sensor
  2. LED hole
  3. Hole for the Buzzer
  4. Cutouts for USB-C programming and charging access
  5. Snap-fit lid

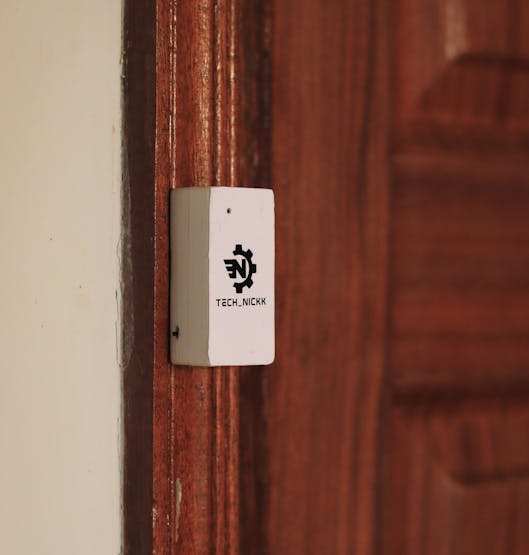

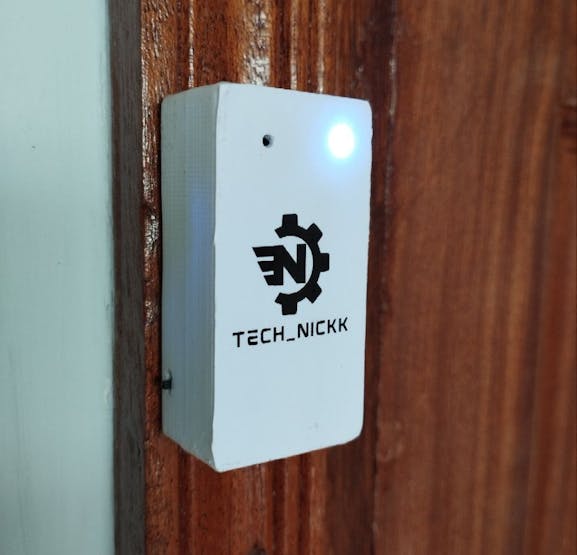

The design is kept minimal and compact to allow wall or ceiling mounting.





3D Printing the Case

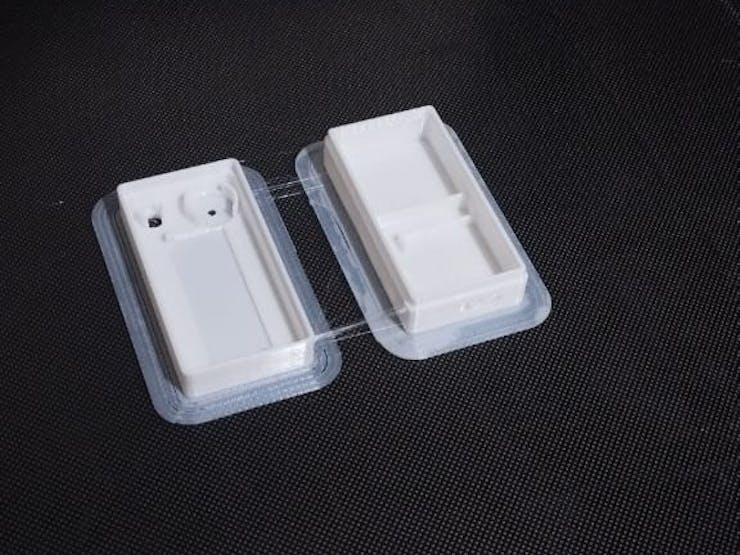

Exported the Fusion 360 design to STL. Sliced using Cura for an FDM printer (0.2mm layer height recommended)

Material: PLA or PETGPrinted in under 3 hours

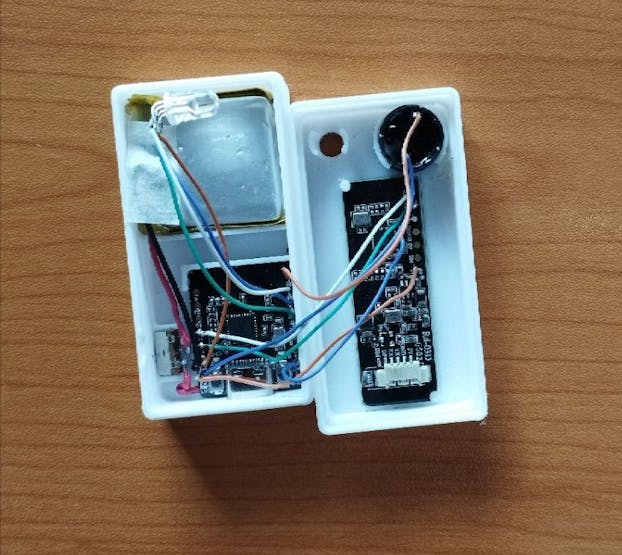

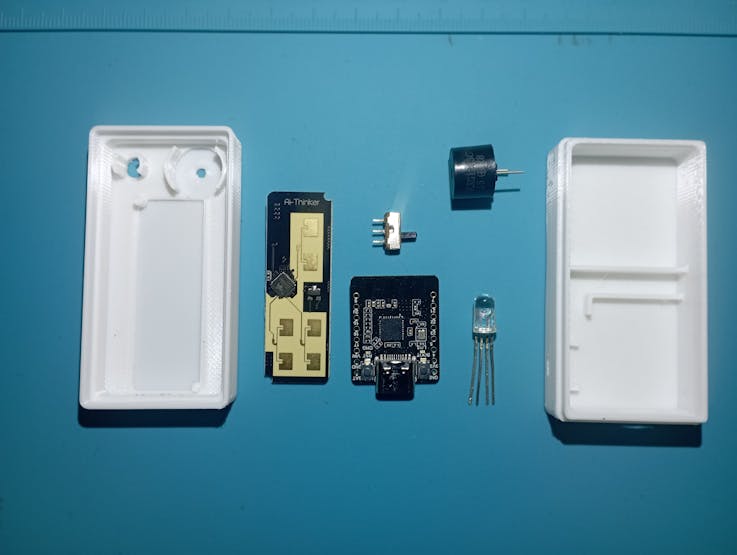

Post-processing: Insert LEDs, mount radar, secure ESP32, and route wires neatly.



Circuit Assembly

Radar Sensor to ESP32-C6

RD-03D TX → ESP32 RX (GPIO 17)

RD-03D RX → ESP32 TX (GPIO 16)

GND → GND

VCC → 5V

LED Indicators

  1. Red LED anode → GPIO 21
  2. Green LED anode → GPIO 22
  3. Blue LED anode → GPIO 23
  4. Cathodes to GND

PowerSolder the Positive terminal of the LiPo battery to the Battery pin of the Beetle ESP32C6 and the Ground terminal to GND pin



Firmware and Web Interface

I chose to write the firmware for the device using Arduino IDE because of it s Simplicity and wide community support.

Ensure you have the Latest ESP32 Arduino Core with ESP32-C6 support on your Arduino IDE. Before compiling the code make sure you have this RD-03D Library installed. Download it and extract to your Arduino Libraries folder.

#include <WiFi.h>
#include <WebServer.h>
#include <ArduinoJson.h>
#include "RadarSensor.h"

// #include "web_interface.h"
// WiFi credentials - Update these with your network details
const char* ssid = "YOUR_WIFI_SSID";
const char* password = "YOUR_WIFI_PASSWORD";
// Hardware pins
const int buzzerPin = 7;
const int ledPin = 15; // Built-in LED
const int ledRPin = 21; // Red LED
const int ledGPin = 22; // Green LED
const int ledBPin = 23; // Blue LED
// Radar sensor
RadarSensor radar(Serial1);
// Web server
WebServer server(80);
// System state variables
struct SystemConfig {
bool armed = true;
int detectionDistance = 1000; // mm (1 meter default)
int alarmDuration = 10000; // ms (10 seconds default)
bool alarmActive = false;
unsigned long alarmStartTime = 0;
bool systemEnabled = true;
};
SystemConfig config;
RadarTarget currentTarget;
bool targetDetected = false;
unsigned long lastBlinkTime = 0;
bool blinkState = false;
void setup() {
Serial.begin(115200);
Serial1.begin(256000, SERIAL_8N1, 17, 16); // D7 = RX, D6 = TX
// Initialize pins
pinMode(buzzerPin, OUTPUT);
pinMode(ledPin, OUTPUT);
pinMode(ledRPin, OUTPUT);
pinMode(ledGPin, OUTPUT);
pinMode(ledBPin, OUTPUT);
// Initialize radar
radar.begin();
Serial.println("Radar Sensor Started");
// Initialize WiFi
WiFi.begin(ssid, password);
Serial.print("Connecting to WiFi");
while (WiFi.status() != WL_CONNECTED) {
delay(1000);
Serial.print(".");
}
Serial.println();
Serial.print("Connected! IP address: ");
Serial.println(WiFi.localIP());
// Setup web server routes
setupWebServer();
server.begin();
// Initial LED state
updateLEDs();
}
void loop() {
server.handleClient();
// Handle radar updates
if (radar.update()) {
currentTarget = radar.getTarget();
targetDetected = (currentTarget.distance > 0 &&
currentTarget.distance <= config.detectionDistance);
Serial.print("Distance: "); Serial.print(currentTarget.distance);
Serial.print("mm, Angle: "); Serial.print(currentTarget.angle);
Serial.print("°, Target: "); Serial.println(targetDetected ? "YES" : "NO");
}
// Handle alarm logic
handleAlarm();
// Update LEDs and buzzer
updateLEDs();
updateBuzzer();
delay(50);
}
void handleAlarm() {
if (!config.systemEnabled || !config.armed) {
config.alarmActive = false;
return;
}
if (targetDetected && !config.alarmActive) {
// Start alarm
config.alarmActive = true;
config.alarmStartTime = millis();
Serial.println("ALARM TRIGGERED!");
}
if (config.alarmActive) {
// Check if alarm duration exceeded
if (millis() - config.alarmStartTime >= config.alarmDuration) {
config.alarmActive = false;
Serial.println("Alarm timeout - stopping");
}
}
}
void updateLEDs() {
if (!config.systemEnabled) {
// System disabled - all LEDs off
digitalWrite(ledRPin, LOW);
digitalWrite(ledGPin, LOW);
digitalWrite(ledBPin, LOW);
return;
}
if (!config.armed) {
// System disarmed - blue LED on
digitalWrite(ledRPin, LOW);
digitalWrite(ledGPin, LOW);
digitalWrite(ledBPin, HIGH);
return;
}
if (config.alarmActive) {
// Alarm active - red LED blinks
unsigned long currentTime = millis();
if (currentTime - lastBlinkTime >= 250) {
blinkState = !blinkState;
lastBlinkTime = currentTime;
}
digitalWrite(ledRPin, blinkState ? HIGH : LOW);
digitalWrite(ledGPin, LOW);
digitalWrite(ledBPin, LOW);
} else if (targetDetected) {
// Target detected but not alarming - red LED solid
digitalWrite(ledRPin, HIGH);
digitalWrite(ledGPin, LOW);
digitalWrite(ledBPin, LOW);
} else {
// Normal operation - green LED on
digitalWrite(ledRPin, LOW);
digitalWrite(ledGPin, HIGH);
digitalWrite(ledBPin, LOW);
}
}
void updateBuzzer() {
if (config.alarmActive && config.systemEnabled) {
// Buzzer blinks at same rate as red LED
digitalWrite(buzzerPin, blinkState ? HIGH : LOW);
} else {
digitalWrite(buzzerPin, LOW);
}
}
void setupWebServer() {
// Serve main HTML page
server.on("/", HTTP_GET, []() {
server.send(200, "text/html", getMainHTML());
});
// API endpoints
server.on("/api/status", HTTP_GET, handleGetStatus);
server.on("/api/config", HTTP_POST, handleSetConfig);
server.on("/api/config", HTTP_GET, handleGetConfig);
server.on("/api/arm", HTTP_POST, handleArmDisarm);
server.on("/api/stop-alarm", HTTP_POST, handleStopAlarm);
server.on("/api/radar-data", HTTP_GET, handleGetRadarData);
// Enable CORS
server.enableCORS(true);
}
void handleGetStatus() {
StaticJsonDocument<300> doc;
doc["armed"] = config.armed;
doc["alarmActive"] = config.alarmActive;
doc["targetDetected"] = targetDetected;
doc["systemEnabled"] = config.systemEnabled;
doc["detectionDistance"] = config.detectionDistance;
doc["alarmDuration"] = config.alarmDuration;
doc["uptime"] = millis();
String response;
serializeJson(doc, response);
server.send(200, "application/json", response);
}
void handleGetConfig() {
StaticJsonDocument<200> doc;
doc["detectionDistance"] = config.detectionDistance;
doc["alarmDuration"] = config.alarmDuration;
doc["systemEnabled"] = config.systemEnabled;
String response;
serializeJson(doc, response);
server.send(200, "application/json", response);
}
void handleSetConfig() {
if (server.hasArg("plain")) {
StaticJsonDocument<200> doc;
deserializeJson(doc, server.arg("plain"));
if (doc.containsKey("detectionDistance")) {
config.detectionDistance = doc["detectionDistance"];
}
if (doc.containsKey("alarmDuration")) {
config.alarmDuration = doc["alarmDuration"];
}
if (doc.containsKey("systemEnabled")) {
config.systemEnabled = doc["systemEnabled"];
}
server.send(200, "application/json", "{\"success\":true}");
} else {
server.send(400, "application/json", "{\"error\":\"Invalid request\"}");
}
}
void handleArmDisarm() {
if (server.hasArg("plain")) {
StaticJsonDocument<100> doc;
deserializeJson(doc, server.arg("plain"));
if (doc.containsKey("armed")) {
config.armed = doc["armed"];
config.alarmActive = false; // Stop any active alarm
server.send(200, "application/json", "{\"success\":true}");
} else {
server.send(400, "application/json", "{\"error\":\"Missing armed parameter\"}");
}
} else {
server.send(400, "application/json", "{\"error\":\"Invalid request\"}");
}
}
void handleStopAlarm() {
config.alarmActive = false;
server.send(200, "application/json", "{\"success\":true}");
}
void handleGetRadarData() {
StaticJsonDocument<200> doc;
doc["distance"] = currentTarget.distance;
doc["angle"] = currentTarget.angle;
doc["x"] = currentTarget.x;
doc["y"] = currentTarget.y;
doc["speed"] = currentTarget.speed;
doc["detected"] = targetDetected;
String response;
serializeJson(doc, response);
server.send(200, "application/json", response);
}
String getMainHTML() {
return R"(
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Radar Security System</title>
<style>
* { margin: 0; padding: 0; box-sizing: border-box; }
body {
font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
background: linear-gradient(135deg, #1e3c72, #2a5298);
color: white;
min-height: 100vh;
padding: 20px;
}
.container {
max-width: 1200px;
margin: 0 auto;
display: grid;
grid-template-columns: 1fr 1fr;
gap: 20px;
height: calc(100vh - 40px);
}
.panel {
background: rgba(255,255,255,0.1);
backdrop-filter: blur(10px);
border-radius: 15px;
padding: 20px;
border: 1px solid rgba(255,255,255,0.2);
}
.radar-panel {
display: flex;
flex-direction: column;
align-items: center;
}
.status {
text-align: center;
margin-bottom: 20px;
}
.status h1 {
font-size: 2.5em;
margin-bottom: 10px;
text-shadow: 2px 2px 4px rgba(0,0,0,0.3);
}
.status-indicator {
display: inline-block;
width: 20px;
height: 20px;
border-radius: 50%;
margin-left: 10px;
animation: pulse 2s infinite;
}
.armed { background: #4CAF50; }
.disarmed { background: #FF9800; }
.alarm { background: #F44336; animation: blink 0.5s infinite; }
@keyframes pulse { 0%, 100% { opacity: 1; } 50% { opacity: 0.5; } }
@keyframes blink { 0%, 100% { opacity: 1; } 50% { opacity: 0; } }
.radar-display {
width: 400px;
height: 400px;
position: relative;
margin: 20px 0;
}
.radar-svg {
width: 100%;
height: 100%;
background: radial-gradient(circle, rgba(0,255,0,0.1) 0%, rgba(0,100,0,0.05) 100%);
border-radius: 50%;
border: 2px solid #00ff00;
}
.controls {
display: grid;
grid-template-columns: 1fr 1fr;
gap: 15px;
margin-top: 20px;
}
.control-group {
background: rgba(255,255,255,0.05);
padding: 15px;
border-radius: 10px;
}
.control-group label {
display: block;
margin-bottom: 5px;
font-weight: bold;
}
.control-group input, .control-group select {
width: 100%;
padding: 8px;
border: none;
border-radius: 5px;
background: rgba(255,255,255,0.1);
color: white;
margin-bottom: 10px;
}
.control-group input::placeholder {
color: rgba(255,255,255,0.7);
}
.btn {
padding: 12px 24px;
border: none;
border-radius: 8px;
cursor: pointer;
font-weight: bold;
text-transform: uppercase;
transition: all 0.3s ease;
margin: 5px;
}
.btn-primary { background: #2196F3; color: white; }
.btn-success { background: #4CAF50; color: white; }
.btn-danger { background: #F44336; color: white; }
.btn-warning { background: #FF9800; color: white; }
.btn:hover { transform: translateY(-2px); box-shadow: 0 4px 12px rgba(0,0,0,0.3); }
.info-grid {
display: grid;
grid-template-columns: 1fr 1fr;
gap: 10px;
margin-top: 20px;
}
.info-item {
background: rgba(255,255,255,0.05);
padding: 10px;
border-radius: 8px;
text-align: center;
}
.info-item .label { font-size: 0.9em; opacity: 0.8; }
.info-item .value { font-size: 1.2em; font-weight: bold; margin-top: 5px; }
@media (max-width: 768px) {
.container { grid-template-columns: 1fr; }
.radar-display { width: 300px; height: 300px; }
}
</style>
</head>
<body>
<div class="container">
<div class="panel">
<div class="status">
<h1>Radar Security <span id="statusIndicator" class="status-indicator armed"></span></h1>
<p id="statusText">System Armed</p>
</div>
<div class="controls">
<div class="control-group">
<label>Detection Distance (mm)</label>
<input type="number" id="detectionDistance" value="1000" min="100" max="8000">
<button class="btn btn-primary" onclick="updateConfig()">Update</button>
</div>
<div class="control-group">
<label>Alarm Duration (seconds)</label>
<input type="number" id="alarmDuration" value="10" min="1" max="300">
<button class="btn btn-primary" onclick="updateConfig()">Update</button>
</div>
<div class="control-group">
<label>System Control</label>
<button class="btn btn-success" id="armBtn" onclick="armSystem()">ARM</button>
<button class="btn btn-warning" id="disarmBtn" onclick="disarmSystem()">DISARM</button>
</div>
<div class="control-group">
<label>Alarm Control</label>
<button class="btn btn-danger" onclick="stopAlarm()">STOP ALARM</button>
<button class="btn btn-primary" onclick="toggleSystem()">ENABLE/DISABLE</button>
</div>
</div>
<div class="info-grid">
<div class="info-item">
<div class="label">Distance</div>
<div class="value" id="targetDistance">-- mm</div>
</div>
<div class="info-item">
<div class="label">Angle</div>
<div class="value" id="targetAngle">--°</div>
</div>
<div class="info-item">
<div class="label">Speed</div>
<div class="value" id="targetSpeed">-- cm/s</div>
</div>
<div class="info-item">
<div class="label">Status</div>
<div class="value" id="detectionStatus">Clear</div>
</div>
</div>
</div>
<div class="panel radar-panel">
<h2>Radar Display</h2>
<div class="radar-display">
<svg class="radar-svg" viewBox="0 0 400 400">
<!-- Radar grid -->
<defs>
<pattern id="radarGrid" width="40" height="40" patternUnits="userSpaceOnUse">
<path d="M 40 0 L 0 0 0 40" fill="none" stroke="rgba(0,255,0,0.2)" stroke-width="1"/>
</pattern>
</defs>
<rect width="400" height="400" fill="url(#radarGrid)"/>
<!-- Distance circles -->
<circle cx="200" cy="400" r="50" fill="none" stroke="rgba(0,255,0,0.3)" stroke-width="1"/>
<circle cx="200" cy="400" r="100" fill="none" stroke="rgba(0,255,0,0.3)" stroke-width="1"/>
<circle cx="200" cy="400" r="150" fill="none" stroke="rgba(0,255,0,0.3)" stroke-width="1"/>
<circle cx="200" cy="400" r="200" fill="none" stroke="rgba(0,255,0,0.3)" stroke-width="1"/>
<!-- 120-degree arc -->
<path d="M 27 273 A 200 200 0 0 1 373 273" fill="none" stroke="#00ff00" stroke-width="2"/>
<!-- Center lines -->
<line x1="200" y1="400" x2="200" y2="200" stroke="rgba(0,255,0,0.5)" stroke-width="1"/>
<line x1="200" y1="400" x2="27" y2="273" stroke="rgba(0,255,0,0.5)" stroke-width="1"/>
<line x1="200" y1="400" x2="373" y2="273" stroke="rgba(0,255,0,0.5)" stroke-width="1"/>
<!-- Target dot -->
<circle id="targetDot" cx="200" cy="400" r="0" fill="#ff0000" stroke="#ffffff" stroke-width="2" opacity="0">
<animate attributeName="r" values="5;8;5" dur="1s" repeatCount="indefinite"/>
</circle>
<!-- Radar sweep -->
<line id="radarSweep" x1="200" y1="400" x2="200" y2="200" stroke="#00ff00" stroke-width="2" opacity="0.7">
<animateTransform attributeName="transform" attributeType="XML" type="rotate"
values="240 200 400;300 200 400;240 200 400" dur="3s" repeatCount="indefinite"/>
</line>
</svg>
</div>
<div style="text-align: center; margin-top: 10px;">
<small>Detection Range: 8m | Field of View: 120°</small>
</div>
</div>
</div>
<script>
let systemConfig = {
armed: true,
systemEnabled: true,
detectionDistance: 1000,
alarmDuration: 10000
};
function updateStatus() {
fetch('/api/status')
.then(response => response.json())
.then(data => {
const indicator = document.getElementById('statusIndicator');
const statusText = document.getElementById('statusText');
if (!data.systemEnabled) {
indicator.className = 'status-indicator disarmed';
statusText.textContent = 'System Disabled';
} else if (data.alarmActive) {
indicator.className = 'status-indicator alarm';
statusText.textContent = 'ALARM ACTIVE!';
} else if (data.armed) {
indicator.className = 'status-indicator armed';
statusText.textContent = 'System Armed';
} else {
indicator.className = 'status-indicator disarmed';
statusText.textContent = 'System Disarmed';
}
systemConfig = data;
});
}
function updateRadarData() {
fetch('/api/radar-data')
.then(response => response.json())
.then(data => {
document.getElementById('targetDistance').textContent = data.distance + ' mm';
document.getElementById('targetAngle').textContent = data.angle + '°';
document.getElementById('targetSpeed').textContent = data.speed + ' cm/s';
document.getElementById('detectionStatus').textContent = data.detected ? 'TARGET' : 'Clear';
updateRadarDisplay(data);
});
}
function updateRadarDisplay(data) {
const targetDot = document.getElementById('targetDot');
if (data.detected && data.distance > 0) {
// Convert distance to radar display coordinates
const maxDistance = 8000; // 8 meters in mm
const radarRadius = 200; // pixels
const scale = radarRadius / maxDistance;
// Convert angle and distance to x,y coordinates
const angleRad = (data.angle) * Math.PI / 180;
const distance = Math.min(data.distance, maxDistance);
const x = 200 + (distance * scale * Math.sin(angleRad));
const y = 400 - (distance * scale * Math.cos(angleRad));
targetDot.setAttribute('cx', x);
targetDot.setAttribute('cy', y);
targetDot.style.opacity = '1';
} else {
targetDot.style.opacity = '0';
}
}
function updateConfig() {
const distance = document.getElementById('detectionDistance').value;
const duration = document.getElementById('alarmDuration').value * 1000; // Convert to ms
fetch('/api/config', {
method: 'POST',
headers: { 'Content-Type': 'application/json' },
body: JSON.stringify({
detectionDistance: parseInt(distance),
alarmDuration: parseInt(duration)
})
})
.then(response => response.json())
.then(data => {
if (data.success) {
alert('Configuration updated successfully!');
}
});
}
function armSystem() {
fetch('/api/arm', {
method: 'POST',
headers: { 'Content-Type': 'application/json' },
body: JSON.stringify({ armed: true })
});
}
function disarmSystem() {
fetch('/api/arm', {
method: 'POST',
headers: { 'Content-Type': 'application/json' },
body: JSON.stringify({ armed: false })
});
}
function stopAlarm() {
fetch('/api/stop-alarm', { method: 'POST' });
}
function toggleSystem() {
fetch('/api/config', {
method: 'POST',
headers: { 'Content-Type': 'application/json' },
body: JSON.stringify({ systemEnabled: !systemConfig.systemEnabled })
});
}
// Update data every 500ms
setInterval(() => {
updateStatus();
updateRadarData();
}, 500);
// Initial load
updateStatus();
updateRadarData();
</script>
</body>
</html>
)";
}




Code Overview




Core Components

  1. WiFi Web Server: Remote control and monitoring interface
  2. Radar Integration: Reads RD-03D sensor data (distance, angle, speed)
  3. State Management: Tracks armed/disarmed/alarm states




Main Operation

Loop Process:

  1. Read Radar: Get target distance and position data
  2. Check Threat: Compare distance against threshold setting
  3. Control Hardware: Update LEDs and buzzer based on status
  4. Handle Web Requests: Process API calls from web interface




LED Status

  1. Green: Armed & clear
  2. Red: Target detected (blinks during alarm)
  3. Blue: Disarmed
  4. Off: System disabled




Web API

  1. /api/status - System status and sensor readings
  2. /api/config - Adjust detection distance/alarm duration
  3. /api/arm - Arm/disarm system
  4. /api/radar-data - Live data for web radar display




Smart Logic

Only triggers alarm when system is armed AND valid target detected within range. Includes configurable alarm timeout and remote control via professional web interface with real-time 120° radar visualization.

Accessing the Web Interface

  1. Turn on the device
  2. Connect to the ESP32’s Wi-Fi hotspot or local network IP.
  3. Load the interface in a browser
  4. Set:Max Detection Distance (e.g., 3m)Alarm Duration (e.g., 5s)Alarm On/Off
  5. Observe real-time detections on the radar arc.




Power & Battery Life

A 3.7V LiPo cell powers the system, recharged via the built in battery charge management of the Beetle board. Due to the low power consumption of both the RD-03D and the ESP32-C6, the system can run for several days or even weeks on a single charge. Deep sleep mode implementation could extend the battery life for months.




How the Radar Security System Works

The system works by leveraging the RD-03D radar sensor, which emits 24GHz radio waves to scan a 120° field of view and detect movement with high precision, measuring not just presence, but also the speed, angle, and distance of moving objects up to 8 meters away. Unlike traditional PIR sensors that rely on heat signatures, the radar can operate effectively in complete darkness, through walls, fog, or dust, and is immune to common false triggers like pets or sunlight. At the core of the system is the Beetle ESP32-C6, a compact and ultra-efficient microcontroller that processes incoming radar data in real-time. It runs a smart detection engine that filters out non-threatening movements and classifies potential intrusions. Once a threat is detected, the ESP32-C6 triggers visual and audio alerts (LEDs and buzzer), logs the event, and updates a web-based dashboard where users can view a live radar visualization, adjust settings, and remotely arm or disarm the system.


Demo Video





Web Interface and Visualization

The ESP32 hosts a web server. Users can connect over Wi-Fi and:

Set radar detection distance threshold

  1. Set radar detection distance threshold
  2. Configure alarm duration (how long the buzzer sounds and LED blinks)
  3. Toggle the alarm system on/off
  4. View radar detection visualization as a 120° sweep
  5. Monitor real-time detection updates

Radar detections are plotted in a JavaScript canvas element, forming an arc-based visual similar to marine radar.

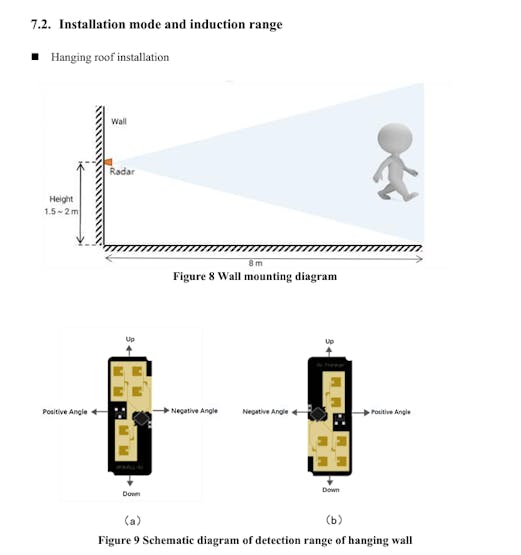

Proper Sensor Mounting Recommendation by Ai Thinker




Use Case Scenarios

  1. Monitor home entryways for motion through windows or glass
  2. Detect presence even when an intruder stands still
  3. Smart energy management (lights turn off when no one is in the room)
  4. Elderly care systems to detect occupancy without cameras




Home Assistant Integration (Optional)

Use MQTT or REST API endpoints to connect the radar to your Home Assistant dashboard.

  1. Use MQTT or REST API endpoints to connect the radar to your Home Assistant dashboard.
  2. Trigger automations like:
  3. Turning on lights
  4. Sending alerts
  5. Activating cameras




Performance Optimization

  1. Sensor Placement: Mount at optimal height (2-3 meters) for best coverage
  2. Environmental Factors: Consider weather shielding for outdoor installations
  3. Network Optimization: Use dedicated IoT network for best performance




Future Enhancements

This project serves as a foundation for advanced security features:

  1. Custom PCB: For a more robust system
  2. Drone Integration: Automatic drone deployment for perimeter monitoring
  3. Professional Monitoring: Cloud-based security service integration
  4. Mobile App: Dedicated smartphone application for enhanced control




Conclusion: Smarter, Stronger Home Security

This DIY radar security system proves that advanced, reliable protection doesn't have to come with a high price tag. With the RD-03D sensor and ESP32-C6 Beetle, you get precise, weatherproof, and smart motion detection that outperforms traditional PIR setups. It's compact, battery-powered, and fully integrates with your smart home. Whether for a home, workshop, or remote property, this project delivers professional-grade security that adapts to your needs.




Well...

If you like the project, leave a like and let me know what you think about it in the comments, whether it is how you think I can improve or make it better. If you would like to contribute or collaborate don't hesitate to reach out.

Thankyou ;)




Downloads

  1. STL Files for Enclosure
  2. RD-03D Library
  3. Code (GitHub)
  4. RD-03D Datasheet
  5. Beetle ESP32-C6 Wiki
