RPi Pico – 3.5 Inch (320x480) HVGA TFT LCD (ILI9488) – Bitmap Image Photo Frame – Internal Flash
by PugazhM in Circuits > Raspberry Pi
18246 Views, 9 Favorites, 0 Comments
RPi Pico – 3.5 Inch (320x480) HVGA TFT LCD (ILI9488) – Bitmap Image Photo Frame – Internal Flash
The photo frame experimentation is about interfacing 320x480 HVGA TFT LCD with Raspberry Pi Pico. This experiment displays, internally stored images on TFT LCD screen. It uses python program for implementing file read, bitmap image handling functionalities.
Video link
Abstract
The Raspberry Pi Pico is a tiny, fast, and versatile board built using RP2040 features a dual-core Arm Cortex-M0+ processor with 264KB internal RAM and support for up to 16MB of off-chip Flash. It provides wide range of flexible I/O options includes I2C, SPI, and uniquely Programmable I/O (GPIO) pins.
Nowadays beautiful TFT LCD screens are getting cheaper and using it in an embedded design, makes it more user friendly. In this instruct-able, explains about connecting the 320x480, 3.5Inch TFT LCD, with ILI9488 driver and SPI interfacing into Raspberry Pi Pico. The TFT LCD can be connected to the Raspberry Pi Pico SPI bus. It needs minimum number of port pins (4).
The photo frame experimentation is about interfacing 320x480 TFT LCD with Raspberry Pi Pico. This experiment displays, internally stored images on TFT screen. It uses python program for implementing file read, bitmap image handling functionalities.
Reference
“Raspberry Pi Pico, Getting Started on Board Blink LED” Instruct-able / You-tube by PugazhM
Components
Raspberry Pi Pico
Micro USB Cable
320x480, ILI9488 SPI TFT LCD
Schematic
The TFT LCD (3.5 inch, 320x480 pixel, ILI9488 LCD controller), is used for this instruct-able.
The LCD is easily interfaced with RPi Pico SPI bus, and it needs minimum of four Digital IO lines.
The ILI9488 LCD Controller is a 16.7M single-chip SoC driver for a-Si TFT liquid crystal display panels with a resolution of 320(RGB) x 480 dots.
The ILI9488 is comprised of a 960-channel source driver, a 480-channel gate driver, 345,600 bytes of on chip GRAM for graphic data of 320 (RGB) (H) x 480 (V) x 18 dots.
The LCD operates at 3.3 Volt Logic.
The ILI9488 supports 8-colors display and sleep mode power management functions, ideal for portable products where battery power conservation is desirable, such as digital cellular phones, smart phones, MP3 players, personal media players and similar devices with color graphics displays.

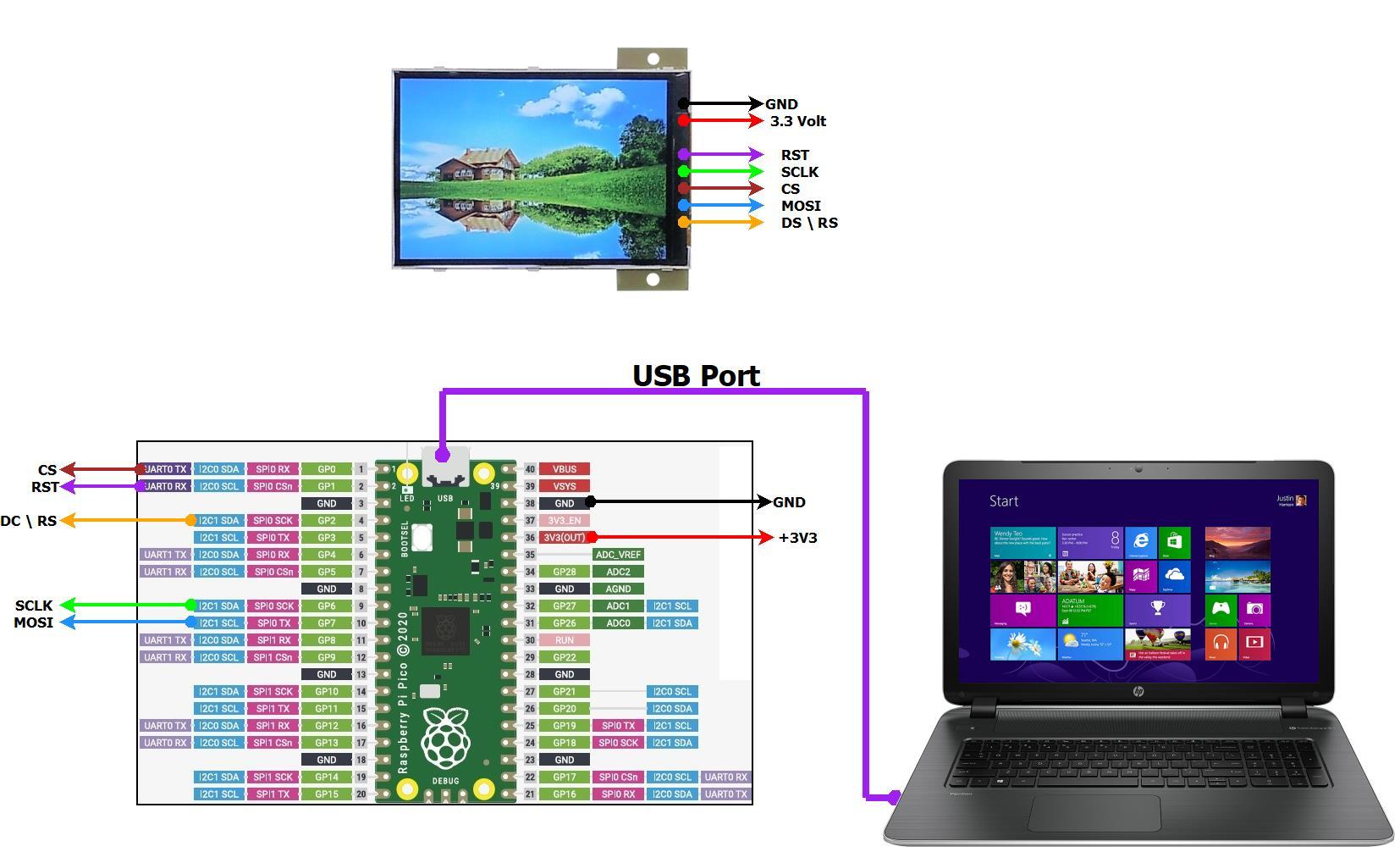

RPi Pico SPI port is connected to the LCD (GPIO6 - SCLK, and GPIO7 – MOSI).
RPi Pico GPIO pin GPIO0, GPIO1 and GPIO2 are connected to CS, RST and DC\RS pin of TFT LCD.
Bitmap Header and Image File Manipulation
All of the integer values in a bitmap file are stored in little-endian format (i.e., least-significant byte first) The first 2 bytes of the BMP file format are the character "B" then the character "M" in ASCII encoding.
Next 4 bytes (0x02 to 0x05) BMP file providing the file size. Next 4 bytes (0x05 to 0x09) BMP file are reserved.
Next 4 bytes (0x0A to 0x0D) BMP file providing the offset, i.e., starting address, of the byte where the bitmap image data (pixel array) can be found. Next 4 bytes (0x0E to 0x11) BMP file provides size of the header.
Next 2 bytes (0x12 to 0x13) BMP file provides width of the BMP image, in pixels. Next 2 bytes (0x14 to 0x15) BMP file provides height of the BMP image, in pixels.
Next 2 bytes (0x16 to 0x17) BMP file provides number of color planes.
Next 2 bytes (0x18 to 0x19) BMP file provides number of bits per pixel. Since the 320x480 (ILI9488) TFT supports RGB565, and flash memory storage is limited, then one has to convert the BMP files into RG565 (16-bit format), and re-size the image to 480 width, 320 height or smaller
The 480x320 image, approximate BMP file size is 300KB. (480x320x2 = 307200 bytes + header size)
RPi Pico provides 2MB of storage space. MicroPython uses, around 600KB. 1.4 MB flash memory is available storing the bitmap files.
The GIMP is free, and open-source raster graphics editor for image manipulation and editing.
Open an image file into GIMP. Edit and resize the image into 480x320 or lesser. Export the file into RGB565 BMP format. File -- Export as -- image.bmp -- Advanced option -- 16 Bits -- R5 G6 B5
Python Program – 320x480 TFT, Bitmap File Handling
Open the RPi Pico as drive, and then copy the bitmap files into root directory.
The timer_one is initialized and callbacks the “BlinkLED” functionality for toggling on board LED at 500mS duration. (frequency = 1)
The TFT LCD class provides basic firmware functionalities like Init, ResetDevice, WriteDevice, WriteDataToDevice, WriteBlock and FillRectangle.
The python program, initializes ILI9433 TFT LCD with SPI interface.
The python program reads the bitmap files, and screens one after another at 3 seconds interval.
'''
Demonstrates the use of 320x480 HVGA TFT (ILI9488) TFT, initialization and internal flash photo frame application Draw Bitmap files (BMP) on screen * The Raspberry Pi Pico pin connections for TFT is given below: # TFT Power Pins * TFT VCC pin to 3V3 * TFT GND pin to GND # TFT SPI Pins * TFT SCLK pin to GPIO6 * TFT MOSI pin to GPIO7 * TFT CS pin to GPIO0 # TFT Control Pins * TFT RST pin to GPI01 * TFT RS\DC pin to GPIO2 Name:- M.Pugazhendi Date:- 24thAug2021 Version:- V0.1 e-mail:- muthuswamy.pugazhendi@gmail.com '''
from micropython import const from machine import Pin, SPI import time, os, ustruct
READ_DISPLAY = const(0x0f);SLEEP_OUT = const(0x11);GAMMA_SET = const(0x26);DISPLAY_ON = const(0x29) COLUMN_ADDRESS_SET = const(0x2a);PAGE_ADDRESS_SET = const(0x2b);RAM_WRITE = const(0x2c);RAM_READ = const(0x2e) MEMORY_ACCESS_CONTROL = const(0x36);VER_SCROLL_ADDRESS = const(0x37);NEG_GAMMA_CONTROL = const(0xe1) PIXEL_FORMAT_SET = const(0x3a);POWER_CONTROL_A = const(0xcb);POWER_CONTROL_B = const(0xcf) DRIVER_TIMING_CONTROL_A = const(0xe8);DRIVER_TIMING_CONTROL_B = const(0xea);POWER_ON_CONTROL = const(0xed) PUMP_RATIO_CONTROL = const(0xf7);POWER_CONTROL_1 = const(0xc0);POWER_CONTROL_2 = const(0xc1) VCOM_CONTROL_1 = const(0xc5);VCOM_CONTROL_2 = const(0xc7);FRAME_RATE_CONTROL = const(0xb2) DISPLAY_FUNCTION_CONTROL = const(0xb6);ENABLE_3G = const(0xf2);POS_GAMMA_CONTROL = const(0xe0)
MEMORY_BUFFER = const(1024) # SPI Write Buffer
class ILI9488: def __init__(self, spi, cs, dc, rst, w, h, r): self.spi = spi;self.cs = cs;self.dc = dc;self.rst = rst self.init_width = w;self.init_height = h self.width = w;self.height = h;self.rotation = r self.cs.init(self.cs.OUT, value=1);self.dc.init(self.dc.OUT, value=0) self.rst.init(self.rst.OUT, value=0) self.ResetDevice() self.Init() self.buffer = bytearray(MEMORY_BUFFER * 2) self.color_map = bytearray(b'\x00\x00\xFF\xFF') #default white foregraound, black background self.screen_x = 0;self.screen_y = 0 def SetPosition(self,x,y): self.screen_x,self.screen_y = x,y
def Init(self): for command, data in ( (READ_DISPLAY, b"\x03\x80\x02"),(POWER_CONTROL_B, b"\x00\xc1\x30"), (POWER_ON_CONTROL, b"\x64\x03\x12\x81"),(DRIVER_TIMING_CONTROL_A, b"\x85\x00\x78"), (POWER_CONTROL_A, b"\x39\x2c\x00\x34\x02"),(PUMP_RATIO_CONTROL, b"\x20"), (DRIVER_TIMING_CONTROL_B, b"\x00\x00"),(POWER_CONTROL_1, b"\x23"), (POWER_CONTROL_2, b"\x10"),(VCOM_CONTROL_1, b"\x3e\x28"),(VCOM_CONTROL_2, b"\x86")): self.WriteDevice(command, data)
if self.rotation == 0: # 0 deg self.WriteDevice(MEMORY_ACCESS_CONTROL, b"\x48") self.width,self.height = self.init_height,self.init_width elif self.rotation == 1: # 90 deg self.WriteDevice(MEMORY_ACCESS_CONTROL, b"\x28") self.width,self.height = self.init_width,self.init_height elif self.rotation == 2: # 180 deg self.WriteDevice(MEMORY_ACCESS_CONTROL, b"\x88") self.width,self.height = self.init_height,self.init_width elif self.rotation == 3: # 270 deg self.WriteDevice(MEMORY_ACCESS_CONTROL, b"\xE8") self.width,self.height = self.init_width,self.init_height elif self.rotation == 4: # Mirrored + 0 deg self.WriteDevice(MEMORY_ACCESS_CONTROL, b"\xC8") self.width,self.height = self.init_height,self.init_width elif self.rotation == 5: # Mirrored + 90 deg self.WriteDevice(MEMORY_ACCESS_CONTROL, b"\x68") self.width,self.height = self.init_width,self.init_height elif self.rotation == 6: # Mirrored + 180 deg self.WriteDevice(MEMORY_ACCESS_CONTROL, b"\x08") self.width,self.height = self.init_height,self.init_width elif self.rotation == 7: # Mirrored + 270 deg self.WriteDevice(MEMORY_ACCESS_CONTROL, b"\xA8") self.width,self.height = self.init_width,self.init_height else: self.WriteDevice(MEMORY_ACCESS_CONTROL, b"\x08")
for command, data in ( (PIXEL_FORMAT_SET, b"\x55"),(FRAME_RATE_CONTROL, b"\x00\x18"), (DISPLAY_FUNCTION_CONTROL, b"\x02\x02\x3B"),(ENABLE_3G, b"\x00"),(GAMMA_SET, b"\x01"), (POS_GAMMA_CONTROL, b"\x0f\x31\x2b\x0c\x0e\x08\x4e\xf1\x37\x07\x10\x03\x0e\x09\x00"), (NEG_GAMMA_CONTROL, b"\x00\x0e\x14\x03\x11\x07\x31\xc1\x48\x08\x0f\x0c\x31\x36\x0f")): self.WriteDevice(command, data) self.WriteDevice(SLEEP_OUT) time.sleep_ms(120) self.WriteDevice(DISPLAY_ON)
def ResetDevice(self): self.rst(0);time.sleep_ms(50);self.rst(1);time.sleep_ms(50)
def WriteDevice(self, command, data=None): self.dc(0) self.cs(0) self.spi.write(bytearray([command])) self.cs(1) if data is not None: self.WriteDataToDevice(data)
def WriteDataToDevice(self, data): self.dc(1);self.cs(0);self.spi.write(data);self.cs(1)
def WriteBlock(self, x0, y0, x1, y1, data=None): self.WriteDevice(COLUMN_ADDRESS_SET, ustruct.pack(">HH", x0, x1)) self.WriteDevice(PAGE_ADDRESS_SET, ustruct.pack(">HH", y0, y1)) self.WriteDevice(RAM_WRITE, data)
def FillRectangle(self, x, y, w, h, color=None): x = min(self.width - 1, max(0, x));y = min(self.height - 1, max(0, y)) w = min(self.width - x, max(1, w));h = min(self.height - y, max(1, h)) if color: color = ustruct.pack(">H", color) else: color = self.color_map[0:2] #background for i in range(MEMORY_BUFFER): self.buffer[2*i]=color[0]; self.buffer[2*i+1]=color[1] chunks, rest = divmod(w * h, MEMORY_BUFFER) self.WriteBlock(x, y, x + w - 1, y + h - 1, None) if chunks: for count in range(chunks): self.WriteDataToDevice(self.buffer) if rest != 0: mv = memoryview(self.buffer) self.WriteDataToDevice(mv[:rest*2]) #Initialize the onboard LED as output led = machine.Pin(25,machine.Pin.OUT)
# Toggle LED funtionality def BlinkLED(timer_one): led.toggle()
# https://forum.micropython.org/viewtopic.php?t=1420 Roberthh @micropython.asm_thumb def reverse(r0, r1): # bytearray, len(bytearray) b(loopend) label(loopstart) ldrb(r2, [r0, 0]) ldrb(r3, [r0, 1]) strb(r3, [r0, 0]) strb(r2, [r0, 1]) add(r0, 2) label(loopend) sub (r1, 2) # End of loop? bpl(loopstart)
SCR_WIDTH,SCR_HEIGHT,SCR_ROT = const(480),const(320),const(5)
TFT_CLK_PIN,TFT_MOSI_PIN,TFT_MISO_PIN,TFT_CS_PIN = const(6),const(7),const(4),const(0) TFT_RST_PIN,TFT_DC_PIN = const(1),const(2)
spi = SPI(0,baudrate=40000000,miso=Pin(TFT_MISO_PIN),mosi=Pin(TFT_MOSI_PIN),sck=Pin(TFT_CLK_PIN)) display = ILI9488(spi,cs=Pin(TFT_CS_PIN),dc=Pin(TFT_DC_PIN),rst=Pin(TFT_RST_PIN),w=SCR_WIDTH,h=SCR_HEIGHT,r=SCR_ROT)
display.SetPosition(0,0);display.FillRectangle(0,0,480,320,0xBDF7)
# Read files. bitmap_image_files = os.listdir("/")
#Initialize timer_one. Used for toggling the on board LED timer_one = machine.Timer() #Timer one initialization for on board blinking LED at 500mS interval timer_one.init(freq=1, mode=machine.Timer.PERIODIC, callback=BlinkLED)
# Opens bitmap file. Displays the file @ 3 Sec interval while True: for x in range(len(bitmap_image_files)): # Open file f = open(bitmap_image_files[x],'rb') # Check if it bitmap file if f.read(2) == b'BM': #header dummy = f.read(8) #file size(4), creator bytes(4) offset = int.from_bytes(f.read(4), 'little') hdrsize = int.from_bytes(f.read(4), 'little') width = int.from_bytes(f.read(4), 'little') height = int.from_bytes(f.read(4), 'little') MEM_SIZE = 5*1024 x = (SCR_WIDTH / 2) - (width / 2) y = (SCR_HEIGHT / 2) - (height / 2) if((width*height*2)>MEM_SIZE): no_of_read_buffer,balance_memory_size = (width*height*2)/MEM_SIZE, (width*height*2)%MEM_SIZE else: no_of_read_buffer = 0 balance_memory_size = (width*height*2) x = int(x) y = int(y) no_of_read_buffer = int(no_of_read_buffer) balance_memory_size = int(balance_memory_size)
if(no_of_read_buffer == 0): display.WriteBlock(x,y,x+width - 1, y+height - 1,None) dummy = f.seek(offset) buf = f.read(width*height*2) reverse(buf,width*height*2) display.WriteDataToDevice(buf) time.sleep(5) else: if(width%2 == 0x00): display.WriteBlock(x,y,x+width-1, y+height - 1,None) else: display.WriteBlock(x,y,x+width, y+height - 1,None)
for i in range(no_of_read_buffer): p = offset + (i*MEM_SIZE) dummy = f.seek(p) buf = f.read(MEM_SIZE) reverse(buf,MEM_SIZE) display.WriteDataToDevice(buf) p = offset + (no_of_read_buffer*MEM_SIZE) dummy = f.seek(p) buf = f.read(balance_memory_size) reverse(buf,balance_memory_size) display.WriteDataToDevice(buf) time.sleep(3) # Close file f.close() display.FillRectangle(0,0,480,320,0xBDF7)
Conclusion
The project is successfully completed with Raspberry Pi Pico and 320x480
TFT LCD shield 320x480 HVGA shield represent flexible in expensive display technology and can be used for many embedded projects as mixed image and alpha numerical display. It consumes less power.
Video Link
Result_Video.mp4
Visit "VESZLE - The Art Of Electronics" you tube channel for further information and videos.
https://www.youtube.com/channel/UCY4mekPLfeFinbQH...
If you enjoyed this instruct-able, then make sure you subscribe
The 320x480 TFT LCD Phot frame video link
https://youtu.be/Nv5WN5LceFg
