ROAD AND PEDESTRIAN TRAFFIC LIGHTS MODULE

WhatsApp Image 2022-08-23 at 2.56.06 PM.jpeg

In this project we will see the modules for models where we can use pedestrian traffic lights as roads.

Many times we have made traffic light projects either with digital electronics, logic gates, arduino, PIC, etc., but we have used protoboards and many other things to carry it out in a project or model.

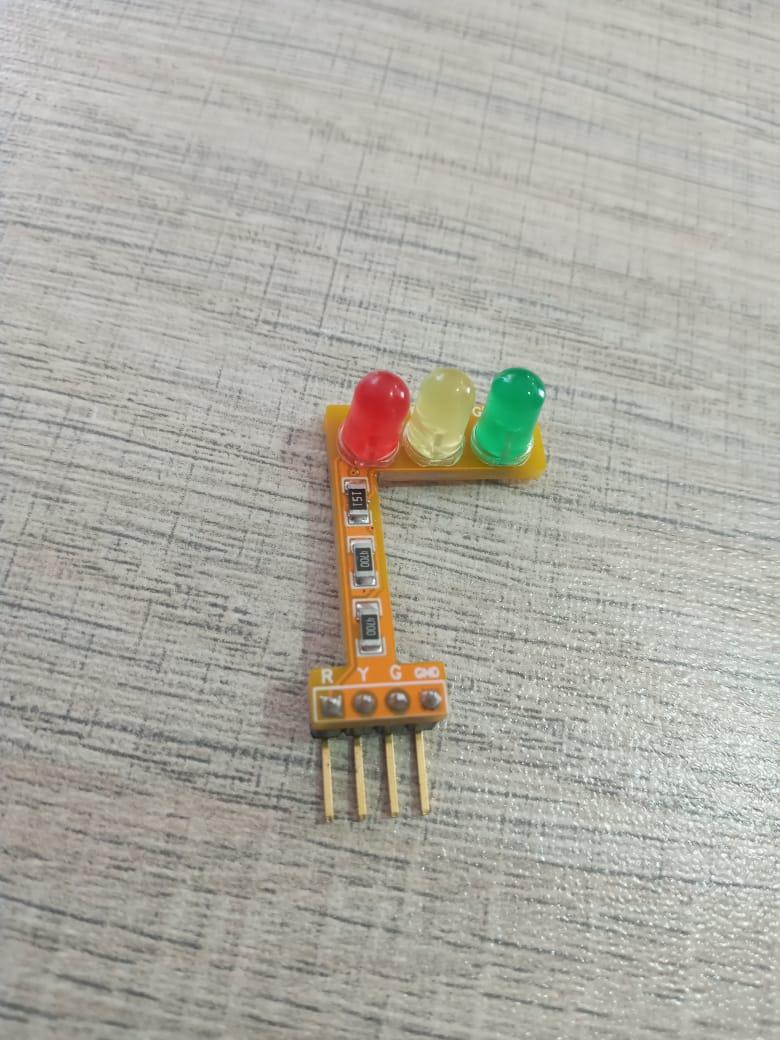

But I set out to make it professional and design a traffic light shape for my mockup.

Supplies

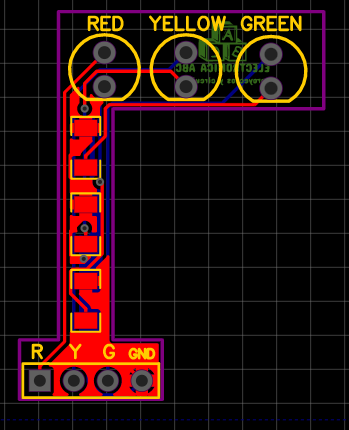

GERBER PEATONAL:

https://mega.nz/file/OUIAiKxA#O7bsMo3XUvRFhojOuNdCDcOC3yCxqX67DT_KUj-jowo

GERBER VIAL:

https://mega.nz/file/WV4x0LBT#7xrKb0Je15OlGMIISylk1ppi5-rsqAl4v2l-gkHGk-4

TRAFFIC LIGHT:

A traffic light is an electrical device that serves to organize traffic on the streets of our towns and cities.

If you look closely you will see that there is a traffic light for vehicles and a different one for people who are walking.

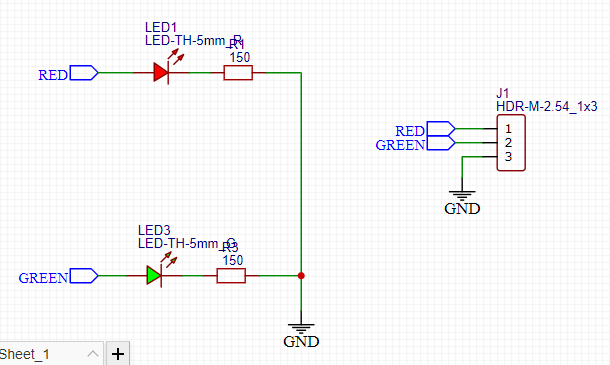

SCHEMATIC DIAGRAM AND OPERATION:

We will see the schematic diagram and the very easy operation to do, it also has GND as a common point, that is to say that r, y, g has to receive a positive voltage to turn on, we can do this in many ways as we require from our projects can be such as FLIP FLOPS, ARDUINO, logic gates, PIC, ETC.
