RGB Lamp Controlled Using Bluetooth

RGB Led Controlled Using Bluetooth

in this tutorial i modulate the PWM duty cycle to produce different colours from your LED, Using a Smartphone

Materials Required

téléchargement (1).jpg

- Arduino Uno R3

- Mini Breadboard

- 220 Ohm Resistors

- RGB LED

- Jumper Wires

- USB Cable For Arduino

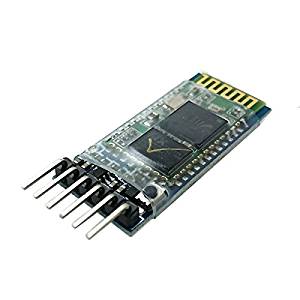

- HC-05

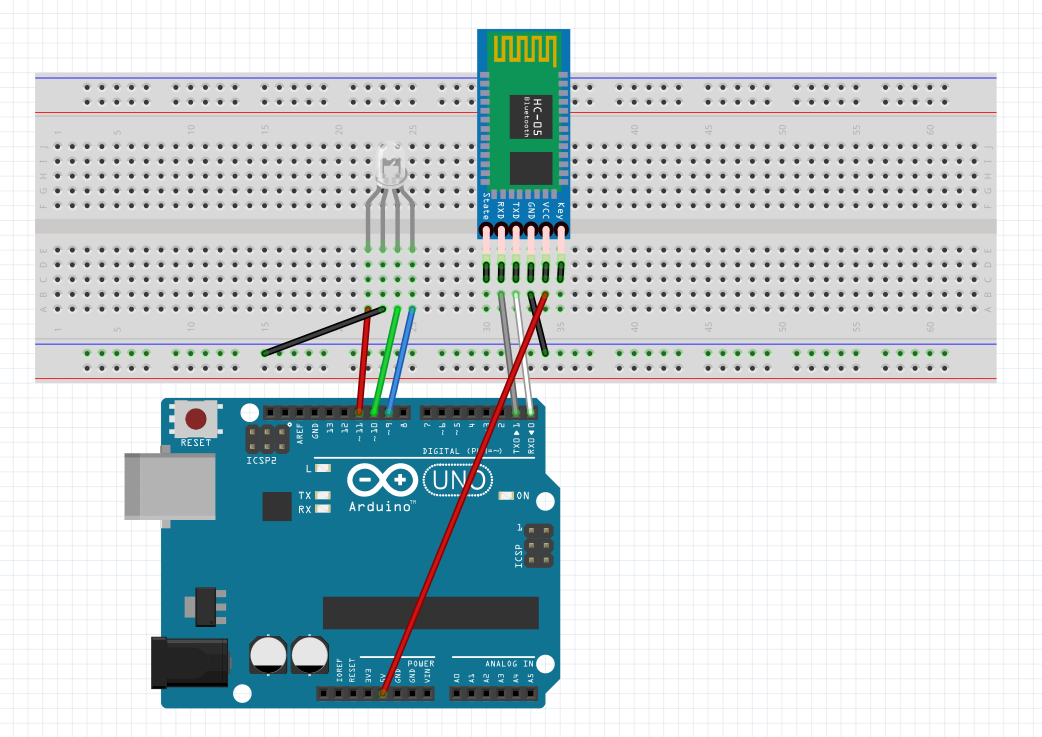

Assembly


The Code

The Code is on GitHub ===) click here

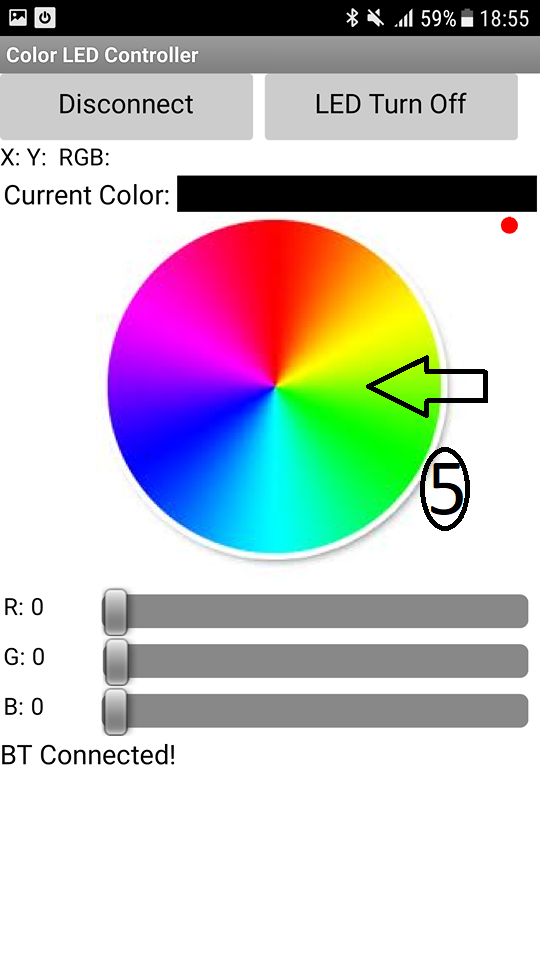

The Application on Smartphone


Download: Color LED Controller

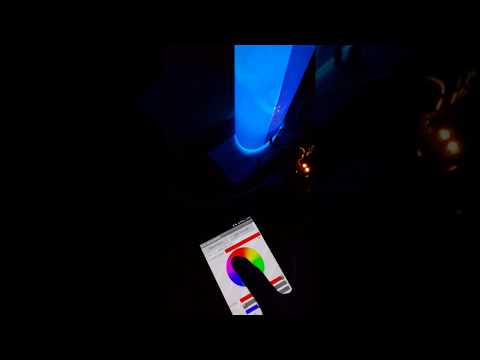

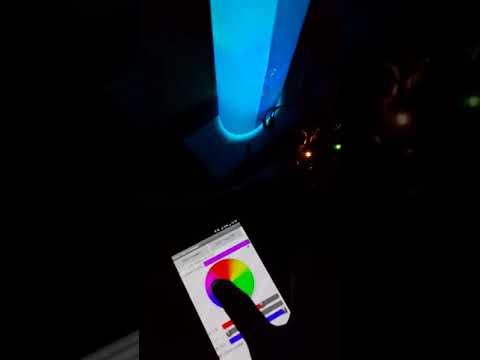

Enjoy !
