RGB LED Goggles

by Mukesh_Sankhla in Circuits > Arduino

1558 Views, 5 Favorites, 0 Comments

RGB LED Goggles


Hey there I have made a RGB LED Goggles using wps2812 LED Strip.I have built a Bluetooth app through which the pattern of LEDs can be controlled.

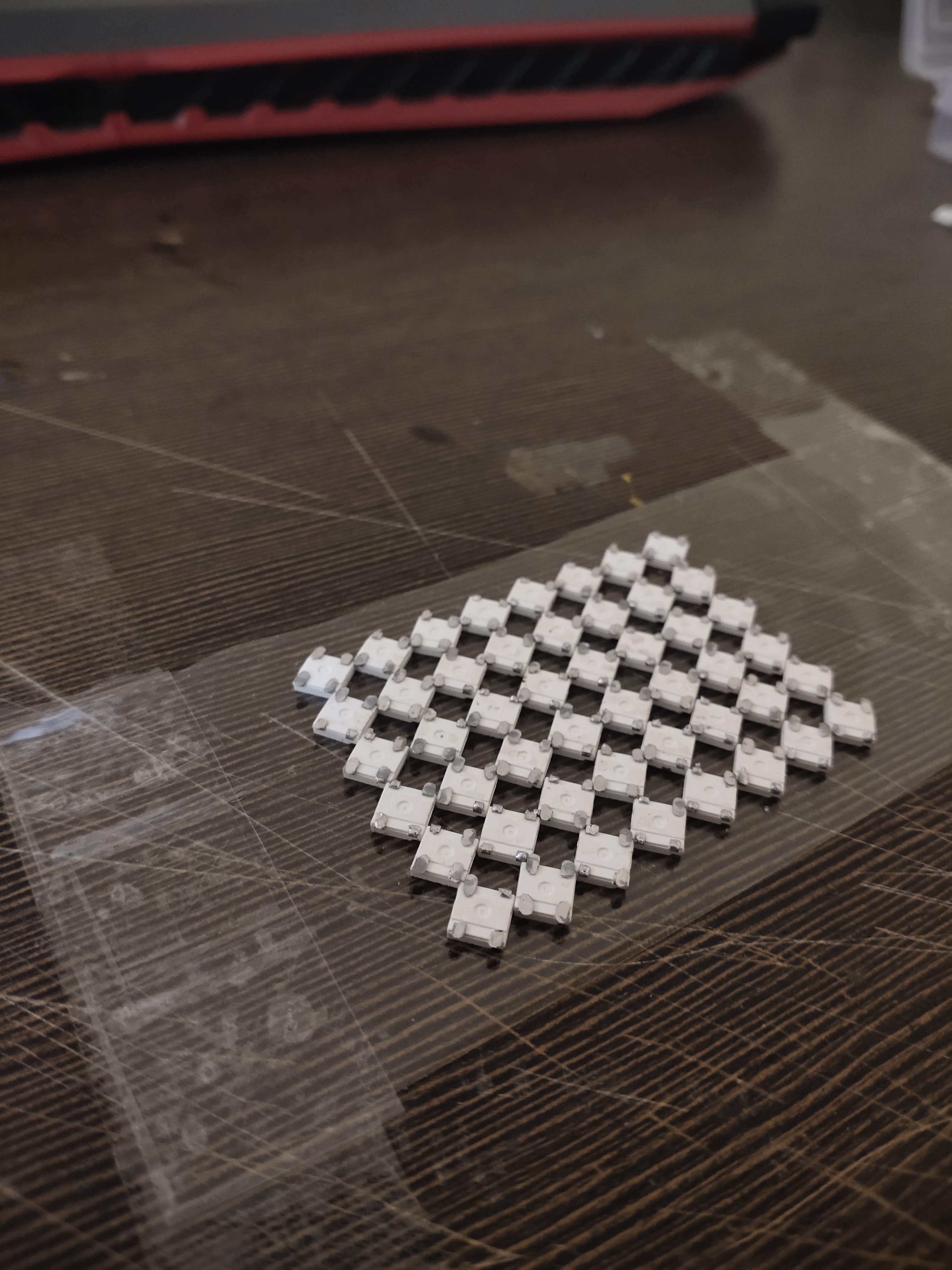

First of all I have cut the LED strip into individual pixels.Then Paced them on a plastic tape for support during soldering.The LEDs where placed diagonally so that GND,VCC,DataIN/DataOut pins doesn't overlap.I have soldered all the LEDs together and that's how it should look.


I have made two symmetric lenses and soldered them together.Connected a Arduino Nano and tested the connections.


Took a goggle frame and glued the LED network in it.
