DIY RGB Desk Name Plate
![RGB Name Plate.jpg](/proxy/?url=https://content.instructables.com/FU1/04F5/KOK1P23O/FU104F5KOK1P23O.jpg&filename=RGB Name Plate.jpg)
![RGB Name Plate | All project details available on my Instructables.](/proxy/?url=https://content.instructables.com/FCD/U4XU/KOK1P2KI/FCDU4XUKOK1P2KI.jpg&filename=RGB Name Plate | All project details available on my Instructables.)
![IMG_20210508_110112.jpg](/proxy/?url=https://content.instructables.com/FIV/HY30/KOK1P2FT/FIVHY30KOK1P2FT.jpg&filename=IMG_20210508_110112.jpg)
![IMG_20210508_110121.jpg](/proxy/?url=https://content.instructables.com/FXH/VTTF/KOK1P2FU/FXHVTTFKOK1P2FU.jpg&filename=IMG_20210508_110121.jpg)
![IMG_20210112_194050.jpg](/proxy/?url=https://content.instructables.com/FSD/WN05/KOK1P2O1/FSDWN05KOK1P2O1.jpg&filename=IMG_20210112_194050.jpg)
![IMG_20210112_194107.jpg](/proxy/?url=https://content.instructables.com/F5K/W6YF/KOK1P2O2/F5KW6YFKOK1P2O2.jpg&filename=IMG_20210112_194107.jpg)
![IMG_20210106_121230.jpg](/proxy/?url=https://content.instructables.com/F1O/20EQ/KOK1P2OU/F1O20EQKOK1P2OU.jpg&filename=IMG_20210106_121230.jpg)
RGB Desk Name Plate for a grand piece on your Office Desk.
Supplies
1. 12v RGB LED Strip - 16cm length
2. 9v Battery with terminal cap - 1
3. 3mm Acrylic sheet - 150mm X 50mm - 1
4. Wire - 2 colours each of 10cm
5. Switch - 15mmx10mm - 1 .
6. 3D Printed Parts
7. CNC Machine for engraving

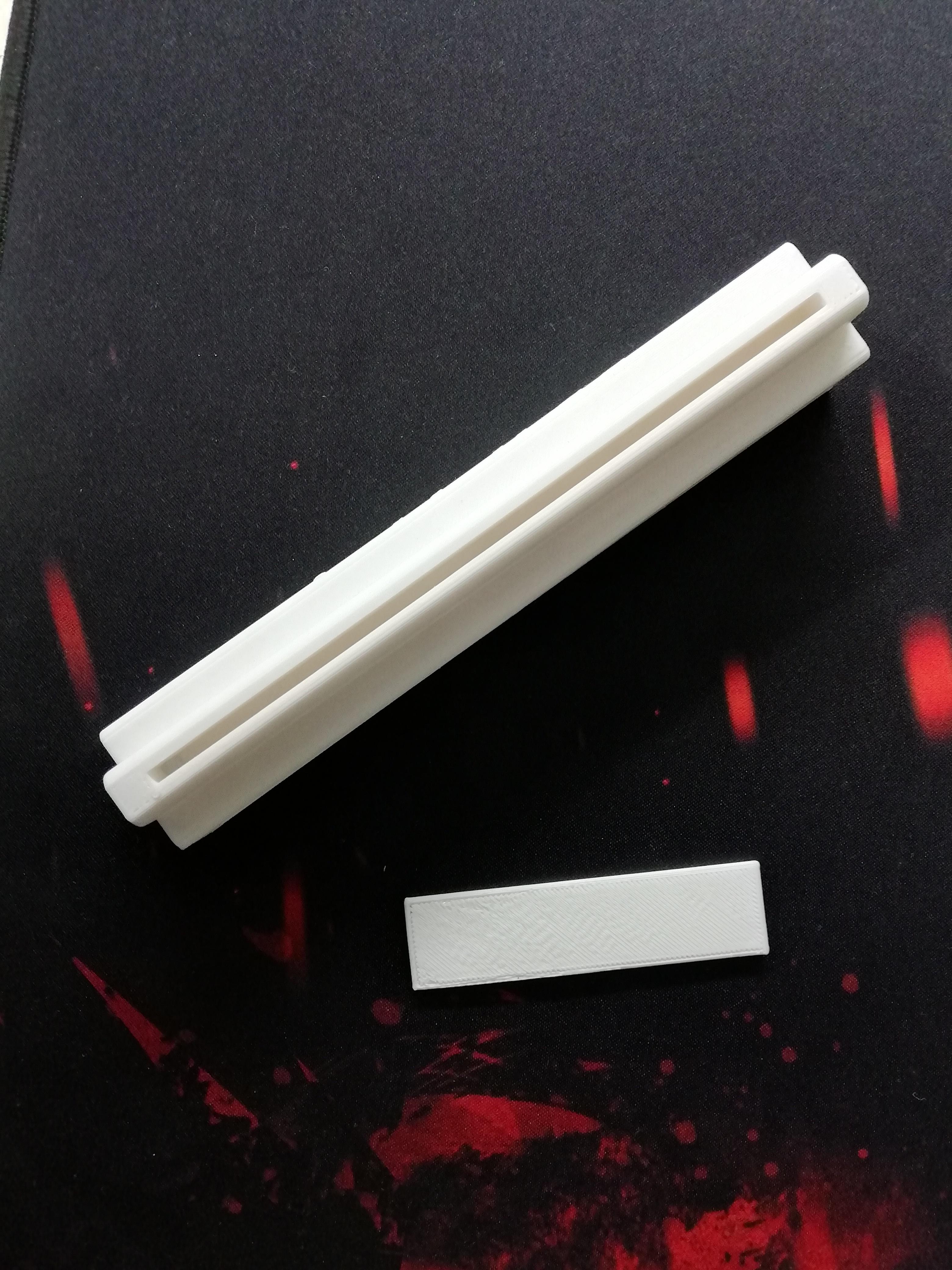

3D Print the STL Files (Design in Fusion360)
![IMG_20210101_171210.jpg](/proxy/?url=https://content.instructables.com/F6Z/RNR4/KOK1P23R/F6ZRNR4KOK1P23R.jpg&filename=IMG_20210101_171210.jpg)
![IMG_20210101_171239.jpg](/proxy/?url=https://content.instructables.com/FBH/25XY/KOK1P23S/FBH25XYKOK1P23S.jpg&filename=IMG_20210101_171239.jpg)
![RP Hobbyist Name plate v9.jpg](/proxy/?url=https://content.instructables.com/F5T/VW4I/KOK1P23P/F5TVW4IKOK1P23P.jpg&filename=RP Hobbyist Name plate v9.jpg)
![PSX_20210104_165913.jpg](/proxy/?url=https://content.instructables.com/FOE/VQQA/KOK1P23L/FOEVQQAKOK1P23L.jpg&filename=PSX_20210104_165913.jpg)
![RGB Name Plate | All project details available on my Instructables.](/proxy/?url=https://content.instructables.com/FFA/9A94/KOK1P2UA/FFA9A94KOK1P2UA.jpg&filename=RGB Name Plate | All project details available on my Instructables.)
I have provided Fusion360 file and STEP file so you can give your name on Name Plate. Otherwise you can use simply STL file with no name.
Note: Support needed.
Cut the Acrylic Sheet
![Dimension.PNG](/proxy/?url=https://content.instructables.com/FTF/MADV/KOK1P32Y/FTFMADVKOK1P32Y.png&filename=Dimension.PNG)
![acyrlic shhet.jpg](/proxy/?url=https://content.instructables.com/F98/W1E1/KOK1P32Z/F98W1E1KOK1P32Z.jpg&filename=acyrlic shhet.jpg)
![IMG_20201216_131316_939.jpg](/proxy/?url=https://content.instructables.com/F1V/PJGC/KOK1P330/F1VPJGCKOK1P330.jpg&filename=IMG_20201216_131316_939.jpg)

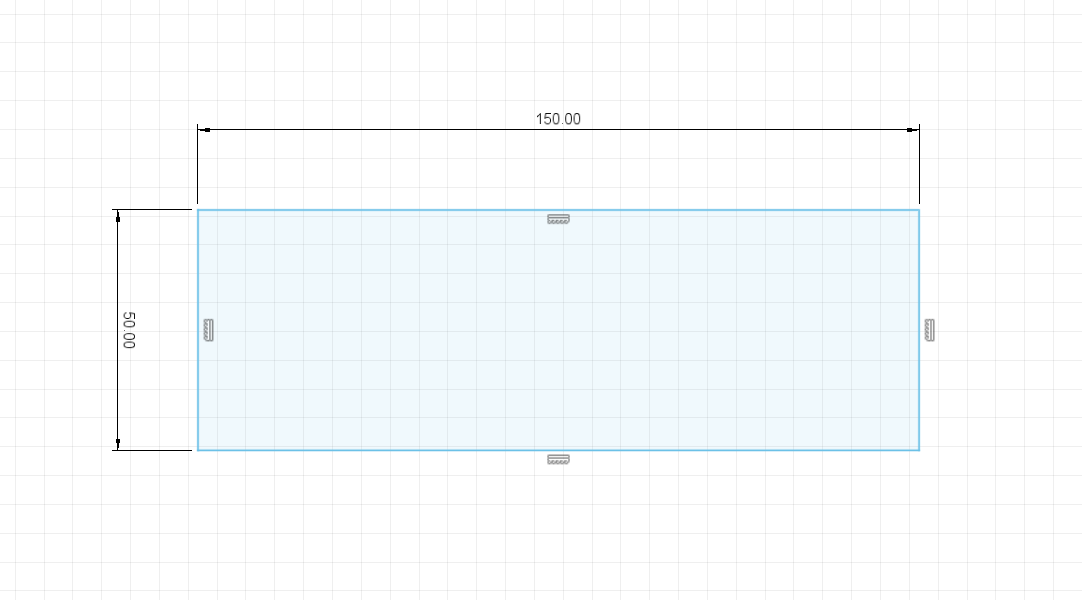

Dimensions are 150mm x 50mm.
Engraving the Acrylic Sheet (Gcode in Fusion360)
![IMG_20210107_094605_767.jpg](/proxy/?url=https://content.instructables.com/FRU/ZV0U/KOK1P2FK/FRUZV0UKOK1P2FK.jpg&filename=IMG_20210107_094605_767.jpg)
![IMG_20210107_094605_762.jpg](/proxy/?url=https://content.instructables.com/FE5/N2NT/KOK1P2FJ/FE5N2NTKOK1P2FJ.jpg&filename=IMG_20210107_094605_762.jpg)
![RGB Name Plate | All project details available on my Instructables.](/proxy/?url=https://content.instructables.com/FN1/EYVH/KOK1P3A6/FN1EYVHKOK1P3A6.jpg&filename=RGB Name Plate | All project details available on my Instructables.)
Engrave your Name on Acrylic sheet using CNC Machine.
Note : DIY Hack!!! If you don't have CNC Machine...
Step 1 : Print Your name on paper and stick on Acrylic sheet or use marker to write your name on Acrylic sheet.
Step 2 : Use sharp thing and start scratching (engraving) on Acrylic sheet.
Step 3 : Done!!
Solder the Pins R G B With Single Wire
![xdfgdsfg.jpg](/proxy/?url=https://content.instructables.com/FIO/3J57/KOK1P3IR/FIO3J57KOK1P3IR.jpg&filename=xdfgdsfg.jpg)
R, G, B should be connected on single wire.
Procedure for Connecting Componets
![IMG_20210103_093713.jpg](/proxy/?url=https://content.instructables.com/F9H/MHQA/KOK1P2BU/F9HMHQAKOK1P2BU.jpg&filename=IMG_20210103_093713.jpg)
![IMG_20210103_093709.jpg](/proxy/?url=https://content.instructables.com/FUE/SGDU/KOK1P2JS/FUESGDUKOK1P2JS.jpg&filename=IMG_20210103_093709.jpg)
![IMG_20210113_223640_965.jpg](/proxy/?url=https://content.instructables.com/F2B/QPQ6/KOK1P2FR/F2BQPQ6KOK1P2FR.jpg&filename=IMG_20210113_223640_965.jpg)
![IMG_20210103_094619.jpg](/proxy/?url=https://content.instructables.com/FYQ/XCKB/KOK1P2BX/FYQXCKBKOK1P2BX.jpg&filename=IMG_20210103_094619.jpg)
![IMG_20210106_121230.jpg](/proxy/?url=https://content.instructables.com/F4C/DV2K/KOK1P2FI/F4CDV2KKOK1P2FI.jpg&filename=IMG_20210106_121230.jpg)
![IMG_20210509_115600.jpg](/proxy/?url=https://content.instructables.com/FF2/Z19S/KOK1P2FV/FF2Z19SKOK1P2FV.jpg&filename=IMG_20210509_115600.jpg)

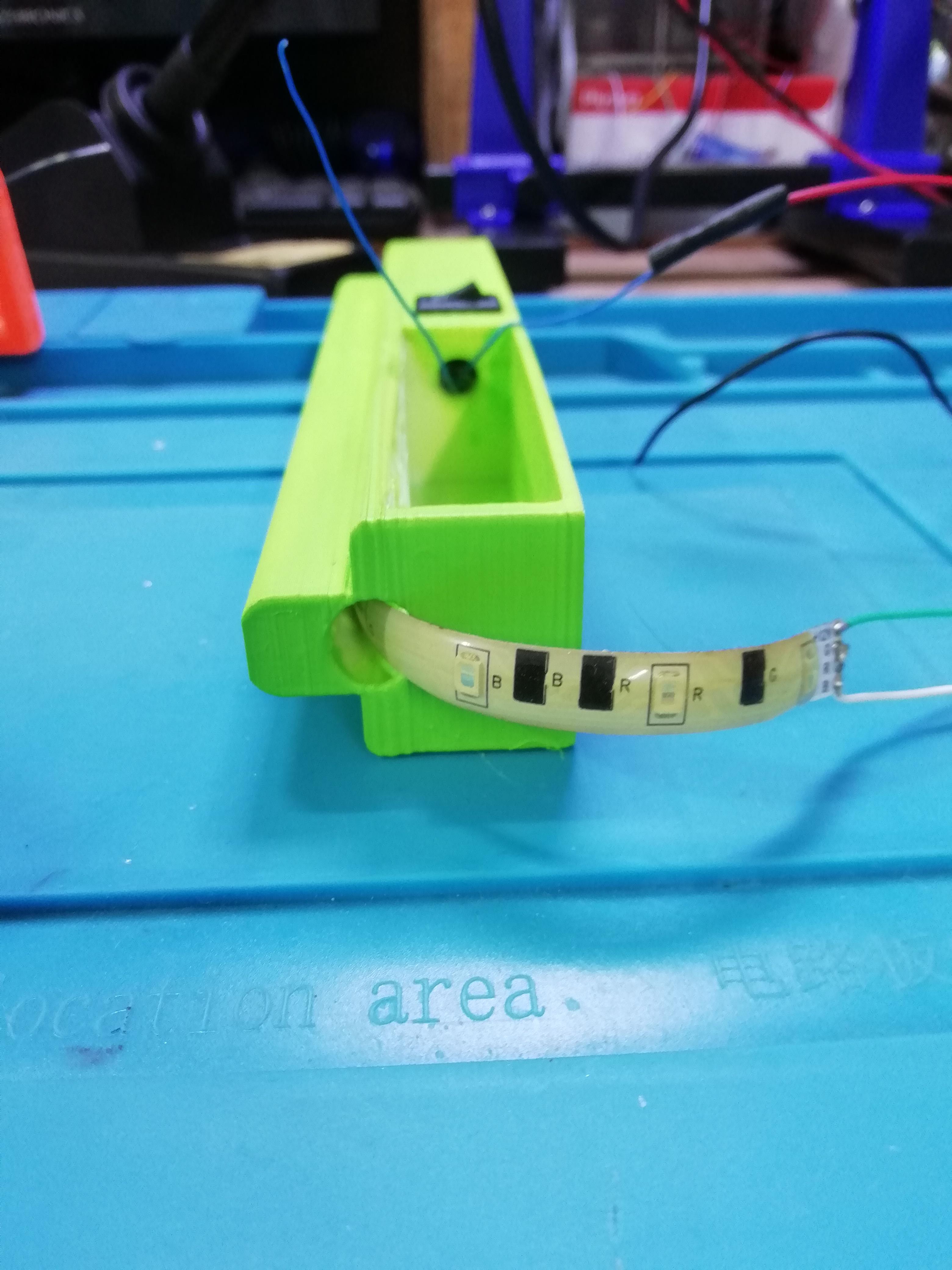

Step 1 : Solder two wire on Switch.
Step 2 : Insert the Switch.
Step 3 : Slide the led strip and Bend it inside the battery side.
Step 4 : Insert the small circle part where you inserted the LED Strip.
Step 5: Wire Connection
LED (+) --> Switch --> Battery (+)
LED (-) --> Battery (-)
Step 6: Connect the Battery and close the Back Lid.
Step 7: Insert the Acrylic Plate in the Name Plate. RGB Desk

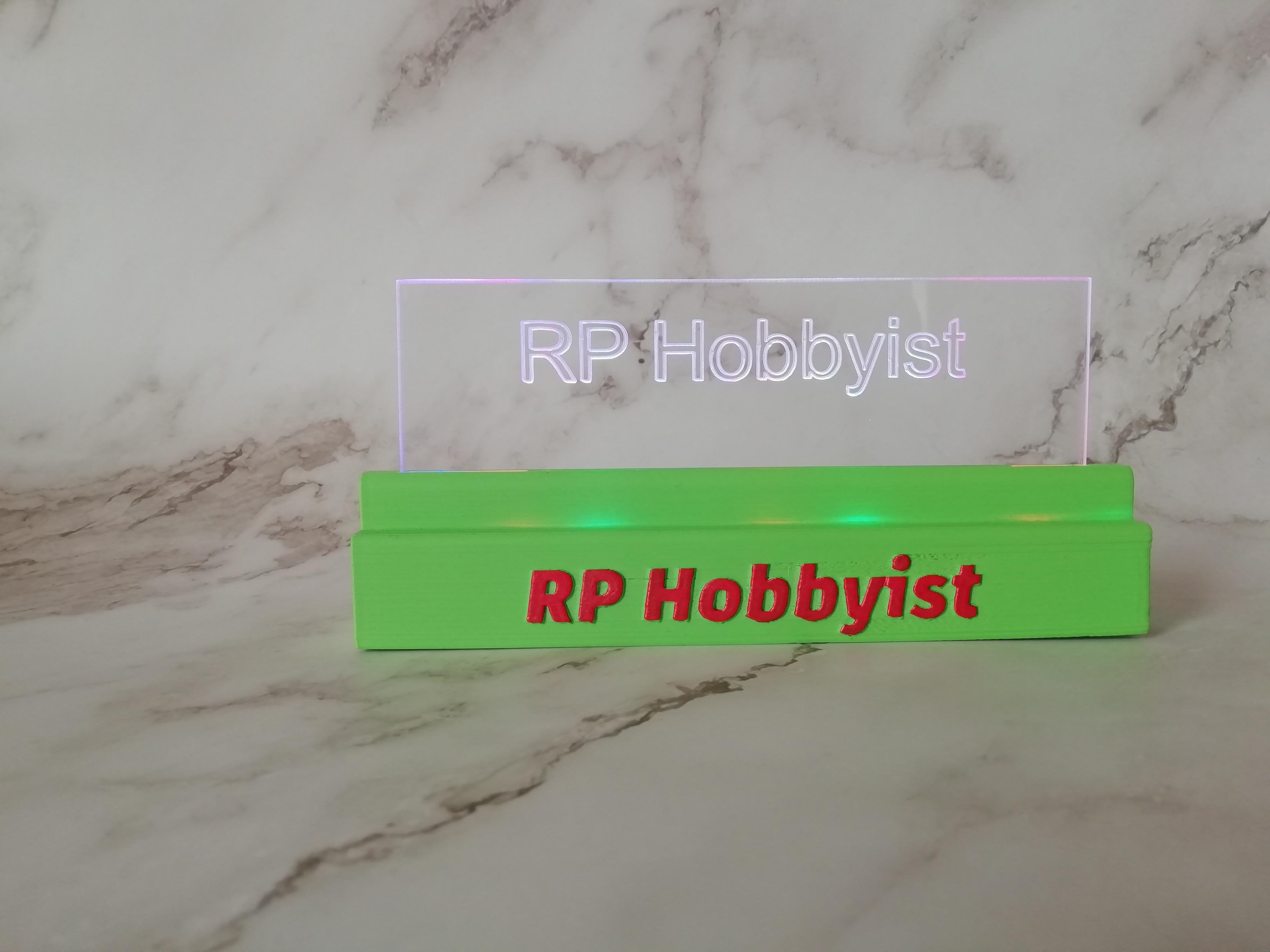

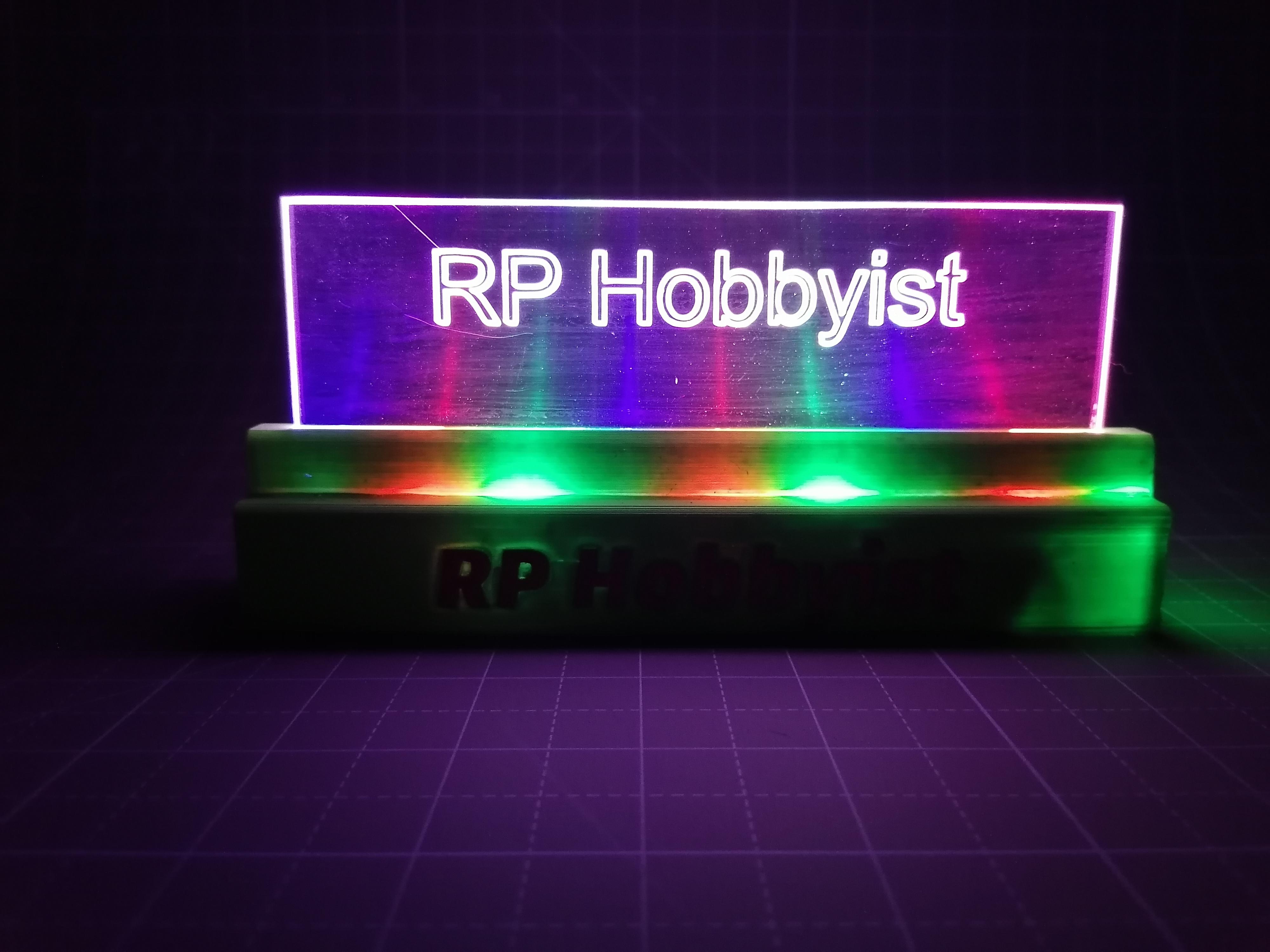

Result!!
