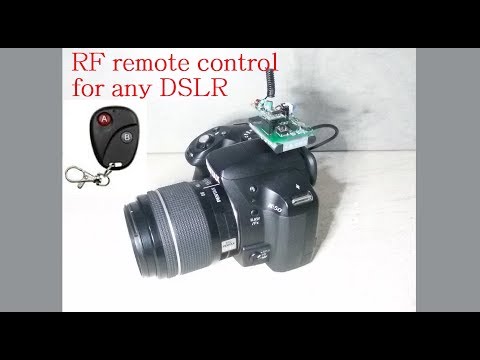

RF Remote Shutter for Any DSLR

it's good for stop motion and for less video editing

also you can use more than one receiver with the same contro

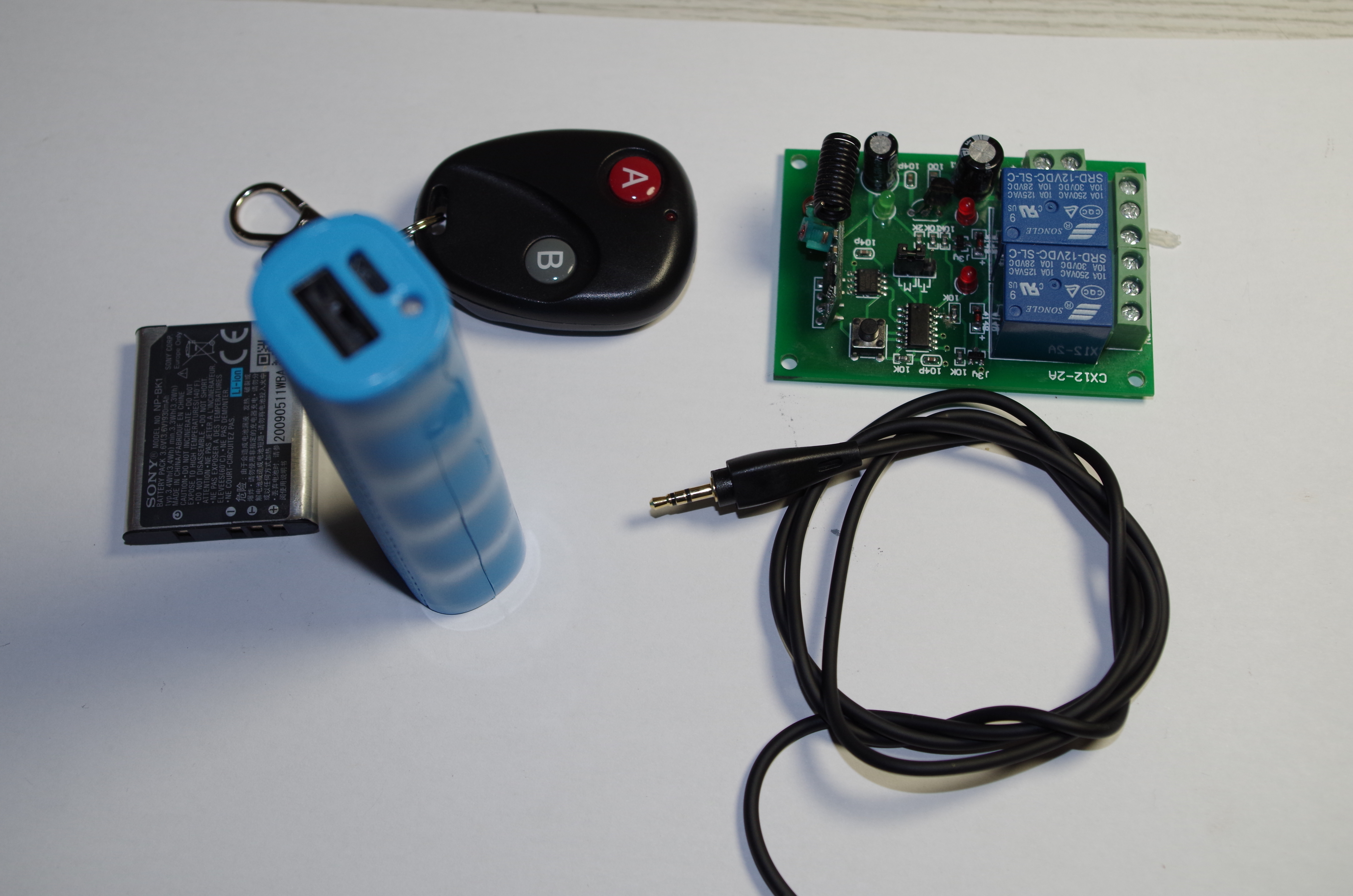

you need :

* wireless rf receiver 315/433 MHZ 12v 2 channels

* 315/433 MHZ control with 2 buttons

* audio jack cable

* 3,6v battery. (from mobile phone or digital camera)

* power bank

* a small switch

If you want, cut the pcb for smaller size of the project.

* remove the electrolytic capasitors and the lm7805

we don't need the lm7805 because we use a battery now

* cut with a dremel to remove the side of relays and the side of capacitors / lm7805

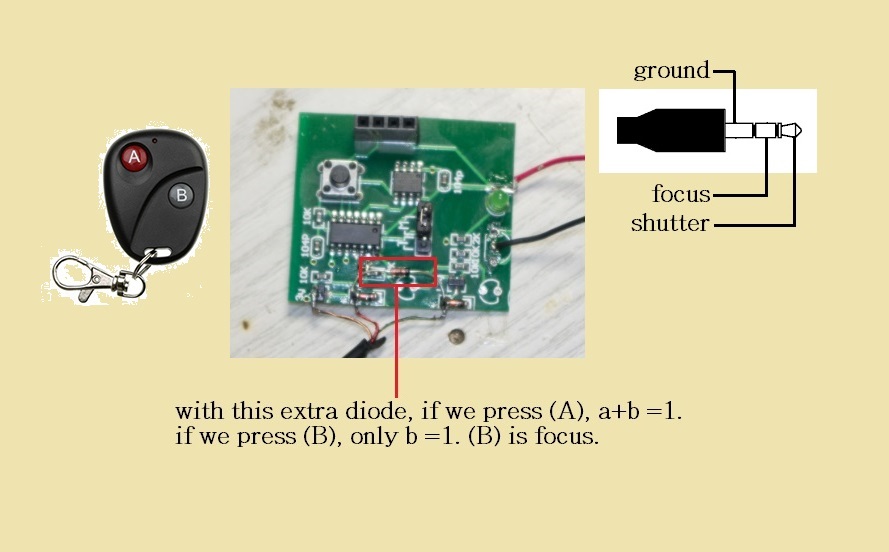

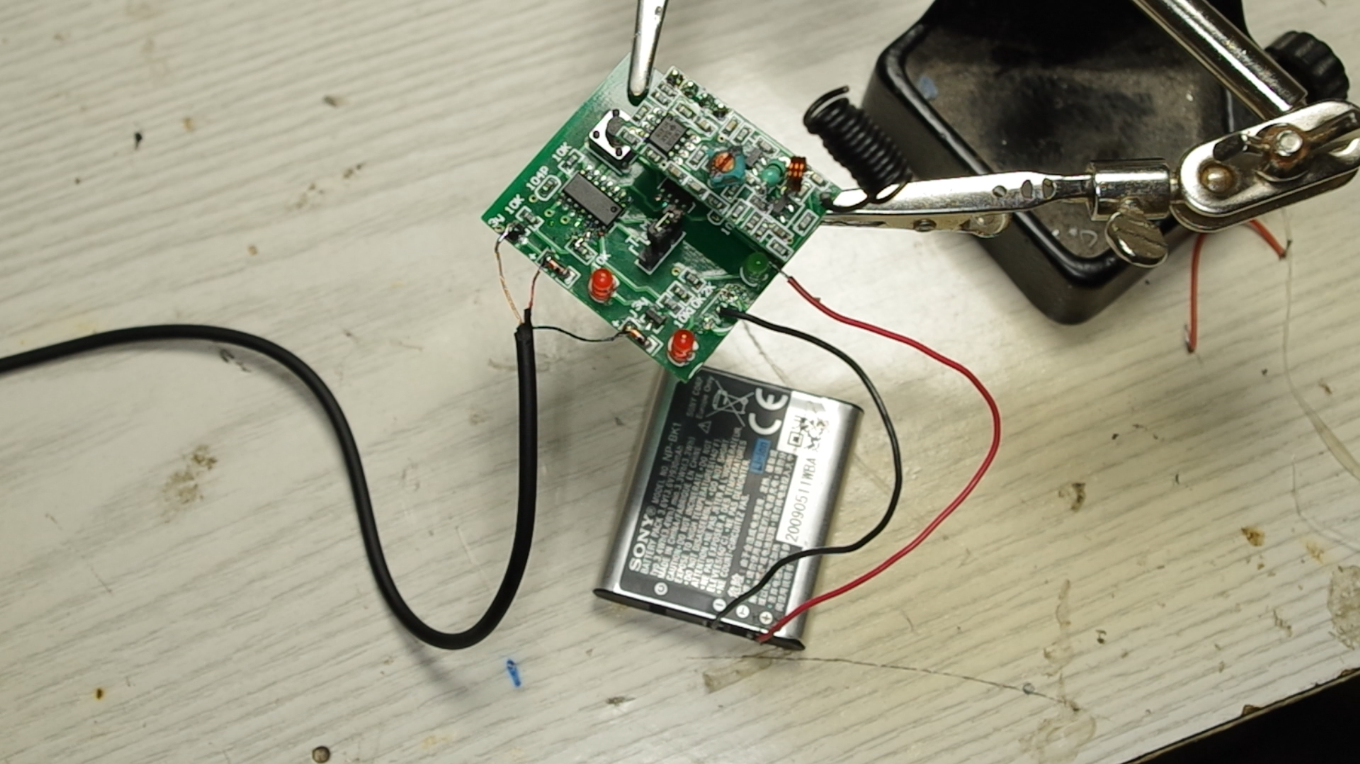

* connect the male jack cable and the battery to receiver

* test it

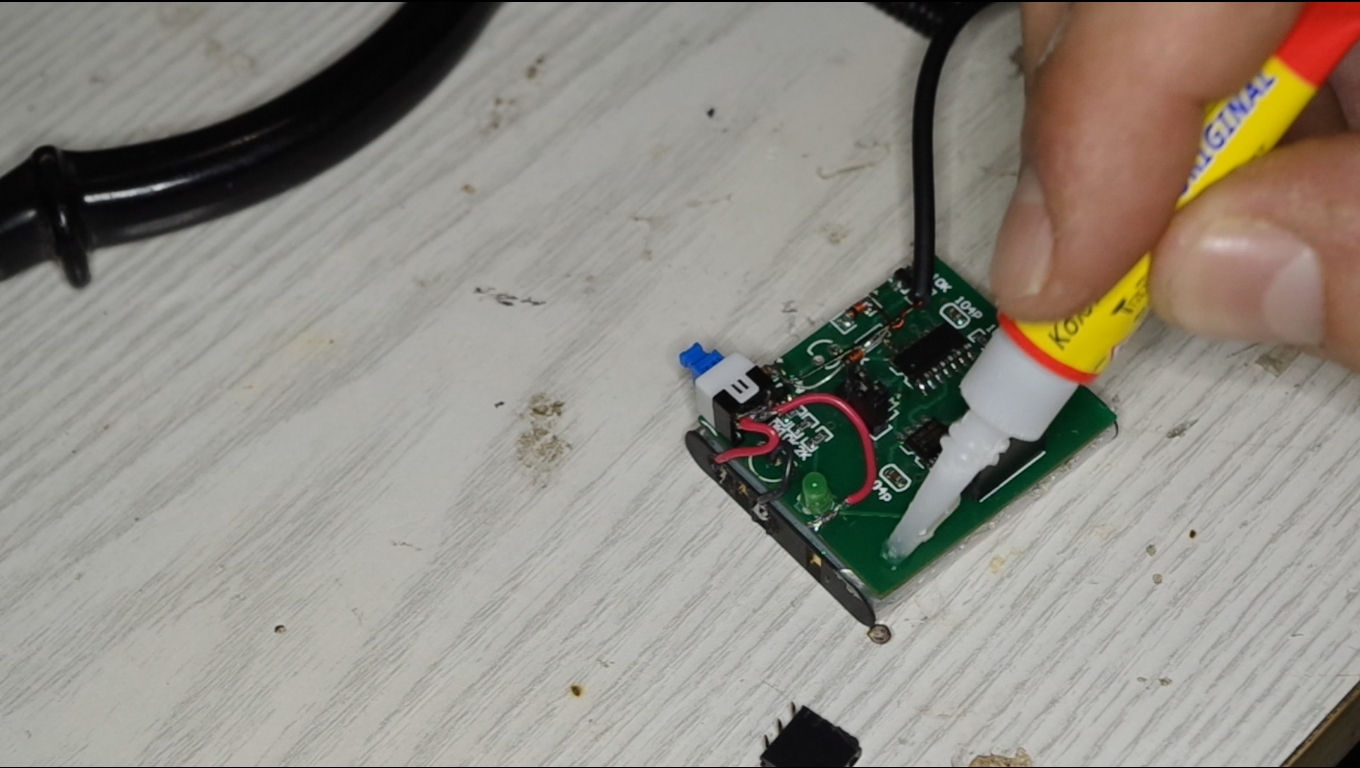

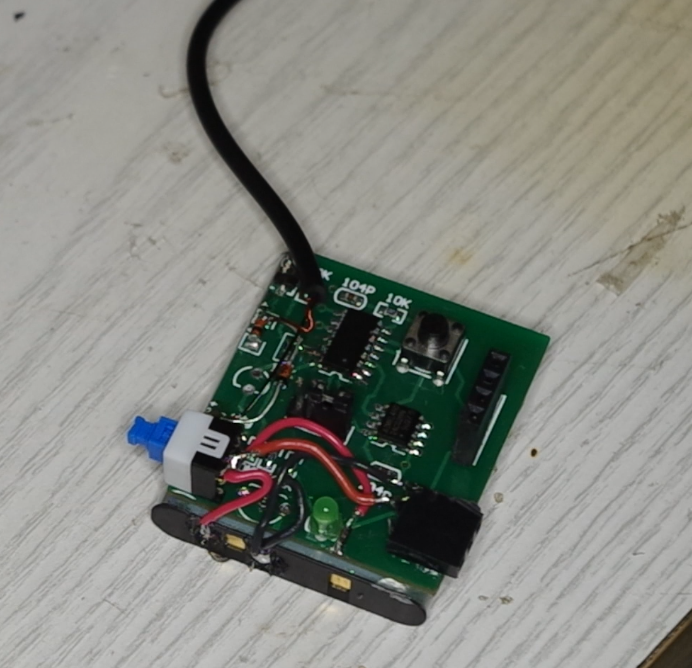

* glue the battery to the receiver

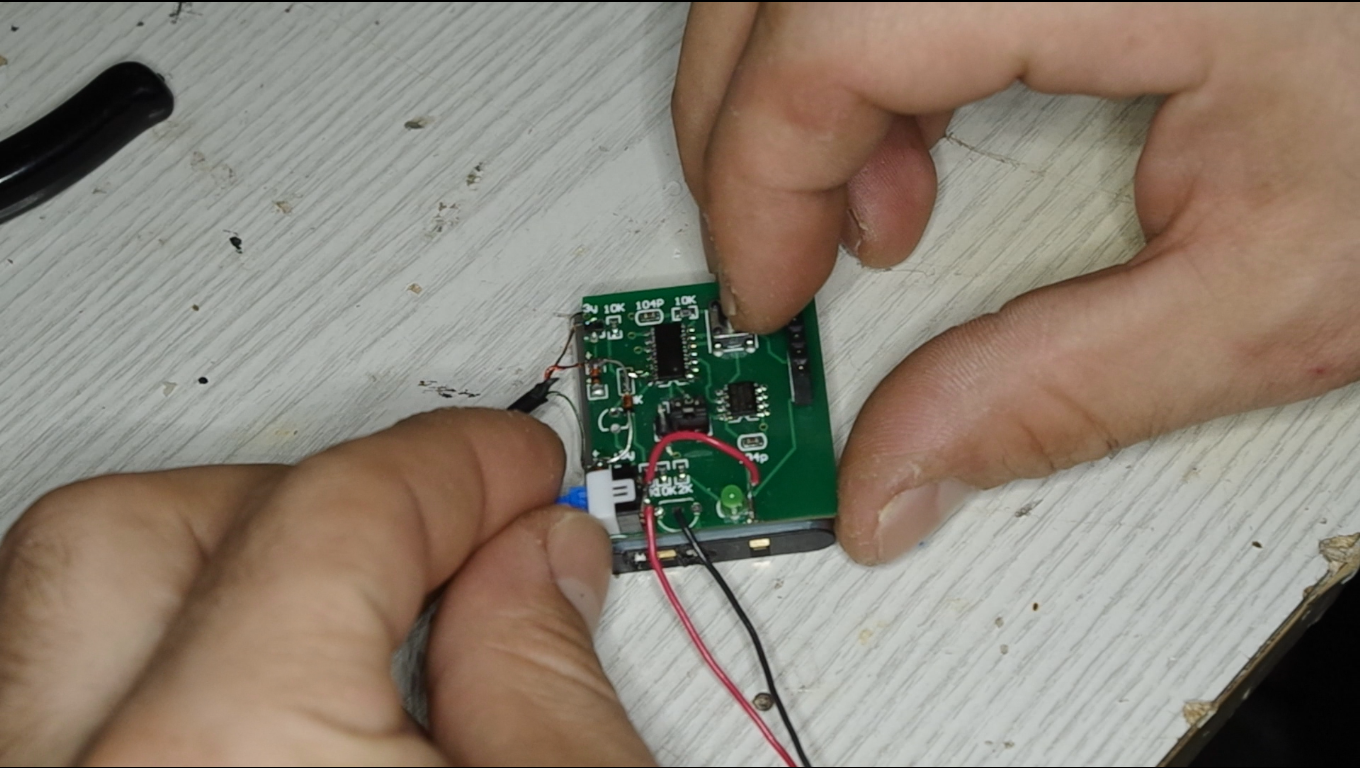

* connect the swich

* connect a 3pin female connector (for battery charging)

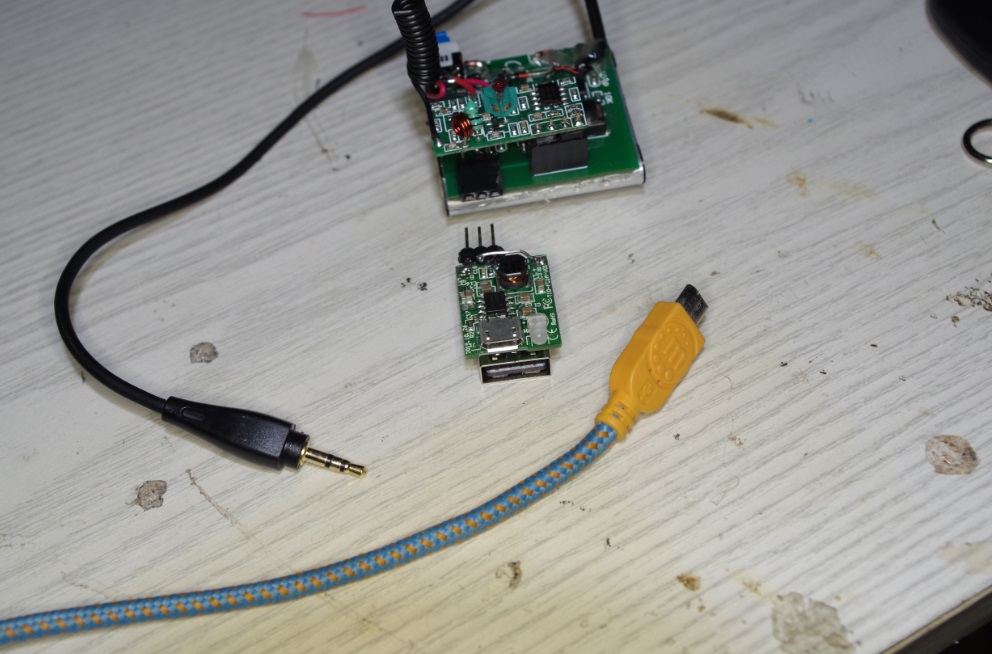

* disassembly a small powerbank and take off the little pcb

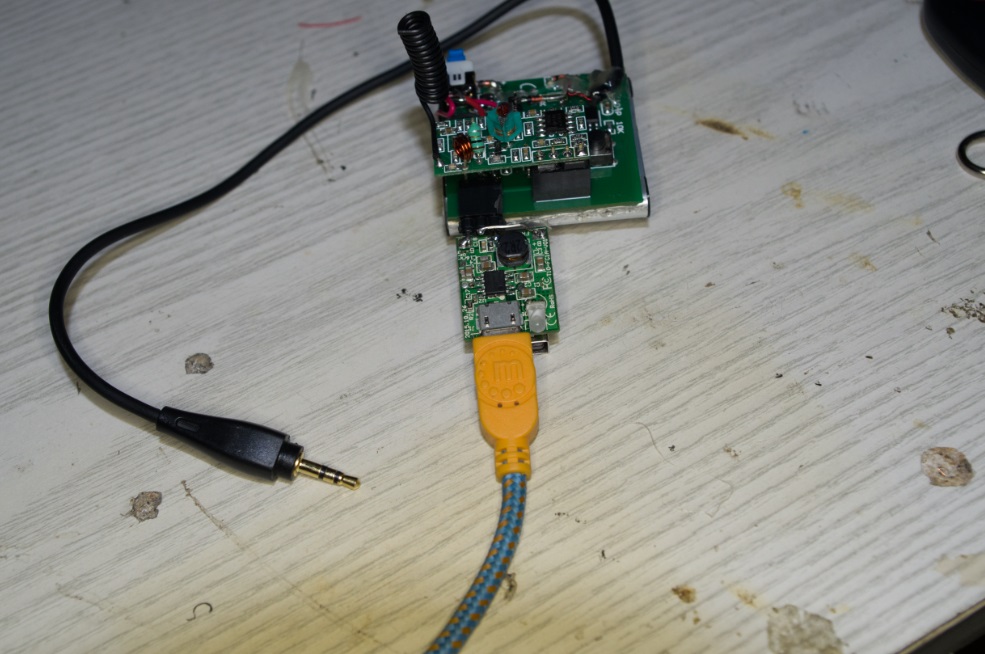

* connect a 3pin male connector to the powerbank's pcb

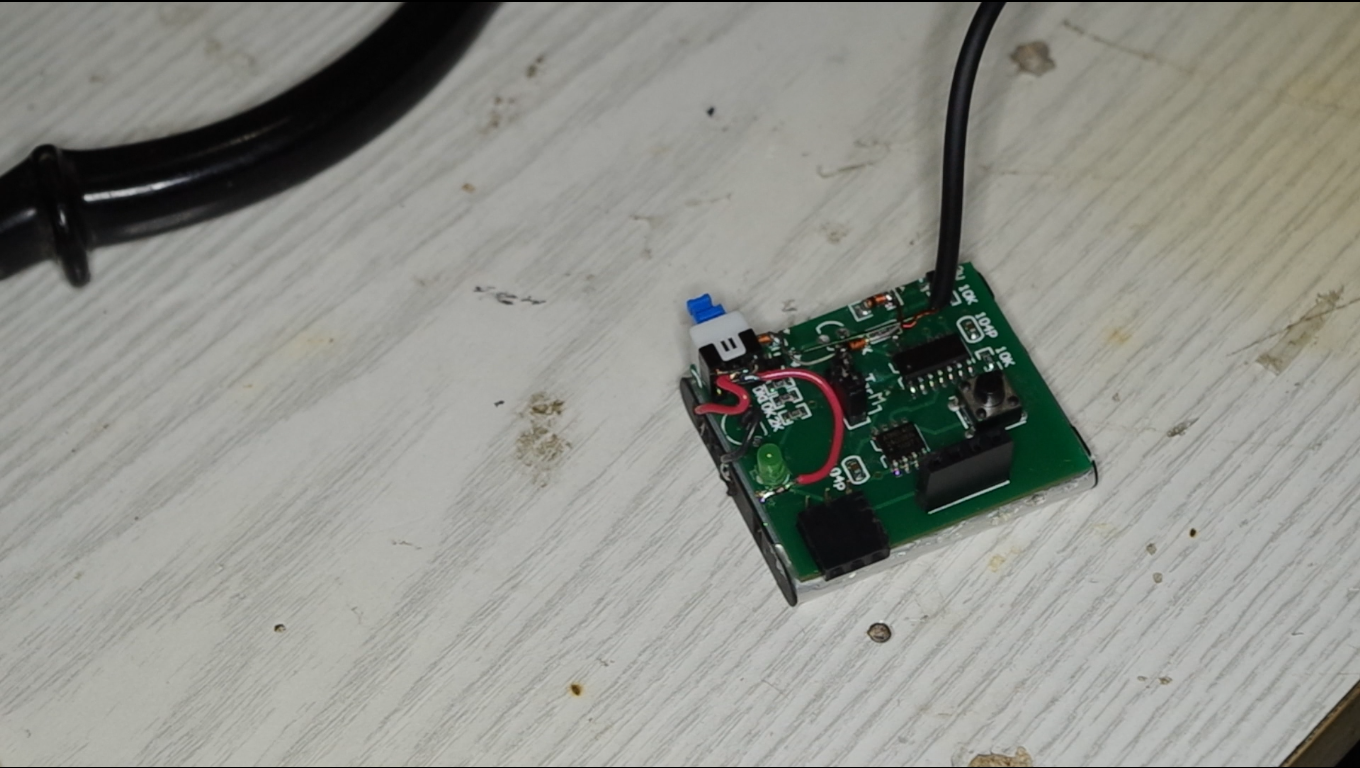

now its ready to use
