In this article, I will tell you the steps to make a Remote Controlled LED circuit using TinkerCad. In this circuit there will be 10 LEDs which will start after pressing buttons form 0-9 on IR Remote and if we again press the same button the particular LED will get off. Each LED is assigned to a particular number from 0-9 on IR Remote.

Supplies

ARDUINO UNO R3.jpg
IR SENSOR.jpg
IR REMOTE.jpg
BREAD BOARD.jpg

The required components to make this circuit are as follows:-


  • Breadboard
  • 10 LEDs (Of Any Color)

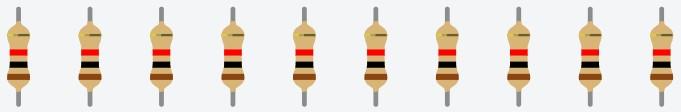

  • 10 Resistors
  • Arduino UNO R3
  • IR Sensor

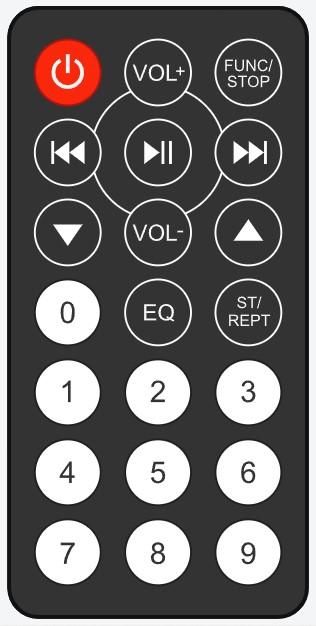

  • IR Remote

Connections


Make the connections as shown in the above picture using TinkerCad Circuits.

CodeText

CODE PART 1.jpg
CODE PART 2.jpg
CODE PART 3.jpg

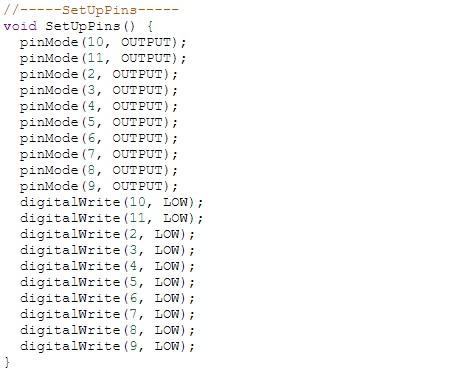

CODE PART 4.jpg

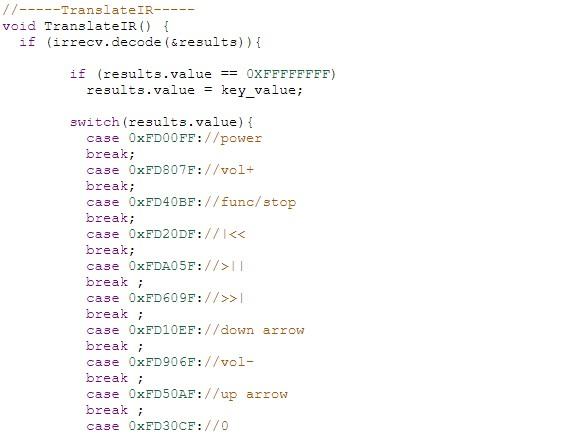

CODE PART 5.jpg
CODE PART 6.jpg

Write the code in the TinkerCad software.

#include <IRremote.h>


int voltage[12];

unsigned int i = 0;


IRrecv irrecv(12);

decode_results results;

unsigned long key_value = 0;


//--------------------setup


void setup(){

 Serial.begin(9600);

 SetUpPins();

 irrecv.enableIRIn();

 irrecv.blink13(true);

}


//--------------------loop


void loop(){

 TranslateIR();

}


//--------------------functions



//-----ToggleLED-----

void ToggleLED(int pin) {

 if (voltage[pin]) {

  Serial.print("LED ");

  Serial.print(pin - 2);

  Serial.println(" was turned off");

  digitalWrite(pin, LOW);

  voltage[pin] = 0;

 } else {

  Serial.print("LED ");

  Serial.print(pin - 2);

  Serial.println(" was turned on");

  digitalWrite(pin, HIGH);

  voltage[pin] = 1;

 }

}

//-----SetUpPins-----

void SetUpPins() {

 pinMode(10, OUTPUT);

 pinMode(11, OUTPUT);

 pinMode(2, OUTPUT);

 pinMode(3, OUTPUT);

 pinMode(4, OUTPUT);

 pinMode(5, OUTPUT);

 pinMode(6, OUTPUT);

 pinMode(7, OUTPUT);

 pinMode(8, OUTPUT);

 pinMode(9, OUTPUT);

 digitalWrite(10, LOW);

 digitalWrite(11, LOW);

 digitalWrite(2, LOW);

 digitalWrite(3, LOW);

 digitalWrite(4, LOW);

 digitalWrite(5, LOW);

 digitalWrite(6, LOW);

 digitalWrite(7, LOW);

 digitalWrite(8, LOW);

 digitalWrite(9, LOW);

}

//-----TranslateIR-----

void TranslateIR() {

 if (irrecv.decode(&results)){



    if (results.value == 0XFFFFFFFF)

     results.value = key_value;


    switch(results.value){

     case 0xFD00FF://power

     break;

     case 0xFD807F://vol+

     break;

     case 0xFD40BF://func/stop

     break;

     case 0xFD20DF://|<<

     break;

     case 0xFDA05F://>||

     break ;

     case 0xFD609F://>>|

     break ;

     case 0xFD10EF://down arrow

     break ;

     case 0xFD906F://vol-

     break ;

     case 0xFD50AF://up arrow

     break ;

     case 0xFD30CF://0

     ToggleLED(2);

     break ;

     case 0xFDB04F://eq

     break ;

     case 0xFD708F://st/rept

     break ;

     case 0xFD08F7://1

     ToggleLED(3);

     break ;

     case 0xFD8877://2

     ToggleLED(4);

     break ;

     case 0xFD48B7://3

     ToggleLED(5);

     break ;

     case 0xFD28D7://4

     ToggleLED(6);

     break ;

     case 0xFDA857://5

     ToggleLED(7);

     break ;

     case 0xFD6897://6

     ToggleLED(8);

     break ;

     case 0xFD18E7://7

     ToggleLED(9);

     break ;

     case 0xFD9867://8

     ToggleLED(10);

     break ;

     case 0xFD58A7://9

     ToggleLED(11);

     break ;

    }

    key_value = results.value;

    irrecv.resume();

 }

}
