RE-ENGINEERING CLOTHES PINS

My wife bought some new clothes pins (shown in top of photo) from a local retail store. Every time she used one, it would fly into two pieces; one of the wooden parts would fly off of the spring and the other wooden part. They looked fine, but when I compared it to a 20 year old pin, I found there was a vast difference in the way the springs were made. The old one (the bottom one) is quite a bit heavier gauge of wire and it has an extra "V" on each side, which keeps the wooden parts aligned. Without that V, they fly apart. My mission was to re-design them somehow so they wouldn't fly apart. It was a simple fix with a 5" piece small gauge wire and some hand tools. Let's get started modifying them.

In my case, I started with 24 new "Made in China" clothes pins.

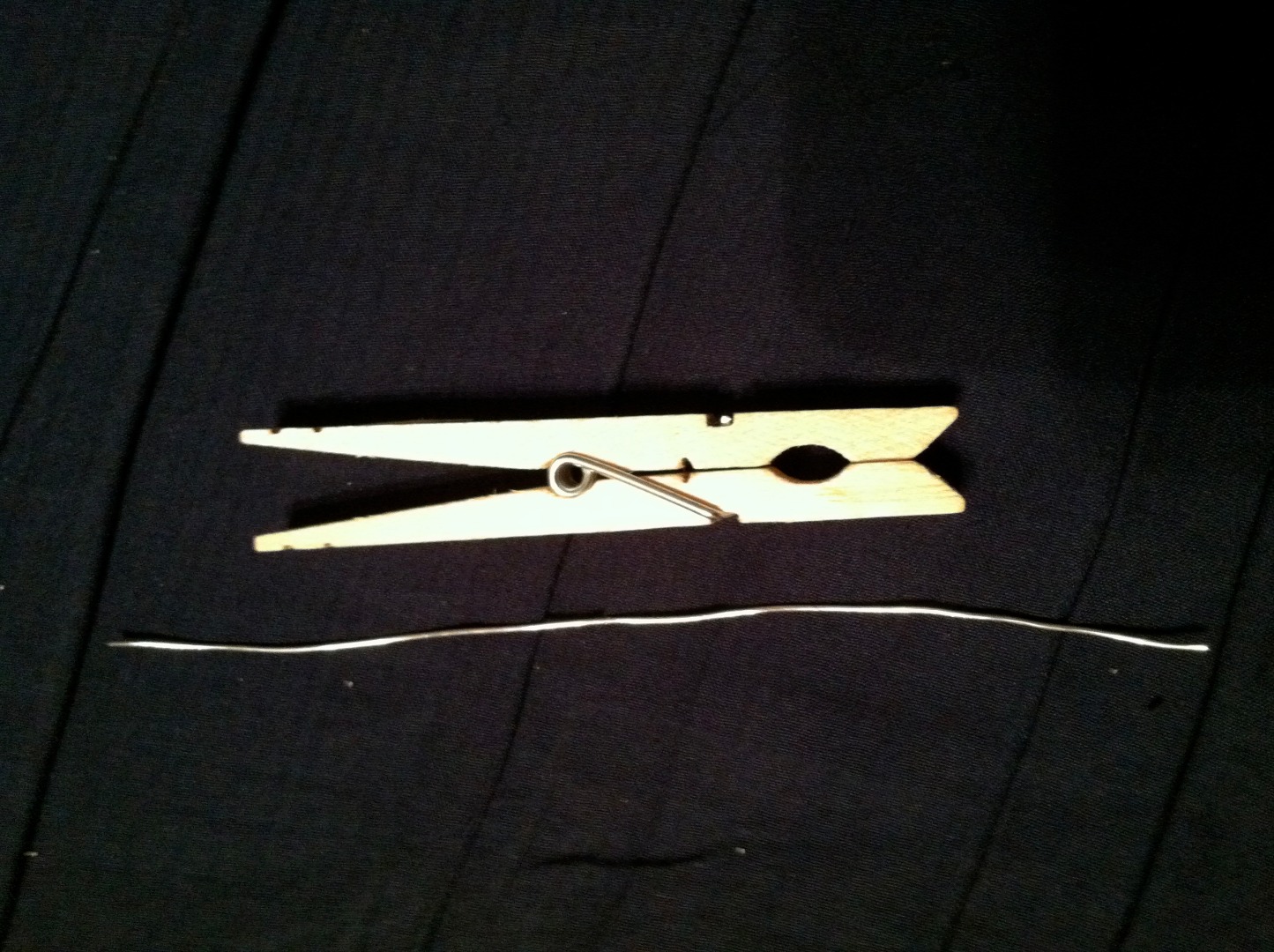

Small gauge wire cut into 5" lengths. The wire I used is .030".

Pliers, wire cutters, bent nose pliers.

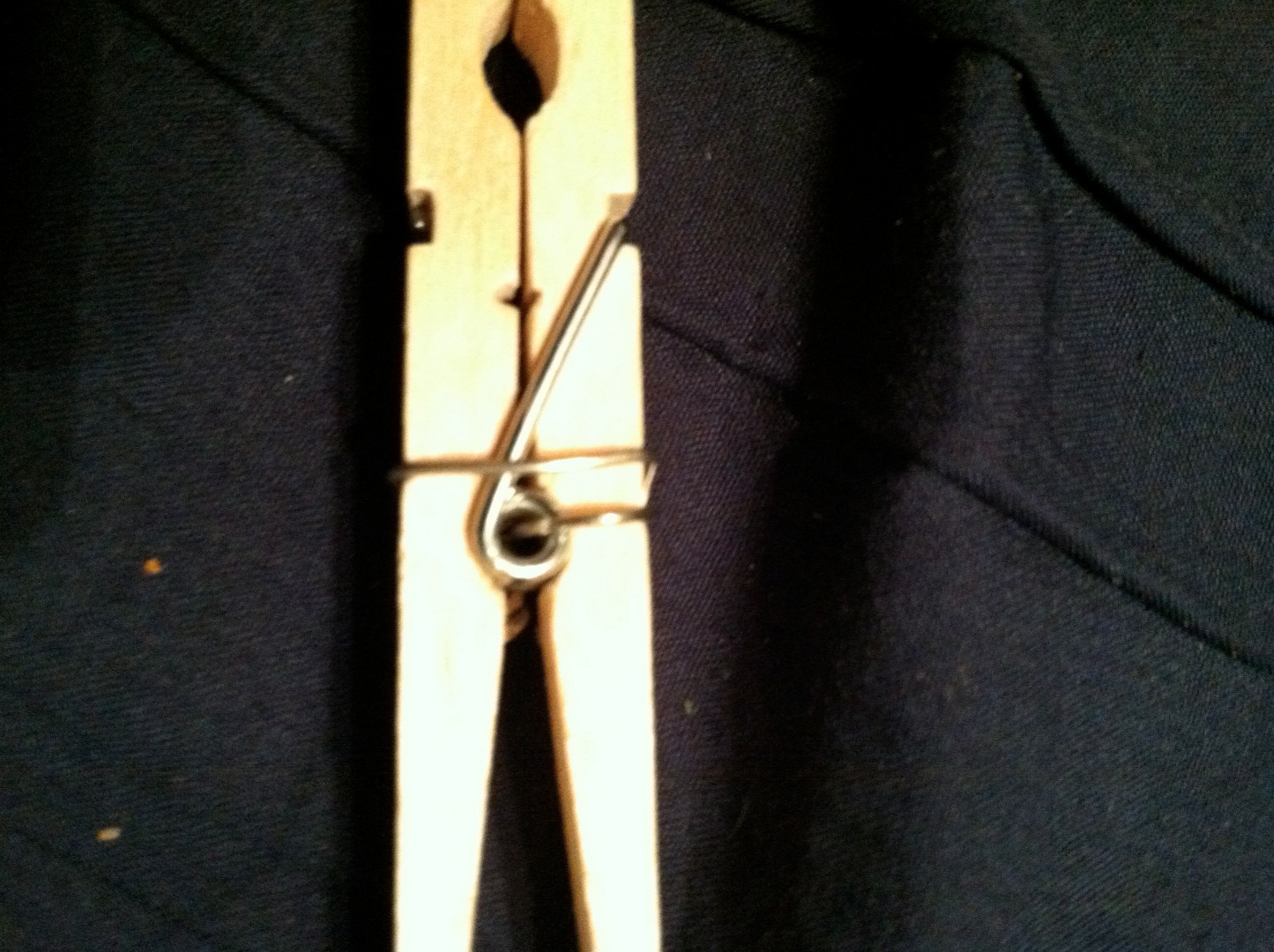

Thread one end of wire thru hole in spring and bend it back into a "U". The wire must secure both wooden pieces and the ends must be tied together, so the 2nd photo shows the pattern of the wrap.

Wrap the 2 ends together while pulling tension on wire to get it as tight as possible. Wrapping the wire too tight will break the wire, so be careful.

Cut the wrapped wire to about 1/2" long with the wire cutters. Bend the end with to a "U" shape with the bent nose pliers. Push the end back between the wood pieces so that it will not cut anyone or damage clothes. Mash it flat with the pliers. The last photo shows what the finished pin looks like.

There are good clothes pins available online for $2.00 each with $6.00 shipping. These 24 pins would have cost $54.00. These cost about $3.00 for 24. + a little of my time.
