RD6006 Power Supply Protocol and Node-red Application
The RD6006-W power supply is a quasi-professional device, providing up to 60V, 6A (360 Watt), very complete with high-level functions. It is also possible to control it from the front panel, or via WIFI with an APP from a smartphone, or via USB with the software on PC WIN.
To read the full story see RD6006 Super power supply on github,
Supplies
RD6006-W, see: https://it.aliexpress.com/item/4000282551930.html
Protocol and Test Nodes
The way to integrate RD6006 in node-red fallows some steps:
- is the reverse engineering of the MODBUS protocol: see RD6006_prototocol_en.pdf

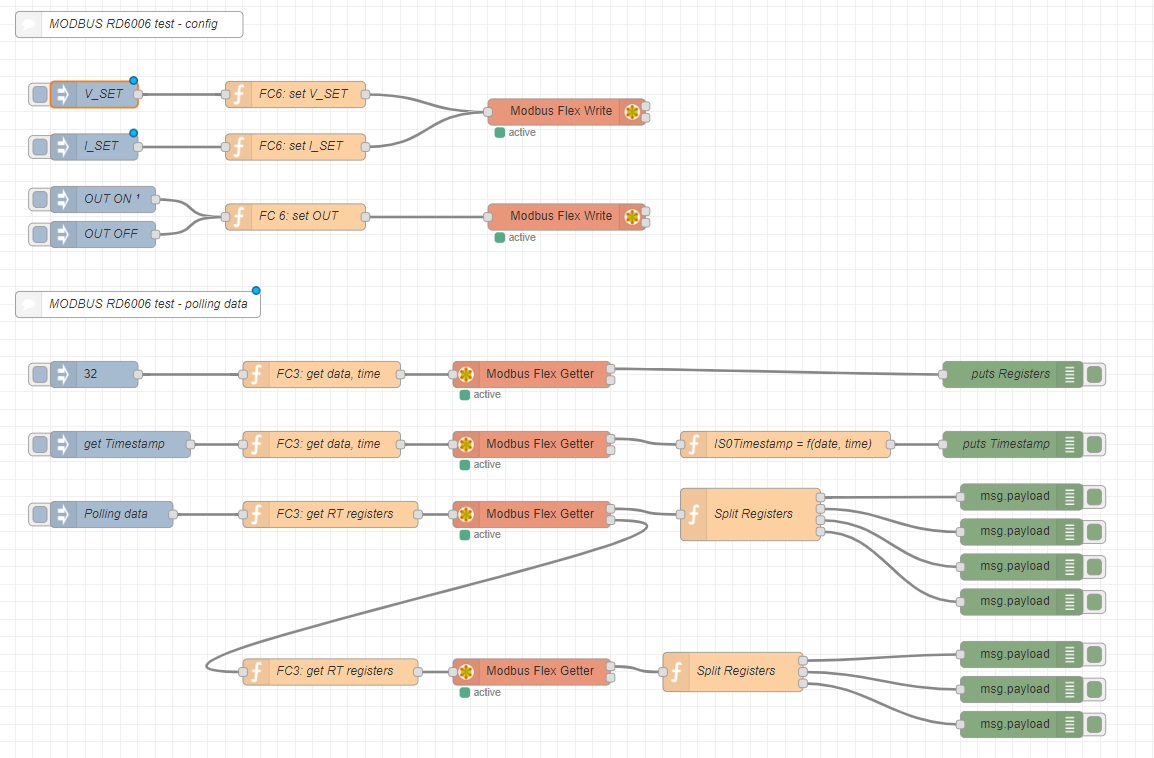

- test nodes to have a working flow: see ModBus_test_RD6006.jso
Application: NiMH Battery Charger Logger
This is a work in progress: version 1 is done, version 2 under development.
