R/C Toilet Paper Roll

Remote Control Toilet Paper Roll | Build

2019 way before the Toilet Paper Panic i got interested in Battlebots and making my own bot. ... This is the result of that !

Please note: this is not a electronics tutorial/build nor i'm going to go over how that works, it was a challenge but there is a lot of important information out there including FB Battlebots groups to whom i thank for their help and support.


But before that i did some research from many sources to understand what were the parts i needed to buy and how would the work together as i had 0 knowledge about building and r/c car.

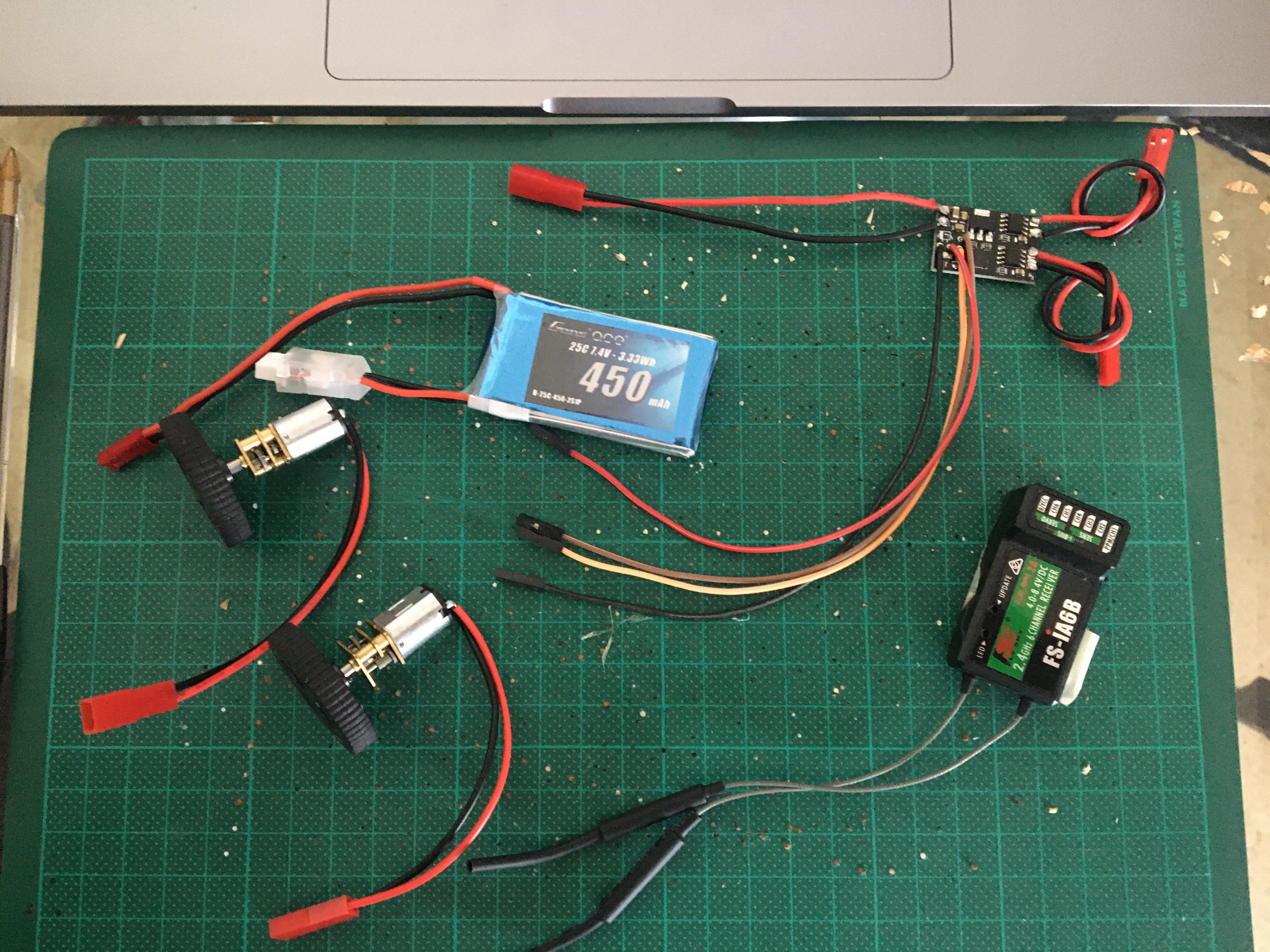

So those are the parts i settled for this build.

1 - 450 mAh 2S Battery

1 - 2 PIN Male Female JTS

1 - Dual ESC

2 - N20 Micro Gearmotor

2 - Wheels

1 - Ball Caster

1 - Remote and Receiver

1 - Battery Charger

Making the Base and Adding the Wheels

Snapshot 27-03-2020 10:44.PNG
Snapshot 27-03-2020 10:52.PNG
Snapshot 27-03-2020 11.PNG
Snapshot 27-03-2020 13.PNG
Snapshot 27-03-2020 12.PNG
Snapshot 27-03-2020 10:54.PNG
Snapshot 27-03-2020 14.PNG
Snapshot 27-03-2020 15.PNG

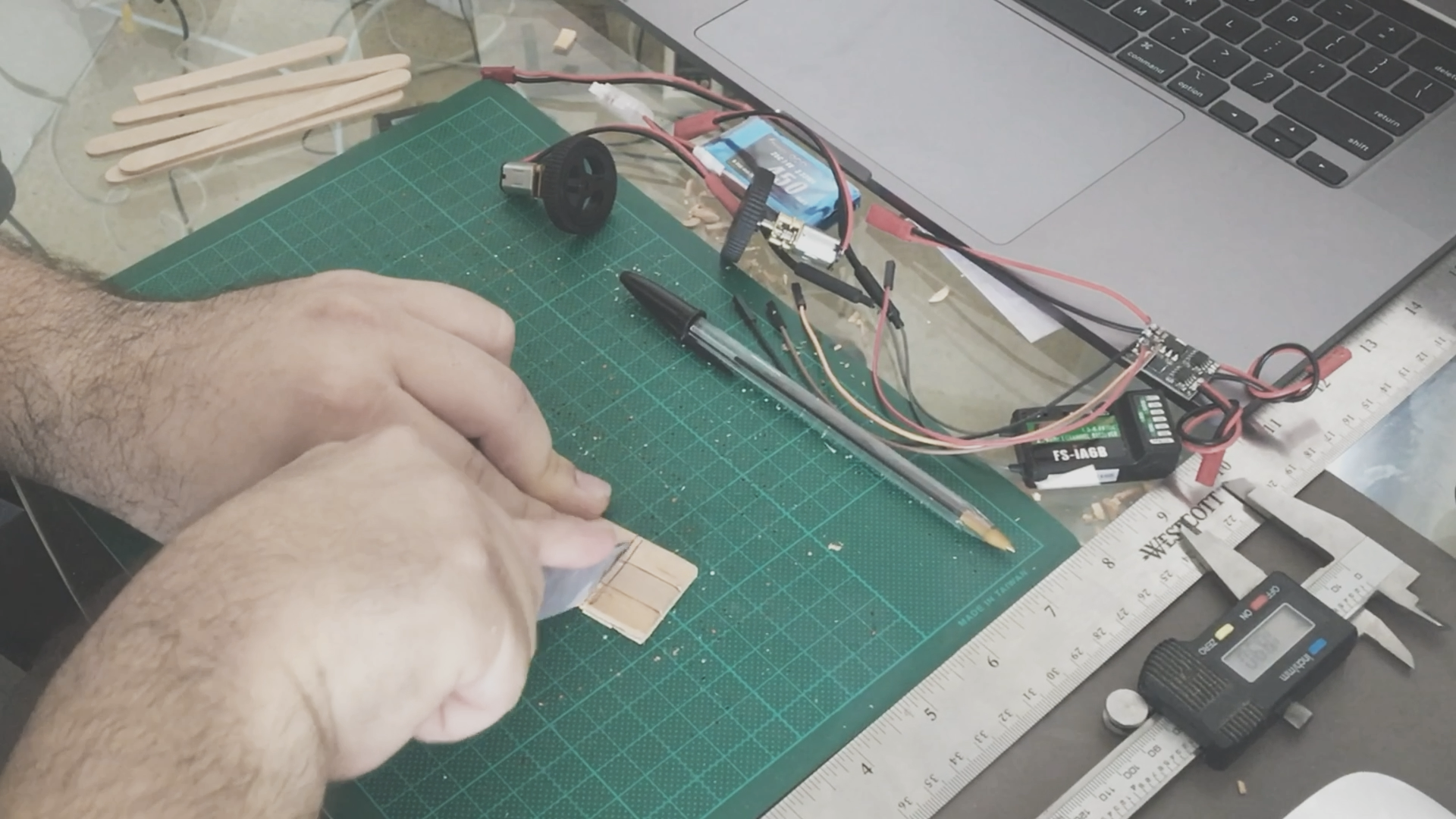

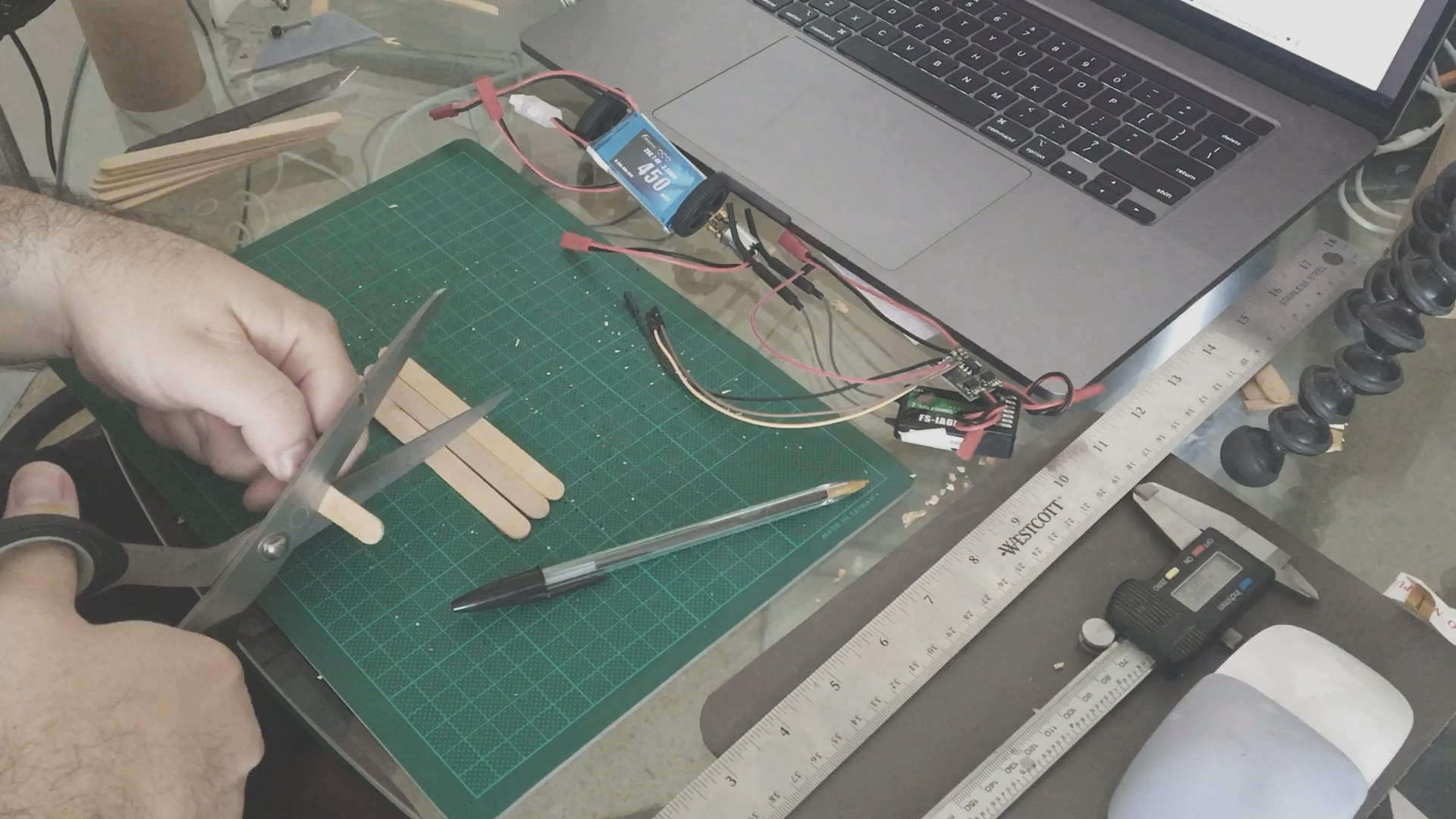

I knew i wanted this build to be an in progress build. No preparing, no CAD just go with the flow so i grabbed a bag full of popsicle sticks and began to make the base that would hold the electronics.

So began by placing 3 of those sticks next to each other and the cut small pieces of to cover the hight, making sure to glue them with hot glue.

Then i cut the base to size based on the measurement of the length on the paper tube minus the size of the motor/wheel assembly.

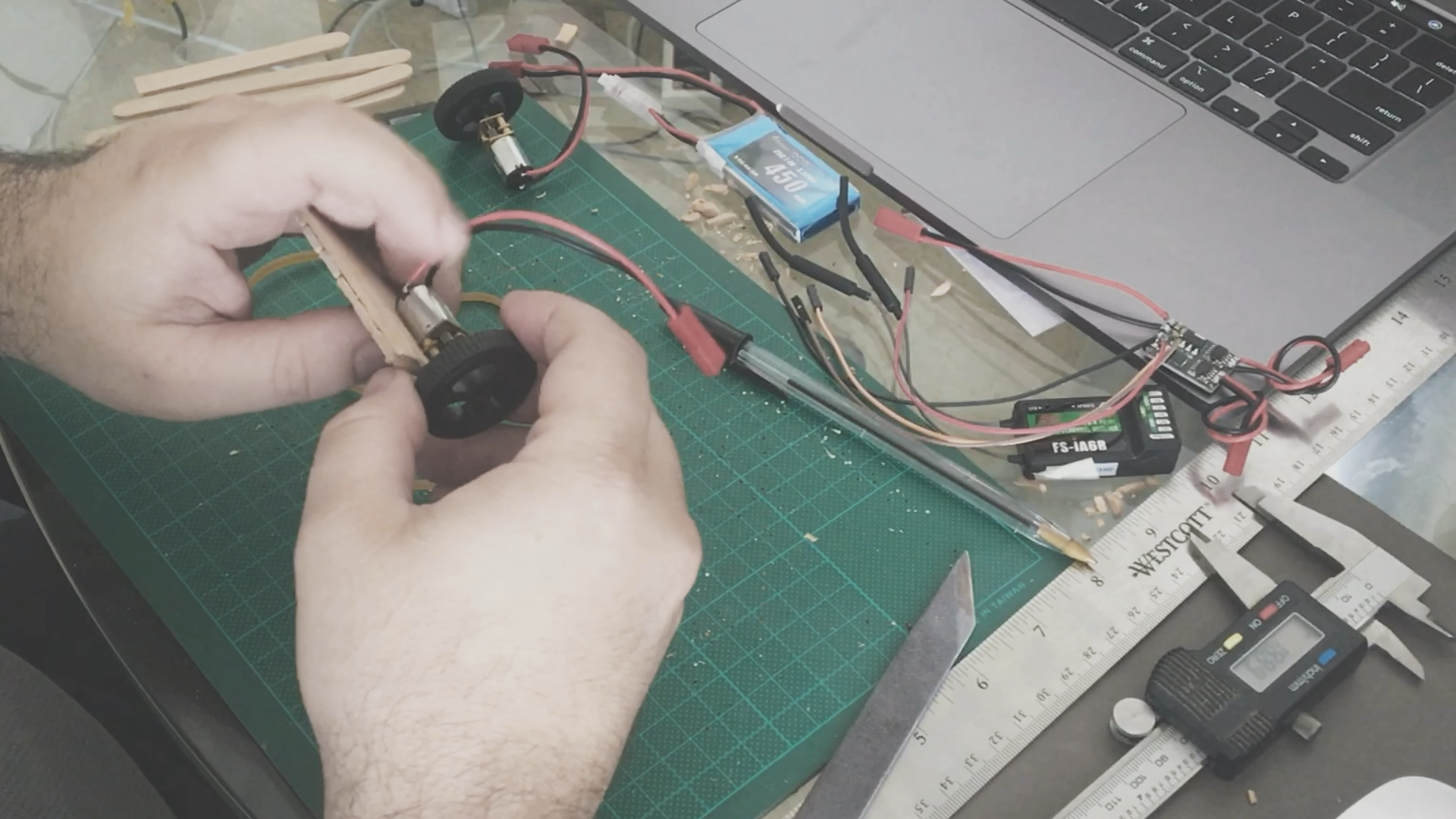

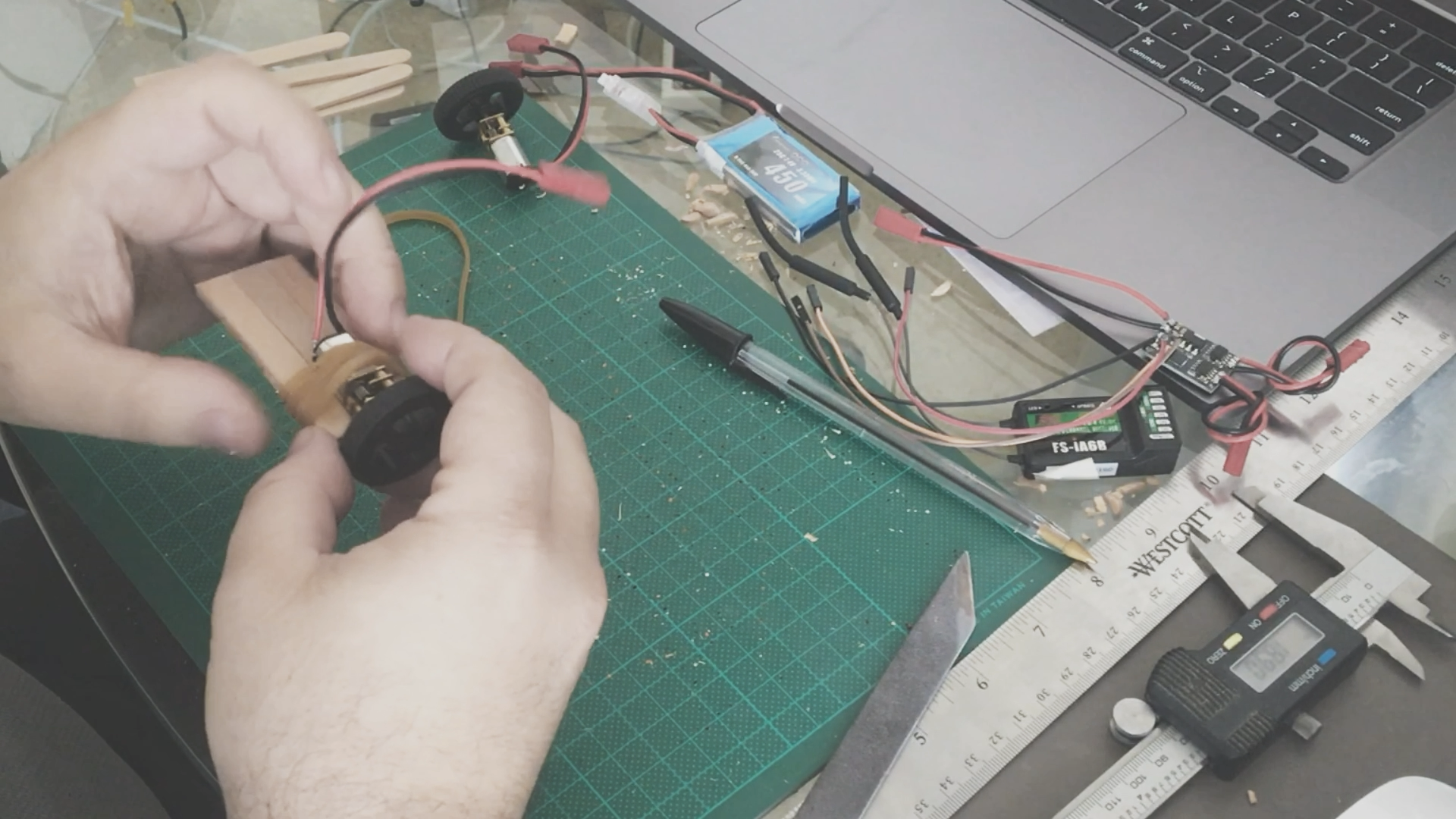

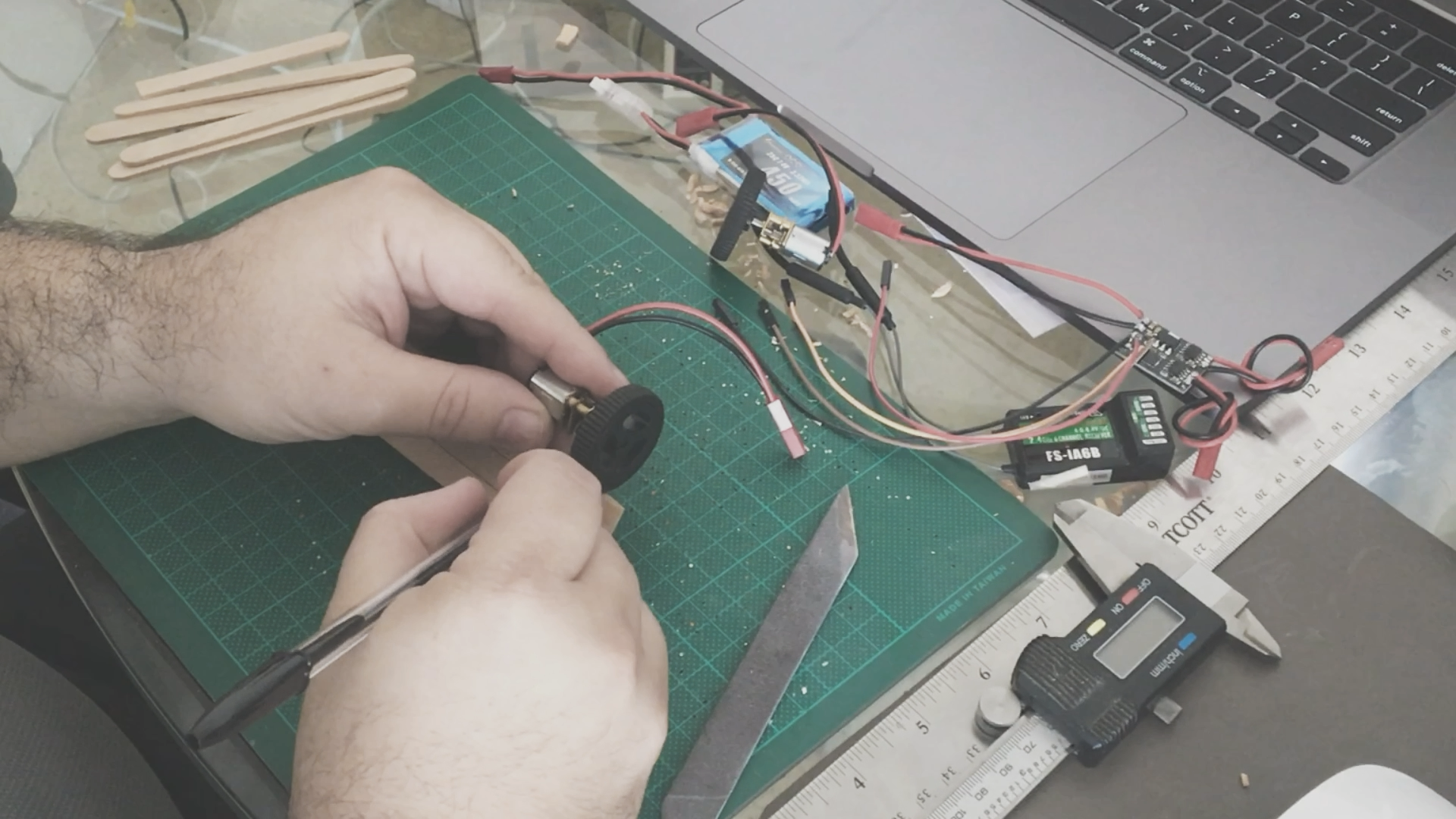

Finally i place the motor/wheel and secure it to the base with some rubber bands

Cut Out for the Wheels

Snapshot 27-03-2020 16.PNG
Snapshot 27-03-2020 17.PNG
Snapshot 27-03-2020 10:55.PNG
Snapshot 27-03-2020 11:02.PNG
Snapshot 27-03-2020 18.PNG

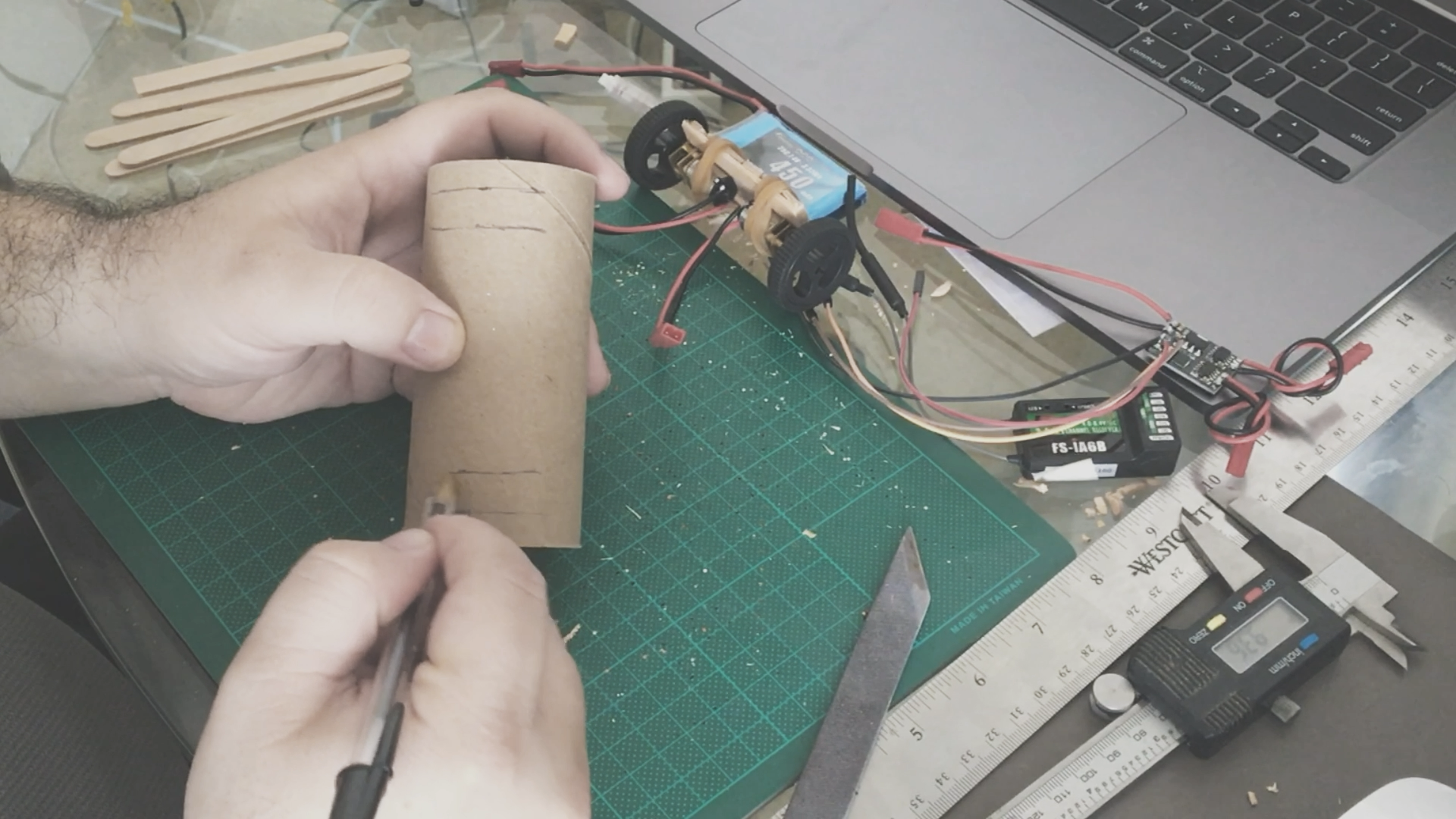

With both wheels on the base i project the location of the wheel to the tube and the proceed to cut them out.

I then made a mark to the location where i would want those motor cables to past through and drilled 1 hole for each.

Finally i added some hot glue, secured the motor/wheel making sure to past those cables through the holes.

Adding the ESC

Snapshot 27-03-2020 19.PNG
Snapshot 27-03-2020 20.PNG
Snapshot 27-03-2020 21.PNG

Since all this was supposed to be inside the tube i knew i had to distribute all electronics correctly so it would fit, so a measured were i wanted to be considering all the connection that would nee to happen and the cut a notch in the base, and glue it.

Fitting In

Snapshot 27-03-2020 11:03.PNG
Snapshot 27-03-2020 22.PNG
Snapshot 27-03-2020 23.PNG

At this point i cut the tube in half as after various arrangements tries to make everything fit it was unsuccessful.

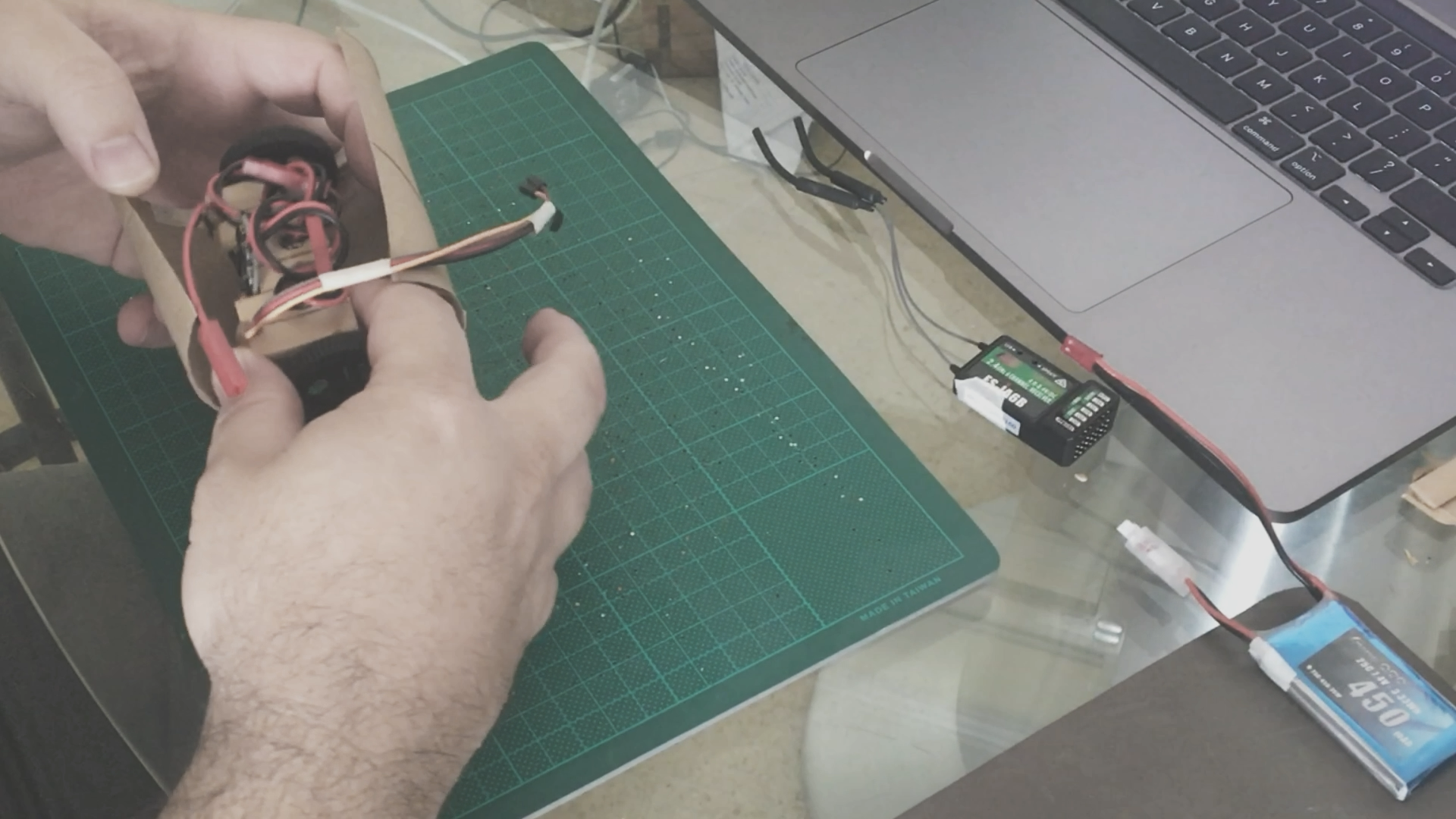

With enough space to work with, i connected everything together; battery, esc, receiver, pack all together inside the tube and close it.

Third Wheel

Snapshot 27-03-2020 24.PNG

Since this bot was inside a tube and did not have any self balancing magic a third wheel of sorts was going to be needed so the bot would be tilted a little forward and not try to roll over.

Wrapping Up

Snapshot 27-03-2020 11:04.PNG
Snapshot 27-03-2020 25.PNG
Snapshot 27-03-2020 26.PNG
Snapshot 27-03-2020 27.PNG
Snapshot 27-03-2020 28.PNG
Snapshot 27-03-2020 29.PNG
Snapshot 27-03-2020 30.PNG
Snapshot 27-03-2020 31.PNG
Snapshot 27-03-2020 11:05.PNG
Snapshot 27-03-2020 32.PNG

Yes , i was ready to give this guy some life so i started by adding some spray blue to the tube and wrapping the toilet paper around, this went fora coupe of layers until i felt it was thick enough but also considering the wheel depth.

Next i removed all the paper to reveal all 3 wheels. Further more i added elastic band over the paper to maker sure it would not come out.

The Cape

Snapshot 27-03-2020 33.PNG

This little guy would not be completed without a cape so he got one, and that would make it more recognisable in the wild.

Trip to the Mall

Snapshot 27-03-2020 34.PNG

Took my son to play with the bot at the mall while enjoying peoples faces of admiration, surprise, hope and desire.

Finished Look

IMG_1764 2.JPG

This is how it ended up looking after the whole process.

Hope have enjoyed this and please give this little dude a name in the comments bellow.
