Flying RC Plan by Fusion 360
by kannan uday in Workshop > 3D Printing
163 Views, 0 Favorites, 0 Comments
Flying RC Plan by Fusion 360
![RCplane.jpg](/proxy/?url=https://content.instructables.com/FGH/7FX8/LN0BV91Y/FGH7FX8LN0BV91Y.jpg&filename=RCplane.jpg)
RC PLANE :- It can fly with design done with fusion 360 software .
Main Block
![Screenshot_20230927-005853_Facebook.jpg](/proxy/?url=https://content.instructables.com/FTX/0312/LN0BV948/FTX0312LN0BV948.jpg&filename=Screenshot_20230927-005853_Facebook.jpg)
Create the main block in 3d projection .3 main block for construction
Wings
![Screenshot_20230927-005906_Facebook.jpg](/proxy/?url=https://content.instructables.com/F5D/XVR7/LN0BV962/F5DXVR7LN0BV962.jpg&filename=Screenshot_20230927-005906_Facebook.jpg)
After creating the block. Make wings in vertical manner . It should be arranged with horizontal but it should move up down as per instruction
Setup
![Screenshot_20230927-005912_Facebook.jpg](/proxy/?url=https://content.instructables.com/F5P/T58X/LN0BV9A7/F5PT58XLN0BV9A7.jpg&filename=Screenshot_20230927-005912_Facebook.jpg)
Make the trail work . Really tail holds power to suggest fast. It has unique design
Full Assembly
![Screenshot_20230927-005919_Facebook.jpg](/proxy/?url=https://content.instructables.com/FYG/HJE8/LN0BV9E9/FYGHJE8LN0BV9E9.jpg&filename=Screenshot_20230927-005919_Facebook.jpg)
![Screenshot_20230927-005919_Facebook.jpg](/proxy/?url=https://content.instructables.com/FT2/MIFL/LN0BV9FY/FT2MIFLLN0BV9FY.jpg&filename=Screenshot_20230927-005919_Facebook.jpg)
![Screenshot_20230927-005933_Facebook.jpg](/proxy/?url=https://content.instructables.com/FY6/RSE2/LN0BV9GF/FY6RSE2LN0BV9GF.jpg&filename=Screenshot_20230927-005933_Facebook.jpg)
![RCplane.jpg](/proxy/?url=https://content.instructables.com/FPU/G26P/LN0BV9GX/FPUG26PLN0BV9GX.jpg&filename=RCplane.jpg)

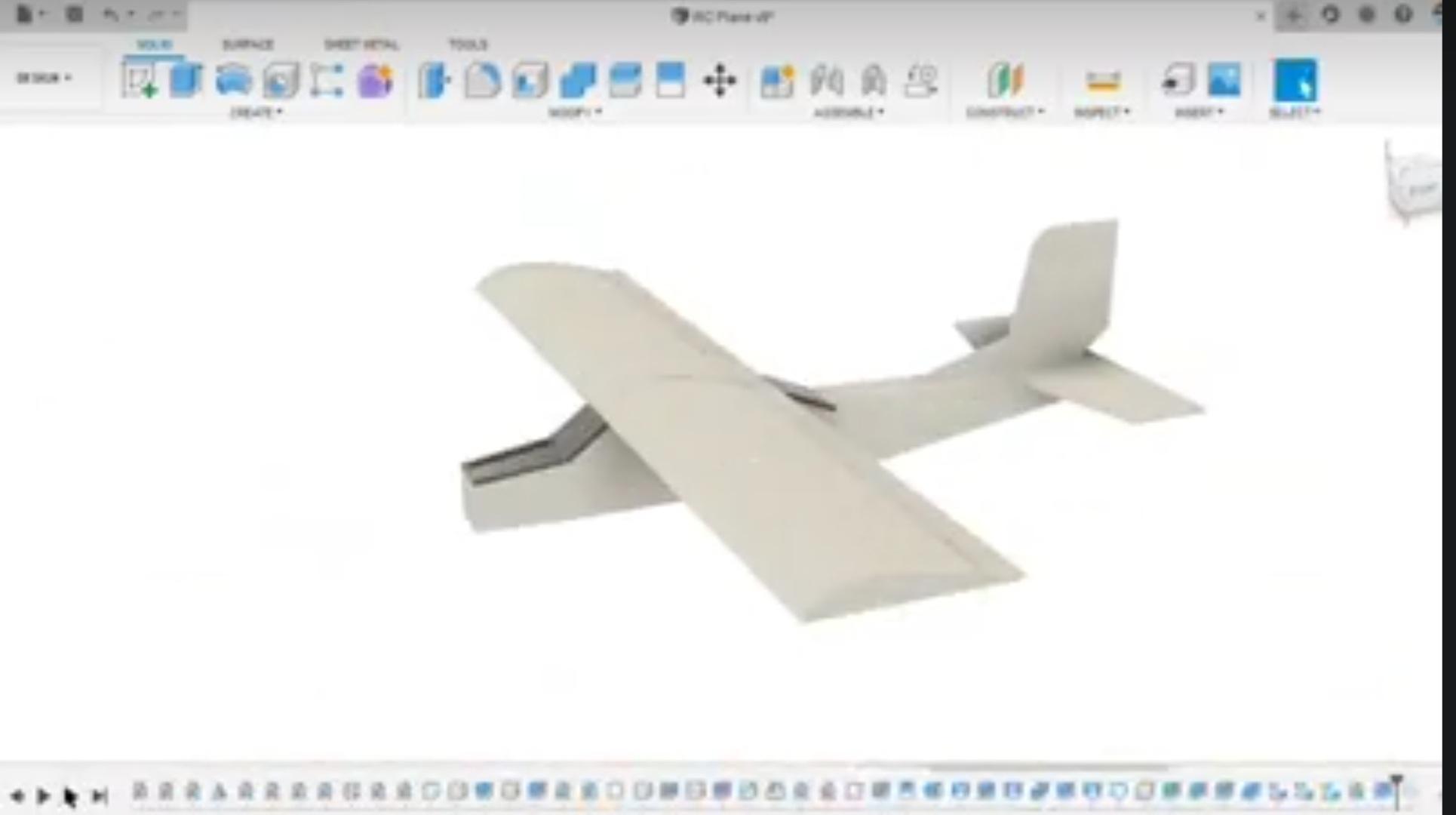

Plane with wings and tail is created in fusion 360
