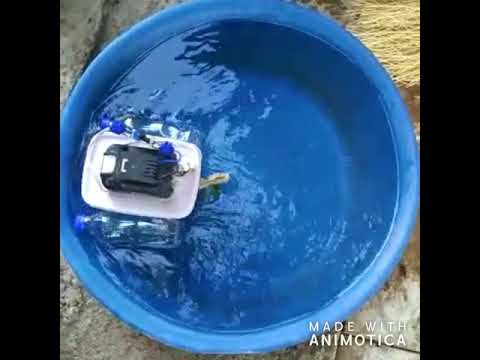

RC Boat With HC-06 Bluetooth Module

I will show you how can you make a RC BOAT but it just for 25 meters distance! i use bluetooth module but if you want to use Nfr it would be healty for long distance.

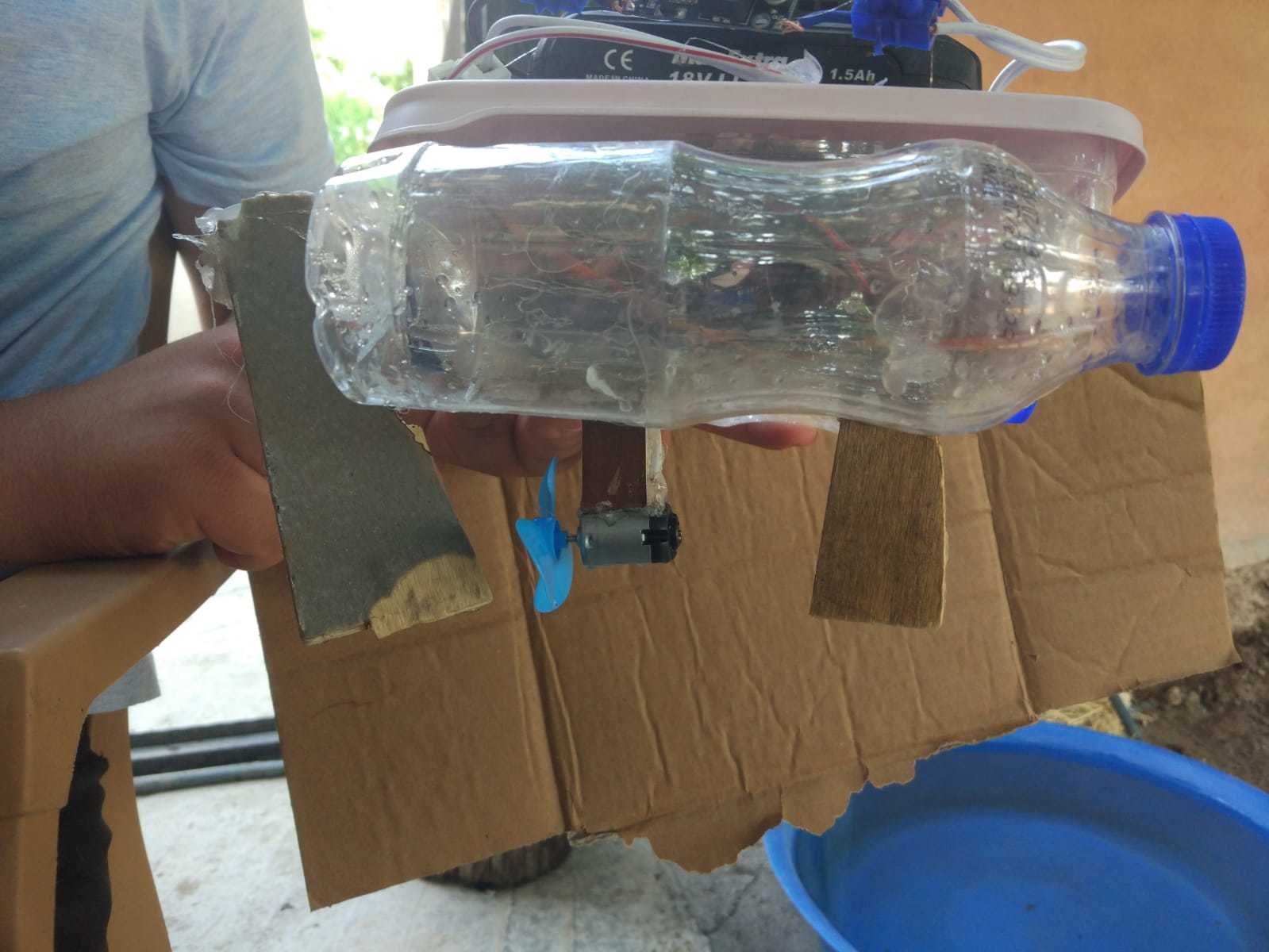

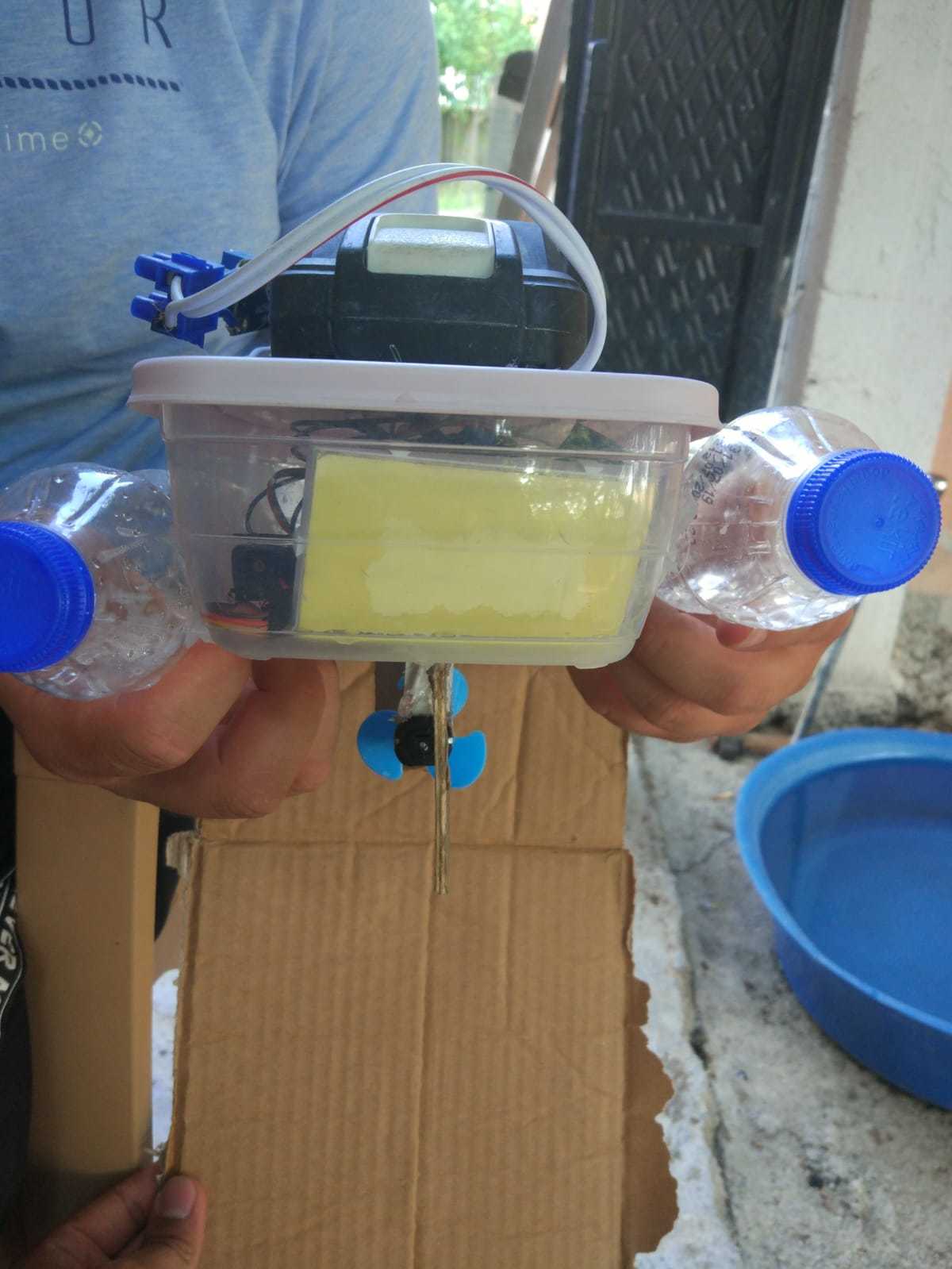

Here is a list of parts that i used to make this project:

• DC motor and propeller
• L298 motor driver
• Arduino UNO
• HC-06 Bluteth module
• 18v battery and voltage regulatör
• Servo Motor
• Jumper Wires

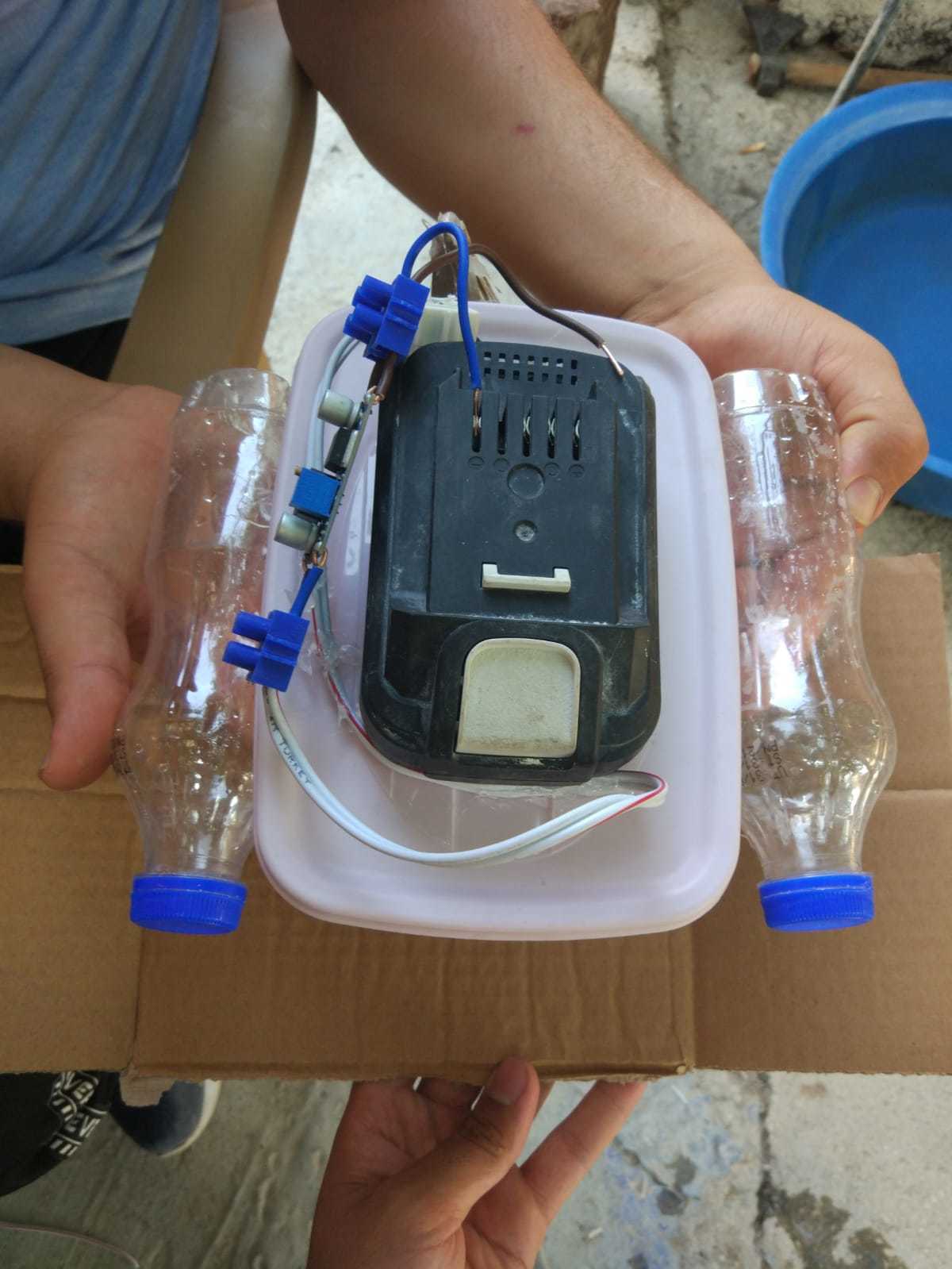

ı use a battery which output is 18v so ı use regulator for decrease the voltage !

The code has explanations of code functions. You will easly understand it. If you have a problem , you can contact me.

#include
// include servo library
const int in1 = 10;                 // dc motor in pin
const int in2 = 11;
const int enA = 6;                  //motor speed
Servo rudder;                       //create servo name
void setup() {
  pinMode(in1, OUTPUT);           //all motor pins are output
  pinMode(in2, OUTPUT);
  pinMode(enA, OUTPUT);
  rudder.attach(9);               //servo attachment
  Serial.begin(9600);             //For Serial communication
}
void loop() {
  if(Serial.available()>0){        //if we communicate with hc 05
     char way = Serial.read();     //get the input
    //Serial.write(way);           //if you wanna learn which word you have got

    //Go forward
    if(way=='w'){
      analogWrite(enA,  255);       //set left the speed(0 to 255)
      digitalWrite(in1, LOW);
      digitalWrite(in2,HIGH);
      rudder.write(90);
    }

    //Go Backward
    else if(way=='s'){
      analogWrite(enA,  255);
      digitalWrite(in1, HIGH);
      digitalWrite(in2,  LOW);
      rudder.write(90);
    }
    //Turn RIGHT
    else if(way=='a'){
       analogWrite(enA,  255);
       digitalWrite(in1, LOW);
       digitalWrite(in2,HIGH);
       rudder.write(45);
    }
    //Turn LEFT
     else if(way=='d'){
      analogWrite(enA,  255);
      digitalWrite(in1, LOW);
      digitalWrite(in2,HIGH);
      rudder.write(135);
    }
    //Stop the ship
     else if(way=='n'){
      digitalWrite(in1, HIGH);    //if we make HIGH every pin it will stop
      digitalWrite(in2, HIGH);    //or you can do => analogWrite(enA,0);
      rudder.write(180);
    }
    //PIR PIR
     else if(way=='k'){
      digitalWrite(in1, HIGH);    //if we make HIGH every pin it will stop
      digitalWrite(in2, HIGH);    //or you can do => analogWrite(enA,0);
      int pos;
      for(pos = 60; pos <= 120 ; pos+=10){
        rudder.write(pos);
        delay(15);
      }
      for(pos = 120; pos >= 60 ; pos-=10){
        rudder.write(pos);
        delay(15);
      }
    }
    //BACKWARD TURN LEFT
    else if(way=='l'){
        digitalWrite(in1, HIGH);
        digitalWrite(in2, LOW);
        analogWrite(enA, 155);
        rudder.write(45);
    }
    //BACKWARD TURN RIGHT
    else if(way=='m'){
        digitalWrite(in1, HIGH);
        digitalWrite(in2, LOW);
        analogWrite(enA, 155);
        rudder.write(135);7

    }
    else{
      digitalWrite(in1, HIGH);    //if we make HIGH every pin it will stop
      digitalWrite(in2, HIGH);    //or you can do => analogWrite(enA,0);
  }
}
}
