R2D2 From the "Star Wars" Movies

by 75vetteman in Workshop > 3D Printing

1061 Views, 6 Favorites, 0 Comments

R2D2 From the "Star Wars" Movies

Screen Shot 2013-10-24 at 12.37.32 PM.png

Screen Shot 2013-10-24 at 12.51.28 PM.png

Screen Shot 2013-10-24 at 12.37.44 PM.png

Screen Shot 2013-10-24 at 12.37.55 PM.png

Screen Shot 2013-10-24 at 12.45.22 PM.png

Screen Shot 2013-10-24 at 12.45.34 PM.png

Screen Shot 2013-10-24 at 12.45.56 PM.png

Screen Shot 2013-10-24 at 12.46.12 PM.png

Screen Shot 2013-10-24 at 12.46.38 PM.png

Screen Shot 2013-10-24 at 12.46.55 PM.png

Screen Shot 2013-10-24 at 12.47.12 PM.png

Screen Shot 2013-10-24 at 12.47.29 PM.png

Screen Shot 2013-10-24 at 12.49.27 PM.png

Screen Shot 2013-10-28 at 10.58.16 AM.png

Screen Shot 2013-10-28 at 10.59.19 AM.png

Screen Shot 2013-10-28 at 11.01.01 AM.png

Screen Shot 2013-10-28 at 11.02.22 AM.png

Screen Shot 2013-10-28 at 11.01.43 AM.png

Screen Shot 2013-10-24 at 12.50.57 PM.png

Screen Shot 2013-10-24 at 12.51.14 PM.png

Screen Shot 2013-10-24 at 12.51.40 PM.png

Screen Shot 2013-10-24 at 12.51.56 PM.png

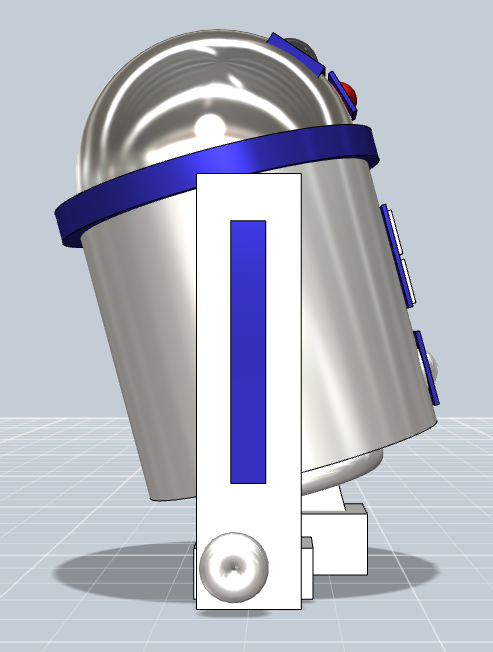

"In a galaxy far far away . . . "I created a version of R2D2 on the 123 Design program. This is recreated to look like R2D2. You can make your R2D2 any color you want. As shown above is a 3-D printed version of R2D2.

Here Are The Dimensions (The pictures are in order above to have as a reference):

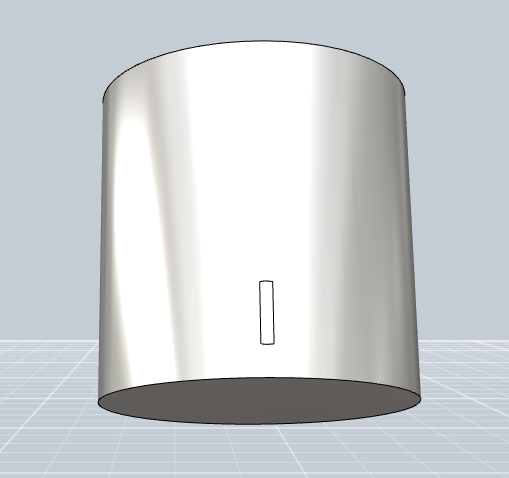

Body: 10 mm Radius / 20mm height

Silver Button: 1.5 mm Radius

Blue Silver Button Containment: 4mm x 5mm x .3mm

Blue Square on Stomach: 7mm x 4mm x .3mm

White Squares x 2: 3mm x 3mm x .1mm

Blue Neck: 11 mm Radius / 2mm Height

White Ring: Major Radius 4mm / Minor Radius 1mm

Small Leg: 5mm x 5mm x 1mm

Head: 9mm Radius

Eye: 2mm Radius

Square Surrounded Eye: 6mm x 4mm x 4mm

Box Surrounding Red Button: 3mm x 5mm x .3mm

Red Button: 1.2mm Radius

Leg x 2: 5mmx 5mm x 25mm

Front Foot: 5mm x 7mm x 4mm

Side Foot x 2: 4mm x 3mm x 7mm

Blue Design on Leg x 2: 15mm x 2mm x 3mm

Wheel on Foot x 2: Major Radius 1mm / Minor Radius 1mm
