Here is how i implemented a crude/simple encoder for my arduino robot to provide better navigation compared to using time delay.

Materials used
  1. Optical slotted switch
  2. cardboard
  3. hotglue
Tools used
  1. Pencil
  2. Ruler
  3. Compass (the one you draw circles)
  4. Sharp craft knife
  5. paper (for calculating)
  6. hotglue gun
(sorry for out of focus pictures, din't notice it till way too late)

Planning

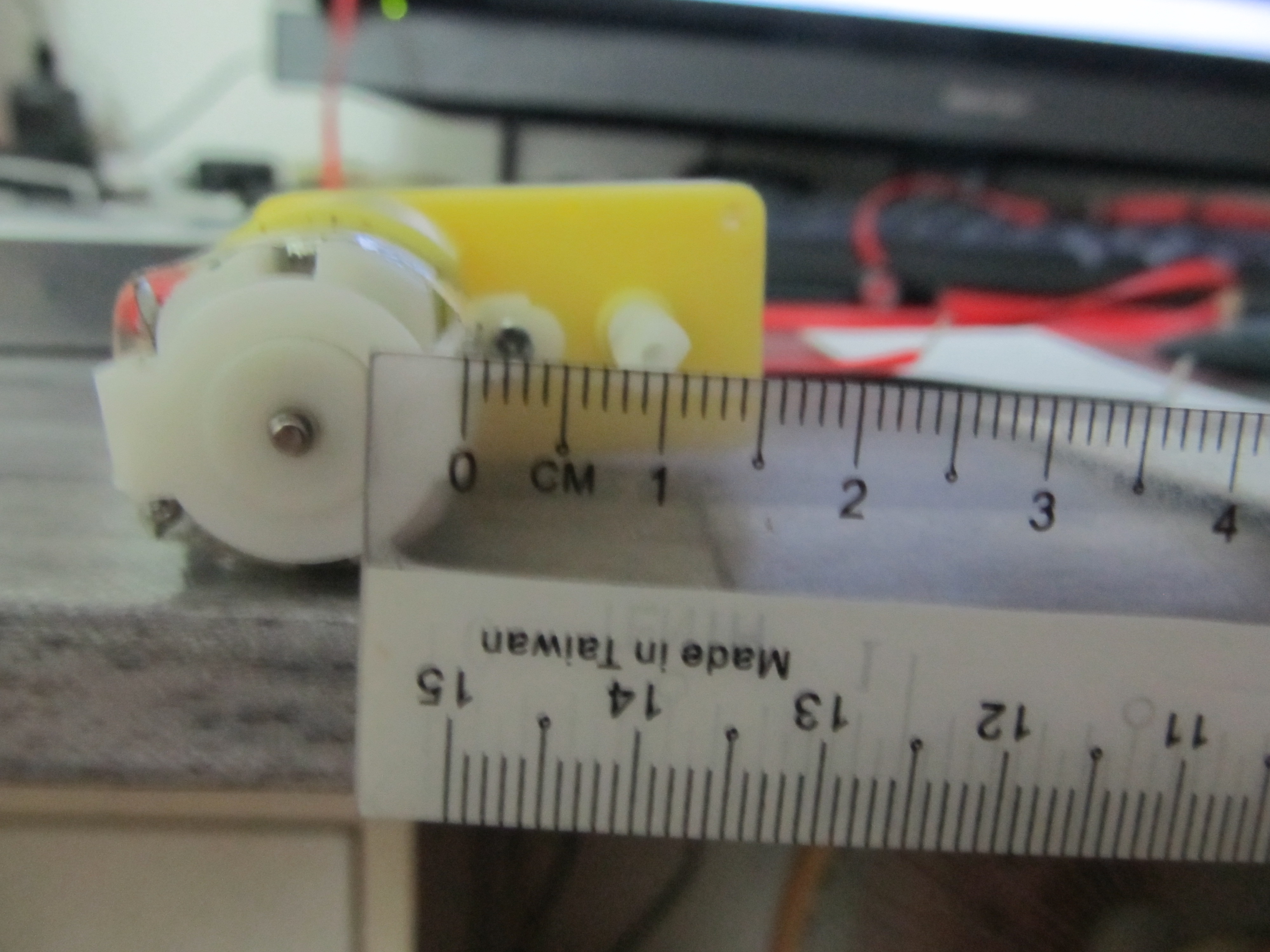

Firstly measure your sensors and motor, so you can get a rough idea of how big/small you need your disc to be.
so from my measurements, i needed the disc to be slightly less than 1 cm radius and i will cut the slots at 3mm intervals
working that out, i figured i need to spacing to be 18 degrees for each 'tick'.

The Disc

Here i cut the circle out before drawing the lines for the 'ticks', it was not a very good idea. You should draw the circle and the lines before cutting it out.
An inner circle of smaller diameter is drawn to produce a dart-board-like pattern.
Next darken alternate 'ticks' so you can have an idea how it looks like when it is done, you want to make sure you don't end up with 2 'ticks' forced together. Generally you would want to have an even number of lines fanning out from the center.
Then proceed to cut out the darkened parts

Attaching to Motor

Now we just need to cut a hole to attach the encoder disc to the shaft and do a final check on where we want to place our switch
depending on the material and tools you use as well as your crafting skills, hopefully your disc would not be as 'fuzzy' as mine.

Glue and Use

Finally just glue the switch in place and you are ready to go.
if you are using arduino, you can wire it as you would with a button and test it out with the button or debouncing example program
Thats it!
Please leave any comment (preferably constructive ones )

Update* New Encoder Disc


Here you can see various attempts to upgrade the encoder disc to make it more reliable and provide a higher resolution.
The few discs in the first picture (white background) are all hand made, topmost from cardboard as in this ible, 2nd from a flatten aluminum drink can and the other 3 from aluminum sheet. The problem however was that it is quite difficult to make the slits using the tools available to me and my lack of skills. Hence the disc were quite irregular, still usable but not consistent.
The 3 discs in the second picture (black background) are machine made courtesy of a friend of mine, I believe it is made with a wire cut machine. Works like a dream.
