Quick, Easy Shelving for Your Shop or Garage

Here's how I made these shelves for my garage workshop. Check out the video as well to see more of the process!

I started at the miter saw to cut the tops, bottoms, and sides of the shelves to the correct lengths. I used standard 1"x8" pine boards for this project. My shelves were 8' long and the sides were 13.5" high, but obviously you can alter these dimensions to fit your space.

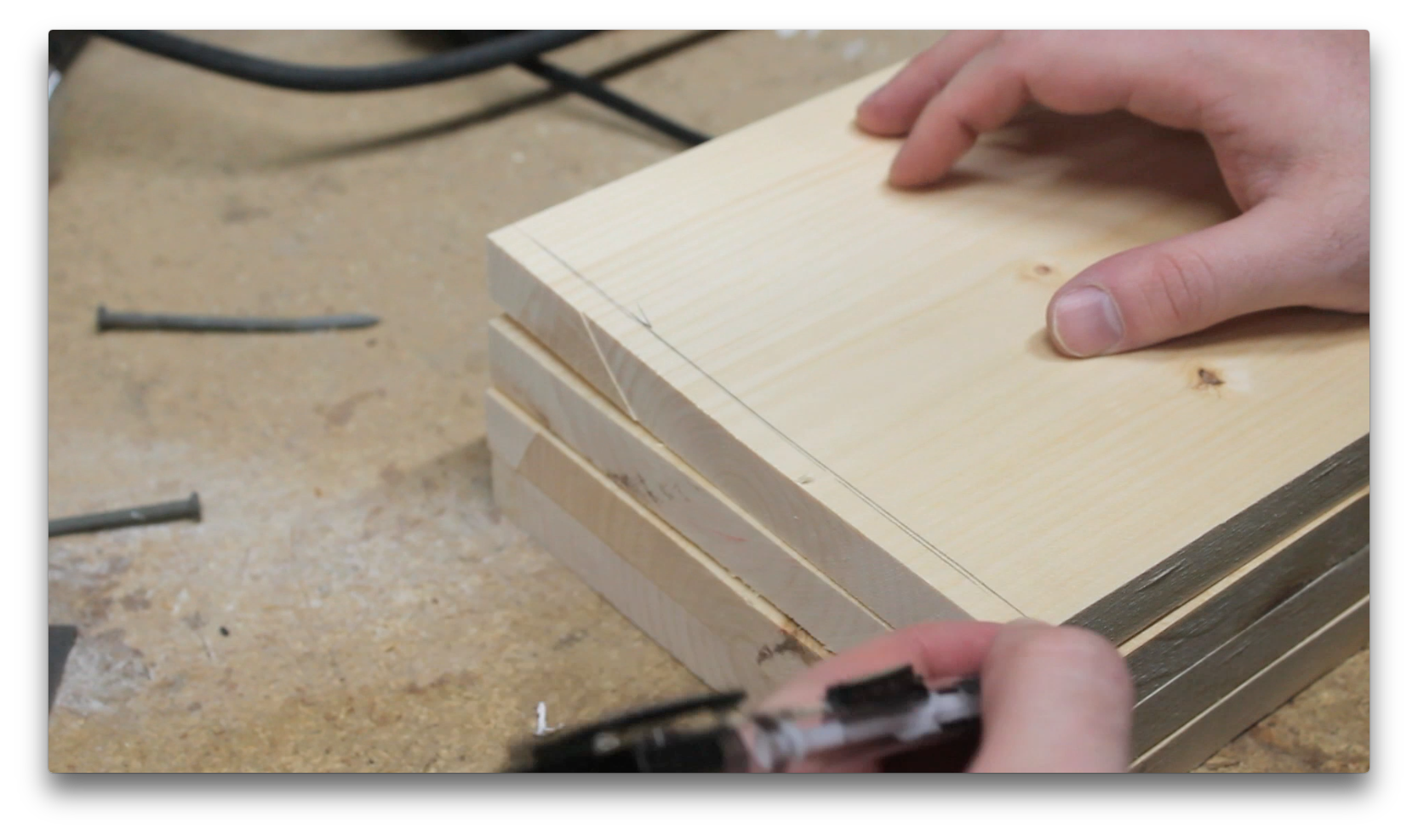

I used screws and butt joints to attach the sides of the shelves. If you are planning on putting anything seriously heavy on these shelves, I would not use this joinery method.. but for what I will be storing on these shelves, it's more than adequate. In order to make sure I was going to screw into the middle of each adjoining board, I marked where the middle would be on each side piece.

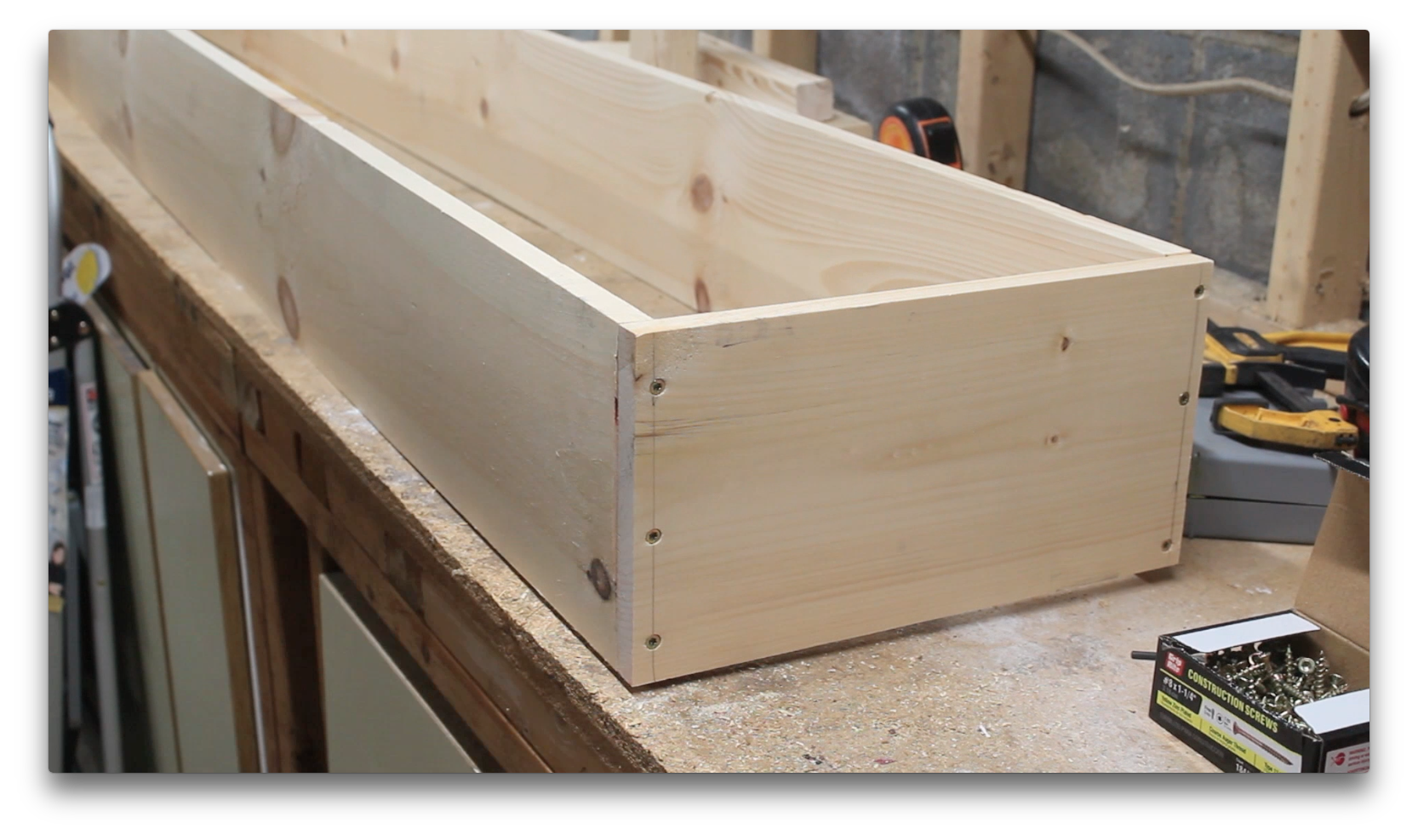

I used some 90-degree corner clamps to hold everything in place, then pre-drilled three holes in each side and countersunk each one. Then I used construction screws to attach the sides. At this point, I basically had two really long, 4-sided boxes.

I cut a bunch of pieces (12 total, I think) to act as dividers between each tool. These also add some strength to the shelves and keep them from sagging in the middle.

I layed out each tool the way I was going to store it once the shelves were complete. This allowed me to mark the locations where each divider should go.

I used a pocket-hole jig to drill 4 pocket holes in each divider. If you don't have a pocket-hole jig, you could always attach each divider by drilling up through top and bottom of the shelves.

Using the marked locations I had established before, I used pocket screws to attach each divider to the top and bottom of the shelves.

In order to mount each shelf securely, I used dimensional 2"x2" lumber to mark mounting blocks. I simply marked the length between each divider and cut a mounting block to fit.

For aesthetic reasons, I cut blocks to go between every divider, but you really only need them where you'll be attaching the shelf to a stud. The rest are just for a more uniform look.

I used more construction screws to attach each mounting block to the top of the shelf (note that the shelf is upside down in this picture).

I was working alone on these shelves, so I used some temporary screws for the shelf to rest on while I got it level. If you are mounting these in a drywalled shop and don't want to make a bunch of unnecessary holes, just get someone to help you hold it up while you level it.

Once I had the shelf leveled, I attached the permanent screws through the mounting blocks and into as many studs as I could. I then removed the temporary screws.

That's it! I was aiming for easy access to the tools that I use the most, hence the open design and minimal clutter. So far, they are working out great.
