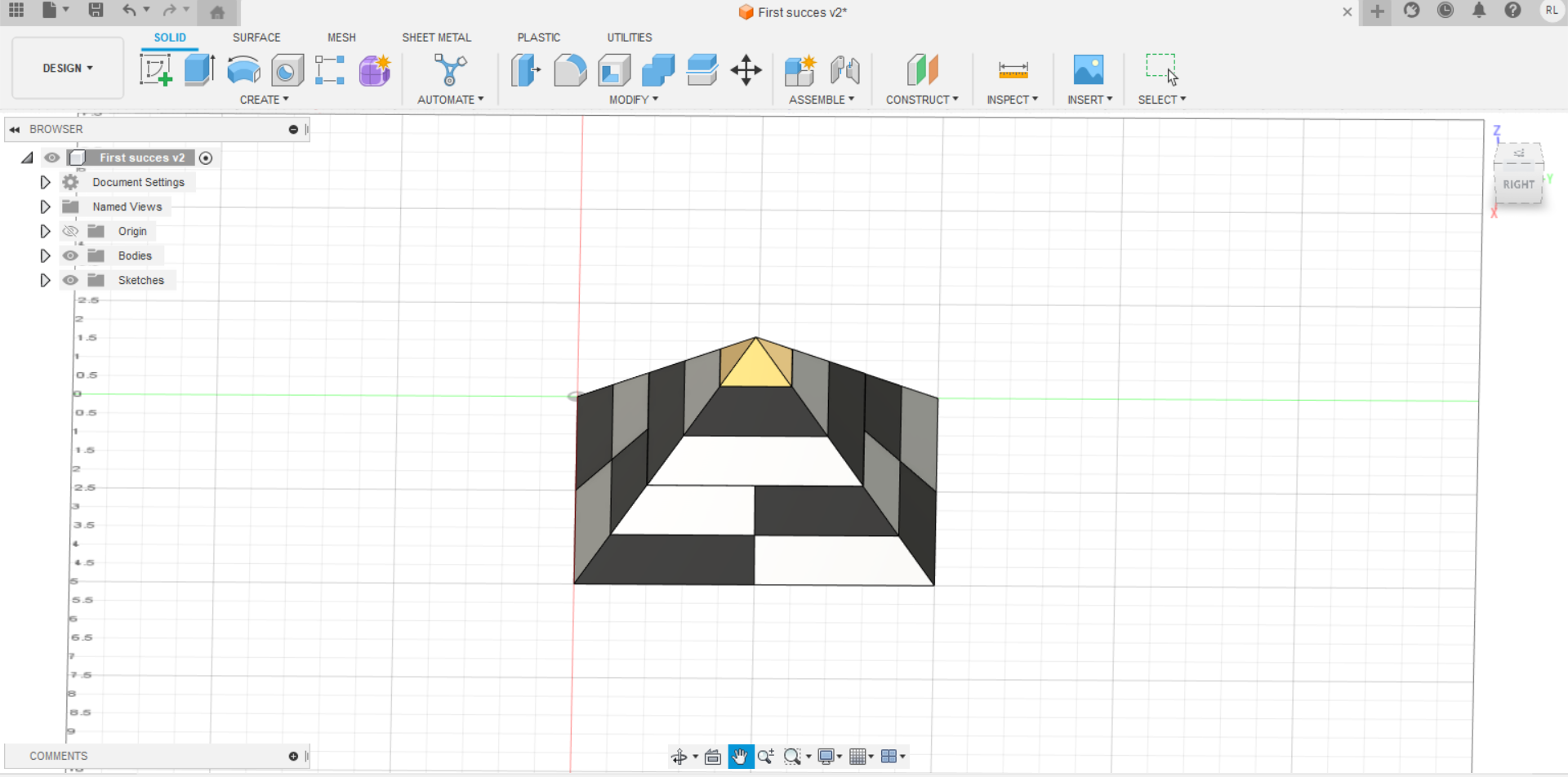

Puzzle

Screenshot 2023-03-06 144229.png

Is a pyramid puzzle inspiration were the pyramids of Egypt

First Base

Screenshot 2023-03-06 145106.png

I created a sketch on the top view and drew a square that measures 5" X 5"! I extruded the square 1" in height! then i chamfered the top into a half triangle!

Second Half

Screenshot 2023-03-06 145431.png

Then i repeated the steps into new parts the all messured different sizes

The Top

Screenshot 2023-03-06 145609.png

Then i finally did the top golden cap with the meassurments of the top of the second half
