Push Button With 7 Segment Display

by atharvadhamorikar in Circuits > Arduino

11949 Views, 1 Favorites, 0 Comments

Push Button With 7 Segment Display

Screenshot (241).png
7 segment display with push button.

In this instructable, I made a 7 Segment pushbutton counting.Using TinkerCad

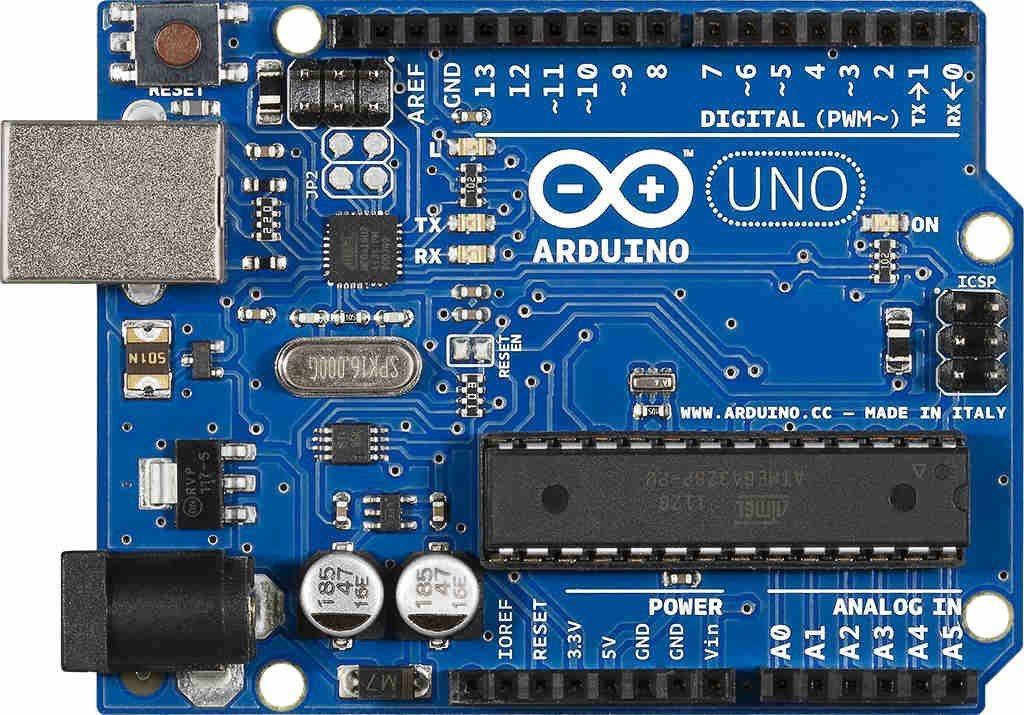

Supplies


Supply = *Only TinkerCad

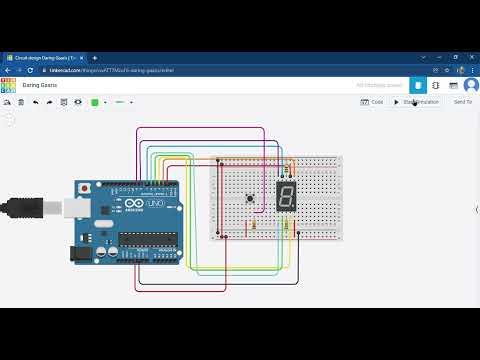

Connections

Screenshot (241).png

Connect all the components as shown. Use a 500Ω to 1kΩ Resistor to connect the 7 segment display with a negative line. *use a Common Cathode 7 segment display also use a 1kΩResistor to connect push button.


Code

Screenshot (242).png

Code :-

void setup()

{

 pinMode(2, OUTPUT);

 pinMode(3, OUTPUT);

 pinMode(4, OUTPUT);

 pinMode(5, OUTPUT);

 pinMode(6, OUTPUT);

 pinMode(7, OUTPUT);

 pinMode(8, OUTPUT);

 pinMode(9,INPUT);

 Serial.begin(9600);

}

void loop()


 {



 int x=digitalRead(9);

 Serial.println(x);

 delay(500);



 if(x==1)

 {

 digitalWrite(2,0);//1

digitalWrite(3,1);

digitalWrite(4,1);

digitalWrite(5,0);

digitalWrite(6,0);

digitalWrite(7,0);

digitalWrite(8,0);

delay(1000);


digitalWrite(2,1);//2

digitalWrite(3,1);

digitalWrite(4,0);

digitalWrite(5,1);

digitalWrite(6,1);

digitalWrite(7,0);

digitalWrite(8,1);

delay(1000);


digitalWrite(2,1);//3

digitalWrite(3,1);

digitalWrite(4,1);

digitalWrite(5,1);

digitalWrite(6,0);

digitalWrite(7,0);

digitalWrite(8,1);

delay(1000);


digitalWrite(2,0);//4

digitalWrite(3,1);

digitalWrite(4,1);

digitalWrite(5,0);

digitalWrite(6,0);

digitalWrite(7,1);

digitalWrite(8,1);

delay(1000);


digitalWrite(2,1);//5

digitalWrite(3,0);

digitalWrite(4,1);

digitalWrite(5,1);

digitalWrite(6,0);

digitalWrite(7,1);

digitalWrite(8,1);

delay(1000);


digitalWrite(2,1);//6

digitalWrite(3,0);

digitalWrite(4,1);

digitalWrite(5,1);

digitalWrite(6,1);

digitalWrite(7,1);

digitalWrite(8,1);

delay(1000);


digitalWrite(2,1);//7

digitalWrite(3,1);

digitalWrite(4,1);

digitalWrite(5,0);

digitalWrite(6,0);

digitalWrite(7,0);

digitalWrite(8,0);

delay(1000);


digitalWrite(2,1);//8

digitalWrite(3,1);

digitalWrite(4,1);

digitalWrite(5,1);

digitalWrite(6,1);

digitalWrite(7,1);

digitalWrite(8,1);

delay(1000);


digitalWrite(2,1);//9

digitalWrite(3,1);

digitalWrite(4,1);

digitalWrite(5,1);

digitalWrite(6,0);

digitalWrite(7,1);

digitalWrite(8,1);

delay(1000);

 }

else(x==0);

{

digitalWrite(2,0);

digitalWrite(3,0);

digitalWrite(4,0);

digitalWrite(5,0);

digitalWrite(6,0);

digitalWrite(7,0);

digitalWrite(8,0);

delay(1000);

}

Testing

7 segment display with push button.

Now you are done enjoy : )
