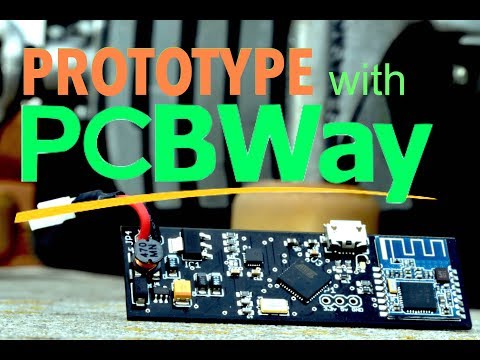

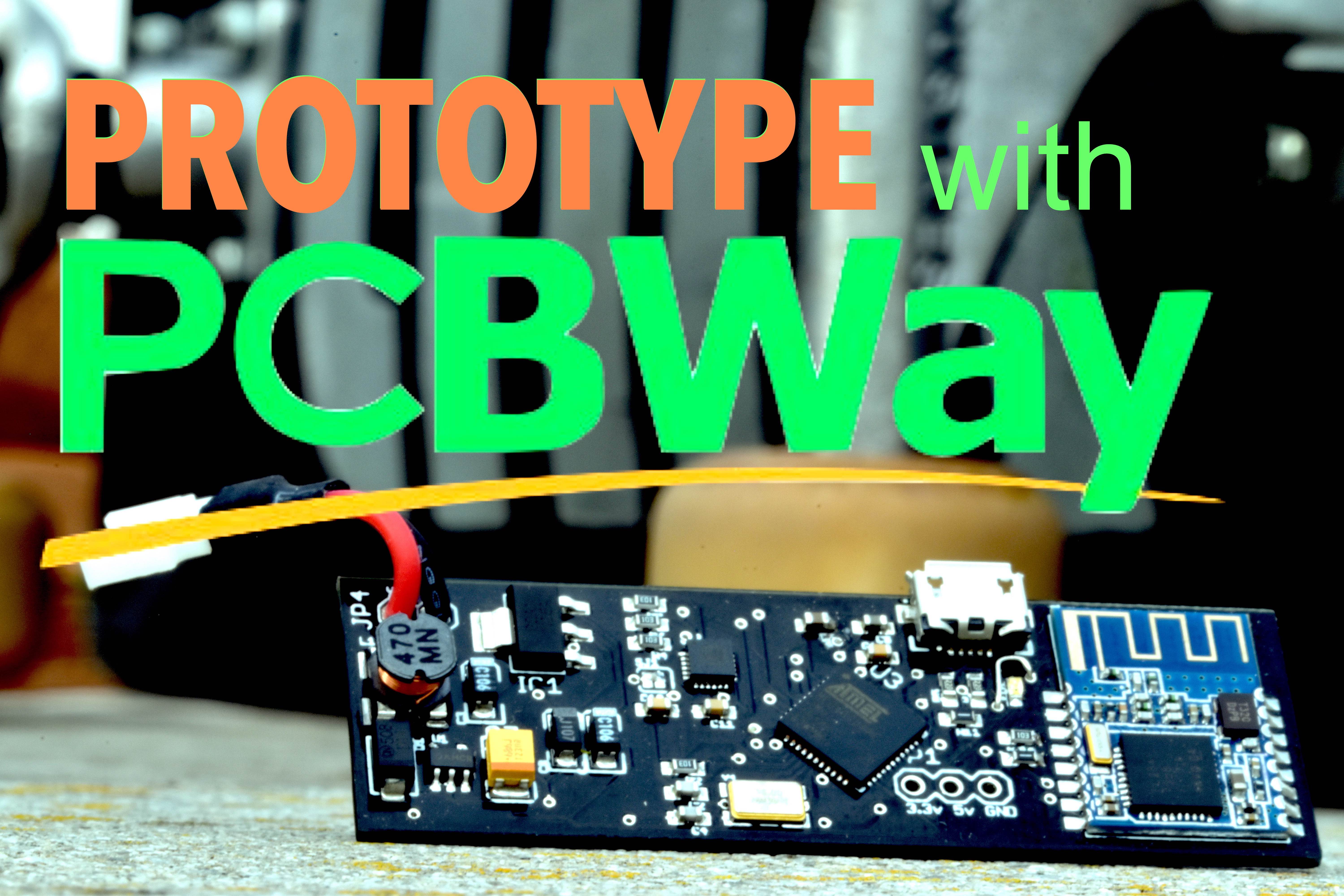

Prototype With PCBWay

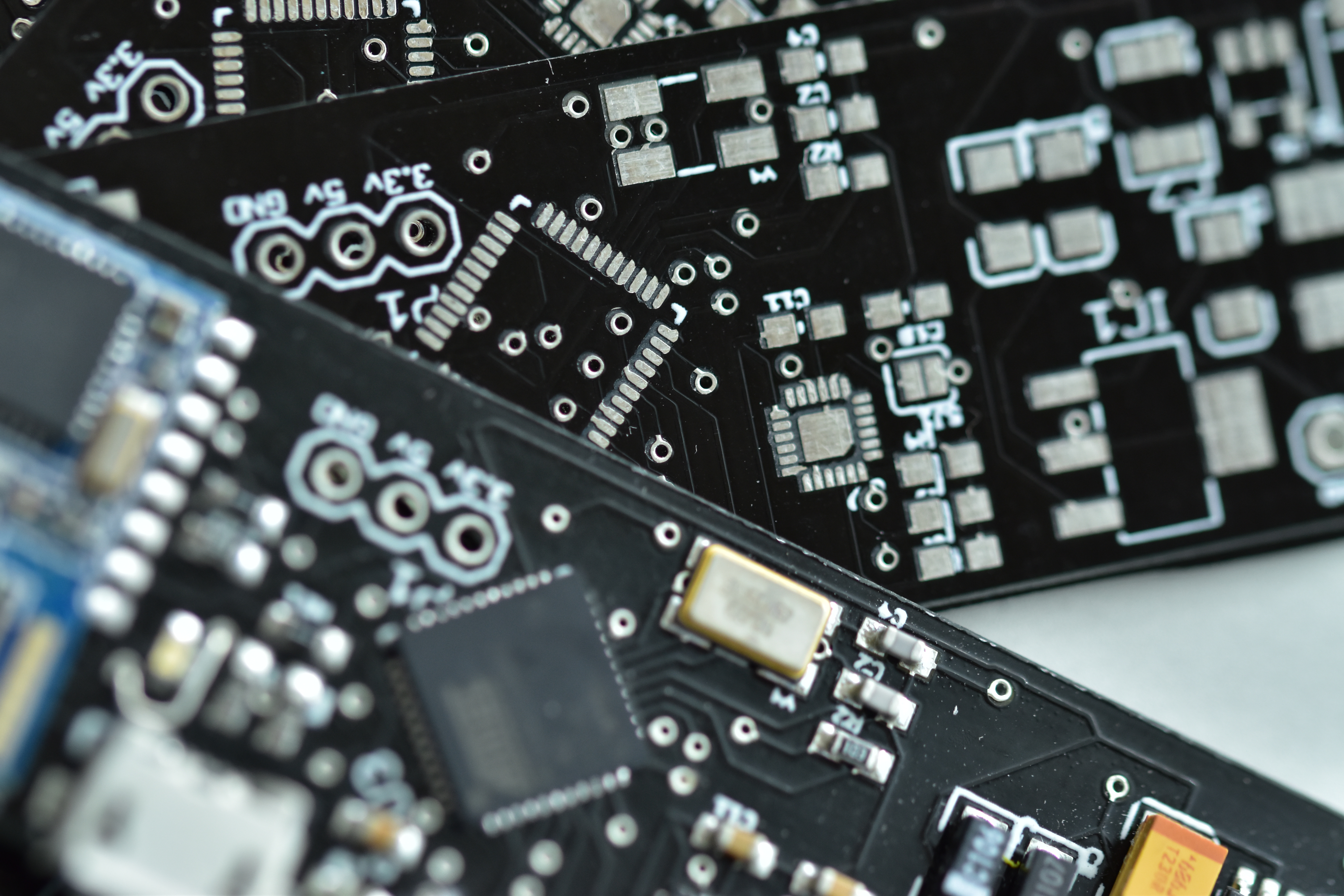

I wanted to make a PCB as small as possible. I needed to use QFN components, but these components are difficult to solder yourself. So I used the PCBWay assembly service. I was amazed by the PCBWay customer service, they answered all my questions by mail, and very quickly. I had already used PCBWay to make this.

Thanks UTSOURCE.net to offer electronic components for my projects

To design your PCB, you can use EAGLE. To manufacturer your PCB, you will need two important files:

• A BOM file
• Gerbers files

With EAGLE you can export your PCB in gerber file, it's just a file which contain your PCB design.

The BOM file is a list of all the components which are used in your PCB. You can make a BOM with excel.

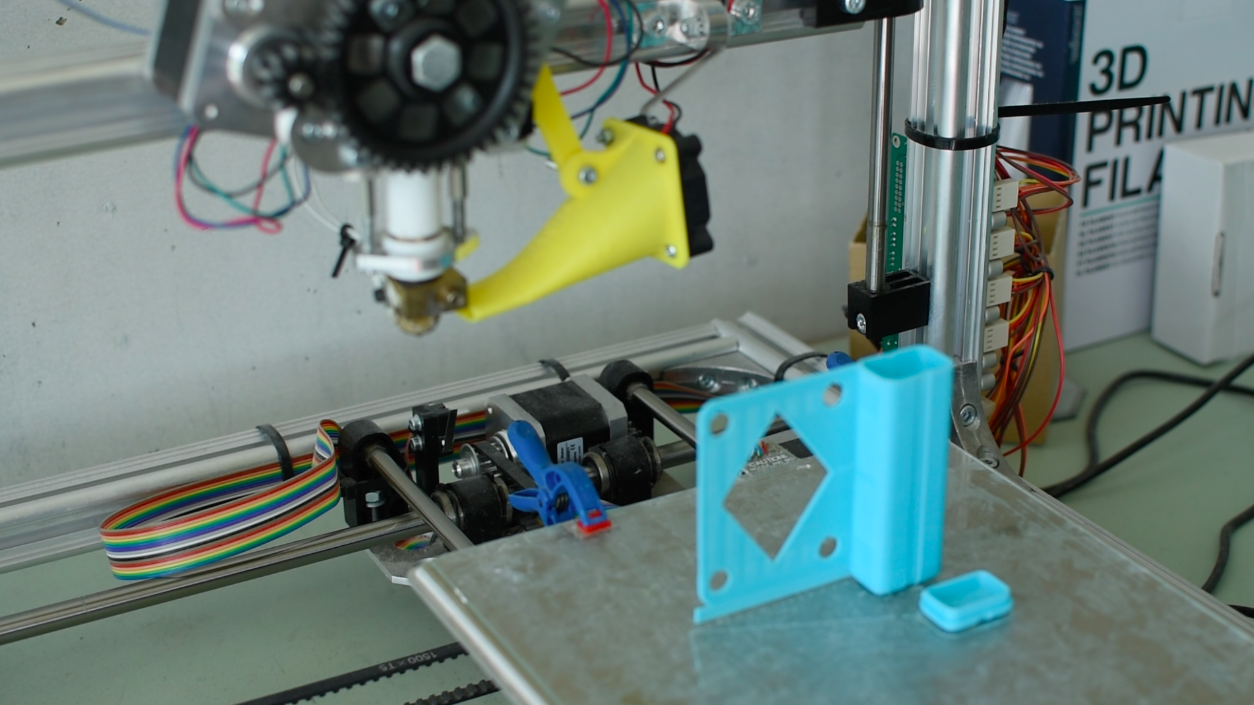

To design a case, you can use Fusion 360. It's a really good software to make 3D object. You can export your design in STL file and you can print it easily. If you don't have a 3D printer you can use 3dhubs to print what you want.
