Prototype Slot Screws

by jdmorse in Workshop > Metalworking

1227 Views, 9 Favorites, 0 Comments

Prototype Slot Screws

Slot Screws 33.JPG

I make my living making things. By day I make things for other people as a master tool & die maker, prototype machinist, chief cook and bottle washer. After work I make things for fun for me. This Instructable is about one of the "making things for other people" jobs. Since I use this picture as my profile picture, doing this Instructable was almost a requirement. I apologize for the poor quality of some of the photos in this; I had recently gotten a new camera and this was a project I wanted to do as an Instructable, but I didn't take the time to review, edit, and reshoot.

First, a Little Lathe Work.

Slot Screws 02 - Copy.JPG
Slot Screws 03.JPG
Slot Screws 03 - Copy.JPG

Starting with 3/8" round brass rod and my old Southbend lathe, we turn the shank of the screw. I took three passes.

Cutting Threads.

Slot Screws 06.JPG
Slot Screws 07.JPG
Slot Screws 08.JPG

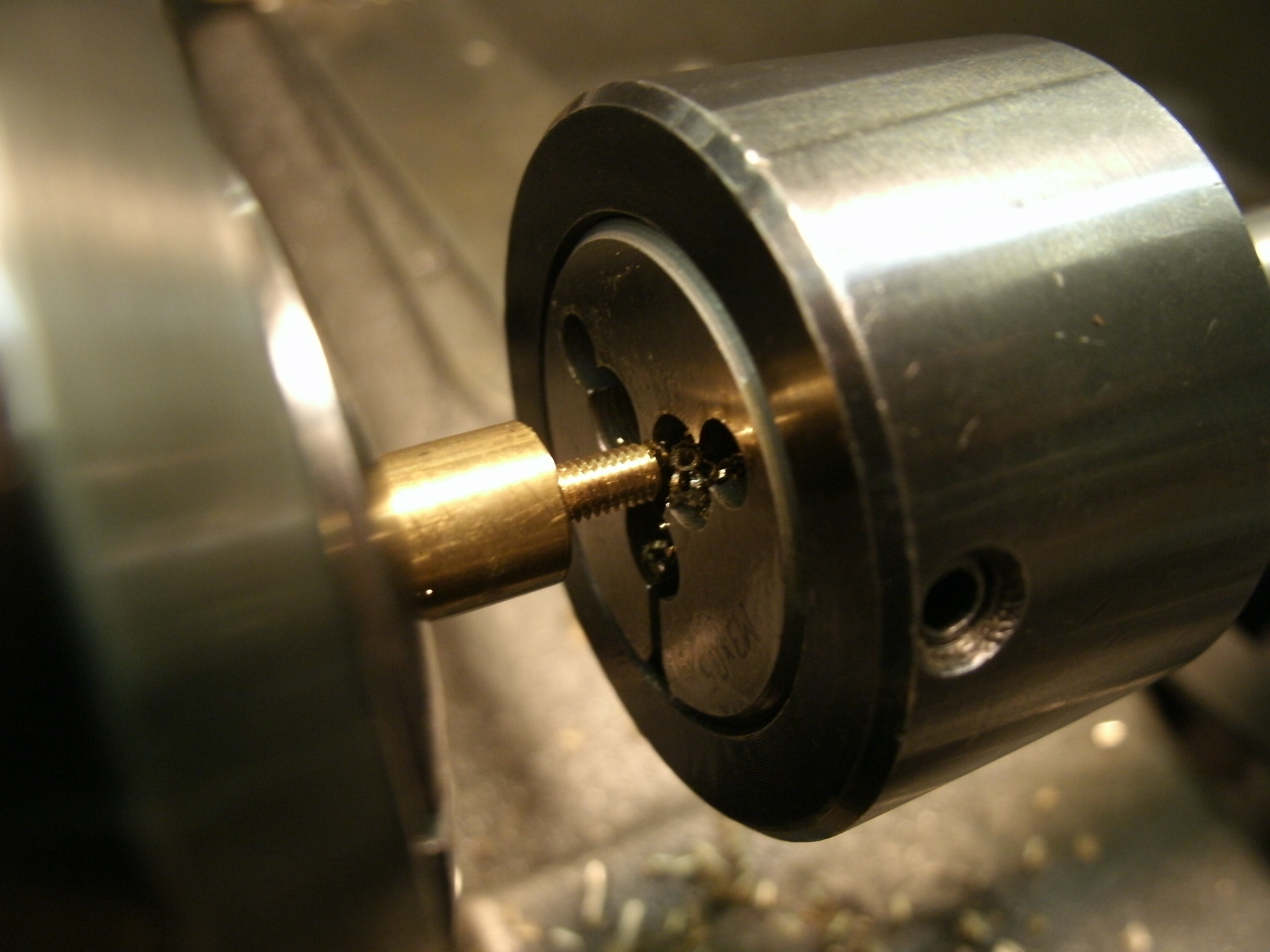

Cutting threads this small on a lathe can be tricky; a moments inattention and it's gone! Fortunately, at this point, I can easily make a new one without backtracking; I've already set this up to make multiple screws.

Parting Off.

Slot Screws 01 - Copy.JPG

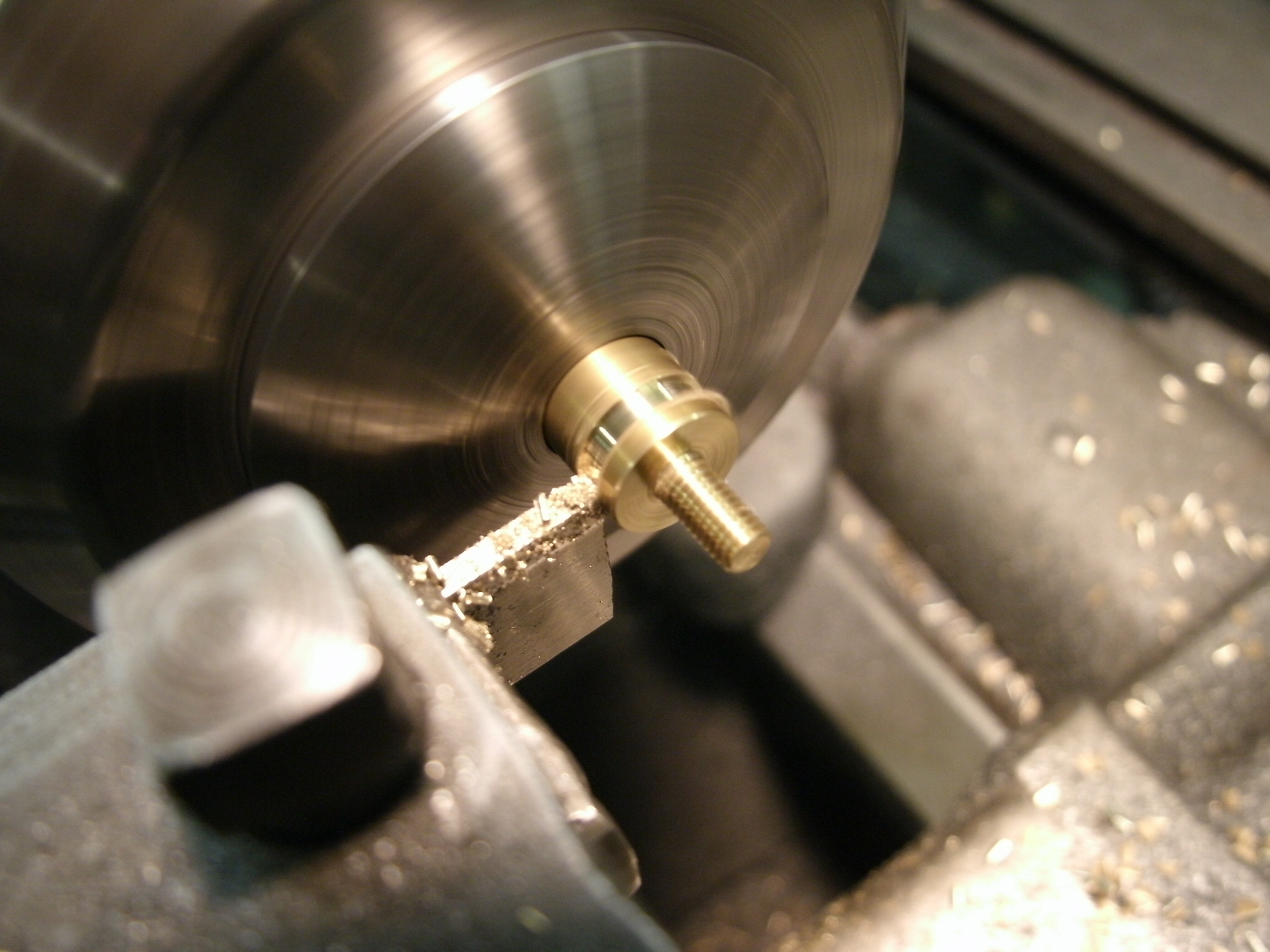

The last step on the lathe is parting off. This also leaves us with the head at the correct dimension.

Cutting the Straight Sides.

Slot Screws 16.JPG
Slot Screws 10.JPG
Slot Screws 13.JPG

I used a vice in a vice for this because the big mill vice jaws edges are too worn to grip tiny parts.

There was not much material to hang on to for the second cut!

The Special Setup.

Slot Screws 19.JPG
Slot Screws 20.JPG
Slot Screws 22.JPG
Slot Screws 23.JPG
Slot Screws 24.JPG

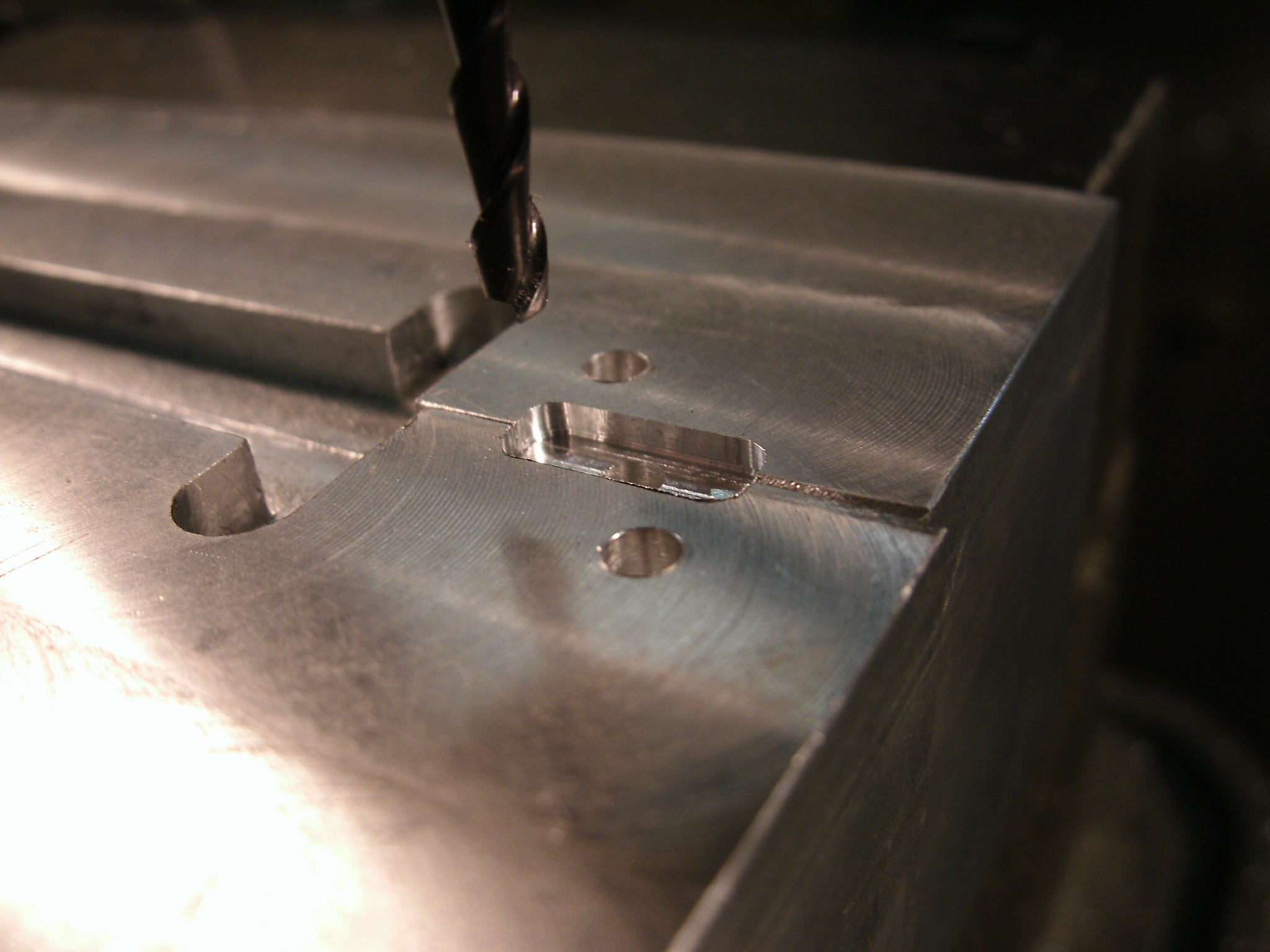

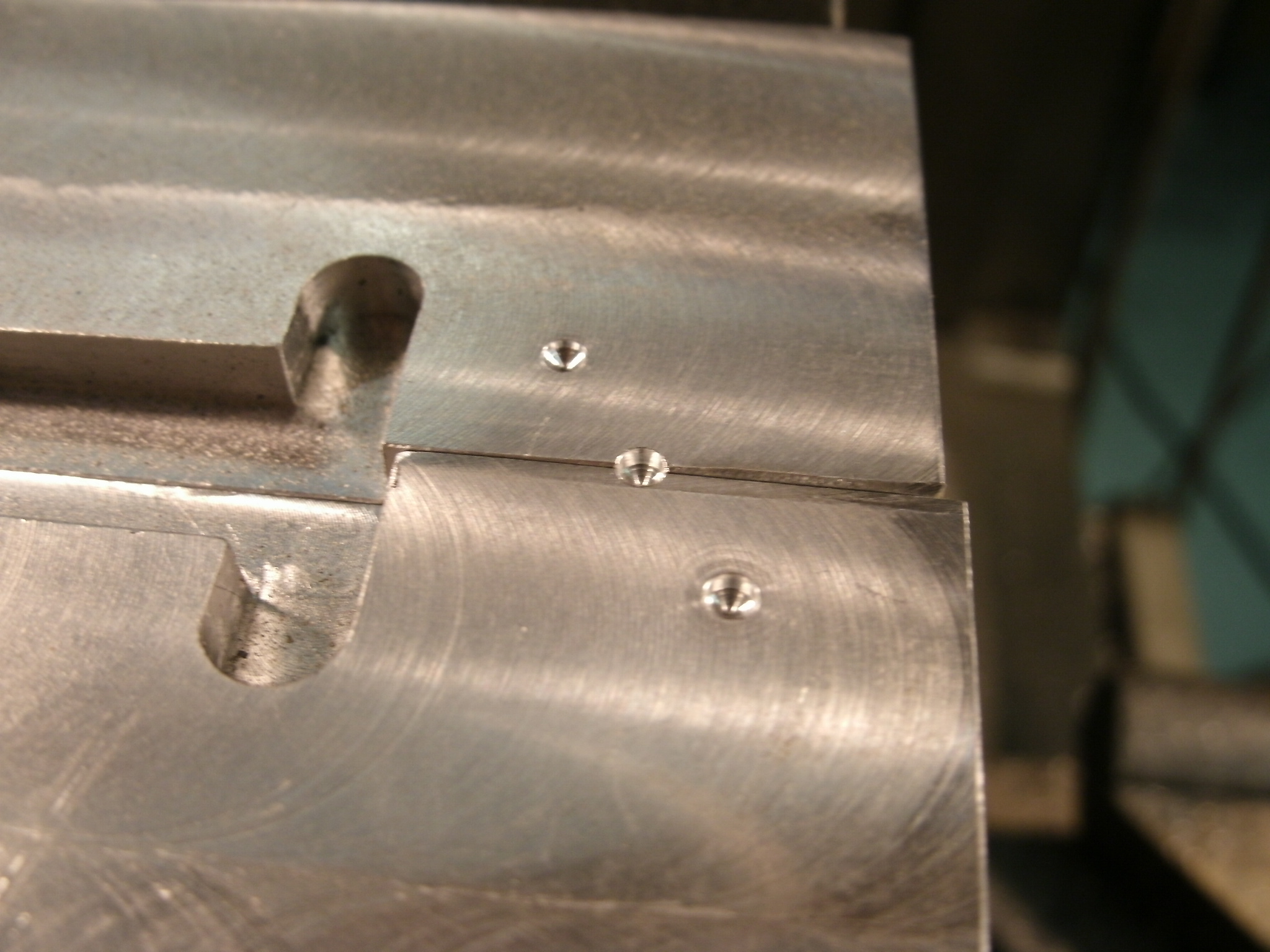

Now we get to the interesting part! How do we hold the screw so we can cut the angled sides? We use soft jaws! Replacing the hard jaws on the mill vice with soft aluminum jaws lets us cut a special pocket to hold the screw in just the right way. This is probably one of the simplest ways to create a milling fixture.

Cutting the Angled Sides.

Slot Screws 25.JPG
Slot Screws 29.JPG
Slot Screws 30.JPG
Slot Screws 31.JPG
Slot Screws 32.JPG

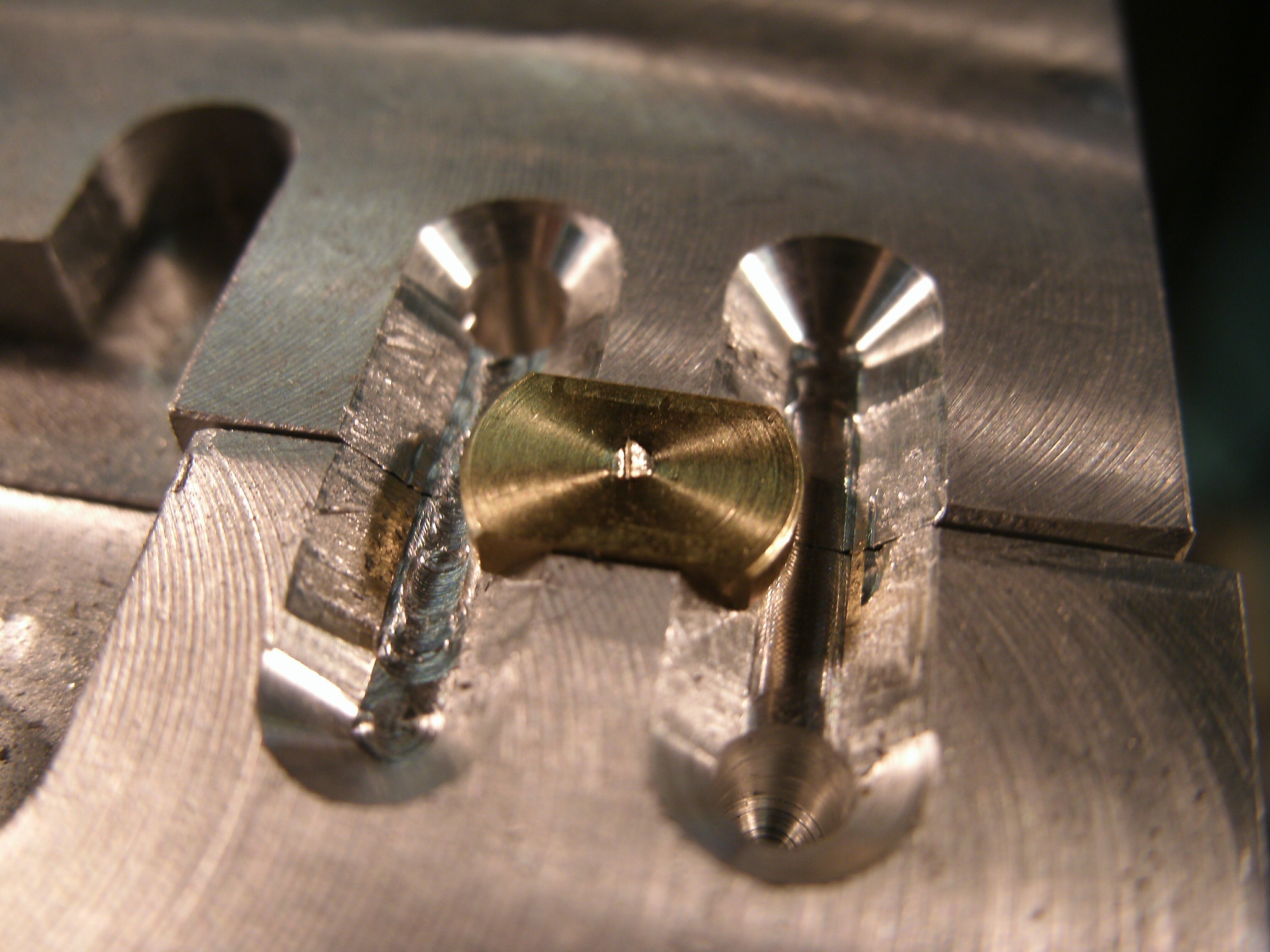

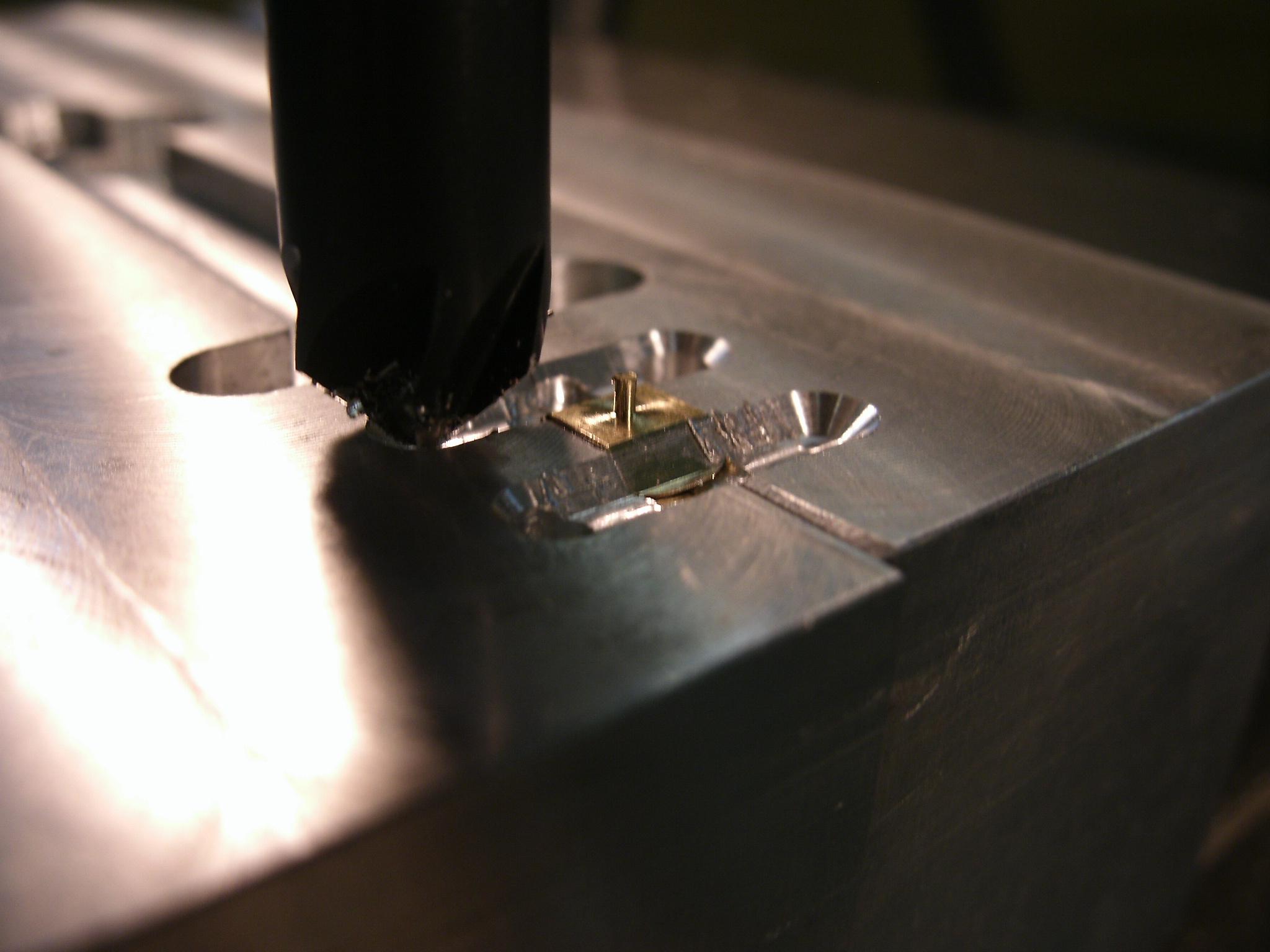

I set this up on my CNC, mostly because I could. It was overkill for a dozen screws. But it was not being used for anything at the moment, so...

Inspection and Done!

Slot Screws 27.JPG
Slot Screws 28.JPG

The optical comparator is the tool to use when measuring features you can't get to easily.
