Project BoxBoom - 80's Boombox Revamped
![05_lookingCool.jpg](/proxy/?url=https://content.instructables.com/FI6/LT7B/JMS504K8/FI6LT7BJMS504K8.jpg&filename=05_lookingCool.jpg)
How to revamp an old 80's boombox using a Raspberry Pi, an amplifier chip, the original speakers, a powerbank, a touchscreen and Deezer. Full build video here.
Tools and parts:
- Second Hand Boombox
- Raspberry Pi 3 Model B Starter Kit
- Adafruit TPA2012 2.1W Stereo Audio Amplifier
- Adafruit HDMI 5" 800x480 Display Backpack - With Resistive Touchscreen
- Powerbank
- Dremel 4300
- 3D Printer
As an Amazon Associate I earn from qualifying purchases you make using my affiliate links.

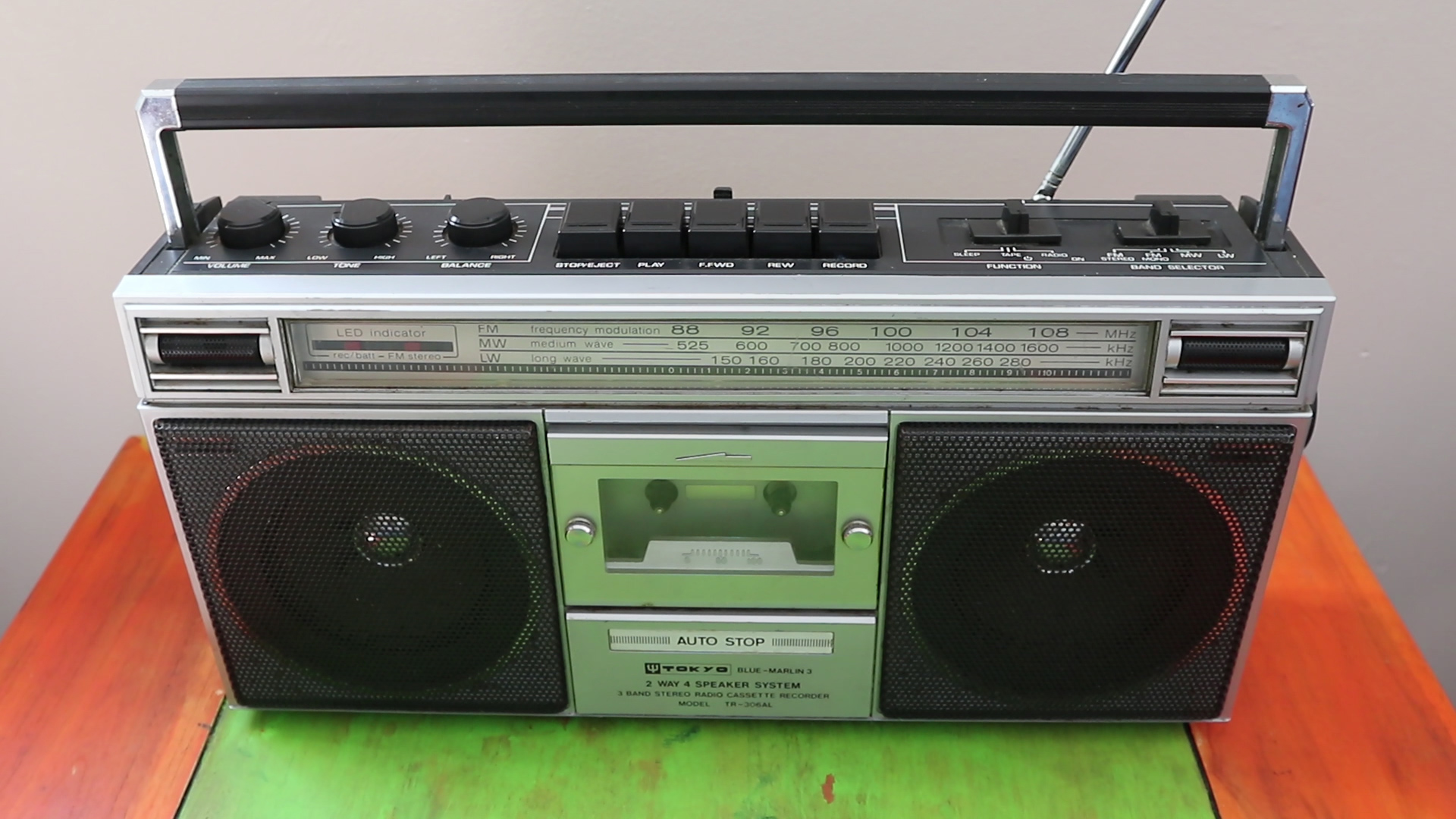

Buy a Boombox
![01_original.jpg](/proxy/?url=https://content.instructables.com/F4Z/XTN2/JMS504IK/F4ZXTN2JMS504IK.jpg&filename=01_original.jpg)

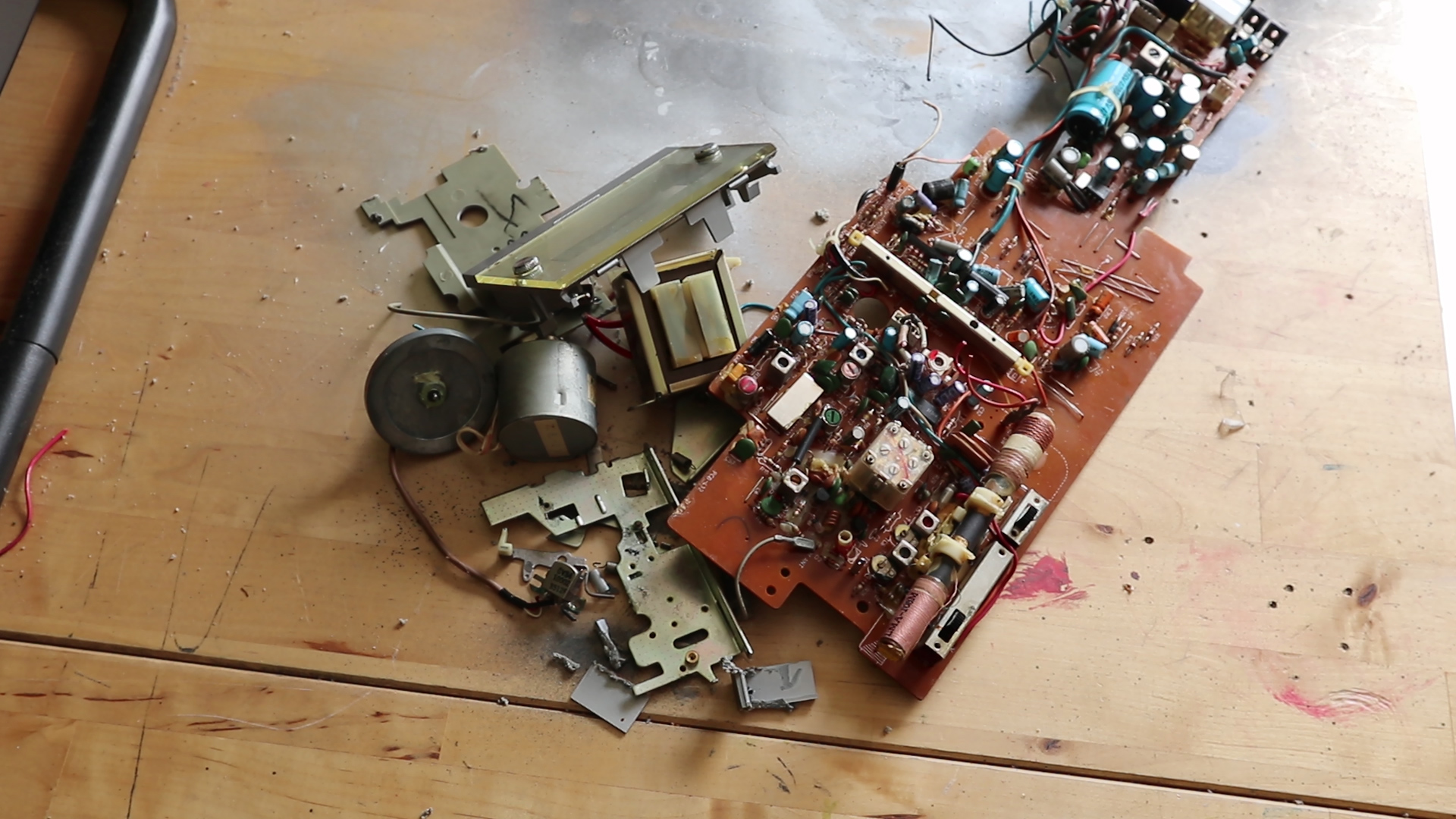

Remove All Broken Stuff, So We Have Room for Working Stuff.
![02_removeJunk.jpg](/proxy/?url=https://content.instructables.com/F5X/VE2J/JMS504J2/F5XVE2JJMS504J2.jpg&filename=02_removeJunk.jpg)
3D Print a Frame to Hold Our Touchscreen, and Drill Holes for Screws.
![03_screenFrame.jpg](/proxy/?url=https://content.instructables.com/FAQ/7Q5D/JMS504JP/FAQ7Q5DJMS504JP.jpg&filename=03_screenFrame.jpg)
Glue the Screen in Place
![gleu.png](/proxy/?url=https://content.instructables.com/F0G/FW1B/JMS505GS/F0GFW1BJMS505GS.png&filename=gleu.png)
Solder the Amplifier Chip
![solder.png](/proxy/?url=https://content.instructables.com/F4G/9UI0/JMS505KN/F4G9UI0JMS505KN.png&filename=solder.png)

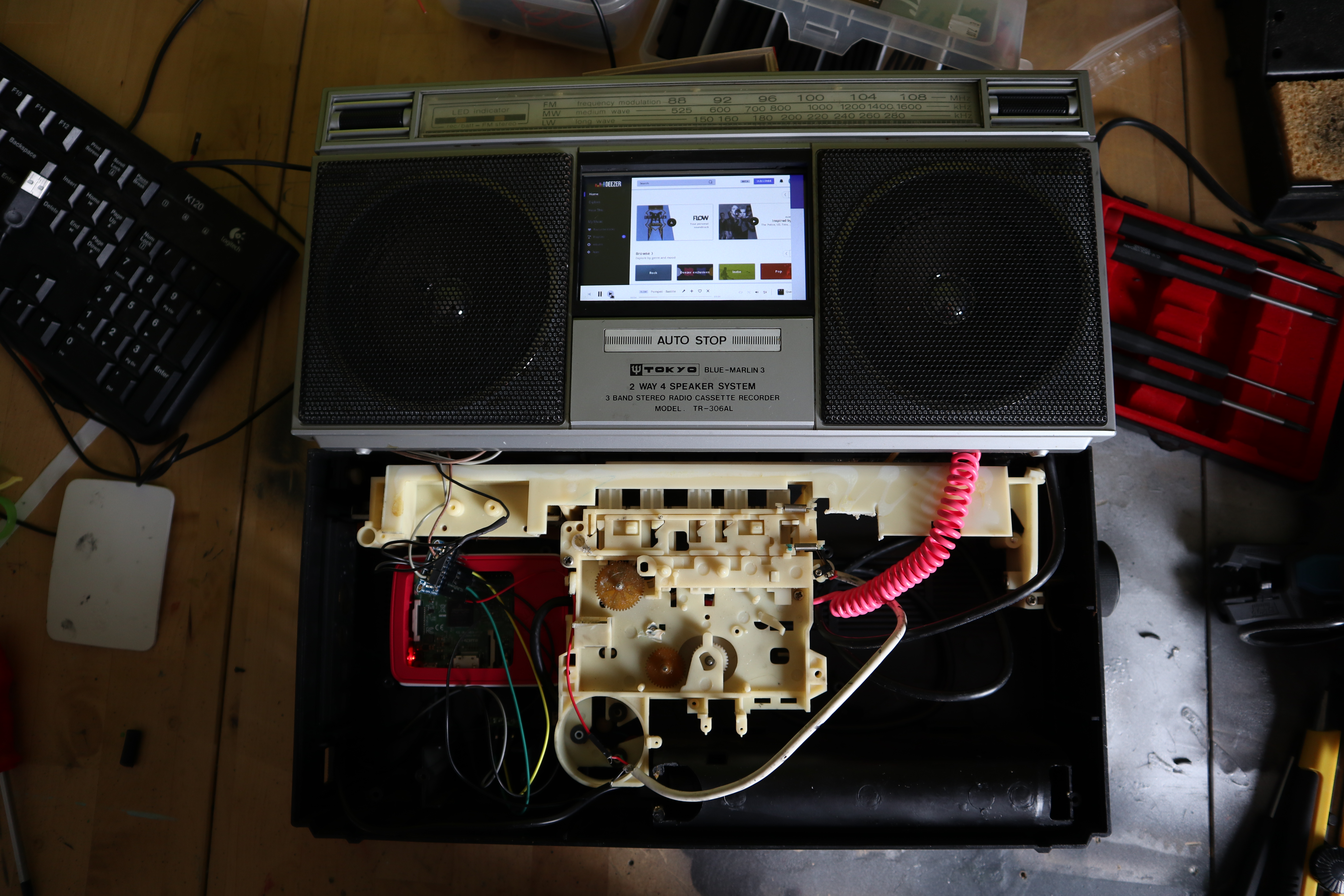

Connect All the Wires
![04_internals.JPG](/proxy/?url=https://content.instructables.com/F4E/SLDM/JMS504K0/F4ESLDMJMS504K0.jpg&filename=04_internals.JPG)
- USB to amplifier (power)
- Speakers to amplifier
- Audiojack to amplifier
- HDMI to screen
- USB to screen
- Powerbank to Raspberry Pi
You can see it better in the build video here.
Open Chromium on Startup, Loading the Deezer Homepage
![deezer-logo-circle.png](/proxy/?url=https://content.instructables.com/FZN/C6F1/JMS50AOI/FZNC6F1JMS50AOI.png&filename=deezer-logo-circle.png)
Here's a nice link to help.
Look Cool
![thumbnail.jpg](/proxy/?url=https://content.instructables.com/F05/JZW4/JMS504HY/F05JZW4JMS504HY.jpg&filename=thumbnail.jpg)
