Program Arduino Nano Via Uno With ICSP

Hello Friends,

In this instructable, i have shown that how can you program Nano via Uno.

As you can see in above image, my Arduino Nano's USB female pin is broken.

So i have to find way to upload sketch to it some way.

One day i was Google-ing, i have read somewhere that a Arduino board can be programmed via another Arduino board.

So by searching on it, i found a solution for this.

So lets get started to solve this.

Tools you will Need :

Arduino Uno ( which will act as a programmer )

Arduino Nano ( to be programmed )

Jumper Cables ( Some male-male, male to female.)

Attach your Arduino to PC.

Now, go to..

File > Examples > ArduinoISP > ArduinoISP

A sketch will open, upload it on Uno.

When uploading is done. unplug it from PC.

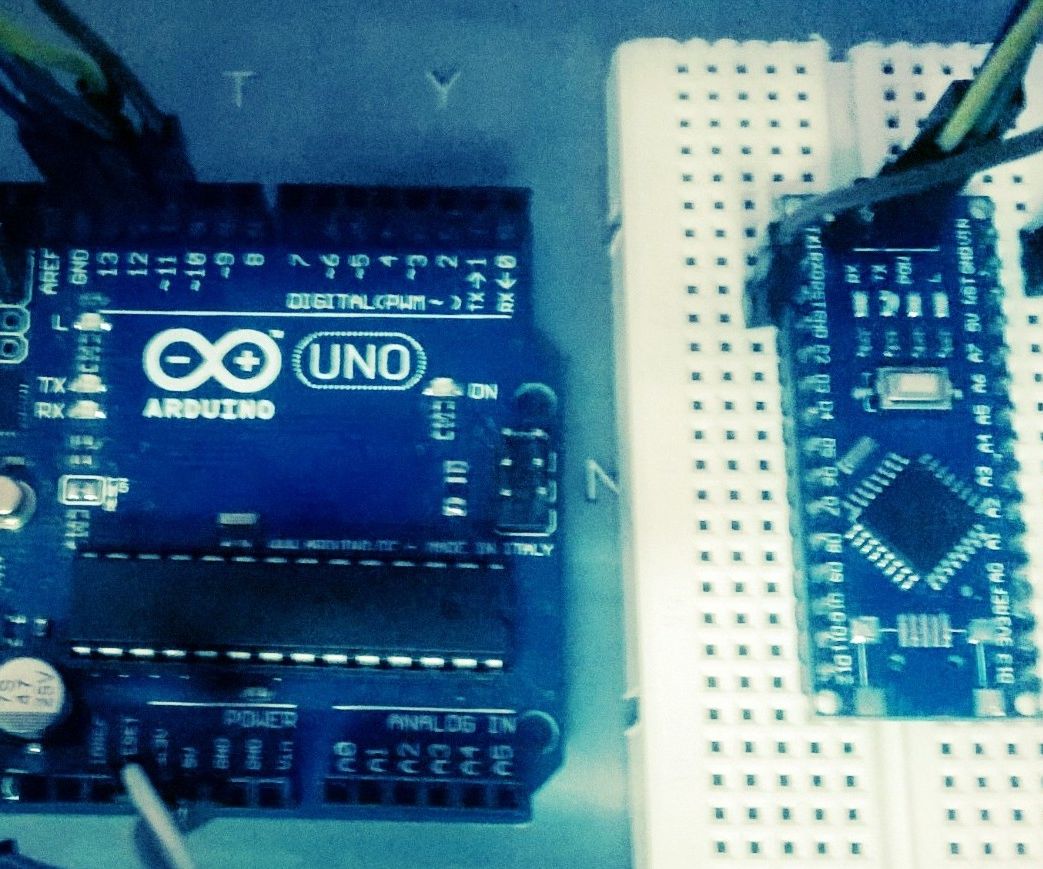

Now, take some jumper cables & attach Uno & the board you want to program just like the image above.

A ICSP pi out diagram is in another image. A (.) near 1 is first pin. on Arduino same . or 1 written near ICSP header.

Uno Nano

D13 > SCK

D12 > MISO

D11 > MOSI

D10 > RST (reset)

5V > VIN

GND > GND

Note : If your board's operating voltage is 3.3V then use 3.3V.

When wiring is done.

Now we have to do some settings in IDE.

• Go to Tools > Board & select Arduino Nano.

• In Processor, select ATmega328.

• & In Programmer, select Arduino as ISP. ("Arduino as ISP" not "ArduinoISP")

The settings is done.

• Now, open up the sketch you want to upload on your Nano,
• In Menu, go to Sketch & click on "Upload using Programmer"

IDE will compile the sketch & upload it to your Nano.

The RX TX leds will blink rapidly on both board, & you will see done uploading.

If not, then recheck all the wiring & settings.

If you get any problem or you want to give me suggestion, you can write in comment section below.

Happy Programming ^_^
