Prof. Inkling's Useless Easter Bonnet
by PicoPixie in Circuits > Arduino
733 Views, 10 Favorites, 0 Comments
Prof. Inkling's Useless Easter Bonnet
![hat.jpg](/proxy/?url=https://content.instructables.com/FN7/DXVD/I85QO0U7/FN7DXVDI85QO0U7.jpg&filename=hat.jpg)
![interiorarms.jpg](/proxy/?url=https://content.instructables.com/FW6/OP6F/I85QNXJP/FW6OP6FI85QNXJP.jpg&filename=interiorarms.jpg)
![interior.jpg](/proxy/?url=https://content.instructables.com/FKP/ZWVT/I85QNXJR/FKPZWVTI85QNXJR.jpg&filename=interior.jpg)

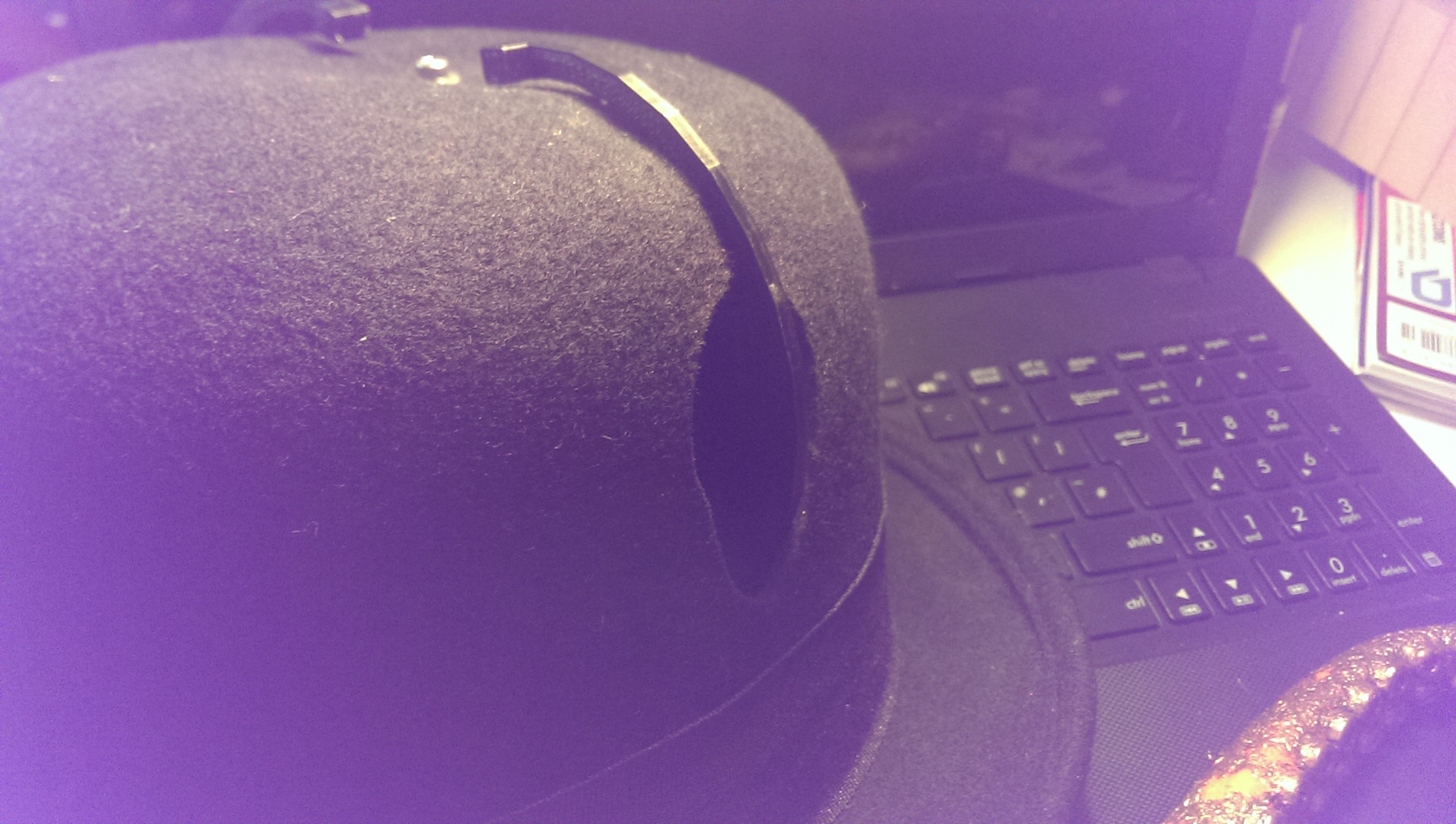

![cutouts.jpg](/proxy/?url=https://content.instructables.com/FYW/MKYB/I85QNXJV/FYWMKYBI85QNXJV.jpg&filename=cutouts.jpg)
![redtentacle.jpg](/proxy/?url=https://content.instructables.com/F64/1MFU/I85QNXJJ/F641MFUI85QNXJJ.jpg&filename=redtentacle.jpg)
![proto.jpg](/proxy/?url=https://content.instructables.com/F2K/GW1E/I85QNXJM/F2KGW1EI85QNXJM.jpg&filename=proto.jpg)
Inspired by the 'Useless Box' this project uses an Arduino Uno to control 2 small servo, the code picks a random servo/arm (tentacle), and moves it by a random step-size, to a randomly selected angle. pRNG is seeded in setup() with some noise from an unused pin, so we get a different play sequence each time this monstrosity is switched on.
Tentacles are from eBay (search: "finger tentacles"), they have been given a coat of the metallic paint leftover from my Steampunk'd goggles 'ible; Bowler[1] hat also from eBay.
Project features 3D printed servo arms and frame to hold servos into hat. Files for those to come.
There should be a video of it in action here:
https://drive.google.com/file/d/0ByRvXJ_jf_YDbHgyZ...
proving that some Things are better left in my head.
Music is, of course, by Abney Park.
Arduino code is here:
https://github.com/PicoPixie/UselessDuelHat
[1] Known as a 'Derby' in the USA.
