Print and Cut Heat Transfer Vinyl Using Cricut
by Made Studio in Craft > Printmaking
2252 Views, 11 Favorites, 0 Comments
Print and Cut Heat Transfer Vinyl Using Cricut

In this tutorial, you will learn how to print and cut Heat Transfer Vinyl (HTV) for making custom bags.
Download Cricut Design Space Software
You can find the instructions for downloading the software here:
https://help.cricut.com/hc/en-us/articles/360009428814-Downloading-and-Installing-Design-Space
Upload Image to Canvas



Select "Print and Cut" at the Top Dropdown Menu

Resize Image to Fit in 9" X 9.75" Print Bounds

Select Maker 3 and Click "make It" to Start Print Process

Navigate Print and Cut Design Space

Remember to verify the material size is 8.5" x 11"
Heat Transfer Vinyl does not need to be mirrored
Go to Sublimation Printer and Load Heat Transfer Vinyl (glossy Side Up)

Click "send to Printer" and Select "SAWGRASS SG1000" Then Print!

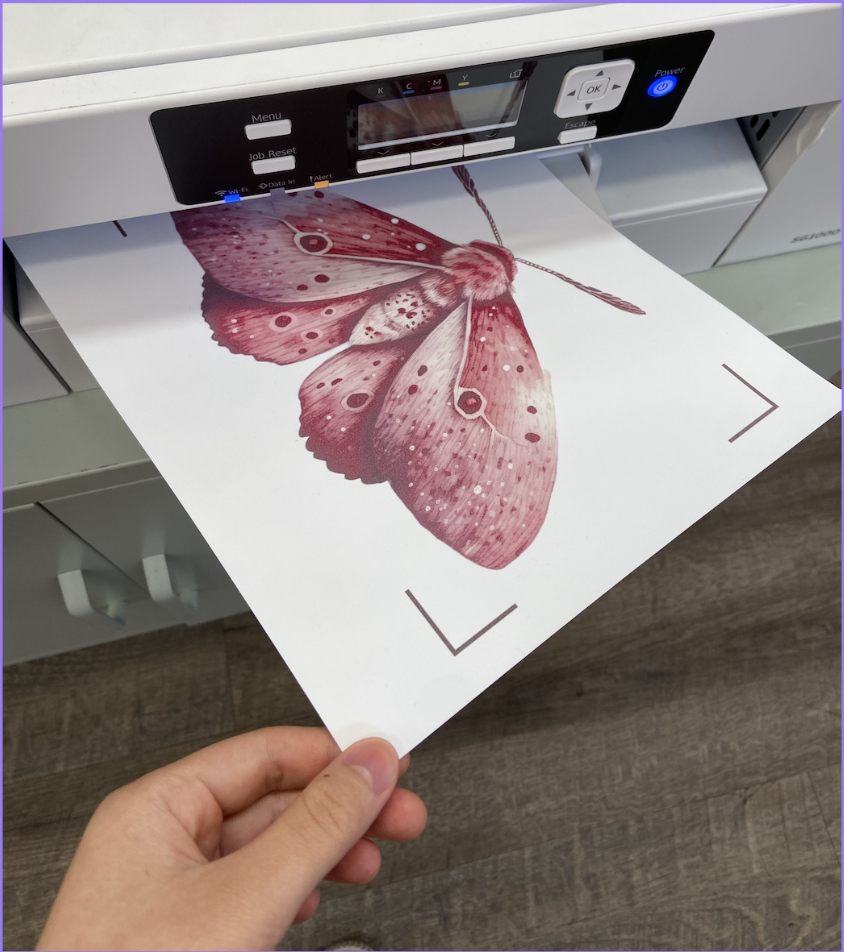

Grab Paper From Printer at the Corner

Do not touch the ink as it will smudge!

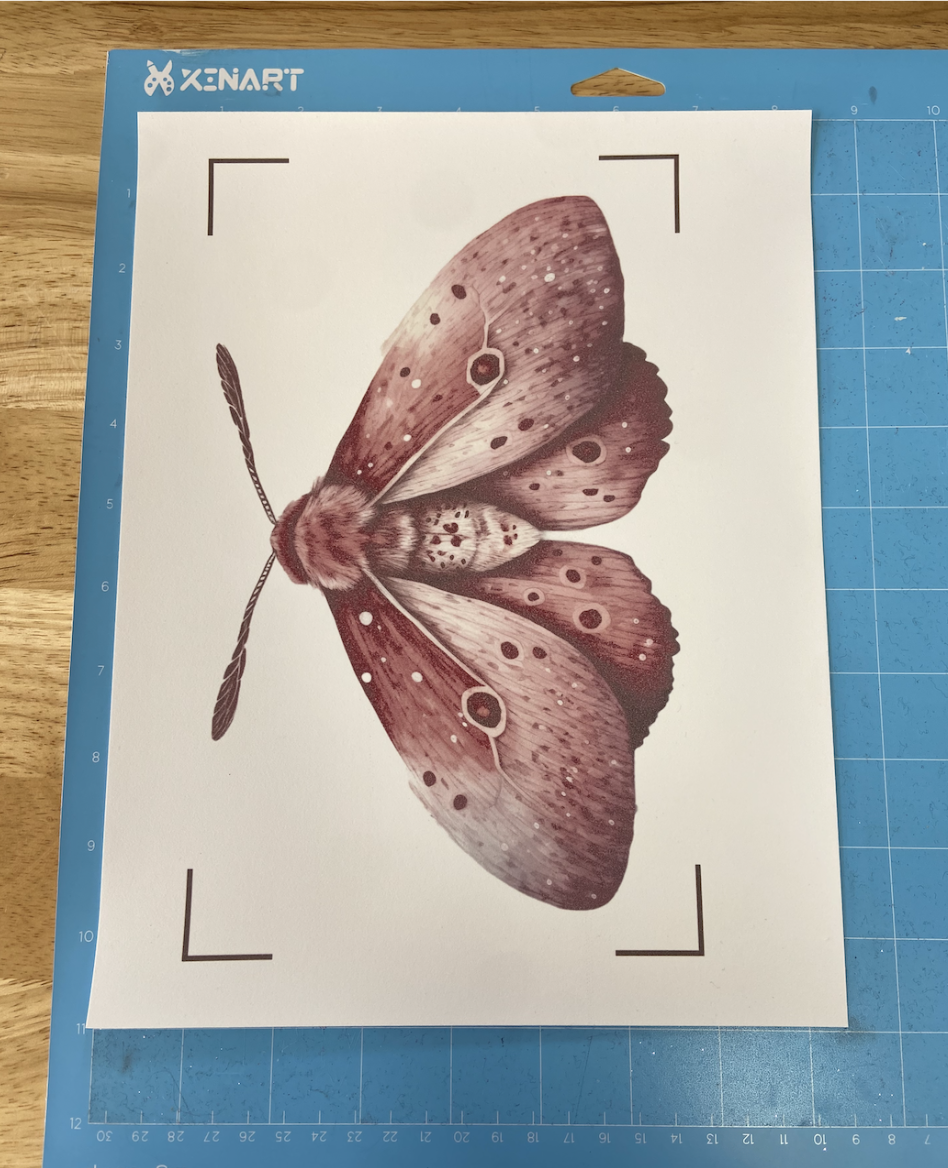

Stick Printer HTV on to Corner of Sticky Mat


Tip: Be as close to the grid marks on the mat
Use a squeegee to stick HTV onto mat, making sure not to touch the ink as it will smudge.
Turn Cricut On

Load Mat Into the Cricut

Make sure to line the mat underneath two guide-rails on the bottom of the Cricut.
Press Arrow Button to Load Material

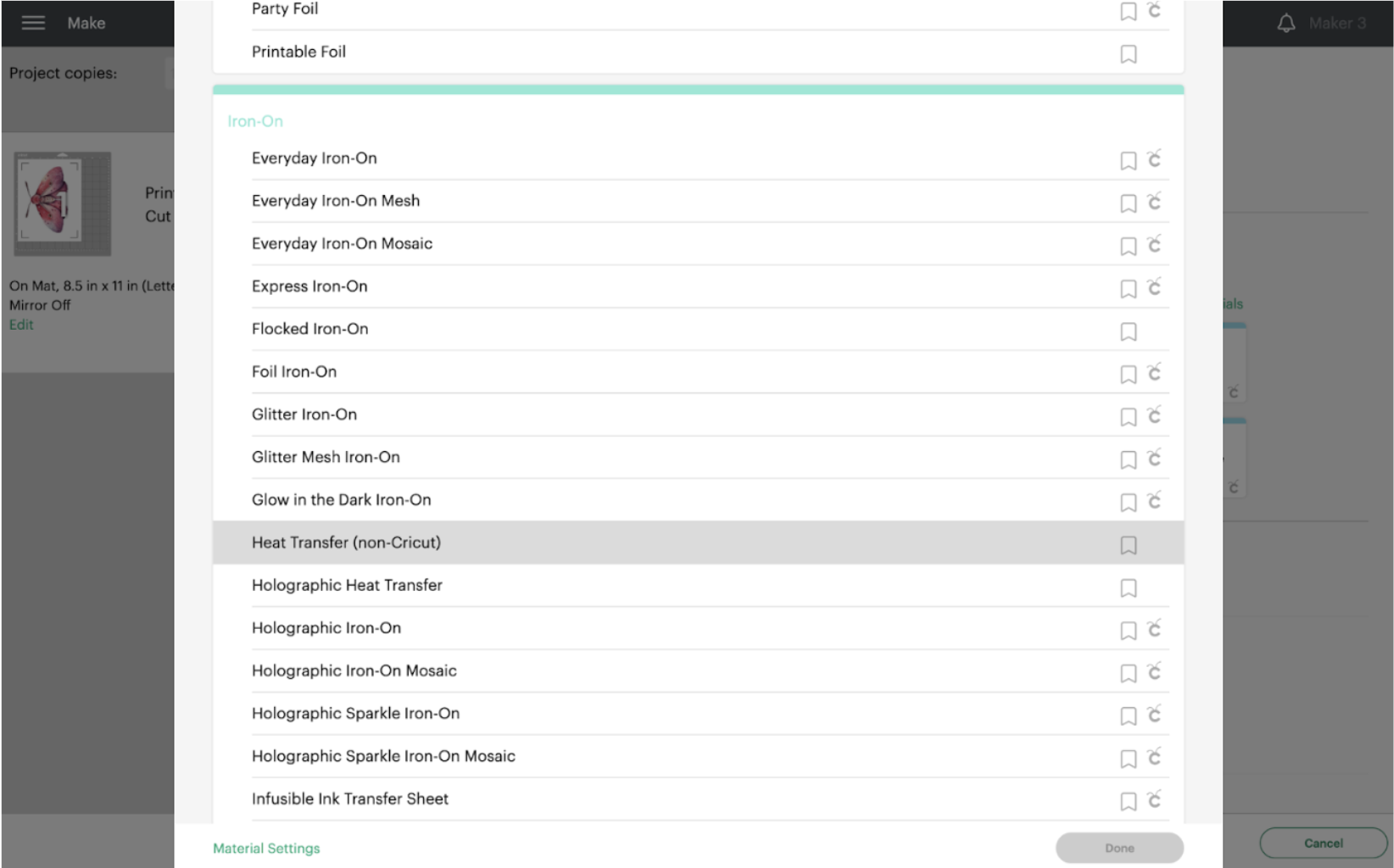

Select "heat Transfer Non Cricut" in Cut Settings

Follow Steps As Instructed on Cricut Design Space
Carefully Peel Away Waste Paper


Cut Out a Sheet of Transfer Paper

Apply Over the Cut Heat Transfer Vinyl

Use a squeegee to evenly stick it on
Set the Heat Press to 310 Degrees Fahrenheit and 15 Second Duration

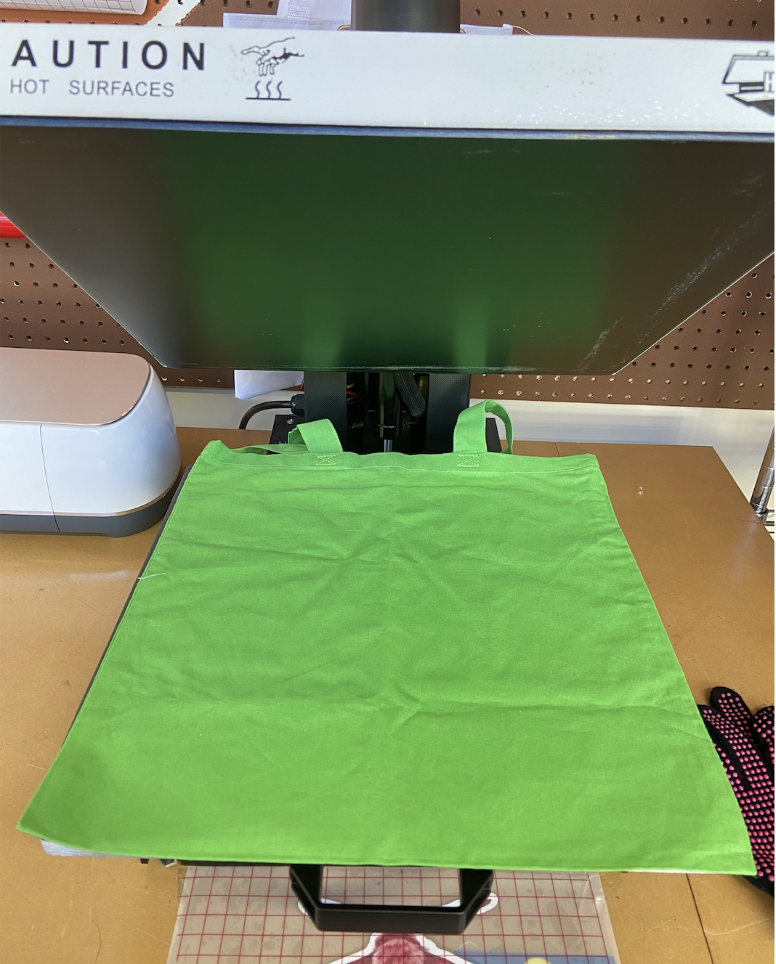

Place Bag on Heat Press and Stick HTV With Transfer Paper on Bag


Press the HTV Onto the Bag

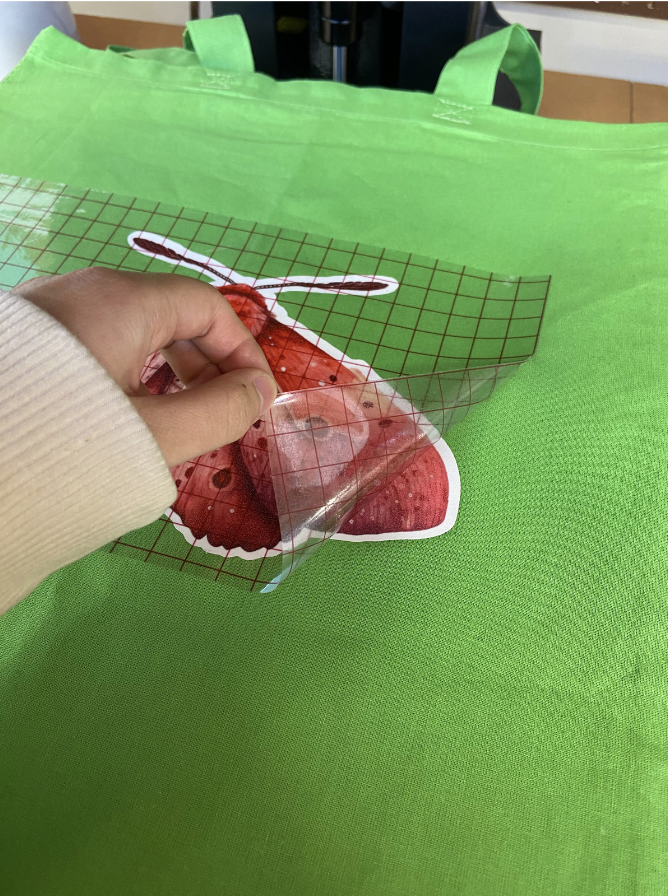

Remove Transfer Paper and Bag Is Finished!
