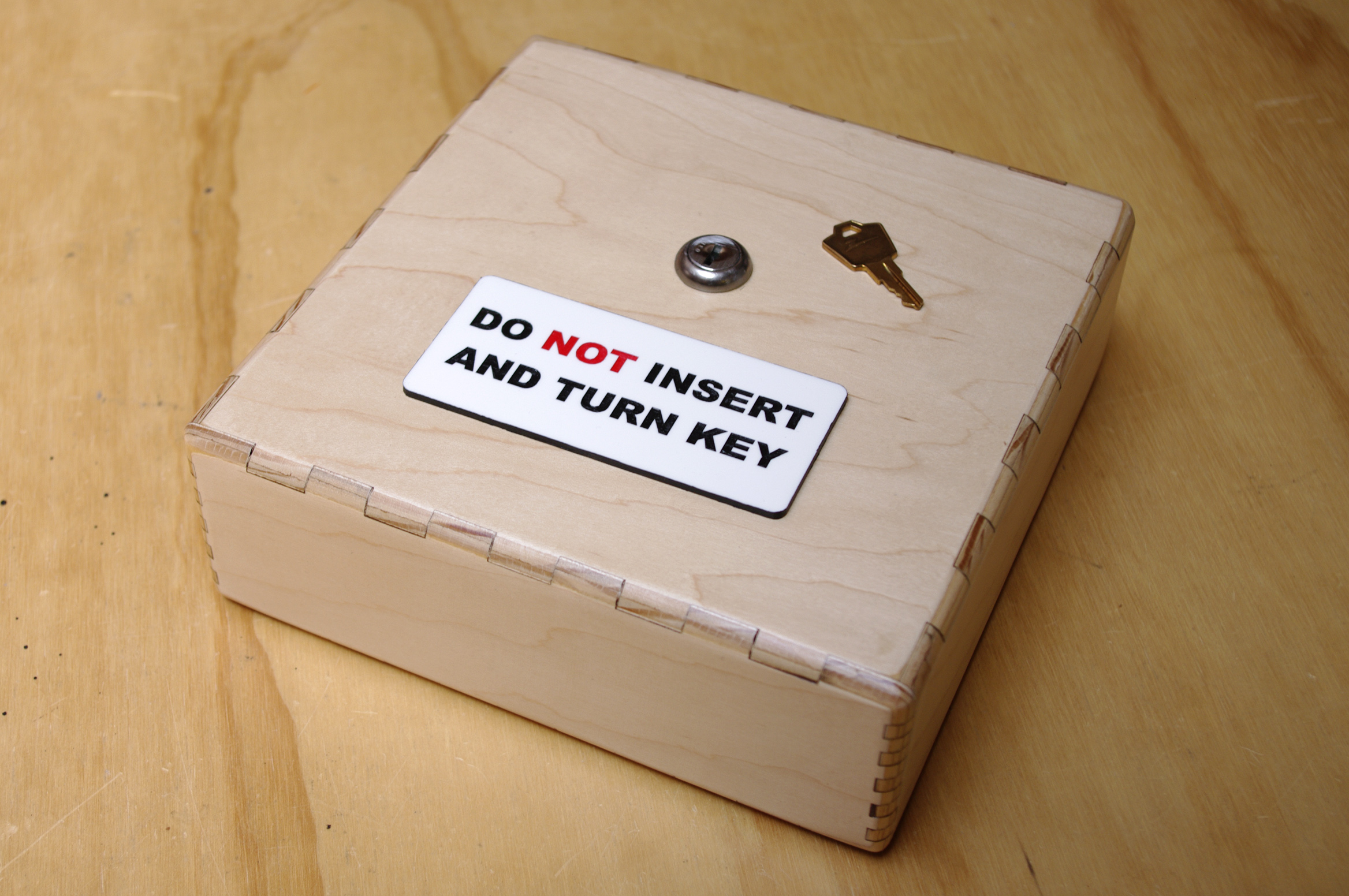

The prank box is basically a sealed wooden box with an electric bell inside that is activated by a key switch. Once it is turned on, a relay inside the box is latched and it cannot be turned off without knowing the secret trick (Spoiler Alert: magnets). Quite understandably, a completely sealed box with a ringing bell inside that doesn't seem to stop can quickly become maddening. It is very funny to watch people ponder the implications of the device, reluctantly turn it on, and then stress out when they cannot turn it off. It is even funnier to get panicked emails from your friend in Canada after you mail it to him without any explanation, and he decides to ignore the directions on the box and turn it on.
Go Get Stuff
![1A.jpg](/proxy/?url=https://content.instructables.com/F7W/X91Q/H3QFLS3G/F7WX91QH3QFLS3G.jpg&filename=1A.jpg)

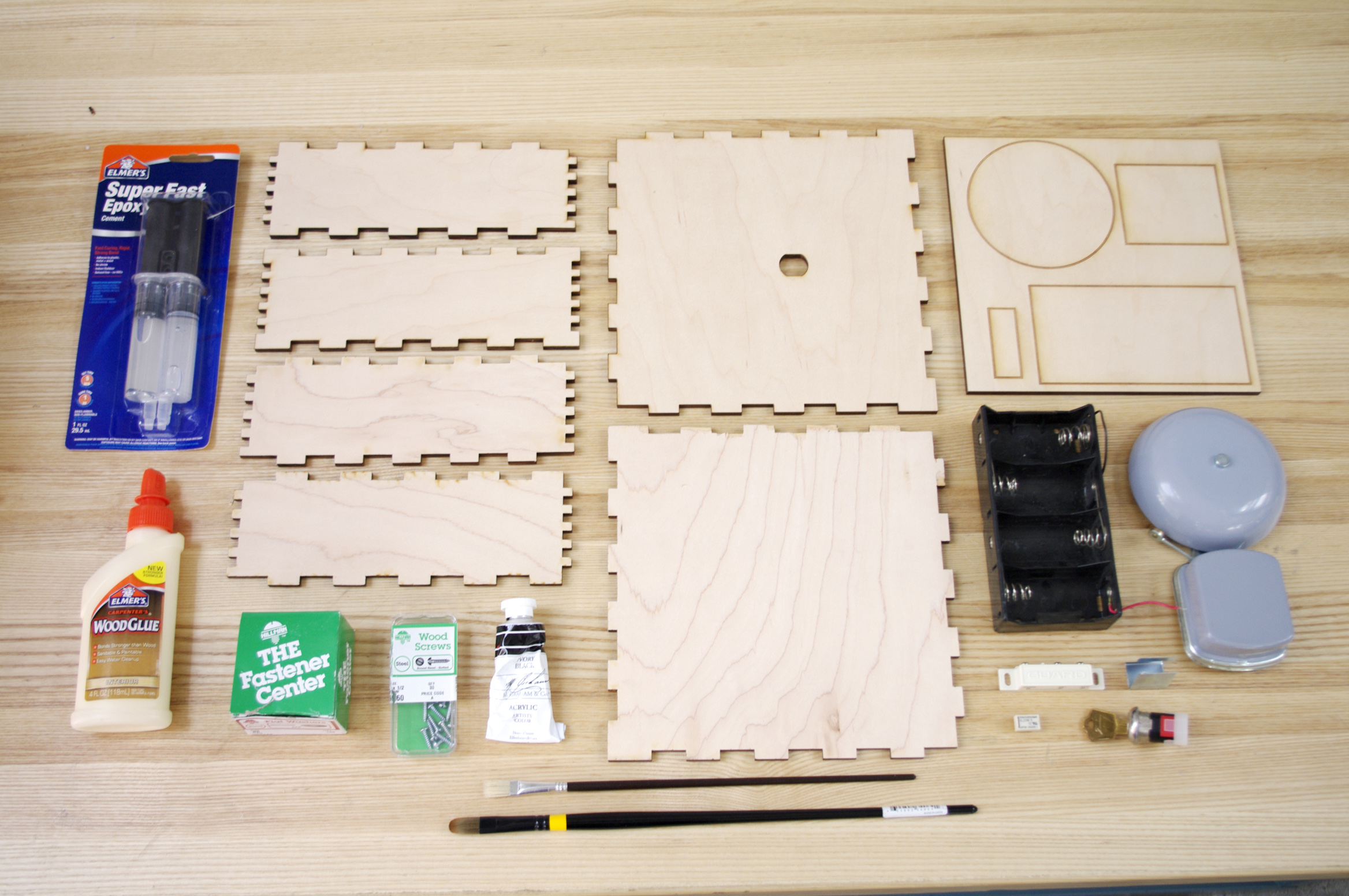

You will need:
(x1) Laser cut 1/4"-thick plywood box template**
(x1) 6V electric bell
(x1) 4 x D battery holder
(x1) Reed switch
(x1) Latching DPDT relay
(x1) Key switch
(x1) 9V battery holder
(x1) 9V battery snap
(x1) 4-40 x 1/2" wood screws
(x8) 8" zip ties
(x1) 4" x 4" x 1/8" matte white acrylic
(x1) Black and red acrylic paint
(x1) 5-minute epoxy
(x1) 30-NF Fastbond contact cement
(x1) Wood glue
(x1) Masking tape
(x1) Red and black wire
(x1) Wood stain and 220 sandpaper (optional)
(x1) Shrink tube
**The laser cut template should be etched (when appropriate) and cut. The "DO NOT INSERT AND TURN KEY" shape should be etched and cut from 1/8" acrylic.
Please note that some of the links on this page contain Amazon affiliate links. This does not change the price of any of the items for sale. However, I earn a small commission if you click on any of those links and buy anything. I reinvest this money into materials and tools for future projects. If you would like an alternate suggestion for a supplier of any of the parts, please let me know.
Epoxy
![2A.jpg](/proxy/?url=https://content.instructables.com/FWU/MYM1/H3QFLS3H/FWUMYM1H3QFLS3H.jpg&filename=2A.jpg)
![2B.jpg](/proxy/?url=https://content.instructables.com/FLR/6HYU/H3QFE9L9/FLR6HYUH3QFE9L9.jpg&filename=2B.jpg)
![2C.jpg](/proxy/?url=https://content.instructables.com/F2U/Z9I9/H3QF5SEN/F2UZ9I9H3QF5SEN.jpg&filename=2C.jpg)

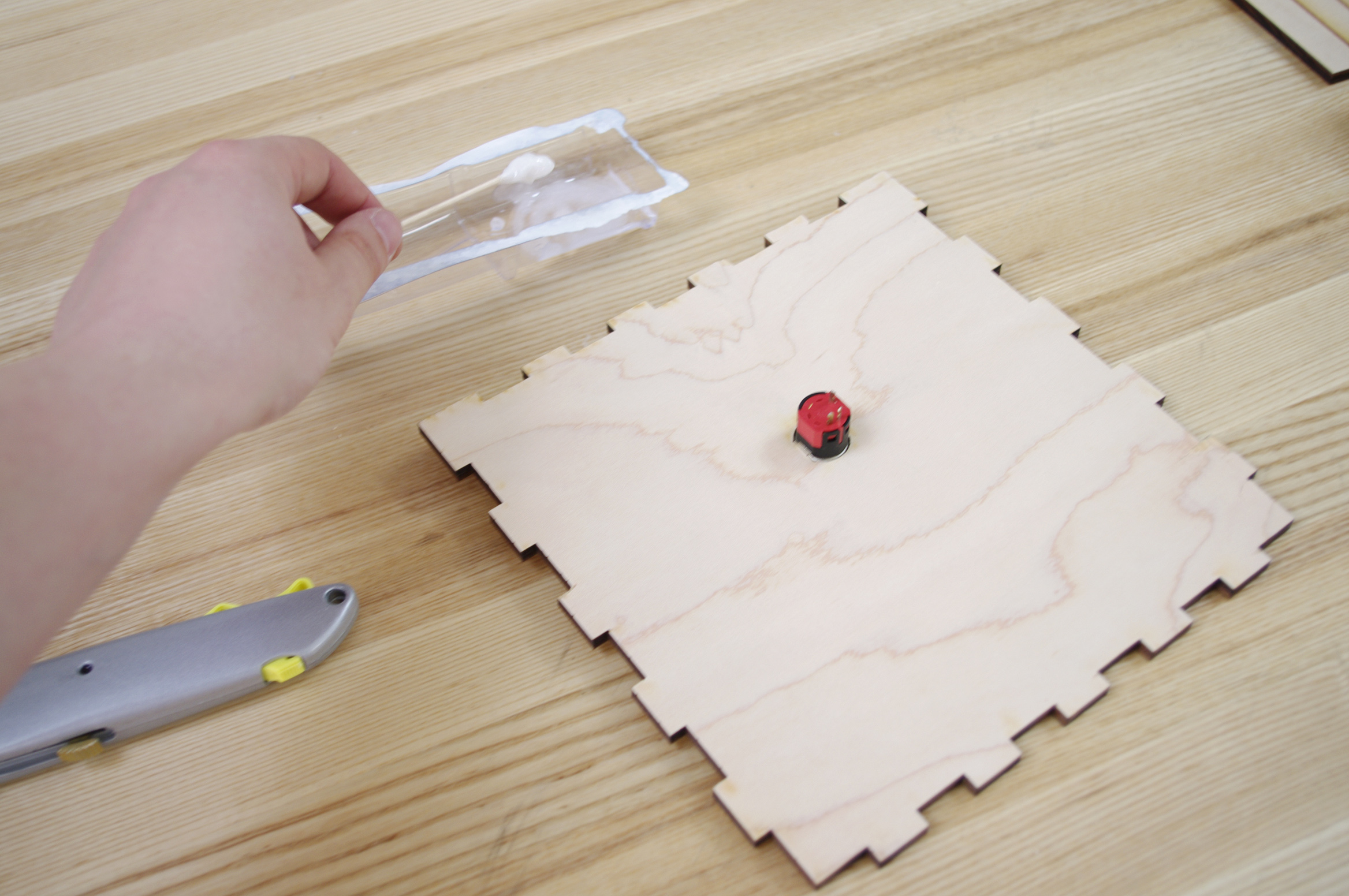

Insert the lock into the hole in the front panel from front to back.
Epoxy it firmly in place.
Mark
![3A.jpg](/proxy/?url=https://content.instructables.com/FPE/FQLQ/H3QF9A7O/FPEFQLQH3QF9A7O.jpg&filename=3A.jpg)
![3B.jpg](/proxy/?url=https://content.instructables.com/F4P/BB0K/H3QFE9LB/F4PBB0KH3QFE9LB.jpg&filename=3B.jpg)
![3C.jpg](/proxy/?url=https://content.instructables.com/FO3/8FF4/H3QETPIS/FO38FF4H3QETPIS.jpg&filename=3C.jpg)

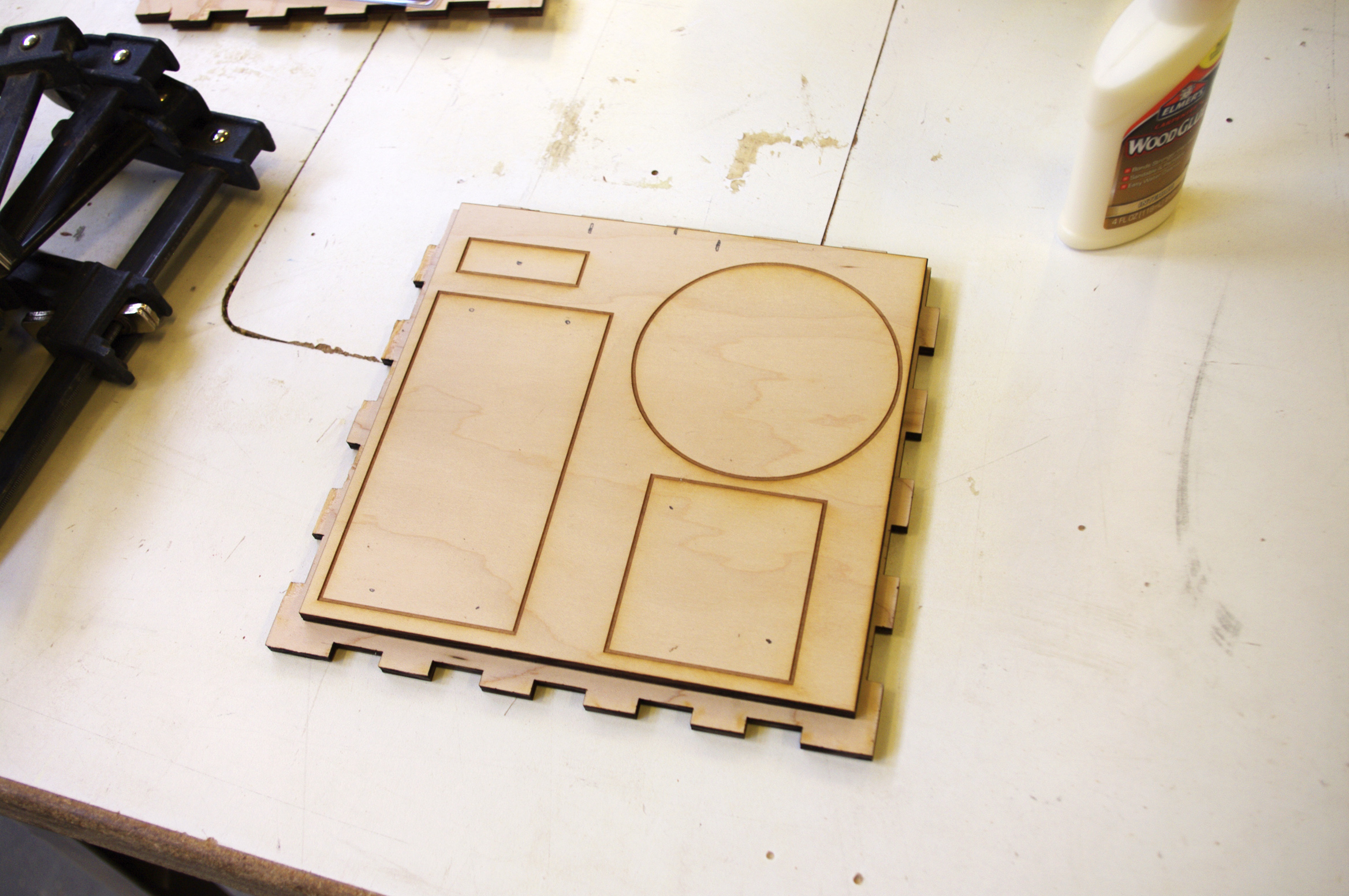

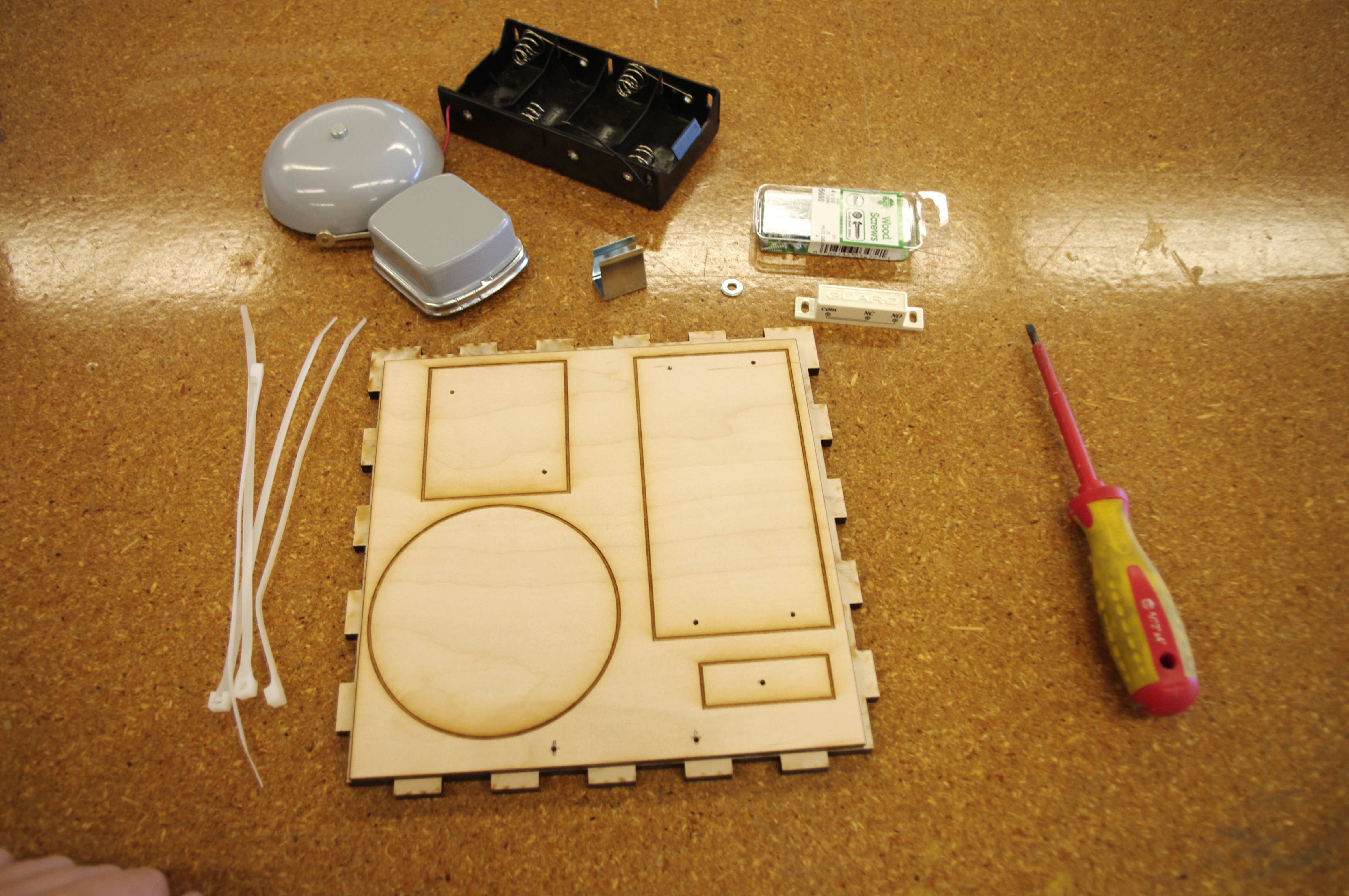

Place the wooden mounting bracket atop the bottom side of the box.
Next, place all of the components atop their designated spots on the bracket. The reed switch does not have a designated spot, but it should line up flush with the edge of the bracket on the side nearest the 9V battery holder.

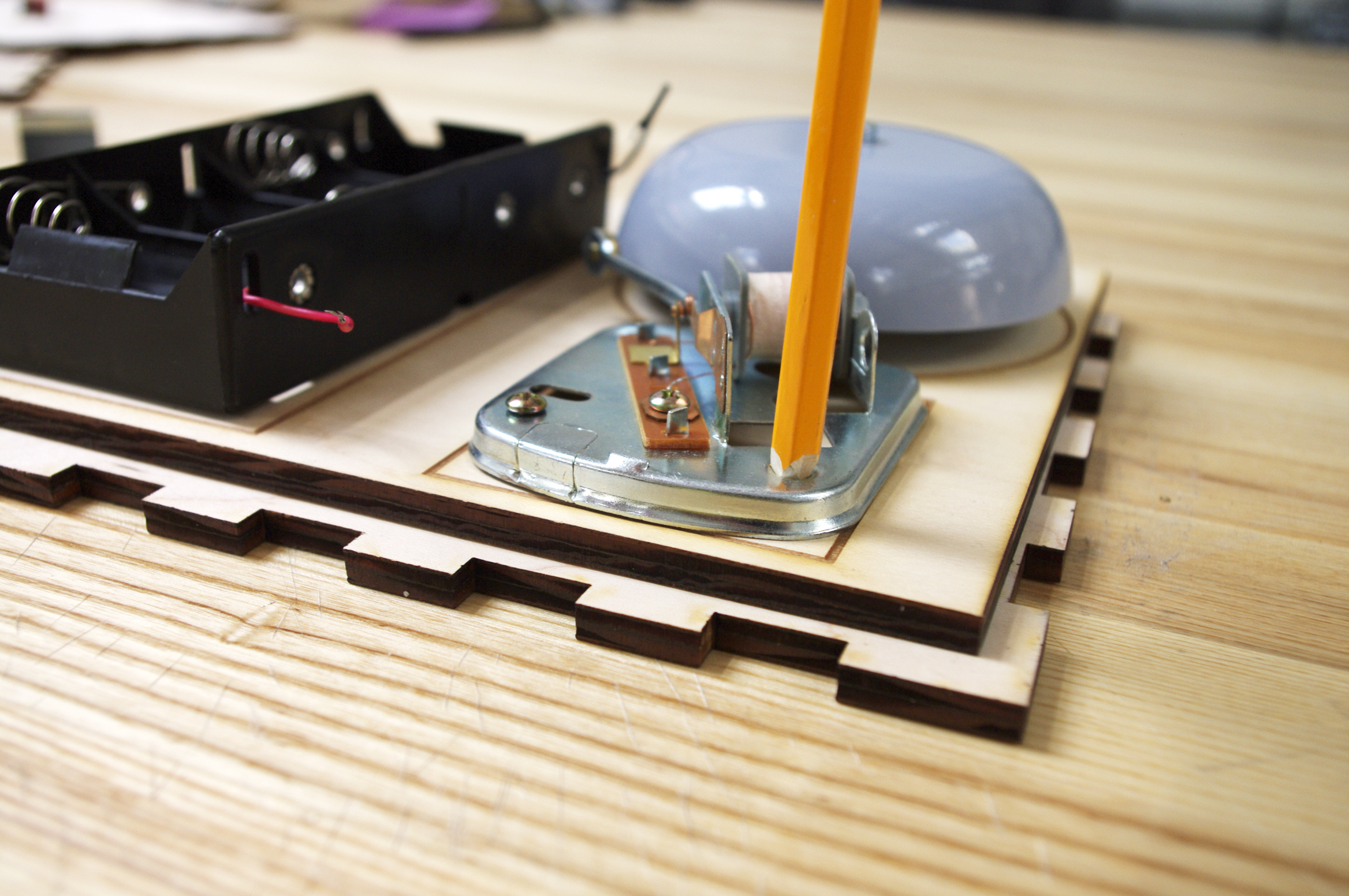

Mark all of the component's mounting holes with pencils.
Glue
![4A.jpg](/proxy/?url=https://content.instructables.com/F2E/CFAY/H3QFJDFE/F2ECFAYH3QFJDFE.jpg&filename=4A.jpg)
![4B.jpg](/proxy/?url=https://content.instructables.com/FUQ/2NMG/H3QFLS41/FUQ2NMGH3QFLS41.jpg&filename=4B.jpg)
![4C.jpg](/proxy/?url=https://content.instructables.com/FHS/070Z/H3QFJDFG/FHS070ZH3QFJDFG.jpg&filename=4C.jpg)
![4D.jpg](/proxy/?url=https://content.instructables.com/FZH/1JH3/H3QFLS42/FZH1JH3H3QFLS42.jpg&filename=4D.jpg)

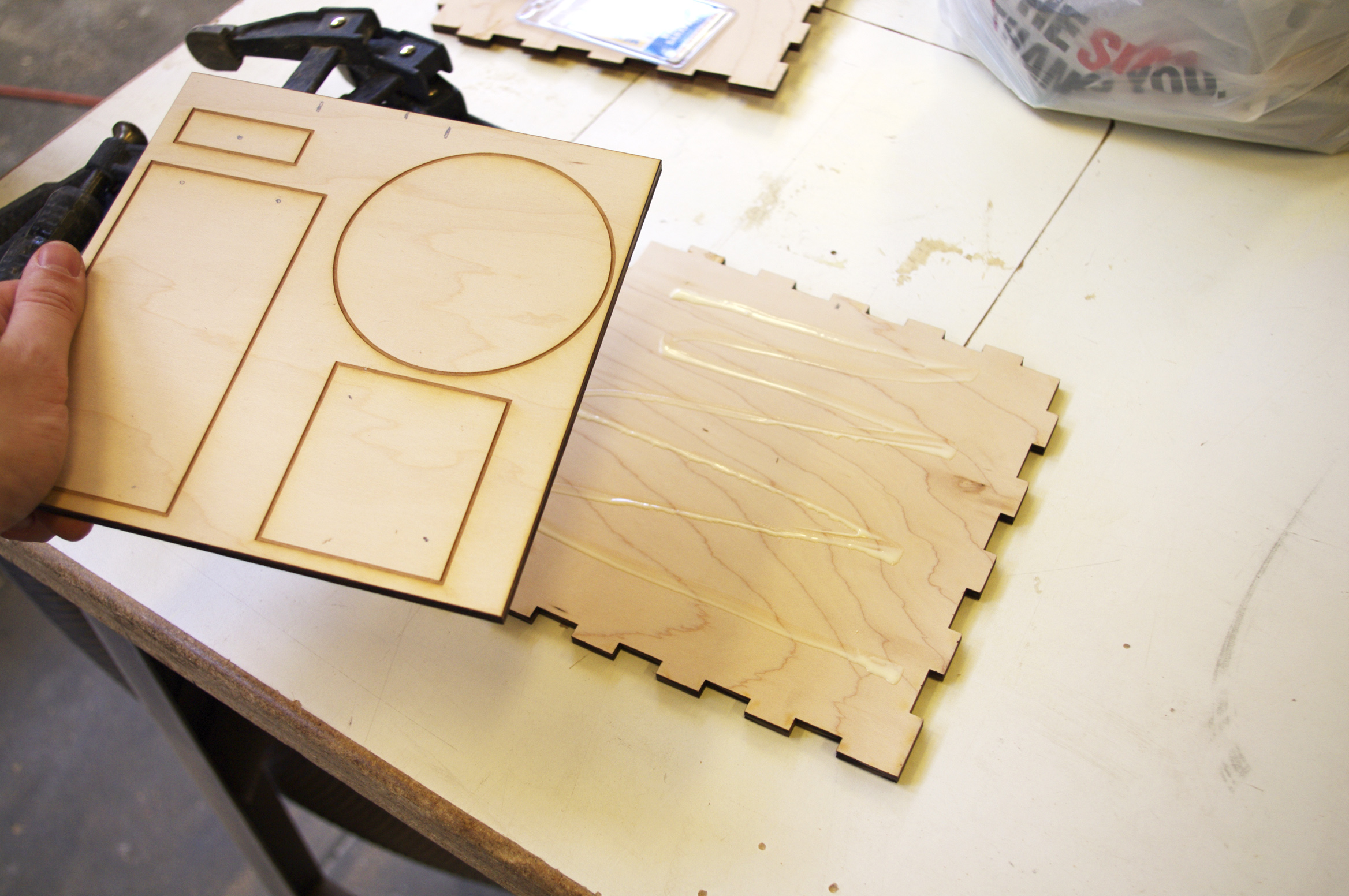

Put glue on the inner-side of the bottom of the box.
The bracket then should be placed on top and line up to the edge of the box, such that when the box is put together the reed switch will be flush against the wall of the box.
Clamp it firmly in place and wait for it to dry.
Drill
![5A.jpg](/proxy/?url=https://content.instructables.com/FDY/PBED/H3QFLS58/FDYPBEDH3QFLS58.jpg&filename=5A.jpg)
![5B.jpg](/proxy/?url=https://content.instructables.com/FYH/6B8D/H3QFJDGK/FYH6B8DH3QFJDGK.jpg&filename=5B.jpg)
![5C.jpg](/proxy/?url=https://content.instructables.com/F73/OR1Q/H3QEXJ84/F73OR1QH3QEXJ84.jpg&filename=5C.jpg)

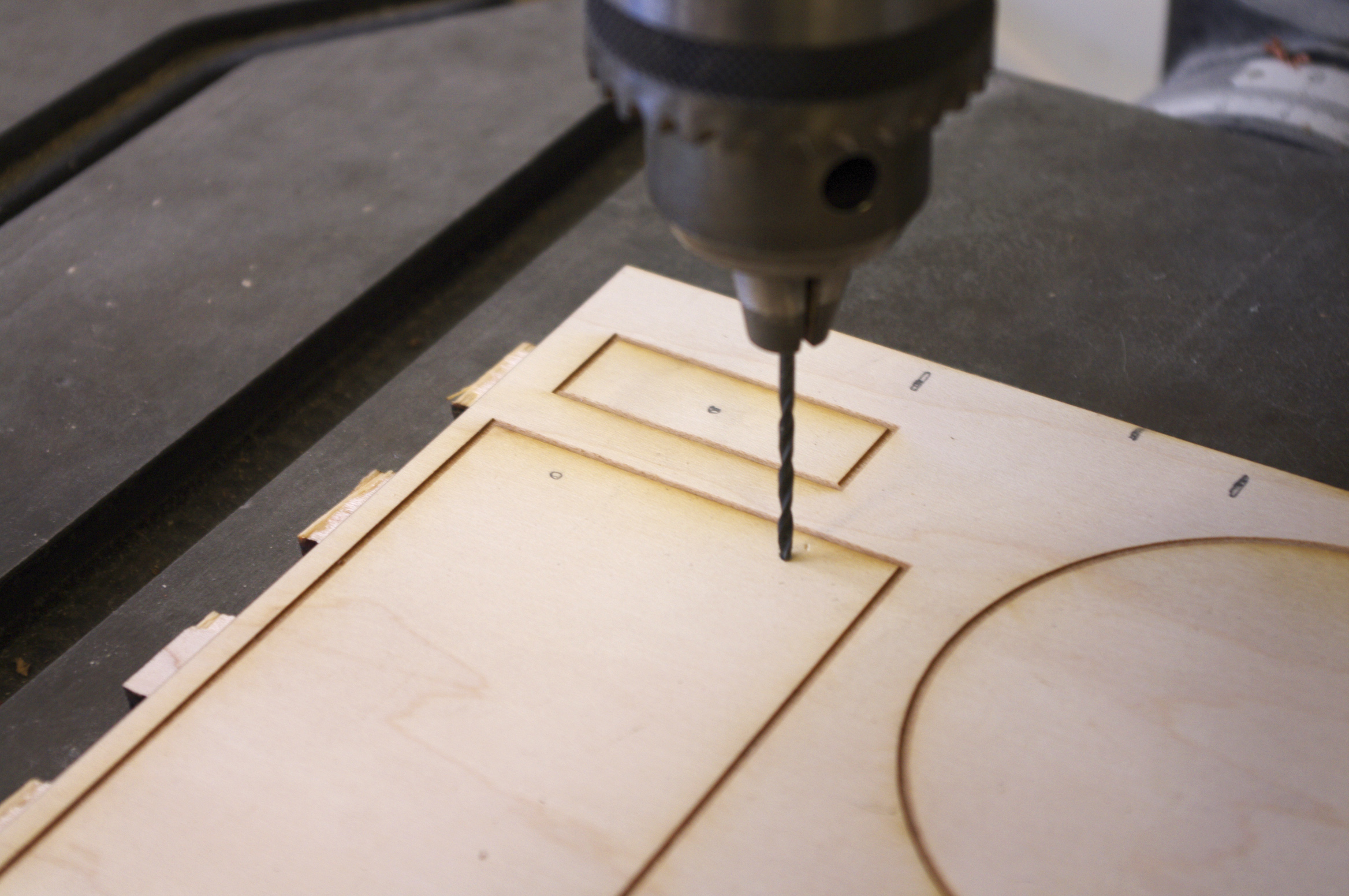

Using a drill press, drill all of the mounting holes with a 1/8" drill bit. It should go deep into the wood, but not pass entirely through.
Mount
![6A.jpg](/proxy/?url=https://content.instructables.com/FW2/FJG6/H3QF5SGS/FW2FJG6H3QF5SGS.jpg&filename=6A.jpg)
![6B.jpg](/proxy/?url=https://content.instructables.com/FU9/RXML/H3QFJDI6/FU9RXMLH3QFJDI6.jpg&filename=6B.jpg)
![6C.jpg](/proxy/?url=https://content.instructables.com/FES/4GGR/H3QF1DXM/FES4GGRH3QF1DXM.jpg&filename=6C.jpg)
![6D.jpg](/proxy/?url=https://content.instructables.com/F6R/NDMG/H3QF5SGT/F6RNDMGH3QF5SGT.jpg&filename=6D.jpg)
![6E.jpg](/proxy/?url=https://content.instructables.com/F5U/VFVM/H3QFJDID/F5UVFVMH3QFJDID.jpg&filename=6E.jpg)
![6F.jpg](/proxy/?url=https://content.instructables.com/FRH/1HKN/H3QF1DXN/FRH1HKNH3QF1DXN.jpg&filename=6F.jpg)

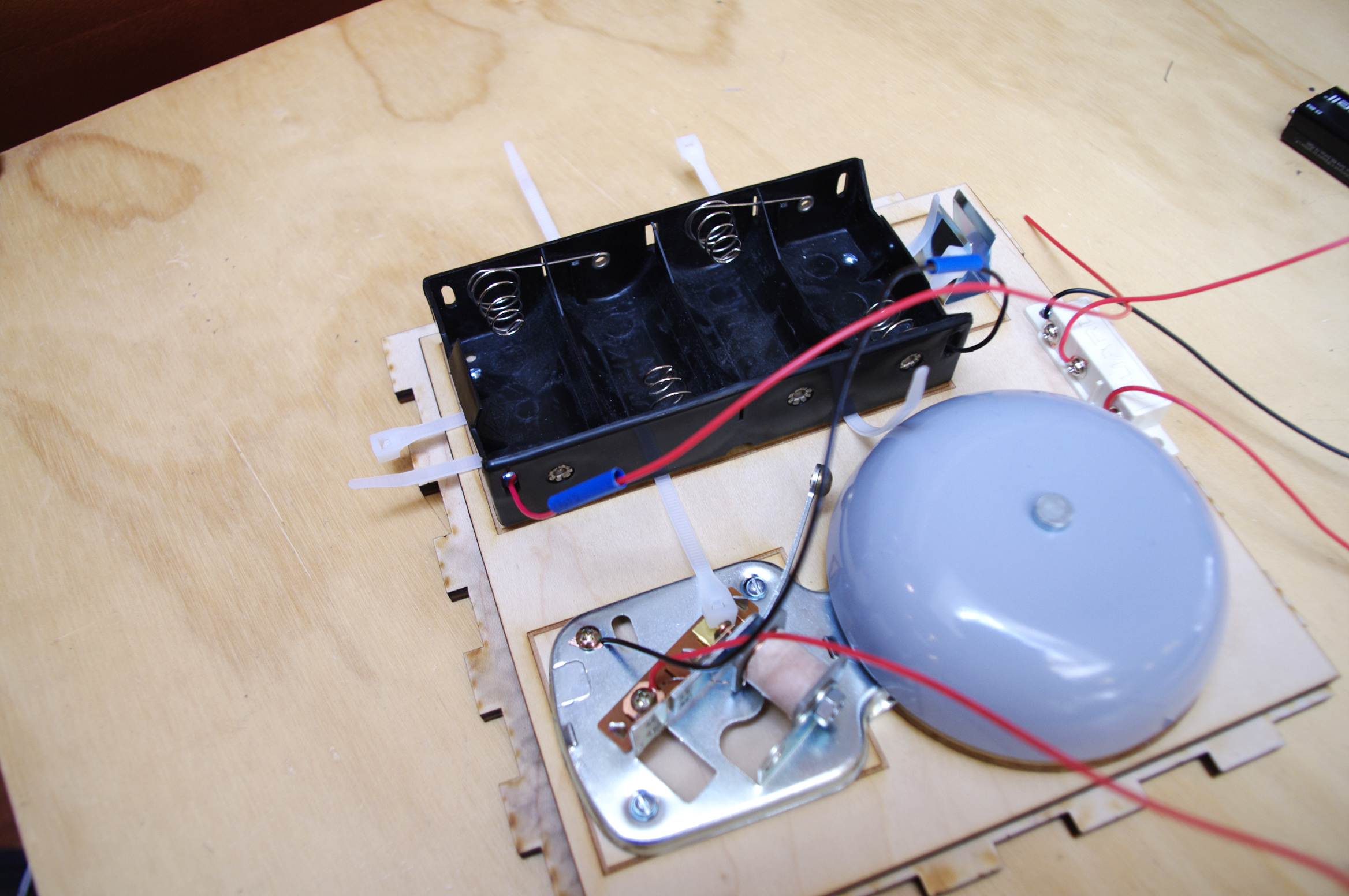

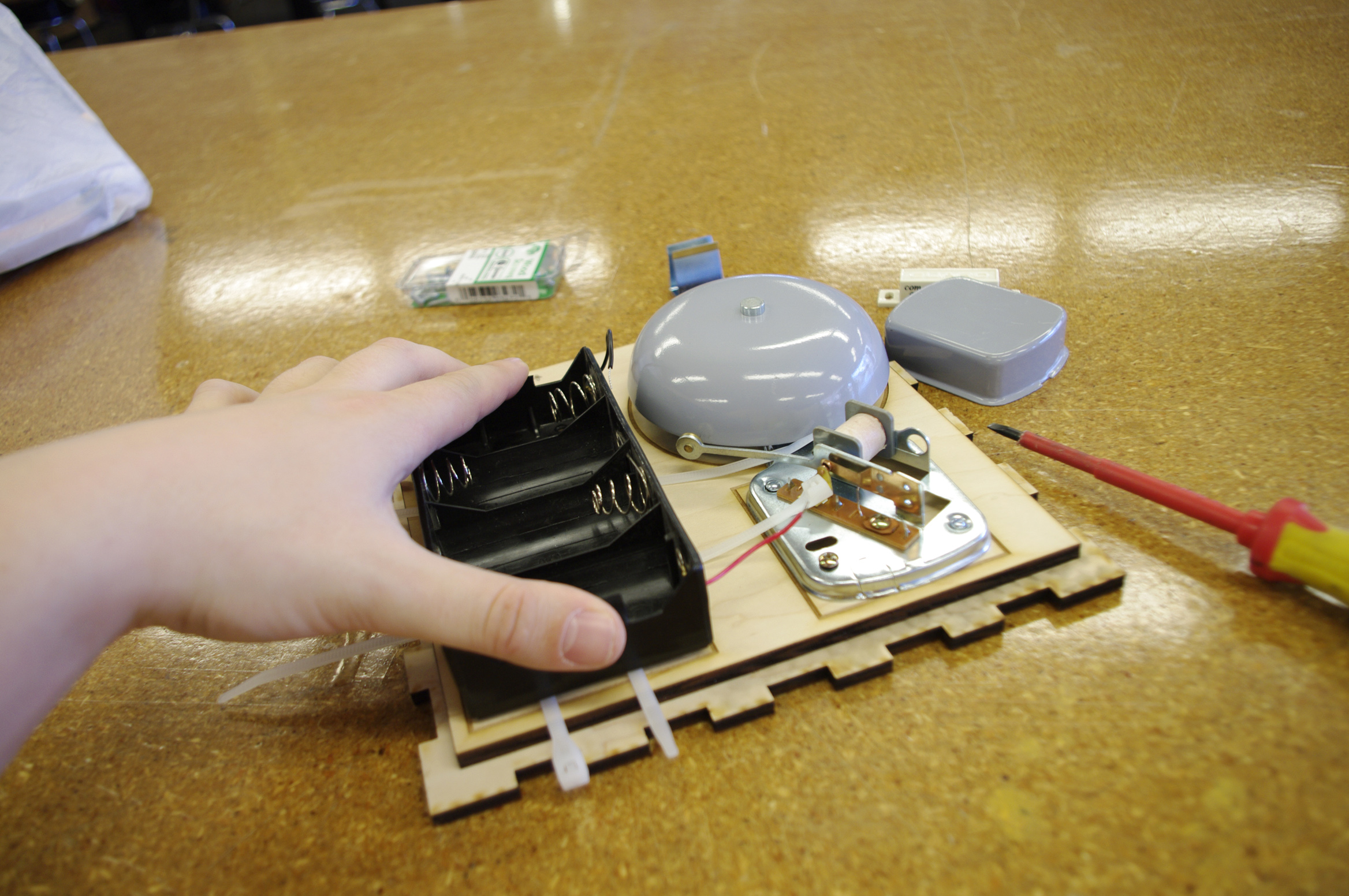

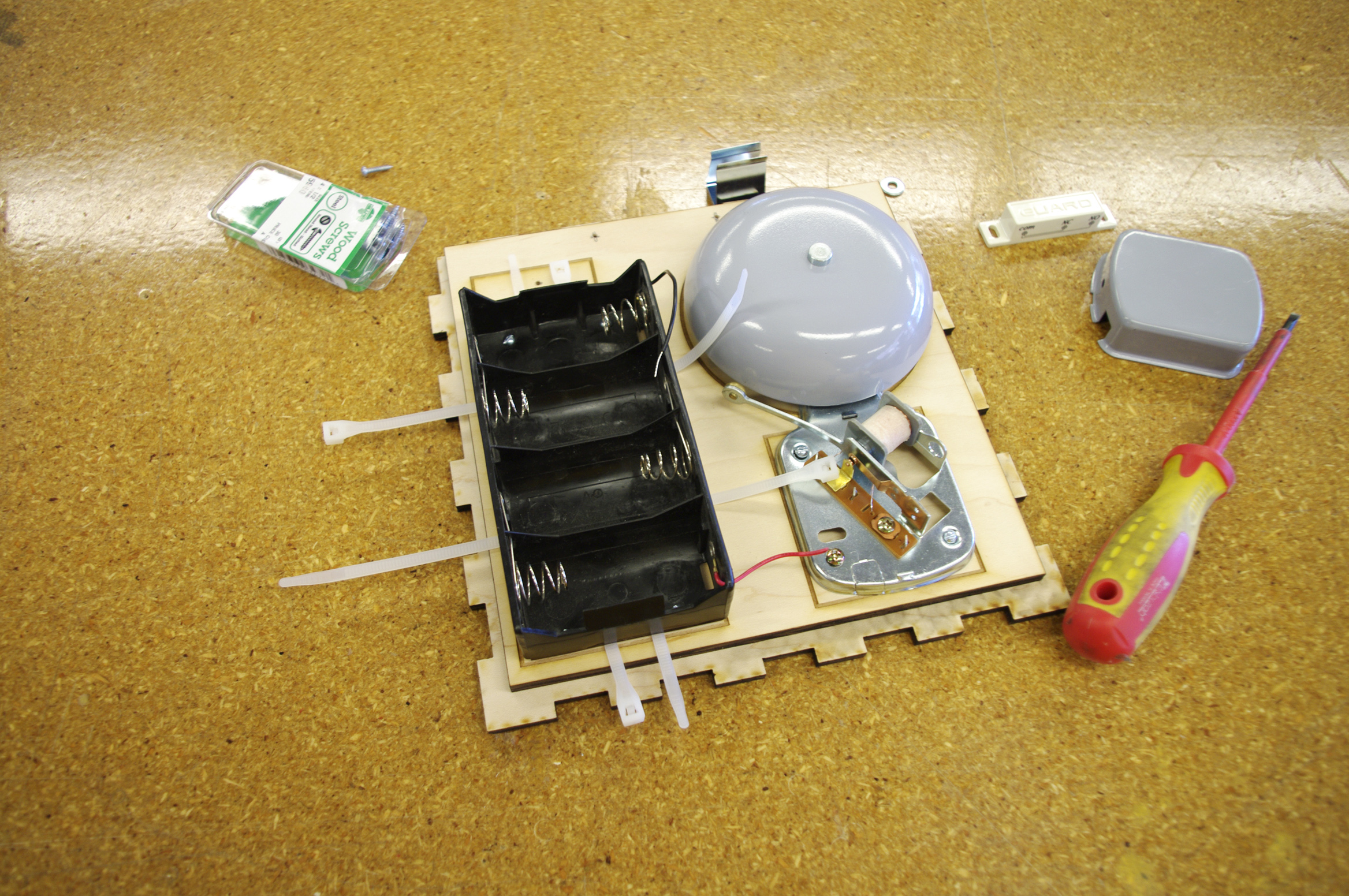

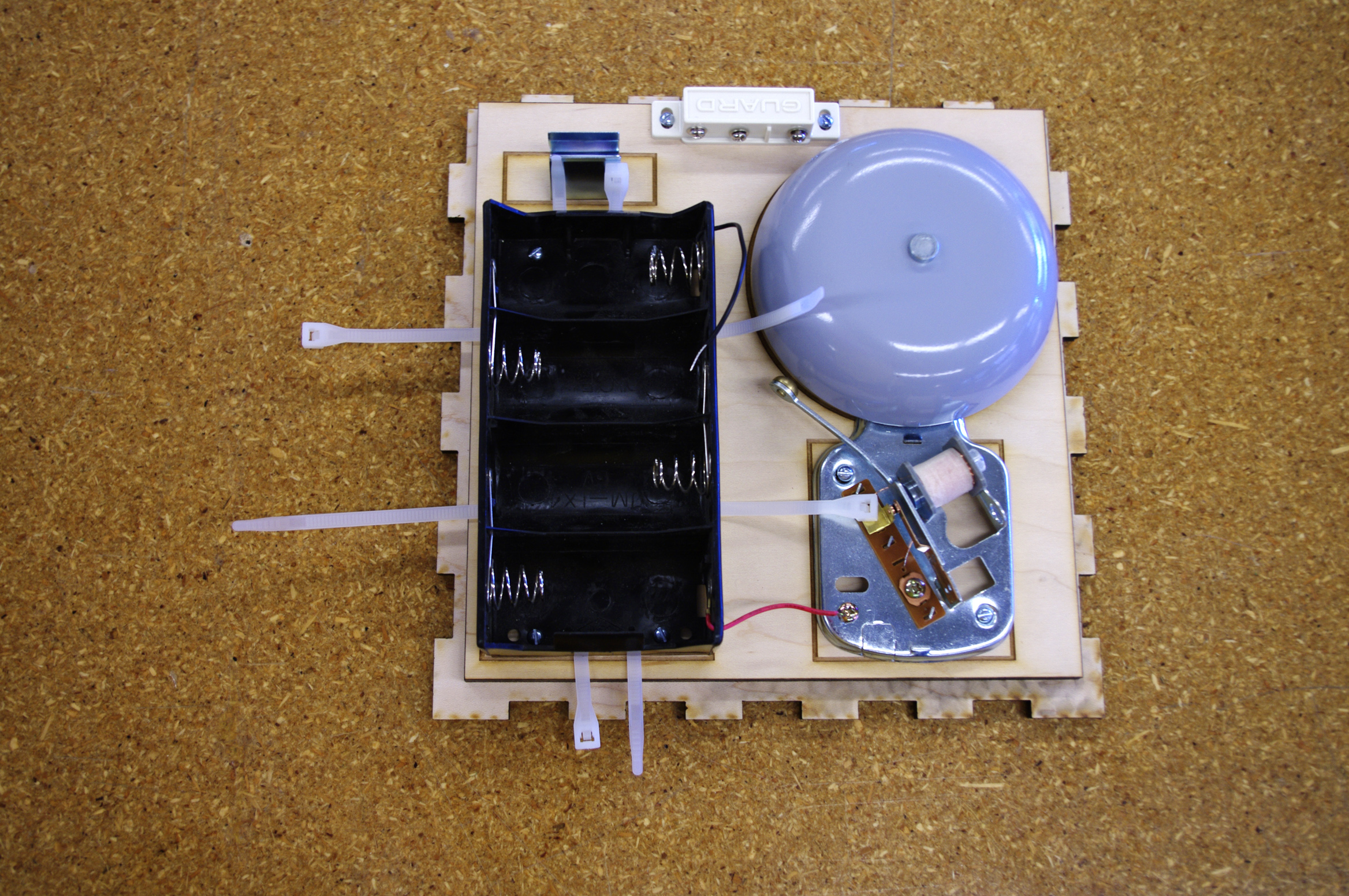

Lay 2 zip ties vertically across the battery holder's footprint, and another 2 horizontally.

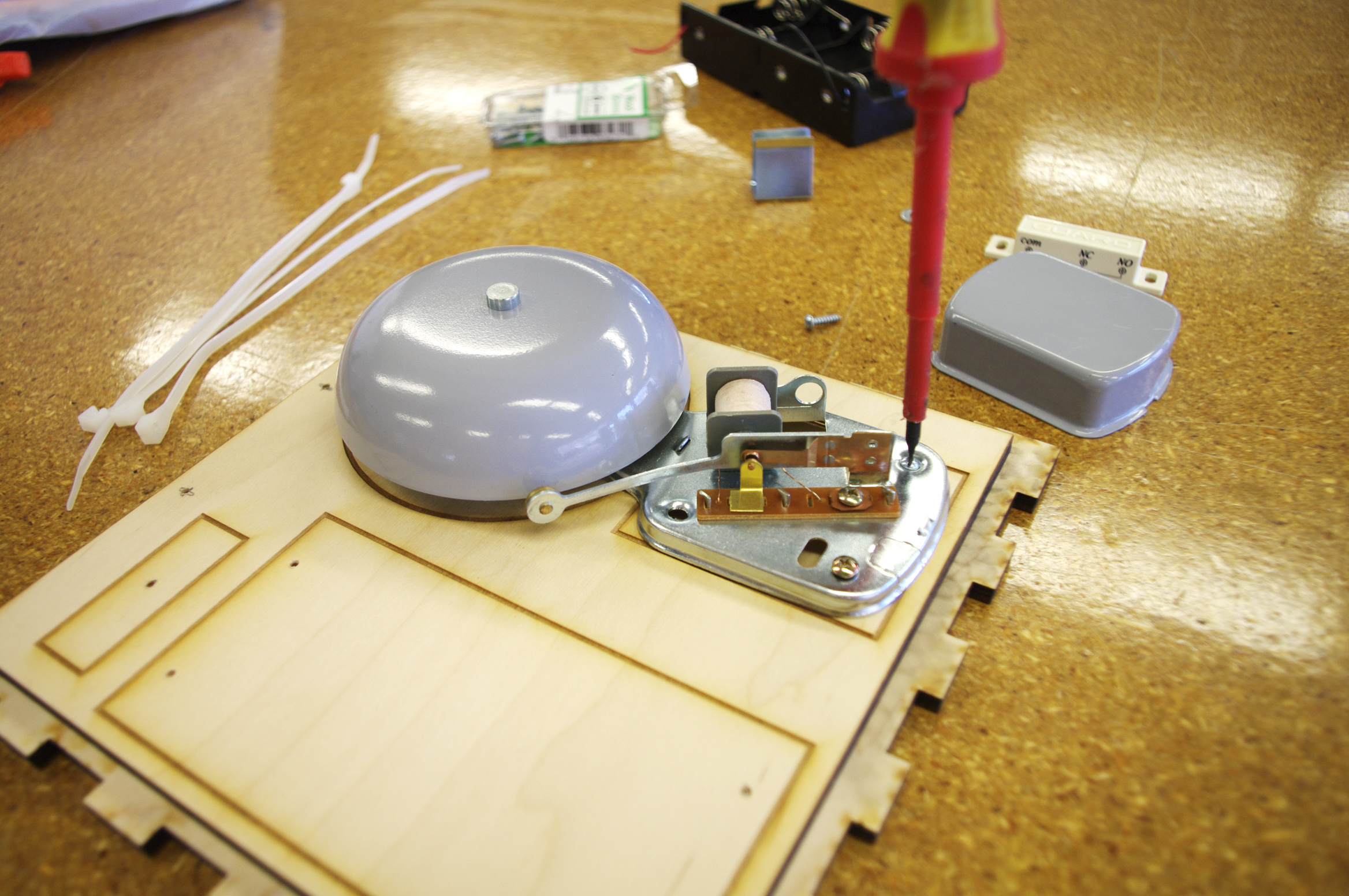

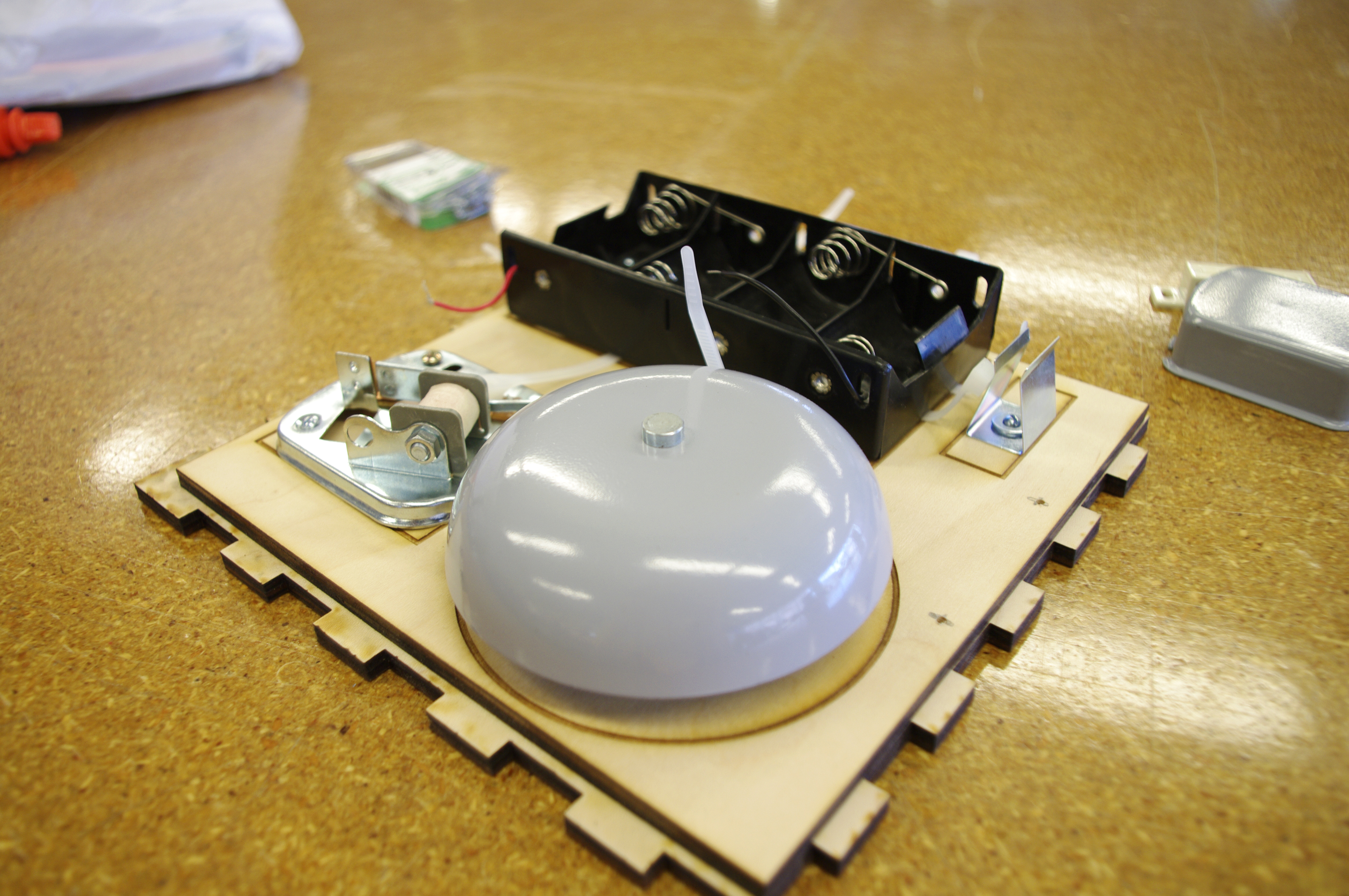

Firmly mount all of the major components to the bracket with screws.
Wire It Up
![7A.jpg](/proxy/?url=https://content.instructables.com/FMV/DXA5/H3QF9A91/FMVDXA5H3QF9A91.jpg&filename=7A.jpg)
![wiring.jpg](/proxy/?url=https://content.instructables.com/FTT/DO13/H3XN34YY/FTTDO13H3XN34YY.jpg&filename=wiring.jpg)
![schematic.jpg](/proxy/?url=https://content.instructables.com/F0M/Z69K/H3XML5R1/F0MZ69KH3XML5R1.jpg&filename=schematic.jpg)
![7B.jpg](/proxy/?url=https://content.instructables.com/F0B/NJ99/H3QFE9RQ/F0BNJ99H3QFE9RQ.jpg&filename=7B.jpg)
![7C.jpg](/proxy/?url=https://content.instructables.com/FHG/5EPM/H3QFJDMA/FHG5EPMH3QFJDMA.jpg&filename=7C.jpg)
![7D.jpg](/proxy/?url=https://content.instructables.com/FDE/HS02/H3QFJDMB/FDEHS02H3QFJDMB.jpg&filename=7D.jpg)
![7E.jpg](/proxy/?url=https://content.instructables.com/FJ5/5EB0/H3QFJDME/FJ55EB0H3QFJDME.jpg&filename=7E.jpg)
![7F.jpg](/proxy/?url=https://content.instructables.com/FN7/MUDT/H3QFLSKT/FN7MUDTH3QFLSKT.jpg&filename=7F.jpg)
![7G.jpg](/proxy/?url=https://content.instructables.com/FUQ/DNYG/H3QFJDMG/FUQDNYGH3QFJDMG.jpg&filename=7G.jpg)
![7H.jpg](/proxy/?url=https://content.instructables.com/FRB/H6ER/H3QEXJ9F/FRBH6ERH3QEXJ9F.jpg&filename=7H.jpg)
![7I.jpg](/proxy/?url=https://content.instructables.com/FQO/0O50/H3QF9A96/FQO0O50H3QF9A96.jpg&filename=7I.jpg)
![7J.jpg](/proxy/?url=https://content.instructables.com/FUP/J4KU/H3QETPKS/FUPJ4KUH3QETPKS.jpg&filename=7J.jpg)
![7K.jpg](/proxy/?url=https://content.instructables.com/FFX/SMDD/H3QFJDMK/FFXSMDDH3QFJDMK.jpg&filename=7K.jpg)
![7L.jpg](/proxy/?url=https://content.instructables.com/FMR/BAAB/H3QFJDML/FMRBAABH3QFJDML.jpg&filename=7L.jpg)
![7M.jpg](/proxy/?url=https://content.instructables.com/FF0/DHMD/H3QEXJ9G/FF0DHMDH3QEXJ9G.jpg&filename=7M.jpg)
![7N.jpg](/proxy/?url=https://content.instructables.com/F3U/O18H/H3QFJDMN/F3UO18HH3QFJDMN.jpg&filename=7N.jpg)
![7O.jpg](/proxy/?url=https://content.instructables.com/FO6/WN6X/H3QFJDMO/FO6WN6XH3QFJDMO.jpg&filename=7O.jpg)

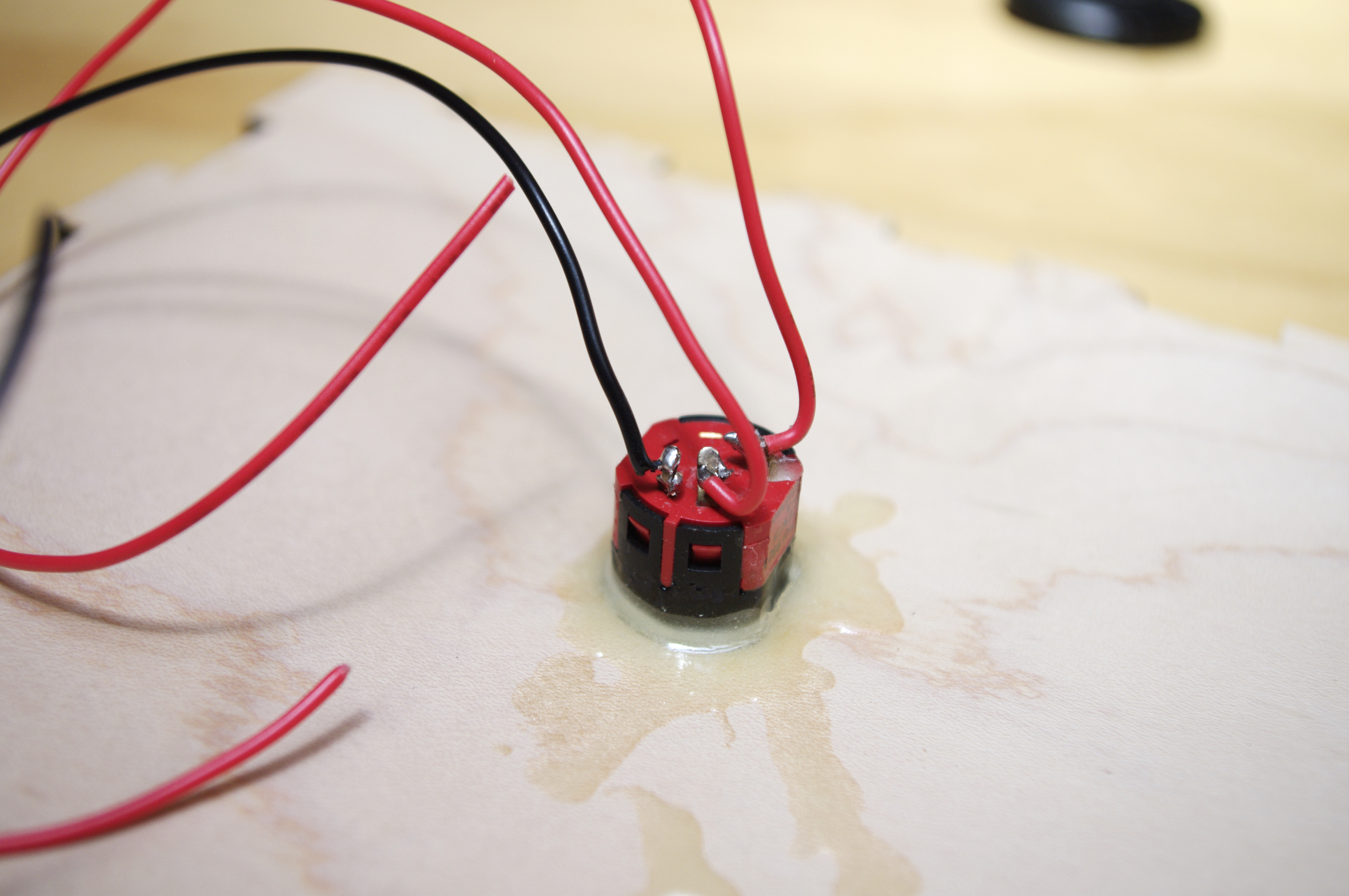

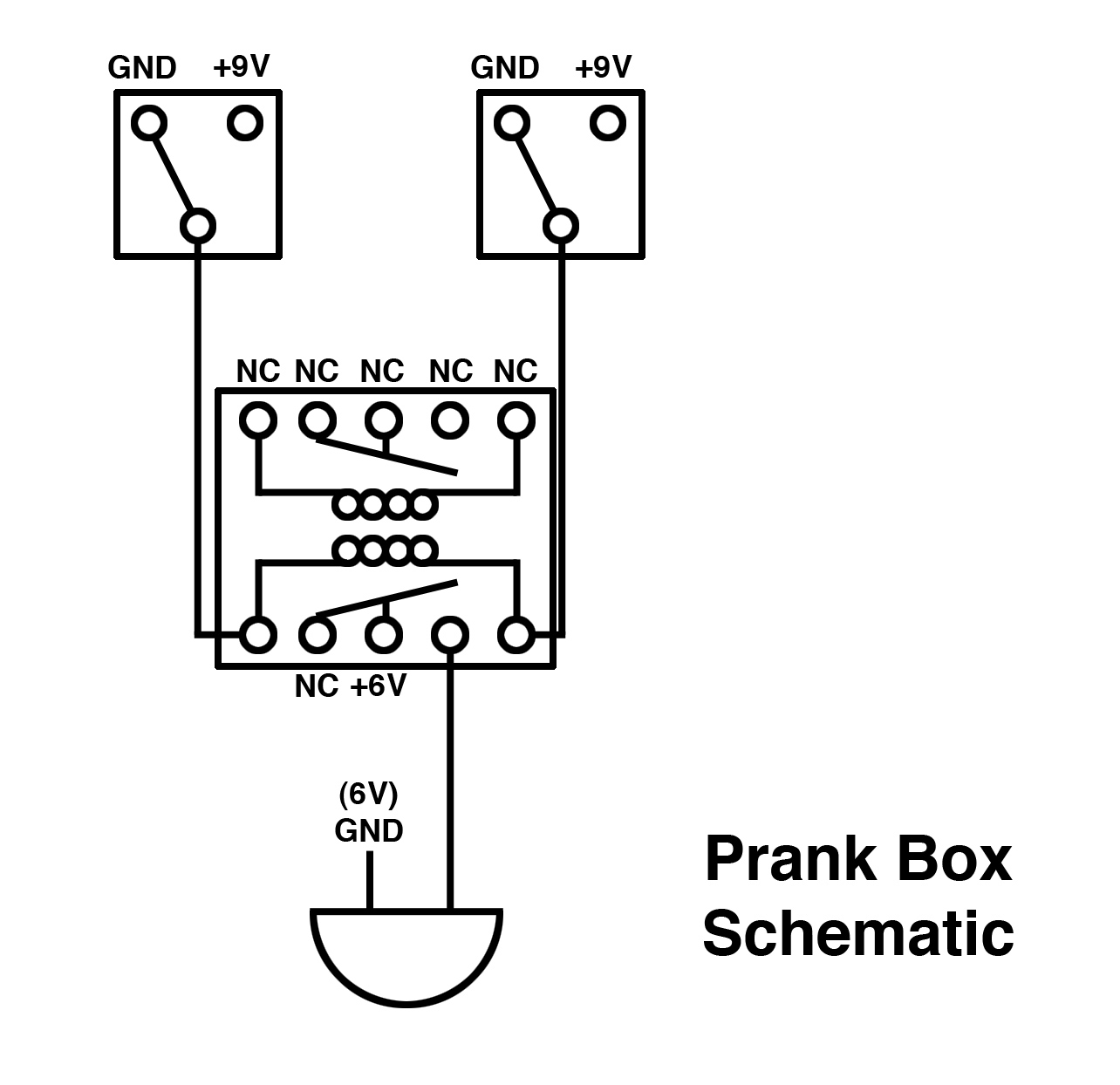

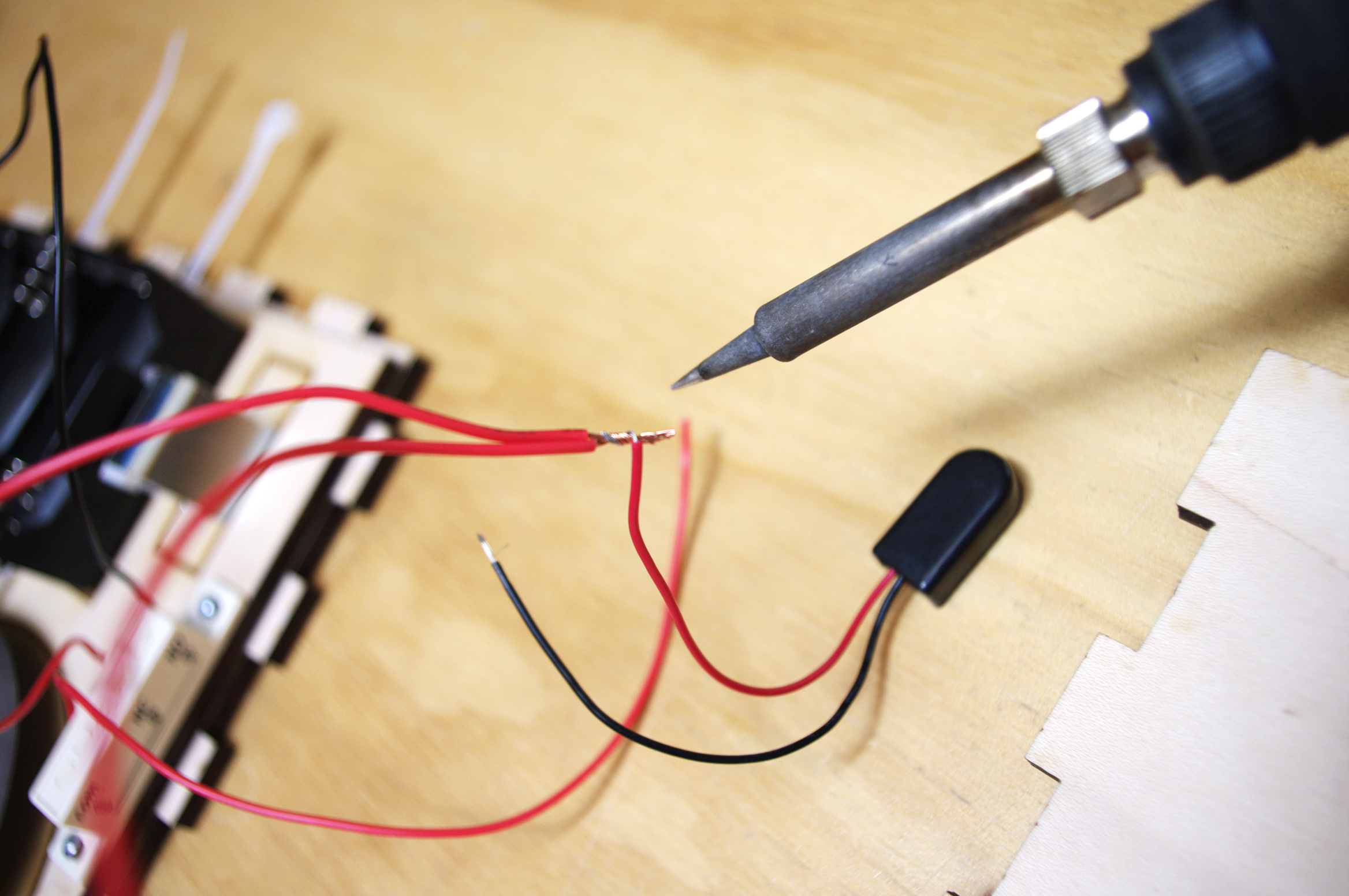

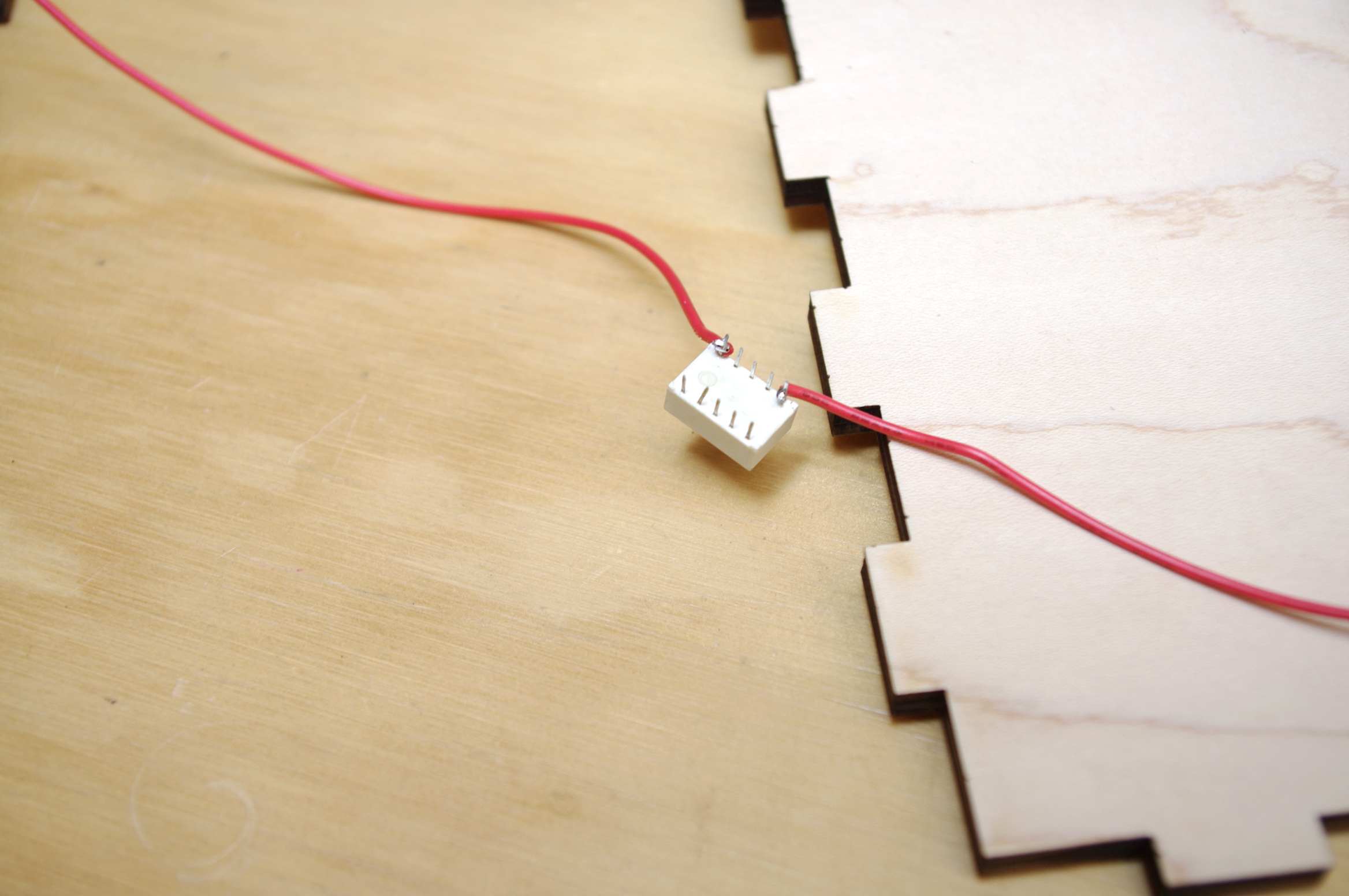

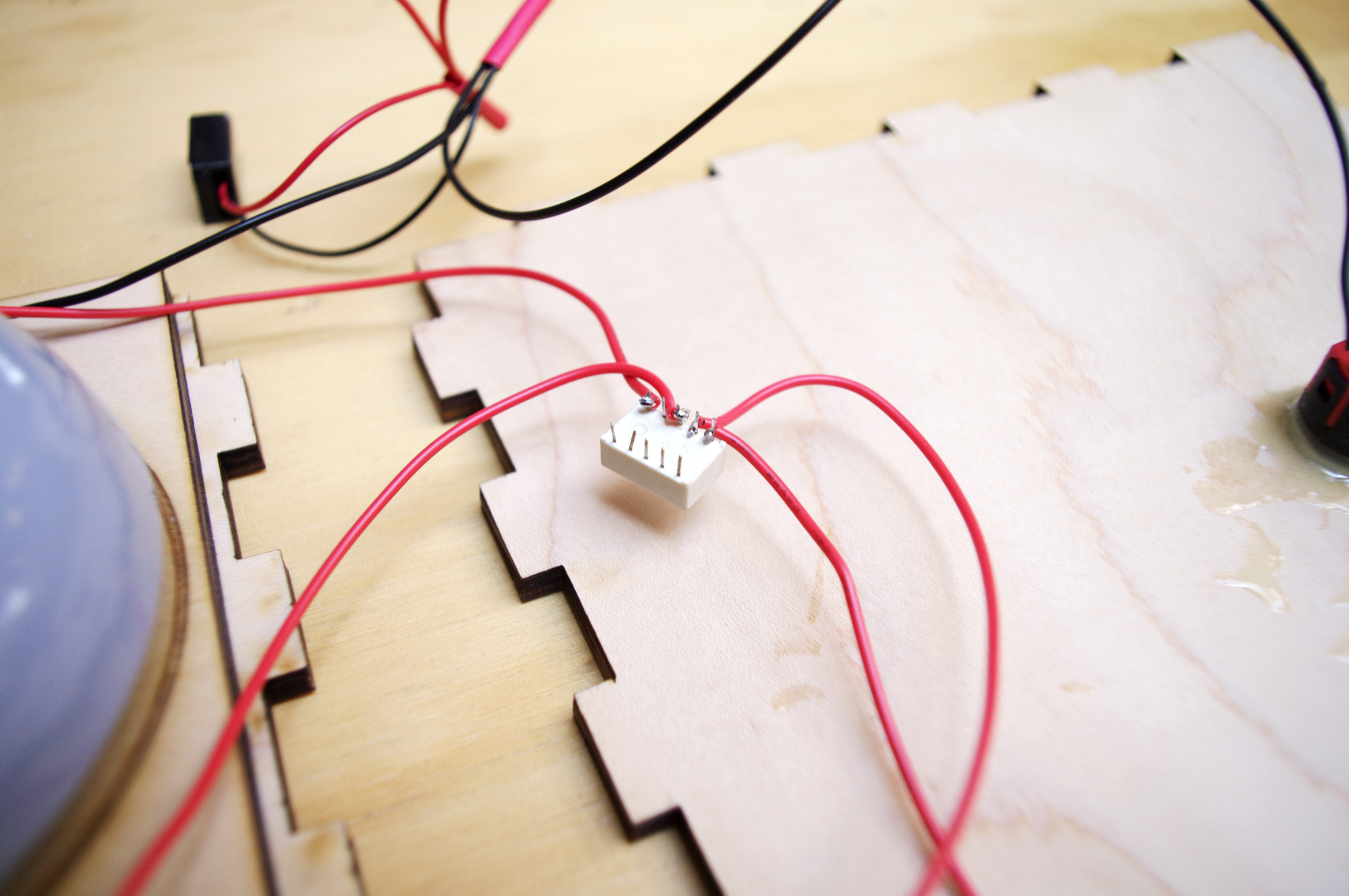

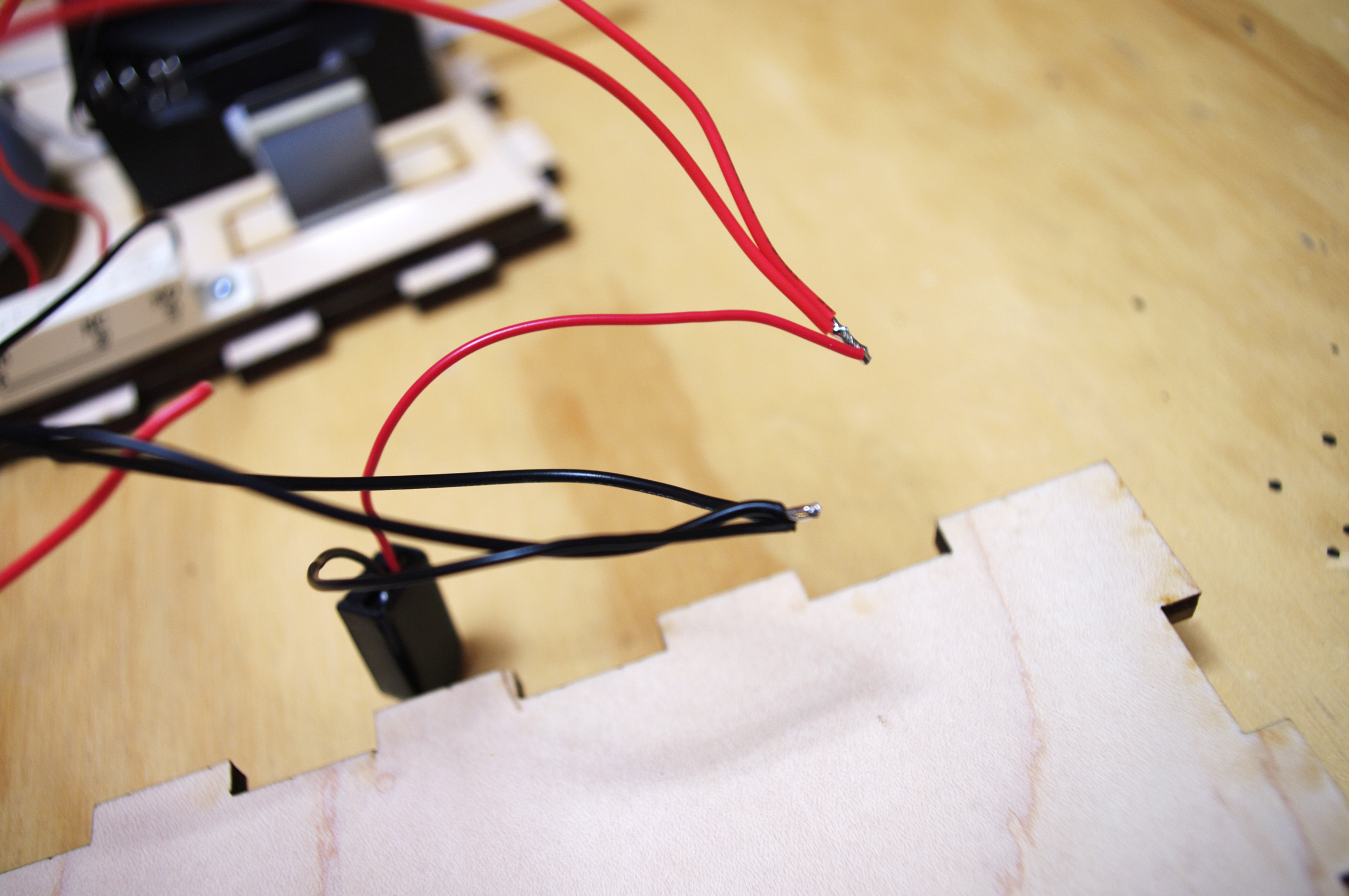

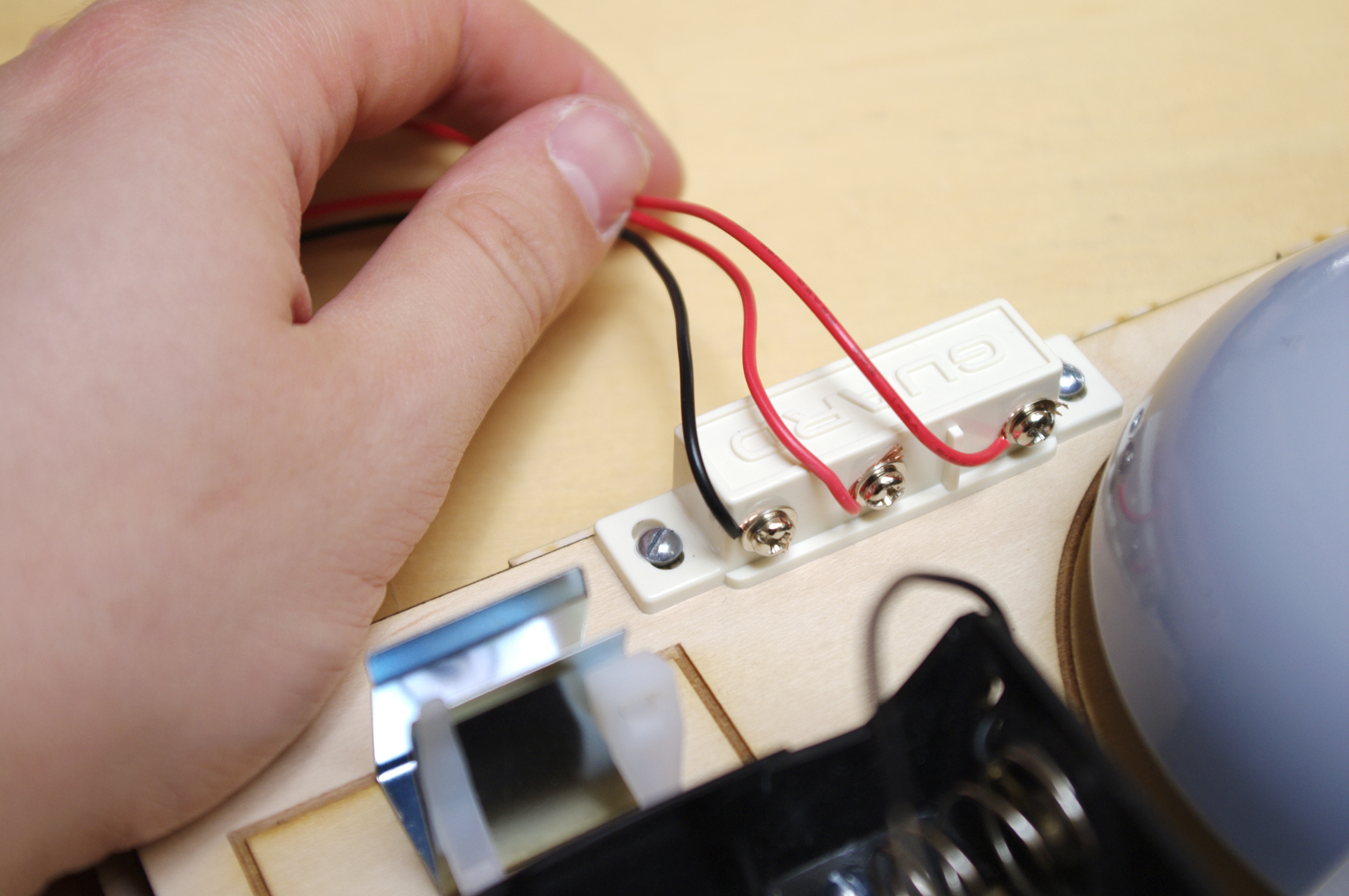

Attach a red wire to the common connections for the reed switch and the key switch.
Attach another red wire to the normally open (NO) connections on both switches. Connect these two wires to the red wire from the 9V battery clip.
Attach black wires to the two normally closed (NC) connections on both switches. Connect these two wires to the black wire from the 9V battery clip.
In essence what you have just done is create a situation in which ground is always connected in the circuit. By engaging one of the switches, you are introducing a positive voltage. This - in essence - flips the polarity one way or another, and latches the relay open or closed. So, when you turn the key, it latches it closed and keeps the bell ringing. Then, when you engage the reed switch, it flips the polarity and latches it open and turns off the bell.
Before you are done, you need to wire the bell to the D battery holder and the relay.
First, wire together the black wire from the battery holder, to the frame of the bell.
Next, wire the red wire from the battery holder to the center pin on the relay.
Finally, wire the red wire from the battery holder to the coil connection on the bell. This is the mounting terminal not connected to the frame.

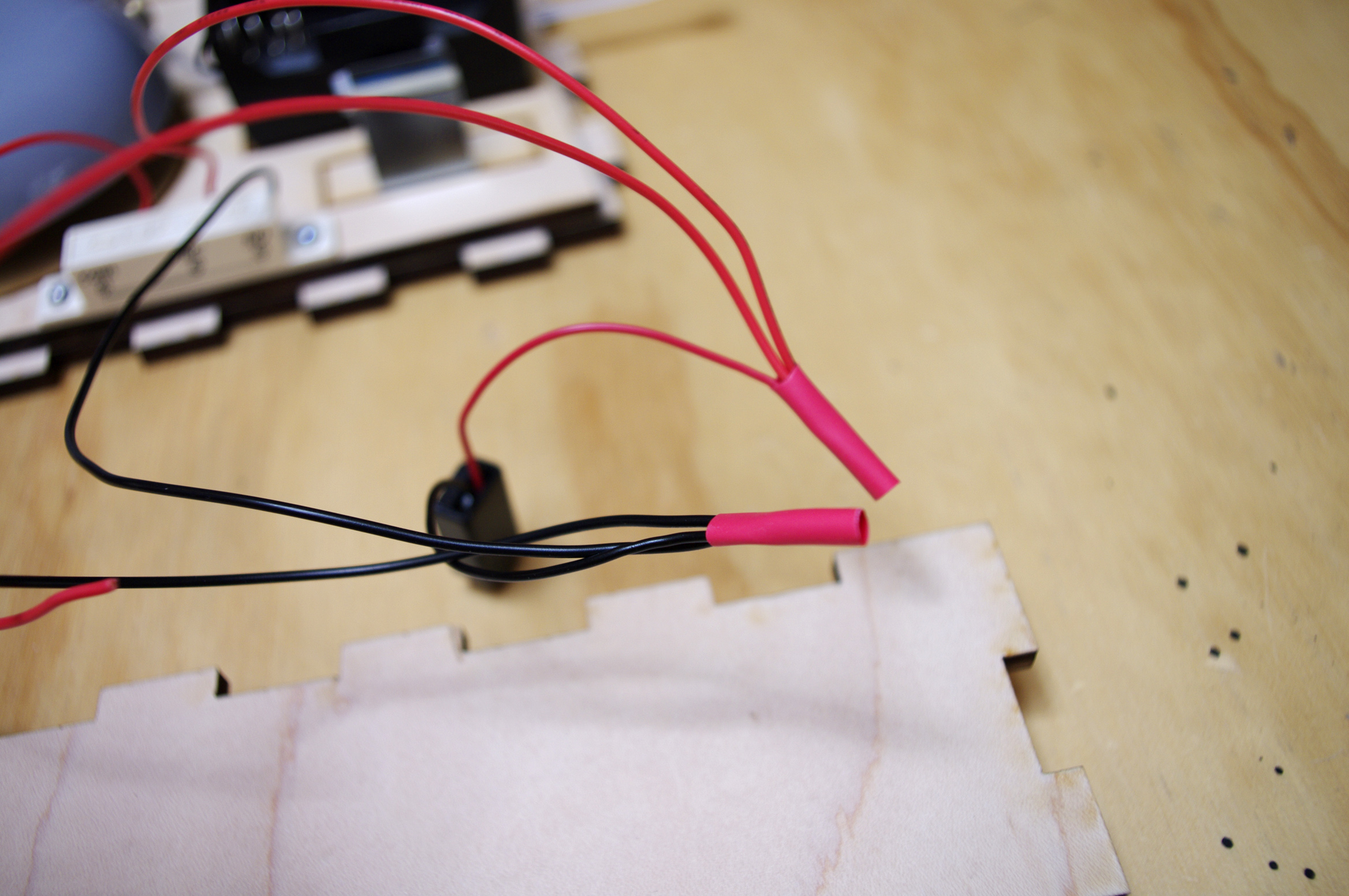

Cover all exposed electrical connections with shrink tube.
Heat
![8A.jpg](/proxy/?url=https://content.instructables.com/FY4/JVDS/H3QFJDMS/FY4JVDSH3QFJDMS.jpg&filename=8A.jpg)
![8B.jpg](/proxy/?url=https://content.instructables.com/FCW/BAOU/H3QFE9RY/FCWBAOUH3QFE9RY.jpg&filename=8B.jpg)

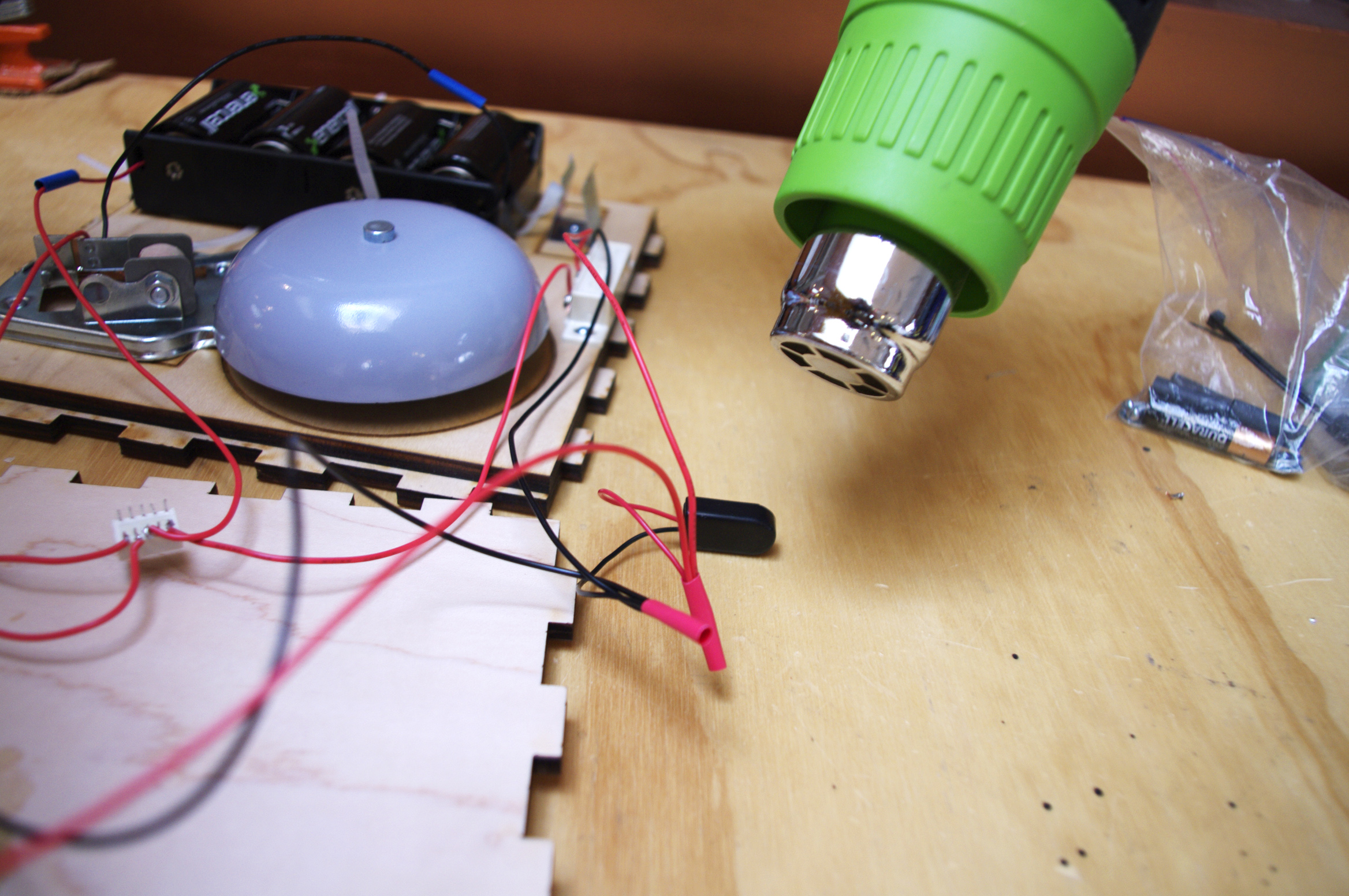

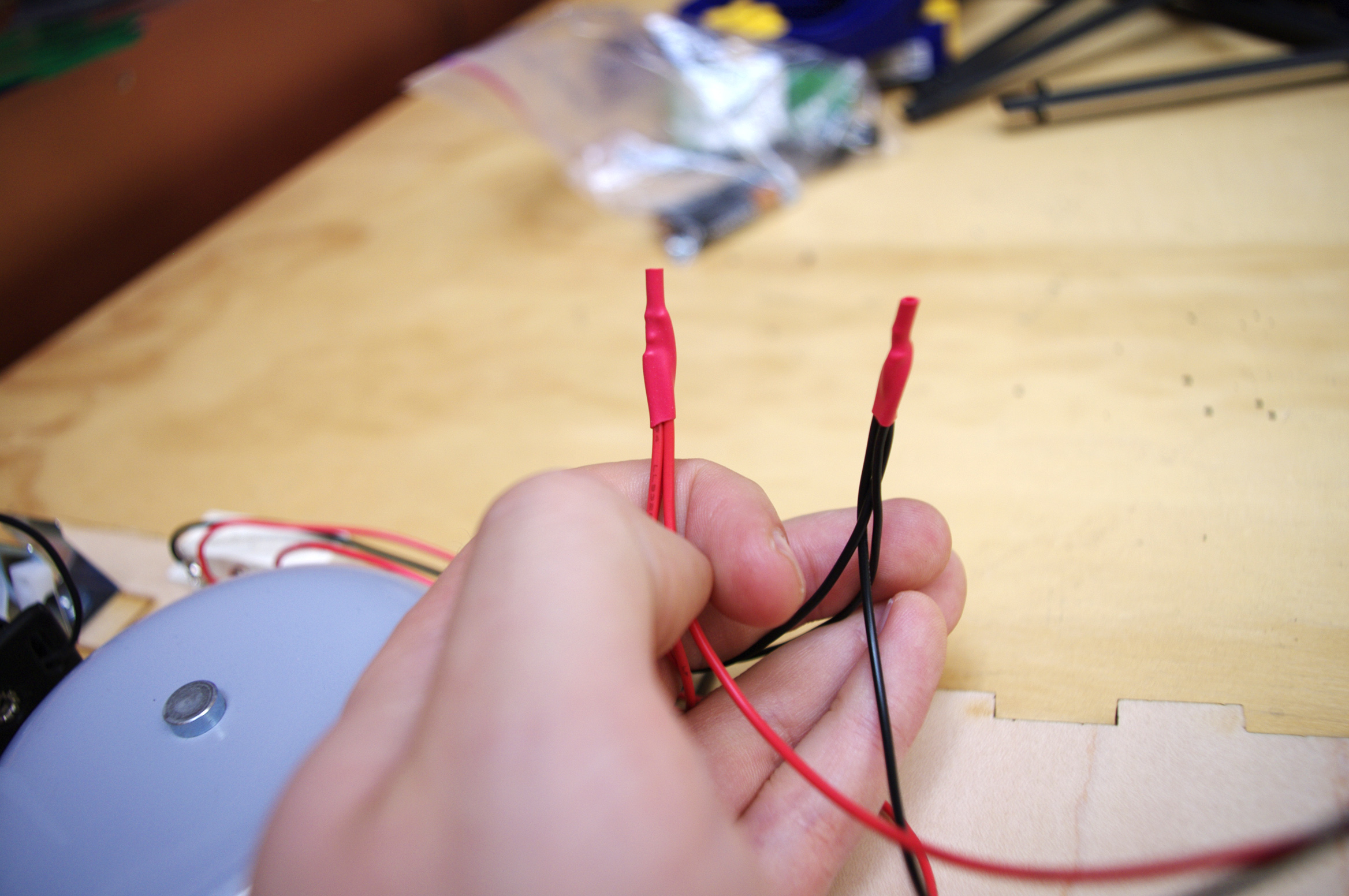

Blast all of the shrink tube applies in the last step with a heat gun to firmly hold it in place and protect the electrical connections.
Batteries
![9A.jpg](/proxy/?url=https://content.instructables.com/FIA/OGKD/H3QFE9U3/FIAOGKDH3QFE9U3.jpg&filename=9A.jpg)
![9B.jpg](/proxy/?url=https://content.instructables.com/FFS/XHZI/H3QF9A9L/FFSXHZIH3QF9A9L.jpg&filename=9B.jpg)
![9C.jpg](/proxy/?url=https://content.instructables.com/F9L/1DMU/H3QFLSNE/F9L1DMUH3QFLSNE.jpg&filename=9C.jpg)
Insert the D batteries in the battery holder.
Using 4 more zip ties, firmly band all of the batteries in place both vertically and horizontally.
Trim the excess zip tie leads.
Glue
![10A.jpg](/proxy/?url=https://content.instructables.com/FMK/A10H/H3QFLSRQ/FMKA10HH3QFLSRQ.jpg&filename=10A.jpg)
![10B.jpg](/proxy/?url=https://content.instructables.com/FZ9/WJOR/H3QFJDSU/FZ9WJORH3QFJDSU.jpg&filename=10B.jpg)
![10C.jpg](/proxy/?url=https://content.instructables.com/F1A/5G77/H3QFJDT0/F1A5G77H3QFJDT0.jpg&filename=10C.jpg)
![10D.jpg](/proxy/?url=https://content.instructables.com/FWY/FD1T/H3QFJDT1/FWYFD1TH3QFJDT1.jpg&filename=10D.jpg)
![10E.jpg](/proxy/?url=https://content.instructables.com/FS3/CU4B/H3QFJDT2/FS3CU4BH3QFJDT2.jpg&filename=10E.jpg)
![10F.jpg](/proxy/?url=https://content.instructables.com/FL9/F5QG/H3QF1DZV/FL9F5QGH3QF1DZV.jpg&filename=10F.jpg)
![10G.jpg](/proxy/?url=https://content.instructables.com/FBR/0GXE/H3QFJDT4/FBR0GXEH3QFJDT4.jpg&filename=10G.jpg)

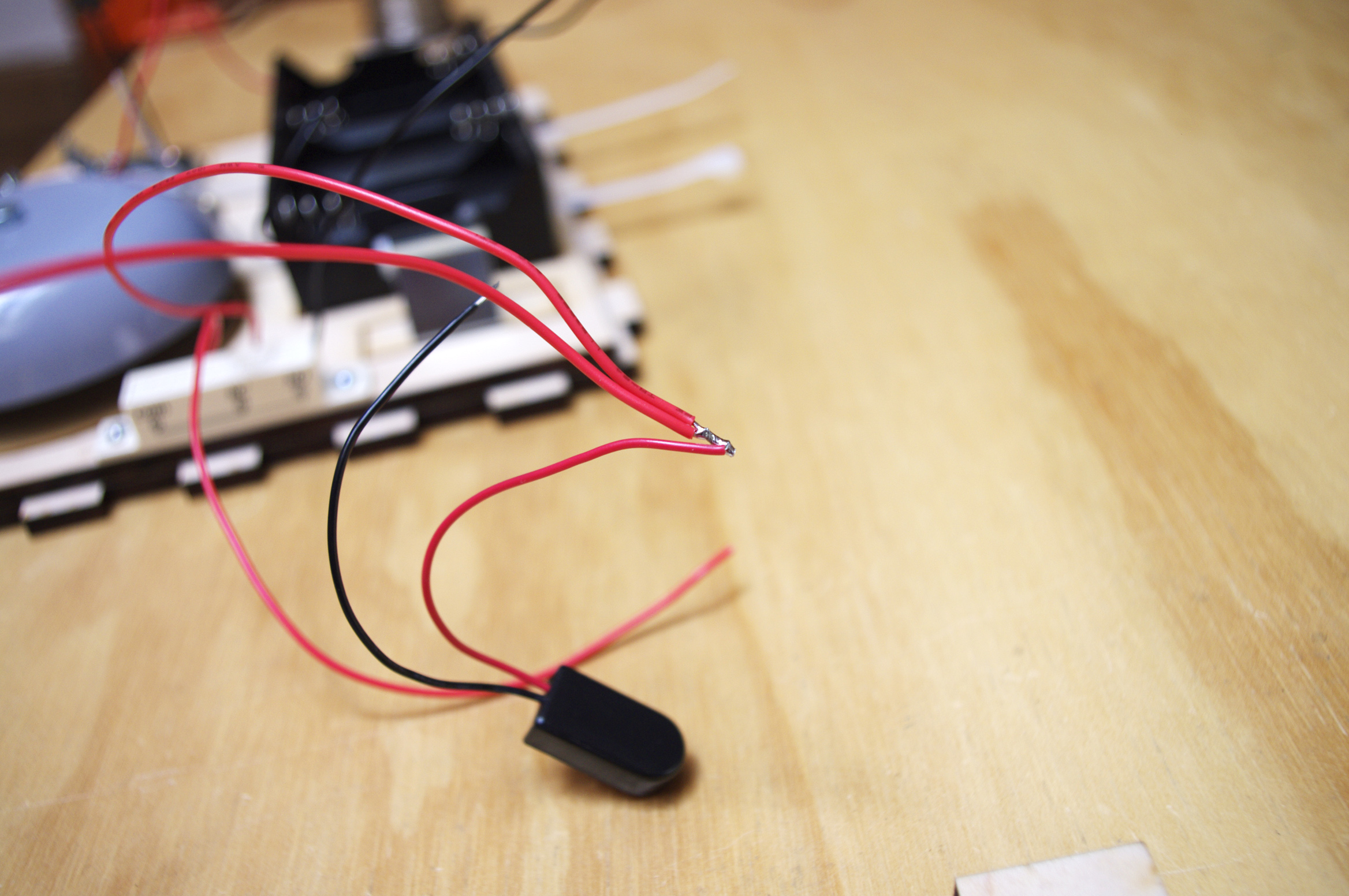

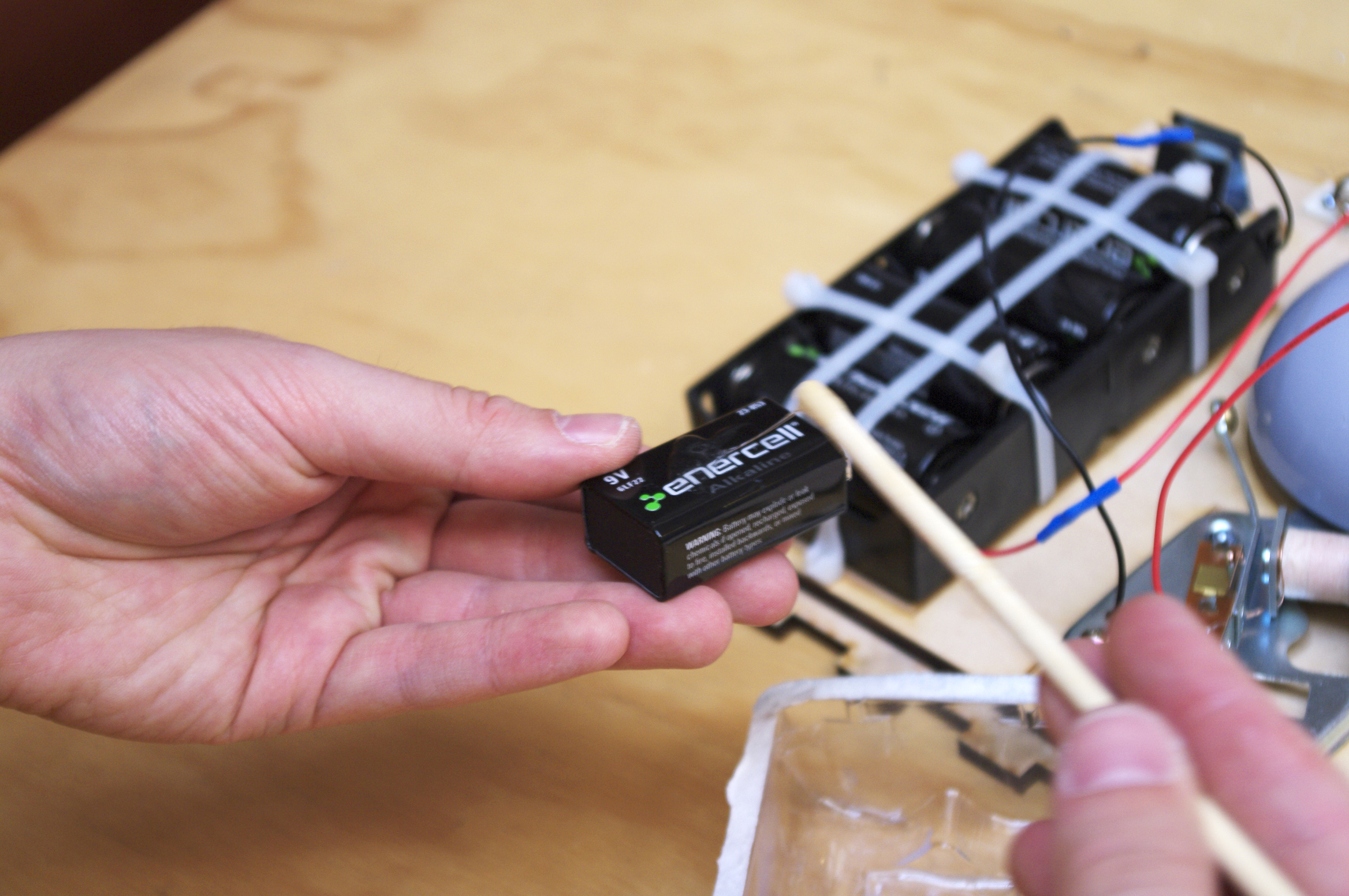

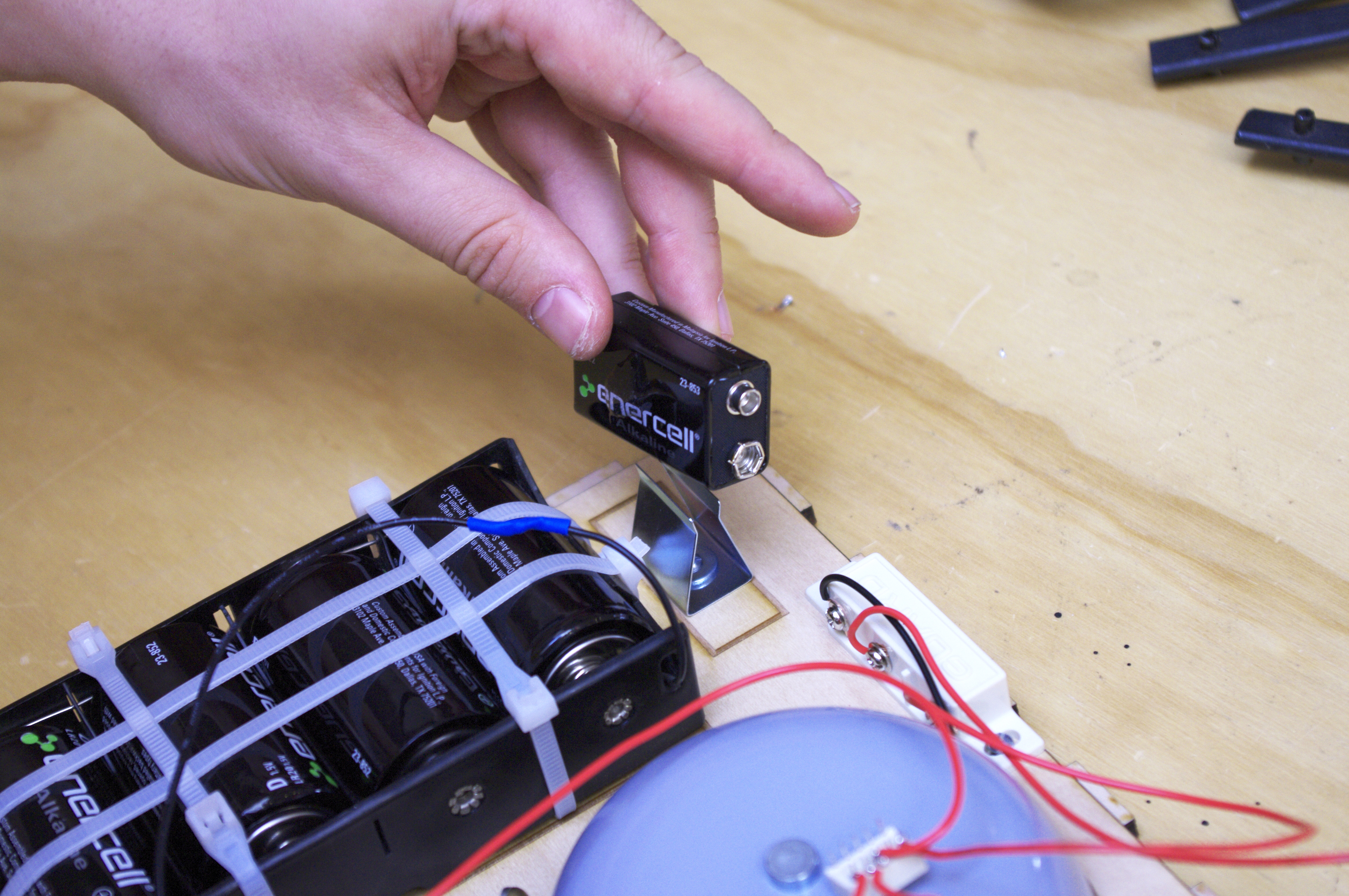

Plug in the 9V battery and epoxy the battery holder in place in the battery holder.

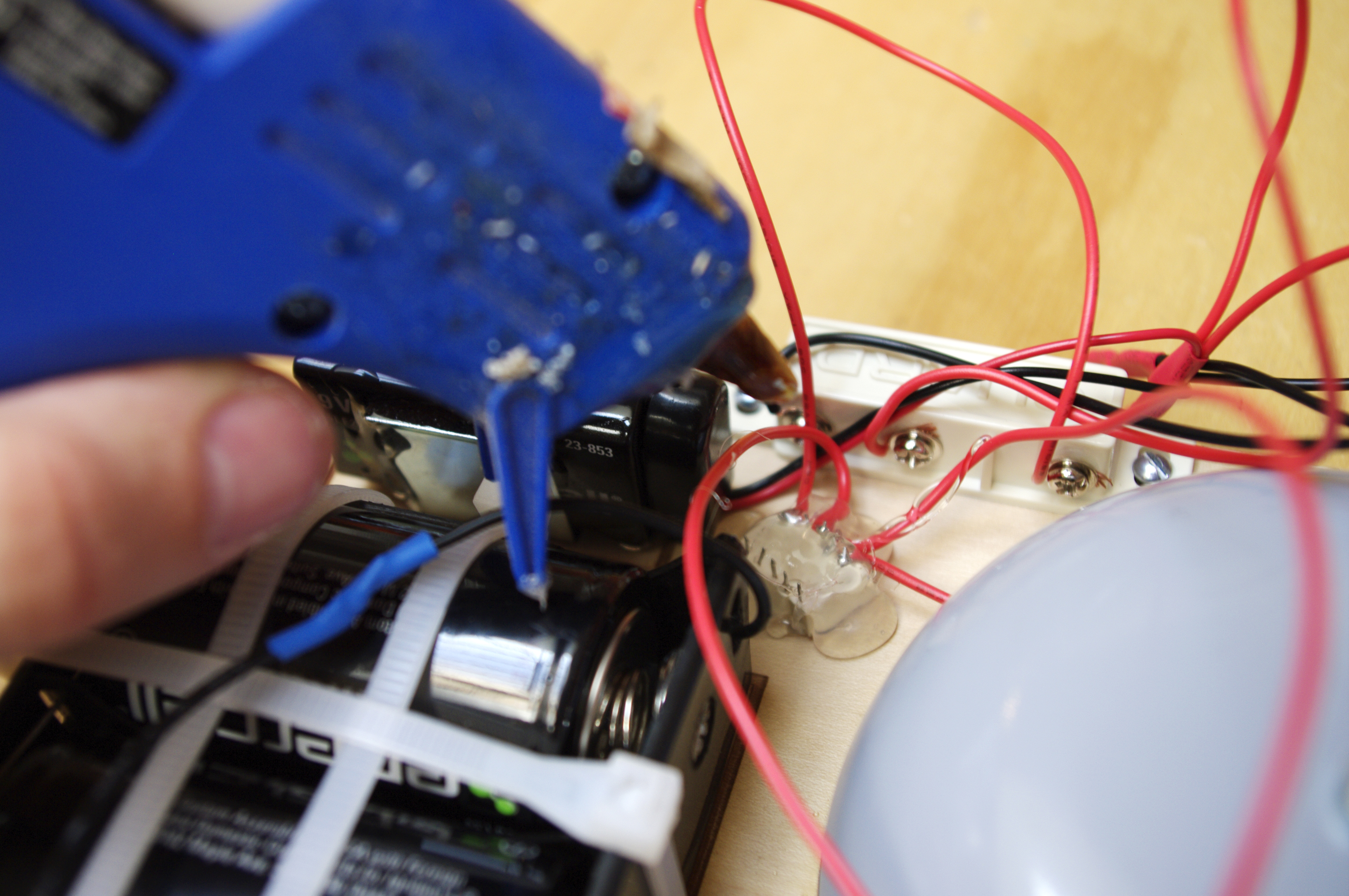

Hot glue the DPDT relay to the mounting bracket in the free space next to the battery.
Clean Up
![11A.jpg](/proxy/?url=https://content.instructables.com/F7R/CJLD/H3QFJDTY/F7RCJLDH3QFJDTY.jpg&filename=11A.jpg)
Bundle all of the loose wires together with zip ties.
If possible, zip tie this bundle to the battery pack in order to prevent it from interfering with the bell.
Glue It Together
![12A.jpg](/proxy/?url=https://content.instructables.com/FZ6/7YOP/H3QFJE0B/FZ67YOPH3QFJE0B.jpg&filename=12A.jpg)
![12B.jpg](/proxy/?url=https://content.instructables.com/FQX/QJXD/H3QFJE0C/FQXQJXDH3QFJE0C.jpg&filename=12B.jpg)
![12C.jpg](/proxy/?url=https://content.instructables.com/F60/E32A/H3QFE9WI/F60E32AH3QFE9WI.jpg&filename=12C.jpg)
![12D.jpg](/proxy/?url=https://content.instructables.com/FAQ/UHXG/H3QFLT61/FAQUHXGH3QFLT61.jpg&filename=12D.jpg)
![12E.jpg](/proxy/?url=https://content.instructables.com/FJN/WJLO/H3QF5SNP/FJNWJLOH3QF5SNP.jpg&filename=12E.jpg)
![12F.jpg](/proxy/?url=https://content.instructables.com/F7K/A543/H3QFLT62/F7KA543H3QFLT62.jpg&filename=12F.jpg)
![12G.jpg](/proxy/?url=https://content.instructables.com/FKJ/SIL8/H3QFJE0E/FKJSIL8H3QFJE0E.jpg&filename=12G.jpg)
![12H.jpg](/proxy/?url=https://content.instructables.com/FY7/GTRG/H3QFJE0F/FY7GTRGH3QFJE0F.jpg&filename=12H.jpg)
![12I.jpg](/proxy/?url=https://content.instructables.com/FCN/L1DR/H3QFLT63/FCNL1DRH3QFLT63.jpg&filename=12I.jpg)
![12J.jpg](/proxy/?url=https://content.instructables.com/FTV/86OJ/H3QF1E1E/FTV86OJH3QF1E1E.jpg&filename=12J.jpg)

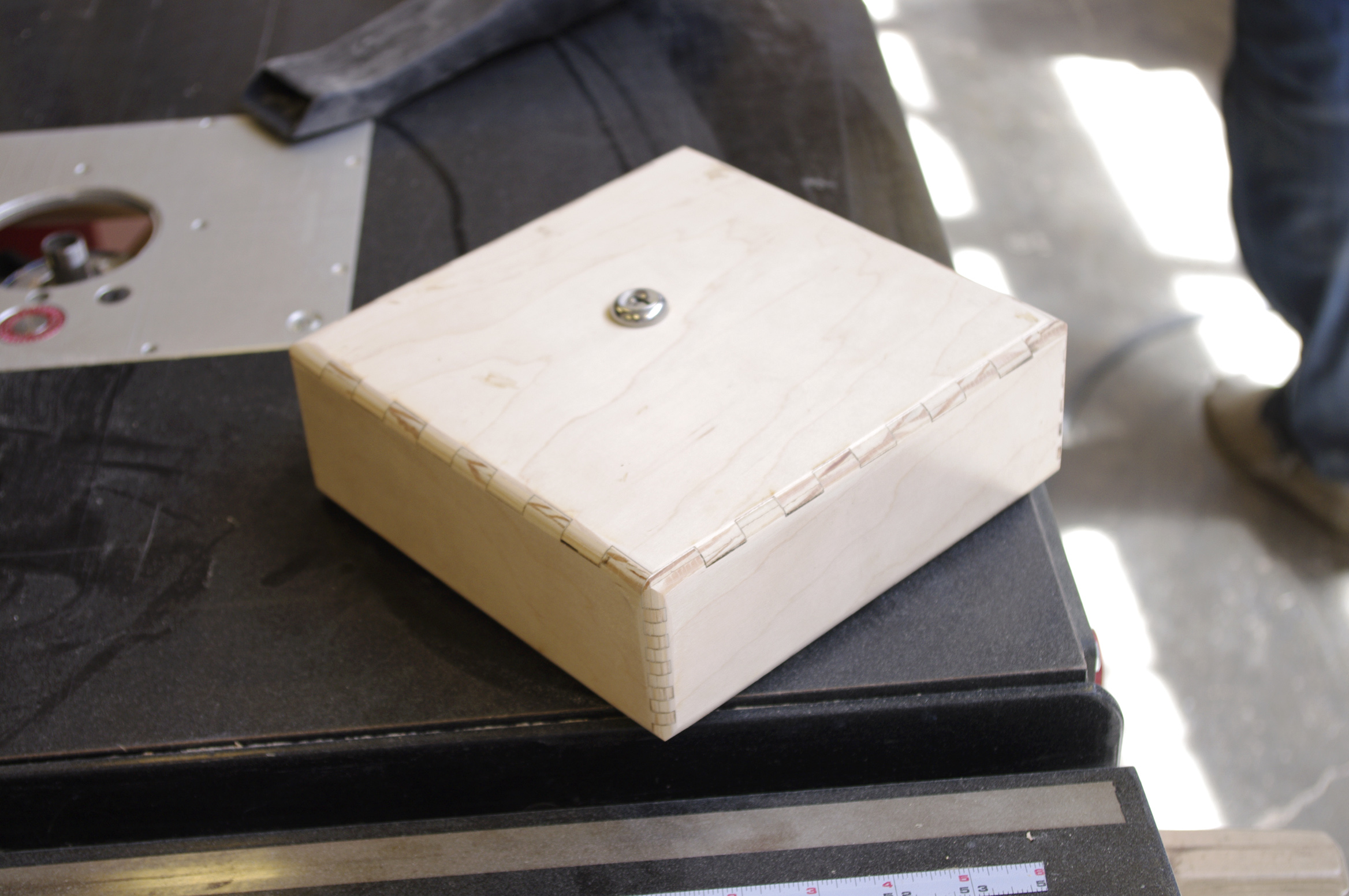

After you test it to make sure the bell turns on (and off), it is time to seal the box shut.

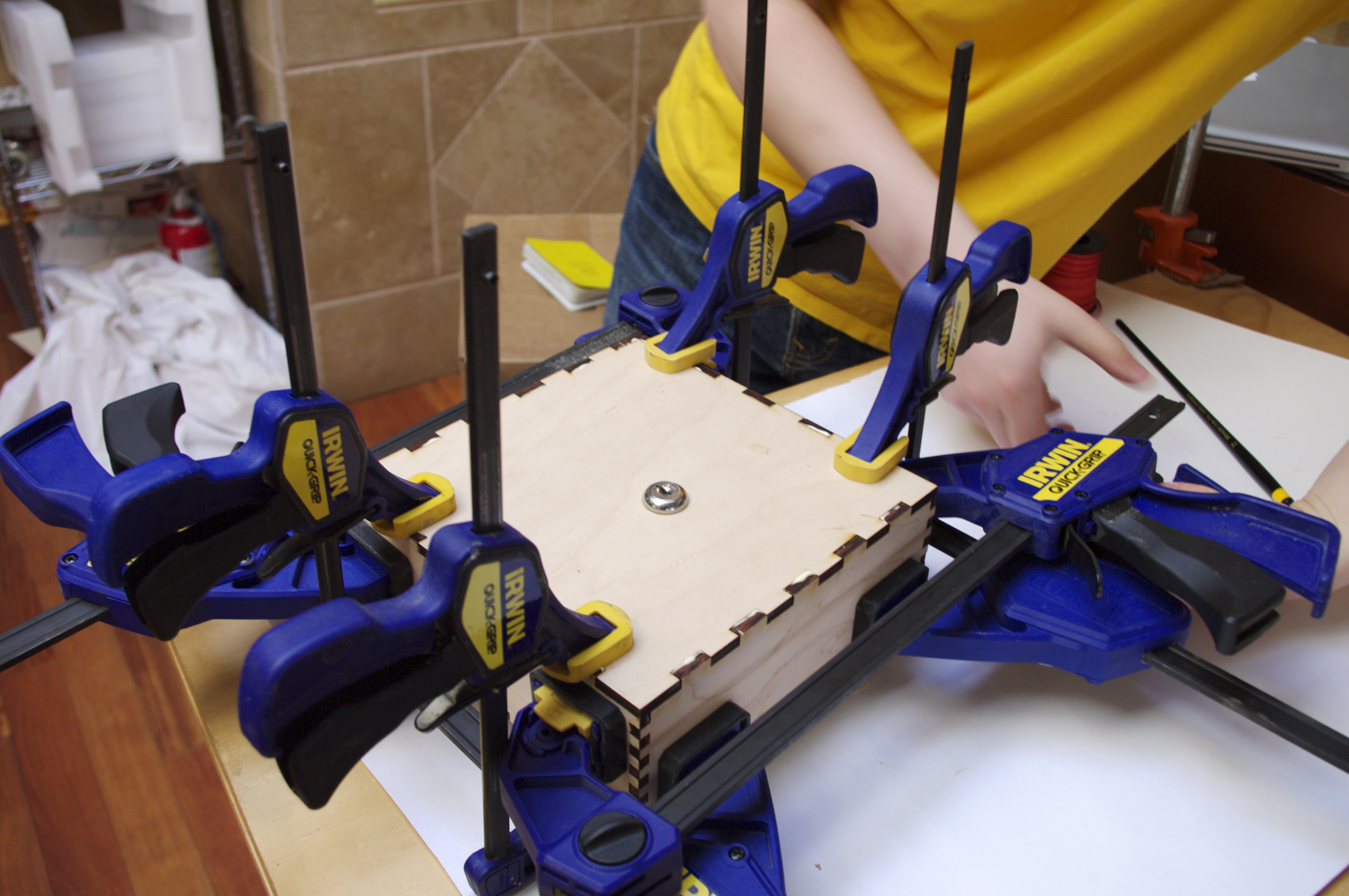

Apply wood glue to all of the joints and firmly clamp it together.
Sand
![13A.jpg](/proxy/?url=https://content.instructables.com/FS5/Q7O6/H3QFEBKA/FS5Q7O6H3QFEBKA.jpg&filename=13A.jpg)
![13B.jpg](/proxy/?url=https://content.instructables.com/FXS/9KLL/H3QFJI0I/FXS9KLLH3QFJI0I.jpg&filename=13B.jpg)
Using a belt sander, round all of the edges.
Make the Sign
![14A.jpg](/proxy/?url=https://content.instructables.com/FAK/ROP5/H3QF1EIQ/FAKROP5H3QF1EIQ.jpg&filename=14A.jpg)
![14B.jpg](/proxy/?url=https://content.instructables.com/FR2/KFUC/H3QFJI1C/FR2KFUCH3QFJI1C.jpg&filename=14B.jpg)
![14C.jpg](/proxy/?url=https://content.instructables.com/FFT/0H0S/H3QF1EIR/FFT0H0SH3QF1EIR.jpg&filename=14C.jpg)
![14D.jpg](/proxy/?url=https://content.instructables.com/FL3/EJ6Y/H3QFLYVN/FL3EJ6YH3QFLYVN.jpg&filename=14D.jpg)
![14E.jpg](/proxy/?url=https://content.instructables.com/F5V/TJIV/H3QFLYVO/F5VTJIVH3QFLYVO.jpg&filename=14E.jpg)
![14F.jpg](/proxy/?url=https://content.instructables.com/FUF/E18P/H3QF5T79/FUFE18PH3QF5T79.jpg&filename=14F.jpg)
![14G.jpg](/proxy/?url=https://content.instructables.com/F88/AVUK/H3QF5T7A/F88AVUKH3QF5T7A.jpg&filename=14G.jpg)
Laser cut the sign using the template from Step 2. If you don't have a laser cutter, you can use a service like Ponoko, or do this the old-fashioned way with saws, stencils and Exacto blades.

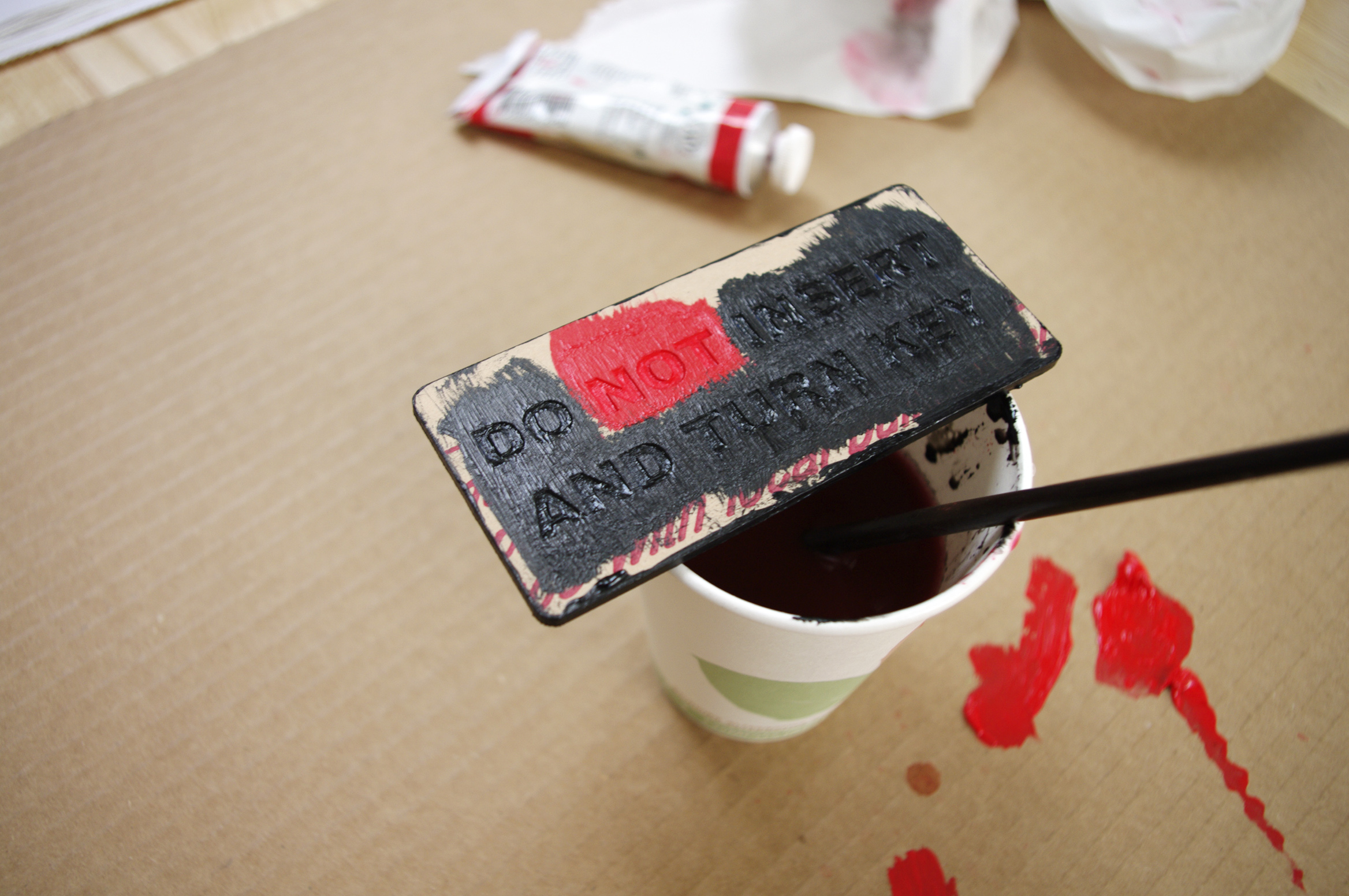

Once the sign is cut out and stenciled, paint the word "NOT" red, and all of the other words black. Paint the edge of the sign black as well.
When the paint dries, peel away the protective coating from both and pick out the island bits.
Sand and Stain (optional)
![15A.jpg](/proxy/?url=https://content.instructables.com/FJN/M3T9/H3QFLYVV/FJNM3T9H3QFLYVV.jpg&filename=15A.jpg)
![15B.jpg](/proxy/?url=https://content.instructables.com/FU7/PIUQ/H3QEXK6K/FU7PIUQH3QEXK6K.jpg&filename=15B.jpg)
![15C.jpg](/proxy/?url=https://content.instructables.com/F1C/NT4B/H3QFLYVW/F1CNT4BH3QFLYVW.jpg&filename=15C.jpg)
![15D.jpg](/proxy/?url=https://content.instructables.com/FUC/CX5W/H3QFJI22/FUCCX5WH3QFJI22.jpg&filename=15D.jpg)
![15E.jpg](/proxy/?url=https://content.instructables.com/F3A/CB29/H3QFJI23/F3ACB29H3QFJI23.jpg&filename=15E.jpg)

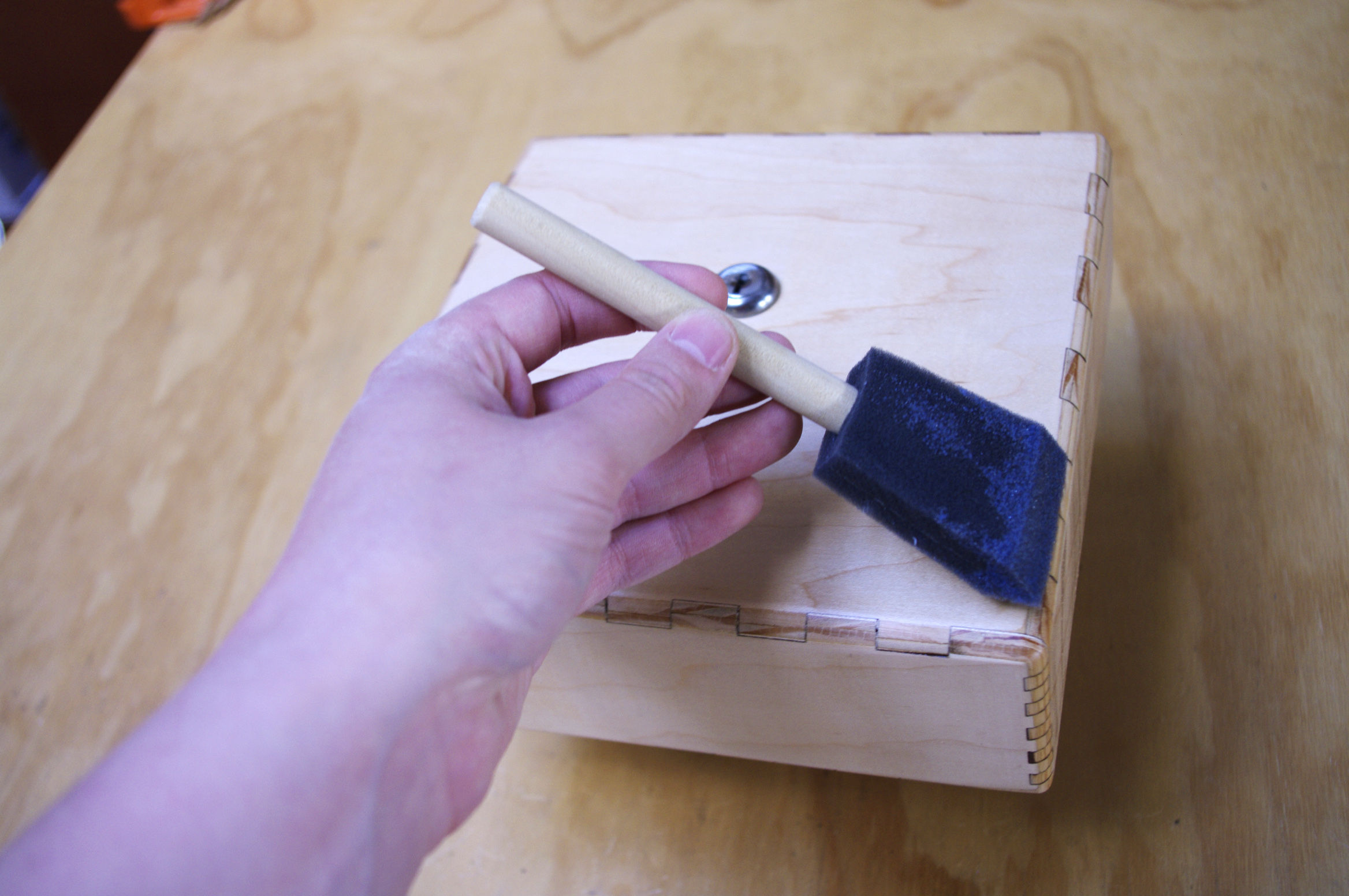

Sand the box, wipe it clean and put on a coat of stain in a singular direction.
When this is dry, lightly sand again and apply stain in the opposite direction.
Finally, lightly sand once more and lay one last coat of stain in the initial direction.
Affix Sign
![16A.jpg](/proxy/?url=https://content.instructables.com/FOK/QRAN/H3QF1EJ2/FOKQRANH3QF1EJ2.jpg&filename=16A.jpg)
![16B.jpg](/proxy/?url=https://content.instructables.com/F9U/YC32/H3QETQ7X/F9UYC32H3QETQ7X.jpg&filename=16B.jpg)
![16C.jpg](/proxy/?url=https://content.instructables.com/FBG/WQ2B/H3QFLZ4Q/FBGWQ2BH3QFLZ4Q.jpg&filename=16C.jpg)
![16D.jpg](/proxy/?url=https://content.instructables.com/FZW/F92Z/H3QFLZ4R/FZWF92ZH3QFLZ4R.jpg&filename=16D.jpg)
![16E.jpg](/proxy/?url=https://content.instructables.com/F36/WX2B/H3QFLZ4S/F36WX2BH3QFLZ4S.jpg&filename=16E.jpg)
![16F.jpg](/proxy/?url=https://content.instructables.com/FRY/M222/H3QFJIC9/FRYM222H3QFJIC9.jpg&filename=16F.jpg)
![16G.jpg](/proxy/?url=https://content.instructables.com/FJ1/W17V/H3QFJICA/FJ1W17VH3QFJICA.jpg&filename=16G.jpg)

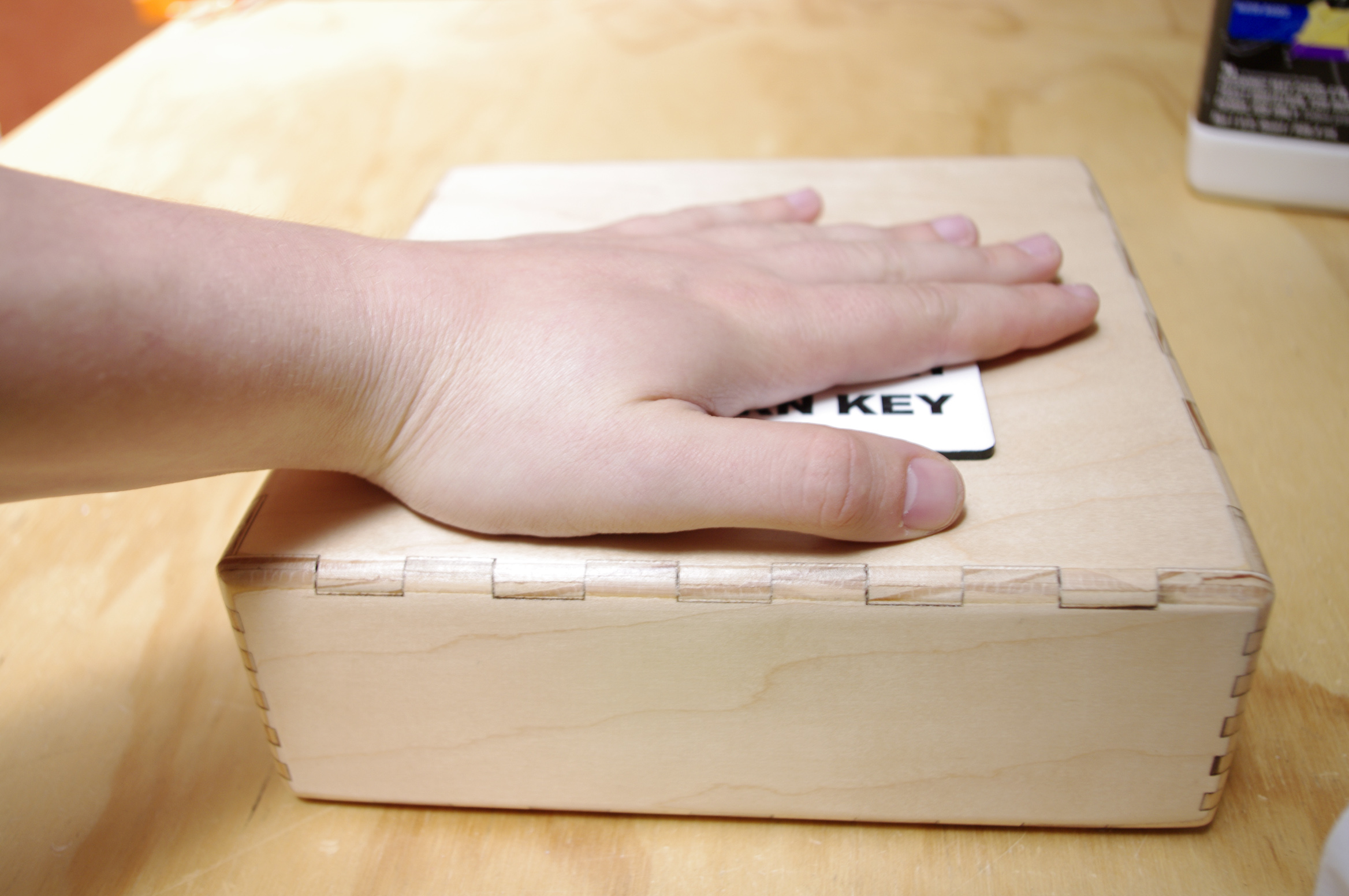

With masking tape, mask out the spot on the box where you want to place your sign. Apply contact cement to this spot and wait for it to dry.

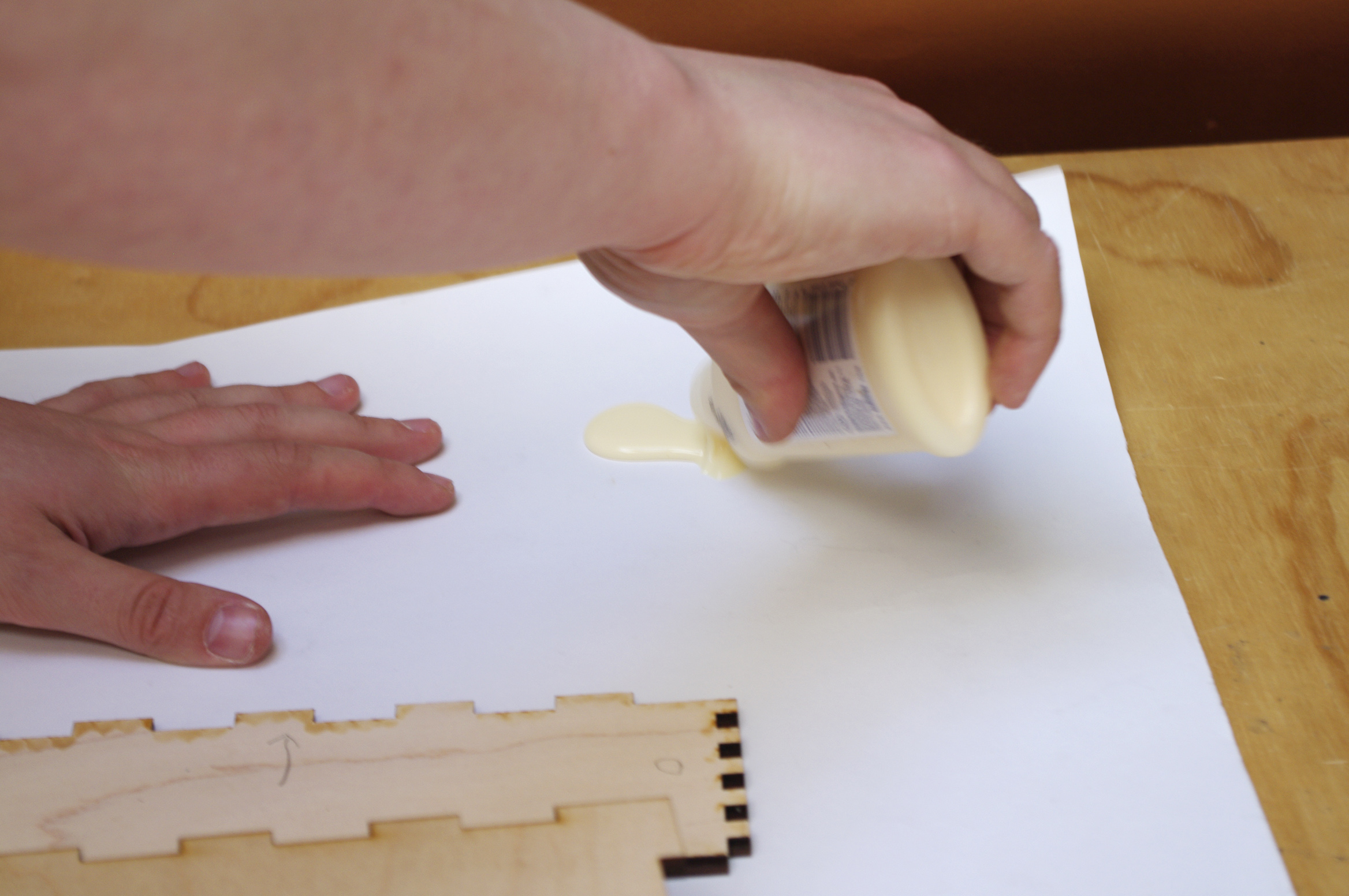

Apply contact cement to the back of the sign, and wait for this to dry as well.
Carefully align the sign with the box, as you will only get one chance to do this right, and then firmly press them together.
Mail It to Canada
![17A.jpg](/proxy/?url=https://content.instructables.com/FVO/03CB/H3QFJIIT/FVO03CBH3QFJIIT.jpg&filename=17A.jpg)
![17B.jpg](/proxy/?url=https://content.instructables.com/FVW/Z4RB/H3QEXK9N/FVWZ4RBH3QEXK9N.jpg&filename=17B.jpg)
![17C.jpg](/proxy/?url=https://content.instructables.com/FLA/AJ3D/H3QFJIIV/FLAAJ3DH3QFJIIV.jpg&filename=17C.jpg)
![email.jpg](/proxy/?url=https://content.instructables.com/FG6/KIMT/H3XN9CDV/FG6KIMTH3XN9CDV.jpg&filename=email.jpg)
Besides the fact that it is simply good to distance yourself from the person who engages the box, I find that Canadians are really bad at following the directions written upon the label.
I don't know if this is on account of the long winters fostering a strong inner life and innate curiosity, or because socialized medicine makes them fearless. Or - perhaps - since everyone in the world loves Canadians, they just assume no one will send them a sealed box with a bell that will not turn off. For all I know, it could be something entirely different in the national character that causes this phenomenon. I am not really sure why they are so susceptible to inserting and turning the key.
It took Mike in Vancouver only a few minutes to insert and turn the key. I can only imagine what must have been running through his mind while he made that decision.
Remember to be a good southern neighbor and eventually tell them how to turn it off. However, I think 20 - 30 minutes is about a fair amount of time to wait before telling them about the magnet triggered reed switch on the side of the box.
Also, when triggering the reed switch, make sure the key is not inserted in lock and turned. If it is, this will not work.
