Powering My Piano From a USB Battery Pack.
![2022-01-08 11.41.05.jpg](/proxy/?url=https://content.instructables.com/F0Y/EO3H/KY79PSGS/F0YEO3HKY79PSGS.jpg&filename=2022-01-08 11.41.05.jpg)

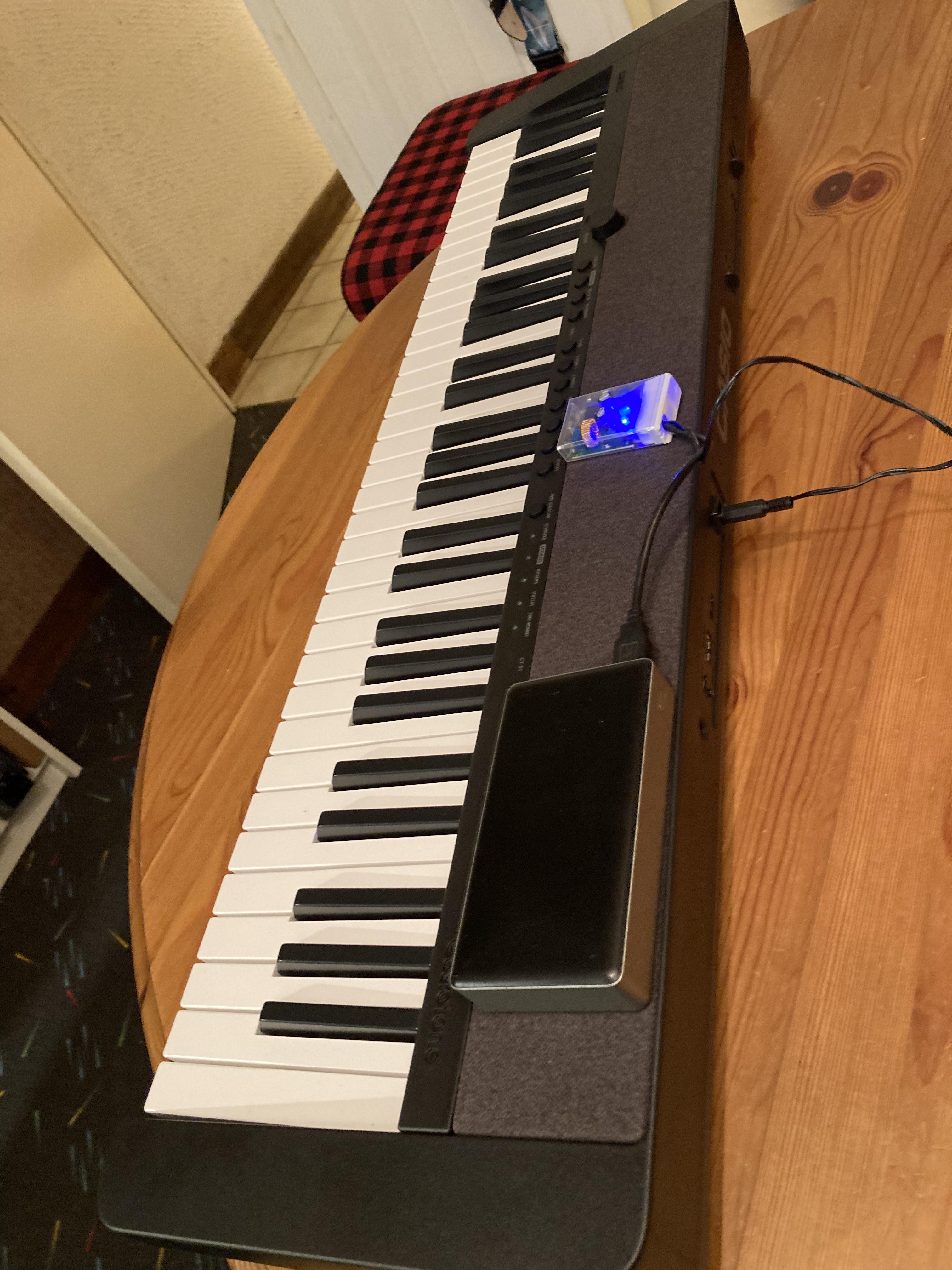

I bought an excellent little digital piano, the CASIO CT-S1 which can be powered by 6 x AA type batteries. That allows you to play in any places, even far from a 220vac / 110vac outlet. But the drawback is : the battery life time is relatively short !

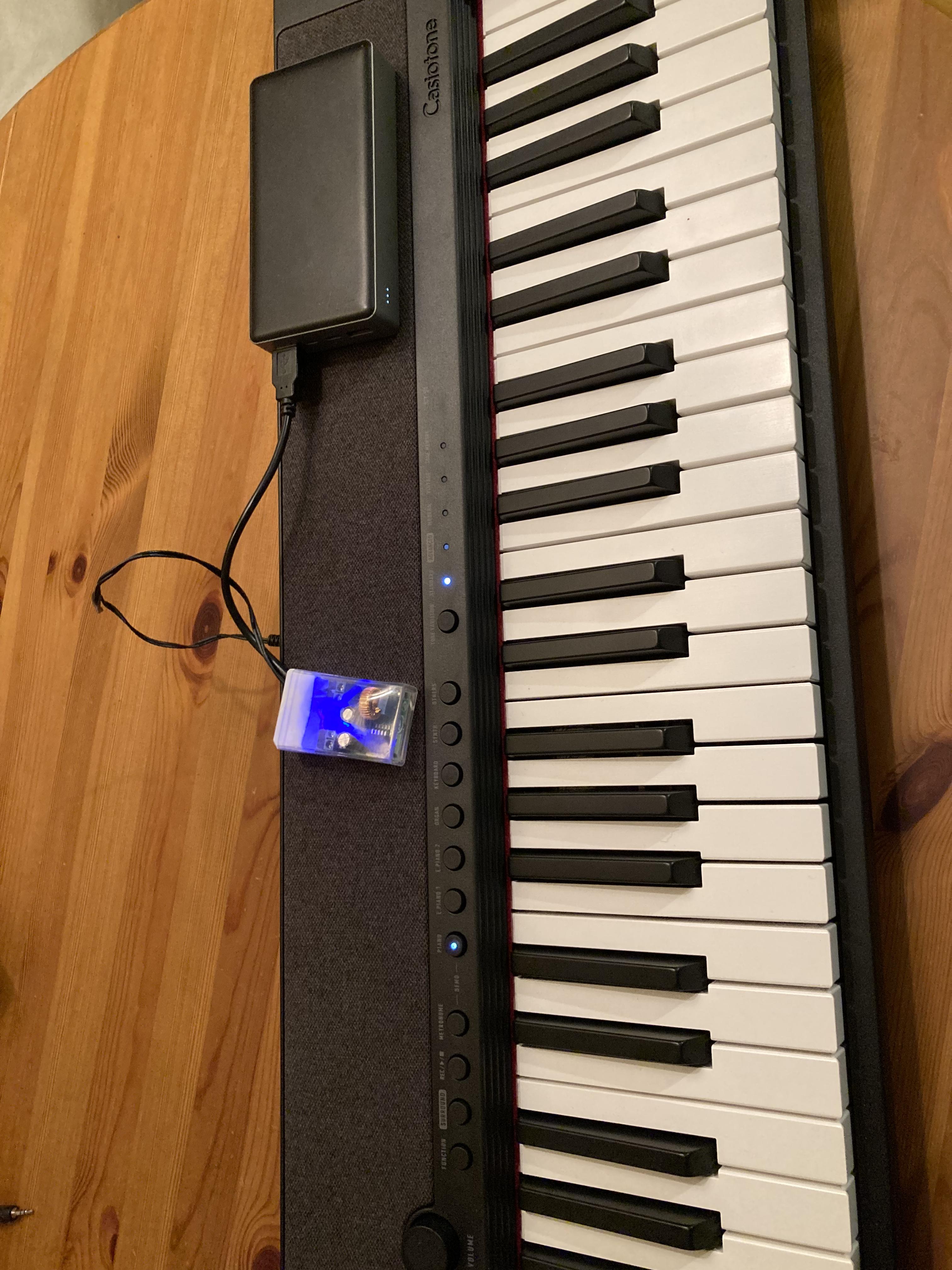

So I decided to create a circuit / cable to power my piano from a USB power bank and significantly increase the autonomy.
Supplies
bill of material:
- buck converter -> https://www.ebay.fr/itm/173410051726?hash=item28600b668e:g:0I0AAOSwUxhbSV3q
- a cable with a USB male plug.
- a power jack and a 2-conductor cable
- a TicTac® box to house the circuit ;-)
![2022-01-07 20.34.43.jpg](/proxy/?url=https://content.instructables.com/FB1/U9OK/KY79PSLP/FB1U9OKKY79PSLP.jpg&filename=2022-01-07 20.34.43.jpg)
![2022-01-08 11.41.19.jpg](/proxy/?url=https://content.instructables.com/FO0/UCLM/KY79PSOS/FO0UCLMKY79PSOS.jpg&filename=2022-01-08 11.41.19.jpg)
Strip the USB cable and tin the red and black wires.
Connect the USB cable to the converter terminals like this:
IN + -> red wire
IN- -> black wire
Solder the power jack onto the 2-conductor cable.
Connect the other end to the following terminals:
OUT + -> center of power jack
OUT - -> on the ground of the jack / outside
Connect the USB plug to the USB power bank.
With a voltmeter set to a 20vcc range and measure
the voltage on the OUT + and OUT- terminals of the converter.
Using a precision screwdriver, adjust the converter potentiometer
to obtain 9.5vdc ( this is the tension required for my Casio CT-S1 ). Then just connect the jack to the power socket on the piano. All you have to do is playing freely ;-)
