Powered High Quality Speakers
20 watts high quality woofer and tweeter with built in power amplifier with single volume control.

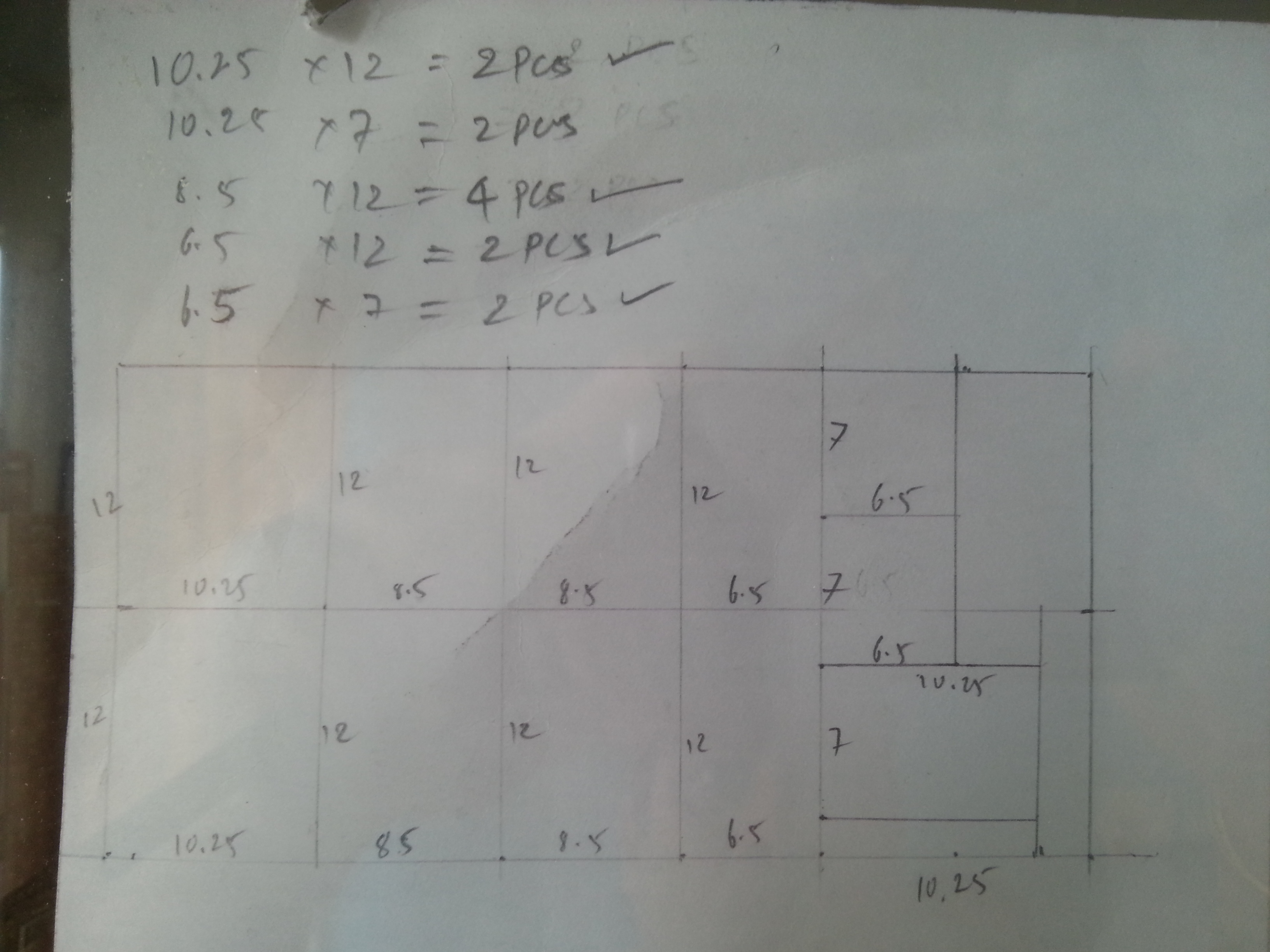

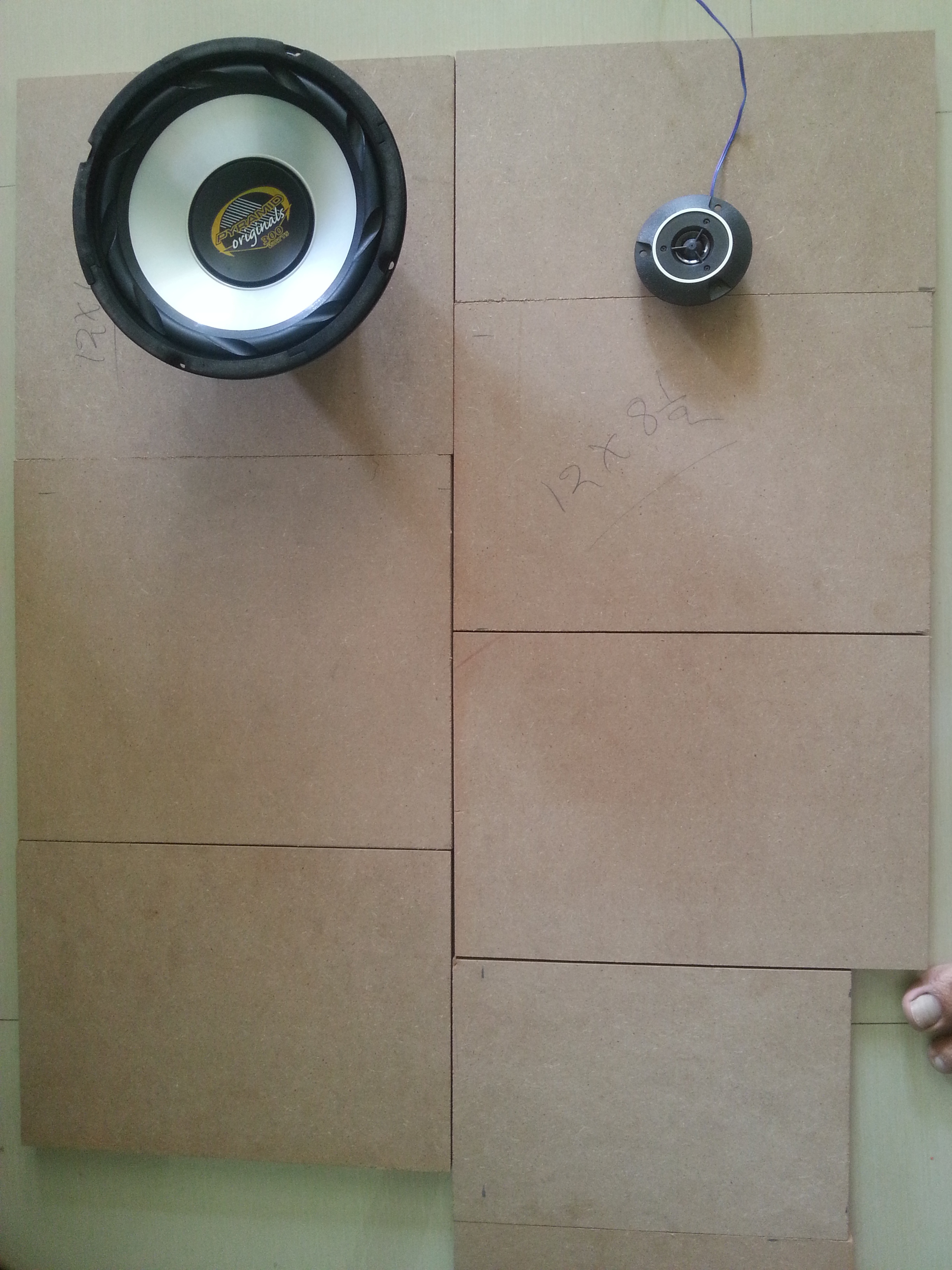

Measure and Cut MDF Board
Based on the size of the speaker cut board to make box.

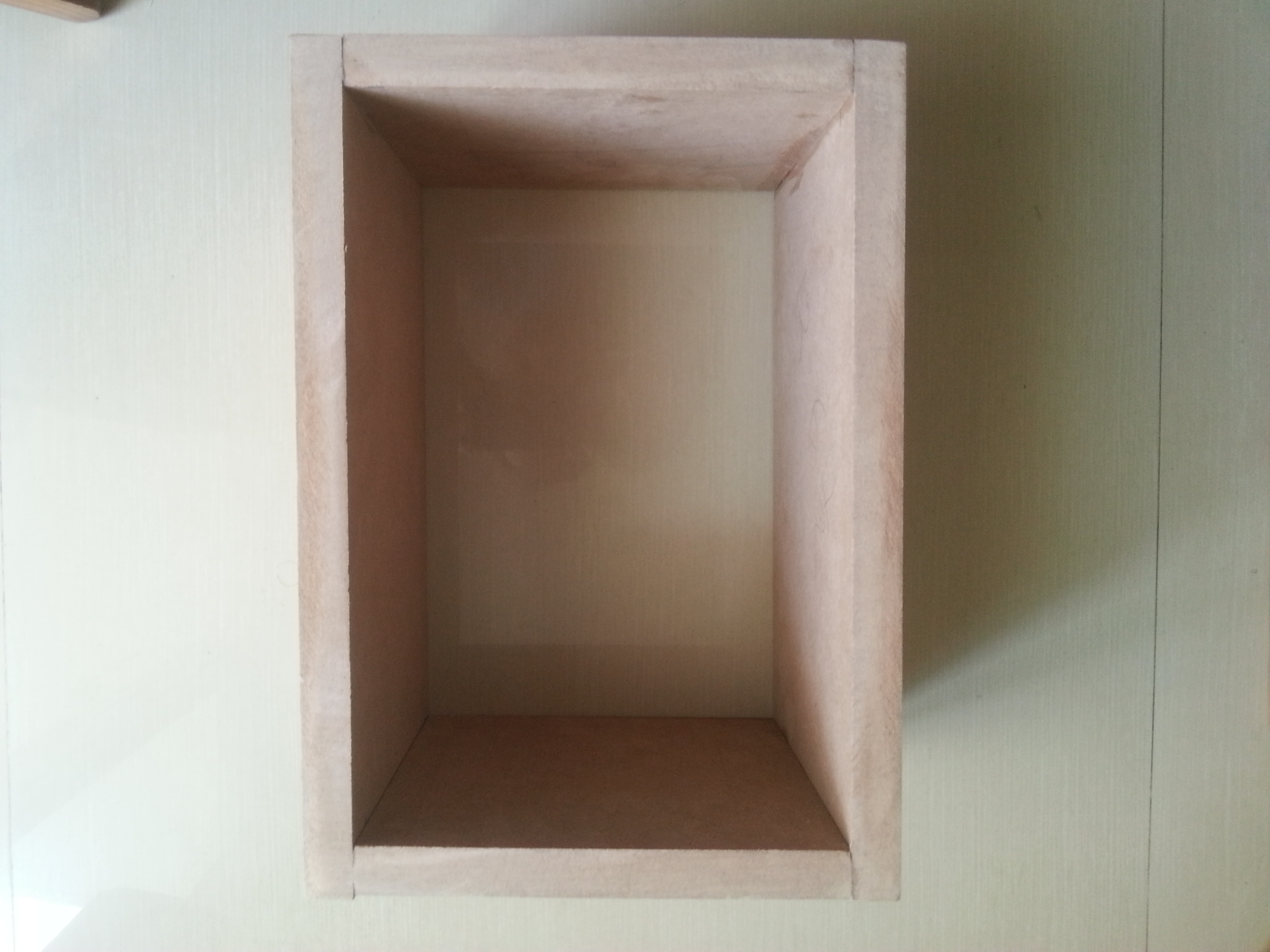

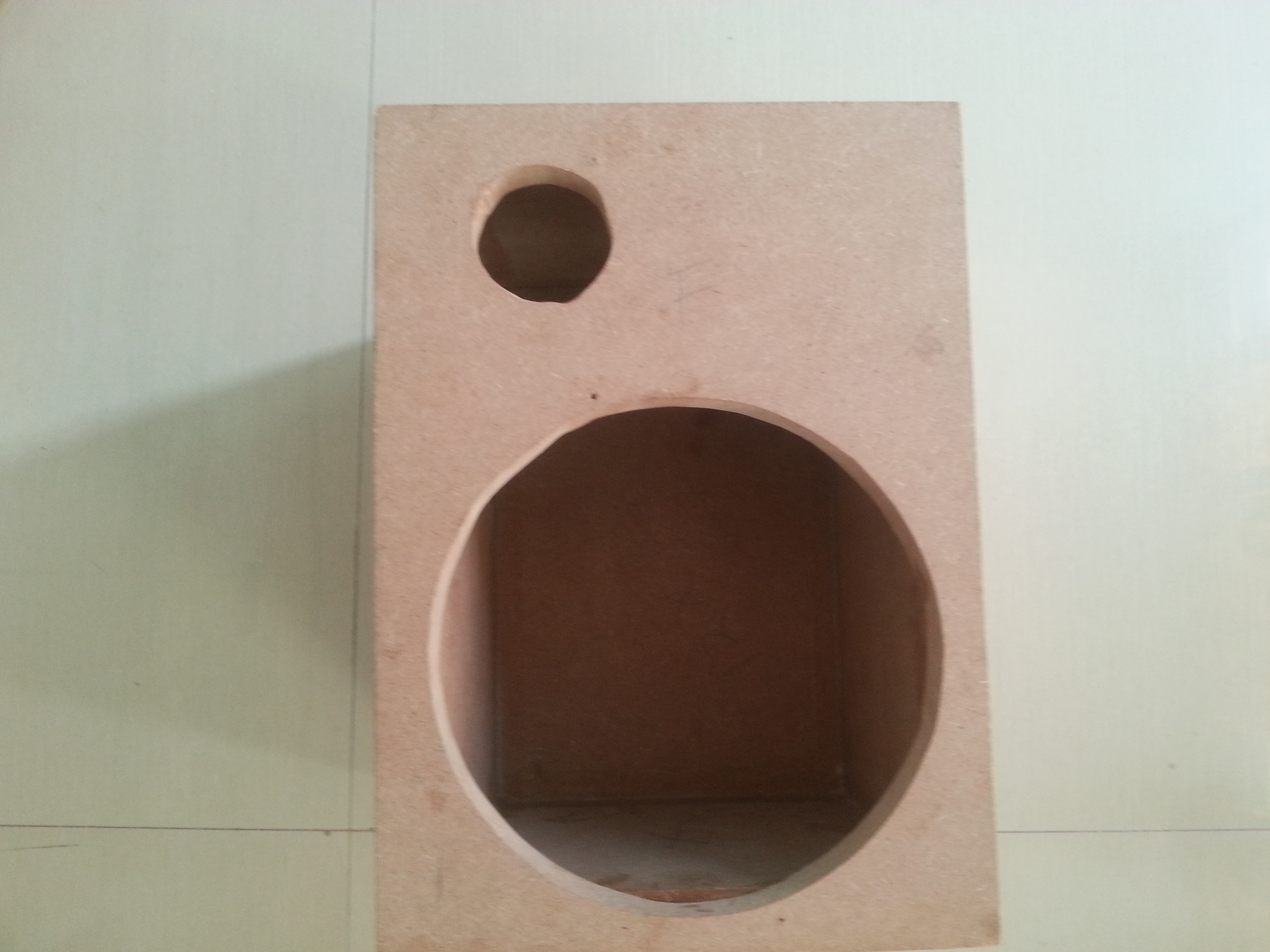

Make Box

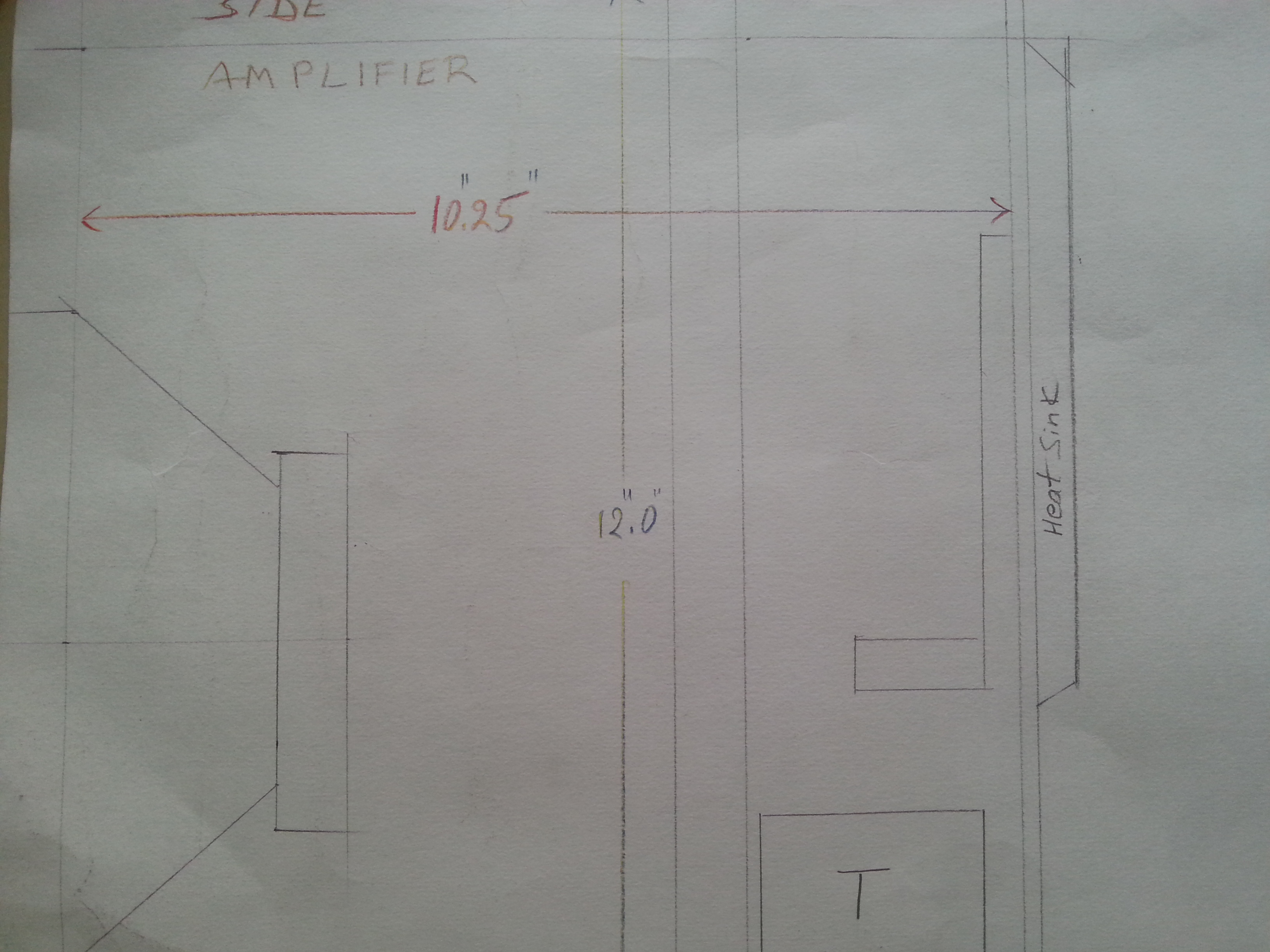

Make box to hold amplifier circuit board , transformer and another box without amplifier and transformer.

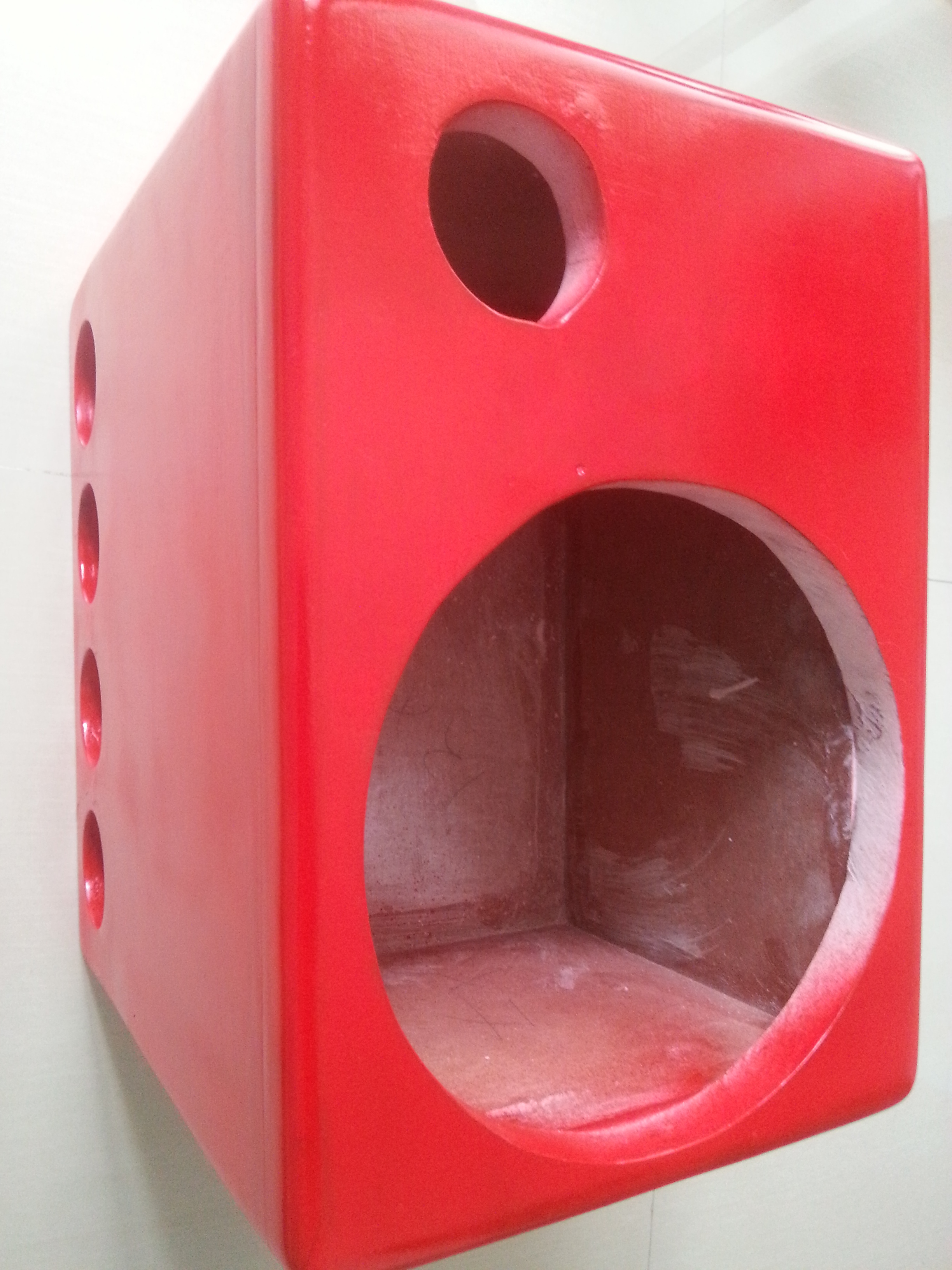

Paint the Box
Rub the box with 220 sand paper to smooth the surface and apply spray paint of your choice,

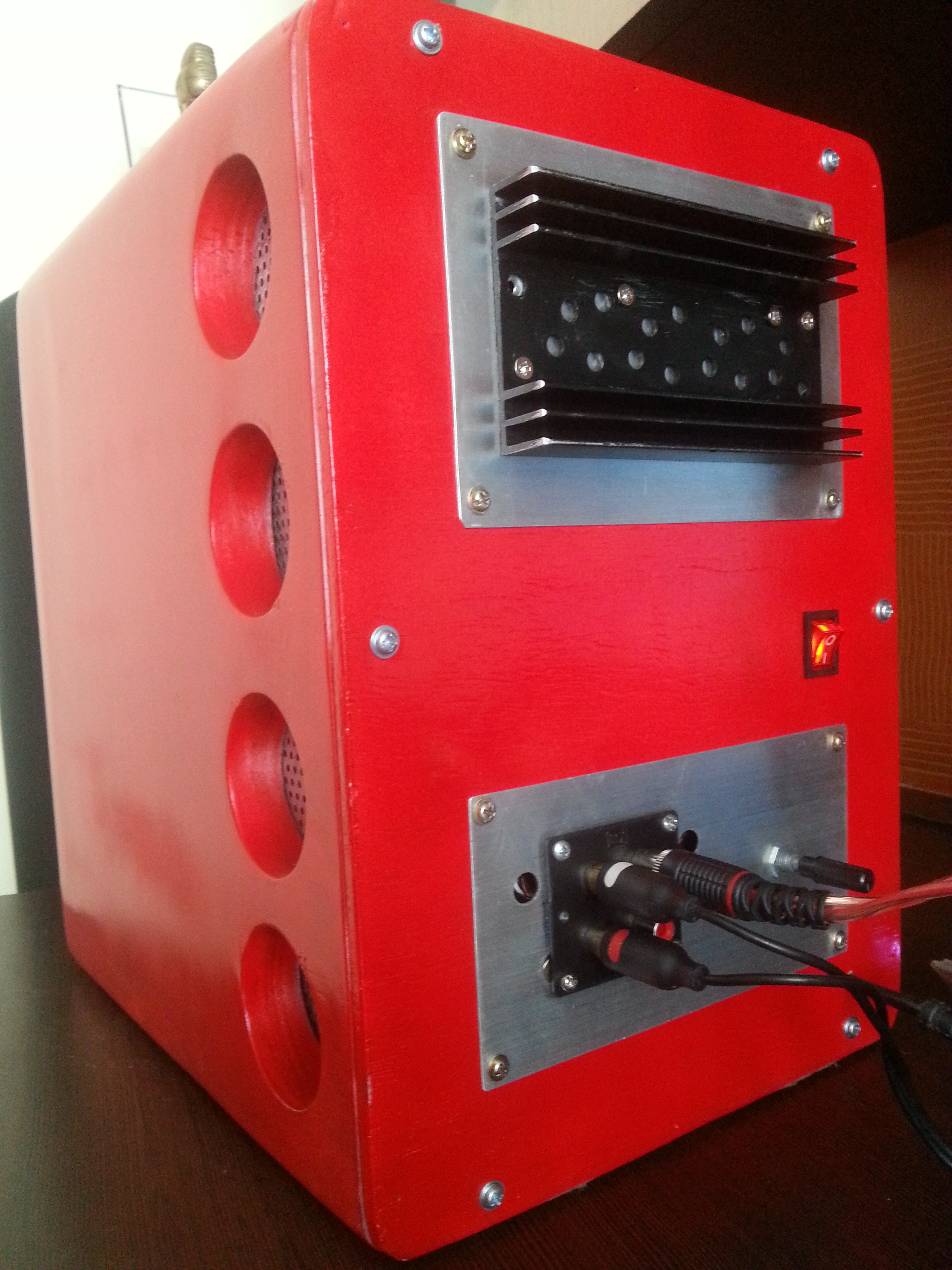

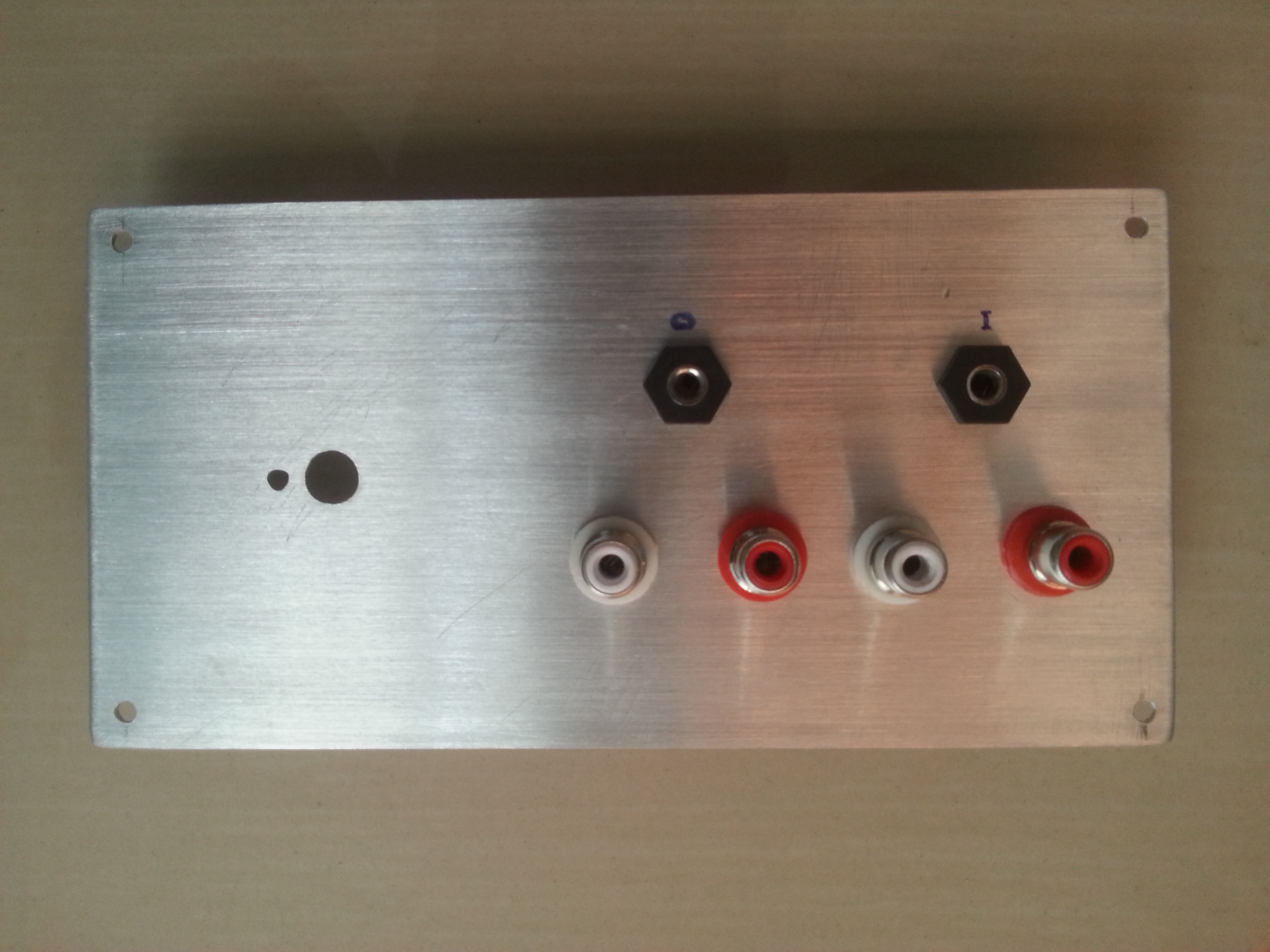

Mechanical Part Assembly
Using aluminum sheet, make appropriate hole to hold volume control pot, RCA sockets, heat sink and fix it with screw or nut bolts.
Inside Mechanical Parts
Make correct connections for RCA sockets from the amplifier board.
Fix Transformer
In the bog box fix the transformer with screws and connect main power cable and power to amplifier.
Fix Speakers
Connect woofer and tweeter with network divider board from output of amplifier.
Creating Logo
This is my logo Sp, you create your logo with the same aluminum sheet used for RCA sockets

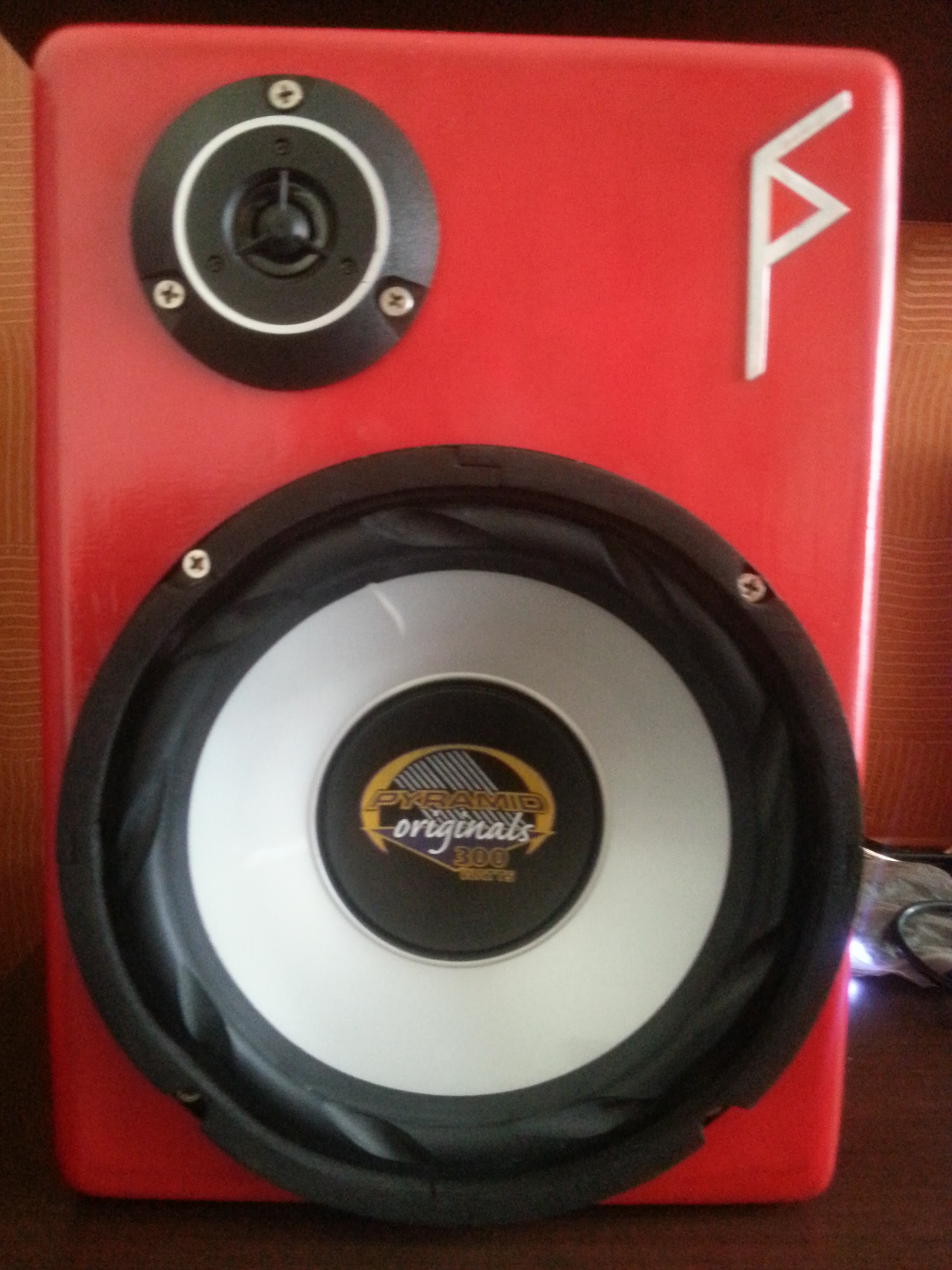

Enjoy Powered Speakers
Your final speaker is ready.
