Potato Battery Driven LED

So, if you looked at my profile you would see that I like physics. When the challenge for “Potatoes” I just knew that I need to do a project that highlighted the lowly “Potato Battery”. So here is how to make a Potato Battery and have it light an LED light.

Supplies:
Potatoes
Galvanized nails
Shinny copper pennies
Wires with alligator clips on each end (2+ per battery)
LED bulb
Multi meter
Knife
Cutting board

A battery is a way to store electrical energy. For a battery to work it needs to have 3 things, two electrodes (metals, one + and one -) and electrolytes (minerals). The batteries we are going to make today uses the electrodes of copper (pennies, anodes, +) and zinc (galvanized nails, cathode, -) and the electrolyte of K (Potassium) that is found in potatoes.

Take a potato

and cut it in half. This will make 2 batteries. Potatoes are juicy, which is part of the reason they can be made into batteries.

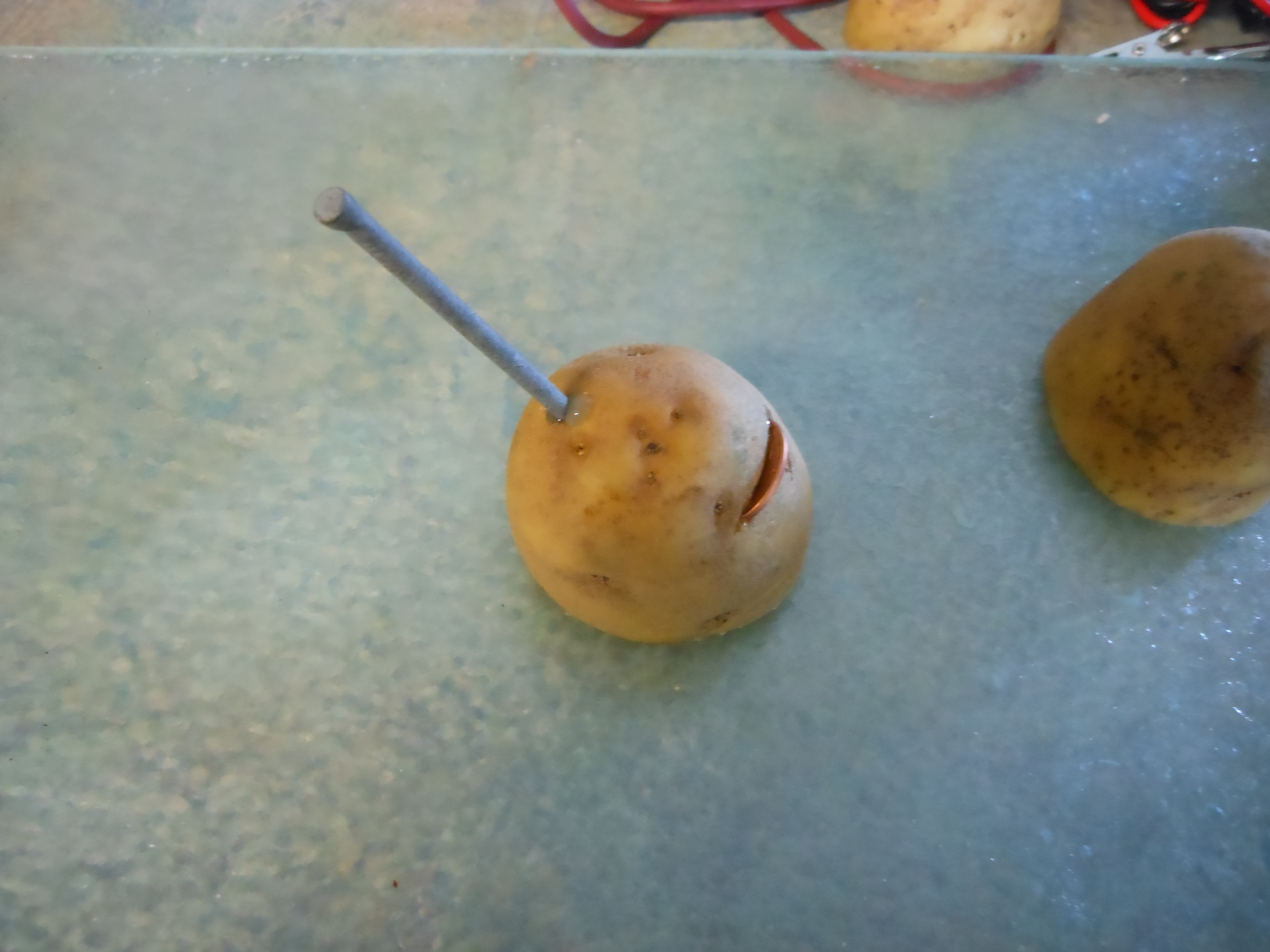

Take a knife and put a slit in the potato and slip the penny into the slit. Push as much of the penny into the slit as possible, you want just a little bit sticking out of the potato. Push the nail most of the way into the potato,(at this point I cut the nails in half, so that they weren't so tall). Do not let the electrodes touch, keeping them about 1 inch apart.

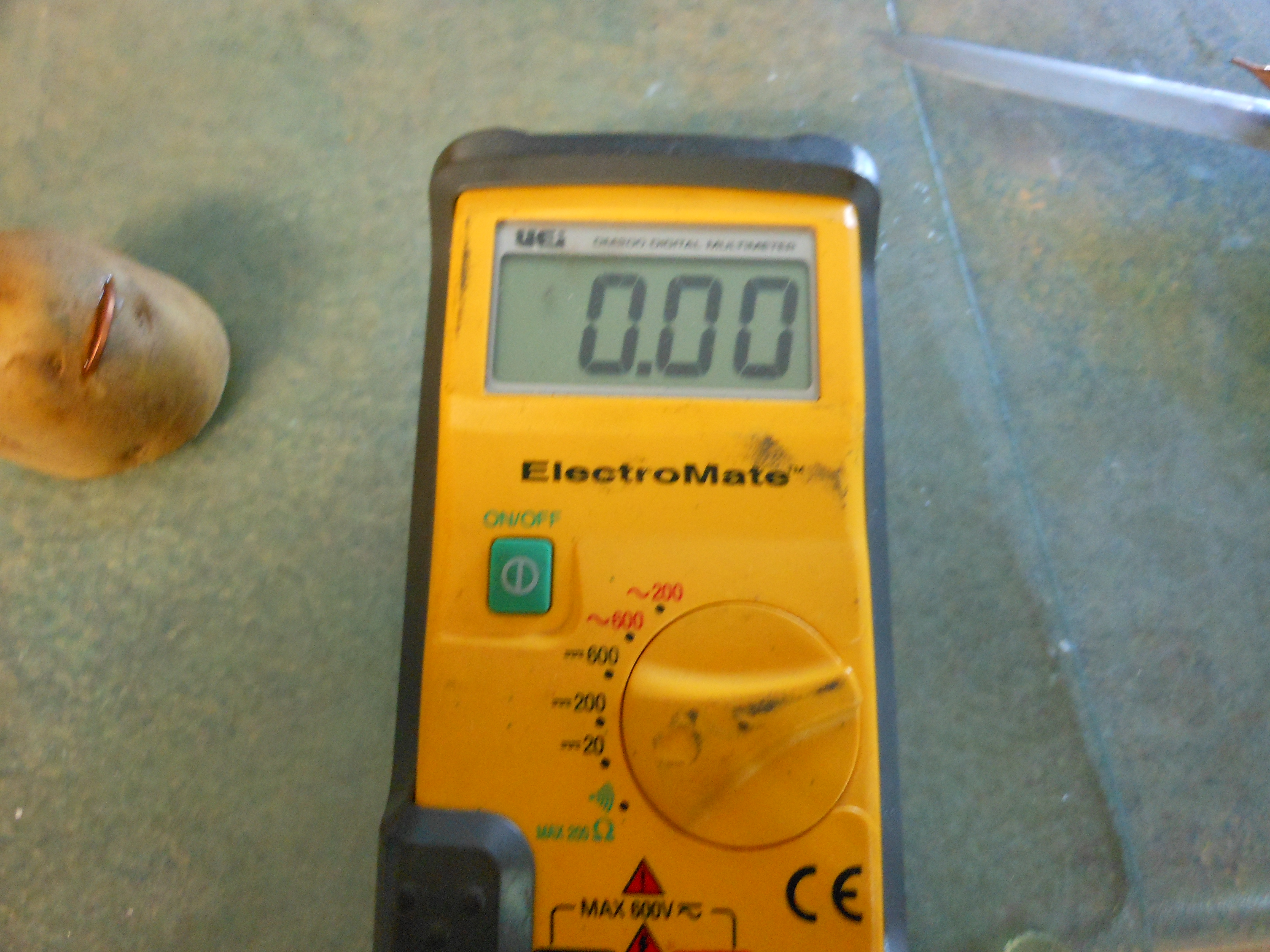

Turn on the Multimeter and put it at the lowest voltage reading. Make sure the red probe is in the + slot and the black probe is in the – slot.

Use the red line to touch the penny in the potato and the black line to touch the nail. You can read how much voltage you have available in this potato battery. It reads .85 volts, not bad but not enough to do anything fun.

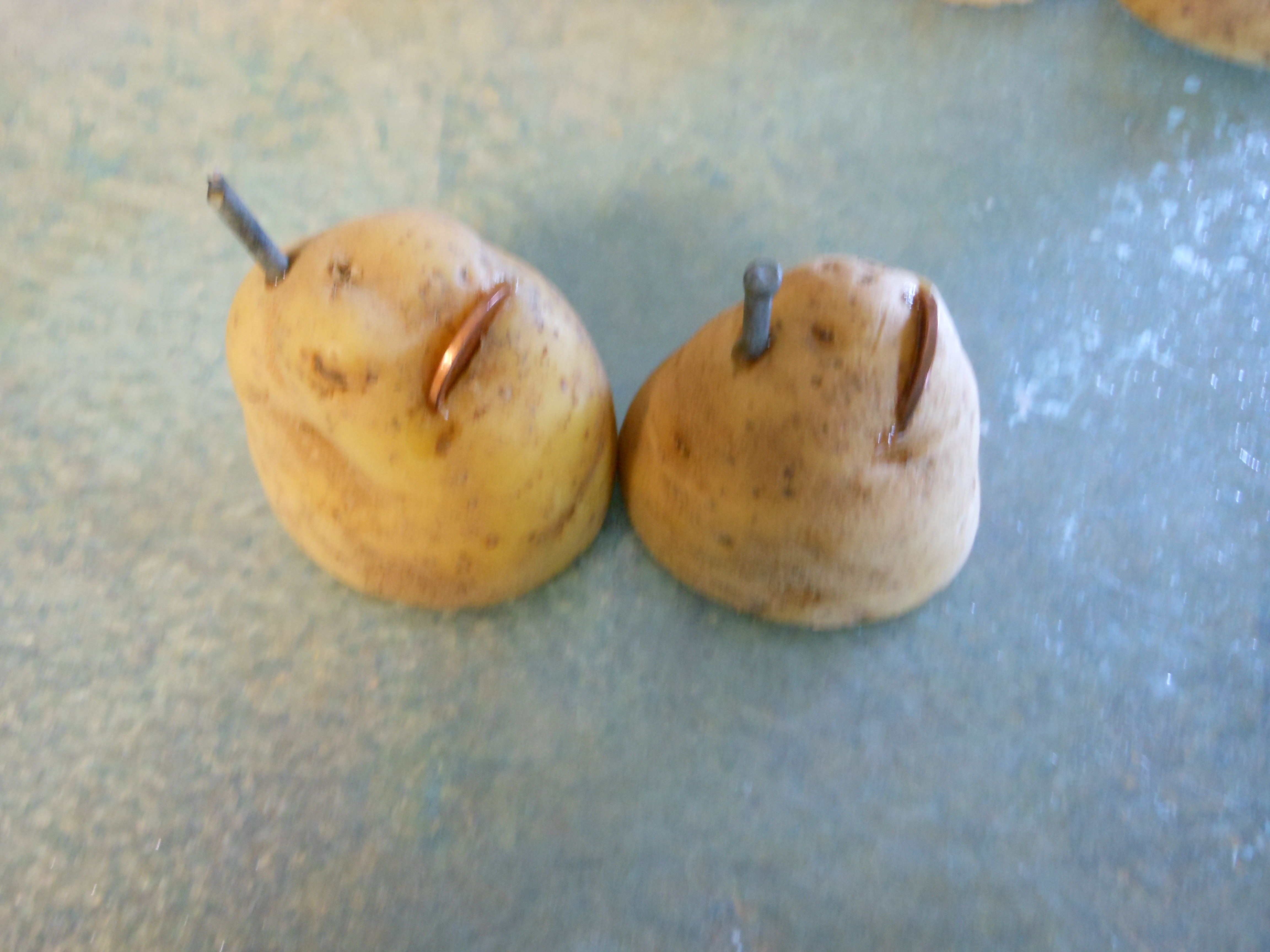

To increase the voltage, you will need to create more potato batteries and wire them in a series (that means to connect the + electrode of one battery to the – electrode of the next battery). So I created 3 more batteries from 3 more potato halves.

Then I used the alligator clips connected to wires and wired first 2 potatoes together,

this time the voltage read 1.69 volts.

Let's take a minute and look at the LED light. It has one long leg and one shorter leg. The longer leg is the anode (+) and the shorter leg is the cathode (-). I clipped the batteries to the LED light (+ to+ and - to-), no light, therefore, not enough voltage.

I wired all four batteries together in series, and found what the total voltage is of the 4 batteries was 2.38 volts and I again wired in the LED light, again no light.

Finally I wired six batteries in series and it had a 4.05volt reading.

This time the light lit up! Hurray! Potatoes can be used as batteries.

Have fun playing with your new batteries, maybe you would like to experiment with increasing current by wiring the potato batteries in parallel as well as series. Good luck and Enjoy!
