Ultrasonics Based Positioning System

All the versions of ultrasonic radars I have found for arduino devices (Arduino - Radar/Ultrasonic Detector, Arduino Ultrasonic Radar Project) are very nice radars but all of them are "blind". I mean, the radar detects something but what is it detecting?

So I propose myself to develope a system able to detects objets and identyfy them. In other words a positioning system without using GPS devices but ultrasonic detectors.

This is the result I hope you like.

The positioning systems is formed by three sensors stations with ultrasonic detectors and id_node 1,2 and 3 forming a rectangle or square that sweep an angle of 90º and where the distances between them are known as shown on picture 1.

const float distancebetween1and2 = 60.0;
const float distancebetween2and3 = 75.0;

These sensors measurement the distance and angle of other objects with id_node greater than 3 that also have an ultrasonic detector that sweeps an angle of 170°.

All of them send the distances, angles measured and the id_node to another master station using wireless communicactions to analyze, calculate the position of the objects using trigonometry calculation and identify them.

To avoid interferences the master station synchronizes all the ultrasonics detectors in that way that only one ultrasonic detector is measuring at each moment

After that and using a serial communication the master station sends the information (angle, distance, id_object) to a processing sketch to plot the results.

The only function of each sensor station is to detect objects and send the list of distance, angle and id node measured to the master station.

So you have to update the maximum detection distance (“valid_max_distance “) allowed and the minimum one (“valid_min_distance “) (centimetres) to improve the detection and to limit the detection zone:

int valid_max_distance = 80;
int valid_min_distance = 1;

The id node of these sensor stations (“this_node” in the code below) are 1, 2 and 3 and the id node of the master station is 0.

const uint16_t this_node = 01;  // Address of our node in Octal format (Node01,Node02, Node03)
const uint16_t other_node = 00; //Address of the master node (Node00) in Octal format

Each sensor station sweeps and angle of 100º (“max_angle” in the code below)

#define min_angle 0
#define max_angle 100

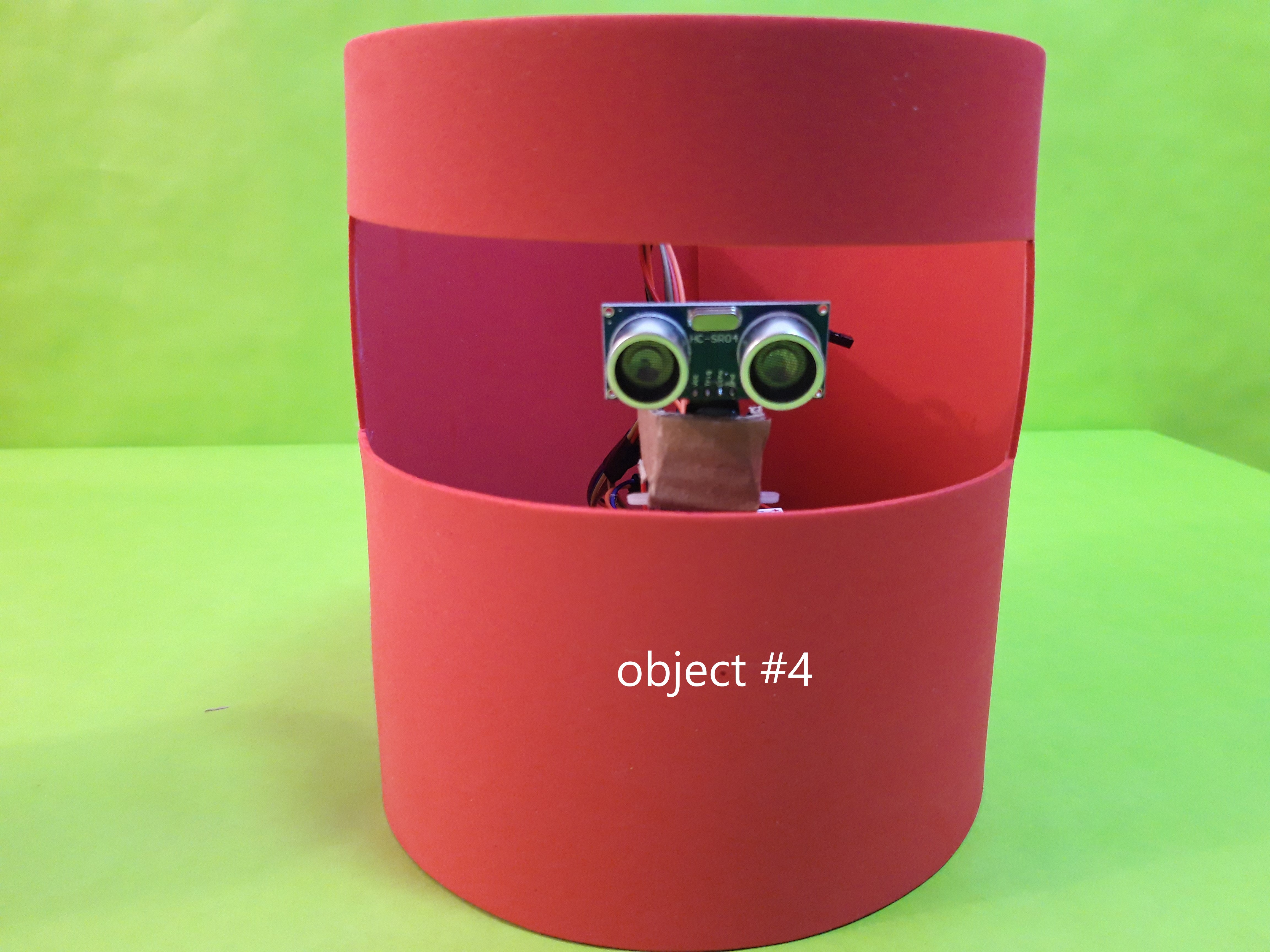

As above the only function of an object is to detect objects and send the list of distances, angles and id object measured to the master station. The id of one object (“this_node” in the code below) has to be greater than 3.

Each object sweeps and angle of 170º and as above, it is possible to update the maximum and minimum detection distance.

const uint16_t this_node = 04;        // Address of our node in Octal format (Node04,Node05, ...)
const uint16_t other_node = 00;       // Address of the master node (Node00) in Octal format
int valid_max_distance = 80;
int valid_min_distance = 1;
#define min_angle 0
#define max_angle 170

The function of the master station is to receive the transmissions of the sensor stations and the objects and send the results using the serial port to a processing sketch to plot them. Moreover synchronizes all the objects and the three sensor stations in that way that only one of them is measuring at each time to avoid interferences.

Firstable you have to update the distance (centimetres) between sensor 1 and 2 and the distance between 2 and 3.

const float distancebetween1and2 = 60.0;
const float distancebetween2and3 = 70.0;

The sketch calculates the position of the objects in the following way:

• For all the transmissions of the objects (id_node greater than 3) look for the same distance in each transmission of the ultrasonic sensors (id_node 1, 2 or 3).
• All these points form a list of “candidates” (distance, angle, id_node) to be the position of one object (“process_pointobject_with_pointssensor” in the sketch).
• For each “candidate” of the previous list, the function “candidate_selected_between_sensor2and3” calculates from the point of view of the ultrasonic sensor 2 and 3 which of them match the following trigonometry condition (see the pictures 2 and 3)

float distancefroms2 = sin(radians(angle)) * distance;
float distancefroms3 = cos(radians(angle_candidate)) * distance_candidate;

// Trigonometry condition 1
abs(distancefroms2 + distancefroms3 - distancebetween2and3) <= float(max_diference_distance)

• As above, for each "candidate" of the previous list, the function “candidate_selected_between_sensor1and2” calculates from the point of view of the ultrasonic sensor 1 and 2 which of them match the following trigonometry relation (see the picture 2 and 3)

float distancefroms1 = sin(radians(angle)) * distance;<br>float distancefroms2 = cos(radians(angle_candidate)) * distance_candidate;

// Trigonometry condition 2
abs(distancefroms1 + distancefroms2 - distancebetween1and2) <= float(max_diference_distance)

Only the candidates (distance, angle, id_node) that matches the trigonometry conditions 1 and 2 are identified objects detected by the sensor stations 1,2 and 3.

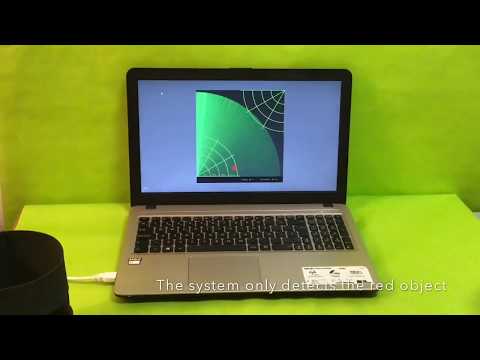

After that the results are sending by the master station to a processing sketch to plot them.

The list of material needed for one sensor station or one object is the following:

• Nano board
• Ultrasonic sensor
• Micro servo motor
• NRF24L01 wireless module
• NRF24L01 adapter

and the list of material for the master station is the following:

• Nano board
• NRF24L01 wireless module
• NRF24L01 adapter
