Portable Capacitor Charger With Detachable Capacitor!

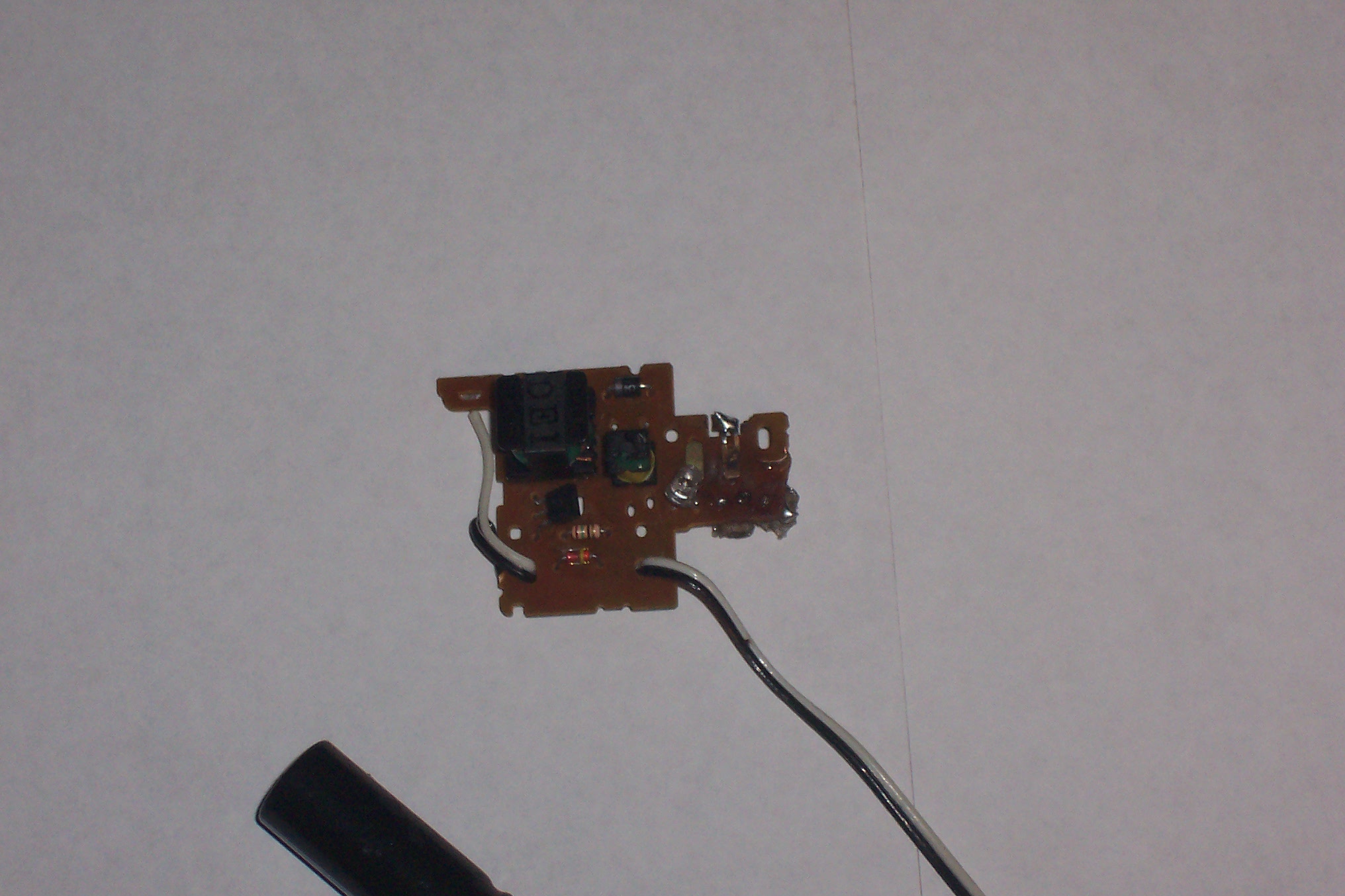

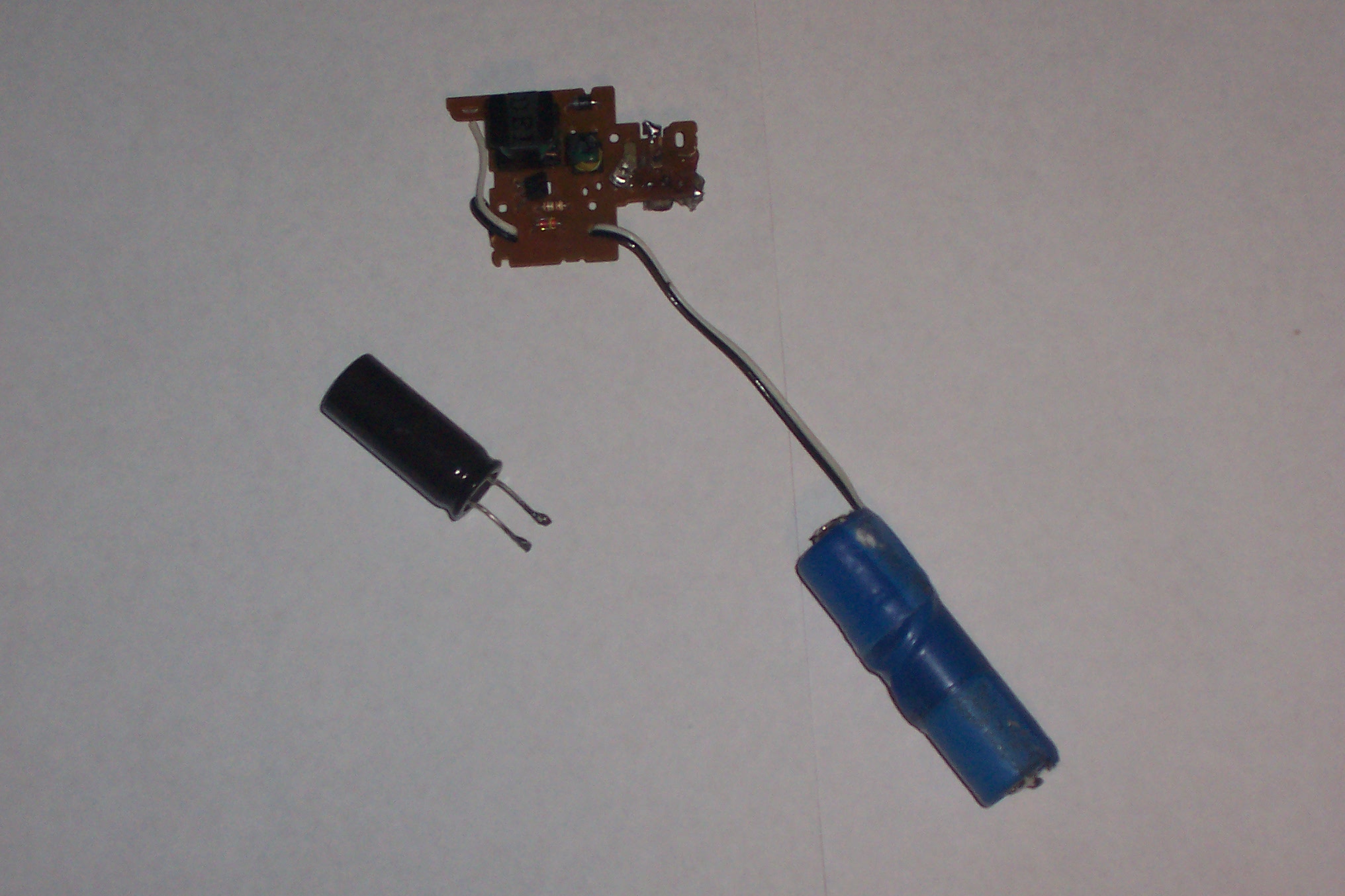

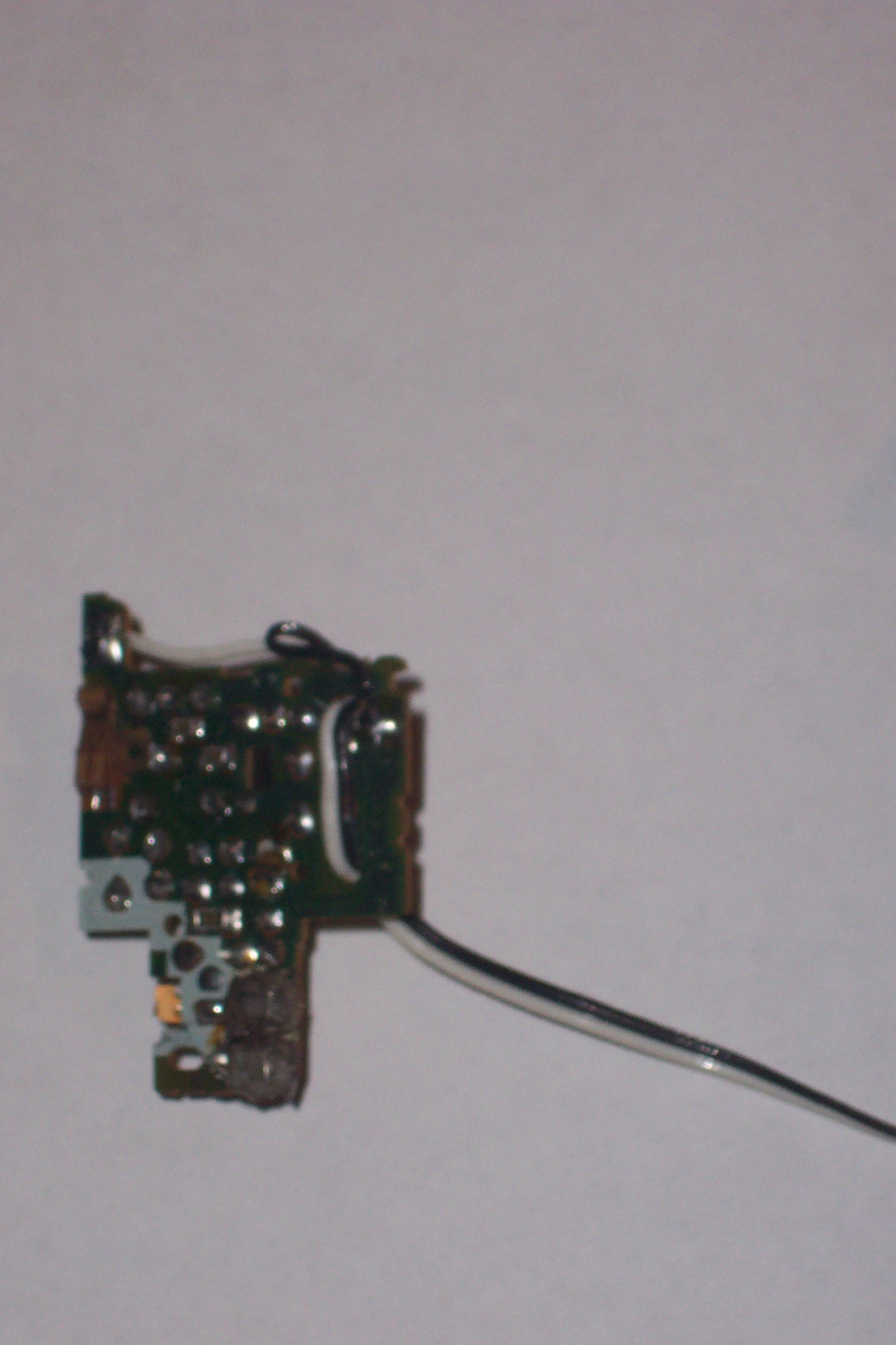

This is my camera cap charger circuit (the wire goes through the board for wire stress relief) connected to a AA battery (the blue tape is for wire stress relief).
The unique (probably) part of this project is that I used two small magnets from a computer hard drive to make the capacitor detachable.
Remember to comment and rate, Thanks!
BTW Sorry I couldn't get more pics, I was fighting with the camera, it eats those puny AA batteries in minutes
