🌌Build your own Portable Allsky Timelapse Camera

Inspired by the Thomas Jacquin Allsky concept, Allsky Go is the latest innovation in all-sky camera technology— engineered for seamless use both off-grid and at home. With smart features, sleek portability, and robust casing, this camera is built to capture the night sky wherever your curiosity takes you.

🌌 Allsky Go! - Pursuit of Dark Skies

Whether you are camping under remote starlit skies, exploring new destinations, or gazing from your own backyard, Allsky Go! is your cosmic companion—ready to reveal the magic of the night wherever you roam. Discover the stars like never before with a compact, smart, and rugged system built for travel and exploration.

Your Portal to the Night Sky

1. 🏕 Camping Expeditions
2. 🌩 Storm Chasing Adventures
3. ✈️ Plane Spotting Missions
4. 🌠 Dark-Sky Photography
5. 🏡 Backyard Observatories

🌌Powerbank

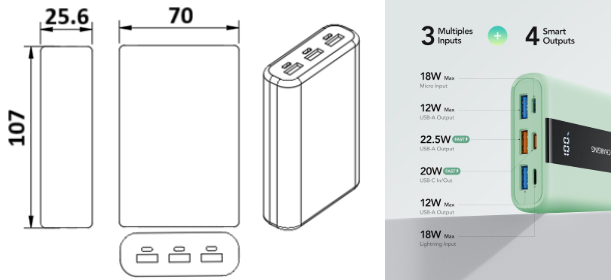

Solution built around VRURC 22.5W Powerbank 20.000mah to give 12hours of Autonomy.

Available in EU and N.America for around $30 (Amazon.it | Amazon.co.uk | Amazon.com )

Bill of Material

3D Printed Parts (Link)

1. Dome Assembly (PI HQ or ZWO)
2. Seals and Gaskets (TPU)
3. Tub with Handle
4. Base
5. Upper Pi Cradle
6. Lower Pi Cradle
7. Ethernet Screw Cap & Seal (TPU)
8. Feet (x4)
9. Dome Travel Cover

Raspberry & Camera

1. Raspberry Pi5 - Amazon / Reichelt (DE)
2. Active Cooling Module - Amazon / Reichelt (DE)
3. Pi HQ Camera Module - Amazon / Reichelt
4. Pi5 Camera Cable (Different to Pi4) - Amazon
5. CS Lens 2.5 - 2.8mm / 150-180 degree FoV - AliExpress
6. MicroSD Card

Electronics

1. Power Bank 20.000mah - Amazon (VRURC Mini Power bank)
2. GPS Module (GT-U7) - Amazon
3. Piezoelectric BIOS Speaker - Amazon
4. Momentary Push Button (M12 Thread, Stainless, 3v-5v) x 2 - Amazon
5. Power Button (M16 Thread, Stainless, 3v-5v) - Amazon
6. Humidity Sensor (SHT31) (Optional) - Amazon
7. 100ohm Resistors Metal Oxide Film (Optional) - Amazon
8. RTC Battery Pack - Amazon

Non-Printed Parts

1. JMX 3.5Inch Dome - Amazon
2. USBC-USBC Passthrough - Amazon
3. RJ45-RJ45 Passthrough - Amazon
4. USBC-USBC Cable with 90degree connector - Amazon
5. 3.5mm Jack Port - Amazon
6. Misc M2 and M3 Screws
7. USB Cables (15-30cm)
8. Charge (USB-C to USB-C 90˚)
9. Power (USB-A to USB-C 90˚)
10. GPS (USB_A to Micro-USB)

All 3D Printed Components for Allsky Go available for Download from the Printables.com Store

https://www.printables.com/model/1334022

Check out the detailed assembly instructions attached
