Pool Float Storage Rack
![IMG_2086.jpg](/proxy/?url=https://content.instructables.com/FHX/T1FJ/J44FZZ1E/FHXT1FJJ44FZZ1E.jpg&filename=IMG_2086.jpg)
![IMG_2071.jpg](/proxy/?url=https://content.instructables.com/FEP/EKPG/J44FO573/FEPEKPGJ44FO573.jpg&filename=IMG_2071.jpg)
![IMG_2074.jpg](/proxy/?url=https://content.instructables.com/FU1/0DL4/J44FO5BD/FU10DL4J44FO5BD.jpg&filename=IMG_2074.jpg)
![IMG_2075.jpg](/proxy/?url=https://content.instructables.com/FT1/BFF2/J44FO5CW/FT1BFF2J44FO5CW.jpg&filename=IMG_2075.jpg)
In the summer, the pool can be a great place to relax with family and friends to cool off. A few floats can make the experience even more enjoyable. However, many people don't have a good way of storing their floats when they're not in use. I'll show you how to build a storage structure that will hold up to 6-7 floats, depending on how large the floats are.
PS: This is my first intractable, so hopefully its up to par! Let me know if there is anything I should improve on for next time.
To get started, there are a few materials that you'll have to pick up. Any type of wood will work, I went with a simple 2x4, four dowel rods that were fairly thick, and some scrap wood I had lying around to make a connection in between the two main supports. You'll also need some long screws, I went with 2.5".
Cutting and Sanding the Wood
![IMG_2072.jpg](/proxy/?url=https://content.instructables.com/F3Z/VQQM/J44FO591/F3ZVQQMJ44FO591.jpg&filename=IMG_2072.jpg)
![IMG_2073.jpg](/proxy/?url=https://content.instructables.com/F7S/SANJ/J44FO59S/F7SSANJJ44FO59S.jpg&filename=IMG_2073.jpg)
The first thing I did was to take the 2x4 and cut it in half (each board being 4ft. long) to create two base structures. I then sanded the boards down using 220 grit sandpaper to smooth out any rough edges or bumps.
I would also need something to connect the two boards together. I cut two pieces of scrap wood I had lying around down to 16", but this could be adjusted depending on how many floats you wanted to fit/how much space is available. These strips were also sanded using 220 grit sandpaper.
Connecting the Support Boards
![IMG_2077.jpg](/proxy/?url=https://content.instructables.com/FC1/4DT6/J44FO5EH/FC14DT6J44FO5EH.jpg&filename=IMG_2077.jpg)
![IMG_2078.jpg](/proxy/?url=https://content.instructables.com/FED/270H/J44FO5IV/FED270HJ44FO5IV.jpg&filename=IMG_2078.jpg)
Now, I decided to create the base support. To do this, I took the small strips of wood and placed it 1" inside the edge of the 2x4. I made sure to make these square, and I screwed the strip wood into the 2x4 using the 2.5" screws. (I would recommend getting some shorter screws since the 2.5" poked through a little on the opposite side, but I was able to file down the point.) I repeated the process on all the other corners, and the base structure was assembled.
Creating the Insert for the Dowel Rod
![IMG_2079.jpg](/proxy/?url=https://content.instructables.com/F04/95S5/J44FO5JC/F0495S5J44FO5JC.jpg&filename=IMG_2079.jpg)
![IMG_2080.jpg](/proxy/?url=https://content.instructables.com/FFI/VUN0/J44FO5KV/FFIVUN0J44FO5KV.jpg&filename=IMG_2080.jpg)
Flipping the boards over, I measured to the center of the width of the 2x4 (1.75"), and 5" down the length to determine where I should bore into the wood. Using a 1" boring bit, I bored a hole about halfway through the board, making sure to keep the same depth on all four corners.
I tested to make sure that the the rods fit snug into the hole, and seeing that they fit well, I moved on.
Securing the Dowel Rod
![IMG_2081.jpg](/proxy/?url=https://content.instructables.com/FKS/BBSL/J44FO5P2/FKSBBSLJ44FO5P2.jpg&filename=IMG_2081.jpg)
![IMG_2082.jpg](/proxy/?url=https://content.instructables.com/FB7/VXSH/J44FO5P4/FB7VXSHJ44FO5P4.jpg&filename=IMG_2082.jpg)
![IMG_2083.jpg](/proxy/?url=https://content.instructables.com/FE3/GSW9/J44FO5QG/FE3GSW9J44FO5QG.jpg&filename=IMG_2083.jpg)

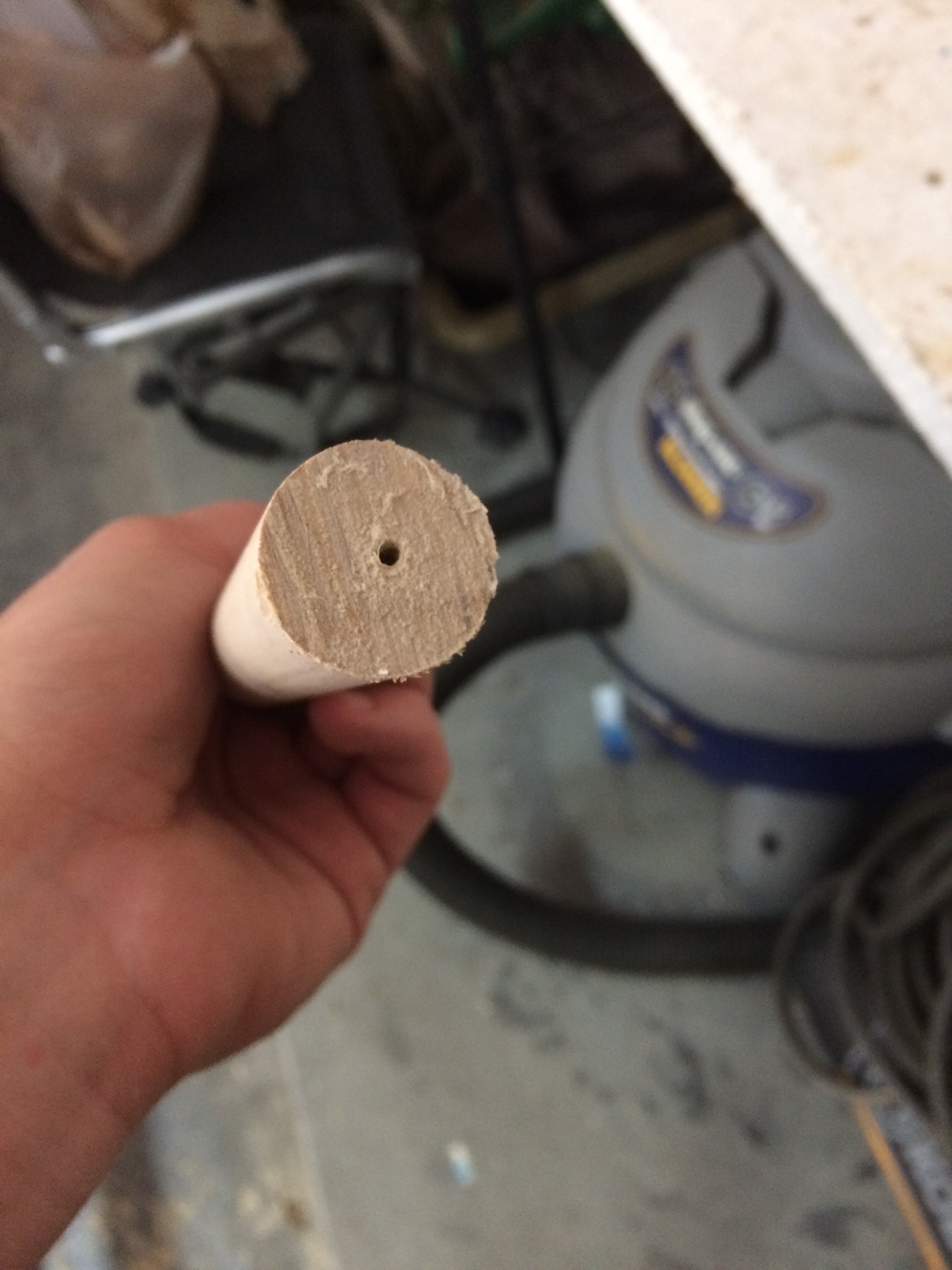

Once again flipping the structure over, I measured where I should drill a pilot hole into the bottom of the 2x4 using the measurements taken form boring into the wood. I also drilled a pilot hole into the bottom of the dowel rod to make sure that nothing would split.
After drilling the pilot holes, I inserted the dowel rods into the bored out holes, and using the 2.5" screws, secured the rods to the base structure. I repeated this on all of the corners.
Stain and Seal
![IMG_2084.jpg](/proxy/?url=https://content.instructables.com/FY4/VLA2/J44FO5RO/FY4VLA2J44FO5RO.jpg&filename=IMG_2084.jpg)
![IMG_2085.jpg](/proxy/?url=https://content.instructables.com/FC2/860N/J44FO5SH/FC2860NJ44FO5SH.jpg&filename=IMG_2085.jpg)

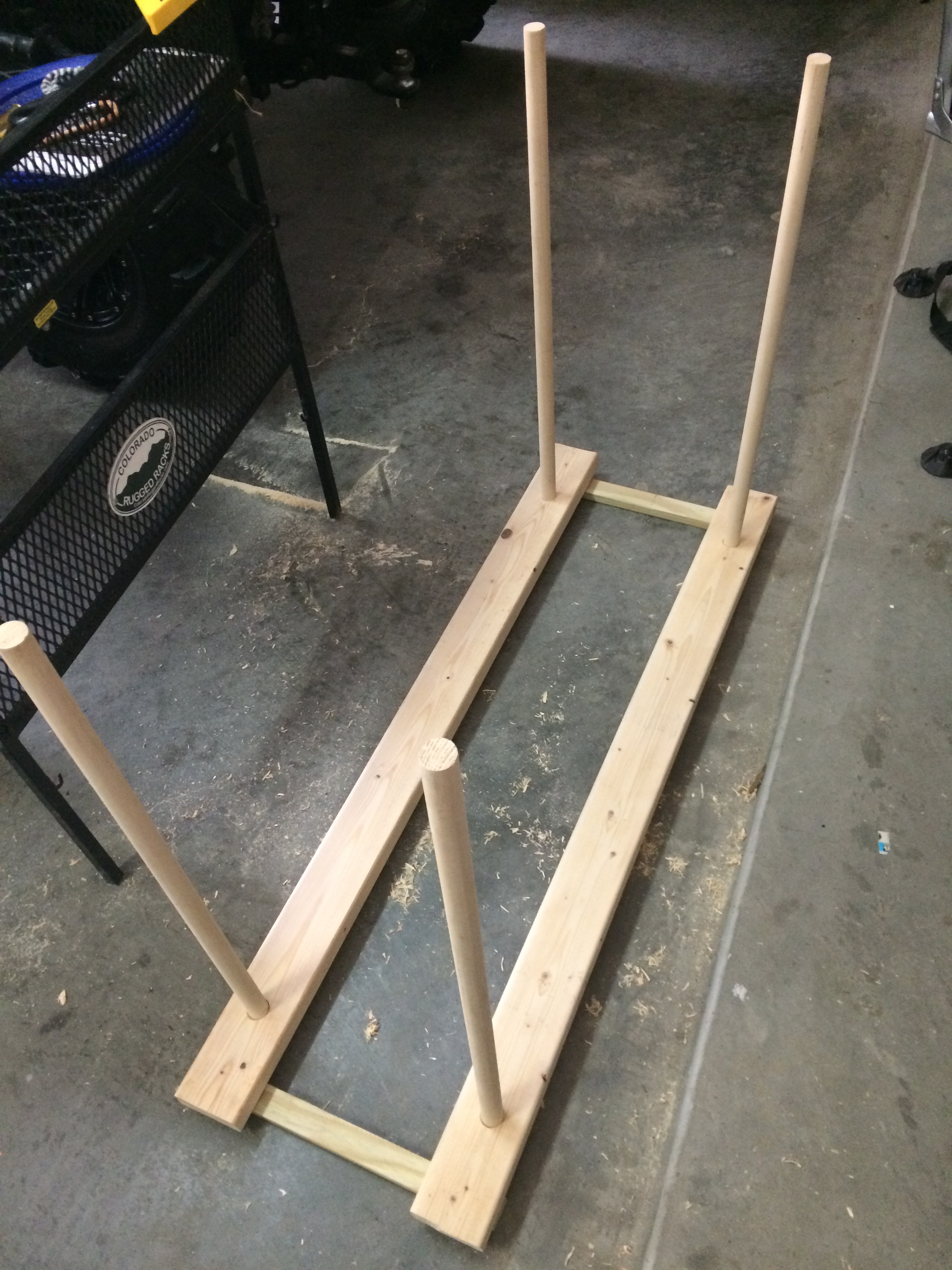

After screwing in the dowel rods, the structure is complete, and could be considered finished now. However, I would recommend using a stain and sealant to prevent any warping or damage from the sun or water. I used Minwax, but any stain would work.
Final Product
![IMG_2086.jpg](/proxy/?url=https://content.instructables.com/FHX/T1FJ/J44FZZ1E/FHXT1FJJ44FZZ1E.jpg&filename=IMG_2086.jpg)
![IMG_2087.jpg](/proxy/?url=https://content.instructables.com/FNR/D3WG/J44FZZ1K/FNRD3WGJ44FZZ1K.jpg&filename=IMG_2087.jpg)
![IMG_2088.jpg](/proxy/?url=https://content.instructables.com/FTI/JUK6/J44FZZ18/FTIJUK6J44FZZ18.jpg&filename=IMG_2088.jpg)
![IMG_2089.jpg](/proxy/?url=https://content.instructables.com/FW6/TRRW/J44FZZ1D/FW6TRRWJ44FZZ1D.jpg&filename=IMG_2089.jpg)

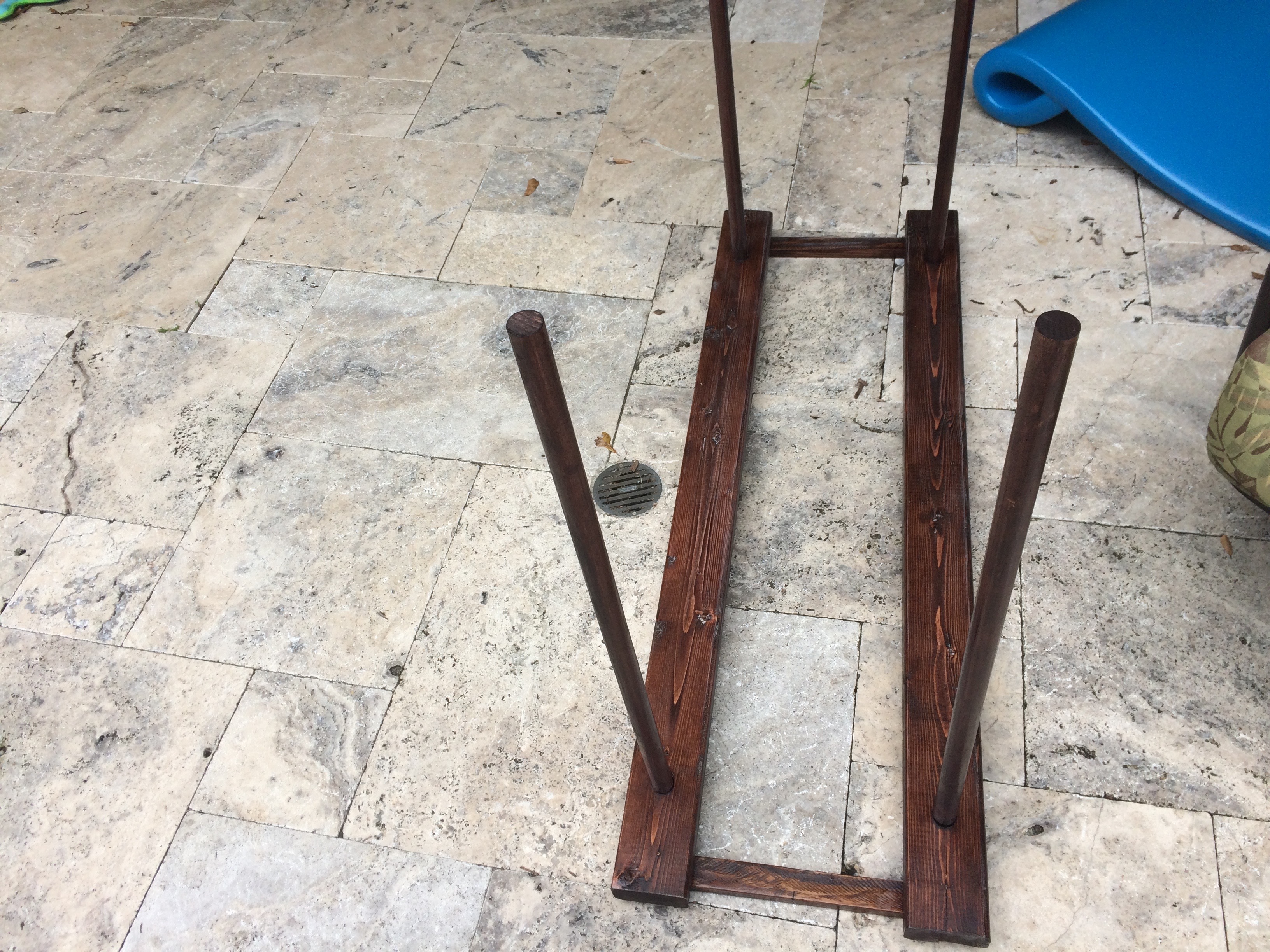

After staining and sealing, the storage rack is complete! Mine was able to comfortably fit a large chair raft and a normal lay-down float with some room to add some more
Thanks for checking out the project!
Cheers,
-Matt
